USER MANUAL AA 400-01 ZEHNDER

Diagram of a mechanical device with rotating arms and directional arrows indicating motion (no text or symbols)

Diagram of a wireless router with two blades radiating outward, no text or symbols present

● Receiving terrestrial TV- and Radio channels (Analog, DVB-T, DAB)
● Amplifier Boosts Hard To Get VHF/UHF And FM Signa;
● 40dB continuously adjustable gain
● Antenna Orientation Continuously Adjustable
● 12V input for mobile use

CONTENT

• Antenna AA 400 with 1,8m coaxial cable
  ■ Power Adaptor 230V, 50Hz, AC

SPECIFICATIONS

• Frequency range: FM 88-108 MHz
VHF 47-230 MHz, channel 02 \~ 12
UHF 470-860 MHz, channel 21 \~ 69

• Gain control range/gain: 40dB/±20dB

- Noise figure: 4dB

• Power supply: AC \~ 230V/50Hz;

DC=12V/250mA

• Power consumption: < 1 Watt

- Connections: 1,8m coaxial cable with 75Ω IEC plug

- Dimensions (HWD) 7.3" X 9" x 6.3"

Specifications are typical; individual units might vary. Subject to change without notice.

The Basic connection

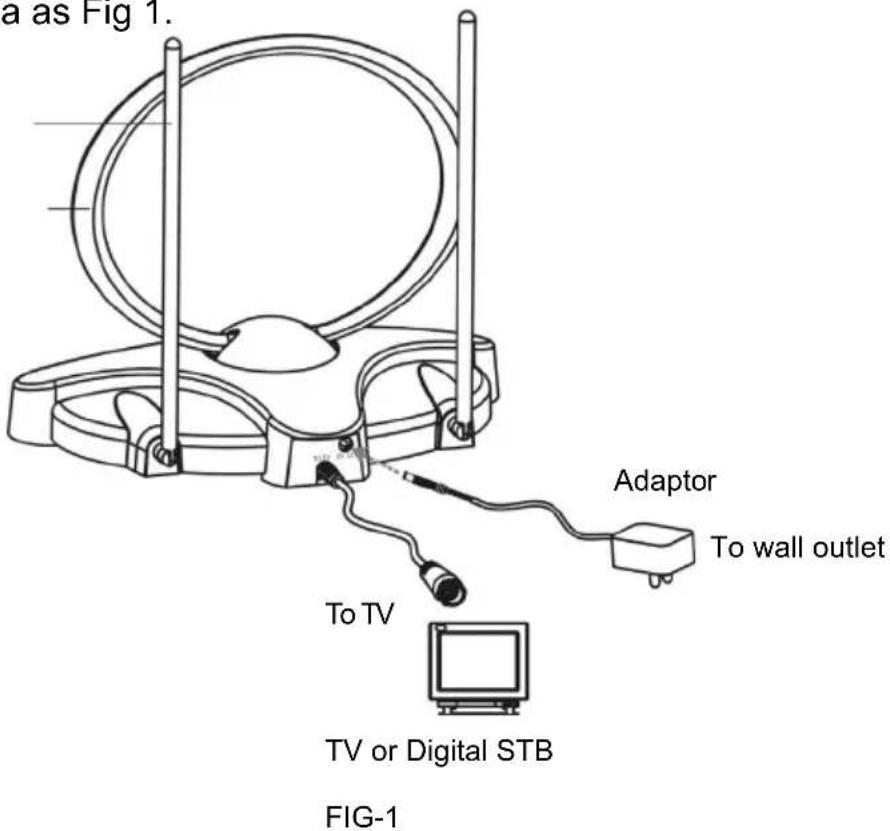

Install the antenna as Fig 1.

34" Retractable VHF Dipole

Rotary UHF Loop

FIG 2

After all the connections, and make sure the power is on. You can adjust the antenna for best reception

Adjust the Antenna

In order to get the easy way to get the signal, please turn the gain control knob to maximum position as FIG 2. Then adjust again and again the antenna's position, orientation and length as FIG 3. For instance, you can rotate or tilt the UHF receiving loop, draw and withdraw and tilt the VHF dipoles. Then adjust the gain control knob to get the best picture in your TV.

Diagram of a mechanical device with rotating arms and directional arrows indicating motion (no text or symbols)

FIG 3: VHF/FM Adjustable Reception

Diagram of a wireless router with two blades radiating outward, no text or symbols present

FIG 4: UHF Adjustable Reception

● Appliance shall only be used with rate voltage and frequency.
- Only for indoor use, or do not expose to rain.
● The appliance shall not be exposed to dripping or splashing. Keep the antenna dry if it gets wet, dry immediately
- No naked flame sources, such as lighted candles, should be placed on the appliance.
- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacture or its service agent.
- A periodically maintenance of the appliance is necessary. Don't use or stop the use if the appliance is damaged, especially the supply cord and the case.
Children don't recognize the risks of electrical appliances. Therefore, use or keep the appliance out of the reach from children.
- Don't open, no user serviceable part inside.
- If the appliance is not used. Please unplug.
● Use and store the antenna only in normal temperature environments
- Handle the antenna gently and carefully. "DO NOT DROP"
● Wipe the antenna with a damp cloth occasionally to keep it looking new

Disposal

Electronic equipment is not household waste. In accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 27th January 2003 on used electrical and electronic equipment, it must be disposed of properly.

„At the end of its service life, take this unit for disposal at the designated public collection points."
