Product Type	Canister Vacuum Cleaner
Model	VCEA21GPLRCY
Brand	Gorenje
Dimensions (L x W x H)	430 x 280 x 260 mm
Net Weight	5.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	1200 W
Suction Power	400 AW
Dust Capacity	2.0 L (bagless)
Filtration System	HEPA 13 washable filter
Cord Length	6.0 m
Operating Radius	9.0 m
Noise Level	78 dB(A)
Suction Control	Electronic slider on handle
Floor Nozzle	Combination parquet/carpet
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Maintenance	Washable dust tank and filter
Overheat Protection	Automatic shut-off
Repairability Index	8.0 / 10
Warranty	2 years

Frequently Asked Questions - VCEA21GPLRCY GORENJE

How do I empty the dust container?

Press the release button on the dust container and lift it out. Hold it over a trash bin, press the bottom release to open the flap, and empty the contents. Rinse the container with water if needed and let it dry completely before reassembling.

Can I wash the HEPA filter?

Yes, the HEPA filter is washable. Remove it from the vacuum, rinse under lukewarm running water until the water runs clear. Let it air dry for at least 24 hours before reinstalling. Do not use detergent or dry in a dryer.

What should I do if suction power decreases?

Check if the dust container is full or the filter is clogged. Empty the container and clean the filter. Also inspect the hose and nozzle for blockages. If the issue persists, check for a full bag (if bagged) or damaged seals.

How do I change the motor protection filter?

The motor protection filter is located behind the dust container. Remove the container, take out the old filter, insert a new one, and reassemble. Some models require periodic replacement every 3-6 months.

Is the vacuum suitable for pet hair?

Yes, the VCEA21GPLRCY is designed to pick up pet hair from carpets and upholstery. The combination nozzle and strong suction help remove embedded hair. Regular filter cleaning is recommended for optimal performance.

Why does the vacuum overheat and shut off?

Overheating can occur if the filters are clogged, the dust container is full, or the hose is blocked. Turn off the vacuum and unplug it. Let it cool for at least 30 minutes. Clean the filters and remove any obstructions before restarting.

Can I use extension cords?

Yes, but use a cord with a minimum rating of 10A and a cross-section of 1.5 mm². Fully unwind the extension cord to avoid overheating. Do not connect other appliances to the same circuit to prevent overload.

How often should I replace the HEPA filter?

With regular washing, the HEPA filter should be replaced every 6 to 12 months, depending on usage. If you notice a persistent loss of suction or odor, replace it sooner. Always use genuine Gorenje filters.

What does the electronic slider control?

The slider on the handle adjusts the suction power. Slide it forward for maximum suction on carpets, and backward for lower suction on delicate surfaces like curtains or upholstery.

Where can I find spare parts?

Spare parts such as filters, nozzles, and hoses are available from authorized Gorenje service centers or online retailers. Always use original parts to maintain performance and warranty.

USER MANUAL VCEA21GPLRCY GORENJE

VCEA21GPL vacuum cleaner with attached hose and orange handle (no visible text or symbols on device body)

VCEA21GPLRCY

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS
Gebrauchsanweisung	DE
Instructionsmanual	DK
Käyttöuhjeet	FI
Bruksanvisning	NO
Bruksanvisning	SV

SI Navodila za uporabo .... 3

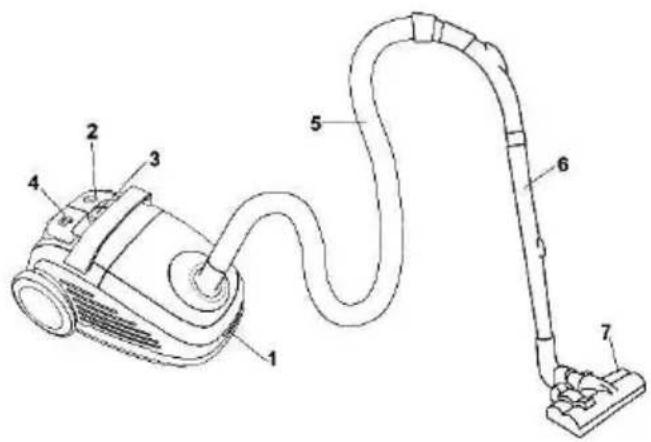

Opis sesalnika

1. Zapiralo pokrova
2. Stikalo za vklop/izklop
3. Stikalo za nastavitev sesalne moči
4. Stikalo za navijanje priključne vrvice
5. Upogljiva cev
6. Teleskopska cev
7. Talna krtača

POMEMBNA OPOZORILA

Technical line drawing of a car's internal components with arrows indicating assembly or movement (no text or symbols present)

1. Vrečko zamenjajte z novo kadar je polna.
2. S pritiskom zaprite pokrov dokler se ne zaklene.

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

1. Odmaknite posodo od aparata in jo izpraznite tako, da pritisnete zapiralo na posodi, da se le ta odpre.

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

1. Izpraznite posodo in jo zaprite nazaj.

2. Posodo vstavite nazaj v sesalnik.

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

Line drawing of a refrigerator with a grid-patterned front panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

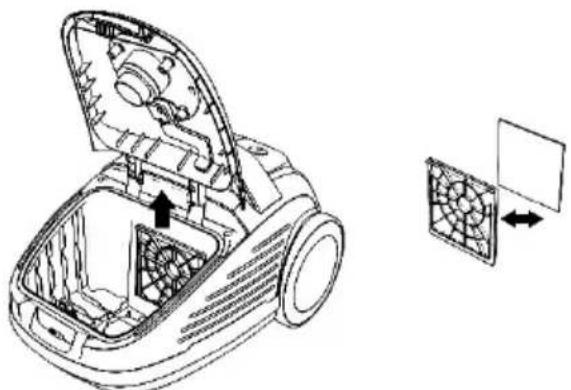

- Odstranite HEPA filter.

- Odstranite filter gobico.

Technical line drawing of a vacuum cleaner with internal components and a directional arrow indicating motion (no text or symbols)

Opis usisavača

Technical line drawing of a car's internal components, showing open and closed sections with directional arrows (no text or labels)

1. Zamijenite vrećicu novom kad se napuni.
2. Pritiskom zatvarajte poklopac dok se ne zakoči.

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

1. Ispraznite i zatvorite posudu.

2. Vratite posudu u usisivač.

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

Line drawing of a refrigerator with a grid-patterned front panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

- Uklonite HEPA filtar.

- Uklonite spužvasti filtar.

- Vratite očišćen spužvasti filtar na nastavak i ponovite postupak za očišćeni ili novi HEPA filtar.

Technical line drawing of a vacuum cleaner with internal components and a directional arrow indicating assembly (no text or symbols)

Opis usisivača

1. Zatvarač poklopca
2. Prekidač za uključivanje/isključivanje
3. Dugme za podešavanje snage usisavanja
4. Prekidač za namotavanje priključnog kabla
5. Elastična cev
6. Teleskopska cev
7. Podna četka

Važna upozorenja

Technical line drawing of a car's internal components, showing open lid and internal compartments with directional arrows (no text or labels)

1. Kesu zamenite novom kada je puna.
2. Pritiskom zatvorite poklopac dok se ne zaključa.

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

1. Odmaknite posudu od aparata i ispraznite je tako da pritisnete zatvarač na posudi da se ista otvori.

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

1. Ispraznite posudu i zatvorite je.

2. Posudu vratite u usisivač.

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

• Odstranite HEPA filter.
• Odstranite filter sunder.
• Očišćeni filter sunder vratite nazad na nastavak i isto ponovite i za očišćeni ili novi HEPA filter.

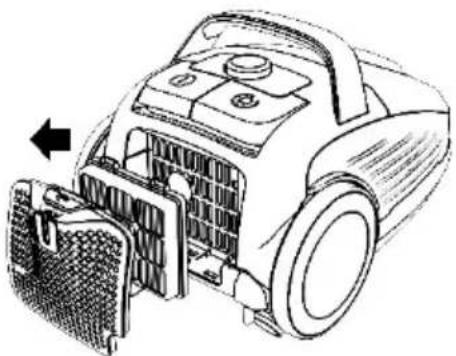

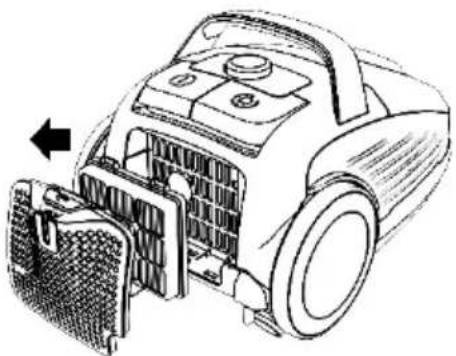

5. Zamena izlaznog filtera

1. Otvorite poklopac filtera na usisivaču.
2. Kod otvaranja poklopca filtera sa dva prsta povucite plastični nosač.
3. Odstranite filter i zamenite ga čistim ili novim.
4. Zatvorite poklopac filtera.

Technical line drawing of a vacuum cleaner with internal components and a directional arrow indicating assembly (no text or symbols)

Čišćenje i nega aparata

Technical line drawing of a car's internal components, showing open and closed sections with arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner with open lid and air ducts, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with air duct and fan assembly (no text or symbols)

1. Ставете нов или исчистен филтер обратно.

Diagram of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

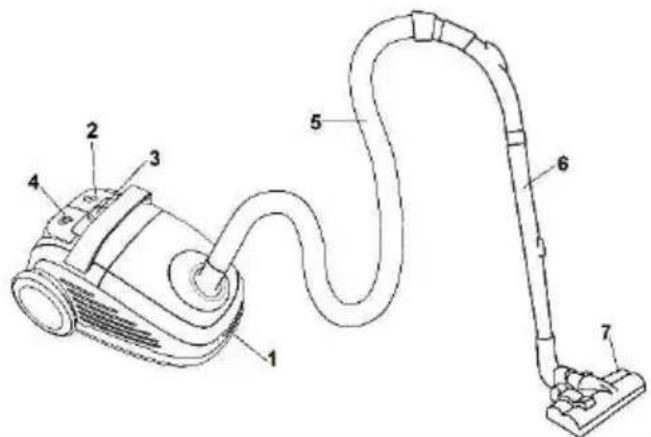

Description

1. Snap-on lock for opening cover
2. On/Off button
3. Power control button
4. Cord rewind button
5. Hose
6. Extension tube
7. Floor brush

Important safeguards

When using this appliance, basic precautions should always be followed:

• Please read the safety instructions carefully and use the appliance only in accordance with these instructions.
  • Do not leave the appliance unattended during use.
• Caution: Assemble the appliance carefully before using it.
• Do not leave the appliance unattended when it is plugged in. Pull the plug after use or when performing maintenance work.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

• The appliance is only to be used indoors, in dry rooms. The appliance must not be used for liquids.
• Operate the appliance only with parts recommended by the manufacturer.
• Do not use the device if it has been dropped, damaged, kept outdoors, or has fallen into water.
• Do not pull or carry the appliance by holding the cable only. Protect the cable from hot surfaces or other damages and do not wedge it.
• Do not pull the cable to unplug the appliance.
• Do not operate or touch the appliance or cable with wet hands.
• Do not insert any object into the openings.
• Keep the opening free from dust, hairs or other objects which might reduce the cleaning power.
• Keep your hair, loose clothes, fingers and any other body parts away from openings or moving parts.
• Switch out the device before pulling the plug.
• When cleaning stairs apply particular attention.
• Do not use the vacuum cleaner for: embers, burning cigarette stubs, matches, ect.-liquid materials (e.g.wet carpet foam)-hard, sharp objects (e.g.splinters of glass).
• Do not use the appliance in connection with a non-permissible extension cable.
• Keep the suction hose opening and other openings away from your face and body.
• Do not use the vacuum cleaner without a dust bag, outlet air filter or motor filter.

• The appliance is to be stored indoors, in dry rooms only, put the appliance aside after use.

• Hold the plug when using the automatic cable reminder.

• Switch out the device when connecting or changing the suction hose or nozzles.
• The appliance is not to be used for toner dust or similar materials.
• During use keep the suction tube, suction hose and nozzles away from your head to prevent injuries.
• For longer use pull out at least 2/3 of the cable length to awed overheating and damage.
• The appliance fulfils the applicable German and European electrical standards as well as the radio interference suppression regulation.
• Never use your vacuum cleaner for vacuuming the building material (such as fine sand, lime, cement dust etc.). Absorbed building material can damage your appliance.
• When you are using the vacuum cleaner together for several hours, pull the connecting cable to the end.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
  Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
  • Noise level: Lc < 64dB(A)
• To prolong the lifespan of your vacuum cleaner, the device is equipped with thermal protection. In cases of extended or inappropriate use, full dust bag, full dust container or clogged filter, the vacuum cleaner will automatically turn off due to overheating. After 30 – 90 minutes, when it cools down to a normal temperature, your vacuum

cleaner will automatically switch back on. If you walk away from the vacuum cleaner during the cooling period, please unplug your vacuum cleaner from the outlet.

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Do not use a vacuum cleaner in very dirty places, it will immediately obstruct HEPA filter!

Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house mains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet.

If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with european standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2014/35/EU
• 2014/30/EU
• 2009/125/ES
• 2011/65/EU
• 666/2013/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

- Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

- To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

- Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Extend the tube to the desired length by pressing on button.
• Insert a flexible hose into a tube.
• Fit a nozzle to tube:
• Floor brush is intended for cleaning bare floor and floor coverings.
• 3 pcs. set of nozzles are appropriate for cleaning corners and other small, inaccessible places.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:
• decrease power for cleaning curtains, books, furniture, etc.
• increase power for cleaning bare floor.
  To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

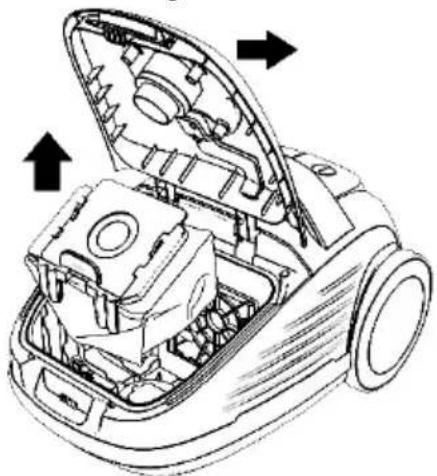

1. Changing the dust bag

• Always operate the cleaner with dust bag inserted.

• If you forget to insert the dust bag or if you insert it incorrectly, the cleaner lid may not close properly.

• After removing the flexible hose, open the front lid.

• Rotate the bag holder to the correct position.
• Remove the dust bag.

Technical line drawing of a car's open hood and internal components, showing engine, motors, and housing (no text or labels)

1. When the bag is full, replace it with a new one.
2. Close the lid by pressing until it locks.

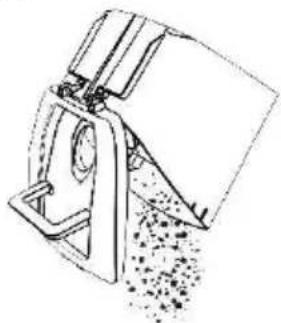

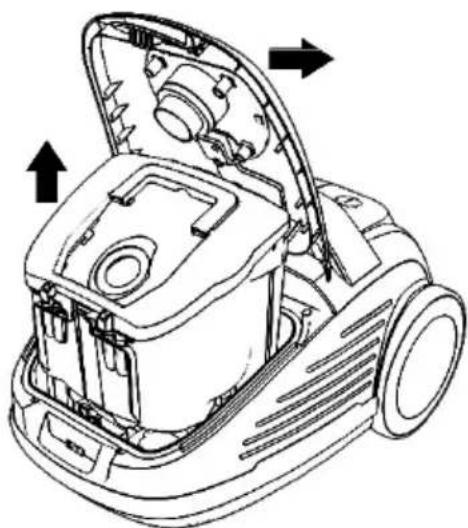

2. Emptying the dust box (container)

• Always use the cleaner with inserted dust container and filter.

• If you forget to insert the dust container or if you insert it incorrectly, the cleaner lid may not close properly.

• After removing the flexible hose, lift the cleaner handle to unlock the closing mechanism.

• Lift the container and the filter.

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

1. Remove the container from the device and empty it by pressing the container cap and opening it.

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

1. Empty the container and close it again.

2. Insert the container in the cleaner.

3. Cleaning and changing the inlet sponge filter (when using dust bag)

• The inlet sponge filter with a holder should only be used when using a cleaner with the dust bag (when using the cyclone container, please remove this filter).
• The filter should be cleaned or changed at least twice a year or when it is visibly worn out.
• Always use the cleaner with the inserted container and all the filters.
• Using the cleaner without filters may cause damage to the device.

• Always disconnect the device from the supply voltage before opening the filter container.

• Pull the dust bag upwards.

• Pull the filter holder upwards.
• Remove the filter.

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

1. Insert a new or cleaned filter.

4. Cleaning and changing the inlet HEPA filter (when using container)

• The HEPA filter should be cleaned or changed at least twice a year or when it is visibly worn out.
• It is recommended to clean the HEPA filter after every longer cleaning process.
• Regular cleaning and care of the HEPA filter will provide good results and a longer useful life of the device. To achieve the optimal operation, we recommend the following cleaning methods:
• cleaning with a brush,
• beating the filter or shaking out the dirt,
• blowing with compressed air.
• A clean HEPA filter ensures unhindered air flow and allows optimal suction power.

Diagram of a refrigerator with a grid pattern and an arrow indicating a component (no text or symbols)

Diagram of a grid device with an arrow indicating direction (no text or symbols)

• Remove the HEPA filter.
• Remove the filter sponge.
• Place the cleaned filter sponge back on the cap and repeat the process with the cleaned/new HEPA filter.

5. Changing the outlet filter

1. Open the filter lid on the cleaner.
2. When opening the filter lid, pull the plastic holder by using two fingers.
3. Remove the filter and replace it with a clean/new one.
4. Close the filter lid.

Technical line drawing of a vacuum cleaner with internal components and a directional arrow (no text or symbols)

Care and cleaning

Switch off the appliance and pull out the plug from the power supply.

Clean the outside of the appliance with a softcloth with mild detergent. Harsh or abrasivedetergent will damage the outside surface.

Never immerse the appliance or cord into water and other liquids.

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin.

Never use the appliance without filters.

Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

Parking system serves for parking suction tube/floor nozzle during short-term interruptions.

For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

DIAGRAM

Descriere

Technical line drawing of a car's internal components, showing open lid and internal parts with directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with open lid and air ducts, showing internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with granular material inside, no text or symbols present

Technical line drawing of a car engine compartment with airflow indicators and fan layout (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a car interior showing structural components and airflow direction (no text or symbols)

Technical line drawing of a mechanical device with open lid and internal components, showing directional arrows (no text or symbols)

Line drawing of a grass lawn mower with open lid and directional arrows indicating parts (no text or symbols)

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction indicators (no text or symbols)

Line drawing of a refrigerator with a grid-patterned front panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)

Údržba a čištění

Technical line drawing of a car's internal components, showing open and closed sections with directional arrows indicating movement (no text or symbols)

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with airflow and fan array (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and a handle, no text or symbols present

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and fan base (no text or symbols)

Údržba a čistenie

Opis

Technical line drawing of a mechanical device with open lid and internal components, showing directional arrows (no text or symbols)

Technical line drawing of a grass lawn mower with open lid and mounting brackets (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction indicator (no text or symbols)

Diagram of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Ismertetés

Technical line drawing of a car's internal components, showing open lid and internal parts with directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner with open lid and internal components, showing mounting features (no text or symbols)

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with airflow and fan array (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and a handle, no text or symbols present

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a robotic vacuum cleaner with internal components and fan base (no text or symbols)

Technical line drawing of a car's internal components, showing open lid and internal compartments with directional arrows (no text or labels)

Technical line drawing of a lawn mower with open lid and mounting base, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with an open hood and a magnified inset showing a grid-patterned panel (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid device with an arrow indicating direction (no text or symbols)

Technical line drawing of a car interior showing engine, fan, and exhaust components (no text or symbols)

Почистване

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal compartments with directional arrows (no text or labels)

Line drawing of a vacuum cleaner with open lid and air ducts, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction indicators (no text or symbols)

Diagram of a refrigerator with a grid pattern and directional arrow (no text or symbols)

Simple line drawing of a grid-patterned object with an arrow pointing to it, no text or symbols present.

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Чищення та догляд

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal compartments with directional arrows (no text or labels)

Line drawing of a grasshopper robotic device with open lid and handle, showing internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with air duct and fan assembly (no text or symbols)

Diagram of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical illustration of a vacuum cleaner with internal components and a directional arrow indicating motion (no text or symbols)

Уход и чистка

Technical line drawing of a car's open hood and internal components, showing engine and airway sections (no text or labels)

Line drawing of a grass lawn mower with open lid and directional arrows indicating components (no text or symbols)

Line drawing of a mechanical device with granular material inside, no text or symbols present

Technical line drawing of a car interior with air ducts and fan array (no text or symbols)

Diagram of a refrigerator with a grid pattern and directional arrow, no text or symbols present

Diagram of a grid-based device with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Beskrivelse

Technical line drawing of a car's internal components, showing open and closed sections with directional arrows (no text or labels)

Line drawing of a grasshopper robotic arm with open lid and directional arrows indicating parts (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with an open hood and a magnified inset showing airflow or heat distribution (no text or symbols)

Diagram of a refrigerator with a grid pattern and an arrow indicating a component (no text or symbols present)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

• Afmonter HEPA-filteret.
- Afmonter skumfilteret.
- Anbring det rengjorte skumfilter på holderen, og gentag processen med det rengjorte/nye HEPA-filter.

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Kuvaus

Technical line drawing of a car's internal components, showing open lid, internal engine compartment, and directional arrows (no text or labels)

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

Line drawing of a refrigerator with a grid-patterned panel and an arrow indicating a component (no text or symbols)

Diagram of a grid-patterned panel with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Hoito ja puhdistus

Beskrivelse

Technical line drawing of a car's internal components, showing open lid and internal parts with directional arrows (no text or symbols)

1. Når posen er full, skifter du den ut md en ny.
2. Lukk dekselet ved å trykke det ned til dt går i lås.

2. Tømme støvboksen (beholder)

Technical line drawing of a grass lawn mower with open lid and mounting bracket (no text or symbols)

Line drawing of a mechanical device with granular material, no text or symbols present

Technical line drawing of a car interior with air vent and fan array (no text or symbols)

1. Sett i et nytt eller rengjort filter.

Line drawing of a refrigerator with a grid-patterned panel and an arrow indicating a component (no text or symbols)

Diagram of a grid-patterned device with an arrow indicating direction (no text or symbols)

• Ta ut HEPA-filteret.

• Ta ut skumfilteret.

Technical line drawing of a robotic vacuum cleaner with internal components and a directional arrow indicating motion (no text or symbols)

Stell og rengjøring

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

DIAGRAM

Beskrivning

RULLA UT OCH IN SLADDEN

Technical line drawing of a vacuum cleaner's internal components, showing open casing, gears, and airway (no text or labels)

Line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

Line drawing of a mechanical device with granular material inside (no text or symbols)

Technical line drawing of a car interior with airflow and fan arrangement (no text or symbols)

Diagram of a refrigerator with a grid-patterned panel and an arrow indicating left motion (no text or symbols)

Diagram of a grid-patterned object with an arrow indicating direction (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)
