USER MANUAL EFK 5490-92 X GRAM

Before using the appliance, please carefully read this manual!

BETJENINGSVEJLEDNING - EMFANG

Vertical wall pattern composed of interlocking rectangular blocks (no text or symbols)

Vertical arrangement of gray rectangular blocks with no text or symbols

1a

Illustration of a hand pressing a button on a device, with arrows indicating movement (no text or symbols)

Illustration showing two-step hand tool application: adding a magnifying glass to a circular target, then adjusting the target with fingers (no text or symbols)

Technical illustration of a mechanical fan assembly with internal blades and a top frame (no text or symbols)

THANK YOU FOR PURCHASING AN GRAM APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Tips on how to use the appliance.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 5

INSTALLATION

8

OPERATION

AND

MAINTENANCE

13

ENVIRONMENTAL

PROTECTION

15

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

●The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

● Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

● Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

●The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

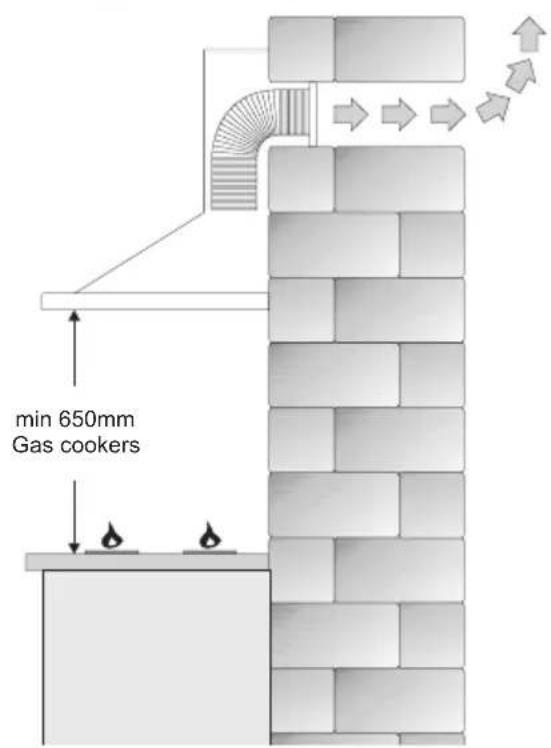

●For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not ex-

tend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

●Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.
- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.
●The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).
- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is

maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

●Do not lean on hood
●The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.
  ●Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.
  ●This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ●Children should be su-

pervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  ●Before installing unwind and straighten the power cord.
  ●Warning! The packaging materials (polyethylene bags, small pieces of foamed poly-

styrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

INSTALLATION

Elements

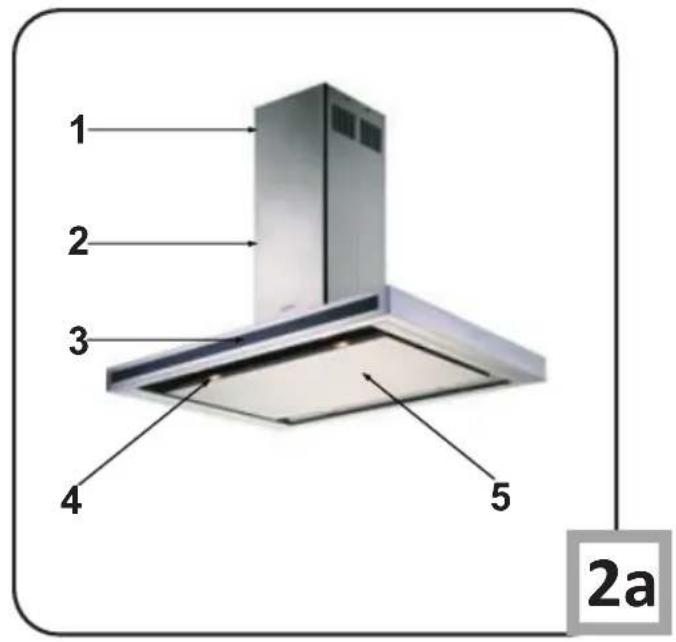

Kitchen hood consists of the following elements (Pic. 2a):

1-Internal chimney

2-External chimney

3-Control panel

4-Lighting

5-Split extraction plate

Installation

Step-by-step appliance installation is shown on page 13-16

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of

120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood.

In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

A) Installation of ceiling connection plate

Front sticker (picture 3) on ceiling connection plate and control panel of chimney hood should have the same direction.

1) Drill 10mm holes from A,B,C,D points.
2)Drive 10mm wall plugs in to A,B,C,D holes.
3) Fix ceiling connection plate to ceiling by using
4 screws (5,5 x 45). Wall plugs, screws and ceiling connection plate are given with chimney hood - picture 3

Pic. 3

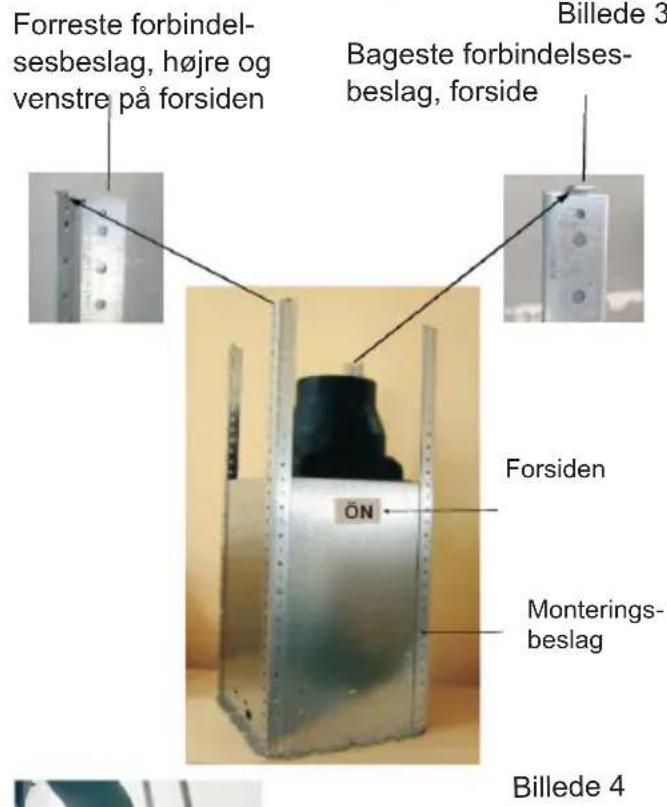

B) Installation of cornerpieces:

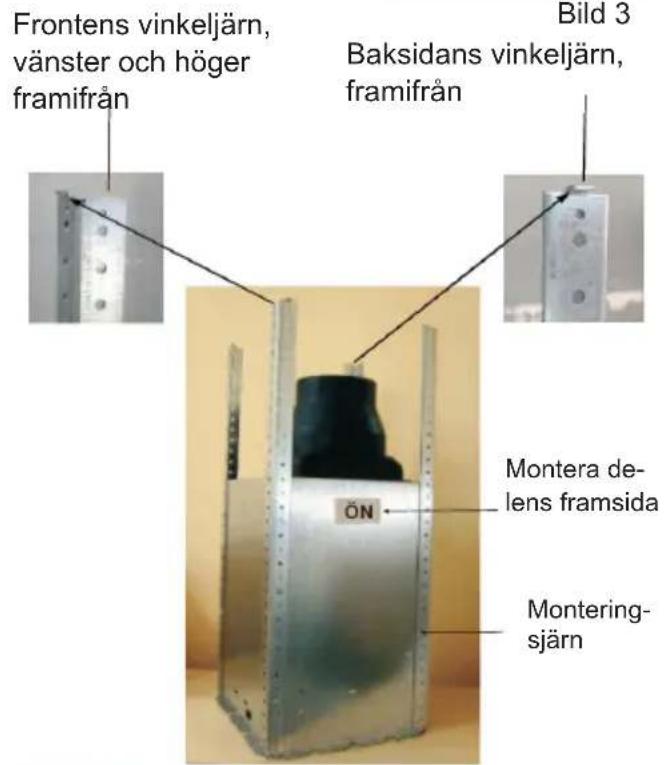

Front sticker(picture 4) shows where front side of chimney hood should be installed. Front cornerpieces should be left and right directions. Back cornerpieces should be extroverted. Screw 4 cornerpieces to motor block. Hanging bar should have same directions with ceiling connection plate. Regulating the length of chimney hood with these cornerpieces.

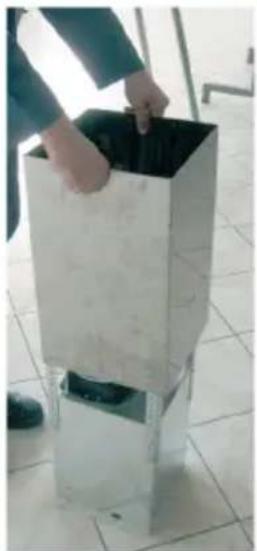

C) Installation of chimneys to motor cabinet:

Please put internal chimney in extarnal chimney. For temporary connection between chimneys please use a screw on motor cabinet. (So chimneys will not drop while you install motor cabinet to ceiling connection plate.) Mount the chimneys on this screw. (Screw holes of internal chimney should befit the side of motor cabinet.) Picture 5, 5a, 5b

Hand using a screwdriver to apply soldering or disassembling a component in a cabinet (no visible text or symbols)

Pic. 5

Front bracket connection, left and right up front

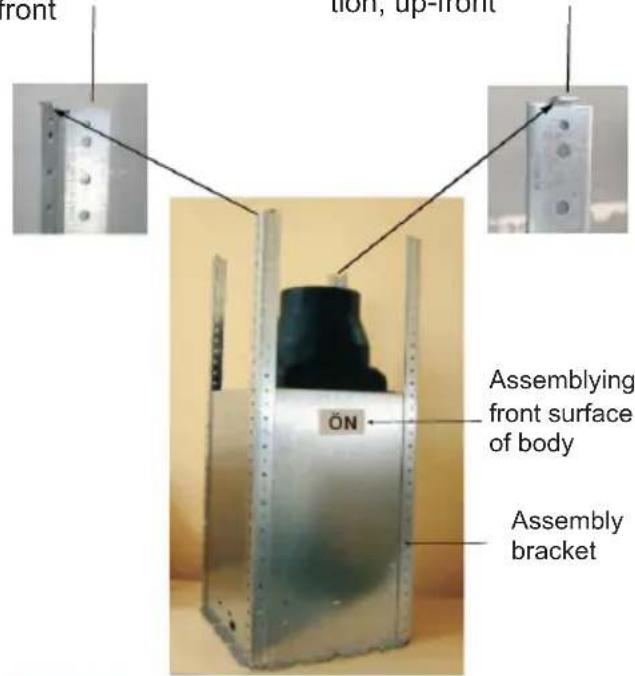

Back bracket connection, up-front

Pic. 4

Person handling a large metal trash bin on a tiled floor (no text or symbols visible)

Pic. 5a Pic. 5b

Close-up of a metallic structural component with vertical supports and a flat base (no visible text or symbols)

INSTALLATION

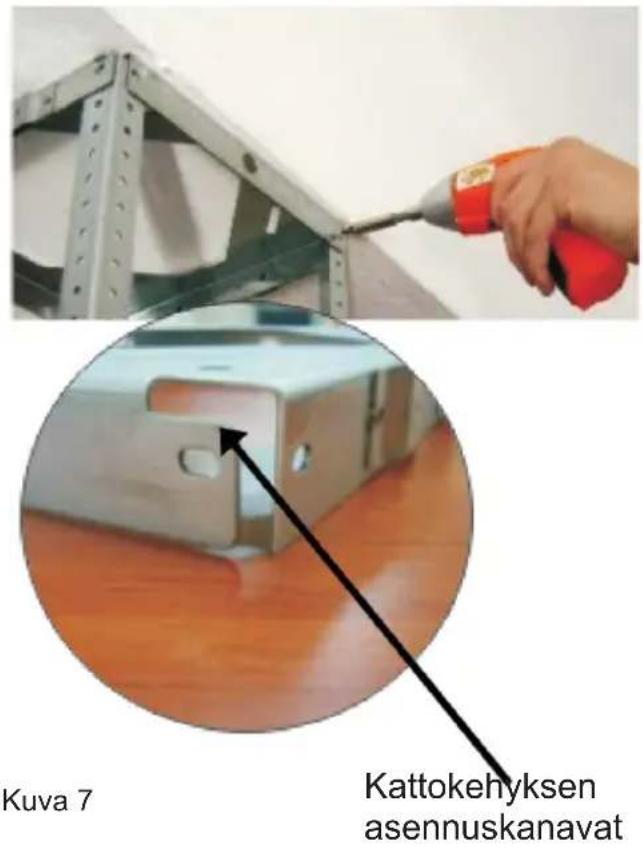

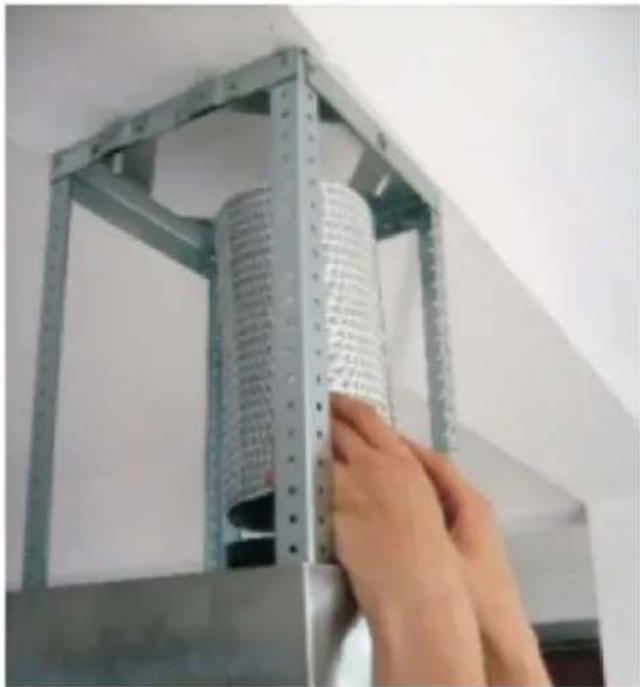

D) Placing Motor Cabin to Hanging Bar

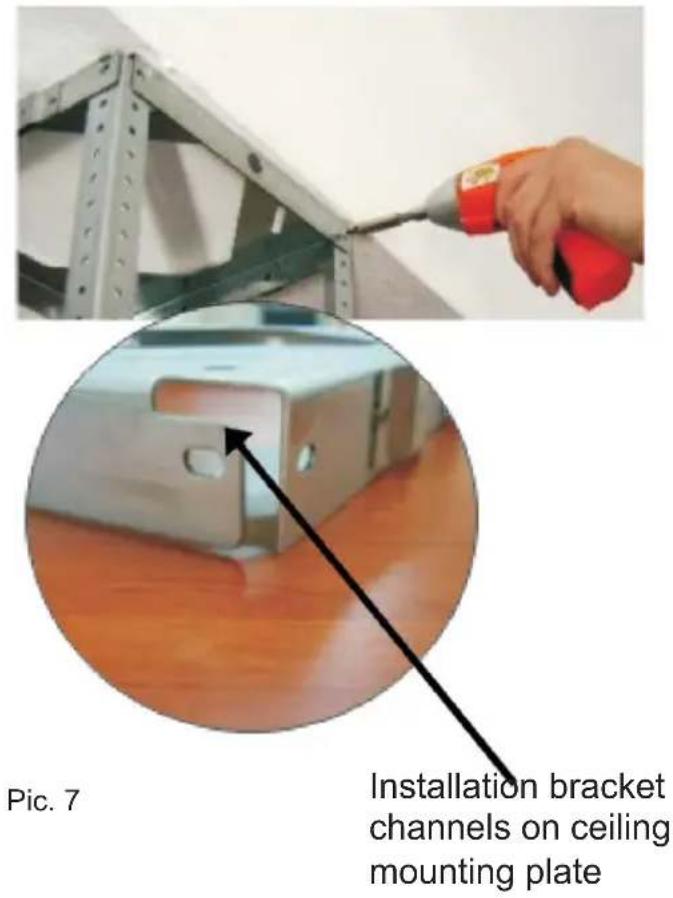

Place fixed hanging sticks on hanging bar through the channels. Fix parts together via 3,5x9,5 screws (Picture 7).

Hand installing a cylindrical metal panel inside a metal frame (no visible text or symbols)

Pic. 8

E) Installing Aluminum Flexible Pipe

Connect aluminum flexible pipe to outlets on the product and kitchen wall. Ensure connection will not lose while your product is operated on maximum airflow level (Picture 8).

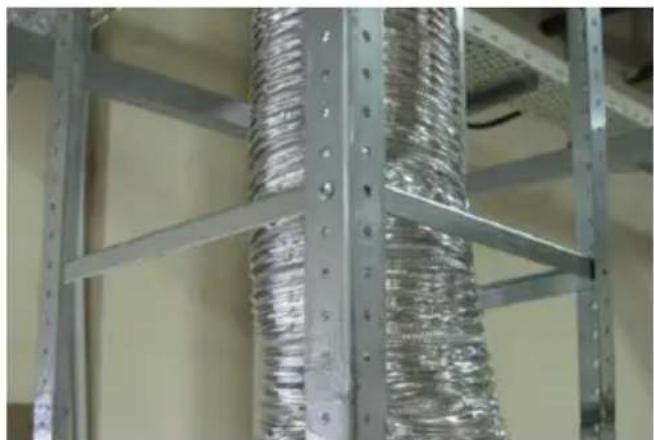

F) Metal frames installation

Using screws from installation kit, mount frames to hanging sticks (Pic. 9).

Close-up of metallic industrial piping with coiled ducts and metal frame (no text or symbols visible)

Fig. 9

Assembling bracket hole on the Ceiling Connection Sheet

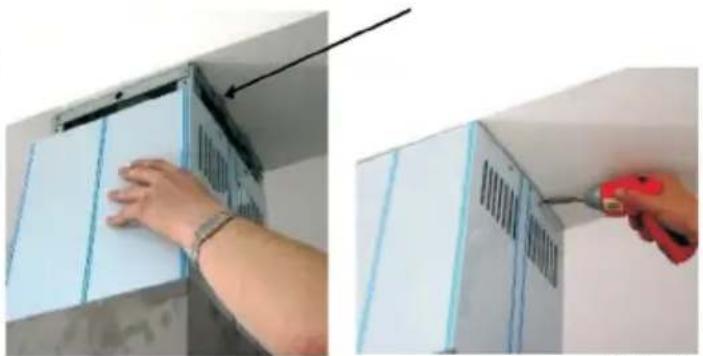

G) Fixing Internal Chimney

Pull internal chimney up, align holes and fix by 3,5x9,5 nickel coated screws as shown in Picture 10.

Two-step installation of a white cabinet with a hand holding the lid, showing part assembly and tooling (no text or symbols visible)

Pic. 10

Close-up of hands handling a transparent object on a metallic tray (no visible text or symbols)

Pic.11

I) Fixing Motor Cabin on Product Body

Place hanging hooks on product body onto channels on motor cabin. Fix them together with 3,5x9,5 screws (Picture 12a-12b)

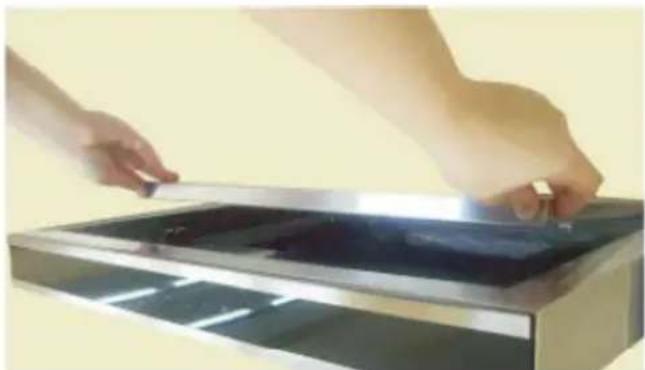

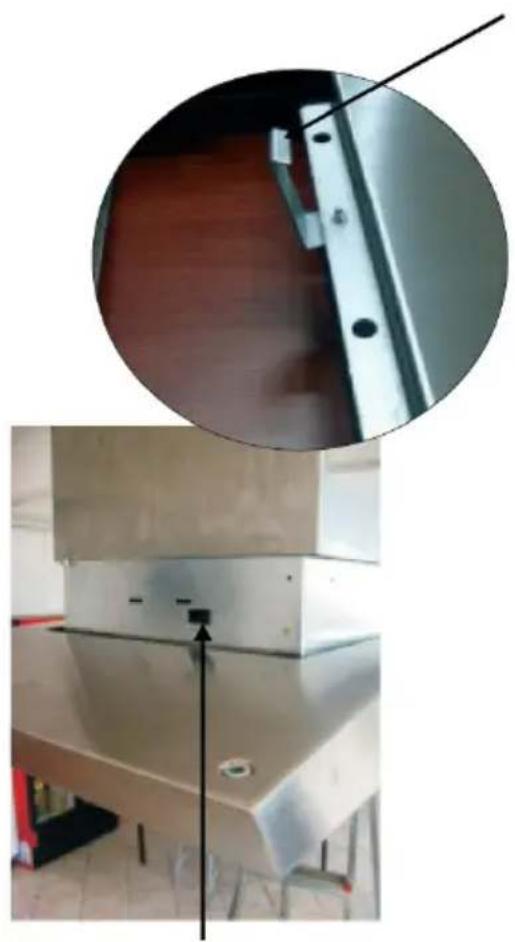

H) Removing split extraction plate

To remove split extraction plate, pull it down holding left and right upper points - Picture. 11.

Hanging Hook (Pic. 12a)

Interior view of a stainless steel cabinet with a close-up inset showing a metal bracket detail (no text or symbols visible)

Pic.12
Hanging hook channel on motor cabin (Picture 12b)

INSTALLATION

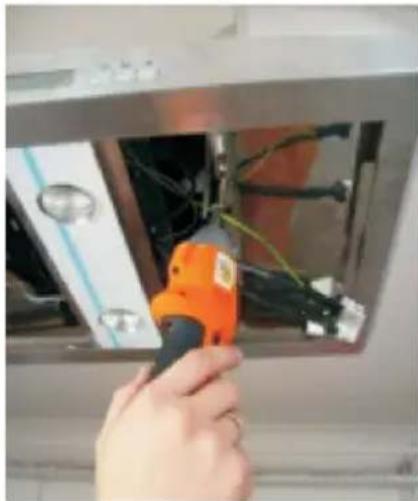

Hand holding an orange power tool inspecting internal wiring inside a stainless steel appliance (no visible text or symbols)

Pic.13

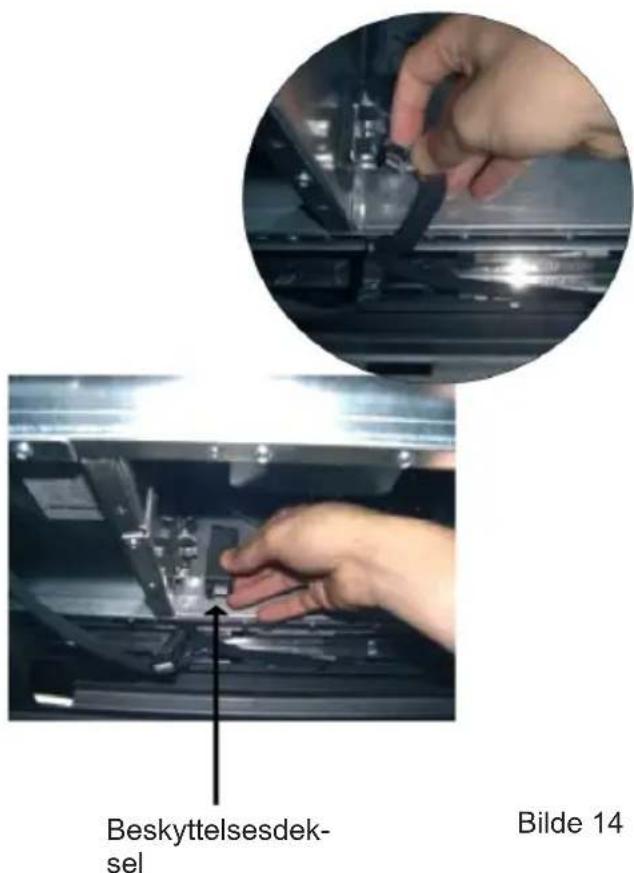

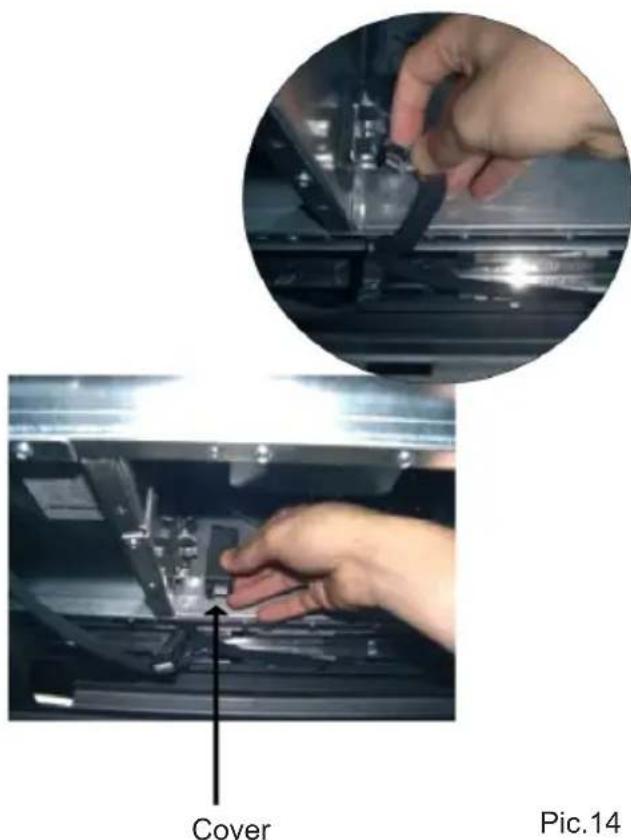

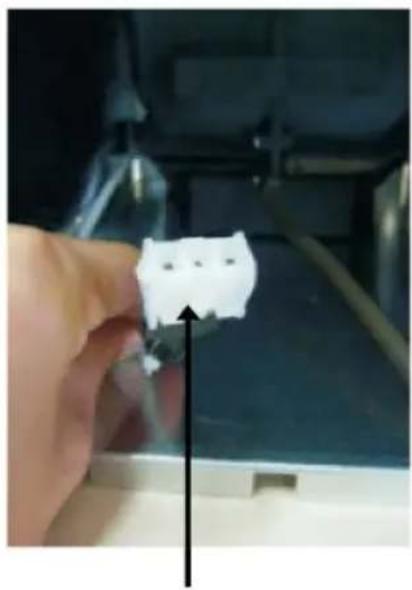

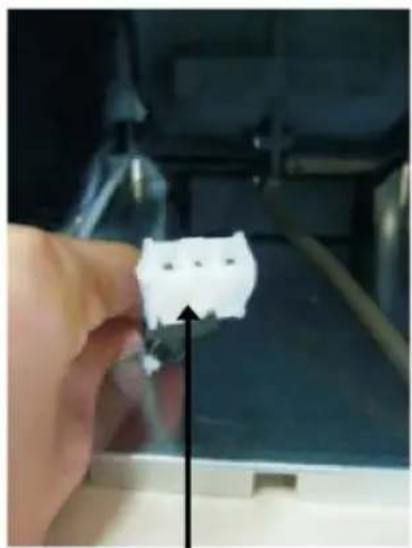

K) Making Connections

Connect 220V power supply socket with corresponding motor socket. Place aluminum cassette filters when connections are done. (Picture 14)

Close-up of a hand holding a white connector with a black arrow pointing upward (no text or symbols visible)

Pic.15

J) Fixing Motor Cabin on Product Body (2)

Using 3,5 x 9,5mm bolts mount both elements (Pic. 13).

L) Making Connections (2)

Connect white plug (supply) into the correct socket. Picture 15

Use control panel to control your cooker hood (Pic. 4)

OPERATION

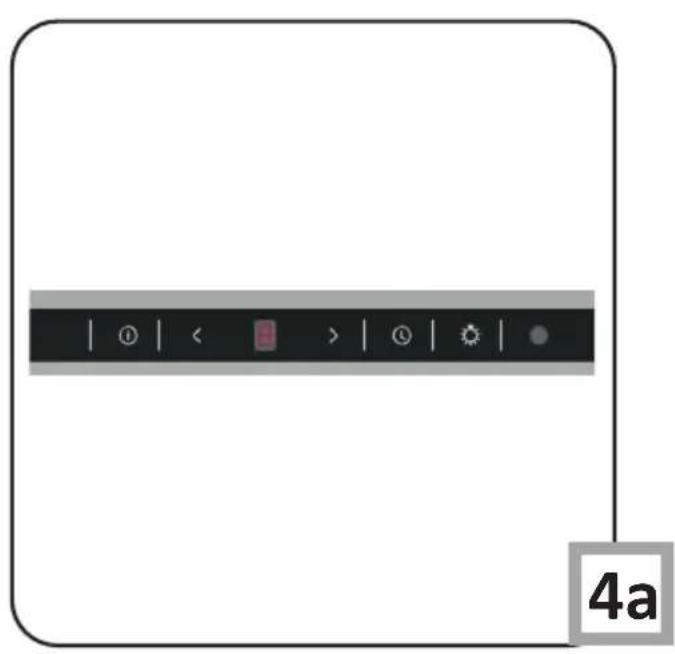

Control Panel

The cooking hood fan can operate at 5 speeds. Select the fan speed appropriate for the cooking intensity. To run the fan press the "∅" button on the control panel (Pic. 4a) Press the ">” button each time you want to increase the fan speed or press the "<" button to reduce the fan speed. When you turn on the cooker hood the fan always runs at speed 2.

Press the " Ⓐ" button to activate the countdown timer. Press the " Ⓐ" button to activate the timer. The appliance will turn off after 15 minutes. When the timer is counting down the digit will blink on the display and the cooker hood fan will turn off after 15 minutes.

To remove any residual odours and vapour from the kitchen it is recommended to use this function of the hood for several minutes after cooking.

Light

Your cooker hood features LED light. Press the " 🔥 " button on the control panel (Pic. 4a) to turn the light on or off.

To change the light brightness when the light is on press and hold the light button and the level of brightness will vary continuously. Release the button when the light brightness is adjusted as required. Quickly press the light button twice to set the maximum brightness.

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

Clean the filter when the display shows “” approximately every 2-3 weeks.

To clear the above symbol (once the filter is cleaned and re-installed), hold the “” button for 3 seconds (make sure the hood is not operating). “E” symbol will be shown on the display and the appliance will operate normally.

If you want to use your appliance while the “” symbol is still displayed, press the “” button. The speed indication will appear for 1 second, and then the “” symbol and the motor will keep running.

NOTE: The "C" symbol appears after 60 hours of the motor operation.

Clean the grease filter by washing it in a dishwasher (maximum washing temperature of 60^ C) or by hand using a mild detergent or soap.

To replace:

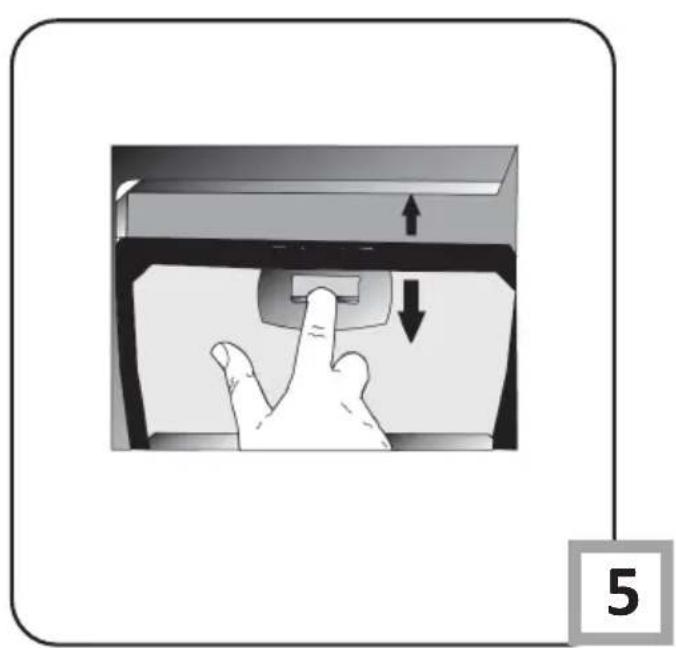

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

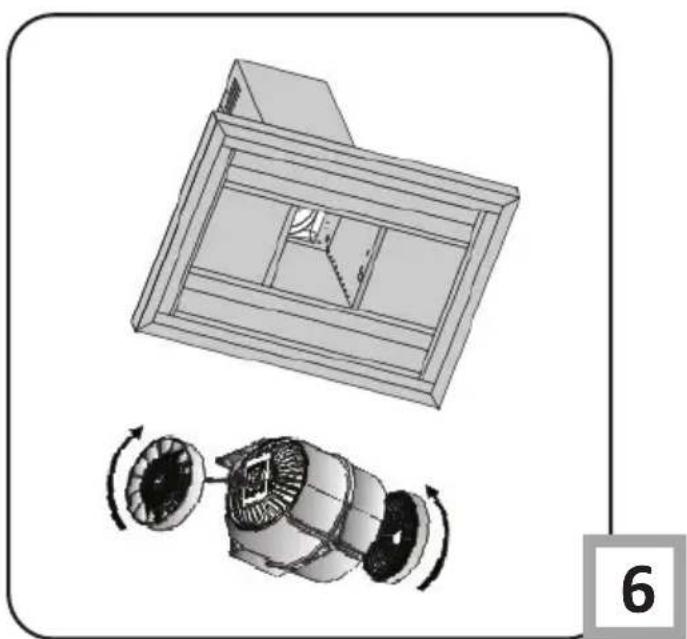

Dismantling of charcoal filter is shown on Figure 6.

Lighting

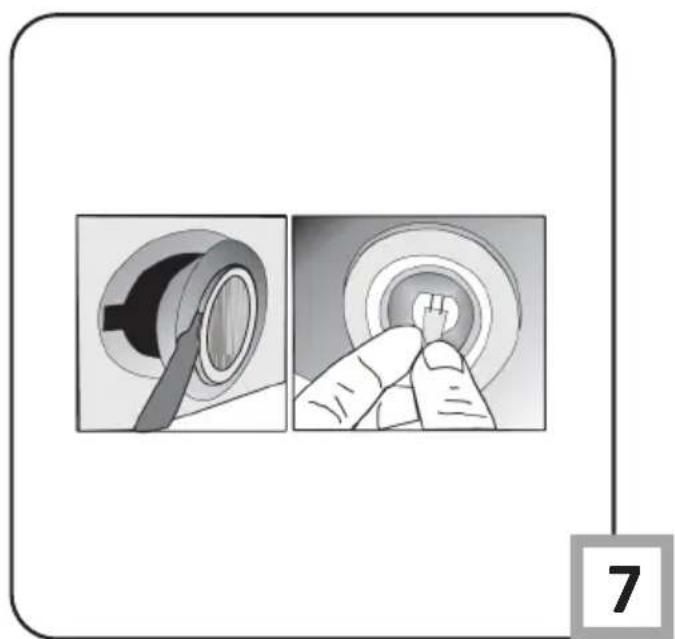

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

RECYCLING OF THE PACKAGING

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU-IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such

marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
● ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

TIL LYKKE MED DIT NYE GRAM EMFANG

Hand using a screwdriver to apply soldering or disassembling a component in a white cabinet (no visible text or symbols)

Billede 5

Person handling a large metal trash bin on a tiled floor (no text or symbols visible)

Close-up of a metallic structural component with vertical supports and a flat base (no visible text or symbols)

INSTALLATION

Hand placing a cylindrical metal component into a metal frame (no visible text or symbols)

Billede 7

Close-up of metallic industrial storage racks with coiled metal pipes (no visible text or symbols)

Billede 8

Two-step installation of a white cabinet with a hand holding the lid, showing part assembly and tooling (no text or symbols visible)

Fig. 9

Close-up of hands installing or adjusting a metal panel on a dark tray (no visible text or symbols)

Billede 10

Interior view of a stainless steel cabinet with a close-up inset showing a metal bracket detail (no text or symbols visible)

Hand using an orange power tool to install or install electronic components inside a stainless steel appliance (no visible text or symbols)

Billede 12

K) Tilslutning til lysnettet

Close-up of a hand holding a small white connector with a black arrow pointing upward (no text or symbols visible)

Billede 14

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Hand using a screwdriver to apply material to a metal bracket (no text or symbols visible)

Kuva 5

Person handling a large metal trash bin on a tiled floor (no text or symbols visible)

Kuva 5a Kuva 5b

Close-up of a metallic structural joint or bracket with visible metal framing and bolted joints (no text or symbols)

Hand placing a cylindrical metal component into a metal frame (no visible text or symbols)

Kuva 8

Close-up of metallic industrial piping with coiled ducts and bolts, no visible text or symbols

Kuva 9

Two-step installation of a white cabinet with a hand using a screwdriver to clean the interior (no text or symbols visible)

Kuva 10

Close-up of hands installing or adjusting a metal panel on a dark tray (no visible text or symbols)

Kuva 11

Interior view of a stainless steel cabinet with a close-up inset showing a metal bracket detail (no text or symbols visible)

Hand holding an orange power tool inserting wires into a device frame (no visible text or symbols)

Kuva 13

K) Liitännät

Close-up of a hand holding a white plastic connector with a black arrow pointing upward (no text or symbols visible)

Kuva 15

Close-up of hands operating a mechanical device with a magnified inset showing the hand adjusting components (no visible text or symbols)

Suojakotelo
Kuva 14

L) Liitännät (2)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

TACK FÖR ATT DU HAR KÖPT EN GRAM-PRODUKT

BÄSTA KUND!

INNEHÅLLSFÖRTECKNING

SÄKERHETSANVISNINGAR 41

INSTALLATION 44

ANVÄNDNING OCH SKÖTSEL 49

MILJÖSKYDD 51

Hand using a screwdriver to apply soldering or disassembling a component in a cabinet (no visible text or symbols)

Bild 5

Person handling a large metal tray on a tiled floor (no visible text or symbols)

Bild 5a Bild 5b

Close-up of a metallic structural component with visible beams and joints (no text or symbols)

MONTERING

Hand placing a cylindrical metal component into a metal frame (no visible text or symbols)

Bild 8

Close-up of metallic industrial racks with coiled metal pipes and bolts (no visible text or symbols)

Bild 9

Two-step installation of a wall-mounted air conditioner unit, showing hand positioning and tool tip (no text or symbols visible)

Blid.10

Close-up of hands installing or adjusting a metal panel on a rectangular electronic device (no visible text or symbols)

Bild 11

I) Fixera motorskåpet på produktens kåpa

Interior view of a stainless steel cabinet with a close-up inset showing a metal bracket detail (no text or symbols visible)

Hand holding an orange power tool inserting wires into a device frame (no visible text or symbols)

Bild 13

K) Anslutning

Close-up of a hand holding a white plastic connector with a black arrow pointing upward (no text or symbols visible)

Bild 15

Close-up of hands operating a mechanical device with a magnified inset showing the hand adjusting components (no visible text or symbols)

Skyddshölje
Bild 14

L) Anslutning (2)

Anslut den vita kontakten (strömmatning) till korrekt uttag. Bild 15

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

TAKK FOR AT DU KJ∅PTE ET GRAM-PRODUKT

KJÆRE KUNDE!

BRUK OG VEDLIKEHOLD 61

MILJ∅VERN 63

Hand using a screwdriver to apply material to a metal bracket (no text or symbols visible)

bilde 5

Person handling a large metal trash bin on a tiled floor (no text or symbols visible)

bilde 5a bilde 5b

Close-up of a metallic structural joint or bracket with visible metal framing and bolted joints (no text or symbols)

MONTERING

D) Fest motorkabinettet til hengestangen

Hand placing a cylindrical metal component into a metal frame (no visible text or symbols)

bilde 7

Close-up of metallic industrial racks with coiled metal pipes and bolts (no visible text or symbols)

bilde 9

Hull til monteringsbrakett i takkoblingsplaten

G) Fest innvendig pipe

Two-step installation of a white cabinet with a hand adjusting the panel, showing a tool near the lid (no text or symbols visible)

bilde 10

Close-up of hands installing or adjusting a metal panel on a rectangular tray (no visible text or symbols)

bilde 11

I) Feste motorkabinen på skroget

Plasser hengekroker på skroget i kanalene på motorkabinen. Fest dem ved hjelp av 3,5 x 9,5 skruer (Bilde 12a-12b)

Interior view of a stainless steel cabinet with a close-up inset showing a metal bracket detail (no text or symbols visible)

Hand using an orange power tool to install or install electronic components inside a stainless steel appliance (no visible text or symbols)

Bilde 13

K) Koble til

Koble 220V stikkontakt med tilsvarende motorkontakt. Sett i aluminiumkassettfiltre när tilkoblingene er gjort. (Bilde 14)

Close-up of a hand holding a small white plastic connector with a black arrow pointing upward (no text or symbols visible)

Bilde 15

J) Feste motorkabinen på skroget (2)

Bruk 3,5 x 9,5 mm bolter til å feste begge elementene (Bilde 13).

L) Koble til (2)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
