USER MANUAL EXILIM EX-Z650 CASIO

Thank you for purchasing this CASIO product.

+ Before using it, be sure to read the precautions contained in this User's Guide. + Keep the User's Guide in a safe place for future reference.

+ For the most up-to-date information about this product, visit the official EXILIM Website at http:/www.exilim.com/

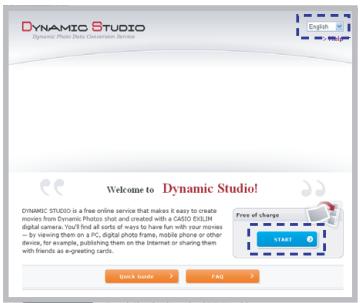

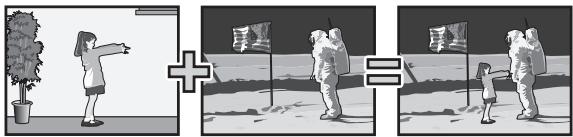

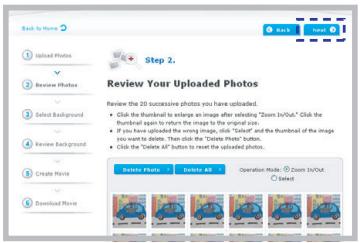

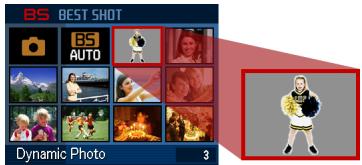

To go to “Getting the Most Out of Dynamic Photo” click here!

ŒXILINM AS you unpack your camera, check to make sure that all items shown below are included. If anything is missing, contact your original retailer.

Rechargeable lithium ion battery (NP-40)

To attach the strap to the camera

“ here. The shape of the power cord plug F

varies according to country or geographic area.

Digital camera Charger unit (BC-31L)

The contents of this manual and the bundled Basic Reference are subject to change without notice.

The contents of this manual have been checked at each step of the production process. Feel free to contact us if you notice anything that is questionable, erroneous, etc.

Any copying of the contents of this User's Guide, either in part or its entirety, is forbidden. Except for your own personal use, any other use of the contents of this manual without the permission of CASIO COMPUTER CO., LTD. is forbidden under copyright laws.

CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.

CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost profits, or claims by third parties arising out of the use of Photo Transport or YouTube Uploader for CASIO.

CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits caused by loss of memory contents due to malfunction, repair, or any other reason.

Note that the example screens and product illustrations shown in this User's Guide may differ somewhat from the screens and configuration of the actual camera.

The liquid crystal panel of the monitor screen uses high-precision technology that provides a pixel yield in excess of 99.99%. This means that some very small number of pixels may not light or may remain lit at all times. This is due to the characteristics of the liquid crystal panel, and does not indicate malfunction.

Take a few test shots Before shooting your final image, shoot a test shot to ensure that the camera is recording correclly.

Unpacking 2 Read this first! . General Guide . . ee . Monitor Screen Contents. 1.2...

Il Quick Start Basics 12

What is a digital camera? What you can do with your CASIO camera First, charge the battery prior to use.

To charge the battery . .

1 To load the battery . Configuring Basic Settings the First Time You Tum On the Camera Preparing a Memory Card

1 Supported Memory Cards.

1 To load a memory card . . To format (initialize) a new memory carc Turning the Camera On and Off

1 To turn power on. .

# To turn off the camera To shoot a snapshot. … Holding the Camera Correctiy Viewing Snapshots Deleting Images...

1 To delete a single fil le eee

1 To delete all files . : Snapshot Shooting Precautions

# Auto Focus Restrictions

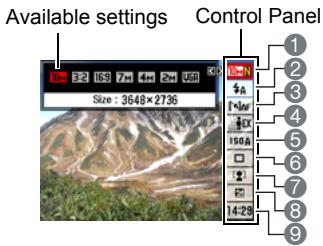

Il Snapshot Tutorial 29 Using the Control Panel. .… .. 29 = Specifying Control Panel Items. éecsssee. 30 Changing the Image Size . (Size) .… 31 Using Flash . (Flash) .…. 34 Specifying the Auto Focus Area (AF Area) … 36 Optimizing Image Brightness .… (Lighting) .… 37 Specifying ISO Sensitivity : (80) ... 38 Using Continuous Shutter ..(CS) … 39 1 Specifying the Method for Saving Continuous Shutter Images... . 40 Using Face Detection . (Face Detection) .. 42 Correcting Image Brightness (EV Shift) .… 44 Changing the Control Panel Date/Time Style . .45 Shooting with Zoom .45 1 Optical Zoom and Digital Zoom Switch Point 46

Shooting with the Make-up Mode (Make-up) .… 48

Il Recording Movie Images and Audio 49 To record à MOVIE . 49 Using Prerecord Movie . 51 Shooting a Snapshot while Shooting a Movie . éeciececese. «82 Recording Audio Only . (Voice Recording) .… 52

2 To play back an audio recording... .53

Il Using BEST SHOT 54

What is BEST SHOT? . 54

1 Some Sample Scenes . 54 To shoot an image with BEST SHOT. 54

# Creating Your Oun BEST SHOT Setups 57 Shooting with AUTO BEST SHOT. 58 Shooting ID Photographs. . 59 Shooting Images of Business Cards and Documents . . 60 Recording a Self-portrait . ..61 Isolating Moving Subjects . (Multi-motion Image) .… 62

Il Advanced Settings 63 Using On-screen Menus . ... 63 REC Mode Settings .. 65

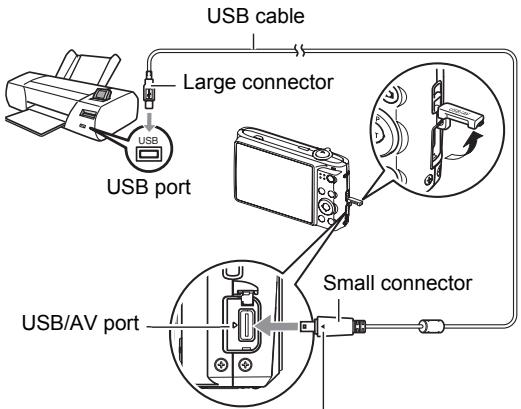

El Printing 113 Printing Snapshots. .. 113 Connecting Directly to a PictBridge Compatible Printer. . 114 Using DPOF to Specify Images to be Printed and the Number of Copies. . 116

Il Using the Camera with a Computer 119 Things you can do using a computer... . 119 Using the Camera with a Windows Computer . . 120

2 Viewing and Storing Images on a Computer. . 121 Playing Movies .… . 125

1 Uploading Movie Files to YouTube . 125 1 Transferring Images from Your Computer to Camera Memory. 127 & Viewing User Documentation . DS - (PDF Files). . 129 = User Registration .…… ..…. 129 Using the Camera with a Macintosh . . 130 2 Connecting the Camera to Your Computer and Saving Files .… 130 ransferring Images Automatcaly and Managing Them on Your Macintosh. . 133

Using the On-screen Histogram to Check Exposure.…. . 149 1 How to Use the HiStogram 150 Il Appendix 151 Precautions during Use .151 Power Supply. . 159 = Charging.…… .159 1 To replace the battery . 159 1 Battery Precautions. . 160 1 Using the Camera in another Country . .… 160 Using a Memory Card . 161 = To replace the memory card .…. 161 Computer System Requirements for Bundied Software . . 163 Reset Initial Default Settings . 164 When things don't go rgnt . . 167 & Troubleshooting . . 167 = Display Messages... 171 Number of Snapshots/Movie Recording Time/Voice Recording Time... 174 Specifications: . 176

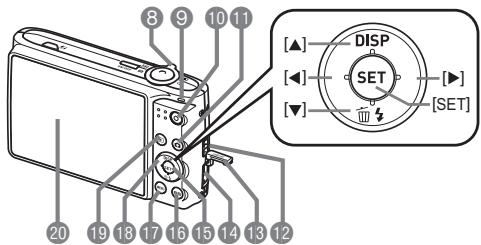

The numbers in parentheses indicate the pages where each item is explained.

Bottom @ Battery/memory card slots (pages 15, 19, 159, 161) @ Tripod hole Use this hole when attaching to a tripod. @ Speaker

@®9 Contacts @ICHARGE] Lamp @AC jack

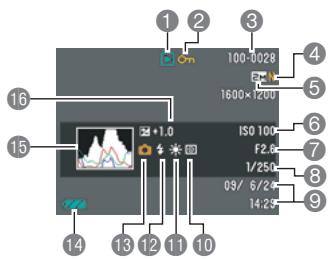

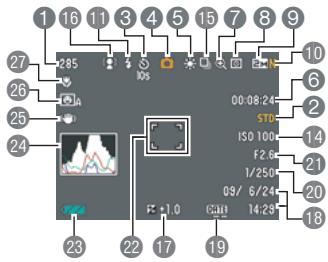

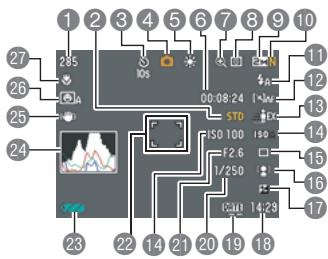

Monitor Screen Contents

The monitor screen uses various indicators, icons, and values to keep you informed

of the cameras status.

+ The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes. They do not represent screens that actually appear on the camera.

H Snapshot Recording Panel : Show

ORemaining snapshot memory capacity {page 174)

@ Movie image quality (page 81)

© Self-timer (page 69)

@ Recording mode (page 22)

© White balance setting (page 82)

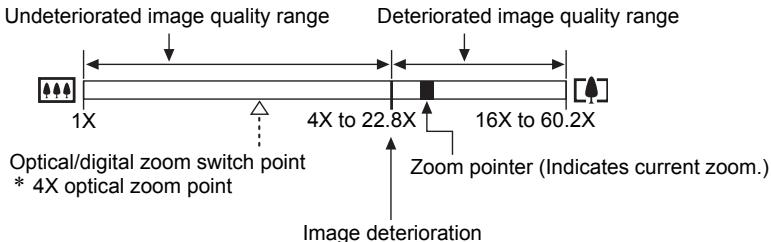

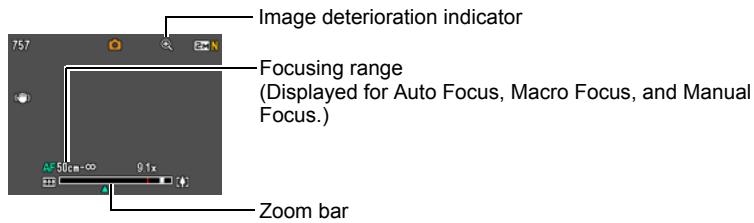

@ image deterioration indicator (page 46)

© Snapshot image size (page 31)

+ Ifthe current aperture, shutter speed, ISO sensitivity, or Auto Exposure is not correct, the setting will turn orange when you half-press the shutter button.

© Movie image quality (page 81)

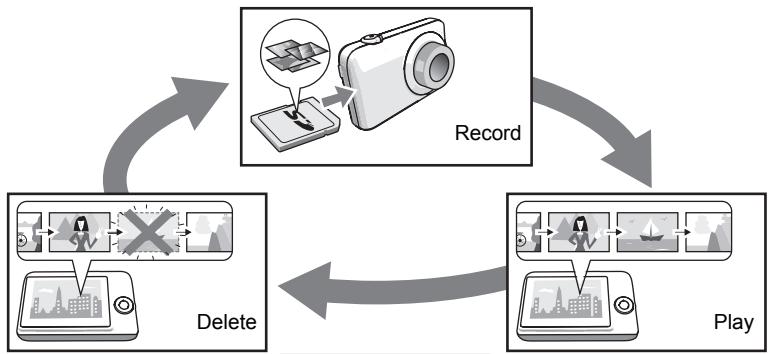

A digital camera stores images on a memory card, so you can record and delete images a countless number of times.

You can use the images you record in a variety of different ways.

Store images on your Print images. Attach images to e-mail. computer.

12 Quick Start Basics

What you can do with your CASIO camera

Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following three main functions.

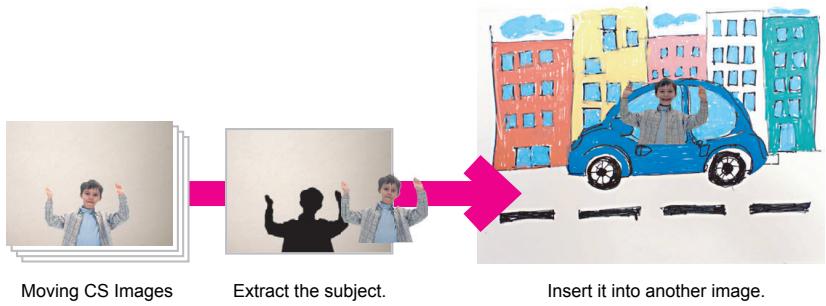

Extract a moving subject out of a series of Continuous Shutter images you have shot and insert them into another image to create a Dynamic Photo image that features the moving subject.

See page 110 for more information

This feature smoothes the skin texture of the subject and softens facial shadows caused by harsh sunlight for better looking portraits.

See page 48 for more information.

BEST SHOT Simply select the sample scene you want and the camera sets up automatically. Then all you need do is press the shutter button for perfect images. An AUTO BEST SHOT mode automatically selects the appropriate BEST SHOT sample scene based on current shooting conditions.

See page 54 for more information.

13 Quick Start Basics

rst, charge the battery prior to us:

Note that the battery of a newly purchased camera is not charged. Perform the steps

under “To charge the battery” to bring the battery to a full charge.

+ Your camera requires a special CASIO rechargeable lithium ion battery (NP-40) for power. Never try to use any other type of battery.

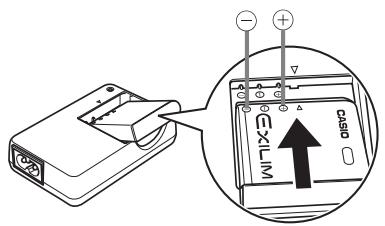

[| [To charge the battery

1. Positioning the positive © and negative © terminals of the battery with those of the charger unit, load the battery into the charger unit.

2. Plug the charger unit into a household power outlet.

About 150 minutes are required to

reach full charge. The [CHARGE] à lamp will go out when charging is complete. Unplug the power cord

from the power outlet and then

remove the battery from the charger.

Lamp Status Description

Flashing Red Charger unit or battery problem (page 159)

of Charging complete or standing by, due to abnormally high or low ambient temperature (page 159)

14 Quick Start Basics

Other Charging Precautions

Use the special charger (BC-31L) to charge the special lithium ion battery (NP-40). Never use any other type of charger device. Attempting to use a different charger can result in unexpected accident.

A battery that is still warm due to normal use may not charge fully. Give the battery time to cool before charging it.

A battery discharges slightly even when it is not loaded in the camera. Because of this, it is recommended that you charge the battery immediately before you need to use it.

Charging the camera's battery may cause interference with TV and radio reception. If this happens, plug the charger into an outlet that is further away from the TV or radio.

Actual charging time depends on current battery capacity and charging conditions.

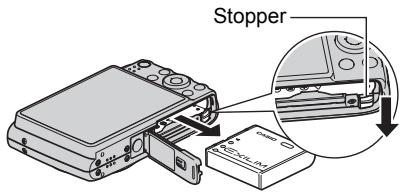

L [To load the battery

1. Open the battery cover. Slide the battery cover slider towards OPEN and then open it as indicated by the arrows in the illustration.

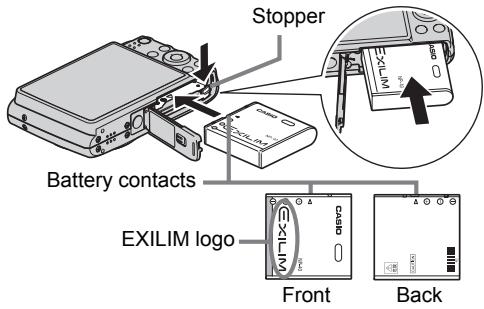

2. Load the battery. With the EXILIM logo on the battery facing upwards (in the direction of the monitor screen), hold the stopper next to the battery in the direction

indicated by the arrow 25 YOU Battery contacts

slide the battery into the

camera. Press the battery in EXILIM logo [N 5

until the stopper secures it in PE) 0 ë ace. _— =

3. Close the battery cover. Close the battery cover and then shift the slider towards LOCK. + For information about how to replace the battery, see page 159.

15 Quick Start Basics

Checking Remaining Battery Power As battery power is consumed, a battery indicator on the monitor screen indicates remaining power as shown below.

Remaining Power High Low Battery Indicator D — 7 — EN — a Indicator Color Cyan —> Amber —> Red —> Red

EM indicates battery power is low. Charge the battery as soon as possible. Recording is not possible when EM is indicated. Charge the battery immediately. The level shown by the battery indicator may change when you switch between the REC mode and PLAY mode.

Leaving the camera for about two days with no power supplied while the battery is dead will cause its date and time settings to be cleared. À message telling you to configure time and date settings will appear the next time you turn on the camera after restoring power. When this happens, configure date and time settings (page 144).

See page 178 for information about battery life and memory capacity.

Battery Power Conservation Tips

+ When you do not need to use the flash, select [BI (flash off) for the flash setting (page 34).

+ Enable the Auto Power Off and the Sleep features to protect against wasting battery power when you forget to turn off the camera (pages 145, 146).

16 Quick Start Basics

g Basic Settings the

The first time you load a battery into the camera, a screen appears for configuring the display language, date, and time settings. Failure to set the date and time correctly will cause the wrong date and time data to be recorded with images.

1. Press [ON/OFF] to turn on the camera. [ON/OFF]

2. Use [A], [W], [<], and [à] to select the language you want and then press

3. Use [A] and [w] to select a date style and then press [SET]. Example: 19. 12.09 YY/MM/DD — 09/12/19 DD/MM/YY — 19/12/09 MM/DD/YY — 12/19/09

4. Set the date and the time. Use [4] and [à] to select the setting you want to change and then use [A] and [] to change it. To switch between 12-hour and 24-hour format, press [BS].

» : Move tetweentems

5. After setting the date and time, use [4] and [k] to select “Apply” and then press [SET].

17 Quick Start Basics

If you make a mistake configuring display language, date, or time settings with the above procedure, refer to the following pages for information about how to correct the settings.

— Display language: Page 145

— Date and time: Page 144

+ Each country controls its local time offset and the use of summer time, and so they are subject to change.

+ Removing the battery from the camera too soon after configuring time and date settings for the first time can cause the settings to be reset to their factory defaults. Do not remove the battery for at least 24 hours after configuring settings.

Preparing a Memory Card

Though the camera has built-in memory that can be used to store images and movies, you probably will want to purchase à commercially available memory card for greater capacity. The camera does not come with a memory card. Images recorded while a memory card is loaded are saved to the memory card. When no memory card is loaded, images are saved to built-in memory.

+ For information about memory card capacities, see page 174.

[| |Supported Memory Cards

— SD Memory Card u — SDHC Memory Card S# Use one of the above types of memory card. [HOE)

18 Quick Start Basics

L [To load a memory card

1. Press [ON/OFF] to turn off the camera and then open the battery cover.

Slide the battery cover slider towards OPEN and then open it as indicated by the arrows in the illustration.

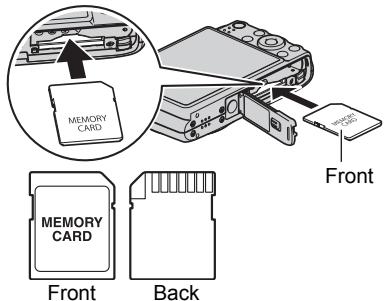

2. Load a memory card. Positioning the memory card so its front is facing upwards (towards the monitor screen side of the camera), slide it into the card slot all the way in until you hear it click securely into place.

MEMORY CARD Front Back

3. Close the battery cover. Close the battery cover and then shift the slider towards LOCK. + For information about how to replace the memory card, see page 161.

+ Never insert anything besides a supported memory card (page 18) into the memory card slot.

+ Should water or any foreign object ever get into the card slot, immediately turn off the camera, remove the battery, and contact your retailer or nearest CASIO authorized service center.

19 Quick Start Basics

L [To format (initialize) a new memory card

You need to format a new memory card before using it for the first time.

1. Turn on the camera and press [MENU].

2. Select the “Set Up” tab, select “Format” and then press [h-].

3. Use [A] and [w] to select “Format” and then press [SET].

+ Formatting a memory card that already has snapshots or other files on it, will delete its contents. Normally you do not need to format a memory card again. However, if storing to a card has slowed down or if you notice any other abnormality, re-format the card. Be sure to use the camera to format a memory card. Formatting a memory card on a computer and then using it in the camera can slow down data processing by the camera. In the case of an SD or SDHC memory card, formatting on a computer can result in non-conformity with the SD format, causing problems with compatibility, operation, etc. Before formatting a new Eye-Fi card to use it for the first time, copy the Eye-Fi Manager install files to your computer. Do this before formatting the card.

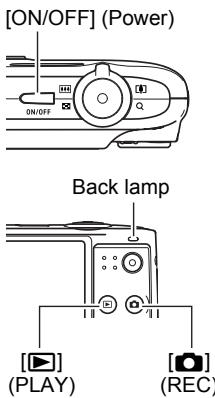

[| [To turn power on

To enter the REC Mode, press [ON/OFF] (Power) or [ (REC). To enter the PLAY mode, press [DJ] (PLAY). The back lamp wil light (green) momentarily and the camera will turn on. If you are entering the REC mode, the lens will extend from the camera at this time.

Take care to ensure that nothing is restricting or coming into contact with the lens as it extends. Holding the lens with your hand so it cannot extend creates the risk of malfunction.

Pressing [D] (PLAY) while in the REC mode switches to the PLAY mode. The lens retracts about 10 seconds after switching modes.

The Sleep function or Auto Power Off (pages 145, 146) will turn off power automatically if you do not perform any operation for a preset amount of time.

ILLTo turn off the camera

(LE) Lei] (PLAY) (REC)

Press [ON/OFF] (Power).

+ You can configure the camera so power does not turn on when you press [0] (REC) or [BA] (PLAY). You also can configure the camera to turn off when you

press [fa] (REC) or [B5)] (PLAY) (page 146).

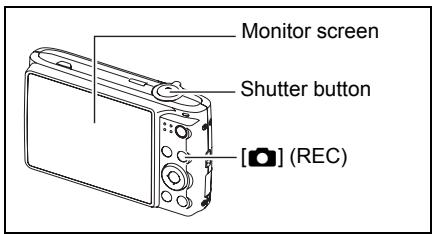

1. Press [@] (REC) to turn on the camera. Make sure Ce] is on the display. fit isn't, see page 54.

2. Point the camera at the subject. You can zoom the image, if you want.

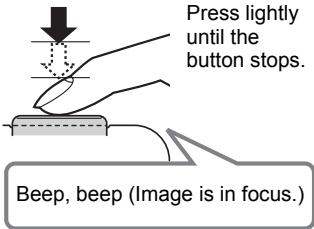

3. Half-press the shutter button to Back lamp CT]

When focus is complete, the camera will beep, the back lamp will light green, and

the focus frame wil| turn green.

Press lightiy + until the

Beep, beep (Image is in focus.)

When you half-press the shutter button, the camera automatically adjusts exposure and focuses on the subject it is currently pointed at. Mastering how much pressure is required for a half-press and a full-press of the shutter button is an important technique for good- looking images. +_ The focus frame in the screen shots included in this manual is shown at £ 2. Note that you can change the form of the focus frame, if you want (page 76).

4. Continuing to keep the camera still, press the shutter button the rest of

the way down. This records the snapshot.

Snap (Image is recorded.)

Shooting a Movie [e] (Movie) Press [@] (Movie) to start movie recording. Press [@] (Movie) again to stop movie recording. See page 49 for details.

23 Quick Start Basics

IMPORTANT! + While the “Anti Shake” setting is “Æ Auto” or “Æ Camera AS”, half pressing the shutter will cause the camera to vibrate and emit an operation sound. This is normal and does not indicate malfunction (page 74).

H Using Quick Shutter

Fully pressing the shutting button without waiting for Auto Focus to operate will record

using Quick Shutter (page 77).

+ With Quick Shutter, the camera focuses faster than normal Auto Focus, which means you can capture quick moving action more easily. Note, however, that some images may be out of focus when Quick Shutter is used.

+ Whenever possible, take a little extra time to half-press the shutter button in order to ensure proper focus.

H lfthe image does not focus.

Ifthe focus frame stays red and the back lamp is flashing green, it means that the image is not in focus (because the subject is too close, etc.) Re-point the camera at the subject and try to focus again.

æ lfthe subject is not in the center of the frame...

“Focus lock” (page 68) is the name of a technique you can use when you want to shoot an image in which the subject to be focused on is not within the focus frame in the center of the screen.

E To track the movement of a moving subject Use [4] and [à] to follow and focus automatically on a moving subject, without half- pressing the shutter button. See “II Tracking” (page 36) for more information.

24 Quick Start Basics

Holding the Camera Correctly

Your images will not come out clearly if you move the camera when you press the shutter button. When pressing the shutter button, be sure to hold the camera as shown in the illustration below, and keep it still by pressing your arms firmly against your sides as you shoot.

Holding the camera still, carefully press the shutter button and take care to avoid all movement as the shutter releases and for a few moments after it releases. This is especially important when available lighting is low, which slows down the shutter speed.

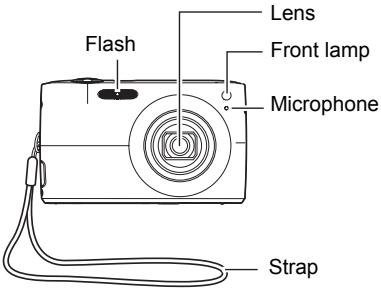

Horizontal Vertical f: Ÿ ) re Hold the camera so the flash is ) above the lens.

Înore Take care that your fingers and the strap do not cover any of the areas indicated in the illustration.

To protect against accidentally dropping the camera, attach the wrist strap and make sure it is around your fingers or wrist while you are operating the camera.

Never swing the camera around by its strap.

The supplied strap is intended for use 7— Strap with this camera only. Never use it for

Use the following procedure to view snapshots on the camera's monitor screen. + For information about how to play back movies, see page 85.

1. Press [52] (PLAY) to enter the PLAY mode. +_ This will display one of the snapshots currently stored in memory. Information about the displayed snapshot also is included (page 174). You also can clear the information to view only the snapshot (page 149). [EI (PLAY) You can zoom in on the image by sliding the zoom controller towards [#] (page 89). If you are recording a snapshot that is very important to you, it is recommended that you zoom the image and check its details after recording it.

2. Use [4] and [à] to scroll between images. + Holding down either button scrolls at high speed.

D] nn) D] _ > — _ — a SR

26 Quick Start Basics

Ifmemory becomes full, you can delete images you no longer need to free up storage and record more images. IMPORTANT!

+ Remember that a file (image) delete operation cannot be undone. + Deleting an audio snapshot (page 108) deletes both the snapshot and the audio file.

[| [To delete a single file

1. Press [12] (PLAY) to enter the PLAY mode and then

2. Use [4] and [p] to scroll through the files until the one you want to delete is displayed.

3. Use [A] and [W] to select “Delete” and then press [SET]. + To delete other files, repeat steps 2 and 3. + To exit the delete operation, press [MENU].

[To delete all files

1. Press [2] (PLAY) to enter the PLAY mode and then press [W] (#4).

2. Use [A] and [w] to select “Delete AII Files” and then press [SET].

3. Use [A] and [w] to select “Yes” and then press [SET] to delete all files. This will cause the message “There are no files” to appear.

27 Quick Start Basics

Snapshot Shooting Precautions

+ Never open the battery cover while the back lamp is flashing green. Doing so can result in the image you just shot being saved incorrectly, damage to other images stored in memory, malfunction of the camera, etc.

+ Ifunwanted light is shining directly onto the lens, shade the lens with your hand when shooting an image.

Monitor Screen when Shooting Snapshots

+ Subject brightness conditions can cause monitor screen response to slow and can cause digital noise in the monitor screen image.

+_ The image that appears on the monitor screen is for image composition. The actual image will be recorded at the quality set for the image quality setting (page 80).

Shooting Indoors under Fluorescent Lighting

+ Minute flickering of fluorescent lighting can affect the brightness or color of an image.

[LLauto Focus Restrictions

Any of the following can make proper focus impossible. — Solid color wall or other very low contrast subject

Strongly back lit subject

— Very shiny subject

— Blinds or other subject with a repeating horizontal pattern

— Multiple subjects at varying distances from the camera

— Subject in a dark location

— Subject that is too far away for light from the AF assist lamp to reach

— Camera movement while shooting

— Fast-moving subject

— Subjects outside the focus range of the camera

If you cannot focus properly, try using focus lock (page 68) or Manual Focus (page 65).

28 Quick Start Basics

Snapshot Tutorial Using the Control Panel The Control Panel can be used to configure camera settings.

1. Inthe REC mode, press [SET]. This will select one of the Control Panel icons and display its settings.

LA] TV] D] Available settings Control Panel

2. Use [A] and [w] to select the setting you want to change. © Image size/Quality* (pages 31, 80) @Face Detection/Make-up

Flash (page 34) (pages 42, 48) @AF Area (page 36) @EV shift (page 44) @Lighting (page 37) © Date/Time (page 45)

@!1SO sensitivity (page 38) @ Continuous shutter (page 39)

* Snapshot image quality cannot be changed using the Control Panel.

3. Use [4] and [p] to change the setting.

4. f you want to configure another setting, repeat steps 2 and 3.

5. After all of the settings are the way you want, press [SET]. This will apply the settings and return to the REC mode.

+ You can configure the camera to turn off display of the Control Panel when you press [SET] (page 139).

+ You also can configure settings other than those listed above (page 63).

+_ The Control Panel cannot be displayed while a Dynamic Photo, Prerecord Movie, For YouTube, or Voice Recording Operation is in progress.

29 Snapshot Tutorial

HlSpecitving Control Panel Items

You can use the following procedure to specify the eight items you want on the Control Panel.

1. While the Control Panel is displayed, press [MENU]. + This will display a menu of Control Panel items, with the items currently selected for display shown in green.

2. Use [A], [Y], [<@], and [à] to select an item you want on the Control Panel and then press [SET]. This will cause the lamp next to the item to light.

3. Repeat the above step to select eight items for the Control Panel. After you select the eighth item, the camera switches to the REC mode and displays the Control Panel.

+ To exit the item select operation, press [MENU].

+_ The “Date/Time” item at the bottom of the Control Panel is fixed and cannot be changed.

+_ The screen shots in this manual show the initial default Control Panel items.

+ To return the Control Panel items to their initial defaults, reset the camera (page 148).

30 Snapshot Tutorial

hanging the Image Size (Size)

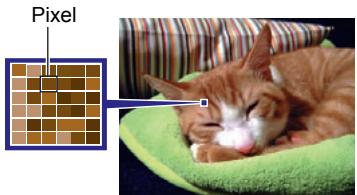

A digital camera image is a collection of small dots called “pixels”. The more pixels there are

in an image, the more detail there will be. However, you generally can do with fewer

pixels when printing an image (L size) through à print service, attaching an image to e-mail, when viewing the image on a computer, etc.

MH About image sizes

The size of an image indicates how many pixels it contains, and is expressed as

horizontal pixels xvertical pixels.

TM (3072X2304) size image =

Approximately 7 million pixels

VGA (640X480) size image = Approximately 300,000 pixels

Image Size Selection Tips Note that larger images have more pixels, so they take up more memory space.

More detail, but takes up more memory. Best when you plan to print large-size prints (such as A3 size).

Large Number of Pixels

Small Number| Less detail, but takes up less memory. Best of Pixels when you want to send images by e-mail, etc.

+ For information about image size, image quality, and number of images that can be stored, see page 174.

+ For information about movie image size, see page 81. + For information about resizing existing snapshots, see page 106.

32 Snapshot Tutorial

x To select the image size

1. Inthe REC mode, press [SET].

2. Use [A] and [] to select the top Control Panel option (Image Size).

3. Use [4] and [>] to select an image size and then press [SET].

Suggested TE Print Size and |Description

Application 10M (6a8x 2738) |Poster Print 32 Poster Print | G00d detail for better ciarity even for images (8648x 2432) cropped (page 106) from the original 169 (8648x2048) |HDTV 7M Gorxzaos) [AP Good detail 4M (2304x1728) | A4 Print 2M 3.5"XS" print |ESSt when preserving memory capacity is (16001200) relatively more important than image quality. VGA Image filles are smaller, which is better when Gaoxagoy |E Mi attaching images to e-mail. However, images are

The initial factory default image size setting is “10M”. Selecting ‘3:2” records images with an aspect ratio of 3:2, which matches the standard aspect ratio of print paper.

The letters “HDTV” stand for “High Definition Television”. An HDTV screen has an aspect ratio of 16:9, which makes them wider than the usual 4:3 aspect ratio of television screens of the past. Your camera can record images that are compatible with the aspect ratio an HDTV screen.

You should regard the print paper sizes suggested here as guidelines only (200 dpi print resolution).

33 Snapshot Tutorial

Using Flash (Flash] 1.

In the REC mode, press [Y] (fi 4) once. (E @i Flash Use [4] and [à] to select the flash @) | &- © setting you want and then press [SET]. Je

When the “Cs] Panel” menu item (page 139) = nn

is “Hide” (so the Control Panel is not I 4)

displayed), pressing [w] ( f 4 ) will cycle through the available flash settings.

Flash fires automatically in accordance with exposure

ENAuto Flash, | nt of light and brighiness) conditions. Flash Off Flash does not fire. Flash always fires. This setting can be used to brighten a HI Flash On subject that normally comes out dark due to daylight or

backlight (daylight synchro flash).

HA Soft Flash Soft flash always fires, regardless of exposure conditions

Red Eye Flash fires automatically. This type of flash can be used to Reduction reduce the chance of redness in the subject's eyes.

. Press the shutter button to shoot.

Back lamp Flashes orange while the flash is charging to indicate that image recording is disabled.

[ © + You will not be able to take another flash snapshot

EH indicates the flash will fire. until the lamp stops flashing orange, which indicates that charging is complete.

+ For information about Flash Range, see page 177.

34 Snapshot Tutorial

Înore + Take care so your fingers and the strap do not block the flash.

The desired effect may not be obtained when the subject is too far away or too close.

Flash charging time (page 177) depends on operating conditions (battery condition, ambient temperature, etc.).

Shooting with flash turned off when lighting is dim results in a slow shutter speed, which can cause image blur due to camera movement. Under such conditions, secure the camera with a tripod, etc.

With red eye reduction, the flash is fired automatically in accordance with exposure. It does not fire in areas where lighting is bright.

The presence of outdoor sunlight, fluorescent lighting, or some other light source can cause abnormal image colors.

Select “Flash Off” for the flash setting when shooting in areas where flash photograph is prohibited.

Using the flash to shoot at night or in a dimly lit room can cause red spots inside the

eyes of people who are in the image. This is caused when the light from the flash

reflects off of the retina of the eye. When red-eye reduction is selected as the flash

mode, the camera fires a pre-flash to cause the irises in the eyes of any people in the

image to close, which reduces the chance of red eye. The camera also has an auto

red-eye correction feature that corrects for red-eye in recorded images.

Note the following important points when using red-eye reduction.

+ Red-eye reduction does not work unless the people in the image are looking directly at the camera (flash).

+ Red-eye reduction may not work very well if the subjects are located far away from the camera.

Other Useful Flash Features + Changing the flash intensity (page 84)

35 Snapshot Tutorial

This mode takes readings of a small area in the center of the image. This setting works well with focus lock (page 68).

When you half-press the shutter button while this setting selected, En the camera will select the optimum Auto Focus area from among

nine possible areas. The focus frame of the area where the camera focuses will be displayed in green.

Pressing [4] or [x] focuses on the subject and causes the focus HiTracking| frame to track the movement of the subject. Half-pressing the shutter button performs Spot AF.

In the REC mode, press [SET].

N Use [A] and [w] to select the third Control Panel option from the top (AF Area).

Use [4] and [à] to select the setting you want and then press [SET].

4. Point the camera at the subject and half-press the shutter button. Wait until the camera adjusts exposure and focus automatically.

5. Press the shutter button the rest of the way down.

QI Spot” or “(IN Tracking” H Multi”

+ “IH Multi” cannot be selected for the Auto Focus area while you are using Face Detection (page 42).

+ When “IH Tracking’ is selected, simply press [4] or [>]. The focus frame will track the movement of the subject, even if you do not half-press the shutter button.

+ While “RH Tracking” is selected, the [4] and [>] keys do not perform functions assigned to them (page 77).

+ “IX Tracking” cannot be selected for the Auto Focus area while you are using Auto Shutter (page 70).

You can use this setting to optimize the balance between right areas and dark areas when shooting images.

1. Inthe REC mode, press [SET].

2. Use [A] and [] to select the fourth Control Panel option from the top Lighting).

3. Use [4] and [p] to select the setting you want and then press [SET].

Performs a higher level of brightness correction than the “On” ÆAExtra| setting. When this option is selected, it takes longer for the image to be stored after the shutter button is pressed.

Elon Performs brightness correction.

Hoff Does not perform brightness correction.

+ You also can optimize the balance between bright areas and dark areas in existing images (page 100).

37 Snapshot Tutorial

Specifying ISO Sensi y (ISO)

ISO sensitivity is a measure of sensitivity to light.

1. Inthe REC mode, press [SET].

2. Use [A] and [w] to select the fifth Control Panel option from the top {ISO Sensitivity).

3. Use [4] and [>] to select the setting you want and then press [SET].

AUTO Adjusts sensitivity automatically according to conditions | ISO64 M Lower sensitivity | Slow shutter speed [Less noise

ISO 1600 (Set or shootng in | creased cigtar 150/3200! Higher sensitivity_ | dimiy lit areas.) noise)

+ “AUTO" ISO sensitivity always is applied for movies, regardes of the current ISO sensitivity setting.

+ Higher ISO sensitivity values tend to result in digital noise in images.

38 Snapshot Tutorial

Using Continuous Shutter (CS)

Your camera has four continuous shutter modes.

Maximum CSspeed | CS enots | Recorded Image Size | Flash Mode ICS: Depends on | Until According to image size | ACCOrding to Normal memory card |memory | ES flash mode Speed CS| capacity full g setting . 4 images per 2M (1600% 1200 pixels) ECs:4fps | Bshots [ed Flash Off : 10 images 1.2M (1280X 960 pixels) ECS 10fps) ee ecoma |205h0S |ieg Flash Off 3 images per 2M (16001200 pixels) ECS: CS: Flash | Sshots [ed Flash On

* To tum off a continuous shutter mode, select “Off”.

1. Inthe REC mode, press [SET].

2. Use [A] and [] to select the sixth Control Panel option from the top (Continuous Shutter).

3. Use [4] and [p] to select the continuous shutter mode you want, and then press [SET].

4. Press the shutter button to shoot. Images continue to be shot as long as you keep the shutter button depressed. Releasing the shutter button stops shooting.

L | Specifying the Method for Saving Continuous Shutter Images

Specify the method to use for saving images recorded with the following continuous shutter (CS) modes.

1. After continuous shutter shooting is finished, use [A] and [W] to select the save method you want and then press [SET].

The shot images are played back at slow speed so you can select the images you want to save. @Wrhile the shot images are playing back and an image Mark appears that you want to save, press the shutter button. Each image that you select by pressing the shutter button will have a mark appended to it. @After selecting all of the images you want to save, press [MENU].

Buttons Used for Image Selection

During playback, changes the playback direction and playback IID»1 |speed.

While playback is paused, scrolls forward or back.

ISET] | Toggles between pause and play.

Shutter . . button [Press all the way down to select an image for saving.

MENU] _ | S2ves the selected images and exis the image select operation.

@Use [A] and [] to select the save method you want and then press [SET]. Save Selected: Saves selected images. Save All : Saves all the images. Cancel Save _: Does not save any of the images.

Save AII Saves all the images.

+ Does not save any of the images while “Cancel Save” is selected.

40 Snapshot Tutorial

If there is not enough available capacity on the memory card, you may not be able to record the number of CS images indicated on the monitor screen. Make sure your memory card has suficient remaining capacity before shooting with using continuous shutter.

With continuous shutter, exposure and focus for the first image are applied for

successive images as well.

When using a continuous shutter mode, keep the camera still until shooting is

Continuous shutter cannot be used in combination with any of the following.

— Some BEST SHOT scenes (AUTO BEST SHOT, Dynamic Photo, Multi-motion Image, ID Photo, Business cards and documents, White board, etc., Prerecord (Movie), For YouTube, Voice Recording)

The speed of “CS: Normal Speed CS” depends on the type of memory card loaded

in the camera and the amount of free space available for storage. When shooting

to built-in memory, continuous shutter shooting is relatively slow.

“CS: Normal Speed CS” speed is slower when shooting with flash.

You cannot use the self-timer in combination with “CS: Normal Speed CS”,

“CS: 4 fps”, CS: 10 fps”.

Note that images recorded with “CS: 4 fps”, “CS: 10 fps” and “CS: Flash” are of

somewhat lower resolution and more prone to digital noise than images recorded

with “CS: Normal Speed CS”.

The ISO sensitivity setting always is “AUTO” for “CS: 4 fps”, “CS: 10 fps” and

“CS: Flash”, regardless of the camera's current ISO sensitivity setting.

The flash range for Flash CS is narrower than that for normal flash.

Shooting a very bright subject can cause a vertical band or a pink cast on the

monitor screen image. This does not indicate malfunction.

41 Snapshot Tutorial

Using Face Detection (Face Detection)

When shooting people, the face detection feature detects the faces of up to ten individuals and adjusts focus and brightness accordingly.

1. Inthe REC mode, press [SET]. 2.

Use [A] and [w] to select the seventh Control Panel option from the top (Face Detection).

3. Use [4] and [à] to select “FI Face Detectio: [SET].

4. Point the camera at the subject(s). The camera will detect human faces and display a frame around each one.

: On” and then press

5. Half-press the shutter button. The camera will focus and the frames around the faces it focuses on will turn green.

6. Press the shutter button the rest of the way down.

42 Snapshot Tutorial

Tips for Best Face Detection Results

+_ The camera performs center focus if it cannot detect a face.

+ Always make sure that Auto Focus (AF) is selected as the focus mode when shooting with face detection.

+ Face detection may take a bit longer when you hold the camera sideways.

+ Detection of the following types of faces is not supported. — Face that is obstructed by hair, sunglasses, a hat, etc. or a face in dark shade — A profile or a face that is at an angle — A face that is very far away and small, or very close and large — A face in an area that is very dark — The face of a pet or some other non-human subject

+ Face detection cannot be used in combination with any of the following features. — Some BEST SHOT scenes (Dynamic Photo, ID Photo, Business cards and documents, White board, etc., Prerecord (Movie), For YouTube, Voice Recording) — Movie Recording +_ The following function is disabled when shooting with face detection. — Multi AF

43 Snapshot Tutorial

ng Image Brightness (EV Shift)

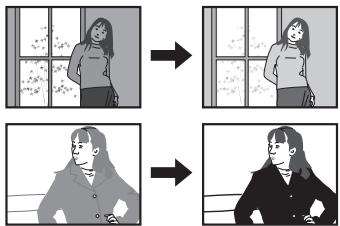

You can manually adjust an image's exposure value (EV value) before shooting it. + Exposure Compensation Range: -2.0EV to +2.0EV

1. Inthe REC mode, press [SET].

2. Use [A] and [w] to select the second Control Panel option from the bottom (EV Shift).

3. Use [4] and [p] to adjust the exposure compensation value. D]: increases the EV value. À higher EV value is best for light-colored subjects and backlit subjects.

[4]: Decreases the EV value. À lower EV value is best for dark-color subjects and for shooting outdoors on a clear day.

To cancel exposure compensation, change the EV En

Exposure 4. Press [SET] compensation value This applies the exposure compensation value. The exposure compensation value you set remains in effect until you change it. Înore

+ When shooting under very dark or very bright conditions, you may not be able to obtain satisfactory results even after performing exposure compensation.

44 Snapshot Tutorial

hanging the Control Panel Date/Time Style

2. Use [A] and [W] to select the bottom Control Panel option (Date/Time). Use [4] and [>] to select the date or time.

+ You can select either of two display style (page 144) for the date: Month/Day or Day/Month.

+_ The time is displayed using 24-hour format.

Your camera provides you with 4X optical zoom (that changes the lens focal distance), which can be used in combination with digital zoom (that digitally processes the center portion of the image to enlarge it) for total zoom capabilities of 4X to 60.2X. The image deterioration point depends on the image size (page 47).

1. Inthe REC Mode, slide the zoom controller to zoom.

F9 Wide Angle [8] Telephoto

FA (Wide Angle):Reduces the size of the subject and broadens the range [A] (Telephoto)_:Enlarges the subject and narrows the range

2. Press the shutter button to shoot the image.

x IMPORTANT! + Digital zoom is disabled while date stamping (page 143) is turned on.

45 Snapshot Tutorial

Înore The higher the digital Zoom factor, the coarser the recorded image. Note that the camera also has a function that lets you record using digital zoom without image deterioration (page 47).

Use of a tripod is recommended to protect against image blur due to camera movement when shooting with telephoto.

Performing a zoom operation changes the lens aperture.

Digital zoom only is available during movie recording. You can adjust the optical zoom setting before you press [@] (Movie) to start movie recording.

[| [Optical Zoom and Digital Zoom Switch Point

If you hold the zoom controller towards EE] (Telephoto), the zoom operation will stop when the optical zoom factor reaches its maximum. Momentarily releasing the zoom controller and then holding it again towards [4] (Telephoto) will switch to digital Zoom, which you can use to set an even higher zoom factor.

+ During zoom, a zoom bar on the monitor screen shows the current zoom setting.

Image deterioration indicator

Focusing range {Displayed for Auto Focus, Macro Focus, and Manual Focus.)

Undeteriorated image quality range Deteriorated image quality range E | [4] 1x D 4Xto228X 16X to 60.2X Optical/digital zoom switch point Zoom pointer (Indicates current zoom.) * 4X optical zoom point

+_ The image deterioration point depends on the image size (page 31). The smaller the image size, the higher the zoom factor you can use before reaching the image deterioration point.

Though digital zoom generally causes a deterioration of image quality, some digital zoom without image deterioration is possible with image sizes of “7M” and smaller. The range in which you can use digital zoom without image deterioration is indicated on the display. The deterioration point depends on the image size.

Image Maximum |Undeteriorated Size Zoom Factor zoom limit 10M 16X 4X

The Make-up Mode smoothes the skin texture of the subject and softens facial shadows caused by harsh sunlight for better looking portraits.

1. Inthe REC mode, press #7. + This will enter the Make-up Mode, which is indicated by Panel.

2. Use [4] and [à] to select “Make-up Level” (seventh Control Panel icon from the top), and then press [SET].

+ You can set one of 13 levels in the range of “0 (Off) (no correction) to “+12 (Max.)" (maximum correction). The larger the value, the greater the processing that is performed.

3. Point the camera at the subject(s). The camera will detect human faces and display a frame around each one.

4. Half-press the shutter button. The camera will focus on the face, which will cause frames around it to turn green.

5. When you are ready to shoot, press the shutter button all the way down.

Înore +_ The following functions cannot be used together with the Make-up Mode. Gontinuous Shutter, Triple Self-timer

48 Snapshot Tutorial

Recording Movie Images and Audio

1. Configure the quality setting for the movie (page 81). The length of the movie you can record will depend on the quality setting you

2. Inthe REC mode, press [@] Remaining recording time (Movie). (page 175) This will start recording and display 5 [@] (Movie)

on the monitor screen. Movie recording includes monaural audio.

ES Press [@] again to stop recording.

+ Each movie can be up to 10 minutes long. Movie recording stops automatically after 10 minutes of recording. Movie recording also will stop automatically if memory becomes full before you stop movie recording by pressing [@].

Shooting with BEST SHOT With BEST SHOT (page 54), you can select the sample scene that matches the type of movie you are trying to shoot and the camera will change its setup accordingly, for beautiful movies every time. Selecting the BEST SHOT scene named Night Scene, for example, will configure the camera so night scenes appear clearer and brighter.

Minimizing the Effects of Camera Movement during Movie Recording

You can configure the camera to minimize the effects of camera movement during movie recording (page 74). Note, however, that this does not prevent image blur due to subject movement and it makes the field of view narrower.

49 Recording Movie Images and Audio

Spending a long time using movie recording will cause the camera to become

slightly warm to the touch. This is normal and does not indicate malfunction.

The camera also records audio. Note the following points when shooting a movie.

— Take care that the microphone is not blocked by your fingers, Microphone etc.

— Good recording results are not possible when the camera is too far away from what you are trying to record.

— Operating camera buttons while shooting can cause button noise to be picked up in the audio.

Shooting a very bright subject can cause a vertical band or a

pink cast on the monitor screen image. This does not indicate malfunction.

Use of certain types of memory cards increase the time it takes to record movies,

which can cause movie frames to be lost. This condition is indicated by LE] and EE

flashing on the monitor screen. To avoid loss of movie frames, use of a memory

card with a maximum transfer speed of at least 10MB per second is recommended

Only digital zoom can be used for zooming during movie recording. Since optical

zoom is not possible while recording a movie, zoom as required before pressing

[@] to start recording.

The effects of camera movement in an image become more pronounced when you

shoot close up or with a large zoom factor. Because of this, use of a tripod is

recommended under these conditions.

Auto Focus and Macro Focus become fixed focus while shooting a movie (page

50 Recording Movie Images and Audio

With this feature, the camera prerecords up to four seconds of whatever is happening in front of the lens in a buffer that is continually updated. Pressing [@] saves the prerecorded action (buffer contents) followed by real-time recording. Real-time recording continues until you stop it.

le] le] + + Movie A A Recording start Recording end

4-second prerecorded part (from the buffer)

EH To set up the camera to shoot with Prerecord Movie

1. Inthe REC mode, press [BS].

2. Use [A], [Y], [4], and [à] to select the “Prerecord (Movie)” scene and then press [SET]. This causes [A to appear on the monitor screen.

H To shoot a Prerecord Movie

1. With the camera pointed at the subject, press [@].

This will save four seconds of action prerecorded in the buffer and start real-time recording.

2. Press [@] again to stop recording. + To turn off Prerecord Movie, press [BS] and then select Ce] (Auto).

51 Recording Movie Images and Audio

hooting a Snapshot while Shooting a Movie

1. While a movie is being recorded, press the shutter button. Movie recording continues after the snapshot is recorded.

Înore You can use [W] ( f 4 ) while shooting a movie to change the flash mode setting. Movie recording is interrupted for a few seconds at the point where a snapshot is recorded.

Shooting a snapshot during movie recording is not possible while any one of the following BEST SHOT scenes is selected.

Prerecord (Movie), Dynamic Photo, Multi-motion Image, ID Photo, Business cards and documents, White board, etc., For YouTube, Voice Recording

Recording Audio Only (Voice Recording)

Voice Recording lets you record audio only, without a snapshot or movie. + For information about Voice Recording capacities, see page 175.

1. Inthe REC mode, press [BS].

2. Use [A], [], [4], and [à] to select the “Voice Recording” scene and then press [SET]. This causes [EI to appear on the monitor screen.

3. Press the shutter button to start recording. Recording time + The back lamp flashes green while recording is in

+ Pressing [SET] during recording will insert a marker into the recording. During playback, you will be able to jump to the markers in the recording.

4. Press the shutter button again to stop audio Remaining recording recording. time + To create another audio recording file, repeat steps 3 and 4. + To turn off Voice Recording, press [BS] and then select Ce] (Auto).

52 Recording Movie Images and Audio

+ You can use [A] (DISP) during audio recording to toggle the monitor screen on

+ When monitor screen contents are turned off, selecting the “Voice Recording” scene will cause the monitor screen to turn off immediately (page 149).

+ Audio files can be played back on a computer with Windows Media Player or

— Audio Data: WAVE/IMA-ADPCM (WAV extension)

[| [To play back an audio recording

1. Inthe PLAY mode, use [4] and [p] to display the Voice Recording file you want to play. IA is displayed in place of an image for a Voice

2. Press [SET] to start playback.

While playback is paused, press [4] or 1] to jump to the next marker and then press [SET] to resume playback.

53 Recording Movie Images and Audio

Using BEST SHOT What is BEST SHOT BEST SHOT provides you with a collection of sample “scenes” that show a variety of different types of shooting conditions. When you need to change the setup of the camera, simply find the scene that matches what you are trying to achieve, and the camera sets up for it automatically. This helps to minimize the chance of ruined images due to poor exposure and shutter speed settings.

[| [Some Sample Scenes

Night Scene Night Scene Portrait

To shoot an image with BEST SH

1. In the REC mode, press [BS]. Currently selected scene This will display a menu of BEST {with boundary) SHOT scenes.

+ Theinitial default selection is Ce] (Auto).

2. Use [A], [W], [4], and [p]to move the boundary to the scene you want to select.

+ The scene menu has multiple pages. Use [A] and [W] to scroll between menu pages.

+ You can access information about the currently selected scene. See page 55 for details.

+ To retum to normal snapshot recording, select Scene 1 Ce] (Auto). Pressing [MENU] while the scene selection screen or scene information screen is displayed will cause the boundary to jump directly to Ce] (Auto).

3. Press [SET] to configure the camera with the settings for the currently selected scene. This returns to the REC mode. + The settings of the scene you selected remain in effect until you select a different scene. + To select a different BEST SHOT scene, repeat the above procedure from step 1.

4. Press the shutter button (if you are shooting a snapshot) or [@] (if you are shooting a movie).

Înore The BEST SHOT YouTube scene sets up the camera for recording movies that are optimized for uploading to YouTube. Movies recorded with the YouTube scene are stored in a special folder to make them easy to locate for uploading (page 137). Maximum recording time while the YouTube scene is selected is 10 minutes.

E Using Scene Information Screen

To find out more about a scene, select it with the boundary on the scene selection screen, and then slide the zoom controller in either direction.

To return to the scene menu, slide the zoom controller again.

To scroll between scenes, use [4] and [>].

To configure the camera with the settings for the currently selected scene, press [SET]. To return to the scene information screen for the currently selected BEST SHOT scene, press [BS].

m BEST SHOT Precautions

+ The following BEST SHOT scenes cannot be used while recording a movie: Dynamic Photo, Multi-motion Image, ID Photo, Business cards and documents, White board, etc., Self-portrait (1 person), Self-portrait (2 people)

The following BEST SHOT scenes cannot be used while shooting a snapshot:

Prerecord (Movie), For YouTube.

The Voice Recording scene cannot be used while shooting a snapshot or recording

Some scenes like Night Scene and Fireworks results in a slow shutter speed

setting. Since a slow shutter speed increases the chance of digital noise in the

image, the camera automatically performs a digital noise reduction process when either of these scenes is selected. This means that it will take a bit longer for the image to be saved which is indicated by the back lamp flashing green. Do not perform any key operation during that time. Also, it is a good idea to use a tripod to avoid image blur due to camera movement when shooting at slow shutter speeds.

Your camera includes a sample scene that optimizes settings for auction site

images. Depending on your camera model, the sample scene is named either “For

eBay” or “Auction”. Images you record using the auction site sample scene are

stored in a special folder so you can easily find them on your computer (page 137).

— The high sensitivity setting is disabled whenever the camera's flash fires.

— High sensitivity may not produce the desired results in very dark conditions.

— When shooting with slow shutter speeds, use a tripod to protect against blurring due to camera movement.

— Under certain lighting conditions, the camera will perform an automatic noise filering operation to reduce digital noise in the image. This operation causes the camera to take longer than normal to save the image and be ready for the next shot.

BEST SHOT scene images were not shot using this camera.

+ Images shot using a BEST SHOT scene may not produce the results you expected

due to shooting conditions and other factors.

+ You can modify the camera settings that are made after you select a BEST SHOT.

scene. Note, however, that the BEST SHOT settings revert to their defaults when you select another BEST SHOT scene or turn off the camera.

56 Using BEST SHOT L |Creating Your Own BEST SHOT Setups

You can save up to 999 camera setups as user BEST SHOT scenes for instant recall whenever you need them.

1. On the BEST SHOT scene menu, select the scene named BEST SHOT (Register User Scene).

2. Use [4] and [à] to select the snapshot or movie whose setup you want to save.

3. Use [A] and [] to select “Save”, and then press [SET].

Your BEST SHOT scene will be assigned the name “Recall User Scene”, along with a scene number.

BEST SHOT snapshot scenes can be used for snapshots only and movie scenes

can be used for movies only.

You can check the settings of the currently selected BEST SHOT scene by

displaying the camera's setting menus and looking at its settings.

User snapshot scenes are assigned numbers in the sequence: SU1, SU2, and so

on, while movies are assigned numbers in the sequence: MU1, MU, and so on.

The following are the settings that are saved for each user snapshot BEST SHOT

Face Detection, Focus, EV Shift, White Balance, Flash, ISO, Metering, Lighting,

Make-up, Flash Intensity, Color Filter, Sharpness, Saturation, Contrast

The following are the settings that are saved for each user movie BEST SHOT

Focus, EV Shift, White Balance, Color Filter, Sharpness, Saturation, Contrast

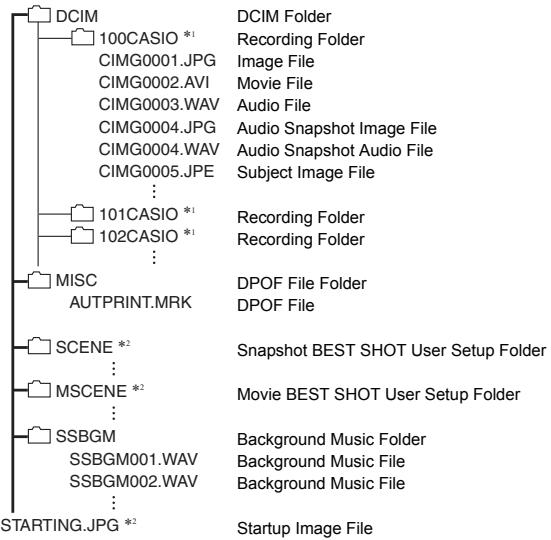

User BEST SHOT scenes are stored in built-in memory (page 137), in the SCENE

folder (snapshots) or MSCENE folder (movies).

Formatting the cameras built-in memory (page 148) deletes all user BEST SHOT.

Use the following procedure when you want to delete a user BEST SHOT scene.

@ Display the information screen (page 55) of the user BEST SHOT scene you want to delete.

@ Press [W] ( # 4 ), select “Delete”, and then press [SET].

oting with AUTO BEST SHOT With AUTO BEST SHOT, the camera automatically selects the BEST SHOT scene that suits your subject and shooting conditions, and configures its settings accordingly. The following are the scenes selected automatically by AUTO BEST. SHOT.

Portrait, Scenery, Night Scene, Night Scene Portrait, Macro, Sports, etc.

1. Press [BS] and then select the “AUTO BEST SHOT” scene.

2. Point the camera at the subject. AUTO BEST SHOT icon The camera will automatically select the BEST SHOT scene that suits your subject and shooting conditions, and configure its settings accordingly. If shooting conditions change, the camera may change to a different BEST SHOT scene automatically.

+ The camera will display the scene selected on the monitor screen for a few seconds.

3. Press the shutter button to shoot the image. + The AUTO BEST SHOT will remain activated, so the camera will select a BEST SHOT scene for the next shot after image recording is complete.

H To change to a different BEST SHOT scene

If you do not want to use the BEST SHOT scene that the camera selects automatically, press [SET], use [4] and [à] to select a different scene, and then press [SET] again.

+ Certain subjects and/or shooting conditions can make it impossible for the camera to select an appropriate scene.

+ You can temporarily toggle automatic scene selection on or off by pressing the [4] or [>] button.

oting ID Photographs

You can use this procedure to shoot a portrait and then print it out in the following standard ID photo sizes: 30X24mm, 40X30mm, 45X35mm, 50X40mm, 55X45mm.

1. Press [BS] and then select the “ID Photo” scene.

2. Press the shutter button to shoot a portrait of the person for whom you want to create an ID photo.

3. Adjust the position of the face in the image. [A] [W] [] D>]:Moves the portrait up, down, left, and right. Zoom controller :Zooms the portrait in and out.

4. Press [SET]. This saves the image in memory. + The resulting image is always saved as a 5M (2560X1920 pixels) size image, regardless of the camera's image size setting.

Printing an ID Photo

The print operation outputs multiple copies of the same image on the same sheet in

various standard ID photo sizes. Cut out the image(s) you need.

+ Actual prints are slighl larger than the standard ID photo sizes to facilitate timming.

+ When printing an ID photo, be sure to select “4"X6"”" as the paper size (page 115).

+ When printing an ID photo, be sure to set up your printer for “borderiess print”. For full details, see the user documentation that comes with your printer.

ooting Images of Business Cards and Documents

A process called “keystone correction” makes lines straight caso

and natural, even if rectangular Robert Seth, subjects are shot from an angle.

Before keystone After keystone correction correction

BEST SHOT has two scenes.

Business cards and White board, etc. documents

1. Press [BS] and then select the “Business cards and documents” or “White board, etc.” scene.

2. Press the shutter button to shoot the image. This image will appear on the monitor screen with a red boundary around the area that is selected for keystone correction. If there is a black boundary, it means that the camera detected more than one area that could be keystone corrected. Use [4] and [Be] to move the boundary to the area you want to keystone correct.

+ The message “Cannot correct image!” will appear on the monitor screen if there are no areas that need to be keystone corrected, and the image will be saved to memory as it is.

3. Use [A] and [w] to select “Correct” and then press [SET]. This will correct the image and save the resulting (corrected) image.

Înore + When composing an image like the ones shown above, make sure that the entire outline of the object you are trying to shoot is enclosed within the monitor screen. Make sure the object is against a background that allows its outline to stand out. VGA size images are stored as VGA size images. All other size images are stored as 2M (1600X1200 pixels) images.

Digital zoom is disabled while shooting with the “White board, etc.” and “Business cards and documents” scenes. However, you can use optical zoom (page 45).

With this feature, you can shoot your own self-portrait simply by pointing the camera at your face.

BEST SHOT has two self-portrait scenes from which to choose.

+ Self-portrait (1 person): Shoots when the face of at least one person, including you, is detected.

+ Self-portrait (2 people): Shoots when the faces of at least two people, including you, are detected.

1. Press [BS] and then select “Self-portrait (1 person)” or “Self-portrait {2 people)”.

2. Press the shutter button all the way down, and point the camera at yourself. About three seconds after you press the shutter button, the camera will go into Auto Shutter standby and start face = detection. The camera will go into Auto Shutter standby / and detect the faces of any people in the image. vs When the camera is able to detect the number of required individuals, it will release the shutter automatically when it determines there is no image blur. + The camera will emit a shutter sound and the front lamp will flash twice when

the shutter is released.

+ To cancel Auto Shutter standby, press [SET].

Înore + You can shoot with the self-portrait feature in combination with a continuous shutter (CS) mode (page 39). Operation is the same as that when a continuous

shutter (CS) mode is used in combination with Auto Shutter. See page 72 for more information.

If the camera remains in Auto Shutter standby without releasing the shutter, you can record an image by pressing the shutter button all the way down again. Shooting with the self-portrait feature may produce a blurred image when shooting in areas where lighting is dim, which results in a very slow shutter speed setting. The Auto Power Off (page 146) trigger time is fixed at five minutes while the camera is in Auto Shutter standby. Sleep (page 145) is disabled while Auto Shutter being used.

Isolating Moving Subjects (Multi-motion Image)

Multi-motion Image can be used to isolate a moving subject within a series of multiple images and places them against a stationary background. Make sure that the camera is not moving or shaking when shooting with Multi-motion Image.

1. Press [BS] and then select the “Multi-motion Image” scene.

Press the shutter button to start shooting.

Continuous Shutter shooting will stop after some time, and the resulting composite image will appear on the monitor screen.

+ Keep the camera still until all of the continuous shutter images are recorded. + When using this feature, image size is fixed at 3M (2048xX 1536 pixels).

The following are menu operations you can use to configure various camera settings.

+ You also can use the Control Panel (page 29) to configure some of the settings that appear on the menu screen. Refer to the page references provided in this section for information about configuring settings using the Control Panel.

Using On-screen Menus

H Example Menu Screen Operation

Press [MENU] to display the menu screen. + Menu contents are different in the REC mode and PLAY mode.

Menu Screen Operation Buttons

Selects tabs. [B] is also used to display the options available for a LB) ring

[ATOM Selects a setting option. [SETIM] Registers the selected setting. MENU) Exits the menu screen.

1. Inthe REC mode, press [MENU]. This will display the menu screen.

2. Use [4] and [à] to select the tab where the item you want to configure is located.

3. Use [A] and [Y]to selectthe menu itemyou Example: want, and then press [k]. When “Focus” is selected on the “REC” tab

4. Use [A] and [Y] to change the setting.

5. After the setting is the way you want, press

+ Pressing [-] registers the selected setting and returns to the menu.

+ To configure settings on another tab after pressing [€] to return to the menu, use [A] to move the highlighting up to the tabs, and then use [4] and [be] to select the tab you want.

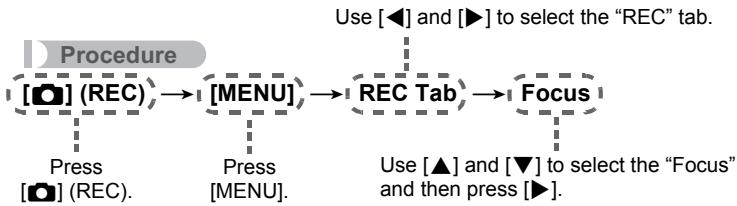

H Menu Operations in This Manual

Menu operations are represented in this manual as shown below. The following operation is the same one described under “Example Menu Screen Operation” on page 63.

Use [4] and [>] to select the “REC” tab.

Press Use [A] and [W] to select the “Focus” [MENU]. and then press [-].

REC Mode Settings (REC)

[| |Selecting a Focus Mode (Focus)

Procedure [Os] (REC) —> [MENU] —> REC Tab —> Focus

sou Type of shot Focus Mode | Approximate Focus Range*! ings | Type o! Snapshot| Movies Snapshot Movies Approximately faut | General Automatic 40 cm to 00 g (infinity) (1.3 to co) Fixed _ |Approximately Fixed Po | Close ups Automatic | focal [10cmto50cm |distance point |(3.9" to 19.7") 2 Shooting with a pan relatively wide ot Fixed distance*2. * focus range pi Scenery and EnityLoter distant Fixed Infinity Ÿ |subjects When you want Manual to focus Manual Approximalely 10 cm to co Focus | manually (infinity)*? (8.8 to co)

*1 The focus range is the distance from the lens surface.

#2 The minimum changes along with the optical zoom setting.

#3 The distance depends on shooting conditions, and appears on the monitor screen when the shutter button is half-pressed

+ Above values are for reference only. For movie macro, the focus range is a few centimeters within the center distance.

To focus with manual focus

1. On the monitor screen, compose the image so the subject you want to focus on is within the yellow boundary.

2. Watching the image on the monitor screen use [<] and [»] to adjust focus. + Atthis time the image that is within the boundary Yellow Loundea will enlarge and fill the monitor screen, which aids y in focusing. If you do not perform any operation for two seconds while the enlarged image is displayed, the screen in step 1 will re-appear.

Înore + An Auto Macro feature detects how far the subject is from the lens and automatically selects either Macro Focus or Auto Focus accordingly.

Use of the flash together with Macro Focus can cause the light of the flash to become blocked, which may result in unwanted lens shadows in your image. Auto Macro can be used when recording snapshots only.

Whenever you perform an optical zoom operation while shooting with Auto Focus, Macro Focus, or Manual Focus, a value will appear on the monitor screen to tell you the focus range, as shown below.

Example: OO cm to co

* OO is the actual focusing range value.

The operations assigned to the [4] and [k-] keys with the “L/R Key” setting (page 77) are disabled while Manual Focus is selected as the focus mode.

“Focus lock" is a technique you can use when you want to

compose an image in which the subject you want to focus

on is not within the focus frame in the center of the

+ To use focus lock, select “BH Spot” or “BI Tracking” for the Auto Focus area (page 36).

1. Align the monitor screen’s focus frame with the subject you want to focus on and then half- press the shutter button.

Subject to be focused on

2. Keeping the shutter button half-pressed {which maintains the focus setting), move the camera to compose the image.

+ When “IH Tracking’ is selected as the Auto Focus area, the focus frame will move automatically and follow the subject.

3. When you are ready to shoot the image, press the shutter button the

rest of the way down.

+ Focus lock also locks exposure (AE).

[| [Using Continuous Shutter (CS)

Procedure [3] (REC) —> [MENU] — REC Tab — CS For details, see the Control Panel procedure on page 39.

L [Using the Self-timer (Self-timer)

Procedure [0] (REC) — [MENU] — REC Tab — Self-timer

With the Self-timer, pressing the shutter button starts a timer. The shutter is released and the image is shot after a fixed amount of time.

FAM0/sec| 10-second Self-timer

2-second Self-timer + When shooting under conditions that slow down the shutter speed,

F2 sec you can use this setting to prevent image blur due to camera movement. Shoots three images: one image 10 seconds after the shutter button is rie pressed, and the next two images as soon as the camera is ready

after shooting the previous image. How long it takes for the camera to LS fier shooting th image. How long it takes for th Qiple M ct ready to shoot depends on the image size and quality settings,

SeltiMer cine or not a memory card is loaded in the camera, and the flash charge condition. off Turns off the Self-timer. + The front lamp flashes while the Self-timer countdown is in Front lamp progress.

+ You can interrupt an ongoing Self-timer countdown by pressing [SET].

Înore +_ The Self-timer cannot be used together with the following features. CS: Normal Speed CS/Afps/10fps, some BEST SHOT scenes (Prerecord (Movie), Voice Recording) + The Triple Self-timer cannot be used together with the following features. Auto Shutter, CS: Flash, Movie, Make-up, some BEST SHOT scenes (Dynamic Photo, Multi-motion Image, ID Photo, Business cards and documents, White board, etc., For YouTube)

L [Using Auto Shutter (Auto Shutter)

[0] (REC) — [MENU] — REC Tab — Auto Shutter

With Auto Shutter, the camera releases the shutter automatically when it detects that certain conditions are present.

Camera releases the shutter automatically when it detects image blur to camera and subject movement are minimized.

When panning, the camera releases the shutter automatically when it determines there is no blur in the subject being followed.

Camera releases the shutter automatically when it detects the subject is smiling.

= To use Detect Blur to minimize image blur (Detect Blur)

t the camera at the subject and half-press the shutter button. Wait

until the camera adjusts exposure and focus automatically.

2. Press the shutter button the rest of the way

She The camera will go into a standby mode and start detecting hand and subject movement. The camera will release the shutter automatically the moment it determines there is no image blur. — + “@ Auto” flashes on the monitor screen while Indicator:

detection of image blur due to hand movement or subject movement is in progress.

The indicator color changes from red to green when the camera is getting ready to release the shutter.

= To use Detect Panning to minimize image blur (Detect Panning)

1. Point the camera at location where the subject will pass and then half- press the shutter button to adjust exposure and focus.

2. Press the shutter button the rest of the way down. This will put the camera into Auto Shutter standby. Move the camera to follow the movement of the subject. The camera will release the shutter automatically the moment it determines there is no blur in the subject you are following. + “@ Auto” flashes on the monitor screen while

panning detection is in progress.

Indicator: The indicator color changes from red to green when the camera is getting ready to release the shutter.

= To use Detect Smile to record when a subject is smiling

1. Point the camera at the subject and half-press the shutter button. Wait until the camera adjusts exposure and focus automatically.

2. Press the shutter button the rest of the way down. The camera will go into a standby mode and start detecting whether the subject is smiling. The camera will release the shutter automatically the moment it determines the subject is smiling. + “@ Auto” flashes on the monitor screen while

smile detection is in progress.

Indicator: The indicator color changes from red to green when the camera is getting ready to release the shutter.

E To change Auto Shutter trigger sensitivity (Sensitivity)

1. Use [A] and [w] to select “Sensiti

ity” and then press [b-].

2. Use [4] and [à] to select the sensitivity setting you want, and then press [SET].

+ You can select any one of three sensitivity levels, from Ce (Lowest) to © (Highest).

+ With the [3 (Highest) setting, the auto shutter release is triggered relatively easily. Auto shutter release triggering becomes more difficult with the Css) (Lowest) setting, but recorded images have the least blur. Experiment with Auto Shutter trigger sensitivity settings to find the one that work best for you.

E Using Auto Shutter in Combination with Continuous Shutter

The following describes how Auto Shutter works while used in combination with Continuous Shutter (page 39).

WAICSINSAMA| The camera will go back into Auto Shutter standby and be Speed CS/CS?4fps, | ready to shoot again each time itis triggered. To stop an and CS: 10 fps ongoing Continuous Shutter operation, press [SET].

. 3 continuous shutter mages will be shot with flash when EU CEE FEED Auto Shutter is triggered.

Tips for Better Auto Shutter Snapshots

+ Using Auto Shutter in combination with Anti Shake (page 74) reduces the chance of image blur even more.

+ While recording with Detect Blur or Detect Smile, keep the camera as still as possible until the recording operation is complete.

+ Ifthe camera remains in Auto Shutter standby without releasing the shutter, you

can record an image by pressing the shutter button all the way down again.

+ Detect Blur and Detect Panning may not produce the desired effect when shooting

in an area where dim lighting requires a slow shutter speed, or when the subject is

moving extremely quickly.

Since facial expressions differ from individual to individual, you may experience

problems with getting the camera to release the shutter while Detect Smile is being

used. If this happens, change the trigger sensitivity setting.

The Auto Power Off (page 146) trigger time is fixed at five minutes while the

camera is in Auto Shutter standby. Sleep (page 145) is disabled while Auto Shutter

To cancel Auto Shutter recording while Auto Shutter is being performed (indicated

by“ Auto” flashing on the monitor screen), press [SET].

The “BH Tracking” setting for the AF area cannot be used while Detect Blur or

Detect Panning is selected for the Auto Shutter setting (page 36).

Always make sure you had “HE Spot” selected for the AF area Whenever you are

using the Detect Smile Auto Shutter setting (page 36).

Auto Shutter cannot be used in combination with any of the following features.

— Some BEST SHOT sample scenes (AUTO BEST SHOT, Dynamic Photo, ID Photo, Business cards and documents, White board, etc., Prerecord (Movie), For YouTube, Voice Recording)

The following function is disabled when shooting with Auto Shutter.

L [Shooting with Face Detection (Face Detection)

Procedure [3] (REC) —> [MENU] — REC Tab —+ Face Detection For details, see the Control Panel procedure on page 42.

Procedure [0] (REC) — [MENU] — REC Tab — Anti Shake

You can turn on the camera's Anti Shake feature to reduce image blur due to subject movement or camera movement when shooting a moving subject using telephoto, when shooting a fast-moving subject, or when shooting under dim lighting conditions. Your digital camera is equipped with a CCD shift type camera shake correction feature and a high-sensitivity anti image blur feature. These two features work in concert to minimize the effects of hand and subject movement.

Reducing the Effects of Camera and Subject Movement (Anti Shake)

I Auto Minimizes the effects of hand and subject movement. ÆICamera AS Minimizes the effects of camera movement only Mimage AS Minimizes the effects of subject movement only

Half-pressing the shutter button demonstrates the effect of

Æ DEMO “EX Camera AS”. However, the image is not recorded.

Off Turns off Anti Shake settings

+ While the “Anti Shake” setting is “ÆA Auto” or “FE Camera AS”, half pressing the shutter will cause the camera to vibrate and emit an operation sound. This is normal and does not indicate malfunction.

Înore + Only Camera Stabilizer can be used during movie recording.

ISO sensitivity, aperture, and shutter speed do not appear on the monitor screen when you half-press the shutter button while “ÆA Auto” or “II Image AS” is selected. These values will appear briefly, however, in the preview image that is displayed immediately after you shoot a snapshot.

The ISO sensitivity setting (page 38) must be “AUTO" for “I Image AS” to work. Shooting while “ÆA Auto” or “I Image AS” is selected can cause an image to appear somewhat coarser than normal and can cause slight deterioration of image resolution.

Anti Shake may not be able to eliminate the effects of camera or subject movement when movement is severe.

“IX Camera AS” may not work properly when the camera is mounted on a tripod. Either turn off Anti Shake or select “I Image AS”.

[| |Specifying the Auto Focus Area (AF Area)

Procedure [6] (REC) — [MENU] — REC Tab — AF Area For details, see the Control Panel procedure on page 36.

[| [Using the Auto Focus Assist Light (AF Assist Light)

Procedure [3] (REC) —> [MENU] — REC Tab — AF Assist Light Half-pressing the shutter button while this setting is selected causes Front lamp the front lamp to light, which provides illumination for focusing in

areas where lighting is dim. Leaving this function turned off is recommended when shoot portraits from short distances, etc.

Me 1uPoR TANT: + Never look directly into the front lamp while it is lit.

L |Changing the Focus Frame Shape (Focus Frame)

Procedure [1] (REC) — [MENU] — REC Tab — Focus Frame

You can use this procedure to select from among five different shapes, including a heart shape, for the focus frame.

Înore + Half-pressing the shutter button will cause the focus frame to change one of the shapes shown below.

Focus successful D | | & # Focus not successful @ | + # x

+ While “Random” is selected, one of the four focus frames is selected randomiy whenever the camera is turned on.

+ When shooting with face detection, the frame shape is £ 2.

+ Monitor screen information display is always on (page 149) when “[JH Multi” is selected as the AF area (page 36) while any focus frame other than © 1 is selected with this setting. Also, the following items will not appear.

On-screen grid, histogram, and the following information when the shutter button is half-pressed: ISO, aperture, shutter speed.

ILlrurning Digital Zoom On or Off (Digital Zoom)

Procedure [3] (REC) — [MENU] — REC Tab — Digital Zoom

You can use this setting to turn digital Zoom on or off. When digital zoom is turned off, operating the zoom controller zooms the image with optical zoom only.

L [Assigning Functions to the [4] and [>] Keys (L/R Key)

[Os] (REC) —> [MENU] —> REC Tab —> L/R Key You can assign one of the five functions listed below to the [€] and [b-] keys.

Setting L/D>] key operation

Metering Changes the Metering Mode (page 83)

EV Shift Adjusts the EV shift value (page 44)

White Balance | Changes the white balance setting (page 82) ISO Changes the ISO Sensitivity setting (page 38) Self-timer Sets the self-timer time (page 69)

off Cancels [4] and [>] key assignments

[| [Shooting with Quick Shutter (Quick Shutter)

Procedure [0] (REC) — [MENU] — REC Tab — Quick Shutter

When Quick Shutter is tumed on, you can press the shutter button all the way without waiting for Auto Focus. This will record the image using a high-speed focus operation

that is much faster than Auto Focus.

Turns on Quick Shutter

On\ . Some images may be out of focus when Quick Shutter is used.

Turns off Quick Shutter so focus is performed using normal Auto Focus

before the image is recorded.

Om] * ! you press fully the shutter button while Quick Shutter is turned of, images will continue to be shot without focusing.

in order to ensure proper focus.

+ Whenever possible, take a little extra time to half-press the shutter button

+ Quick Shutter is disabled when the zoom factor is greater. Recording is performed

using Auto Focus at this time.

L [Displaying the On-screen Grid (Grid)

Procedure [6] (REC) —> [MENU] — REC Tab — Grid

The on-screen grid can be displayed on the REC mode monitor screen for easy vertical and horizontal alignment when composing images.

[| |Turning on Image Review (Review)

Procedure [O3] (REC) —> [MENU] —> REC Tab — Review While Review is turned on, the camera will display a image for about one second immediately after you press the shutter button to record it.

lusino Icon Help (Icon Help)

Procedure [Os] (REC) —> [MENU] —> REC Tab — Icon Help

While Icon Help is turned on, a textual description will appear on the display for certain icons when you switch between REC functions.

Functions Supported by Icon Help + REC Mode, Flash, Metering Mode, White Balance, Self-timer, EV Shift

L |Configuring Power On Default Settings (Memory)

[IQ] (REC) —> [MENU] —> REC Tab —> Memory When you turn off the camera, it remembers the current settings of all enabled memory items and restores them when you turn it back on. Any memory item that is disabled will be returned to its initial default setting whenever you turn off the camera.

AF Area Spot Setting at Metering Multi power off cs Of

MF Position Position before manual focus was selected.

* Optical zoom setting only.

+ If you turn the camera power off and then back on while the BEST SHOT memory item is enabled, all of the other memory items (except for zoom position) are initialized to the currently selected BEST SHOT sample scene setup, regardless of the enabled/disabled status of the other memory items.

Image Quality Settings (Quality)

[| |Specifying Snapshot Size (Size)

Procedure [3] (REC) —> [MENU] —> Quality Tab —> Size For details, see the Control Panel procedure on page 33.

[| |Specifying Snapshot Image Quality (Quality (Snapshot))

Procedure [3] (REC) —> [MENU] —> Quality Tab —> [1] Quality (Snapshot)

Fine Gives image quality priority Normal Normal Economy Gives number of images priority

+_ The “Fine” setting helps to bring out details when shooting a finely detailed image of nature that includes dense tree branches or leaves, or an image of a complex pattern.

+ Memory capacity (the number of images you can record) will be affected by the quality settings you configure (page 174).

L | Specifying Movie Image Quality (Quality (Movie)

Procedure [I] (REC) —> [MENU] —> Quality Tab —+> [EJ Quality (Movie) Movie image quality is a standard that determines the detail, smoothness, and clarity

of a movie during playback. Shooting with the high-quality (HD) setting will result in better image quality, but it also shortens the amount of time you can shoot.

Image Quality (Pixels) | Approximate Data Rate Frame Rate HD 1280X720 | 24 Megabits/second 24 frames/second STD 640X480 |10 Megabits/second 30 frames/second LP 320X240 |2.7 Megabits/second 15 frames/second

+_ The 16:9 aspect ratio is available only when “HD” is selected as the image quality. + Memory capacity (Movie recording time you can shoot) will be affected by the quality settings you configure (page 175).

L |Correcting Image Brightness (EV Shift)

Procedure [IQ] (REC) —> [MENU] —> Quality Tab —> EV Shift For details, see the Control Panel procedure on page 44.

L |Controlling White Balance (White Balance)

[IQ] (REC) —> [MENU] —+ Quality Tab —> White Balance

You can adjust white balance to match the source of light available where you are shooting and avoid the blue cast that results when shooting outdoors when it is cloudy, and the green cast that results when shooting under fluorescent lighting.

Auto Configures the camera to adjust white balance automatically EZ(Daylight)}M| For shooting outdoors on a clear day E1(Overcast)| For shooting outdoors on an overcast rainy day, in the shade, etc.

For shooting on à clear day in the shade of trees or buildings

ODA E chooting under white or day white fluorescent lighting Fluorescent) EE (Daylight . Fluorescent)m| 0" Shooting under dayight fluorescent ighüing E{Tungsten)h| For shooting under light bulb lighting For configuring the camera manually to suit a particular light source. Select “Manual”. Blank white paper @Under the lighting conditions you plan to 2 use when shooting, point the camera at a | Manual blank white piece of paper so it fils the |

entire monitor screen and then press the shutter button.

The white balance setting is retained even if you turn off the

+ When “Auto” is selected for the white balance setting, the camera automatically determines the white point of the subject. Certain subject colors and light source conditions can cause problems when the camera tries to determine the white point, which makes proper white balance adjustment impossible. If this happens, select the white balance setting that matches your shooting conditions (Daylight,

[O3] (REC) —> [MENU] —> Quality Tab —> ISO For details, see the Control Panel procedure on page 38.

[| |Specifying the Metering Mode (Metering)

[IQ] (REC) —> [MENU] —> Quality Tab —> Metering The metering mode determines what part of the subject is metered for exposure.

Multi-pattern metering divides the image into sections and measures the light in each section for a balanced exposure reading. This type of metering provides error-free exposure settings for a wide range of shooting conditions.

Center weighted metering concentrates on the center of the focus area to measure light. This type of metering is best when you want some level of control over contrast.

Spot metering takes readings at a very small area. Use this metering method when you want exposure to be set according to the brightness of a particular subject, without being affected by surrounding conditions.

+_ The currently selected metering mode is indicated by an icon on the snapshot screen. No icon is displayed when “3 Multi is selected as the metering mode.

[| [Optimizing Image Brightness (Lighting)

[IQ] (REC) —> [MENU] —> Quality Tab —+ Lighting For details, see the Control Panel procedure on page 37.

L [Using Built-in Color Filters (Color Filter)

Procedure [6] (REC) —> [MENU] — Quality Tab — Color Filter Settings: Off, B/W, Sepia, Red, Green, Blue, Yellow, Pink, and Purple

[| |Controlling Image Sharpness (Sharpness)

Procedure [0] (REC) —> [MENU] — Quality Tab — Sharpness You can specify one of five sharpness settings from +2 (sharpest) to —2 (least sharp).

L |Controlling Color Saturation (Saturation)

Procedure [6] (REC) —> [MENU] —> Quality Tab — Saturation

You can specify one of five saturation settings from +2 (most saturated) to —2 (least saturated).

L [Adjusting image Contrast (Contrast)

Procedure [6] (REC) —> [MENU] —> Quality Tab —> Contrast

You can specify one of five contrast settings from +2 (most contrast between light and dark) to -2 (least contrast between light and dark).

HlSpecifving Flash intensity (Flash Intensity)

[0] (REC) —> [MENU] — Quality Tab — Flash Intensity

You can specify one of five flash intensity settings, from —2 (weakest) to +2 (strongest). + Flash intensity may not change when the subject is too far away or too close.

Viewing Snapshots and Movies

Viewing Snapshots See page 26 for the procedure for viewing snapshots.

1. Press [53] (PLAY) and then use [4] and [>] to display the movie you want to view.

2. Press [SET] to start playback.

Movie Playback Controls

[QD] Fastforwardin| + Each press of either button increases the speed of the fast fast reverse forward or fast reverse operation. + To return to normal playback speed, press [SET]. Plaÿ/pause M [SET] 1 frame [<Q D>] forward/back| + Holding down either button scrolls continuously. CITE Press [W] and then press [A] [] + Volume can be adjusted only while movie playback is in adjustment progress. Information displayonfoff | LA] (DISP) Slide the zoom controller in the direction of EE] (A). Zoom + You can use [A], [Y], [4], and [b] to scroll the zoomed image ET on the monitor screen. You can zoom a movie image up to 4.5 times normal size. Stopplayback| [MENU]

+ Playback may not be possible for movies not recorded with this camera.

85 Vieuing Snapshots and Movies

jewing Continuous Shutter Images

Each time you perform a continuous shutter (CS) Number of image files in the operation, the camera creates a CS group that CS group

includes all of the images for that particular CS session. You can use the following procedure to play back the images in a particular CS group.

1. Press [51] (PLAY) and then use [4] and [x] to display the CS group whose images you want to view.

2. Press [SET] to start playback the images in the CS group. First image in the CS group

This will play back the images in the CS group you selected.

Current image number/number of images in the group

86 Vieuing Snapshots and Movies

During playback, changes the playback direction and playback speed. ADI] While playback is paused, scrolls forward or back. + Playback speed cannot be adjusted while the displayed image is zoomed. ISET] Toggles between pause and play. Zoom Zooms the image. + You can use [A], [W], [4], and [Bb] to scroll the zoomed image on controller , the monitor screen. IMENUJMN Exits CS group playback. [AT(DISP)\| Cycles through information display formats. [v] Displays the delete menu. (| NOTE

+ Multiple images shot using normal-speed continuous shutter are stored individually and are not grouped. This means they can be displayed individually (page 26) but not as a CS group.

[| |Deleting Continuous Shutter Images

You can use the following procedures to delete images while playback is in progress

H Deleting a Specific CS Group File

1. While CS image playback is in progress or paused, press [w].

2. Use [4] and [à] to display the image you want to delete.

3. Use [A] and [v] to select “Delete” and then press [SET]. + To delete other files, repeat steps 2 and 3. + To exit the delete operation, press [MENU].

87 Vieuing Snapshots and Movies

HE Deleting All Files in a CS Group 1. While CS image playback is in progress or paused, press [].

2. Use [A] and [w] to select “Del Group Images” and then press [SET].

3. Use [A] and [w]to select “Yes”, and then press [SET].

L [Dividing Up a CS Group

Use the following to divide up a CS Group into individual images.

& Dividing Up a Specific CS Group 1. While a CS group folder is displayed, press [MENU].

.. Use [4] and [»] to select “PLAY” tab.

2. 3. Use [A] and [w] to select “Divide Group” and then press []. 4.

. Use [4] and [»] to display the CS group folder whose CS group you want to divide up.

5. Use [A] and [w] to select “Divide” and then press [SET]. + To divide up other CS group files, repeat steps 4 and 5.

88 Vieuing Snapshots and Movies

ing Up AII CS Groups

. While a CS group folder is displayed, press [MENU].

.. Use [4] and [»] to select “PLAY” tab.

.. Use [A] and [v] to select “Divide Group” and then press [»].

. Use [A] and [v] to select “Divide AII Groups” and then press [SET].

. Use [A] and [v] to select “Yes”, and then press [SET].

+ Once a CS group is divided, it cannot be regrouped.

Zooming an On-screen Image

1. inthe PLAY mode, use [4] and [>] to scroll through the images until the one you want is displayed.

2. Slide the zoom controller towards [4] (Q) to Zoom factor zoom.

You can use [A], [W], [4], and [pe] to scroll the Image area zoomed image on the monitor screen. Slide the zoom controller towards FE to unzoom the image.

— When monitor screen contents are turned on, a graphic in the lower right comer of the screen Shows what part of the zoomed image is currently displayed.

— To exit the zoom screen, press [MENU] or [BS].

— Though the maximum image zoom factor is 8X, certain image sizes may not allow zooming up to the full 8X.

+ Pressing [SET] will lock the current zoom factor for the on-screen image. You can then use [4] and [>] to scroll between images, using the same zoom factor. Pressing [SET] again will unlock the zoom factor and allow you to use [A], [W], [4] and [à] to move around the currently displayed images.

Current display area

89 Vieuing Snapshots and Movies

playing the Image Menu

1. In the PLAY Mode, slide the zoom controller Boundary towards [Fri (2). Use [A], []. [4] and [be] to move the selection boundary around the image menu. To view a particular image, use [A], [W]. [4], or I] to move the selection boundary to the image you want and then press [SET].

1. Inthe PLAY Mode, slide the zoom controller towards [1 (E=2) twice. This will display the calendar screen that shows the first image recorded on each day.

To display the first image recorded on a particular day,

use [A], [W], [4], and [be] to move the selection

boundary to the day you want and then press [SET].

To exit the calendar screen, press [MENU] or [BS].

+ Ifyou save an image using any one of the following functions, the image will appear in the calendar on the date that you last saved it.

Lighting, White Balance, Brightness, Keystone Correction, Color Restoration, Resizing, Cropping, Copy, Layout Print,

MOTION PRINT If you edit the date and time of an image, the image still will appear on the date it was originally recorded.

90 Vieuing Snapshots and Movies

Viewing Snapshots and Movies on a TV Screen

1. Use the AV cable that comes with the camera to connect it to the TV.

l Yellow { [a White AV cable (bundled)

+ TV. [|| viceo audio

AUDIO IN jacks (white)

VIDEO IN jack (yellow) USB/AV port

Making sure that the mark on the camera is aligned with the 4 mark of the AV cable connector, connect the cable to the camera

+ Make sure that you insert the cable connector into the E\ USB/AV port until you feel it click securely into place. QD) Failure to insert the connector fully can result in poor Se

communication or malfunction. Note that even while the connector is fully inserted, you still will be able to see the metal part of the connector as shown in the illustration.

Turn on the TV and select its video input mode. Ifthe TV has more than one video input, select the one where the camera is connected.

Press [1] (PLAY) to turn on the camera.

This will cause an image to appear on the TV screen, without anything appearing

on the camera's monitor screen.

+ Pressing [ON/OFF] or [88] (REC) will not tu on the camera while the AV cable is connected.

+ You also can change the aspect ratio of the screen and the video output

o1 Vieuing Snapshots and Movies

4. Now you can display images and play back movies as you normally do.

+ Before connecting to a TV to display images, be sure to configure the camera's [0] (REC) and [653] (PLAY) buttons for “Power On” or “Power On/Off” (page 146).

+ Audio is initially output by the camera at maximum volume. When you first start displaying images, set the TV volume control at a relatively low level and then adjust it as required.

+ Audio is monaural.

+ Certain TVS may cut off part of the images.

+ Allicons and indicators that appear on the monitor screen also appear on the TV screen. You can use [A] (DISP) to change the display contents.

Recording Camera Images to a DVD Recorder or Video Deck Use one of the following methods to connect the camera to the recording device using the camera's bundied AV cable. — DVD recorder or video deck: Connect to the VIDEO IN and AUDIO IN terminals. — Camera: USB/AV port You can play a slideshow of snapshots and movies on the camera and record it on a DVD or video tape. You can record movies by selecting “Æ Only’ for the slideshow “images” setting (page 93). When recording images to an external device, use [A] (DISP) to clear all indicators from the monitor screen (page 149). For information about connecting a monitor to the recording device and about how to record, see the user documentation that comes with the recording device you are using.

92 Vieuing Snapshots and Movies

Other Playback Functions (PLAY)

This section explains menu items that you can use to configure settings and perform other playback operations.

| For information about menu operations, see page 63. |

Playing a Slideshow on the Camera (Slideshow)

Procedure [52] (PLAY) — [MENU] —> PLAY Tab — Slideshow

Start | Starts the slideshow

Specifies the type of images to be included in the slideshow

Al images: Snapshots, movies, and audio recordings

© Only: Snapshots and audio snapshots only

One Image:One single selected image (selected using [4] and [»-])

Time from the start to the end of the slideshow 1to 5 minutes, 10 minutes, 15 minutes, 30 minutes, 60 minutes

Amount of time each image remains displayed

Use [4] and [Re] to select a value from 1 to 30 seconds, or “MAX”.

If you specify a value from 1 to 30 seconds, images change at the specified interval, but the audio portion of movies and audio snapshots will continue to play until the end.

When the slideshow reaches a movie file while “MAX" is selected, only the first frame of the movie will displayed. Voice Recording files are not played back when "MAX" is selected.

93 Other Playback Functions (PLAY)

Select the effect you want.

Pattern 1 to 5: Plays background music and applies an image change effect.

+ Patterns 1 through 4 have different background music, but they all use the same image change effect.

+ Pattern 5 can be used for playback of snapshots only, and the “Interval” setting is ignored.

+ The currently selected image change effect setting is disabled automatically in following cases. — When playing a slideshow for which “ÆJ Only” or “One Image” is selected

for the “Images” setting

— When the interval setting is “MAX”, 1 second or 2 seconds. — Before and after playback of a movie or Voice Recording file

Off: No image change effect or background music

To stop the slideshow, press [SET]. Pressing [MENU] instead of [SET] stops the slideshow and returns to the menu screen.

Adjust audio volume by pressing [W] and then press [A] or [W] during playback. All button operations are disabled while the slideshow is transitioning from one image to another.

The time required for transition from one image to another may be longer in the case of an image that was not recorded with this camera.

[| [Saving Music from Your Computer to Camera Memory

You can replace the built-in slideshow background music with other music from your computer.

Supported File Types:

+ IMA-ADPCM format WAV files

File names: SSBGM001.WAV to SSBGM009.WAV

+ Create the music files on your computer using the above names. + Regardiess of which effect pattern you select, the BGM files you store in camera memory are played back in name sequence.

4 Other Playback Functions (PLAY)

. Connect the camera to your computer (pages 121, 130).

If you plan to save the music files to the camera's memory card, make sure the card is loaded in the camera.

. Perform one of the following operations to open the memory card or built-in memory. This will cause the camera to be recognized by your computer as a Removable Disk (Drive). + Windows @Windows Vista: Start — Computer Windows XP: Start —> My Computer Windows 2000: Double-click “My Computer”. @Double-click “Removable Disk”. + Macintosh @Double-click the camera's drive icon.

. Create a folder named “SSBGM”.

4. Double-click the “SSBGM” folder you created and copy the

background music file to it.

+ See the user documentation that comes with your computer for information about moving, copying, and deleting files.

Ifthere are background music files both in built-in memory and on the memory

card loaded in the camera, the files on the memory card take priority.

See page 137 for information about camera folders.

.. Disconnect the camera from the computer (pages 123, 132).

95 Other Playback Functions (PLAY)

g Out Snapshots with Layout Print (Layo

[2] (PLAY) —+ Spnapshot Screen —> [MENU] —> PLAY Tab — Layout Print

You can use the following procedure to insert existing snapshots into the frames of a layout and produce a new image that contains multiple snapshots.

1. Use [<] and [p] to select the layout pattern you Layout Pattern Layout Pattern want and then press (2 images) (8 images)

2. Use [4] and [>] to select the background color and then press [SET].

3. Use [4] and [p-] to select the images you want to include in the layout then press [SET].

4. Press [SET] and repeat step 3 for the remaining frames in the layout. The final layout image will be saved after you insert the final snapshot into it.

+ You will not be able to save the new image unless there is a snapshot in all of the layout frames.

+ 3:2 and 16:9 images cannot be included in a Layout Print image.

+_ The recording date of the resulting Layout Print image is the recording date if the image you place into the final frame, not the date you create the Layout Print image.

+_ The Layout Print image is saved as 7M (3072X2304 pixels) size.

96 Other Playback Functions (PLAY)

[Œ2] (PLAY) —+ Movie Screen to be Used —> [MENU] —> PLAY Tab —> MOTION PRINT

1. Use [<] and [p] to scroll through the movie frames and display the one you want to use as the image of the MOTION PRINT image. ‘ Holding down [4] or [1 9 frames scrolls at high speed.

2. Use [A] and [] to select either “9 frames” or “1 frame” and then press [SET]. + When “9 frames’ is selected, the frame you select in step 1 will be in the center of the MOTION PRINT image. + Only the frames of movies recorded on this camera can be used in a MOTION PRINT image.

97 Other Playback Functions (PLAY)

[21 (PLAY) —+ Movie Screen of Movie to be Edited —> [MENU] —> PLAY Tab — Movie Editing

The Movie Editing feature lets you use one of the following procedures to edit out a specific part of a movie.

HET Cut (To-Point Cut) Cuts everything from the beginning ofthe movie

up to the current location.

FET-1Cut(Point-To-Point Cut)\| Cuts everything between two points. |

L-T1EI Cut (From-Point Cut] Cu'S everything from the current location to the

Use [A] and [Y] to select the editing method you want to use and then press [SET].

Use [4] and [>] to scroll through the movie and

search for the frame (point) from which or to

which you want to cut the movie (the cut point).

+ You also can search for the cut location by playing back the movie and pressing [SET] to pause. During playback, you can press [4] or [»] to perform fast reverse or fast forward.

. When the frame where you want the cut point to

be is displayed, press [W].

CTI Cut While the frame you want the cut to be up to is (To-Point Cut) displayed, press [w].

@Wnile the frame you want the first (From) cut to be is LECiCut displayed, press [W].

(Point-To-Point Cut] @ While the frame you want the second (To) cut to be is displayed, press [W].

TTEICut While the frame you want the cut to be from is (From-Point Cut) displayed, press [W].

98 Other Playback Functions (PLAY)

4. Use [A] and [w] to select “Yes” and then press [SET]. The selected cut operation will take considerable time to complete. Don't try to perform any camera operation until the “Busy... Please wait..." message disappears from the monitor screen. Note that a cut operation can take a long time if the movie being edited is long.

When you edit a movie, only the result is saved. The original movie is not retained. An editing operation cannot be undone.

Înore A movie that is shorter than five seconds cannot be edited.

Editing of movies recorded with a different type of camera is not supported.

You will not be able to edit a movie if the amount of remaining memory capacity is less than the size of the movie file you want to edit. I there is not enough memory available, delete files you no longer need to free up more.

Splitting of a movie into two movies and splicing of two different movies into a single movie are not supported.

You also can start a movie editing operation while the movie you want to edit is playing back. Press [SET] to pause playback, and then press [W] to display the menu of editing options. Perform editing using the same procedures as described above.

99 Other Playback Functions (PLAY)

[2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> Lighting

You can use this setting to optimize the balance between right areas and dark areas in existing images.

+2 Performs a higher level of brightness correction than the “+1” setting. #1 Performs brightness correction. Cancel Does not perform brightness correction.

Correcting the lighting when shooting produces better results (page 37).

Altering the lighting of an image causes the original image and the new (altered) version to be stored as separate files.

When you display an altered image on the camera's monitor screen, the date and

time indicates when the image was originally recorded, not when the image was altered.

Using Red Eye Correction (Red Eye)

[2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> Red Eye

Using the flash to shoot at night or in a dimly lit room can cause red spots inside the eyes of people who are in the image. This is caused when the light from the flash reflects off of the retina of the eye. Red eye correction corrects the eye colors of subjects to their normal colors when red eye occurs while using the flash.

Correct Turns on red eye correction. | Cancel Turns off red eye correction. | Înore

+_ The original snapshot is retained in memory and not deleted. + Red eye correction may not be possible in the case of small faces or profiles. + Red eye correction may not produce the desired effect under certain conditions.

100 Other Playback Functions (PLAY)

Adjusting WI Balance (White Balance)

[Œ2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> White Balance

You can use the white balance setting to select a light source type for a recorded image, which will affect the colors of the image.

E3 Daylight Outdoors, fair weather El Overcast Outdoors, cloudy to rain, in tree shade, etc. Fi Shade Very high temperature light, such as building shade, etc.

ETIDay White White or daywhite fluorescent lighting, without suppressing Fluorescent color cast

ED Daylight . LE Rte ont Daylight fluorescent lighting, while suppressing color cast EX Tungsten Suppressing of the appearance of light bulb lighting Cancel No white balance adjustment Înore

+ You also can adjust the white balance when recording images (page 82). +_ The original snapshot is retained in memory and not deleted. + When you display an altered image on the camera's monitor screen, the date and

time indicates when the image was originally recorded, not when the image was altered.

401 Other Playback Functions (PLAY)

Adjusting the Brightness of an Existing Snapshot (Brightness)

Procedure [3] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Brightness You can select one of five brightness levels, from +2 (brightest) to —2 (least bright).

+_ The original snapshot is retained in memory and not deleted.

+ When you display an altered image on the camera's monitor screen, the date and time indicates when the image was originally recorded, not when the image was altered.

Keystone Correction (Keystone)

Procedure [53] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Keystone

You can use keystone correction to correct rectangular and square shapes in a snapshot that do not appear normal because they were not shot straight on. The corrected image is saved as 2M (1600 X 1200 pixels) size.

1. Use [4] and [k] to select the shape in the snapshot that you want to correct.

2. Use [A] and [w] to select “Correct” and then press [SET].

+ Ifthe original image is smaller than 2M size, the new (corrected) version will be the same size as the original.

+_ The original snapshot is retained in memory and not deleted.

+ When you display an altered image on the camera's monitor screen, the date and time indicates when the image was originally recorded, not when the image was altered.

102 Other Playback Functions (PLAY)

Using Color Correction to Correct the Color of an Old Photograph (Color Correct

[Œ2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> Color Correction

Color Correction lets you correct the color of an old photograph. The corrected image is saved as 2M (1600 X 1200 pixels) size.

1. Perform the above operation.

+ An image of the photograph you are restoring will appear on the monitor screen with a red boundary around it. If there is a black boundary, it means that the camera detected more than one rectangular area in the image. Use [4] and [>] to move the boundary and select the area of the photograph.

2. Use [A] and [w] to select “Trim”, and then press [SET].

This will display a selection boundary for trimming the on-screen image.

3. Slide the zoom controller to resize the selection boundary and specify the image size you want.

4. Use [A], [Y], [<@], and [h] to move the selection boundary to it encloses the area of the image you want to trim to and then press [SET].

I NOTE Ifthe original image is smaller than 2M size, the new (corrected) version will be the same size as the original.

The original snapshot is retained in memory and not deleted.

If you do not want a border around the resulting image, select an area that is smaller than the original image.

When you display a color corrected image on the camera's monitor screen, the date and time indicates when the image was originally recorded, not when the image was color corrected.

103 Other Playback Functions (PLAY)

Selecting Images for Printing (DPOF Printing)

[Œ2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> DPOF Printing

See page 116 for details.

Protecting a File Against Deletion (Protect)

Procedure [52] (PLAY) — [MENU] —> PLAY Tab — Protect

Protects specific files.

Œ@Use [4] and [Be] to scroll through the files until the one you want to protect is displayed.

@Use [A] and [w] to select “On” and then

An image that is protected is indicated by the Πicon.

@To protect other files, repeat steps 1 and 2.

To exit the protect operation, press [MENU]. To unprotect a file,

select “Off” instead of “On' in step 2 above.

Protects all files. Allriless mn] DUSe [A] and [w] to select ‘AI Files: On” and then press [SET]. © @Press [MENU].

To unprotect all files, select "All Files: Off" instead of ‘AI Files: On” in step 1 above.

+ Note that even if a file is protected, it will be deleted if you perform the format operation (page 148).

Procedure IG] (PLAY) —> Snapshot Screen —> [MENU] —> PLAY Tab —> Date/Time

LAMDW]N Changes the setting at the cursor location

EX] D>1M Moves the cursor between settings

IBSIMN Toggies between 12-hour and 24-hour format

When the date and time settings are what you want, press [SET] to apply them.

+_ The date and time stamped into an image using the Time Stamp (page 143) cannot be edited.

+ You cannot edit the date and time of an image that is protected.

+ You can input any date from 1980 to 2049.

Rotating an Image (Rotation

[2] (PLAY) —+ Snapshot or Movie Screen —> [MENU] —> PLAY Tab —> Rotation

1. Use [A] and [] to select “Rotation” and then press [SET]. Each press of [SET] will rotate the displayed image 90 degrees left.

2. When the displayed image is at the orientation you want, press IMENU].

+ Note that this procedure does not actually change the image data. It simply alters how the image is displayed on the camera's monitor screen.

+ An image that has been protected or zoomed cannot be rotated.

+_ The original (unrotated) version of the image will be displayed on the image menu screen and the calendar screen.

105 Other Playback Functions (PLAY)

Resizing a Snapshot (Resize)

Procedure [53] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Resize You can reduce the size of a snapshot and save the result as a separate snapshot. The original snapshot is also retained. You can select resize an image to one of three image sizes: 7M, 4M, VGA. + Resizing a 3:2 or 16:9 size snapshot will create an image with an aspect ratio of 4:3, with both sides cut off. + The recording date of the resized version of the snapshot will be the same as the recording date of the original snapshot.

Cropping a Snapshot (Trimming)

Procedure [53] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Trimming You can crop a snapshot to trim parts you do not need, Zoom factor and save the result in a separate file. The original snapshot is also retained. Represents

Use the zoom controller to zoom the image to the size you

want, use [A], [W], [4], and [à] to display the portion of

the image you want to cut out, and then press [SET].

+ The image produced by cropping a 3:2 or 16:9 image will have an aspect ratio of 4:3.

+_ The recording date of the cropped image will be the same as the recording date of the original snapshot.

Part of snapshot that is currently displayed

106 Other Playback Functions (PLAY)

Adding Audio to a Snapshot (Dubbing)

Procedure [53] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Dubbing

You can add audio to a snapshot after you shoot it. You can re-record a snapshot's audio whenever you want. You can record up to about 30 seconds of audio for a single snapshot.

1. Press the shutter button to start audio recording.

Remaining recording time

2. Press the shutter button again to stop audio recording.

+ Take care that you do not block the camera's microphone Microphone

with your fingers while recording.

Good recording results are not possible when the camera is too far away from what you are trying to record. Your camera supports the following audio data formats. — Audio Format: WAVE/IMA-ADPCM (WAV extension) Adding audio (dubbing) is not possible for the following types of images. — Images created using MOTION PRINT — Protected images To delete audio, perform the following operation: Dubbing —> Delete —> [SET] —> [MENU].

+ Note that you cannot restore the original audio of an Audio Snapshot after you delete or re-record it.

107 Other Playback Functions (PLAY)

L [To play snapshot audio

1. Inthe PLAY mode, use [4] and [à] to scroll through the images until the Audio Snapshot you want is displayed. An audio snapshot is one that has a icon.

2. Press [SET] to start playback.

Voice Recording Playback Controls

Fast forward/fast reverse [D] Play/pause ISET] Press [Y] and then Volume adjustment press [AI[V] Display content switching [A] (DISP) nn © Stop playback IMENU]

+ Audio of an Audio Snapshot also can be played back on a computer with Windows Media Player or QuickTime.

108 Other Playback Functions (PLAY)

Copying Files (Copy)

Procedure [53] (PLAY) — Snapshot Screen —> [MENU] —> PLAY Tab —> Copy

Files can be copied from the camera's built-in memory to a memory card or from a memory card to built-in memory.

Copies all files from built-in camera memory to a memory card. Builtin > Card | This option copies all the files in builtin camera memory. It cannot be used to copy a single file.

Copies a single file on the memory card to camera built-in camera memory. Files are copied to the folder in built-in Card Builtin.| memory whose name has the largest serial number. ŒOUse [4] and [>] to select the file you want to copy. @Use [A] and [w] to select “Copy” and then press [SET].

+ You can copy snapshots, movies, audio snapshots, or Voice Recording files you recorded with this camera.

+ When a copied image appears on the full-month calendar screen, it is displayed on the date that it was copied (page 90).

109 Other Playback Functions (PLAY)

You can use the procedures in this section to crop either a moving subject or a still subject out of a snapshot and then insert it into another snapshot.

Moving Subject Other Image

[| [LO create a subject image to be inserted (Dynamic Photo)

1. Press [BS] and then select the “Dynamic Photo” scene.

2. Press [SET], use [A] and [] to specify the subject type, and then

press [SET]. Number of CS speed Shots Subject type MOVingISUbject 20 images per 20 shots 1sec (20fps) second Records multiple images of the subject, which are RE à Jaimeges per 20 shots | cropped and combined to create movement against Moving|Subject 5 images per the background image. 20 shots Asec (5fps) second Records a single subject, which is cropped and Still Subject - Ashot [énedint ie background image.

+ To create a still subject, select “Still Subject”.

Other Playback Functions (PLAY)

3. First, shoot an image that includes the subject you want to extract.

+ Shoot an image in which the subject is as large as possible. Also, the image should include some easily identifiable reference point that you can use for later alignment in step 4, below.

If you selected “Moving Subject" the camera will record multiple subject images. Do not move the camera until shooting is complete.

Flash is tumed off automatically at this time.

4. Next, compose the image again, this time without the subject you want to extract. Take care so the image composition here is as close as possible to the image composition in step 3. This second image will let the camera know what part of the image in step 3 needs to be cropped.

+ A semi-transparent view of the image you shot in step 3 (which includes the subject) will be visible on the monitor screen to help you compose the background image properiy.

5. Press the shutter button to shoot the background only. The cropped subject image will appear on the display after shooting is complete. If you selected “Moving Subject”, the cropped subject image will be moving on the display.

+ When shooting the subject image, shoot against a white wall or some other surface of a color that is different from that of the subject. The camera will not be able to crop the subject image properly if it is the same or similar color as the background.

+_ The camera may not be able to cleanlÿ crop a subject that is not clearly defined on the monitor screen due to backlighting, shadows, light smear, insufficient lighting, etc. When shooting the subject, make sure that itis clearly defined and outlined on the monitor screen.

+_ The background-only image you shoot in step 5 of the above procedure is not saved. Only the cropped subject image is saved.

111 Other Playback Functions (PLAY)

L |Inserting a Subject into a Background Image (Dynamic Photo)

Use the following procedure to insert a subject into a background image. À Dynamic Photo with a moving subject is saved as a 2M (1600X 1200 pixels) or smaller size image. À Dynamic Photo with a still subject is saved as a 6M (2816X2112 pixels) or smaller size image.

Procedure [52] (PLAY) — [MENU] —> PLAY Tab — Dynamic Photo

1. Use [4] and [>] to select the background image you want and then press [SET]. + Only an image shot with this camera can be used as a background image. Note, however, images of the following sizes cannot be used. — 3:2, 16:0

2. Use [4] and [à] to select the subject image you want to insert andthen press [SET].

3. While watching the monitor screen, use [A], [W], [4], and [>] to adjust the insertion position of the subject. When it is located where you want, press [SET].

This inserts the subject into the background image and creates a Dynamic Photo.

+ Ifthe original still image into which a moving subject is inserted is smaller than 2M size, the Dynamic Photo will be the same size as the original.

+ Ifthe original still image into which a still subject is inserted is smaller than 6M size, the Dynamic Photo will be the same size as the original.

HE To view a Dynamic Photo

1. Press [53] (PLAY) and then use [4] and [>] to display the Dynamic Photo you want to view.

2. Ifthe Dynamic Photo has a moving subject, press [SET]. + Subject movement is repeated as a continuous loop.

112 Other Playback Functions (PLAY)

Professional Print Service

You can take a memory card that contains the images you —_

ï n a Pr] want to print to a professional print service and have them ©) mn printed.

Printing on a Home Printer

Printing Images on a Printer with Memory Card Slot

You can use a printer equipped with a memory card slot to print 2

images directly from a memory card. For details, see the user documentation that comes with your printer.

Connecting Directly to a PictBridge Compatible

Printer EP You can print on a printer that supports PictBridge (page SF

114). LA Printing with a Computer

After transferring the images to your computer, use commercially available software to print. [||

+ You can specify which images you want to print, the number of copies, and date stamp settings before printing (page 116).

You can connect the camera directly to a printer that supports PictBridge and print images without going through a computer.

HE To set up the camera before connecting to a printer

1. Turn on the camera and press [MENU].

2. On the “Set Up” tab, select “USB” and then press [k].

3. Use [A] and [] to select “PTP (PictBridge)”, and then press [SET].

H Connecting the Camera to a Printer

Use the USB cable that USB cable comes bundied with the L camera to connect the camera

to your printer's USB port. g— Large connector + The camera does not draw

power over the USB cable. = Make sure the camera's battery is sufficiently charged before connecting. Make sure that you insert the cable connector into the USB/AV port until you feel it click securely into place. USB/AV port fl LI. Failure to insert the connector fully can result in poor communication or malfunction.

Note that even while the connector is fully inserted, you still will be able to see the metal part of the connector as shown in the illustration. When connecting the USB cable to a USB port, make sure you align the connector correctly with the port.

Making sure that the B- mark on the camera is aligned with the € mark of the USB cable connector, connect the cable to the camera.

Turn on the printer and load paper.

Turn on the camera. This will display the print menu screen.

. Use [A] and [W]to select “Paper Size”, andthen

. Use [A] and [w]to select a paper size and then

+_ The following are the available paper sizes. 3.5"X5", 5"X 7", 4"X6", A4, 8.5"X11", By Printer

+ Selecting “By Printer” prints using a paper size selected on the printer.

+ See the documentation that comes with your printer for information about paper settings.

. Use [A] and [w] to specify the print option you want.

1 Image :Prints one image. Select and then press [SET]. Next, use [4] and D>] to select the image you want to print. DPOF Printing : Prints multiple images. Select and then press [SET]. With this option, images will be printed in accordance with DPOF settings (page 116). + To toggle date stamping on and off, press [BS]. The date stamp will be printed when “On' is indicated on the monitor screen.

. Use [A] and [w] to select “Print” and then press

Printing will start and the message ‘Busy.. Please

wait." will appear on the monitor screen. The message will disappear after a

short while, even though printing is still being performed. Pressing any camera

button will cause the printing status to re-appear. The print menu screen will re-

appear when printing is complete.

+ If you selected “1 Image”, you can repeat the procedure from step 5, if you want.

After printing is complete, turn off the camera and disconnect the USB

cable from the printer and camera.

ng DPOF to Specify Images to be Printed of Copies

al Print Order Format (DPOF)

DPOF is a standard that allows you to include image type, number of copy, Ü

and time stamp on/off information on the memory card with the images.

After configuring settings, you can use the memory card to print on a home

printer that supports DPOF or take the memory card to a professional print

+ Whether or not you will be able to use DPOF settings for printing depends on the printer you are using.

+ Some professional print services may not support DPOF.

DPOF E Configuring DPOF Settings Individually for Each Image

[Œ2] (PLAY) —+ Snapshot Screen —> [MENU] —> PLAY Tab —> DPOF Printing —> Select images

1. Use [4] and [»] to scroll through the files until the image you want to print is displayed.

2. Use [A] and [w] to specify the number of copies. You can specify a value up to 99. Specify 00 if you do not want to print the image. +_lf you want to include the date in the images, press [BS] so “On” is shown for date stamping. + Repeat steps 1 and 2 to configure settings for other images, if you want.

1. Use [A] and [w] to specify the number of copies. You can specify a value up to 99. Specify 00 if you do not want to print the image. + If you want to include the date in the images, press [BS] so “On” is shown for date stamping.

DPOF settings are not cleared automatically after printing is complete. The next DPOF print operation you execute will be performed using the last DPOF settings you configured for the images. To clear DPOF settings, specify “00” for the number of copies of all images.

Tell your print service about your DPOF settings!

If you take a memory card to a professional print service, be sure to tell them that it includes DPOF settings for the images to be printed and the number of copies. If you don't, the print service may print all the images without regard to your DPOF settings, or they may ignore your date stamp setting.

You can use one of the following three methods to include the recording date in the printout of an image.

Configure DPOF settings (page 116).

You can turn date stamping on and off each time you print. You can configure settings so some images include the date stamp and some don't.

Configure the Camera's Time Stamp setting (page 143).

Configuring + The camera's Time Stamp setting imprints the date into a

camera settings snapshot when you shoot it, so the date is always included when you print. It cannot be deleted.

+ Do not turn on DPOF date stamping for an image that includes a date stamped with the camera's Time Stamp function. Doing so can cause the two stamps to be overprinted.

Configuring You can use commercially available image management ‘computer settings.| software to date stamp images.

Professionalprint\| Request date stamping when ordering prints from a service professional print service.

EH Standards Supported by the Camera

This is a standard of the Camera and Imaging Products Association (CIPA). PictBridge

PRINT Image Matching III Using image editing software and printing on a printer that supports PRINT Image Matching III makes it possible to use information about shooting conditions that is recorded with the image, and produce exactly the type of image you want. PRINT Image Matching and PRINT Image Matching III are trademarks of Seiko Epson Corporation.

Exif Print .., Printing on a printer that supports Exif Print (Exif 2.2) uses + fl information about shooting conditions recorded with the image to Exif Print enhance printed image quality. Contact your printer manufacturer

for information about models that support Exif Print, printer upgrades, etc.

Using the Camera with a Computer

Things you can do using a computer.

You can perform the operations described below while the camera is connected to a

Save images to a computer and view them there

+ Save images and view them manually {USB connection) (pages 121, 130).

+ Transfer images to a computer automatically over a wireless LAN for viewing (Eye-Fi) (page 134).

Transfer images stored on your computer to camera memory

In addition to images, you also can transfer screen shot images from your computer to the camera (Photo Transport*) (page 127).

Playback and edit movies

+ You can play back movies (pages 125, 133).

+ To edit movies, use commercially available software as required.

The procedures you need to perform when using the camera with your computer and when using the bundied software are different for Windows and the Macintosh.

+ Windows users should refer to “Using the Camera with a Windows Computer”

+ Macintosh users should refer to “Using the Camera with a Macintosh” on page

Using the Camera with a Computer

Using the Camera with a Windows Computer

Install the required software in accordance with the version of Windows you are running and what you want to do.

When you want to |Operating System . do this: Version Install this software: page:

Save images to a computer and view _ | Vista / XP / 2000 Installation not required. 121 them there manually

Installation not required.

+ Windows Media Player, which is already installed on most computers, can be used for playback.

+ If your computer is running

Play movies Vista / XP / 2000 done D00 and dan | 125 not have DirectX 9.0c or higher installed, download DirectX from the Microsoft DirectX site and install it on your computer.

Edit movies Vista / XP | 2000 + Use commercial software | as required.

Upload movie files | Vista/XP (SP2/SP3)/ | YouTube Uploader for 25

to YouTube 2000 (SP4) CASIO Transfer images to | ji, Xp / 2000 Photo Transport 1.0 127

. Adobe Reader 8 View the Users | Vista/ XP (SP2/SP3)/ € aude 2000 (SPA) (Not required if already 129

120 Using the Camera with a Computer

EH Computer System Requirements for Bundled Software

Computer system requirements are different for each of the applications. See the “Read me” file that comes with each application for details. Information about computer system requirements also can be found under “Computer System Requirements for Bundled Software” on page 163 of this manual.

H Precautions for Windows Users

+ Photo Transport and YouTube Uploader for CASIO will not run under 64-bit versions of Windows Vista.

+ Except for Adobe Reader, the bundied software requires Administrator privileges to run.

+ Operation on a self-made computer is not supported.

+ Operation may not be possible under certain computer environments.

L [Viewing and Storing Images on a Computer

You can connect the camera to your computer in order to view and store images {snapshot and movie files).

EH To connect the camera to your computer and save files

1. Turn on the camera and press [MENU].

2. On the “Set Up” tab, select “USB” and then press [k].

3. Use [A] and [] to select “Mass Storage”, and then press [SET].

121 Using the Camera with a Computer

4. Turn off the camera and USB port then use the USB cable that comes with the camera to connect it to your computer.

+ The camera does not draw power over the USB cable. Make sure the camera's battery is sufficiently charged before connecting.

Make sure that you insert

the cable connector into

the USB/AV port until you feel it click securely into place. Failure to insertthe Making sure that the à mark on the camera is connector fully can result aligned with the 4 mark of the USB cable

in poor communication or Connector, connect the cable to the camera.

Note that even while the

connector is fully inserted, you still will be able to see the

metal part of the connector as shown in the illustration.

When connecting the USB cable to a USB port, make

sure you align the connector correctly with the port.

Your computer may not be able to recognize the camera if you connect via a

USB hub. Always connect directly to the computer's USB port.

5. Turn on the camera.

6. Windows Vista users: Click “Start” and then “Computer”. Windows XP users: Click “Start” and then “My Computer”. Windows 2000 users: Doubleclick “My Computer”.

122 Using the Camera with a Computer

. Double-click “Removable Disk”.

+ Your computer recognizes the memory card loaded in the camera (or built-in memory if there is no card) as a removable disk.

8. Right-click the “DCIM” folder.

9. On the shortcut menu that appears, click “Copy”.

Windows Vista users: Click “Start” and then “Documents”.

Windows XP users: Click “Start” and then “My Documents”.

Windows 2000 users: Doubleclick “My Documents” to open it.

+ If you already have a “DCIM" folder in “My Documents”, the next step will overwrite it. If you want to keep the existing “DCIM" folder, you need to change its name or move it to a different location before performing the next step.

On the “My Documents” “Edit” menu, select “Paste”.

This will paste the “DCIM" folder (and all the image files it contains) into your “My Documents” folder. You now have a copy of the files that are in camera memory on your computer.

After you finish copying images, disconnect the camera from the computer.

Windows Vista, Windows XP On the camera, press [ON/OFF] to turn off the camera. After making sure that the back lamp is unlit, disconnect the camera from the computer.

Click card services in the task tray on your computer screen, and disable the drive number assigned to the camera. Next, after making sure that the back lamp is unlit, press the camera's [ON/OFF] button to turn off the camera and disconnect the camera from your computer.

123 Using the Camera with a Computer

EH To view images you copied to your computer

1. Double-click the copied “DCIM” folder to open it.

2. Double-click the folder that contains the images you want to view.

3. Double-click the image file you want to view. + For information about file names, see “Memory Folder Structure” on page 137. + An image that was rotated on the camera will be displayed on your computer screen in its original (unrotated) orientation.

Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card.

Doing so can cause problems with the camera's image management data, which will make it impossible to play back images on the camera and can drastically alter remaining memory capacity. Whenever you want to modify, delete, move, or rename an image, do so only on images that are stored on your computer.

+ Never unplug the USB cable, or operate the camera while viewing or storing images. Doing so can cause data to become corrupted.

124 Using the Camera with a Computer

Windows Media Player, which is already installed on most computers, can be used for movie playback. To play back a movie, first copy the movie to your computer and then double-click the movie file.

EH Movie Playback Precautions

+ Be sure to move the movie data to the hard disk of your computer before trying to play it. Proper movie playback may not be possible for data accessed over a network, from a memory card, etc.

+ Proper movie playback may not be possible on some computers. If you experience problems, try the following. — Try recording movies with a quality setting of “STD” or “LP”. — Try upgrading Windows Media Player to the latest version. — Quit any other applications you have running, and stop resident applications.

Even if proper playback is not possible on the computer, you can use the AV cable that comes bundled with the camera to connect to the video input terminal a TV or computer and play back movies that way.

[| [Uploading Movie Files to YouTube

Installing YouTube Uploader for CASIO from the CD-ROM that comes with your camera simplifies uploading of movie files you recorded with the “For YouTube” BEST SHOT scene to YouTube.

H What is YouTube? YouTube is a movie sharing site managed by YouTube, LLC where you can upload movies and view movies uploaded by others.

= To install YouTube Uploader for CASIO 1. On the CD-ROM menu screen, select “YouTube Uploader for CASIO”.

2. After reading the information about installation conditions and system requirements for installation in the “Read me” file, install YouTube Uploader for CASIO.

125 Using the Camera with a Computer

H To upload a movie file to YouTube

+ Before you can use YouTube Uploader for CASIO, you need to go to the YouTube website (http:/{www.youtube.com/) and register as a user there.

+ Do not upload any video that is copyrighted (including neighboring copyrights) unless you yourself own the copyright or you have obtained the permission of the applicable copyright holder(s).

+ The maximum file size for each upload is 1024 MB.

1. Record the movie you want to upload using the “For YouTube” BEST SHOT movie scene.

2. Kitisn't already, connect your computer to the Internet.

3. Connect the camera to your computer (page 121).

Turn on the camera. YouTube Uploader for CASIO will start up automatically. + Ifthis is the first time you are using the application, configure the YouTube user ID and network environment settings, and then click the [OK] button:

5. The left side of the display will have an area for inputting a title, category, and other information required for uploading to YouTube. Enter the required information.

6. The right side of the display shows a list of movie files in camera memory. Select the check box next to the movie file you want to upload.

7. When everything is ready, click the [Upload] button. This will upload the movie file(s) to YouTube. + After uploading is complete, click the [Exit] button to exit the application.

126 Using the Camera with a Computer

L |Transferring Images from Your Computer to Camera Memory

If you want to transfer images from your computer to the camera, install Photo Transport on your computer from the CD-ROM that comes with the camera.

= Toinstall Photo Transport

1. On the CD-ROM menu screen, select “Photo Transport”.

2. After reading the information about installation conditions and system requirements for installation in the “Read me” file, install Photo Transport.

HE To transfer images to the camera

1. Connect the camera to your computer (page 121).

2. On your computer, click the following: Start —> AII Programs —> CASIO —+ Photo Transport. This starts up Photo Transport.

3. Drag the file(s) you want to transfer to the [Transfer] button.

4. Follow the instructions that appear on the display to complete the transfer. +_ The details of the instructions that appear on the display and the transferred images will depend on your Photo Transport setup. For details, click the [Settings] button or [Help] button and check the setup.

+ Only image files with the following extensions can be transferred to the camera: jpg. jpeg, jpe, bmp (bmp images are converted to jpeg image automatically when transferred.)

+ Certain types of images may not be able to be transferred.

+ You cannot transfer movies to the camera.

127 Using the Camera with a Computer

E To transfer computer screen captures to the camera

Connect the camera to your computer (page 121).

On your computer, click the following: Start — Al Programs —+> CASIO —+ Photo Transport. This starts up Photo Transport.

. Display the screen whose screen capture you want to transfer.

4. Click the [Capture] button.

. Draw a boundary around the area you want to capture.

Move your mouse pointer to the upper left corner of the area you want to capture and then hold down the mouse button. Keeping the mouse button depressed, drag the pointer down to the lower right comer of the area and then release the mouse button:

.. Follow the instructions that appear on the display.

This will send an image of the area you selected to the camera

+_ The transfer operation converts screen captures to JPEG format.

+_ The instructions that appear on the display and details about the transferred images will depend on your Photo Transport setup. For details, click the [Settings] button or [Help] button and check the setup.

M About settings and help

Click the [Settings] button when you want to change the Photo Transport setup. For help about operation procedures and troubleshooting, click the Photo Transport [Help] button.

128 Using the Camera with a Computer

L |Viewing User Documentation (PDF Files)

1. Start up your computer, and place the bundled CD-ROM into its CD- ROM drive. Normally, this should cause the menu screen to appear automatically. If your computer does not display the menu screen automatically, navigate to the CD- ROM on your computer and then double-click the “AutoMenu.exe” file.

2. On the menu screen, click the “Language” down arrow button and then select the language you want.

3. Click “Manual” to select it and then click “Digital Camera”.

+ You must have Adobe Reader or Adobe Acrobat Reader installed on your computer in order to view the contents of a PDF file. If you do not already have Adobe Reader or Adobe Acrobat Reader installed, install Adobe Reader from the bundled CD-ROM.

[| [User Registration

You can perform user registration over the Internet. To do so, of course, you need to be able to connect to the Internet with your computer.

1. On the CD-ROM menu screen, click the “Register” button. +_ This starts up your Web browser and accesses the user registration website. Follow the instructions that appear on your computer screen to register.

129 Using the Camera with a Computer

Using the Camera with a Macintosh

Install the required software in accordance with what version of the Macintosh OS you are running and what you want to do.

Operating RUE wantto |Sÿstem |Installthis software: Do d Version page:

Save images to your | Mac OS 9 Macintosh and view Installation not required. 130

them there manually | Mac OS X Save images to your | Mac OS 9 | Use commercially available software. Macintosh automatically/Manage | ac os x | US iPhoto, which comes bundied 133

images with your operating system.

You can playback with QuickTime, which comes bundied with your 133 operating system.

[| |Connecting the Camera to Your Computer and Saving Files

+ The camera does not support operation with Mac OS 8.6 or earlier, or Mac OS X 10.0. Operation is supported with Mac OS 9, X (10.1, 10.2, 10.3, 10.4, 10.5) only. Use the standard USB driver that comes with your supported operating system.

EH To connect the camera to your computer and save files

1. Turn on the camera and press [MENU].

2. On the “Set Up” tab, select “USB” and then press [k].

3. Use [A] and [] to select “Mass Storage”, and then press [SET].

130 Using the Camera with a Computer

4. Turn off the camera and USB port then use the USB cable that comes with the camera to connect it to your Macintosh.

+ The camera does not draw power over the USB cable. Make sure the camera's battery is sufficiently charged before connecting.

Make sure that you insert

the cable connector into

the USB/AV port until you feel it click securely into place. Failure to insertthe Making sure that the à mark on the camera is connector fully can result aligned with the 4 mark of the USB cable

in poor communication or Connector, connect the cable to the camera.

Note that even while the

connector is fully inserted, you still will be able to see the

metal part of the connector as shown in the illustration.

When connecting the USB cable to a USB port, make

sure you align the connector correctly with the port.

Your computer may not be able to recognize the camera if you connect via a

USB hub. Always connect directly to the computer's USB port.

5. Turn on the camera. The camera's back lamp wi light green at this time. In this mode, your Macintosh recognizes the memory card loaded in the camera (or the cameras built-in memory if it does not have a memory card loaded) as a drive. The appearance of the drive icon depends on the Mac OS version you are using.

6. Double-click the camera’s drive icon.

7. Drag the “DCIM” folder to the folder to which you want to copy à

131 Using the Camera with a Computer

8. After the copy operation is complete, drag the drive icon to Trash.

9. On the camera, press [ON/OFF] to turn off the camera. After making sure that the green back lamp is unlit, disconnect the camera from the computer.

H To view copied images

1. Double-click the camera's drive icon.

. Double-click the “DCIM” folder to open it.

2. 3. Double-click the folder that contains the images you want to view. 4.

. Double-click the image file you want to view. + For information about file names, see “Memory Folder Structure” on page 137 + An image that was rotated on the camera will be displayed on your Macintosh screen in its original (unrotated) orientation.

Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card.

Doing so can cause problems with the camera's image management data, which will make it impossible to play back images on the camera and can drastically alter remaining memory capacity. Whenever you want to modify, delete, move, or rename an image, do so only on images that are stored on your computer.

+ Never unplug the USB cable, or operate the camera while viewing or storing images. Doing so can cause data to become corrupted

132 Using the Camera with a Computer

Transferring Images Automatically and Managing Them on Your Macintosh

If you are running Mac OS X, you can use the iPhoto application that comes bundled with the operating system to manage your images. If you are running Mac OS 9, you will need to use commercially available software.

You can use QuickTime, which comes bundied with your operating system, to play back movies on a Macintosh. To play back a movie, first copy it to your Macintosh and then double-click the movie file.

EH Movie Playback Precautions Proper movie playback may not be possible on some Macintosh models. If you experience problems, try the following.

— Change the movie image quality setting to “STD” or “LP”.

— Upgrade to the latest version of QuickTime.

— Shut down other applications that are running.

Even if proper playback is not possible on your Macintosh, you can use the AV cable that comes bundled with the camera to connect to the video input terminal a TV or Macintosh and play back movies that way.

+ Be sure to move the movie data to the hard disk of your Macintosh before trying to play it. Proper movie playback may not be possible for data accessed over à network, from a memory card, etc.

133 Using the Camera with a Computer

L |Viewing User Documentation (PDF Files)

You must have Adobe Reader or Adobe Acrobat Reader installed on your computer in order to view the contents of a PDF fille. If you don't, go to the Adobe Systems Incorporated website and install Acrobat Reader.

1. On the CD-ROM, open the “Manual” folder.

2. Open the “Digital Camera” folder and then open the folder for the language whose user's guide you want to view.

3. Open the file named “camera_xx.pdf”. + “xx is the language code (Example: camera_e.pdf is for English.)

[| [User Registration

Internet registration only is supported. Visit the following CASIO website to register: http:/Iworld.casio.com/qv/register/

ireless SD Memory Card to Transfer Images

Shooting with an Eye-Fi wireless SD memory card loaded in the camera makes it possible to transfer image data automatically to a computer via wireless LAN.

1. Configure LAN access point, transfer destination and other settings for the Eye-Fi card in accordance with the instructions that come with the Eye-Fi card.

2. After configuring settings, load the Eye-Fi card into the camera and record. Images you record are sent by wireless LAN to your computer, etc. + For full details, see the user documentation that comes with the Eye-Fi card. + Before formatting a new Eye-Fi card to use it for the first time, copy the Eye-Fi Manager install flles to your computer. Do this before formatting the card.

134 Using the Camera with a Computer

+ Recorded images are transferred over wireless LAN. Do not use the Eye-Fi card or turn off Eye-Fi card communication (page 140) when on an aircraft or in any other location where use of wireless communication is limited or prohibited. Loading an Eye-Fi card will cause the Eye-Fi indicator to appear on the monitor screen. lts transparent or not transparent appearance indicates the communication status as shown below.

Access point cannot be found or no transferable

Transparent image data exists.

Not transparent | Image transfer in progress

À communication icon sem will appear on the monitor screen while image data transfer is in progress.

The camera's Auto Power Off (page 146) function is disabled while image data transfer is in progress.

A confirmation message will appear on the monitor screen if you try to turn off the camera while image data transfer is in progress. Follow the instructions in the messages (page 171).

Transfer of a large number of images can take some time to complete.

The original images remain on the Eye-Fi card after the image data transfer. Recording a movie to an Eye-Fi card may result in movie frames being dropped. Proper Eye-Fi card data communication may not be possible due to camera settings, battery level, or operating conditions.

135 Using the Camera with a Computer

The camera creates a file and saves it each time you shoot a snapshot, record a

movie, or perform any other operation that stores data. Files are grouped by storing

them in folders. Each file and folder has its own unique name.

+ For details about how folders are organized in memory, see “Memory Folder Structure” (page 137).

| Name and Maximum Number Allowed I Example File

Each folder can contain up to 9999 files named | 26th file name: CIMGO0001 through CIMG9999. The extension

on the file name depends on the file type. SIMGO026-JFG Extension Serial number (4 digits) Folders Folders are named from 100CASIO to 100th folder name: 999CASIO There can be up to 900 folders in memory. 100cAsIQ

+ The BEST SHOT (page 54) includes a sample scene that optimizes settings for auction site images. Depending on your camera model, the sample scene is named either “For eBay” or “Auction”. — Images recorded with the eBay scene are stored in a folder named “100_EBAY”. — Images recorded with the Auction scene are stored in a folder named “100_AUCT”. BEST SHOT also has a scene named ‘For YouTube” that optimizes movie settings for recording movies for upload to YouTube. Images recorded with the YouTube scene are stored in a folder named “100YOUTB".

Serial number (3 digits)

+ You can view folder and file names on your computer. For details about how file names are displayed on the camera's monitor screen, see page 11.

+_ The total number of folders and files allowed depends on the image size and quality, and capacity of the memory card being used for storage.

136 Using the Camera with a Computer

The camera stores images you shoot in accordance with the Design Rule for Camera File System (DCF).

MH About DCF DCF is a standard that makes it possible to view and print images recorded on one manufacturer's camera on DCF-compliant devices produced by other manufacturers. You can transfer DCF-compliant images recorded with another camera to this camera and view them on this camera's monitor screen.

H Memory Folder Structure

STARTING.JPG * Startup Image File

#1 Other folders are created when the following BEST SHOT scenes are used for recording: “For eBay” or “Auction" (scene name depends on camera model), or “For YouTube”. The following shows the name of the folder created for each scene.

+ eBay scene: 100_EBAY + Auction scene: 100_AUCT + YouTube scene: 100YOUTB #2 This folder or file can be created in built-in memory only.

137 Using the Camera with a Computer

E Supported Image Files

+ Image files shot with this camera + DCF-compliant image files

This camera may not be able to display an image, even ifit is DCF-compliant. When displaying an image recorded on another camera, it may take a long time for the image to appear on this camera's monitor screen.

& Built-in Memory and Memory Card Data Handling Precautions

+ Whenever copying memory contents to your computer, you should copy the DCIM folder and al of its contents. À good way to keep track of multiple DCIM copies of the DCIM folders it to change its name to a date or something similar after you copy itto your computer. If you later decided to return the folder to the camera, however, be sure to change its name back to DCIM. The camera is designed to recognize only a root file with the name DCIM. Note the camera also will not be able to recognize the folders inside the DCIM folder unless they have the names they originally had when you copied them from the camera to your computer.

Folders and files must be stored in accordance with the “Memory Folder Structure” shown on page 137 in order for the camera to be able to recognize them correctly. You also can use a PC card adapter or a memory card reader/writer to access camera files directly from the camera's memory card.

À Subject Image File (CIMG++*+.JPE) contains special image data. Never edit a Subject Image File on your computer and transfer it back to the camera. Doing so can cause abnormal camera operation.

138 Using the Camera with a Computer

Other Settings (Set Up)

This section explains menu items that you can use to configure settings and perform other operations in both the REC mode and PLAY mode.

| For information about menu operations, see page 63. |

REC Mode Control Panel Display (Ce Panel)

Procedure [MENU] — Set Up Tab —+ [s] Panel

Use the settings below to show or hide the Control Panel, and to select the icons to appear on the Control Panel.

Displays the Control Panel. AÏl camera setting icons are cleared from the displayed image while the Control Panel is displayed.

Show Turns off Control Panel display. Use this setting when you want to give priority to image viewing by reducing the number of icons that

er appear along with the image.

+ Pressing [SET] while in the REC mode will cause the Control Panel to appear along the right side of the monitor screen. The Control Panel will disappear after you select an item and press [SET].

+ All screens shots in this manual show what appears while “Show” is selected for the above setting.

139 Other Settings (Set Up)

Adjusting Monitor Screen Brightness (Screen)

Procedure [MENU] —+ Set Up Tab —+> Screen You can change the brightness of the monitor screen.

Auto or) With this setting, the camera detects available light levels and

Auto 2] automatically adjusts the brightness of the monitor screen accordingly. + Auto 2 adjusts to a brighter setting more quickly than Auto 1.

ee Brightness that is greater than +1, which makes the screen easier to view. This setting consumes more power.

#1 Bright setting for outdoor use, etc. Brightness that is greater than O.

0 Normal monitor screen brightness for indoor use, etc.

Turning off Eye-Fi Card Communication (Eye-Fi)

IMENU] — Set Up Tab —> Eye-Fi Select “Off to disable Eye-Fi card communication (page 134).

140 Other Settings (Set Up)

Configuring Camera Sound Settings (Sounds)

Procedure [MENU] — Set Up Tab —> Sounds

Startup Half Shutter Specifies the startup sound Sound 1 - 5: Built-in sounds (1 through 5) Shutter Off: Sound off Operation Species the sound volume. This setting is also used as the Operation (CI) audio level during video output (page 91). Species the volume of movie and Audio Snapshot audio Play output. This volume setting is not used during video output (from the USB/AV port).

Configuring a Startup Image (Startup)

Procedure [MENU] — Set Up Tab — Startup

Display the image you want to use as your startup image and then select “On”.

+_ The startup image does not appear when you turn on the camera by pressing [5] (PLAY).

+ You can specify a snapshot you recorded as the startup image, or you can use the special startup image provided in the camera's built-in memory.

+ If you select an audio snapshot as the startup image, the audio will not play at startup.

+ Formatting built-in memory (page 148) will delete the current startup image setting.

141 Other Settings (Set Up)

Specifying the File Name Serial Number Generation Rule (File No.)

Procedure [MENU] — Set Up Tab — File No.

Use the following procedure to specify the rule that governs generation of the serial number used in file names (page 136).

Tells the camera to remember the last used file number. À new file will be named using the next sequential number, even if files are deleted or if a blank memory card is loaded. If a memory card is loaded and that card already has files stored on it and the largest sequential number in the existing file names is greater than the largest sequential number remembered by the camera, numbering of new files will start from the largest sequential number in the existing file names plus 1.

Restarts the serial number from 0001 whenever all files are deleted or when the memory card is replaced with a blank one. If a memory card is loaded and that card already has files stored on it, numbering of new files will start from the largest sequential number in the existing file names number plus 1.

Configuring World Time Settings (World Time)

Procedure [MENU] — Set Up Tab —> World Time

You can use the Worid Time screen to view the current time in a zone that is different from your Home City when you go on a trip, etc. World Time displays the current time in 162 cities in 32 time zones around the globe.

1. Use [A] and [] to select “World” and then press [b]. + To change the geographic area and city for the time where you normally use the camera, select “Home”.

2. Use [A] and [w] to select “City” and then press [>]. + To change the “Worid” setting to summer time, use [A] and [w] to select “DST” and then select “On”. Summer time is used in some geographical areas to advance the current time setting by one hour during the summer months.

142 Other Settings (Set Up)

3. Use [A], [Y], [4], and [à] to select the geographic area you want and then press [SET].

4. Use [A] and [] to select the city you want and then press [SET].

+ Before configuring World Time settings, make sure that the Home City setting is the place where you live or normally use the camera. Ifitisn't, select "Home" on the screen in step 1 and configure the Home City, date, and time settings as required (page 144).

me Stamping Snapshots (Timestamp)

Procedure [MENU] — Set Up Tab —> Timestamp You can configure the camera to stamp the recording date only, or date and time in the lower right corner of each snapshot. + Once date and time information is stamped into a snapshot, it cannot be edited or deleted. Example: December 19, 2009, 1:25 p.m.

Date 2009/12/19 Date&Time 2009/12/19 1:25pm Off No stamping of date and/or time

+ Even if you do not stamp the date and/or time with Timestamp, you can do so later using the DPOF function or some printing application (page 118). + Digital zoom is disabled while date stamping is turned on. + Date stamping is not possible for the following types of images. — Images recorded with certain BEST SHOT scenes (Dynamic Photo, ID Photo, Business cards and documents, White board, etc.)

143 Other Settings (Set Up)

Setting the Camera’s Clock (Adjust) Procedure [MENU] — Set Up Tab —> Adjust

[AMDW] Change the setting at the cursor location [1 D>1M Move the cursor between settings

IBSIMN Toggies between 12-hour and 24-hour format

When the date and time settings are what you want, press [SET] to apply them. + You can specify a date from 2001 to 2049.

+ Be sure to select your Home City (page 142) before setting the time and date. If you set the time and date while the wrong city is selected for your Home City, the times and dates of all of the World Time cities (page 142) will be wrong.

Specifying the Date Style (Date Style) Procedure

IMENU] — Set Up Tab —> Date Style

You can select from among three different styles for the date. Example: December 19, 2009

YY/MM/DD 09/12/19 DD/MM/YY 19/12/09 MM/DD/YY 12/19/09

+ This setting also affects the Control Panel date format as shown below (page 29).

YY/MM/DD or MM/DD/YY: MM/DD DD/MM/YY: DD/MM

144 Other Settings (Set Up)

@Select the language you want.

Configuring Sleep State Settings (Sleep)

Procedure [MENU] — Set Up Tab —> Sleep

This feature turns off the monitor screen whenever no camera operation is performed for a preset amount of time. Press any button to turn the monitor screen back on.

Trigger Time Settings: 30 sec, 1 min, 2 min, Off (Sleep is disabled while “Off is selected.)

+ Sleep is disabled under any of the following conditions.

— While the camera is connected to a computer or other device

— During a slideshow

— During Auto Shutter standby

— During Voice Recording playback or recording

— During movie recording and playback

When both sleep and Auto Power Off are turned on, Auto Power Off takes priority.

145 Other Settings (Set Up)

Configuring Auto Power Settings (Auto Power Off)

Procedure [MENU] — Set Up Tab — Auto Power Off Auto Power Off turns off the camera whenever no camera operation is performed for a preset amount of time.

Trigger Time Settings: 1 min, 2 min, 5 min (The trigger time is always 5 minutes in the PLAY mode.)

Auto Power Off is disabled under any of the following conditions.

— While the camera is connected to a computer or other device

— During a slideshow

— During Voice Recording playback or recording

— During movie recording and playback

Configuring [08] and [B>])] Settings (REC/PLAY)

IMENU] — Set Up Tab —> REC/PLAY Camera turns on whenever [804] (REC) or [01] (PLAY) is Power On pressed. Camera turns on or off whenever [808] (REC) or [D] (PLAY) Power OO, bressed. GE Camera does not turn on or off whenever [803] (REC) or [(E]] a (PLAY) is pressed.

+ With “Power On/Of”, the camera turns off when you press [&] (REC) in the REC mode or [1] (PLAY) in the PLAY mode.

+ Change this setting to anything besides “Disable” before connecting to a TV for image viewing.

146 Other Settings (Set Up)

Configuring USB Protocol Settings (USB)

[MENU] — Set Up Tab —> USB You can use the procedure below to select the USB communication protocol, which is used when exchanging data with a computer, printer, or other external device.

Select this setting when connecting to a computer (pages 121,

Mass 130). With this setting, the computer sees the camera as an

Storage external storage device. Use this setting for normal transfer of images from the camera to a computer.

F© Select this setting when connecting to a printer that supports

(PictBridge) | Pic'Bridoe (page 114). This seting simpliies the transfer of image

data to the connected device.

Selecting the Screen Aspect Ratio and Video Output System (Video Out)

Procedure IMENU] — Set Up Tab —> Video Out

You can use the procedure in this section to select either NTSC or PAL as the video output system. You can also specify an aspect ratio of 4:3 or 16:9.

NESC.« Video system used in Japan, the U.S., and other countries

PAL Video system used in Europe and other areas

43 Normal TV screen aspect ratio

169 Wide screen aspect ratio

+ Select the aspect ratio (4:3 or 16:9) that matches the type of TV you plan to use. Images will not display correctly if you select the wrong aspect ratio.

+ Images will not display correctiy unless the camera's video signal output setting matches the video signal system of the TV or other video equipment.

+ Images cannot be displayed correctly on a TV or video equipment that is not NTSC or PAL.

147 Other Settings (Set Up)

Formatting Bu Memory or a Memory Card (Format)

Procedure [MENU] — Set Up Tab —> Format

If a memory card is loaded in the camera, this operation will format the memory card. It will format built-in memory if no memory card is loaded.

+_ The format operation will delete all contents on the memory card or in built-in memory. It cannot be undone. Make sure you do not need any data currently on the card or in built-in memory before you format it.

Formatting built-in memory will delete the following data.

— BEST SHOT user setups

Formatting a memory card will delete the following data.

Make sure the camera's battery is sufficiently charged before starting a formatting operation. Formatting may not be performed correctiy and the camera may stop operating normally if the camera powers down while formatting is in progress. Never open the battery cover while formatting is in progress. Doing so can cause the camera to stop operating normally.

Resetting the Camera to Factory Defaults (Reset)

Procedure [MENU] — Set Up Tab —+> Reset

See page 164 for details about the camera's factory default settings. The settings below are not reset. World Time settings, clock settings, date style, screen language, video output

148 Other Settings (Set Up)

Configuring Monitor Screen Settings

You can turn display information on and off by pressing [A] (DISP). You can configure separate settings for the REC mode and PLAY mode.

Informationdisplay on Displays information about image settings, etc.

Turns on display of camera setting and Information display + other indicators, along with a histogram Histogram on {page 150)

Information display off. No information displayed

Using the On-screen tog

Displays a histogram on the monitor screen which you can use to check the exposure of an image before you shoot it. You also can display the histogram in the PLAY mode for information about the exposure levels of images.

+ You can use key customization (page 77) to configure the [4] and D] buttons so they control the EV shift setting (page 44), and Histogram perform EV shift while viewing the results on the on-screen histogram.

Înore A centered histogram does not necessarily guarantee optimum exposure. The recorded image may be over-exposed or under-exposed, even though its histogram is centered.

Due to the limitations of exposure compensation, you may not be able to achieve an optimum histogram configuration.

Use of the flash and certain shooting conditions can cause the histogram to indicate exposure that is different from the actual exposure of the image when it is shot.

149 (Configuring Monitor Screen Settings

L [How to Use the Histogram

A histogram is a graph that represents the lightness of an image in terms of the number of pixels. The vertical axis indicates the number of pixels, while the horizontal axis indicates lightness. If the histogram appears too lopsided for some reason, you can use EV shift to move it left or right in order to achieve better balance. Optimum exposure can be achieved by EV shifting so the graph is as close to the center as

possible. For snapshots, you can even display individual histograms for R (red), G (green), and B (blue).

A histogram towards the left side results when the overall image is dark. À histogram that is too far to the left may result in “black out” of the dark areas of an image. ÊF

À histogram towards the right side results when the overall image is light. À histogram that is too far to the right may result in “white out” of the light areas of an image.

An overall well-balanced histogram results when

ie overall image 5 at optimal Hghiness. PRE

150 (Configuring Monitor Screen Settings

Precautions during Use

H Avoid Use While In Motion

+ Never use the camera to record or play back images while operating an automobile or other vehicle, or while walking. Looking at the monitor while in motion creates the risk of serious accident.

H Directly Viewing the Sun or Bright Light

+ Never look at the sun or any other bright light through the cameras viewfinder. Doing so can damage your eyesight.

+ Never use the flash unit in areas where flammable or explosive gas may be present. Such conditions create the risk of fire and explosion.

+ Never fire the flash in the direction of a person operating a motor vehicle. Doing so can interfere with the drivers vision and creates the risk of accident.

+ Never fire the flash too close to the eyes ofthe subject. Doing so creates the risk of loss of eyesight.

+ Should the monitor screen ever become cracked, never touch any of the liquid inside the monitor screen. Doing so creates the risk of skin inflammation.

Should monitor screen liquid ever get into your mouth, immediately rinse your mouth out and contact your physician.

Should monitor screen liquid ever get into your eyes or onto your skin, immediately rinse with clean water for at least 15 minutes and contact your physician.

+ Never plug any devices that are not specified for use with this camera into connectors. Connecting a non-specified device creates the risk of fire and electric shock.

+ Never operate the camera inside of an aircraft or anywhere else where operation of such devices is restricted. Improper use creates the risk of serious accident.

Æ Smoke, abnormal odor, overheating, and other abnormalities

Continued use of the camera while it is emitting smoke or strange odor, or while it

is overheating creates the risk of fire and electric shock. Immediately perform the

following steps whenever any of the above symptoms are present.

1. Turn off the camera.

2. Remove the battery from the camera, taking care to protect yourself against burn injury.

3. Contact your dealer or nearest CASIO authorized service center.

E Water and Foreign Matter

+ Water, other liquids, or foreign matter (especially metal) getting inside the camera creates the risk of fire and electric shock. Immediately perform the following steps whenever any of the above symptoms are present. Particular care is required when using the camera where it is raining or snowing, near the ocean or other body of water, or in a bathroom. 1. Turn off the camera. 2. Remove the battery from the camera. 3. Contact your dealer or nearest CASIO authorized service center.

E Dropping and Rough Treatment

Continued use of the camera after it is damaged by dropping or other rough treatment creates the risk of fire and electric shock. Immediately perform the following steps whenever any of the above symptoms are present.

1. Turn off the camera.

2. Remove the battery from the camera.

3. Contact your dealer or nearest CASIO authorized service center.

EH Keep Away From Fire

+ Never expose the camera to fire, which can cause it to explode and creates the risk of fire and electric shock.

H Disassembly and Modification

+ Never try to take the camera apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave al internal inspection, maintenance, and repair up to your dealer or nearest CASIO authorized service center.

H Locations To Be Avoided

+ Never leave the camera in any of the following types of locations. Doing so creates the risk of fire and electric shock. — Areas subject to large amounts of humidity or dust — Food preparation areas or other locations where oil smoke is present — Near heaters, on a heated carpet, in areas exposed to direct sunlight, in a closed

vehicle parked in the sun, or other areas subject to very high temperatures

+ Never place the camera on an unstable surface, on a high shelf, etc. Doing so can

cause the camera to fall, creating the risk of personal injury.

E Backing Up Important Data

+ Always keep backup copies of important data in camera memory by transferring it to a computer or other storage device. Note that data can be deleted in the case of camera malfunction, repair, etc.

+ Whenever replacing the battery, be sure to follow the correct procedure as described in the documentation that comes with the camera. Incorrectly replacing the battery can result in corruption or loss of data in camera memory.

H Rechargeable Battery

+ Use only the specified charger unit or the specified device to charge the battery.

Attempting to charge the battery by an unauthorized means creates the risk of

battery overheating, fire, and explosion.

Do not expose or immerse the battery in fresh water or salt water. Doing so can

damage the battery, and cause deterioration of its performance and loss of service

The battery is intended for use with a CASIO Digital Camera only. Use with any

other device creates the risk of the battery damage, or deterioration of battery

performance and service life.

Failure to observe any of the following precautions creates the risk of battery

overheating, fire, and explosion.

— Never use or leave the battery near open flame.

— Do not expose the battery to heat or fire.

— Make sure the battery is oriented correctly when it is connected to the charger unit.

— Never carry or store the battery together with items that can conduct electricity {necklaces, pencil lead, etc.)

— Never disassemble the battery, pierce it with a needle, or expose it to strong impact (hit it with a hammer, step on it, etc.), and never apply solder to it. Never place the battery into a microwave oven, heater, high-pressure generating device, etc.

Should you ever notice leakage, strange odor, heat generation, discoloration, deformation, or any other abnormal condition while using, charging, or storing a battery, immediately remove it from the camera or charger unit and keep it away from open flame.

Do not use or leave the battery under direct sunlight, in an automobile parked in the sun, or in any other area subject to high temperatures. Doing so can damage the battery, and cause deterioration of its performance and loss of service life.

If battery charging does not end normally within the specified charging time, stop charging anyway and contact your local CASIO authorized service center. Continued charging creates the risk of battery overheating, fire, and explosion. Battery fluid can damage your eyes. Should battery fluid get into your eyes accidentally, immediately rinse them with clean tap water and then consult a physician.

Be sure to read the user documentation that comes with the camera and special charger unit before using or charging the battery.

If a battery is to be used by young children, make sure that a responsible adult makes them aware of the precautions and proper handling instructions, and make sure that they handle the battery correctiy.

Should fluid from a battery accidentally get onto clothing or your skin, immediately rinse it off with clean tap water. Prolonged contact with battery fluid can cause skin irritation.

+ Battery continuous operation times provided in this manual represent the approximate amount of time before the camera turns off due to low battery power when being powered by the special battery under normal temperature (23°C {73°F)). They do not guarantee that you will be able to achieve the indicated level of operation. Actual battery life is greatly affected by ambient temperature, battery storage conditions, the amount of time spent in storage, etc.

Leaving the camera on can run down the battery and cause the low battery warning to appear. Turn off the camera whenever you are not using it.

The low battery warning indicates that the camera is about to turn off due to low battery power. Charge the battery as soon as possible. Leaving a low or dead battery in the camera can lead to battery leakage and data corruption.

H Data Error Precautions

Your digital camera is manufactured using precision digital components. Any of the

following creates the risk of corruption of data in camera memory.

— Removing the battery or memory card while the camera is performing some operation

— Removing the battery or memory card while the back lamp is flashing green after tuning off the camera

— Disconnecting the USB cable while communication is in progress

— Using a battery that is low

— Other abnormal operations

Any of the above conditions can cause an error message to appear on the monitor

screen (page 171). Perform the action indicated by the message that appears.

EH Operating Environment + Operating Temperature: 0 to 40°C (32 to 104°F) + Operating Humidity: 10 to 85% (non condensation) + Do not place the camera in any of the following locations. — In an area exposed to direct sunlight, or large amounts of moisture, dust, or sand. — Near an air conditioner or in other areas subjected to extreme temperature or humidity — Inside of a motor vehicle on a hot day, or in an area subjected to strong vibration

Sudden and extreme temperature changes, such as when the camera is moved from the outdoors on a cold winter day into a warm room, can cause water droplets called “condensation” to form on the interior and the exterior of the camera, which creates the risk of malfunction. To prevent condensation from forming seal the camera in a plastic bag before changing locations. Then leave the bag sealed to allow the air inside to naturally change to the same temperature as the air in the new location. After that, remove the camera from the bag and open the battery cover for a few hours.

+ Never apply too much force when cleaning the surface of the lens. Doing so can scratch the lens surface and cause malfunction.

+ You may sometimes notice some distortion in certain types of images, such as a slight bend in lines that should be straight. This is due to the characteristics of lenses, and does not indicate malfunction of the camera.

H Caring for your camera

Never touch the lens or flash window with your fingers. Finger smudges, dirt, and other foreign matter on the lens or flash window can interfere with proper operation of the camera. Use a blower or other means to keep the lens and flash window free of dirt and dust, and wipe gently with a soft, dry cloth.

To clean the camera, wipe it with a soft, dry cloth.

EH Old Rechargeable Battery Handling Precautions

+ Insulate the positive and negative terminals with tape, etc. + Do not peel the covering off of the battery. + Do not try to take the battery apart.

E Charger Unit Handling Precautions

© Never plug the power cord into an outiet whose voltage rating is different from that marked on the power cord. Doing so creates the risk of fire, malfunction, and electric shock.

e Take care to protect the power cord against damage and breaking. Never place heavy objects onto the power cord, or expose it to intense heat. Doing so can damage the power cord, creating the risk of fire and electric shock.

© Never try to modify the power cord, or subject it to severe bending, twisting, or pulling. Doing so creates the risk of fire, malfunction, and electric shock.

© Never plug in or unplug the power cord while your hands are wet. Doing so creates the risk of electric shock.

© Do not plug the power cord into an outlet or extension cord that is shared by other devices. Doing so creates the risk of fire, malfunction, and electric shock.

© Should the power cord ever become damaged (to the point that internal wires are exposed or cut), immediately contact your original retailer or authorized CASIO authorized service center to request repair. Continued use of a damaged power cord creates the risk of fire, malfunction, and electric shock.

+_ The charger unit becomes slightly warm during charging. This is normal and does not indicate malfunction.

+ Unplug the power cord from the power outlet when you are not using the charger unit.

+ Never use detergent to clean the power cord (especially the plug).

+ Never cover the charger unit with a blanket, etc. Doing so creates the risk of fire.

The camera becomes slightly warm during use. This is normal and does not indicate malfunction.

Except for your own personal enjoyment, unauthorized use of use of snapshots or movies of images whose rights belong to others, without the permission of the right holder, is forbidden by copyright laws. In some cases, shooting of public performances, shows, exhibitions, etc. may be restricted entirely, even if it is for your own personal enjoyment. Regardless of whether such files are purchased by you or obtained for free, posting them on a website, a file sharing site, or any other Internet site, or otherwise distributing them to third parties without the permission of the copyright holder is strictly prohibited by copyright laws and international treaties. For example, uploading or distributing on the Internet images of TV programs, live concerts, music videos, etc. that were photographed or recorded by you may infringe upon the rights of others. Note that CASIO COMPUTER CO. LTD. shall not be held liable for use of this product in any way that infringes on the copyrights of others or that violates copyright laws.

The following terms, which are used in this manual, are registered trademarks or trademarks of their respective owners.

Note that trademark % and registered trademark ® are not use within the text of this manual.

+ The SDHC logo is a trademark.

Microsoft, Windows, Internet Explorer, Windows Media, Windows Vista, and DirectX are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.

Macintosh, Mac OS, QuickTime, and iPhoto are trademarks of Apple Inc.

Adobe and Reader are trademarks or registered trademarks in the United States and other countries of Adobe Systems Incorporated.

YouTube, the YouTube logo, and “Broadcast Yourself” are trademarks or registered trademarks of YouTube, LLC.

EXILIM, Photo Transport, and YouTube Uploader for CASIO are registered trademarks or trademarks of CASIO COMPUTER CO. LTD.

All other company or product names mentioned herein are registered trademarks or trademarks of their respective companies.

Any and all unauthorized commercial copying, distribution, and copying of the bundied software over a network are prohibited.

This product contains PrKERNELv4 Real-time OS of eSOL : Co. Ltd. Copyright © 2007 eSOL Co. Ltd. PEKERNELv4 PrKERNELV4 is a registered trademark of eSOL Co. Ltd. in

This product contains the software of FotoNation, Inc. FotoNation is a registered trademark of FotoNation, Inc. FaceTracker is a trademarks of FotoNation, Inc.

This products YouTube upload functionality is included under license from YouTube, LLC. The presence of YouTube upload functionality in this product is not an endorsement or recommendation of the product by YouTube, LLC.

If the [CHARGE] lamp does not light red...

Charging cannot be performed because ambient temperature or the temperature of

the charger is too hot or too cold. Leave the camera in a location whose temperature is within the range where charging can be performed. When the camera returns to a temperature where charging can be performed, the [CHARGE] lamp will light red.

If the [CHARGE] lamp flashes red...

The battery is faulty or the battery is loaded in the charger incorrectiy. Remove the battery from the charger and check if its contacts are dirty. If contacts become dirty, wipe them clean with a dry cloth. When experiencing charging problems, also check to make sure that the power cord is not disconnected from the power outlet or charger.

If problems continue to occur after you perform the above steps, it could mean that the battery is faulty. Contact your nearest CASIO authorized service center.

[| [To replace the battery

1. Open the battery cover and Stopper remove the current battery. With the monitor screen side of the camera facing upwards, slide the stopper in the direction indicated by the arrow in the illustration. After the battery pops out, pull it the rest of the way out of the camera.

2. Load a new battery.

L [Battery Precautions

H Precautions during Use

Operation provided by a battery under cold conditions is always less than operation under normal temperatures. This is due to the characteristics of the battery, not the camera.

Charge the battery in an area where the temperature is within the range of 5°C to 35°C (41°F to 95°F). Outside this temperature range charging can take longer than normal or even fail.

If a battery provides only very limited operation following a full charge, it probably means the battery has reached the end of its service life. Replace the battery with a new one.

EH Storage Precautions

Storing the battery for a long time while it is charged can cause deterioration of battery characteristics. If you do not plan to use a battery for some time, fully use up its charge before storing it.

Always remove the battery from the camera when you are not using it. À battery left in the camera can discharge and go dead, which will require some time to charge when you need to use the camera.

Store batteries in a cool, dry place (20°C (68°F) or lower).

To prevent over discharging of an unused battery, fully charge it, and then load it in the camera and fully use up the charge about once every six months.

[| [Using the Camera in another Country

H Precautions during Use

The bundled charger is designed for operation with any power supply in the range of 100V to 240V AC, 50/60Hz. Note, however, that the shape of the power cord plug depends on each country or geographic area. Before taking the camera and charger along on a trip, check with travel agent about the power supply requirements in your destination(s).

Do not connect the charger to a power supply through a voltage converter or similar device. Doing so can lead to malfunction.

H Extra Batteries + Taking along extra fully charged batteries (NP-40) is recommended while on a trip in order to avoid not being able to shoot images due to the battery going dead.

See page 18 for information about supported memory cards and how to load a memory card.

[| [To replace the memory card

Press the memory card and then release it. This wi

cause it to pop out of the memory card slot slightly.

Pull the card out the rest of the way and then insert

+ Never remove a card from the camera while the back lamp is flashing green. Doing so can cause the image save operation to fail and even damage the memory card.

H Using a Memory Card

+ SD memory cards and SDHC memory cards have a Write enabled write protect switch. Use the switch when you need to guard against accidentally deleting data. Note, however, if you write protect an SD memory card you must then turn write protection off whenever you want Write disabled to record to it, format it, or delete any of its images.

If a memory card starts to behave abnormally during

image playback, you can restore normal operation by reformatting it (page 148). However, it is recommended that you always take along multiple memory cards whenever using the camera far away from the home or office.

As you record data to and delete data from a memory card a number of times, it loses its ability to retain data. Because of this, periodic re-formatting of a memory card is recommended.

Electrostatic charge, electrical noise, and other phenomena can cause data to become corrupted or even lost. Make sure that you always back up important data on other media (CD-R, CD-RW, hard disk, etc.)

H Memory Card Handling Precautions

Certain types of cards can slow down processing speeds. In particular, you may experience problems saving high-quality (HD and STD) movies. Use of certain types of memory cards increase the time it takes to record movies, which can cause movie frames to be lost. This condition is indicated by ÆEl and SE flashing on the monitor screen. Use of a memory card with a maximum transfer speed of at least 10MB per second is recommended.

& Discarding or Transferring Ownership of a Memory Card or the Camera

The format and delete functions of the camera do not actually delete files from the

memory card. The original data remains on the card. Note that responçsibility for the

data on a memory card lies with you. The following procedures are recommended whenever you discard a memory card or the camera, or if you transfer ownership to another party.

+ When discarding a memory card, either physically destroy the memory card or use commercially available data delete software to completely delete the data on the memory card.

+ When transferring ownership of a memory card to another party, use commercially available data deletion software to completely delete the data on it.

+ Use the format function (page 148) to completely delete the data in built-in memory before discarding or transferring ownership of the camera.

Computer System Requirements for Bundled Software

Computer system requirements are different for each of the applications. Be sure to check the requirements for the particular application you are trying to use. Note that the values provided here are minimum requirements for running each application. Actual requirements are greater, depending on the number of images and the sizes of the images being handled.

YouTube Uploader for CASIO

+ Sufficient memory to run the operating system

+ Computer configuration that enables playback of movies on the YouTube site + Computer configuration that enables upload of movies to the YouTube site

Memory :Atleast 64MB Hard Disk Drive Space :At least 2MB Adobe Reader 8

CPU :Pentium II Class

Memory ‘At least 128MB Hard Disk Drive Space : At least 180MB Other ‘Internet Explorer 6.0 or higher installed

For details about the minimum system requirements for each software application, see the “Read me” files on the CASIO Digital Camera Software CD-ROM that comes bundied with the camera.

The tables in this section show the initial default settings that are configured for menu

items (displayed when you press [MENUI]) after you reset the camera (page 148).

Menu items depend on whether the camera is in the REC mode or PLAY mode.

+ A dash (-) indicates an item whose setting is not reset or an item for which there is no reset setting.

LayoutPrint |- Date/Time MOTION/PRINTA| 9 frames Rotation Movie Editing |- Resize Lighting = Trimming Red Eye = Dubbing White Balance |- Copy Brightness n Divide Group Keystone =

+ The contents of the “Set Up” tab are the same in the REC mode and PLAY mode.

[Problem [Possible Cause and Recommended Action Power Supply

Power does not 1)The battery may not be loaded correctly (page 15).

turn on. 2)The battery may be dead. Charge the battery (page 14). Ifthe battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available CASIO NP-40 rechargeable lithium ion battery.

The camera 1)Auto Power Off may have activated (page 146). Turn power

suddenly powers back on.

down. 2)The battery may be dead. Charge the battery (page 14).

3)The camera's protection function may have activated because camera temperature is too high. Turn off the camera and wait until it cools down before trying to use it again

Power will not tu off. Nothing happens when a button is pressed.

Remove the battery from the camera and then reload it.

Image is not recorded when the shutter button is pressed.

T)Ifthe camera is in the PLAY mode, press [08] (REC) to enter the REC Mode.

2)ifthe flash is charging, wait until the charge operation finishes.

3)lfthe message “Memory Full” appears, transfer images to your computer, delete images you no longer need, or use a different memory card.

Auto Focus does not focus properly

TIfthe lens is dirty, clean it off.

2)The subject may not be in the center of the focus frame when you compose the image.

3)The subject you are shooting may not be a type that is compatible with Auto Focus (page 28). Use manual focus (page 65).

4)You may be moving the camera when shooting. Try shooting with Anti Shake or use a tripod.

5)You may be pressing the shutter button all the way without waiting for Auto Focus. Haïf-press the shutter button and allow enough time for Auto Focus to focus.

Possible Cause and Recommended Action

The subject is out of focus in the recorded image.

The image may not be focused properly. When composing the image, make sure the subject is located inside the focus frame.

The flash does not fire.

DIF (Flash Off is selected as the flash mode, change to another mode (page 34).

2)lfthe battery is dead, charge it (page 14).

3)1f a BEST SHOT scene that uses [M] (Flash Off) is selected, change to a different flash mode (page 34) or select a different BEST SHOT scene (page 54)

The IS] (Flash Off) icon flashes red on the monitor screen and the flash does not fire.

The flash unit may be malfunctioning. Contact a CASIO service center or your original retailer. Note that though the flash will not fire, you still can use the camera for non-flash shots.

Camera powers down during Self- timer countdown

The battery may be dead. Charge the battery (page 14).

The monitor screen image is out of focus.

T)You may be using Manual Focus and have not focused the image. Focus the image (page 65).

2)You may be using FA (Macro) for scenery or portraits. Use Auto Focus for scenery and portrait shots (page 65).

3)You may be trying to use Auto Focus or Ed (Infinity) when shooting a close-up shot. Use the IA (Macro) for close ups (page 65).

There is a vertical line in the monitor screen image.

Shooting a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is a CCD phenomenon known as “vertical smear”, and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.

There is digital noise in images

1)Sensitivity may have been increased automatically for a dark subject, which increases the chance of digital noise. Use a light or some other means to illuminate the subject.

2)You may be attempting to shoot in a dark location with {Flash Off) selected, which can increase digital noise and make images appear coarse. In this case, turn on flash (page 34) or use lights for ilumination.

3)Shooting with a high ISO sensitivity setting or with the Lighting feature can cause an increase in digital noise. Use a light or some other means to illuminate the subject.

Possible Cause and Recommended Action

A recorded image was not saved

1)Camera power may have been tumed off before the save operation was complete, which will result in the image not being saved. Ifthe battery indicator shows HE, charge the battery as soon as possible (page 16).

2)You may have removed the memory card from the camera before the save operation was complete, which will result in the image not being saved. Do not remove the memory card before the save operation is complete.

Though available lighting is bright, the faces of people in the image are dark.

Not enough light is reaching the subjects. Change the flash mode setting to KA (Flash On) for daylight synchro flash (page 34), or adjust EV shift to the + side (page 44).

Night shots come out bad.

Use the following BEST SHOT scenes (page 54) when shooting

+ Night Scene (for shooting night scenery only)

+ Night Scene Portrait (for shooting people against night scenery)

Subjects are to dark when shooting images in a seashore or ski area.

Sunight reflected by water, sand, or snow, can cause underexposure of images. Change the flash mode setting to EN {Flash On) for daylight synchro flash (page 34), or adjust EV shift to the + side (page 44).

The focus frame does not appear on the monitor screen.

Normally, tuning off the camera while “Detect Smile” is selected for Auto Shutter will cause the camera's face detection setting to change. You will need to change the face detection setting again after tum on the camera. You can tell the camera to remember the Auto Shutter setting by selecting “On” for the “Auto Shutter” power on default setting (page 79).

Digital zoom including HD zoom) does not work. The zoom bar indicates zoom only up to a zoom factor of 4.0.

1)The digital zoom setting may be turned off. Turn on digital zoom (page 76).

2)Date stamping may be tumed on, which will cause digital zoom to be disabled. Turn off date stamping (page 143)

3)Digital zoom is disabled when some BEST SHOT scenes (Business cards and documents, White board, etc.) are selected. Select another scene (page 54).

Possible Cause and Recommended Action

When shooting with Auto Shutter, the shutter does not trigger.

Auto Shutter may not trigger when shooting under very bright or very dark conditions, or when shooting a fast moving subject, etc. Ifthis happens, try changing the Auto Shutter Trigger Sensitivity setting (page 72), or press the shutter button all the way down to release the shutter and shoot the image.

The image is out of focus during movie recording.

T)Focusing may not be possible because the subject is outside the focus range. Shoot within the allowable range. 2)The lens may be dirty. Clean the lens (page 155).

The color ofthe playback image is different from what appears on the monitor screen when shooting,

Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens.

Images are not displayed.

This camera cannot display non-DCF images recorded onto a memory card using another digital camera.

Images cannot be edited (with Layout Print, resizing, timming, keystone correction, color restoration, date/

T)Note that you cannot edit the following types of snapshots.

+ Snapshots created using MOTION PRINT

+ Snapshots recorded with another camera

2)With keystone correction and color restoration, editing is not possible if the camera cannot find a shape to edit within the

time editing, frame on the monitor screen (pages 102, 103). rotation).

Other The wrong date | The date and time setting is off. Set the correct date and time and time are (page 144).

displayed, or the wrong date and time are being stored along with image data.

The messages on the display are in the wrong language.

The wrong display language is selected. Change the display language setting (page 145).

Possible Cause and Recommended Action

Images cannot be transferred over a USB connection.

1)The USB cable may not be connected securely. Check all connections.

2)The wrong USB communication protocol is selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (pages 121, 130).

3)ifthe camera is not tumed on, turn it on.

4)Your computer may not be able to recognize the camera if you connect via a USB hub. Always connect directly to the computer's USB port.

Language selection screen appears when the camera is turned on.

1)Vou did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery Check the camera setup (pages 17, 145).

2)There may be a problem with the camera's memory data. If this is the case, perform the reset operation to initialize the camera's setup (page 148). After that, configure each setting, Ifthe language selection screen does not re-appear when you tu the camera on, it means that the camera's memory management data has been restored. Ifthe same message appears after you turn power back on, contact your retailer or a CASIO authorized service center.

The time and date settings configured the first time after purchasing the camera are reset to their factory defauits when remove the camera's battery.

Load the camera's battery and reconfigure the time and date settings (page 17). Do not remove the battery from the camera for at least 24 hours after configuring time and date settings. After that, the settings will not be reset if you remove the battery.

+ Ifthe time and date are reset to their factory default settings when you remove the battery after it has been loaded for more than 24 hours, it could mean that the camera's setting memory is defective. Contact your retailer or a CASIO authorized service center.

[| [Display Messages

The camera's protection function may have activated ALERT because camera temperature is too high. Turn off the camera

and wait until it cools down before trying to use it again Batteryis low Battery power is low.

Keystone correction of the image cannot be performed for Cannot correct !

some reason. The image will be stored as-is, without image!

correction (page 60).

The image you specified with the slideshow “Images” setting gannot findthe \ not be found. Change the “Images” setting (page 93) and

: try again Cannot register | You are attempting to save a user BEST SHOT scene in the gi “SCENE folder when the folder already contains 999 user

There is something wrong with the memory card. Turn off the camera, remove the memory card and then reload it into the camera. If this message re-appears when you turn the camera back on, format the memory card (page 148).

Card ERROR E IMPORTANT!

+ Formatting a memory card deletes all its files. Before formatting, try transferring recoverable files to a computer or some other storage device.

Check You are attempting to connect the camera to a printer while . the camera's USB settings are not compatible with the USB connections!

system of the printer (page 114).

Files could not be saved because battery is low.

Battery power is low, so an image file could not be saved.

Folder cannot be created.

You are trying to record a file while there are already 9999 files stored in the 99h folder. If you want to record more, delete files you no longer need (page 27).

transferred. You are attempting to turn off power while image data is being Stop transferand\| transferred using the Eye-Fi card (page 134) turn off power? This message appears and the camera turns off whenever LENS ERROR lens performs some unexpected operation. If the same message appears after you turn power back on, contact a CASIO authorized service center or your original retailer The Camera Shake unit may be malfunctioning. If the same LENS'ERROR 2.) message appears after you turn power back on, contact your retailer or a CASIO service center. Load paper! The printer ran out of paper while printing. Memory Full Memory is full with images you recorded and/or files saved by

editing operations. Delete files you no longer need (page 27).

An error occurred while printing. +_ The printer is turned off. +_ The printer generated an error, etc.

Image compression could not be performed for some reason during image data storage. Shoot the image again.

RETRY POWER ON The lens came into contact with an obstruction while moving. The camera will turn off automatically when this message appears. Remove the obstruction and turn power back on again

SYSTEM ERROR Your camera system is corrupted. Contact your retailer or an authorized CASIO authorized service center.

The LOCK switch of the SD or SDHC memory LOCK

card loaded in the camera is in the locked position. You cannot store images to or delete 4 images from a memory card that is locked.

There are no files in built-in memory or on the memory card.

There are no printing images.

There are currently no files specified for printing. Configure the required DPOF settings (page 116).

Therelisnoimagen| The setup you are trying to save is for an image that cannot to register. be saved as a user BEST SHOT scene.

his cards not] The memory card loaded in the camera is not formatted. formatted. Format the memory card (page 148).

This file cannot be played.

The file you are trying to access is corrupted or is a type that cannot be displayed by this camera.

This function cannot be used.

You attempted to copy images from built-in memory to a memory card while there is no memory card loaded in the camera (page 109)

Voice Recording Time

Snapshot Image Size | Image EIRE F Omer v HG8) snapshet (Pixels) Quality _e Recording Recording Capacity Capacity

320240 “ se naoon) 108 seconds & Done 19.8 MB Ga0xA80 | (0femessesong) | 2éseconds | Jiscconds | /8MB Voice Recording File Format rs File Size Volce Recording ICS oies ù Capacity Recording Capacity IMaaopou | 468 | 55k8 52 minutes 8 minutes

* Snapshot, movie recording capacity, and voice recording capacity values are approximate and intended for reference only. Actual capacity depends on image contents.

+ File size and data rate values are approximate and intended for reference only. Actual values depend on the type of image being shot.

+ The above values are based on use of a PRO HIGH SPEED SD memory card {Panasonic Corporation). The number of images you can save depends on the type of memory card you are using.

+ When using a memory card with a different capacity, calculate the number ofimages as a percentage of 1GB.

+ Each movie can be up to 10 minutes long. Movie recording stops automatically after 10 minutes of recording.

Audio (Voice Recording): WAV (monaural)

Built-in Memory (Image Storage Area: 35.7MB)

SD/SDHC Recorded Image Sizes

Snapshot: 10M (3648X 2736), 3:2 (3648X 2432), 16:9 (3648X 2048), 7M (3072X2304), 4M (2304X 1728), 2M (1600X 1200), VGA (640X480) Movies: HD (1280X720), STD (540X480), LP (320X240), YouTube (640X480)

1 file all files (with memory protection feature)

Size: 1/2.3-inch square pixel CCD Lens/Focal Distance

F2.6 (W) to 5.8 (T) #= 4.9 to 19.6 mm {equivalent to 28 to 112 mm in 35 mm format) Seven lenses in six groups, including aspherical lens.

Zoom 4X optical zoom, 4X digital zoom (16X in combination with optical zoom) 22.8X maximum HD Zoom (in combination with optical zoom, VGA size)

Focusing Contrast Detection Auto Focus

+ Focus Modes: Auto Focus, Macro Focus, Pan Focus, Infinity, Manual Focus

Spot, Multi, Tracking: with AF assist lamp

Approximate Focus (Snapshot) (From Lens Surface)

Auto Focus: 40 cm to CO (1.3 to CO) (Wide Angle) Macro Focus: 10 cm to 50 cm (3.9" to 19.7") (Wide Angle) Infinity: CO (Wide Angle)

Manual: 10 cm to 09 (3.9" to CO) (Wide Angle)

+ Range is affected by optical zoom.

Mult-pattern, center weighted, and spot by imaging element

Exposure 2.0 EV to +2.0 EV (in 1/3EV steps) Compensation Shutter CCD shutter, mechanical shutter Shutter Speed Snapshot (Auto): 1/2 to 1/1000 second Snapshot (Night Scene): 4 to 1/1000 second + May differ due to the camera setup. Aperture Value F2.6 (W) to F7.0 (W) (When used with ND filter)

Auto, Daylight, Overcast, Shade, Day White Fluorescent,

Self:timer Approximate Trigger Times: 10 seconds, 2 seconds, Triple Self-timer Flash Modes Auto, Off, On, Soft, Red-eye reduction

Flash Range (ISO Sensitivity: Auto)

Normal: 0.1 m to 4.5 m (0.3' to 14.8') (Wide Angle) 0.5 mto 2.0 m (1.6' to 6.6') (Telephoto) Flash CS: 0.4 m to 2.2 m (1.3 to 7.2') (Wide Angle) 0.5 mto 1.0 m (1.6' to 3.3‘) (Telephoto) + Range is affected by optical zoom.

Approximately 4 seconds maximum

Snapshots; Macro; Self-timer, Continuous Shutter

(CS: Normal Speed CS/4fps/10fps/Flash): BEST SHOT: Make-up: Auto Shutter; Face Detection; Movies (normal movie, Prerecord Movie, and For YouTube) (with monaural audio); Audio (Voice Recording)

Approximate Maximum Audio Recording Times

After Recording: 30 seconds per image Voice Recording: 112 minutes (when using built-in memory)

Timekeeping Function

Built-in quartz digital clock Date and Time: Recorded with image data Auto Calendar: To 2049

162 cities in 32 time zones City name, date, time, summer time

Approximate Battery Life

All of the values provided below represent the approximate amount of time under normal temperature (23°C (73°F.)) before the camera turns off. These values are not guaranteed. Low temperatures shorten battery life.

Number of Shots (CIPA) (Operating Time)*! 550 shots Continuous Playback (Snapshots)*? 9 hours Approximate continuous movie recording time 250 minutes Continuous Voice Recording®® 14 hours 20 minutes

+ Battery: NP-40 (Rated Capacity: 1300 mAh)

+ Recording Medium: 1GB SD memory card (PRO HIGH SPEED (Panasonic Corporation)

+ Measurement Conditions

#1 Approximate number of shots (CIPA) (Operating Time) In accordance with CIPA (Camera and Imaging Products Association) standards Normal temperature (23°C (73°), monitor on, zoom operation between full wide and full telephoto every 30 seconds, during which two images are shot with flash; power turned off and back on every time 10 images are shot.

#2 Approximate playback time Standard temperature (23°C (73*F), one-image scroll approximately every 10 seconds

#3 Approximate continuous recording time

+ The above values are based a new battery, starting from a full charge. Repeated

charging shortens battery life.

+ Frequency of flash, Zoom, and Auto Focus usage, and the time the camera is on

greatly affects recording time and number of shots values.

Power Consumption 3.7 V DC, Approximately 3.7 W Dimensions 96.9 (W) X 57.6 (H) X 23.0 (D) mm

(3.8" (W) X 2.3" (H) x 0.9" (D)

{excluding projections; 21.1 mm (0.83") at thinnest point)

Weight Approximately 131 g (4.6 0z) {excluding battery and bundied accessories)

H Rechargeable lithium ion battery (NP-40)

37V Rated Capacitance

Operating Temperature

O to 40°C (32 to 104°F)

Dimensions 38.5 (W) X 38.0 (H) X 9.3 (D)mm {1.52 (W) X 1.50" (H) X 0.37" (D)) Weight Approximately 34 g (1.2 oz)

E Charger unit (BC-31L)

4.2 V DC, 600 mA Operating Temperature

5 to 35°C (41 to 95°F)

Supported Battery Type

Rechargeable lithium ion battery (NP-40)

Dimensions 55 (W) X 20 (H) X 86 (D) mm {2.2" (W) X 0.79" (H) X 3.4" (D)) (excluding projections) Weight Approximately 58 g (2.0 oz)

+ Power cord precautions for use in Singapore The power cord set is not supplied. The power cord used must comply with relevant national and/or international standards.

For a wealth of information Dynamic Photo including sample images, explanations about how you can use Dynamic Photo images, and more, visit the special Dynamic Photo website at:

This manual provides an introduction to Dynamic Photo, which creates a whole new

way to enjoy digital imaging.

+ All screen shots shown in this manual are in English. However, the camera allows you to select another display language, if you want.

Dynamic Photo! À totally new way to enjoy digital photography! Dynamic Photo Technology. Creating a Dynamic Photo Imag Step 1: Shoot the subject. … Step 2: Create the Dynamic Photo image.

M Four Tips for Good Subject Cropping… M Specifying the Subject Type and CS Speed

Step 3: Have fun with Dynamic Photo. . Step 4: Use Dynamic Studio to expand use of Dynamic Photo images to other

Create Original Movies with Dynamic Studio.

1 Movie Conversion Settings.

M Download Movie Page.

amic Photo! A totally new way to enjoy digital photography!

Dynamic Photo makes it easy to crop a moving subject out of a series of images and insert it into other images! À simple operation on the camera extracts a moving subject automatically by cropping up to 20 Continuous Shutter images. Become the star of your digital images! Create the images of your dreams! AI on the camera, without using a computer! With Dynamic Photo you can shoot, create, and view images, just about anywhere!

Rene monster dogl Animated seasons greetings!

Dynamic Photo! À total new way to enjoy digital 2 pholograpnyt

Dyna Photo Technology

Dynamic Photo lets you extract a moving subject from a series of Continuous Shutter (CS) images and insert it into another image. This makes it possible to combine images in ways that create exciting, totally unbelievable scenes.

Moving CS Images Extract the subject. Insert it into another image.

You can create a Dynamic Photo image by inserting a moving subject into a background image. Before performing the following steps, you should record the background image into which you want to insert the moving subject.

Background Image Moving Subject Dynamic Photo Image

Dynamic Photal A totally new way to enjoy digital 3 pholograpnyt

eating a Dynamic Photo Image

Step 1: Shoot the subject.

Dynamic Photo images are created by extracting the subject out of one image, and inserting it into another image. The term “subject” as used here refers to what you extract or crop out of the first image. Perform the following steps to shoot and extract the subject.

[ (Shoottwice) | twice.

@ With the subject @ The same angle against the same The camera will extract the background, without the subject. subject automatically. Do not allow the camera to move.

1. Turn on the camera and press the [BS] button ©.

2. Select “Dynamic Photo”. On the BEST SHOT scene menu screen, select “Dynamic Photo”, which is the third scene. Use [4] and 1] to move the red frame Dt and then press the [SET]

4 Creating a Dynamic Photo Image

3. First, shoot the subject. Best results can be obtained with the camera secured on a tripod. With the camera pointed at the moving subject, press the shutter button to record. If you selected “Moving Subject”, the camera will record a series of Continuous Shutter (CS) images over a few

seconds. First, let just have the

+ To help ensure good cropping results. subject wave or perform See : some other simple

— See “Four Tips for Good Subject Cropping”. TER Te oct

+ You can select the subject type and configure other settings here by pressing the [SET] button. — See “Specifvina the Subject Type and CS Speed” for more information. + Flash is turned of ([B]) automatically when shooting with Dynamic Photo.

4. Next, shoot the same background again, butthis & © # time without the subject. After shooting the first image with the subject, have the subject exit the frame. Keep the camera still so you can maintain the same background composition as the first image (with the subject). When everything is ready, press the shutter button. Only one shot (not CS images) of the background is recorded at this time.

As shown in the image to the right, there is no need to . carefully compose the two images when shooting F À against a flat wall that has no visible marks at all. à,

The extracted subject image will

appear on the display after shooting A pe

is complete. If you selected “Moving

Subject”, the 20 subject images that

were recorded wi scroll on the

screen, creating the illusion of movement.

+ The background-only image you shoot is not saved. Only the 20 cropped subject images are saved.

+ Note that you cannot cancel the image extraction process that starts after you shoot the images. Wait until the process is complete before performing any other camera operation.

5 Creating a Dynamic Photo Image

Step 2: Create the Dynamic Photo image.

Use the following procedure to insert the subject you extracted in Step 1 above into a

photograph and create the final Dynamic Photo image.

1. Press [D] to enter the PLAY mode.

2. Perform the following operation on the camera [MENU] —+ PLAY tab —> “Dynamic Photo”.

3. Use [4] and [à] to select the background image you want and then press [SET]. Select the image you want to use as the background. You should record the background image you want to use before starting this procedure.

* Only images that are able to be used as background images will appear at this time.

4. Use [4] and [>] to select the subject you want to insert and then press [SET].

* Only subjects that can be inserted into other images will appear at this time:

5. As you watch the camera’s monitor screen, use [A], [W], [<], and [à] to move the subject to the position you want and then press [SET].

This inserts the subject into the background image and creates a Dynamic Photo.

Creating a Dynamic Photo Image

6. After creation of the Dynamic Photo image is complete, the finished image with the moving subject will appear on the monitor screen.

+ Inserting a moving subject will resize it to one-fourth the size of the background image you are inserting into.

+ The size of a moving subject inserted into a background image cannot be change.

+ The size of a Dynamic Photo image created by inserting a moving subject into a background image is 2M. If the background image into which a moving

subject is inserted is smaller than 2M, the resulting image will be the same size as the background image.

The size of a Dynamic Photo image created by inserting a stationary subject into a background image is 6M. Ifthe background image into which a stationary subject is inserted is smaller than 6M, the resulting image will be the same size as the background image.

Four Tips for Good Subject Cropping

When shooting the subject image, shoot against Find a blank wall whose a white wall or some other surface whose coloris color is different from different from that of the subject. The camera will that of the subject.

not be able to crop the subject image properly if its color is the same as or similar to the background color.

Select a blank wall for the subject background, not one with a complex pattern or shapes.

7 Creating a Dynamic Photo Image

Shooting Technique ©

Look for a flat wall that has no markings.

Best cropping results are obtained when the background is a wall that is completely free of visible markings like the one shown above. In this case, itis not necessary to take pains to position the camera correctly when shooting the second (background only) image required by Dynamic Photo. When shooting against a blank wall, you can move the camera around as much as you like while shooting CS images of a moving subject.

Find some reference points and use a tripod.

When there are reference points in the image as shown above, you need to compose the second (background only) image precisely according to the reference points. In this case, you will need to keep the camera as still as possible when shooting the first image {subject and background) and the second image (background only). Use a tripod whenever possible, and make sure thatimage is composed exactly the same for both the first image and the second image.

Creating a Dynamic Photo Image

Move the subject away from the wall to avoid shadows!

The camera may mistake shadows on the wall or floor caused by strong sunlight, illumination, or other light sources as part of the subject. Shadows tend to form when the subject is too close to a wall. Have the subject move as far away as possible from the wall.

Do not use a moving background!

Good cropping is not possible if anything besides the subject is moving in the images. For example, avoid breaking waves, trees blowing in the wind, etc.

Creating a Dynamic Photo Image

Specifying the Subject Type and CS Speed

Pressing [SET] during step 1 of “3. First, shoot the subject." will display a screen for specifying the subject type and CS speed.

You can select from among the four subject types listed below. You also can specify a stationary subject (one frame only) in addition to a moving subject.

CS speed CET Subject type Moving Subject | 20 frames per | 25 images | C'e2tes a moving subject rom the

isec(20fps) |second CS images. + The subject is cropped out of 20 images | each ofthe CS images. “Moving Subject 1sec (20fps)" provides smooth subject movement, but recording time is . . limited to one second. Er à 5remes PT | 20 images | + “Moving Subject 4sec (5fps)" provides more recording time, but subject movement is slightiy rough.

Moving Subject | 10 frames per 2sec (10fps) |second

Records a single subject, which is Still Subject - image _ | cropped and inserted into the background image.

10 Creating a Dynamic Photo Image

Step 3: Have fun with Dynamic Photo.

You can use the Dynamic Photo image you created in Step 2 in a variety of fun ways.

Dynamic Photo images play back automatically aë soon as you display them on the EXILIM itor Screen.

m 3 Connect your EXILIM to a TV with the AV cable and you can enjoy watching Dynamic Photo images on your TV screen.

Step 4: Use Dynamic Studio to expand use of Dynamic Photo images to other applications.

is Shutter images you record when you shoot a Dynamic Photo camera memory. You can upload the 20 CS images to Dynamic hem to a movie, which dramatically increases the number of for your Dynamic Photos.

Dynamic STUDIO svt Dynamic Photo

Sr ! you can then use in a wider range of Paname Fhoio Data Conuersion Series VOeeOne OnaPC In a digital photo Enjoy watching Dynamic : frame Photo images on your PC Play Dynamic Photo images in à digital photo frame. === On a cell phone Share with your friends View Dynamic Photo images on your cell phone Send the Dynamic Studio screen. URL to your friends and share 12

your Dynamic Photo creations with them.

Send animated e-greeting cards to your special friends and family members.

Animation GIF fles can be included in presentation data for an impression that really lasts.

11 Creating a Dynamic Photo Image

Create Original Movies with Dy

http://dynamicstudio.jp

Dynamic Studio is a free online service that can be used to convert the moving subject extracted from Continuous Shutter images created during a Dynamic Photo operation to a movie file quickly and easily. This makes it possible to view Dynamic Photo images you created with a CASIO EXILIM digital camera to a format that can be played back as a movie on a PC, digital photo frame, cell phone or other device. Now you can enjoy your Dynamic Photo images on a virtually unlimited number of different devices.

—+ eView them on a PC — eView them on a cell phone Convert Dynamic —> @Display them in a digital photo frame Photos to... — @Share them with your friends

—+ ePublish them on a blog

—+ @lnsert them into presentations Though you can convert to movie files for a wide range of applications such as those

listed above, the basic Dynamic Studio operation is the same in all cases. The following explains the basic procedure for using Dynamic Studio.

The 20 Continuous Shutter images you record when you shoot a Dynamic Photo image are stored in camera memory. Using Dynamic Studio starts with uploading these 20 images to the Dynamic Studio website.

Use the USB cable to connect your EXILIM digital camera to your computer, or use an SD card reader or other means to transfer the image data to your computer.

12 Create Original Movies with Dynamic Studio.

Copy the Dynamic Photo images to your computer. The best way to keep track of images is to create a new folder and copy the 20 Continuous Shutter images that make up each set to their own unique folder.

The following are the types of files you can upload to Dynamic Studio.

+ Single stationary subject images + Sets of 20 moving subject images + Sets of 20 Dynamic Photo images + Sets of 20 Continuous Shutter images

} File name extension: JPE

language you want. Here we will select

After the page appears in the language you saute Dm St

selected, click [START] to begin.

Read the Terms of Use that appear, and click the [Agree] button to agree to be bound by them.

13 Create Original Movies with Dynamic Studio.

Step 1. Upload Your Photos

Click [Select Photos...] and select the images you want to upload. You can upload up to 20 successive images at one time. After upload is complete, click [Next].

Step 2. Review Your Uploaded Photos

You can delete any of the images you uploaded and delete any that are wrong or that you don't need.

After you are finished reviewing the uploaded images, click [Next].

Step 3. Select a Background

In this step, you can select a background only if the images you uploaded are subject images that have not been inserted into a background image.

Ifthe images you uploaded are part of a o Dynamic Photo image (subject images + o background image), click [Next] without doing anything to advance to Step 4.

The current selected background is the one

with a pink boundary around it.

If you are planning to create an animation GIF file with a transparent background, deselect the currently selected background. To deselect, click the currently selected background so the boundary disappears.

After selecting the background you want, click [Next].

14 Create Original Movies with Dynamic Studio

Step 4. Preview Your Photos with the

Background Check the images and background, and # sus confirm the movement is correct. Preview Your Photos with the Background

After you are finished reviewing the images and background, click [Next].

Step 5. Create Your Movie _

Configure the settings required for movie conversion. Selecting an option with the “intended Use” box will change the settings automatically to defaults that match the selection.

Movie conversion settings must be configured in accordance with the intended use of the finished movie. For details, see ‘Movie Conversion Settings”.

After all the settings are the way you want, click

The amount of time it takes for conversion depends on the duration of the movie. Conversion is relatively quick for a short duration, but takes progressively longer for longer durations. You should figure on just under one minute of conversion time for every 10 seconds of movie duration. The actual amount of time required for conversion also depends on Dynamic Server traffic at the time.

Your computer will proceed to the Step 6 screen automatically when conversion is complete.

15 Create Original Movies with Dynamic Studio

Step 6. Your Movie Has Been Created! In this step you can check your movie and download it if you want.

The “Online Movie” box shows a URL where your movie will be stored for 30 days, where you can stream it with your web browser as many times as you like.

Your Movie Has Been Created!

Click here to download your movie to your PC.

r im Click here to start playback of the online movie.

Share this movie with your friends by sending them É this URL.

Click here to add the URL to the favorites of your web browser so you can view the movie whenever you want. (The movie will stay on the Dynamic Studio server for 30 days.)

16 Create Original Movies with Dynamic Studio.

On the “Step 6. Your Movie Has Been Created!” page, click “MyMovie.zip”.

Click here to download your movie.

Check the contents of the confirmation dialog box that appears and then click [Save] to download.

Double-click the “MyMovie.zip” file on your computer to extract the movie file.

Move the extracted movie file (MyMovie.MOV in this example) to the folder you want on your computer.

MyovisMDU Double-click the movie file (MyMovie.MOV in this example) and check for proper playback.

MOV movies can be played on your computer if you have QuickTime ® 7 or higher installed.

QuickTime is a trademark of Apple Inc., registered in the U.S. and other countries.

17 Create Original Movies with Dynamic Studio.

Movie Conversion Settings

This section provides details about the movie conversion settings in Step 5 of the conversion procedure.

H Camera frames per second (fps)

Camera frames per second (fps): |10 fps O20fps ©10fps Os fps

{Total number of images uploaded: 20)

Select the frame rate that you used when shooting a Dynamic Photo moving subject {or Continuous Shutter images) with the camera. If you are unsure about what you should specify here, select one of the presets and check the results in the movie that results. Ifthe movie plays back too fast or to slowly, try a different setting.

Specify how you intend to use the converted movie. Making the wrong selection here can make it impossible to play back the movie on a specific device. Use the following for reference when selecting a setting.

= Select Use - #) Mobile phone Convert to 3GPP or 3GPP2 format for playback on a cell

phone Photo frame Gomuers to MPEGT format, which compaïble win most photo rames. Intemet Convert to FLV format, which Is suitable for uploading and playback on the Internet PC Converts to MOV for playback on a PC Presentation Presentation Convert to a format that can be used in planning documents,

reports, and other presentation materials.

18 Create Original Movies with Dynamic Studio

& Movie Format and Quality Settings

Quality: OHigh © Standard © Low Size -Select Size- v Bitrate, kbps Frames per sec: 20 fps

The “Movie Format” setting is configured automatically in accordance with the “intended Use” setting you select. Use “Movie Format” to select a different setting, if

(GIF FSelect Format-

& Converting to a Movie for Cell Phone Use The initial default movie format setting is always “GPP2”.

Converting to a Movie for PC Use The initial default movie format setting is always “MOV”. You can change this to “MPEG4”, if you want.

19 Create Original Movies with Dynamic Studio

EH Optional Settings

You can use the optional settings to specify whether or not playback of the movie

should be repeated, and the number of times to repeat it. Selecting the “Reverse"

check box first plays back the movie forward and then back in reverse.

* Select the “Reverse” option for playback that is the same as that performed by the camera. Maximum playback time is 16 seconds. In the case of a file used for playback on a cell phone, however, conversion to a movie with a total time within three to four seconds is recommended

Optional Settings: Repeat 1 ai. Dreverse

m Title and Comment The information you input here is displayed above and below the movie whenever it is played on the Internet. You do not need to input anything here if you don't want to.

20 Create Original Movies with Dynamic Studio

This section provides details about the “Your Movie Has Been Created!” page in Step 6 of the conversion procedure.

B Playback Preview This shows the finished movie. You can start playback by clicking >.

Picture BOOK Word — Tite (The title you input in "Step 5. Create Your Movie”)

You can click here to start playback ofthe finished movie.

Laok at me In 3 picture book wordt Comment (The comment you input in “Step 5. Create Your Movie")

FR Click here to download your movie.

ayrams covuse 0025026 avan Me

2222 © Movie download URL

© act tnarre © CHick here to add the URL to the favorites of your web browser bookmarks.

+ Clicking “MyMovie.zip" will display a dialog box for downloading the finished movie to your computer. The downloaded file is a compressed (zip) file. Double-click it to exiract it to the movie file (Windows XP and Windows Vista only).

+ A text string that starts with the characters ‘http:l/dynamicstudio.jp/" is a movie download URL. You can send your friends mail messages with the movie download URL so they can download the movie to their own computers.

+ Clicking “Add to favorites” will add the movie download URL to the favorites of your web browser.

21 Create Original Movies with Dynamic Studio.

Cell Phone Use Movie Conversion Precautions

There is no guarantee that a movie converted for cell phone use will be able to play on all cell phone models.

When sending a movie by e-mail from a computer to a cell phone, always extract from the compressed (zip) file to a movie file (mymovie.3g2 or mymovie.3gp) before attaching it to the e-mail. The receiving cell phone will not be able to play the movie if you send it as a zip file.

If you download a movie directly to a cell phone, you will be able to play it directly on the cell phone or attach it to e-mail.

Note that though some cell phones can play back downloaded movies, they may not allow attachment to e-mail, transfer to other media (SD cards, etc.), or copying of the movie.

In addition to downloading and playback of finished movies, Dynamic Studio also lets you store movies online. À movie can be stored for up to 30 days. Movies stored online can be viewed by accessing them from a cell phone or PC. You also can send the online URL to your friends and family members, which means you can distribute Dynamic Photos as e-greeting cards.

= Click here to play the online movie

«424 Online movie URL Click here to add the URL of the online movie to the favorites of your web browser bookmarks.

Cell Phone Movie Playback Precautions

There is no guarantee that a converted movie or

downloaded movie will be able to play or be copied >, on all cell phone models.

Clicking “MyMovie” will start playback of the online

A text string that starts with the characters “http://dynamicstudio.jp/”" is an online movie URL. You can, for example, send your friends mail messages with the online movie URL so they can access it as an e-greeting.

Clicking “Add to favorites” will add the online movie URL to the favorites of your web browser. An online movie can be viewed as many times as you like until it is deleted automatically after 30 days.

MA0902-A 22 Create Original Movies with Dynamic Studio
