Product Type	Robot vacuum cleaner
Model Number	SR10J50**** Series (PowerBot SR10J5035UC)
Brand	Samsung
Dimensions (Diameter × Height)	355 mm × 93 mm
Weight	3.6 kg
Rated Input Voltage	220 - 240 V ~, 50 - 60 Hz
Power Consumption (Charger)	50 W
Power Consumption (Main Unit)	40 W
Battery Type	Nickel Metal Hydride (NiMH) rechargeable
Battery Voltage / Capacity	14.4 V / 2,000 mA
Charging Time	Approximately 120 minutes
Cleaning Time (on hard floor)	Approximately 90 minutes
Dustbin Capacity	About 0.6 ℓ
Cleaning Modes	Auto, Spot, Max, Manual, Edge clean
Charging Type	Automatic and manual charging
Remote Control (Optional)	Yes, with direction control and point cleaning
Virtual Guard (Optional)	Yes, creates an invisible barrier
Sensors	Cliff sensor, obstacle sensor, bumper sensor, IrDA sensor
Power Brush	Yes, with removable cover for cleaning
Side Brush	Yes, cleanable
Filter	Washable (spare filter optional)
Intended Use	Indoor household use only
Warranty (Battery)	6 months from date of purchase

Frequently Asked Questions - PowerBot SR10J5035UC SAMSUNG

How do I start cleaning with the Samsung PowerBot SR10J5035UC?

First, ensure the power switch on the bottom of the robot is turned on. Then press the Start/Stop button on the robot or use the remote control to select a cleaning mode (Auto, Spot, Max, etc.). The robot will begin cleaning automatically.

What should I do if the robot vacuum cleaner stops during cleaning?

If 'Lo' appears on the display, the battery is low. Carry the robot to the charger to charge it. If it is stuck by obstacles (e.g., cords, thresholds), remove the obstruction. For more serious issues, turn off the power switch and move the robot to an open area, then restart.

How long does it take to fully charge the battery?

The first full charge takes approximately 120 minutes. After that, typical charging time may vary but is around 120 minutes. The robot can be used for about 90 minutes on a full charge on hard floors.

Can the robot vacuum cleaner work on carpets?

Yes, but the robot may not pass over carpets thicker than 1 cm. Using it on very thick carpets could damage both the robot and the carpet. For best results, use on low-pile carpets or hard floors.

How do I clean the dustbin and filter?

Turn off the robot and remove the dustbin. Open the cover, take out the filter, and empty the dustbin. Wash the dustbin and filter with water, then let them dry completely before reassembling. Do not use benzene, thinner, or alcohol.

What does the 'Point Cleaning' function do?

Point Cleaning (available with A-type remote) allows you to direct the robot to a specific spot by pressing and holding the Point Cleaning button. A red light appears on the floor, and the robot follows it to clean that area intensively.

How do I set a cleaning schedule?

Use the remote control to set the time first (Clock button). Then press the Schedule button to set a one-time or daily schedule. Select hour and minute, and confirm with OK. The robot must be docked on the charger when setting the schedule.

What should I do if the robot cannot find the charger?

Check that the charger is plugged in and the power is on. Remove any obstacles within 0.5 m on both sides and 1 m in front of the charger. Clean the charging contacts on both the robot and charger with a dry cloth. If the Virtual Guard is nearby, move it away.

How do I clean the power brush?

Turn off the robot and remove the dustbin. Unlock and remove the power brush cover, then take out the power brush. Use a cleaning tool or your hands to remove hair and debris. Reassemble by inserting the brush and locking the cover back in place.

What do the error codes mean (e.g., C00, C01)?

Error codes begin with 'C' followed by two numbers. C00: robot is stuck; move it to another area. C01: foreign matter in power brush; clean it. C02/C03: debris in left/right driving wheel. C05: bumper sensor issue; restart robot. C06/C07: dirty sensors; clean with soft cloth. C09: side brush obstruction; clean it. Turn off the power switch to clear the code.

USER MANUAL PowerBot SR10J5035UC SAMSUNG

Robot vacuum cleaner

User manual

SR10J50**** Series

• Before operating this unit, please read the instructions carefully.
• For indoor use only.

Preparation

Safety information 3

Safety information 3

Important safety instructions 4

Installation

Installation 12

Accessories 13

Charging 14

Installing the virtual guard (Optional) 16

Part name of the virtual guard 17

Inserting batteries 17

Operations

Using the robot vacuum cleaner 18

Cleaning method for each mode 20

Using the remote control (Option) 21

Name of each part 25

Setting time/schedule 26

Setting the time 26

Setting the schedule 26

Maintenance

Cleaning and maintaining 27

Cleaning the dustbin 27

Emptying the dustbin (Quick Empty) 28

Cleaning the driving wheel 28

Cleaning the sensors and the camera 28

Cleaning the power brush 29

Cleaning the side brush 30

Appendices

Notes and cautions 31

Charging 31

In use 31

Cleaning and maintenance 33

About the battery 33

About the IrDA sensor 34

Information codes 35

Troubleshooting 36

Warnings about battery 38

How to remove the battery 38

Specifications 40

Safety information

WARNING

Before operating the appliance, please read this manual thoroughly and retain it for your reference.

WARNING

Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

Important safety instructions

When using an electrical appliance, basic precautions should be observed, including the following:

Read all instructions before using your robot vacuum cleaner.

Unplug the charger (station) from the outlet when not in use and before conducting maintenance.

WARNING

To reduce the risk of fire, electric shock, or injury:

General

• Use only as described in this manual.
• Do not operate the robot vacuum cleaner or charger (station) if it has been damaged in any way.
• If the robot vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a customer care center.
• Do not handle the charger (station) or robot vacuum cleaner with wet hands.
• Use only on dry, indoor surfaces.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

BATTERY Charger (station)

• Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the charger (station) from the outlet when not in use and before servicing.
• Use only the charger (station) supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug or a loose power outlet.
• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not mutilate or incinerate batteries as they will explode at high temperatures.
• Do not attempt to open the charger (station). Repairs should only be carried out by a qualified customer care center.
• Do not expose the charger (station) to high temperatures or allow moisture or humidity of any kind to come into contact with the charger (station).

Robot vacuum cleaner

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.
• Do not use without a filter in place. When servicing the unit, never put fingers or other objects into the fan chamber in case the unit accidentally turns on.
• Do not put any objects into openings. Do not use with any openings blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Do not use to pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids such as gasoline, nor use on areas where they may be present including:
• Locations with candles or desk lamps on the floor.
• Locations with unattended fires (fire or embers).
• Locations with distilled alcohol, thinner, ashtrays with burning cigarettes, etc.
• Do not use the robot vacuum cleaner in an enclosed space filled with vapours given off by oil based paint, paint thinner, moth proofing substances, flammable dust, or other explosive or toxic vapours.
• Leaks from battery cells can occur under extreme usage or temperature conditions.
• If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

WARNING

Power related

- Please prevent any risk of electric shock or fire.

• Do not damage the power cord.
• Do not pull the power cord too hard or touch the power plug with wet hands.
• Do not use a power source other than the national rated voltage and also do not use a multi outlet to supply power to number of devices at the same time.
• Do not leave the power cord carelessly on the floor.
• Do not use a damaged power plug, power cord or loose power outlet.

- Clean dust or any foreign matters on the pin and contact part of the power plug.

- There is a risk of electric shock or malfunction.

- For information on Samsung's environmental commitments and product specific regulatory obligations (e.g., REACH), visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Before use

- Do not use the robot vacuum cleaner near combustible materials.

- Places near candles, desktop lamps, fireplaces, or near combustible materials such as gasoline, alcohol, thinners, etc.

- The robot vacuum cleaner is intended for household use. Therefore, do not use it in an attic, basement, storage area, industrial building, outdoors, in places with moisture (such as bathroom or laundry), or on tables or shelves.

- The robot vacuum cleaner can be damaged or malfunction.

• Install the Virtual Guard (optional) in front of dangerous areas (such as stairs or railings) to prevent damaging the product or getting injured.
• For your safety, always keep the cliff sensor clean.
• Be sure the robot vacuum cleaner does not pass through or touch any kind of liquids.
• The robot vacuum cleaner can be severely damaged and it may contaminate other areas if the wheels pass through liquid.
• Do not spill any liquids on the charger.
• There is a risk of fire or electric shock.
• Do not use the charger for anything other than its intended purpose.
• There is a risk of fire or severe damage to the charger. Always keep the cliff sensor clean for your safety.

In use

- If any abnormal sounds, smells, or smoke come from the robot vacuum cleaner, immediately shut off the power switch at the bottom of the robot vacuum cleaner and contact a service center.

Cleaning and maintenance

- When the power cord is damaged, contact a service center to have it replaced by a certified repairman.

- There is a risk of fire or electric shock.

- Please check with a Samsung Electronics service center when exchanging batteries.

- Using batteries from other products can cause malfunction.

CAUTION

Before use

• Insert the dustbin before using the robot vacuum cleaner.
• Open room doors before cleaning in order to have all rooms cleaned and install a Virtual guard (option) in front of entryways, balconies, bathrooms, or other areas where the robot vacuum cleaner may fall.
• Be careful with the following for proper automatic recharging.
• Always turn on the power of the charger.
• Install the charger where the robot vacuum cleaner can easily find it.
• Do not leave any object in front of the charger.
• When installing the charger, do not leave the cord carelessly on the floor since the robot vacuum cleaner may get tangled by it.
• Do not use the robot vacuum cleaner on black colored floors.
• The robot vacuum cleaner may not be able to operate normally.
• Do not pick up the robot vacuum cleaner by the dustbin holder.
• Do not place any objects within 0.5 m to both sides and 1 m to the front of the charger.
• Make sure the charger's charging contact is not damaged or have any foreign matters on it.
• Do not install the charger in an area with a dark floor.
• If the floor around the charger is dark, recharging is hindered.
• Move any obstacles that may disturb the robot vacuum cleaner's movement (such as children's indoor swing or slides) before cleaning.

In use

• Using the robot vacuum cleaner on thick carpet may damage both the robot vacuum cleaner and the carpet.
• The robot vacuum cleaner cannot pass over carpet that is thicker than 1 cm.
• Do not use the robot vacuum cleaner on tables or other high surfaces.
• There is a risk of damage if it falls.
• The robot vacuum cleaner may bump into chair, desk legs therefore move them away for faster and efficient cleaning.
• When the robot vacuum cleaner is operating, do not lift it up or carry it to another area.
• Do not hold the robot vacuum cleaner by its driving wheels when carrying it to another area.
• Do not put any objects on top of the robot vacuum cleaner since it may cause malfunction.
• Remove any large papers or plastic bags from the floor before using the robot vacuum cleaner since they may block the intake.
• The robot vacuum cleaner may not be able to continue its operation if it is stuck at entrances or veranda doorsills.
• The robot vacuum cleaner stops operating for safety reasons if it cannot move for more than 5 minutes.
• To resume operating, turn the power switch off and then on again after moving it to a location where it can continue cleaning.
• Do not aim the red pointer directly at people or animals (optional).

Cleaning and maintenance

• Prevent any damage to the robot vacuum cleaner by complying with the following.
• Do not clean the robot vacuum cleaner by spraying water directly onto it or use benzene, thinner, acetone, or alcohol to clean it.
• Do not disassemble or repair the robot vacuum cleaner yourself.
• This should only be done by a certified repairman. Always keep the obstacle sensor and cliff sensor clean.
• If foreign matter accumulates, sensors may malfunction.

Power of the charger must be on at all times.

NOTE

• Install the charger on a level floor and wall. • Install the charger along the grain of wooden floors. - If the power switch is off, the robot vacuum cleaner will not charge even if it is docked on the charger. • Always turn on the power of the charger.

• If power is not supplied to the charger, the robot vacuum cleaner cannot find it and cannot automatically recharge.
• If the robot vacuum cleaner is left detached from the charger, the battery will drain naturally.

- If the robot vacuum cleaner is in energy-saving mode, power will not come on even if the power switch is turned off and then on. Press and hold the Start/Stop button on the robot vacuum cleaner.

Accessories

Remote control (Option)

Batteries [AAA type (Option)]

User manual

Spare filter (Option) Cleaning brush Virtual guard (Option)

Charging

It takes approximately 120 minutes to completely charge when charging for the first time after purchase and can be used for approximately 90 minutes.

1 Turn on the power switch on the bottom.

You must turn on the power switch to turn on the robot vacuum cleaner.

2 Manually charge the robot vacuum cleaner by placing it on the charger.

Make sure the charge pins of the robot vacuum cleaner and the charger are aligned.

3. Check the charging status.

"80" will turn on according to charging progress, and "FULL" will turn on when charging is complete.

Automatic charging

When the battery indicator blinks during cleaning, the robot vacuum cleaner will return to the charger to charge itself automatically.

Recharge

You can command the robot vacuum cleaner to recharge at the charger while it is in the cleaning process.

Low battery (Lo)

Manually charge the robot vacuum cleaner by placing it on the charger.

Steps to take if recharging is not being executed.

Check the installation status of the charger when:

• The charger is located in a place where the robot vacuum cleaner cannot easily access. - Distance between the charger and robot vacuum cleaner is over 5 m apart. - It may take a long time for the robot vacuum cleaner to return to the charger for recharging.

Manually charge the robot vacuum cleaner when:

• The charger is located in a corner. - Battery is fully exhausted. • The robot vacuum cleaner is stuck by obstacles (furniture, etc.). - The robot vacuum cleaner can't climb threshold near charge. (Height of the threshold that the robot vacuum cleaner can climb: about 1.5 cm and below) - When the battery indicator blinks and "Lo" is displayed. - When the robot vacuum cleaner is set on Spot clean or Manual clean mode.

Installing the virtual guard (Optional)

Infrared rays from the Virtual Guard will restrict the robot vacuum cleaner from approaching certain areas.

The distance of the virtual wall is 2.5 m at minimum and may differ depending on surroundings and movement status of the robot vacuum cleaner.

1 Press the Power button to turn it on.

2 Install the Virtual Guard where you want to restrict the robot vacuum cleaner's entrance.

Make sure that the distance sensor is facing in the desired direction you want to create an invisible barrier (which will restrict the robot vacuum cleaner's approach).

Part name of the Virtual Guard

Inserting batteries

Batteries for the Virtual Guard must be purchased separately.

1 Open the battery cover of the Virtual Guard by pressing the locking tab and lift it up.

2 Insert the batteries (D type) as shown in the illustration (check the +, - polarity).

3 Insert the tip of the cover into the slot and push the other end to close the battery cover.

Using the robot vacuum cleaner

You must turn on the power switch before using the robot vacuum cleaner.

Turning the power on/off

Turn on/off the power switch on the bottom of the robot vacuum cleaner.

WARNING

- When the robot vacuum cleaner is not used for 10 minutes, power will turn off automatically.

Using auto clean mode

The robot vacuum cleaner moves and cleans automatically until it cleans an entire space once.

* Stop cleaning: Press the Start Stop button shortly

Using the cleaning modes

You can select the desired cleaning mode.

Recharge

You can command the robot vacuum cleaner to recharge at the charger automatically while it is in cleaning process.

Setting schedule

You can set or cancel on-time or daily schedule.

* Refer to "Setting the schedule".

Selecting cleaning mode

Cleaning mode How to select Displayed icon
Auto clean	Press once
Spot clean	Press twice
Max clean	Press 3 times
Manual clean	Press 4 times * Direction control can be done only by the remote control.
Edge clean	Press 5 times

* When the robot vacuum cleaner is being charged, you can only select the Auto clean, Max clean or Edge clean mode.

Cleaning method for each mode

Auto clean

Cleans automatically until an entire space is cleaned once.

Spot clean

Cleans a localized area intensely. It can be used to clean bread or cookie crumbs.

Max clean

Cleans until the battery is depleted.

Manual clean (Option)

You can move the robot vacuum cleaner with the remote control to clean the desired spot.

Edge clean

Cleans the corners by reaching to them as close as possible.

Using the remote control (Option)

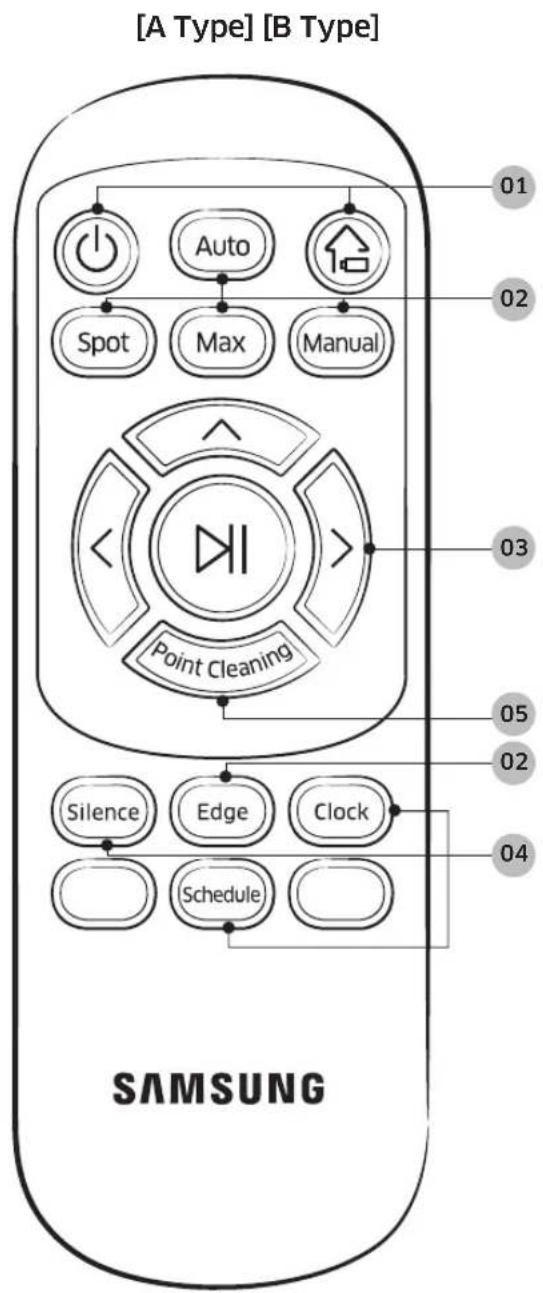

[A Type] [B Type]

Power

Recharging

Auto

Spot

Max

Manual

Edge

Start/Stop

01 Power/Recharging

Power

Turn the robot vacuum cleaner's power on/off

Recharging

Select to recharge the robot vacuum cleaner at the charger while it is in cleaning process

02 Cleaning mode

Auto clean

Select to automatically clean an entire space once

Spot clean

Select to clean a localized area intensely

Max clean

Select to make the robot vacuum cleaner clean until the battery indicator flashes after reaching a low battery level.

Manual clean

Select to manually control and clean using the remote control.

Edge clean

Select to clean corners by getting as close to them as possible.

When the obstacle sensor detects an obstacle during cleaning, the robot vacuum cleaner reduces its speed to minimize bumping impact, and the bumper sensor also helps reduce the impact.

Start/Stop

Select to start or stop the cleaning process.

[A Type] [B Type]

03 Direction control

Select to move forward.

Select to turn left.

Select to turn right.

* Moving backward is not available.

04 Additional function

Silence mode

Select to clean with lower operation noise

- "SHHH" displays on the display panel while the Silence mode is operating.

Setting the time

Refer to page 26

Setting the schedule

Refer to page 26

05 Point cleaning

Only available with A type remote control

You can use the remote control to point and clean the desired spot while the robot vacuum cleaner is in cleaning process.

• Point the red light on the floor within 40 cm around the robot vacuum cleaner's location.
• Press and hold the Point cleaning button to move the red light to the desired spot. The robot vacuum cleaner will follow the light while cleaning.

Operating distance of the remote control

Height of the remote control	0.5 m 1	m 1.5 m
Operating distance	About 1.5 m	About 2 m	About 2.5 m

Inserting batteries

Open the battery cover by lifting it up while pressing the locking tab and insert the batteries as shown in the illustration. Then, close the cover until it clicks into place.

Top

01 Quick Empty cover (Option) 02 Dustbin button 03 Dustbin 04 Display panel 05 Remote control sensor 06 Obstacle sensor 07 Virtual guard sensor (Option) 08 Bumper sensor

Bottom

01 Cliff sensor 02 Side brush 03 Charge pin 04 Roller 05 Driving wheel 06 Battery cover 07 Power brush 08 Power brush cover 09 Power switch

Display panel

01 Start/Stop button 02 Number display 03 Daily schedule 04 One-time schedule 05 Auto clean 06 Spot clean 07 Max clean 08 Manual clean 09 Battery indicator 10 Recharging 11 Cleaning mode button 12 Schedule button 13 Recharge button

Setting time/schedule

B type remote control's Clock, Timer/Daily, (◀) buttons works in same manner as A type remote control.

Models which remote control is not included cannot set time and schedule.

Setting the time

• You must set the current time before using the one-time/daily schedule.
• You can set the time only with the remote control.

Select "Hour" Select "Minute"

Setting the schedule

• Setting/cancelling the schedule can only be done while the robot vacuum cleaner is docked on the charger.
• Press the Schedule button shortly to set one-time schedule.
• Press the Schedule button for 3 seconds to set daily schedule.

Select "One-time" or "Daily" schedule. Select "Minute". Select "Hour".

Cancelling during setup

Cancelling One-time/Daily schedule

To cancel the one-time schedule	Cancel complete
To cancel the daily schedule		[0x24]
	Press for 3 sec. Cancel complete

Cleaning and maintaining

You must turn off the power switch before cleaning the robot vacuum cleaner.

Cleaning the dustbin

Clean the dustbin if there's too much dust in the dustbin.

1. Remove the dustbin

2. Open the dustbin cover

3. Remove the filter from the dustbin

4. Remove dust in the dustbin and the filter

5. Wash the dustbin and the filter

6 Reassemble the filter into the dustbin

7 Close the dustbin cover

8 Reinsert the dustbin into the robot vacuum cleaner

Emptying the dustbin (Quick Empty)

Use the Quick Empty cover for emptying the dustbin easily.

1 Open the Quick Empty cover

2 Remove dust in the dustbin with a vacuum cleaner

3 Close the Quick Empty cover

Cleaning the driving wheel

1 Put a soft cloth on the floor and place the robot vacuum cleaner upside-down

2 Use a blunt rod or tweezers to remove the foreign matters

Cleaning the sensors and the camera

Lightly wipe with soft cloth.

Cleaning the power brush

1 Remove the dustbin

2 Remove the power brush cover

3 Remove the power brush

4 Clean the power brush

5 Reassemble the power brush

6 Reassemble the power brush cover

Cleaning the side brush

Clean the side brush if there's foreign matter on the brush.

1 Dip soft cloth into warm water

2 Wrap the side brushes with the cloth for about 10 seconds and then wipe it

If hair or string is caught between the main unit and the side brush, follow the below steps.

1 Remove the side brushes

2 Clean the side brushes

3 Reassemble the side brushes

Charging

NOTE

• If the battery overheats during charging, it may take longer to charge.
• When automatic charging is not working, please check the following.
• Turn the power switch (on the bottom of the robot vacuum cleaner) off and then on again.
• Unplug the charger's power plug and then plug it back in.
• Check whether there is any foreign matter in the charge pins and clean the robot vacuum cleaner and the charge pins of the charger with a dry cloth or rag.
• Check for any obstacles such as reflective objects, chairs, etc. near the charger.

- If the robot vacuum cleaner is left detached from the charger, the battery will drain naturally.

- Try to keep the robot vacuum cleaner being charged on the charger. (Turn off the power switch and leave the charger unplugged when planning to leave the house for long periods of time by going on a business trip or vacation, etc.)

In use

NOTE

• To use the robot vacuum cleaner, the power switch must be turned on. If the power switch is turned off, all settings will be reset.
• Do not lie down around the Robot Vacuum that is running.

- Your hair may be caught between the power brush and the side brush, resulting in physical injury.

- The robot vacuum cleaner may get caught on thresholds, etc. during cleaning.

- To restart operation, shut off the power switch, move the robot vacuum cleaner to an area where it can move easily and then turn on the power again.

• The robot vacuum cleaner cannot completely clean areas it cannot enter, such as corners, between the wall and sofa, etc.
• Please use another cleaning tool to clean them regularly.
• The robot vacuum cleaner cannot vacuum clumps of dirt, so some may remain on the floor after cleaning.
• Please use another cleaning tool to clean them regularly.
• If the robot vacuum cleaner is turned off, power cannot be turned on by the Power button of the remote control. Press and hold the Start/Stop button on the robot vacuum cleaner.
• If the battery becomes low during Auto/Max clean mode, the robot vacuum cleaner will recharge and finish cleaning the remaining area after recharging. (Repeat cleaning frequency: 1 time)
• You cannot select and execute Max/Manual clean mode while charging.
• Do not unnecessarily move the robot vacuum cleaner or press buttons while it is in Auto/Max clean mode. It assumes that cleaning is complete and starts cleaning again from the beginning.
• If the Point cleaning button is pressed while the robot vacuum cleaner is charging, it will move backward about 250 mm and rotate 180°.
• If the robot vacuum cleaner senses the bumping impact or fall, it will move backward automatically.

- If the Point cleaning button is not pressed for more than 2 seconds, the point cleaning function will be turned off and the robot vacuum cleaner will operate according to the previous operation as the follows:

• When it was in Stand-by mode, it will stop on the spot.
• When it was in Manual clean mode, it will stand by on the spot for Manual mode.
• When it was in Auto/Max/Edge clean mode, it will operate in the previous clean mode.
• When it was in Spot clean mode, it will operate in Spot clean mode from the spot.
• When it was returning to the charger to charge itself, it will move to the charger again.

- When the robot vacuum cleaner is charging automatically since the battery indicator blinks, the point cleaning function will not operate.

Cleaning and maintenance

NOTE

- If you washed the dustbin and filter with water,

- Dustbin: Completely wipe out the water.

- Filter: Completely dry it in a shade before using.

CAUTION

• Watch your fingers when attaching or detaching the filter, since they may get stuck in the dustbin's intake.
• To avoid blockages by foreign matter, do not let toothpicks, cotton swabs etc. be vacuumed by the robot vacuum cleaner.
• If it is difficult to remove foreign matters from the power brush, contact a service center.
• Since the power brush removes dirt from the floor during cleaning, foreign matters such as thread, long hair, etc. may get caught in it. Therefore, check and clean it regularly.

About the battery

NOTE

• Purchase batteries at service centers and check the genuine part symbol (SAMSUNG) and model name before purchasing.
• Charge batteries in a place with good ventilation.
• The battery is exclusively for Samsung Electronics robot vacuum cleaner; do not use it for any other product.
• Do not disassemble or modify the battery.
• Do not throw the battery out in fire or heat it up.
• Do not connect any metallic object to the charging contacts (+, -).
• Do not discard the batteries with your household trash.
• Before you discard the robot vacuum cleaner, dispose of the batteries in an environmentally safe manner.

- Follow all local regulations when disposing of batteries.

• Store it indoors (at 0°C 40°C ).
• If the battery malfunctions, do not disassemble it yourself. Contact your nearest service center.
• The battery warranty period is 6 months from the date of purchase.
• The robot vacuum cleaner is powered by an environment-friendly Nickel Metal Hydride (NiMH) rechargeable battery, and an over-charge prevention function guarantees an extended life time.
• An increased charging time and a shorter battery life indicates the closer end of the battery life. Please contact an authorized customer care center to replace your battery.
• The battery warranty period is 6 months from the date of purchase.

About the IrDA sensor

CAUTION

• Infrared signal transmission may not be smooth in locations exposed to halogen lamps or in outdoor locations.
• The robot vacuum cleaner uses 3 types of infrared devices and a device may not work in front of another device with a higher priority.
• Infrared signal Priority: Remote control Virtual guard (option) > Charger
• When controlling the robot vacuum cleaner with the remote control, the robot vacuum cleaner may cross the invisible barrier set by the Virtual guard (option) and enter the area you don't want it to enter, since remote control's signal has a higher priority.
• Different infrared signals may interfere with one another and cause the devices to malfunction if they are used together in a small space or in a close distance.
• Install the Virtual guard (option) away from the charger as auto charging may be interrupted if the Virtual guard is near the charger.
• If more than one robot vacuum cleaners is used simultaneously, they may malfunction due to interference of the infrared signals.

Information codes Checklist
C 00	The robot vacuum cleaner is caught, stuck or trapped while moving around.·Turn off the power switch and move the robot vacuum cleaner to another area.
C 01	Foreign matter caught in the Power brush.·Turn off the power switch and remove the foreign matter from the Power brush.
C 02	Foreign matter caught in the left Driving wheel.·Turn off the power switch and remove the foreign matter from the Driving wheel.
C 03	Foreign matter caught in the right Driving wheel.·Turn off the power switch and remove the foreign matter from the Driving wheel.
C 05	Bumper sensor needs to be checked.·Turn off the power switch and turn it back on.·Contact a service center if information code does not disappear.
C 06	Foreign matter accumulated on the obstacle sensor.·Turn off the power switch and clean the front and rear sensor with a soft cloth.
C 07	Foreign matter accumulated on the cliff sensor.·Turn off the power switch and clean the cliff sensor with a soft cloth.
C 09	Foreign matter caught on the side brush.·Turn off the power switch and remove the foreign matter from the side brush.

If press Start/Stop button or turn off the power switch, the information code will be cleared.

Troubleshooting

Symptom Checklist
The robot vacuum cleaner is not working at all.	Check if the power switch is on.Check if all the icons are displayed on display panel.Check if the battery of the robot vacuum cleaner is depleted.- When “Lo” is displayed, carry the robot vacuum cleaner to the charger to charge it.Replace the batteries (AAA type) when the remote controller is not working.Check if the dustbin is assembled.
The robot vacuum cleaner is stopped during cleaning process.	When “Lo” is displayed on the display panel, carry the robot vacuum cleaner to the charger to charge it.When the robot vacuum cleaner is stuck by the obstacles such as cord, threshold etc, pick it up to remove it from the obstacle.- If any fabric or string is caught in the drive wheel, turn off the power switch and remove the fabric or string before using it again.When the robot vacuum cleaner stuck to the floor where there is a height difference, carry it to another area.
Suction power is weak.	If the filter is clogged, turn off the power switch and clean the dustbin and filter.When there’s too much dust in the dustbin, suction power may get weakened. Turn off the power switch and empty the dustbin.If the intake (on bottom of The robot vacuum cleaner) is blocked by foreign matters, turn off the power switch and remove foreign matter from the intake.When noise suddenly increase, turn off the emergency switch and empty the dustbin.
The robot vacuum cleaner cannot find the charger.	Check if there's power failure or whether the power plug is unplugged.Remove any obstacles around the charger (about 1 m in front and about 0.5 m to both sides of the charger) that may disturb the robot vacuum cleaner from returning to the charger.When there's foreign matters on the charge pins that affects charging, clean the foreign matter.Check if the Virtual guard (option) is installed near the charger.
The robot vacuum cleaner suddenly cleans diagonally.	Check if the charger is installed along the grain of wooden floors or tiles.It may clean in diagonal direction for moving to another area in shortest route, or it made contact with any obstacles in that angle, or if it was charged at the charged at an angle, or grain of the wooden/tile floor is in that direction.
Point cleaning is not working. (Option)	If you point the red light directly at the robot vacuum cleaner, it may not move to desired direction.- Point the red light on the floor within 40 cm around the robot vacuum cleaner.Do not use the point cleaning in direct sunlight, under bright light or on dark floors.
The robot vacuum cleaner passes through the Virtual guard. (Option)	If the batteries in the Virtual guard are depleted, replace them. (2 type D (LR20) batteries)If the power lamp if the Virtual guard is off, check if the Virtual guard is turned off and then turn it back on.Check if the distance sensor is facing in the desired direction you want to create an invisible barrier.
The battery usage time of the Virtual guard is too short. (Option)	Make sure you are using alkaline batteries.Replace the batteries with new alkaline batteries. (2 type D (LR20) batteries)

Warnings about battery

WARNING

You must not remove (or attempt to remove) the battery incorporated in this product on your own. To replace the battery, you must contact your service provider or an independent qualified professional. These instructions have been prepared for the exclusive use of your service provider or independent qualified professional.

FOR YOUR OWN SAFETY, DO NOT ATTEMPT TO REMOVE THE BATTERY ON YOUR OWN OR DISPOSE OF IT IN FIRE. DO NOT DISASSEMBLE, CRUSH OR PUNCTURE THE BATTERY.

How to remove the battery

Remove the robot vacuum cleaner from the charger (station) for disassembling. You must turn off the robot vacuum cleaner for safety before disassembling.

1 Lay down and invert the robot vacuum cleaner, and then remove 2 screws.

2 Remove the battery cover.

3 Remove the battery from the slot and disconnect the connector.

Correct disposal of batteries in this product

(Applicable in countries with separate battery return systems.)

The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery

Classification Item Detail information
Mechanical specifications	Diameter 355 mm
	Height 93 mm
	Weight 3.6 kg
	Button type of the main unit Touch type
Power specifications	Power voltage 220 - 240 V ~, 50 - 60 Hz
	Power consumption (Charger) 50 W
	Power consumption (Main unit)	40 W
	Battery specifications 14.4 V / 2,000 mA
Cleaning specifications	Charging type Automatic charging/Manual charging
	Cleaning mode Auto, Spot, Max, Manual
	Charging time Approximately 120 minutes
	Cleaning time (On the basis of hard floor)	Approximately 90 minutes
	Dust bin capacity About 0.6 ℓ
Cleaning method	Ceiling shape recognition

This Vacuum cleaner is approved the following. Electromagnetic Compatibility Directive : 2004/108/EEC Low Voltage Directive : 2006/95/EC

BATTERY CHARGER (station)

Automatic charging

Edge clean (edge vacuuming)

Top cover

1 Remove the side brush

2 Remove the battery cover.

BATTERY CHARGER (station)

Remote control (accessory)

Batteries [AAA-type (accessory)]

User manual

Max cleaning

Edge cleaning

Max clean (Max cleaning)

Top

01 Quick-empty lid (accessory) 02 Dustbin release button 03 Dustbin 04 Display panel 05 Remote control sensor 06 Obstacle sensor 07 Virtual wall sensor (accessory) 08 Bumper sensor

Bottom

8 Put the dustbin back into the robot vacuum

2 Remove dust from the dustbin with a vacuum cleaner

Set the schedule 26

Maintenance

Remote control (extra accessory)

1 Turn on the power switch at the bottom.

Automatic charging

Turn the power on/off

Set the plan

Maximum suction

Edge suction

Top

01 Quick-empty cover (accessory) 02 Dust container button 03 Dust container 04 Display 05 Remote control sensor 06 Obstacle sensor 07 Virtual Guard sensor (accessory) 08 Bumper sensor

Bottom

01 Drop sensor 02 Side brush 03 Charging contacts 04 Wheel 05 Drive wheel 06 Battery cover 07 Power brush 08 Power brush cover 09 Power switch

Display

01 Start/stop button 02 Number display 03 Daily schedule 04 One-time schedule 05 Automatic cleaning 06 Spot cleaning 07 Maximum suction 08 Manual cleaning 09 Battery indicator 10 Charging 11 Cleaning mode button 12 Schedule button 13 Charge button

Set the clock / schedule

The Clock Timer/Daily (☐), (☐) buttons on the B-type remote control work the same way as on an A-type remote control.

7 Close the dust container cover

2 Remove the dust from the dust container with a vacuum cleaner.

3 Close the quick-empty cover.

Clean the drive wheel

2 Use a blunt stick or tweezers to remove foreign objects.

1 Dampen a soft cloth with warm water.

2 Remove the battery cover.

Safety instructions

⚠️ WARNING

Full-power vacuuming

Edge vacuuming

Top part

cover.

cover.

3 Detach the power brush. 4 Clean the

power brush.

2 Remove the battery compartment cover.

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/VR5000J/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

Note.

Note.
