M15HMW09E - Other Kitchen Appliances MATSUI - Free user manual and instructions

Product Type	Hand Mixer
Brand	Matsui
Model	M15HMW09E
Power Supply	230V~50Hz, 125W
Maximum Continuous Operation	3 minutes
Cooling Time	10 minutes
Speed Settings	5 speeds (0 to 5)
Attachments Included	One pair of beaters
Beater Material	Metal
Beater Insertion	Snap-fit into sockets
Release Button	Yes
Dishwasher Safe Parts	Beaters only (motor unit not dishwasher safe)
Cable Storage	Wrap around motor unit
Safety Features	Overheat protection (cool-down period); auto shut-off when changing speed to 0
Dimensions (approx.)	20 x 10 x 15 cm
Weight (approx.)	1 kg
Cleaning Instructions	Wipe motor unit with damp cloth; wash beaters in warm soapy water or dishwasher
Intended Use	Household only (not professional)
Included Manual	Yes (multilingual)

Frequently Asked Questions - M15HMW09E MATSUI

How do I attach the beaters?

Ensure the speed selector is at '0' and the mixer is unplugged. Insert each beater into the sockets and rotate slightly until they click into place. Both beaters can be inserted into either socket.

Can I use this mixer for heavy dough?

This hand mixer is designed for light to medium mixing tasks. For heavy dough, use lower speeds (1 or 2) to avoid overloading. Do not operate continuously for more than 3 minutes.

How do I clean the mixer?

Unplug the mixer and remove beaters. Wipe the motor unit with a damp cloth; never immerse it in water. Wash beaters in warm soapy water or place them in the dishwasher.

What do the speed settings mean?

The speed selector ranges from 0 (off) to 5 (fastest). Start at low speed and increase gradually. Use speed 1-2 for stirring and kneading, 3-4 for mixing, and 5 for whipping.

Why does the mixer stop after a few minutes?

The mixer has a thermal safety feature. After 3 minutes of continuous use, it requires a 10-minute cooling period to prevent overheating.

Are the beaters dishwasher safe?

Yes, the beaters can be washed in the dishwasher. The motor unit must be cleaned only with a damp cloth.

Can I mix hot ingredients?

It is not recommended to mix hot ingredients. Allow them to cool to room temperature before mixing to avoid damage or splashing.

How do I remove the beaters?

Hold the mixer by the handle and press the release button. Hold each beater by the spindle and pull them out one at a time.

What is the power rating of this mixer?

The mixer operates at 230V~50Hz with a power consumption of 125W.

Can I use metal utensils with the beaters?

No, never use metal spatulas or utensils as they can damage the beaters. Use flexible plastic or rubber spatulas instead.

USER MANUAL M15HMW09E MATSUI

White hand mixer with two metal mixing funnels, enclosed in a circular frame (no text or symbols)

Contents

GB

Safety Warnings 6

Unpacking....21

Product Overview 22

Introduction 22

First Time Use....23

Operation 23

After Use 24

Cleaning and Storage 24

Some Everyday Terms....24

Hints and Tips 25

Specifications....25

Innhold

NO

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all the instructions carefully before using your appliance and keep them for future reference.
• Unplug the appliance from the mains supply when not in use, and before removing, attaching or cleaning any part of the appliance.
• This appliance is for household use only. Do not use it for professional catering.
• Do not use the appliance outdoors.
• Do not immerse the appliance base unit or the mains cable or plug in liquids.
• Do not use the appliance near a source of heat or on an unstable surface.
• Do not use your appliance in damp or wet conditions.
• Never let children operate this appliance. Close supervision is necessary when this appliance is used near children.

- This appliance can be used by persons aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instructions concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years old and are supervised.

- Keep the appliance and its cord out of reach of children less than 8 years old.

- Children should be supervised to ensure that they do not play with the appliance.

- Ensure that the mains cable does not touch any hot surface and that it does not overhang the edge of your work surface.

- There are no user serviceable parts in your appliance.

- Do not operate the appliance with a damaged mains cable or mains plug or after any appliance or attachment damage. Seek qualified technicians for assistance.

- If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

• Do not use attachments or accessories which are not recommended by the manufacturer. They may cause malfunction or injury.
• Store the appliance away from direct sunlight and out of the reach of children.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the appliance.
• Make sure that you use a bowl large enough to accommodate all the ingredients and that the bowl is sturdy enough to stand still during the mixing process.
• Switch the motor unit off when filling or emptying the mixing bowl, and when attaching or removing beaters.
• Remove beaters from the appliance before washing.
• Do not mix or blend mixtures containing fruit stones, etc.
• Do not use the mixer for any purpose not specified in this manual.

Thank you for purchasing your new Matsui Hand Mixer.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a portable electronic device with ventilation slots and a handle (no text or symbols)

The Main Unit

One Pair of Beaters

Instruction Manual

Product Overview

1. Speed Selector

2. Handle

3. Beater Sockets

4. Release Button

5. Motor Unit

6. Beaters

Introduction

You can mix a wide range of ingredients depending on the attachments used. One set of beaters is provided:

- Beaters: These are used for the majority of everyday mixing tasks. Use beaters for mixing dough, whipping egg whites and cream, and mixing batters, mayonnaise and purees. They are also suitable for mixing and stirring sauces, pudding mixes, etc.

First Time Use

Before using your mixer for the first time

Wash the beaters in warm soapy water, rinse and dry thoroughly. Wipe the motor unit all over with a soft cloth dampened with soapy water. Then wipe with a a clean damp cloth. Dry well. Do not immerse the motor unit, mains cable or plug in water.

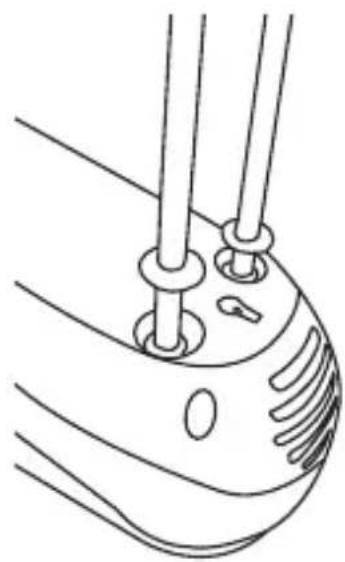

Attaching the beaters

Ensure the speed selector is in the "0" position and the unit is unplugged. The beaters must be used in matching pairs. Push the beaters one at a time into the sockets of the mixer base and rotate slightly until the beaters click into position.

- Beaters: Beaters can be inserted into either socket.

Always make sure the mixer is unplugged from the mains when cleaning, attaching or removing accessories.

Line drawing of a mechanical component with three vertical rods and a base, no text or symbols present

Operation

• Have all your ingredients prepared and ready before starting. Use a stout roomy bowl for your ingredients and do not overfill the bowl.
• Place the starter ingredients in the bowl.
• Select speed selector on the mixer to '0'.
• Plug the motor unit into the mains and switch on the power.
• Set the desired selector speed and start mixing. Commence with a low speed and gradually rotate the selector to the right to increase the speed as needed.
• If you have to add ingredients when mixing always turn the speed selector to 0. Never permit the mixer to run 'hands off'.
• Do not operate the mixer continuously for more than 3 minutes. After 3 minutes of continuous use, allow 10 minutes for the motor to cool down before using the mixer again.

After Use

• Switch the speed selector to '0', lift the mixer out of the mixture and switch off at the mains before unplugging the mixer.
• Excess mixture may be scarped from the beaters with a flexible plastic or rubber spatula. Do not use metal spatulas for this purpose.

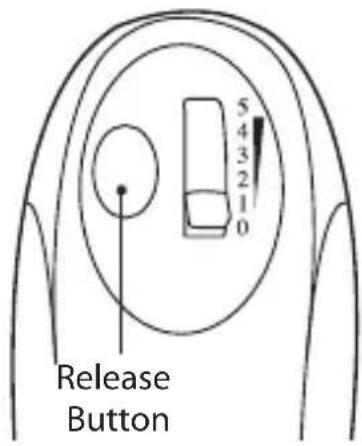

• Remove the beaters by holding the mixer by the handle and pressing the release button down. Hold each attachment by the spindle and remove them, one at a time.

Cleaning and Storage

• Disconnect the hand mixer from the mains socket.
• Remove the attached beaters.
• If the motor is warm, allow it to cool fully. Wipe the outer surface of the motor unit with a damp cloth. Never use abrasive cleaners or scouring creams. Never immerse the motor unit in water.
• If food particles have adhered to the beater sockets or the ventilation slots in the motor unit, brush them out with a barely damp (not wet) brush.
• Wipe any excess food particles from the mains cable.
• Wash the beaters in warm soapy water and wipe dry. If preferred, the beaters may be washed in the dishwasher.
  • After cleaning, wrap the cable around the motor unit, and store it together with the attachments out of the reach of children.

Some Everyday Terms

Blend: Combine liquids, fold in dry ingredients, egg whites and whipped cream.

Stir: Prepare sauces, puddings, muffins and quick breads.

Mix: Prepare batters and mixes.

Beat: Cream butter and sugar, make cookie dough, cake mixes and frosting.

Whip: To whip light and fluffy mixtures, whip cream, beat eggs, make meringues.

Hints and Tips

• Ingredients should be at room temperature before mixing.
• Assembly all ingredients and utensils near the mixer.
• Break eggs into a separate container, then add to the mixture.
• When mixing egg whites even the smallest amount of oil on beaters or bowl may cause the egg whites not to aerate.
• When kneading yeast dough, we suggest the speed selector is in position 1 or 2 to achieve best results.
• Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.
• Only mix/blend mixtures as recommended in your recipe. At any stage of mixing, over beating can cause toughness, close texture, lack of rising or excessive shrinkage.
• When mixing dry ingredients use the lowest speed.
• During mixing, if you need to scrape the bowl, or add ingredients, turn the mixer off first.
• When mixing, lightly scraping the beaters after the addition of each ingredients assists in achieving efficient mixing. Switch the mixer off and then scrape the beaters with a flexible rubber or plastic spatula. NEVER USE ANY METAL IMPLEMENT.
• When mixing is complete, turn the speed selector '0' and unplug the cable from mains socket.

Specifications

Power: 230V\~50Hz, 125W

Maximum Operation Time: 3 minutes ON and 10 minutes OFF

Features and specifications are subject to change without prior notice.

Line drawing of a portable electronic device with buttons and ventilation slots (no text or symbols)

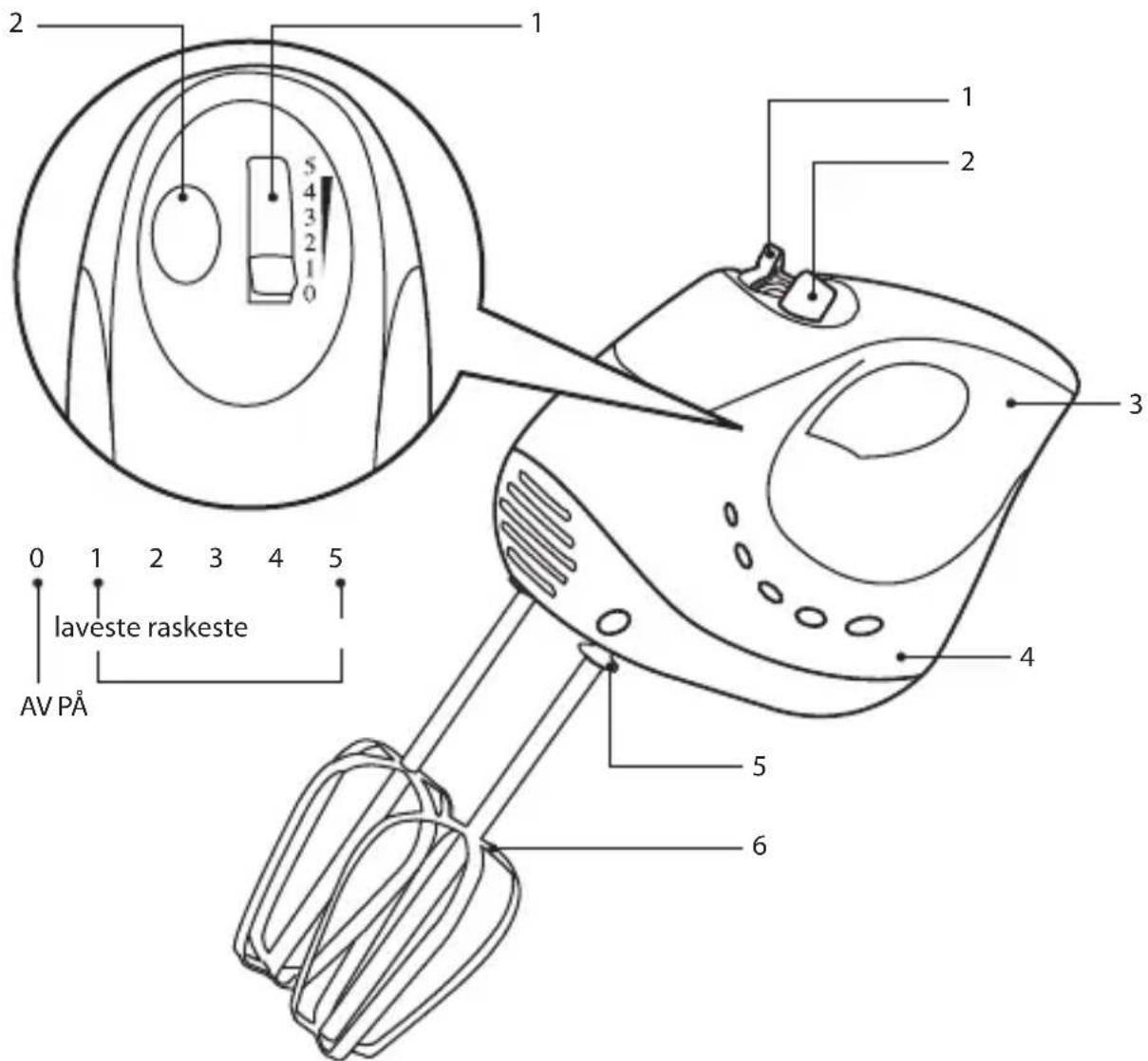

Hovedenhet

To visper

Bruksanvisning

Line drawing of a mechanical component with multiple rods and a curved base (no text or symbols)

Whip: To whip light and fluffy mixtures, whip cream, beat eggs, make meringues.

Tips og råd

Line drawing of a portable electronic device with buttons and ventilation slots (no text or symbols)

Huvudenheten

Ett par vispar

Instruktionshandbok

Produktöversikt

1. Hastighetsväljare

2. Handtag

3. Vispkontakter

4. Spärrknapp

5. Motorenhet

6. Vispar

Introduktion

Line drawing of a mechanical component with three vertical rods and a base, no text or symbols present

Line drawing of a portable electronic device with buttons and ventilation slots (no text or symbols)

Laite

Vatkainpari

Käyttöopas

Tuotekuvaus

Line drawing of a mechanical component with three vertical rods and a base, no text or symbols present

Line drawing of a portable electronic device with buttons and ventilation slots (no text or symbols)

Hovedenheden

Et sæt piskeris

Brugsvejledning

Produktoversigt

Line drawing of a mechanical component with three vertical rods and a base, no text or symbols present

DK

Betjening

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

GB

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
