Product Type	Hand Mixer
Brand	Matsui
Model	MHM120
Power Supply	230V ~ 50Hz
Power Consumption	120W
Speed Settings	5 (1 = slowest, 5 = fastest)
Beaters	Two detachable beaters, click-in mechanism
Beater Ejection	Eject button for easy removal
Safety Features	Do not immerse; keep away from heat; unplug if dropped in water
Cleaning	Wipe body with damp cloth; wash beaters in warm soapy water
Disposal	Separate collection for WEEE; do not dispose with household waste
Spare Parts	Available via Partmaster (UK only): www.partmaster.co.uk or 0870 6001 338
Intended Use	Household mixing of food ingredients
Fuse Rating	3 Amp (BS 1362)
Manual Pages	7

Frequently Asked Questions - MHM120 MATSUI

How do I attach the beaters?

Ensure the mixer is unplugged. Slide the beaters into the holes on the underside of the mixer and press them in until they click into position.

What is the maximum speed setting?

The mixer has 5 speed settings. Setting 1 is the slowest and setting 5 is the fastest.

Can I use the mixer outdoors?

No, the mixer is designed for indoor use only.

How do I clean the mixer?

Unplug the mixer. Wipe the body with a damp cloth and mild detergent. Do not immerse in water. Wash the beaters separately in warm soapy water.

What should I do if the mixer falls into water?

Do not reach for it. Unplug the appliance immediately. Do not use until it has been inspected by a qualified person.

How do I remove the beaters?

Switch off and unplug the mixer. Press the eject button to release the beaters.

What type of fuse does the plug contain?

The plug contains a 3 amp BS 1362 fuse. Replace only with the same type.

Can children use the mixer?

No, children should not touch the mixer or pull the mains lead. Keep out of reach of children.

Is the mixer suitable for heavy dough?

The mixer is intended for mixing food ingredients. Avoid overloading; it is not a heavy-duty dough mixer.

Where can I buy spare parts?

Spare parts are available from Partmaster (UK only). Visit www.partmaster.co.uk or call 0870 6001 338.

USER MANUAL MHM120 MATSUI

Please read instructions and have a good look at the this illustration before using your mixer.

Safety first !

Your mixer should be used in such a way that it is protected from moisture. e.g. condensation, splashed water etc. Do not place or store your mixer where it can fall or be pulled into water or any other liquid.

Do not reach for the appliance if it has fallen in any water or any other liquid. Unplug immediately.

Your mixer should be placed away from heat sources such as radiators, gas/electric fires and direct sunlight.

Keep the power cord away from any heated surfaces.

Use the appliance only for its intended use, as described in this manual.

Do not use outdoors.

Make sure that children cannot touch the mixer or pull the mains lead. It is DANGEROUS to insert fingers or touch the beaters while the mixer is switched on.

Never use your mixer if it is damaged in any way. Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.

Switch your mixer off at the mains before changing the beaters. Do not eject the beaters while the mixer is working.

Your mixer is supplied with an approved 3 amp fused mains plu. When replacing the fuse always use a 3 amp(BS 136) approved type.

If the mains sockets in your home differ or are not suitable for type of plug supplied, then the plug should be removed and could be fitted with a suitable type of socket.

How the sto fix beater

After removing your mixer from it' packaging, wash the beaters before use. When using the mixer make sure the s beaters are firmly clicked into position.

Illustration of a plug with two pins and a stylized 'X' symbol, no text or labels present

Make sure your mixer is not plugged into the mains supply.

Line drawing of a hand cleaning a padlock with water droplets (no text or symbols)

Before you use your mixer wash the beaters

Line drawing of a Matsui blender with handle and spool (no text or symbols on device body)

Slide the into the holes on the under side of the mixer. beatersPress them in until they click into position.

Using your mixer

To avoid splashing place the beaters in the mixture before switching the mixer on and do not remove the beaters from the mixture while mixing.

Line drawing of a Matsu whisker with handle and spout (no text or symbols)

Make sure the beaters are properly fixed.

Line drawing of a 3-pin electrical plug (no text or symbols)

Plug the mixer into the mains and switch on at the mains socket.

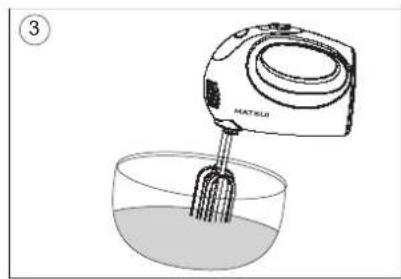

Illustration of a hand mixer in a glass bowl with liquid, no text or symbols present

To prevent any splashing when you switch the mixer on, place the beaters into your mixture before switching the mixer on.

Slide the power switch to 1 and up the speed . build gradually five different Your mixer has speed settings. 1 is the slowest setting and 5 is the fastest.

Line drawing of a hand mixer in a bowl with liquid, no text or symbols present

The mixer will start. To make sure that your mixture mixes properly, move the mixer around in the bowl.

Switch the mixer off by turning the power switch to off. To clean the excess mixture off the beaters, tap them gently on the side of the bowl.

Cleaning

Do not use harsh cleaners or solvents as they may damage the casing.

Pure electrical plug diagram without any text, numbers, or symbols

Remove the plug from the mains socket.

Line drawing of a hand mixer blending liquid in a bowl (no text or symbols)

Switch the mixer off and gently tap the beaters on the side of the bowl to remove excess mixture.

Press the eject button to eject the beaters.

Line drawing of a hand holding a pen, with a separate oval object nearby (no text or symbols)

Wash the s in warm soapybeater water.

Line drawing of a hand holding a computer mouse (no text or symbols)

The mixer should be cleaned using a cloth dampened with warm water and detergent. Make sure you do not allow water to seep into the mixer.

Nominal Specifications

Power supply .... \~ 50HzAC 230V

Power consumption ..... 120W

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
