Product Type	Door Closer
Brand	Hard Head
Model	345-201
Dimensions (L x W x H)	250 mm x 50 mm x 70 mm
Weight	1.8 kg
Power Source	Hydraulic (mechanical)
Mounting Type	Surface mounted
Max Door Weight	80 kg
Adjustable Closing Speed	Yes, via two adjustment valves
Latching Action	Adjustable latch speed
Operating Temperature Range	-20°C to +50°C
Material	Steel body, aluminum arm
Finish	Silver powder-coated
Main Functions	Automatic door closing, adjustable closing force, backcheck cushioning
Maintenance	Periodic lubrication of moving parts; check arm alignment
Safety Features	Backcheck prevents door slamming, adjustable hold-open available
Spare Parts Available	Replacement arms, screws, and mounting brackets
Repairability	Field repairable; replaceable hydraulic cartridge
Certification	CE, EN 1154
Manual Languages	English, Polish, Swedish

Frequently Asked Questions - 345-201 Hard Head

How do I install the Hard Head 345-201 door closer?

Installation is surface-mounted. First, attach the mounting bracket to the door frame using the provided screws. Then, attach the closer body to the bracket and connect the arm to the door. Adjust the closing speed and latch speed via the two valves. Refer to the manual for detailed step-by-step instructions.

Can I adjust the closing speed of the door closer?

Yes, the 345-201 features two adjustable valves: one for general closing speed (turn clockwise to slow, counterclockwise to speed up) and one for latch speed (final closing). Adjust in small increments to achieve desired performance.

What is the maximum door weight this closer can handle?

The Hard Head 345-201 is rated for doors up to 80 kg. Ensure your door is within this limit for proper operation and safety.

Does the door closer have a backcheck feature?

Yes, it includes a built-in backcheck that cushions the door if it is forced open abruptly, preventing damage to the door and frame.

How do I maintain the door closer?

Regularly lubricate the pivot points and sliding parts with light oil. Check the arm screws for tightness. Avoid painting the closer body as solvents can damage seals.

Can the door closer be used on both left and right-handed doors?

Yes, the 345-201 is universal and can be mounted on either left or right-handed doors by reversing the arm assembly. Instructions are in the manual.

What spare parts are available for this model?

Spare parts include replacement arms, mounting brackets, screws, and a complete hydraulic cartridge. Contact Hard Head customer service or check the manual for part numbers.

Is the door closer suitable for fire doors?

The 345-201 is compliant with EN 1154, which makes it suitable for use on fire doors. However, always verify local fire codes and ensure the closer is correctly installed.

How do I set the hold-open function?

This model does not have a built-in hold-open feature. However, you can add an optional hold-open arm (sold separately) if required. Consult the manual for compatible accessories.

What temperature range can the closer operate in?

The closer operates reliably between -20°C and +50°C. Extreme temperatures may affect hydraulic fluid viscosity; adjust speeds accordingly.

USER MANUAL 345-201 Hard Head

Operating Instructions for Door Closer

345-201 - 345-202

Metal door lock device with handle and mounting bracket (no text or symbols visible)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 3

MONTERING....3

Standard installation of door closer 15

Installation of door closer, door frame 15

Adjusting the door closer 15

Closing cycle....15

Type of mounting 16

Installation instructions for fitting door closer, standard installation, opening side.... 16

Installation instructions 17

View from above for standard installation.... 17

Installation instructions of door closer, door frame, opening side 17

Installation instructions 18

View from above of door frame installation 18

Simple line drawing of a mechanical device with lever and base, no text or symbols present

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Simple line drawing of a mechanical device with lever and base, no text or symbols present

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Opphengstype

Simple line drawing of a mechanical device with lever and base, no text or symbols present

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Read the Operating Instructions carefully before use!

INSTALLATION

Standard installation of door closer

Simple line drawing of a mechanical device with lever and base, no text or symbols present

The door closer is fitted on the hinge/opening side of the door. Left-hung door – LH or right-hung door (reversed) – RHR.

Installation of door closer, door frame

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

The door closer is fitted on the frame, on closing side of the door, the side without hinges. Left-hung door – LH or right-hung door (reversed) – RHR.

Adjusting the door closer

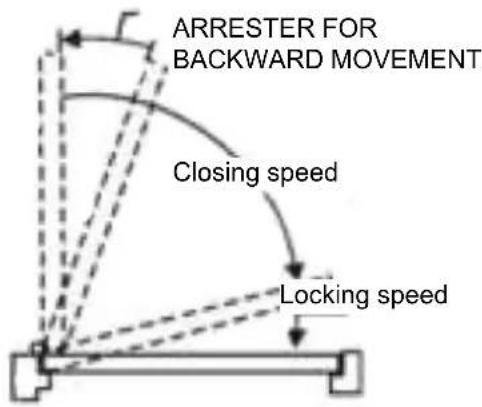

Closing cycle

NOTE! Closing and locking is adjusted with 2 different valves. First adjust the closing speed, and then the locking speed.

1. The closing speed is adjusted by turning the speed valve several complete full turns.
2. Turn clockwise for a slower closing speed.
3. Turn anticlockwise for a faster closing speed.
4. The locking speed is adjusted by turning the speed valve several complete full turns.
5. Turn clockwise for a slower locking speed.
6. Turn anticlockwise for a faster locking speed.

IMPORTANT! Do not turn the speed valves more than two turns anticlockwise from the factory setting, this will cause leakage and damage the product.

Type of mounting

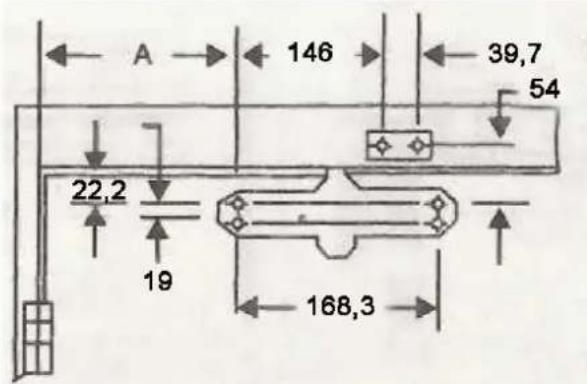

Installation instructions for fitting door closer, standard installation, opening side

Template for standard installation, opening up to 180°.

• Right-hung door shown
• Left-hung door fitted in opposite way
- Dimensions in mm
• The drawing is not to scale

OPENING DIMENSION A
TO-120° 110 mm
TO-180° 65 mm

Installation instructions

1. Choose door opening angle and use the above dimensions.
2. Mark out 4 holes on the door for the door closer and 2 holes on the frame for the arm bracket. Predrill holes in the door and frame for wood screws or M6 screws.
3. Fit the arm bracket and outer arm on the frame with the supplied screws.
4. Fit the door closer on the door with the supplied screws. The valve for the closing speed should face towards the hinge side.
5. Fit the vertical arm on the upper shaft, at right angles to the door, as shown in the diagram. Fix with the supplied screw and washer, and tighten.
6. Adjust the length of the outer arm so that it is at right angles to the frame when fitted on the preloaded vertical arm (see diagram below). Fix the outer arm on the vertical arm with the supplied screw and washer, and tighten.
7. Place the cover over the shaft on the underside of the door closer.
8. Adjust the closing speed (see Adjusting the door closer).

View from above for standard installation

Installation instructions of door closer, door frame, opening side

Template for installation on lintel, opening up to 180°.

• Left-hung door shown
• Right-hung door fitted in opposite way
- Dimensions in mm
• The drawing is not to scale

OPENING DIMENSION A
TO-120° 110 mm
TO-180° 80 mm

Installation instructions

1. Choose door opening angle and use the above dimensions.
2. Mark out 4 holes on the door for the door closer and 2 holes on the frame for the arm bracket. Predrill holes in the door and frame for wood screws or M6 screws.
3. Fit the arm bracket and outer arm on the frame with the supplied screws.
4. Fit the door closer on the door with the supplied screws. The valve for the closing speed should face towards the hinge side.
5. Fit the vertical arm on the upper shaft, at right angles to the door, as shown in the diagram. Fix with the supplied screw and washer, and tighten.
6. Adjust the length of the outer arm so that it is at right angles to the frame when fitted on the preloaded vertical arm (see diagram below). Fix the outer arm on the vertical arm with the supplied screw and washer, and tighten.
7. Place the cover over the shaft on the underside of the door closer.
8. Adjust the closing speed (see, Adjusting the door closer).

View from above of door frame installation

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com
