Product Type	Log Splitter
Brand	Meec Tools
Model	380-076
Engine Type	Petrol 4-stroke
Engine Power	4.8 kW at 3600 rpm
Splitting Force	12 tonnes (±10%)
Hydraulic Pressure	21 MPa
Max Log Diameter	520 mm
Max Log Length	610 mm
Hydraulic Oil Capacity	4 L
Recommended Hydraulic Oil	ISO VG32 or ISO VG46
Engine Oil Type	SAE 10W-30
Fuel Type	Unleaded petrol, min 95 octane
Operating Temperature	5°C to 40°C
Storage Temperature	-25°C to 55°C
Altitude Limit	Up to 1000 m
Humidity Limit	Less than 50% at 40°C
Control System	Two-hand operation with two control levers
Hydraulic Oil Change Interval	Every 150 hours of operation
CE Marking	Yes
Intended Use	Household use only

Frequently Asked Questions - 380-076 Meec Tools

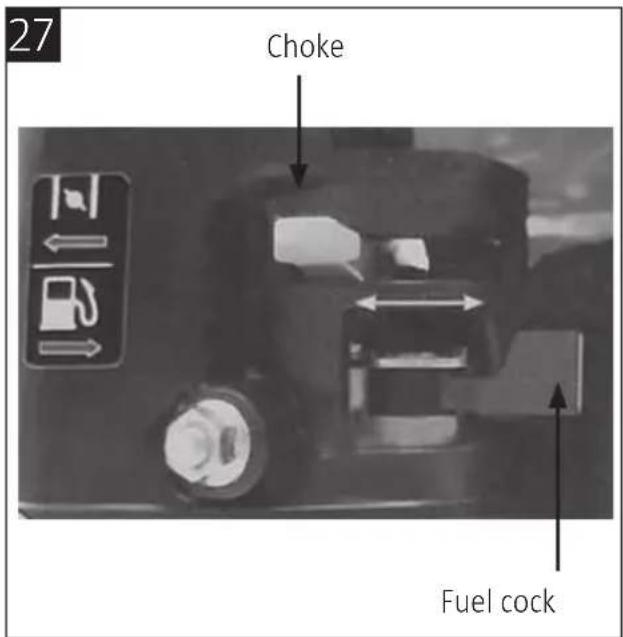

How do I start the engine on the Meec Tools 380-076 log splitter?

First, check the engine oil level and fill with SAE 10W-30 if needed. Fill the fuel tank with unleaded 95 octane petrol. Open the fuel cock (move arm right). Close the choke (move arm left) for a cold start. Move the throttle to the left (high speed). Put the engine switch in the ON position. Pull the starter cord slowly until it catches, then pull quickly. Once started, gradually open the choke. Allow the engine to warm up for at least 1 minute before use.

What type of hydraulic oil should I use?

Use ISO VG32 or ISO VG46 hydraulic oil. The hydraulic oil tank holds 4 liters. Always check the oil level using the dipstick and top up if between the markings.

How do I change the hydraulic oil?

Switch off the engine and wait for all moving parts to stop. Place a container under the oil drain plug. Unscrew and remove the plug to drain the oil. Clean the plug and reinstall. Fill with new hydraulic oil (ISO VG32 or VG46) up to the correct level. Replace and check the oil level with the dipstick. Dispose of used oil according to local regulations.

How do I sharpen the blade?

The blade can become blunt over time. Use a fine file to remove burrs and damage along the cutting edge. Ensure the blade is properly aligned and sharpened evenly. Always disconnect the spark plug and ensure the machine is off before sharpening.

What should I do if a log gets jammed?

Release both control levers to stop the piston. Wait for the piston to return to home position. Place a wooden wedge under the jammed log and run the splitter to press the wedge in. Use thicker wedges until the log comes loose. Never use your hands or attempt to knock the log loose.

What is the maximum log size I can split?

The maximum log diameter is 520 mm and maximum log length is 610 mm. However, splitting difficulty depends on wood grain and knots. Thinner logs with knots may be harder to split than thicker logs with smooth grain.

How do I adjust the splitting length?

The splitting length is adjusted using a nut on the machine (see diagram 23 in the manual). Turn the nut to set the desired length. Always ensure the adjustment is secure before operating.

Why does the engine stop or fail to start?

Possible causes: low engine oil (automatic shut-off), fuel system issues, or overload protection tripped. Check oil level, fuel supply, and choke settings. If overload protection has tripped, have it reset by qualified service personnel. Ensure the engine switch is in the ON position.

How often should I perform maintenance on the log splitter?

Regular maintenance includes: checking hydraulic oil level before each use, changing hydraulic oil every 150 hours, checking engine oil regularly, sharpening the blade as needed, and ensuring all bolts are tight. Store in a dry place and keep the machine clean.

What safety precautions should I take when using the splitter?

Always read the manual. Wear safety glasses, ear protection, non-slip shoes, and gloves. Keep hands away from moving parts and cracks in the wood. Operate only one person at a time. Never stand on the machine. Ensure the vent screw is open before use. Keep children and bystanders at a safe distance.

USER MANUAL 380-076 Meec Tools

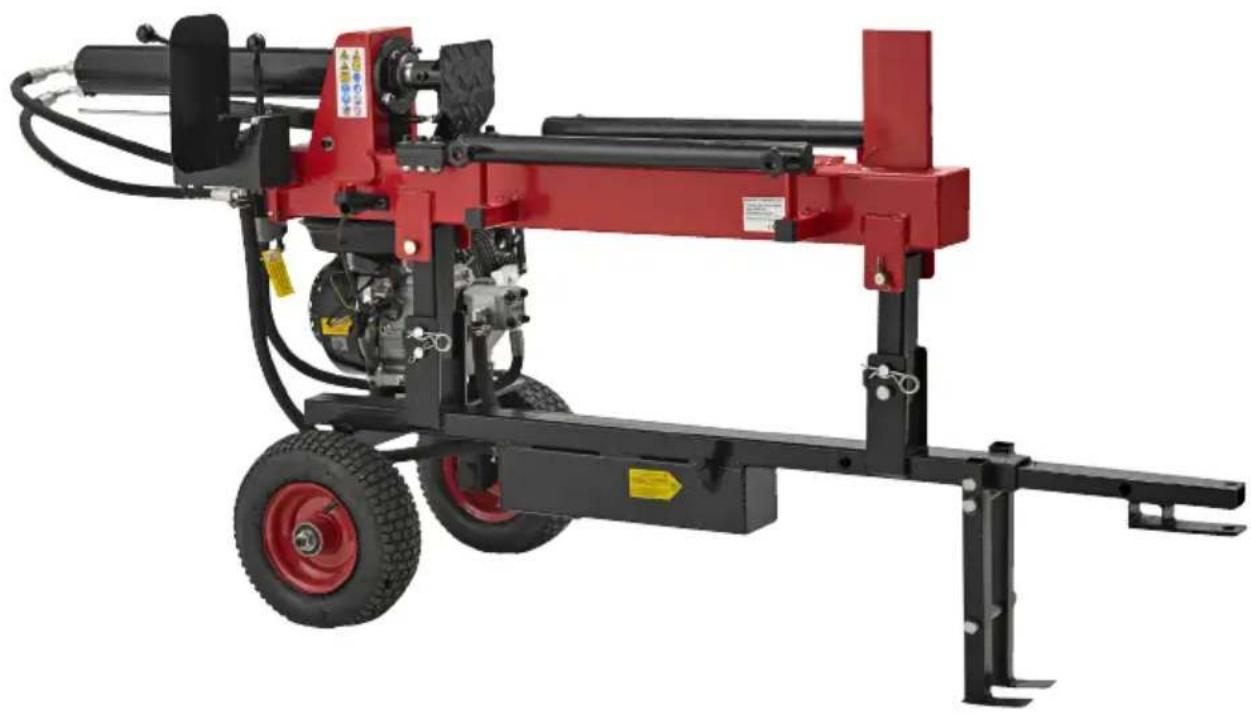

Red and black industrial machine with visible wheels and mechanical components (no text or symbols)

SE Bruksanvisning för bensindriven vedklyv
NO Bruksanvisning for bensindrevet vedkløyver
PL Instrukcja obsługi łuparki spalinowej do drewna
EN User instructions for petrol driven log splitter

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....6

SÄKERHETSANVISNINGAR....6

Symboler 7

TEKNISKA DATA....8

BESKRIVNING 9

moNTERING 11

HANDHAVANDE 14

Förberedelser 14

Klyvning 17

UNDERHÅLL 20

FELSÖKNING 21

SVENSKA....22

SIKKERHETSANVISNINGER ....22

Symboler 23

TEKNISKE DATA 24

BESKRIVELSE....25

moNTERING 27

BRUK....30

Forberedelser 30

Kløyving 33

VEDLIKEHoLD 36

FEILS∅KING....37

PoLSKI 38

ZASADY BEZPIECZEŃSTWA 38

Symbole 39

DANE TECHNICZNE 40

oPIS 41

moNTAŻ 43

oBSŁUGA 47

Przygotowania 47

Rozłupywanie 49

KoNSERWACJA 52

WYKRYWANIE USTEREK 53

ENGLISH 54

SAFETY INSTRUCTION 54

Symbols 55

TECHNICAL DATA 56

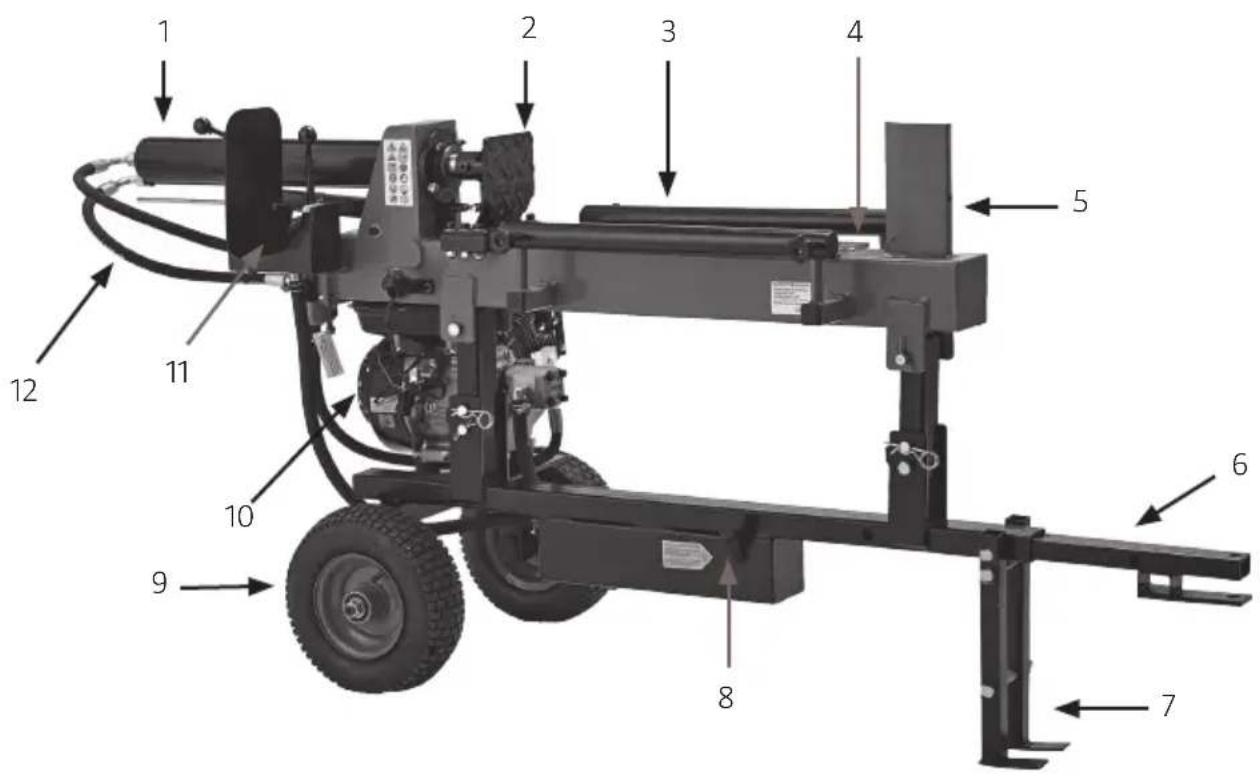

DESCRIPTION 57

ASSEmBLY 59

USE 62

Preparations....62

Splitting 65

mAINTENANCE 68

TRoUBLESHooTING 69

SÄKERHETSANVISNINGAR

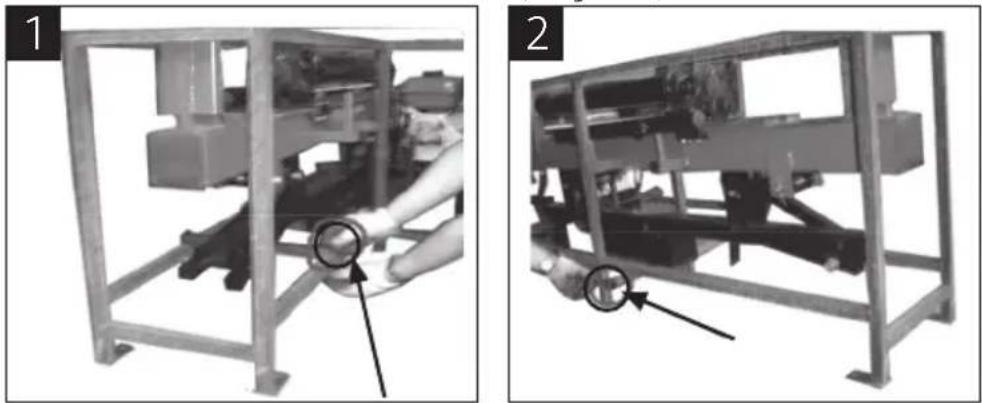

Person assembling a mechanical frame with a magnified inset showing a circular detail (no text or symbols visible)

Mechanical assembly with metal frame and mechanical components, no visible text or symbols

Industrial machine with metal frame and conveyor belt, no visible text or symbols

Interior view of a mechanical device with visible components and a circular annotation (no text or symbols)

Silhouette of a person operating industrial machinery inside a metal frame (no text or symbols visible)

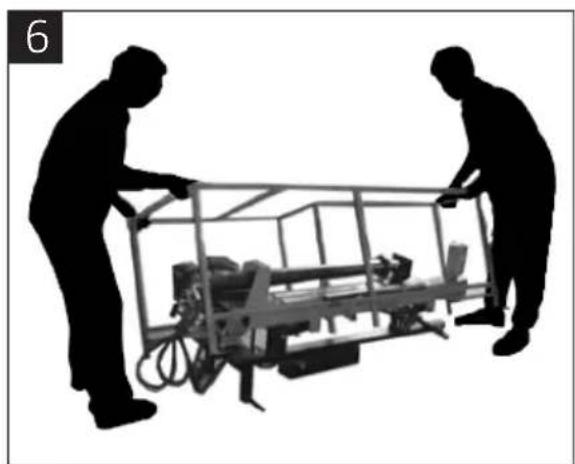

Silhouettes of two people handling a large industrial machine frame (no text or symbols visible)

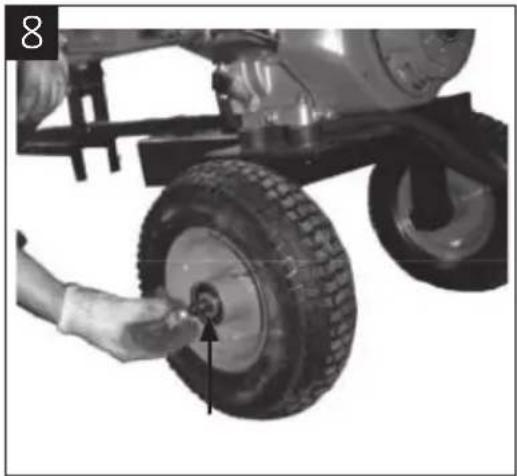

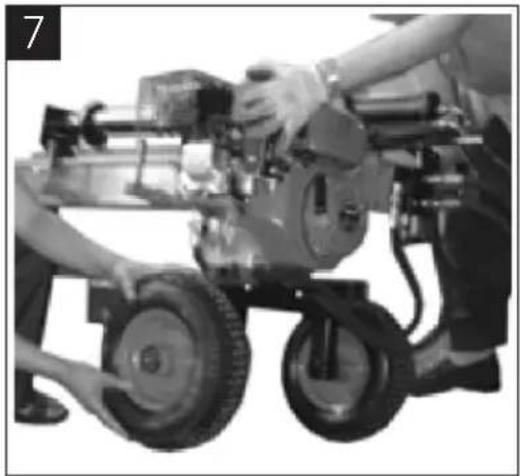

montera Hjul

Close-up of a mechanical assembly with hands operating a vehicle chassis (no visible text or symbols)

Close-up of a hand adjusting a tire on a vehicle chassis (no visible text or symbols)

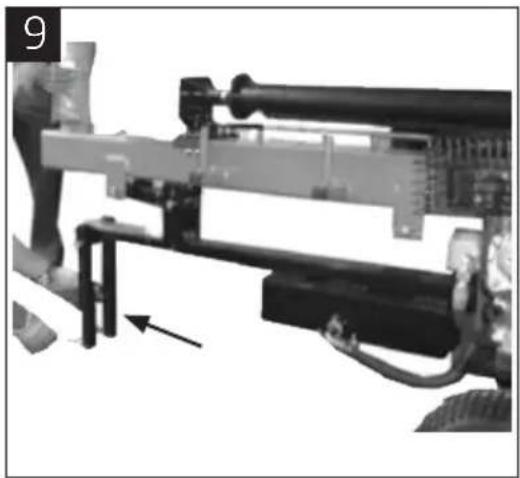

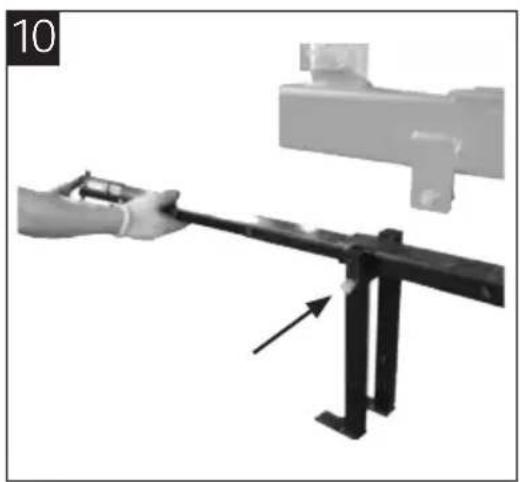

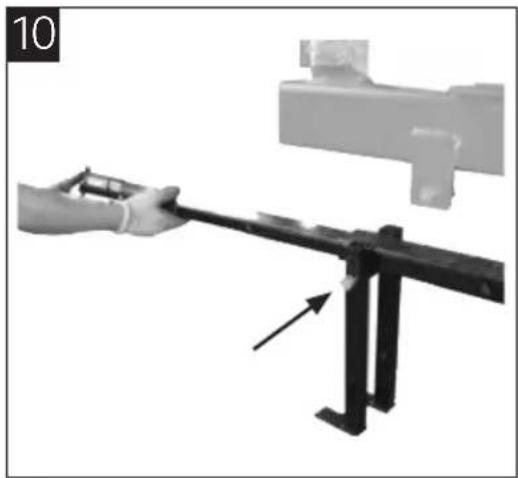

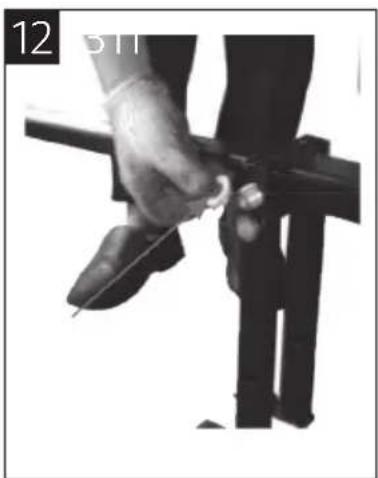

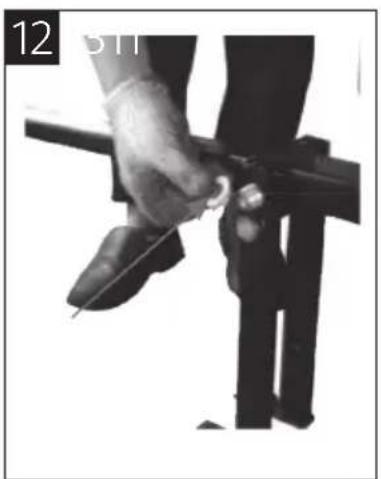

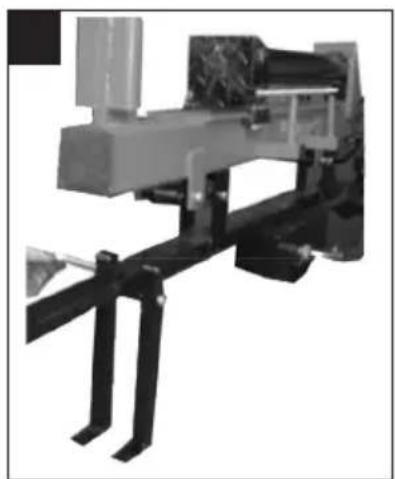

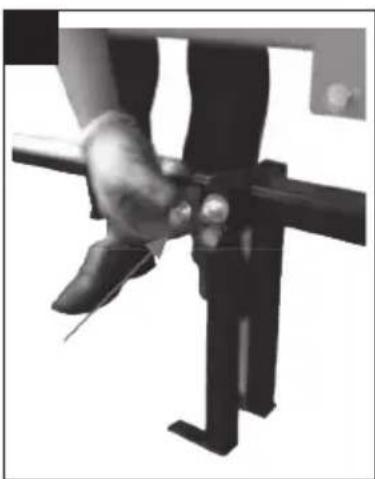

montera dragstång

Mechanical assembly with mechanical components and a person standing nearby (no visible text or symbols)

Mechanical assembly diagram showing a lever mechanism with an arrow indicating motion (no text or symbols present)

Mechanical assembly with black metal components and a gray frame (no visible text or symbols)

Close-up of a hand holding a tool over a mechanical component (no visible text or symbols)

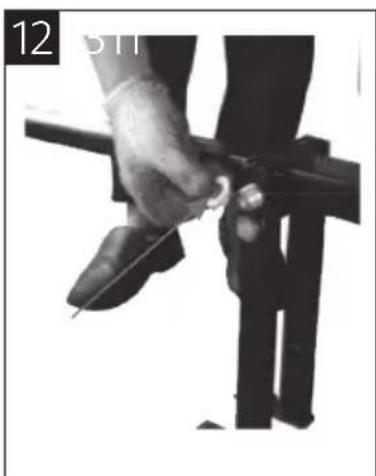

Close-up of a person's legs and feet using a mechanical lever (no text or symbols visible)

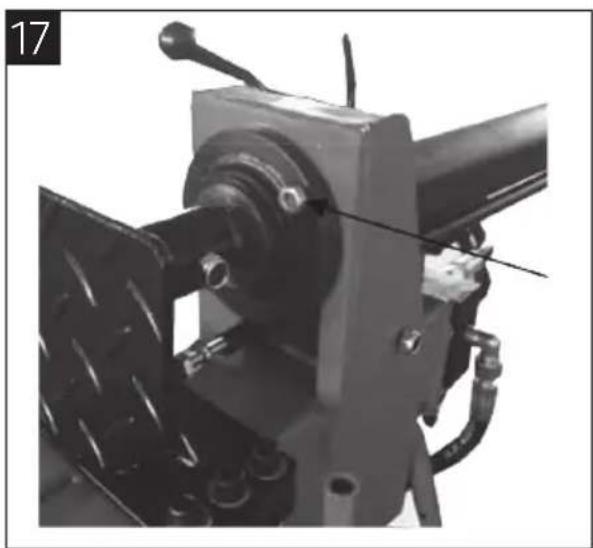

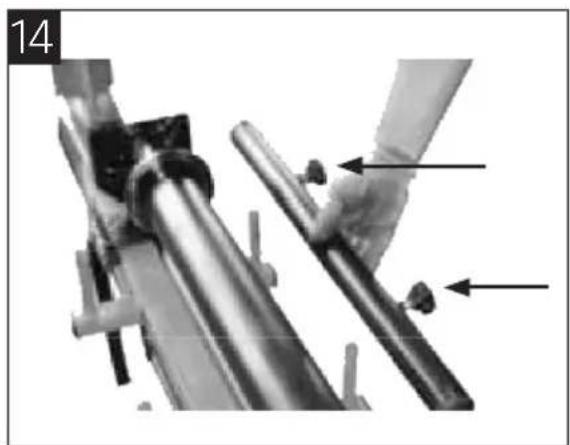

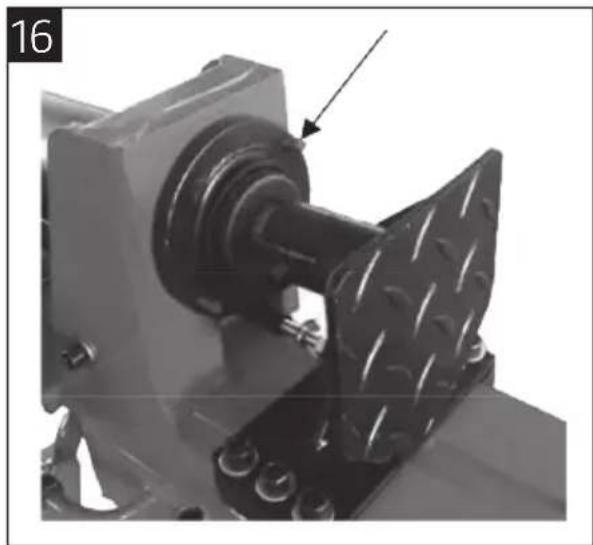

montera stockstöd

Close-up of a mechanical assembly with a hand holding a shaft and two arrows pointing to specific components (no visible text or symbols)

Mechanical assembly with rotating components and a directional arrow (no visible text or symbols)

Mechanical assembly with a metallic component and bolted base, no visible text or symbols

Mechanical assembly with clamping mechanism and mounting bracket (no visible text or symbols)

Mechanical assembly diagram showing mechanical components with arrows indicating motion direction (no text or symbols present)

19

Close-up of a mechanical assembly with curved wires and a pointed tip (no visible text or symbols)

HANDHAVANDE

FÖRBEREDELSER

Mechanical assembly with a black metal frame and attached bracket, showing a bolt and hanging weights (no text or symbols visible)

Two black-and-white photos showing hands operating a mechanical device with visible wiring and a close-up of the mechanism (no text or symbols)

Two black-and-white photos showing a hand operating a mechanical engine and connecting a cable to a vehicle (no visible text or symbols)

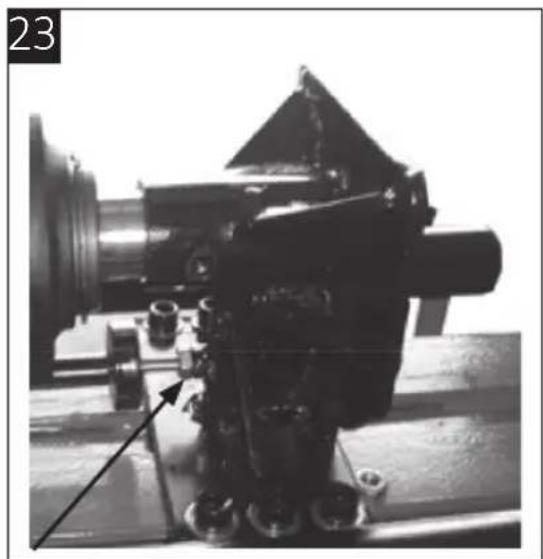

Klyvlängd

Close-up of a mechanical assembly with a tool and mounting base (no visible text or symbols)

Close-up of a mechanical assembly with visible springs, tires, and hydraulic components (no text or symbols)

KLYVNING

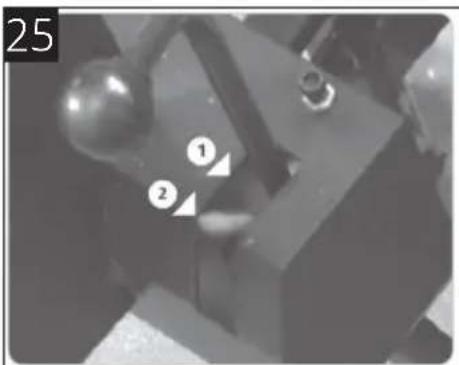

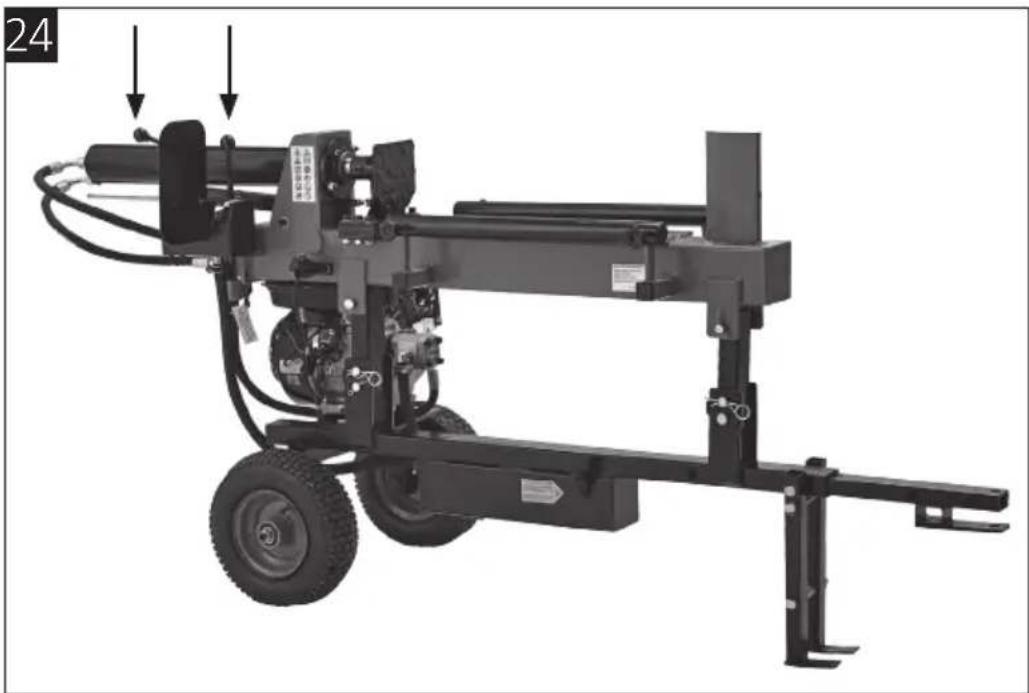

Manöversystem

Mechanical device with attached motors and wheels, no visible text or symbols

Close-up of a hand holding a car's side panel with arrows indicating motion or movement (no text or symbols visible)

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

UNDERHÅLL

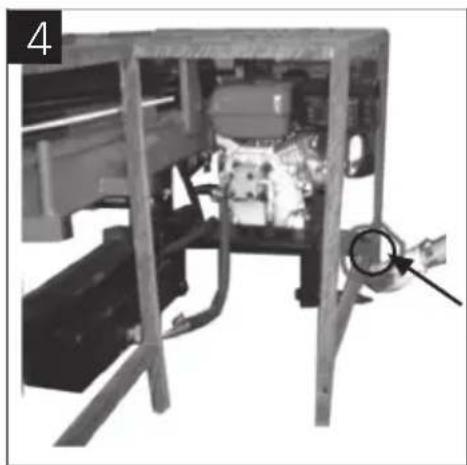

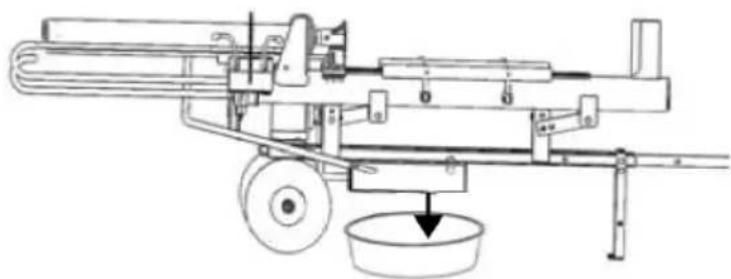

Byte av hydraulolja

Technical line drawing of a mechanical device with a circular component at the base (no text or symbols)

Person assembling a mechanical frame with a magnified inset showing a circular detail (no text or symbols visible)

Mechanical assembly with metal frame and mechanical components, no visible text or symbols

Industrial machine setup with metal frame and conveyor belt (no visible text or symbols)

Interior view of a mechanical device with visible components and a circular annotation (no text or symbols)

Silhouette of a person operating industrial machinery inside a metal frame (no text or symbols visible)

Silhouettes of two people handling a metal frame with machinery (no text or symbols visible)

montere hjulene

Close-up of a mechanical assembly with hands operating a motor and wheels (no visible text or symbols)

Close-up of a hand adjusting a tire on an aircraft landing gear (no visible text or symbols)

Mechanical assembly with mechanical components and a person standing nearby (no visible text or symbols)

Close-up of a hand holding a rifle with an arrow indicating force or movement (no text or symbols visible)

Mechanical assembly with black metal components and a gray frame (no visible text or symbols)

Close-up of a hand using a tool to lift a person's legs (no text or symbols visible)

Close-up of a person's legs and feet using a mechanical lever (no text or symbols visible)

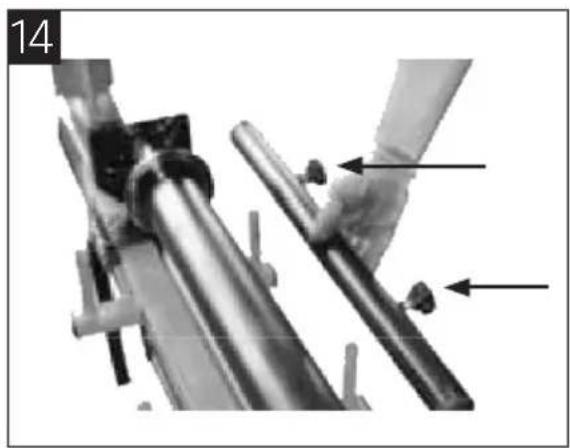

montere kubbestøtte

1. Monter kubbestøtten og lås den på plass med skruene med fingergrep (bilde 14).

Mechanical assembly diagram showing a hand operating a shaft with two arrows pointing to specific components (no text or symbols present)

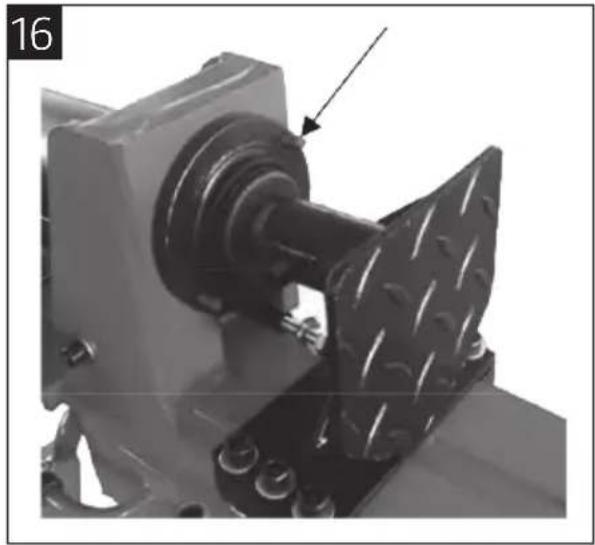

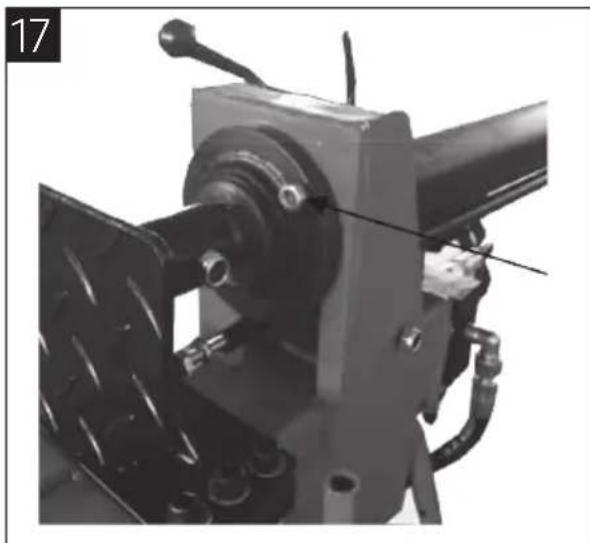

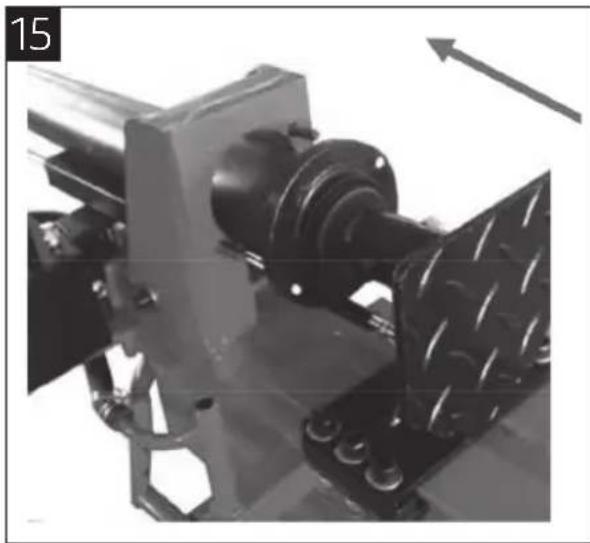

montere cylinder

Mechanical assembly diagram showing a rotating component with mounting flanges and a directional arrow (no text or symbols)

Mechanical assembly with a metallic component and bolted plate, no visible text or symbols

Mechanical assembly with a mounted machine and flange (no visible text or symbols)

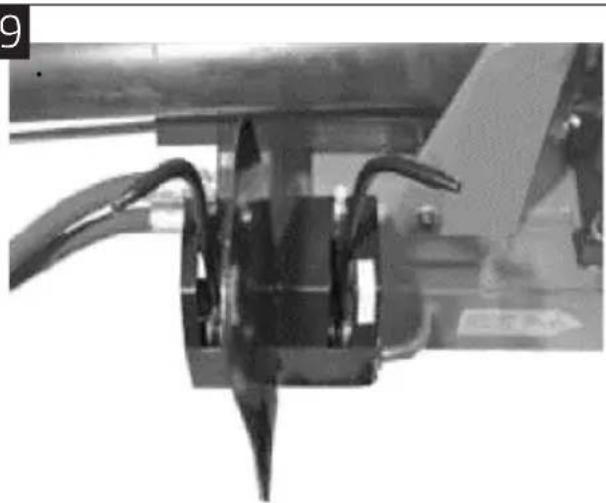

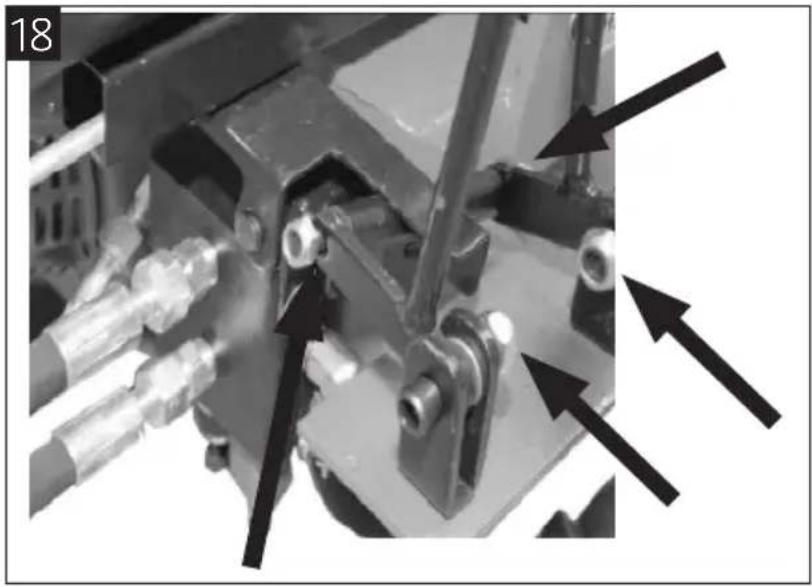

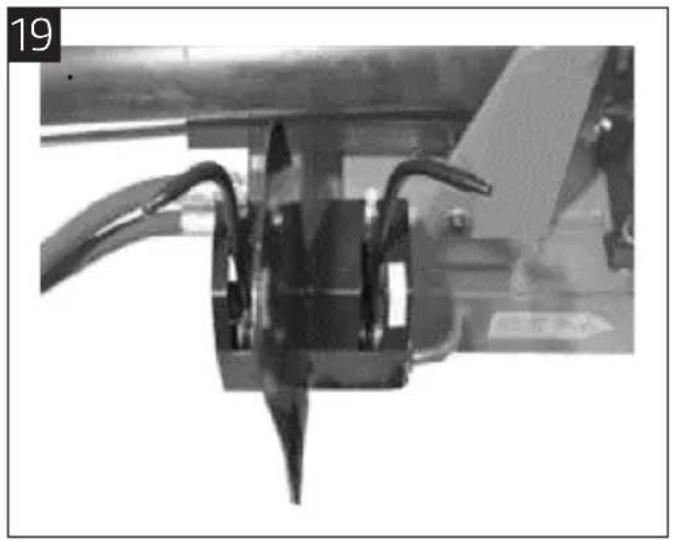

montere styreenhet

Mechanical assembly with mechanical components and directional arrows indicating motion (no text or symbols)

19

Close-up of mechanical components with visible wiring and a pointed tip (no text or symbols)

BRUK

FORBEREDELSER

Mechanical assembly with a metal bracket and attached vertical rod, showing a bolted joint (no text or symbols visible)

Two black-and-white photos showing a hand operating a mechanical device with visible wiring and components, no text or symbols present.

Two black-and-white photos showing a hand operating a mechanical engine and a close-up of the lever mechanism (no visible text or symbols)

Kløyvelengde

Close-up of a mechanical assembly with a tool and mounting base (no visible text or symbols)

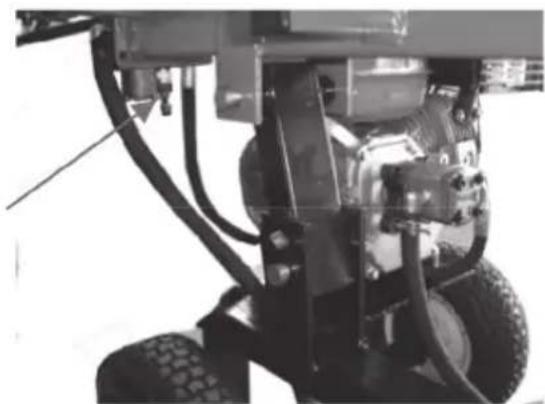

Innstillingsskrue for maksimumstrykk

Close-up of a mechanical assembly with visible gears and springs (no text or symbols)

KL∅YVING

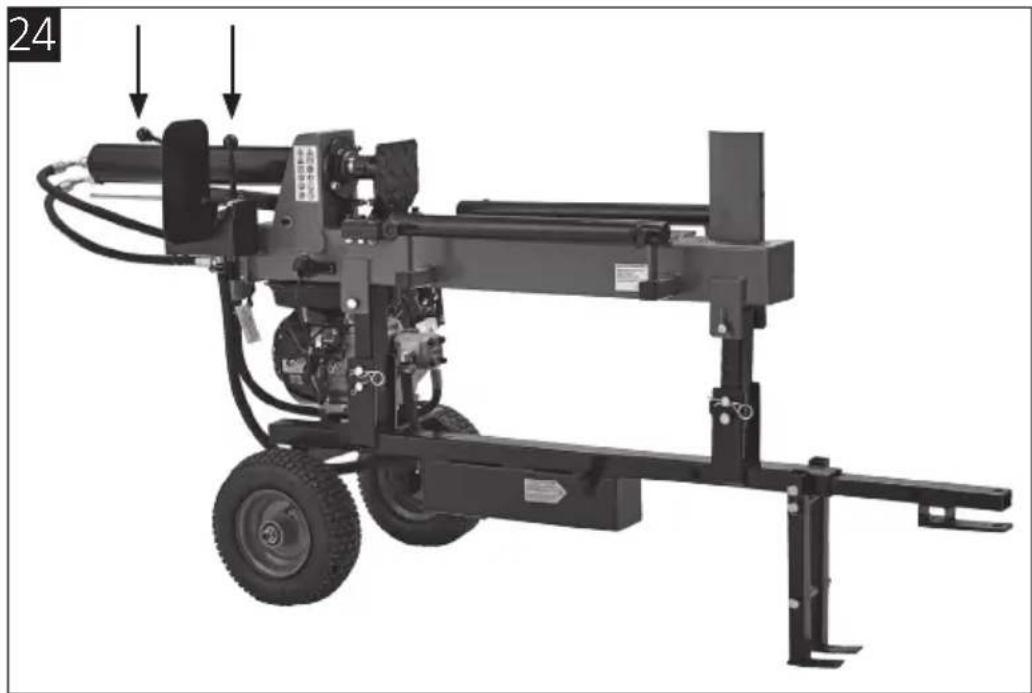

Styresystem

- Vedkløyverens styresystem skal styres med en hånd på hver styrespak (bilde 24).

Mechanical device with attached motors and wheels, no visible text or symbols

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

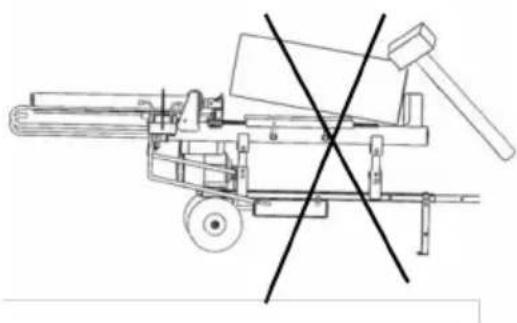

Løsne fastklemte kubber

Technical line drawing of a mechanical device with no visible text or symbols

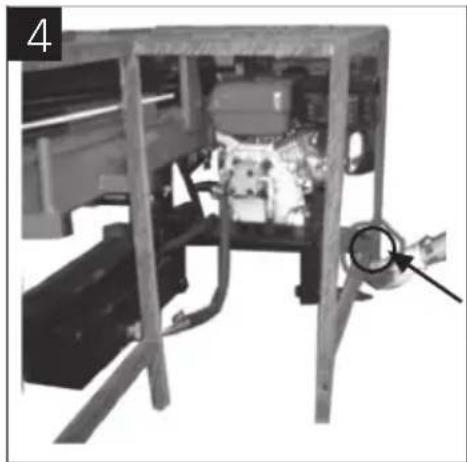

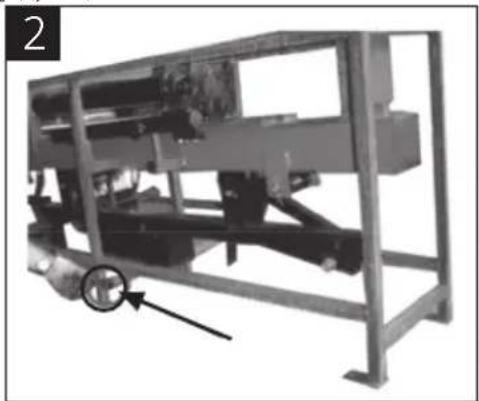

VEDLIKEHOLD

Technical line drawing of a mechanical device with a circular component at the base (no text or symbols)

Mechanical assembly diagram showing a hand operating a frame with a circular component inserted (no text or symbols visible)

Mechanical assembly with metal frame and mechanical components, no visible text or symbols

Industrial machine with metal frame and conveyor belt, no visible text or symbols

Interior view of a mechanical device with visible components and a circular annotation (no text or symbols)

Silhouette of a person operating industrial machinery inside a metal frame (no text or symbols visible)

Silhouettes of two people handling a metal frame with machinery (no text or symbols visible)

montaż kół

Close-up of a mechanical assembly with hands operating a motor and wheels (no visible text or symbols)

Close-up of a hand adjusting a tire on an aircraft landing gear (no visible text or symbols)

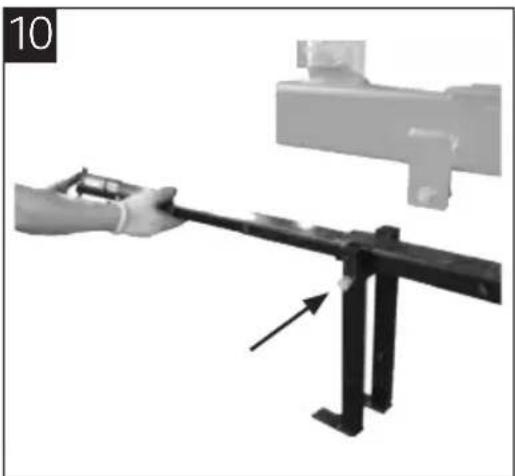

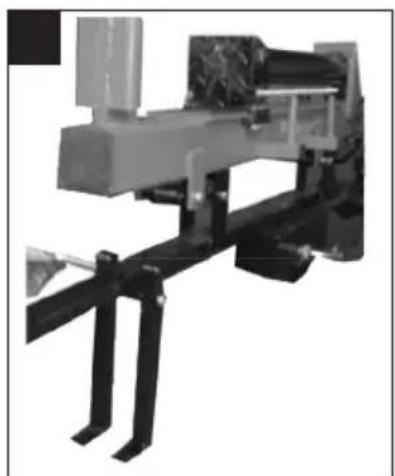

montaż dyszla

Mechanical assembly with mechanical components and a person standing nearby (no visible text or symbols)

Close-up of a hand holding a rifle with an arrow indicating force or movement (no text or symbols visible)

Mechanical assembly diagram showing a conveyor belt system with black metal brackets and a gray component (no text or symbols visible)

Close-up of a person holding a tool, possibly a bicycle or mechanical device, with no visible text or symbols.

Close-up of a person's legs and feet using a mechanical lever (no text or symbols visible)

Close-up of a mechanical assembly with a hand holding a shaft and two arrows pointing to specific components (no visible text or symbols)

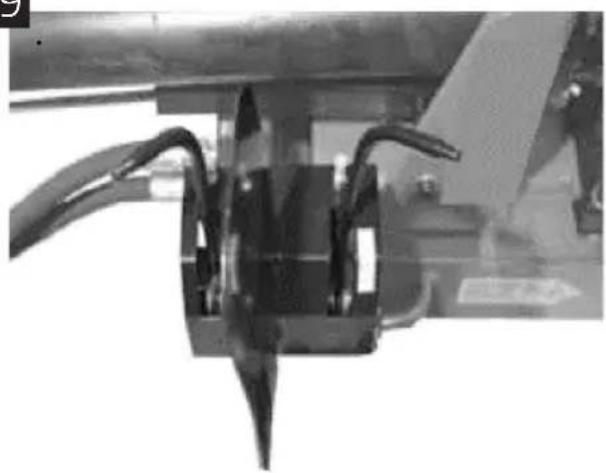

montaż siłownika

Mechanical assembly with rotating components and a directional arrow (no visible text or symbols)

Mechanical assembly with a metallic component and bolted plate, no visible text or symbols

Mechanical assembly with a mounted component and wiring (no visible text or symbols)

Mechanical assembly diagram showing mechanical components with arrows indicating motion direction (no text or symbols)

19

Close-up of a mechanical component with visible wires and a pointed tip (no text or symbols)

OBSŁUGA

PRZYGOTOWANIA

Mechanical assembly with a black metal frame and attached bracket, showing a bolt and wire (no visible text or symbols)

Two black-and-white photos showing a hand operating a mechanical device with visible wiring and a close-up of the hands adjusting components (no text or symbols)

Two black-and-white photos showing a hand operating a mechanical device with a valve and a tool inserted (no visible text or symbols)

Długość łupania

Industrial machine component with mechanical parts and a directional arrow indicator (no visible text or symbols)

Close-up of a mechanical assembly with visible gears and springs (no text or symbols)

ROZŁUPyWANIE

Układ sterowania

Mechanical device with attached motors and wheels, no visible text or symbols

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

KONSERWACJA

Technical line drawing of a mechanical device with a circular component at the base (no text or symbols)

Read the user instructions carefully before use.

Save them for future reference.

- Read all the instructions and warning labels on the log splitter before using it, to understand its application, limitations and potential risks.

- Never use the log splitter if you are tired or under the influence of drugs, alcohol or medication.

- Keep the work area clean and well lit. Cluttered work areas increase the risk of accidents and injuries.

- Do not use the log splitter in damp or wet areas. Do not expose the log splitter to rain.

- Do not use the log splitter in explosive environments, such as in the vicinity of flammable liquids, gases or dust.

- Always check the log splitter before using it. Safety devices must be fitted correctly and function properly. Always check that Allan keys/spanners etc. have been removed from the log splitter before starting it. Replace any damaged, missing or broken parts prior to use.

- Do not wear loose-fitting clothes, jewellery, or watches etc. that can fasten in moving parts. They can get caught in moving parts.

• We recommend wearing safety gloves that are not electrically conductive and non-slip shoes. Wear a hair net if you have long hair.

- The log splitter can eject objects that can cause permanent eye injuries. Always wear safety glasses and/or a visor. Normal glasses only have shock-resistant lenses.

• They are not safety glasses.

- Do not use the log splitter with it placed on the floor or the ground. This will result in a difficult working position, where the user's face comes close to the log splitter – risk of being hit by splinters etc.

- The log splitter must only be used by one person at once. Keep onlookers at a safe distance when using the log splitter. Never allow anyone to help you release logs that have got stuck.

- Check that there are no nails or other foreign objects in the logs. The ends of the logs must be cut at right angles. Branches must be cut off flush with the log.

• The surface must not be slippery.

• Always maintain a firm footing and good balance.
- Never stand on the log splitter. You could be seriously injured if the log splitter tips over, or if you come into contact with sharp parts. Do not store anything above or near the log splitter, where someone could be tempted to stand on it to reach up.
• Pay attention to the movements the log splitter makes.
- Do not attempt to add or remove logs until the piston has stopped in its home position. Keep your hands away from all moving parts.
- Keep your hands at a safe distance from cracks that open up in the wood. These cracks can suddenly close, and crush or cut off your hands.
• Do not attempt to release a log that has got stuck with your hands.
- The log splitter will work better and more safely at the load for which it is intended. Do not attempt to split logs larger than as specified in the technical data. This could result in a risk of serious personal injury and/or material damage.
• Only use the log splitter for its intended purpose.
- Do not leave the log splitter until it has come to a complete standstill.
• Used oil must be disposed of in accordance with local regulations.
- Keep the log splitter clean for better and safer work.
- Keep the workshop locked. Switch off the main switch. Store the log splitter out of the reach of children and unauthorised persons.

Symbols

	Read the user instructions carefully before use.
	Wear safety gloves
	Wear ear protection and safety glasses.
	Wear safety shoes
	IMPORTANT: Risk of pinch injury.
	WARNING: Moving parts. Do not allow any part of your body to come between the wood and the piston when the machine is working.
	Never attempt to remove wood that has got stuck, or clear the blade with your bare hands.
	Avoid using the log splitter when other persons, especially children, are nearby.
	Remove the plug from the power outlet when the work is finished and before starting repairs or maintenance work.
	Protect the environment. Always recycle used oil. Do not pour oil into drains, soil or water.
	Do not touch moving parts.
	Inspect the log splitter. Check the log splitter before use. Make sure all parts are complete and in working order, and that there are no tools or other items on the work bench. Replace damaged or missing parts before use.

TECHNICAL DATA

Engine capacity 4.8 kW at 3600 rpm

Log size Diameter* 520 mm

Log size Length 610 mm

Splitting power 12 tonnes ±10%

Hydraulic pressure 21 MPa

Hydraulic oil volume 4 l

Engine oil SAE 10W-30

Petrol minimum of 95 octane unleaded

Always wear ear protection.

* The specified diameter is only a guide. A thinner log can be more difficult to split, if it has knots or tough fibres. On the other hand, thicker logs can be easier to split if they have a smooth grain.

DESCRIPTION

• The log splitter is only intended for household use.
- The log splitter is intended to be used in ambient temperatures from 5 to 40°C and up to 1000 m above sea level. The relative humidity should be less than 50% at 40°C. The log splitter can be stored and transported at ambient temperatures from -25 to 55°C.

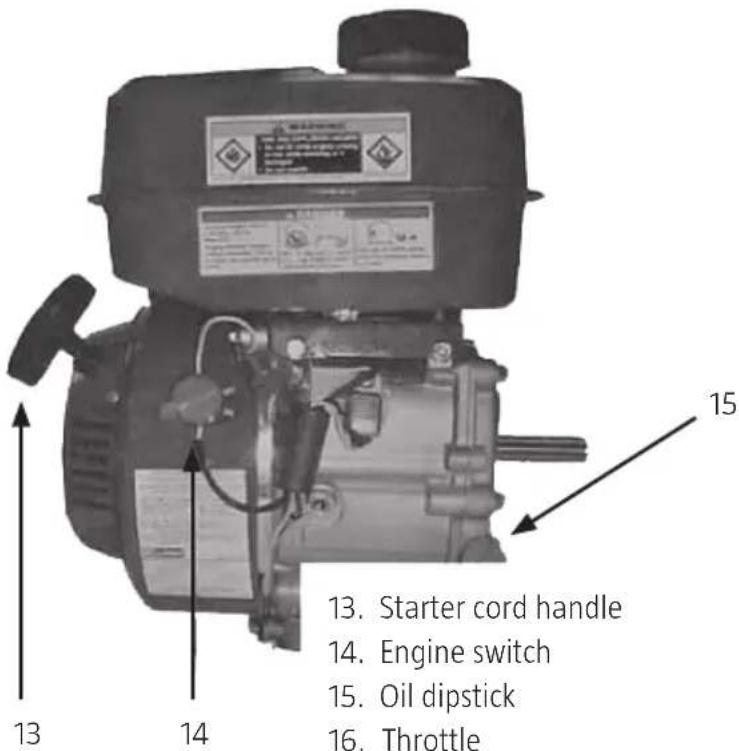

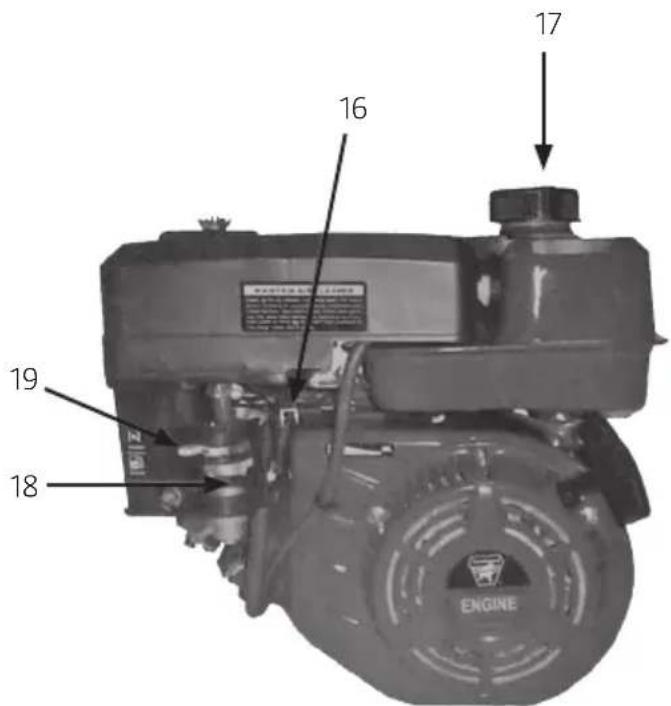

1. Starter cord handle
2. Engine switch
3. Oil dipstick
4. Throttle
5. Fuel tank
6. Fuel cock
7. Choke

1. Cylinder
2. Piston
3. Log support
4. Workbench
5. Blade
6. Towbar
7. Bottom support leg
8. Oil level indicator/vent screw
9. Wheel
10. Petrol engine
11. Controls
12. High pressure oil pipe

ASSEMBLY

Dismantling the transport frame

1. Undo the screw and remove the strut (Diagram 1).

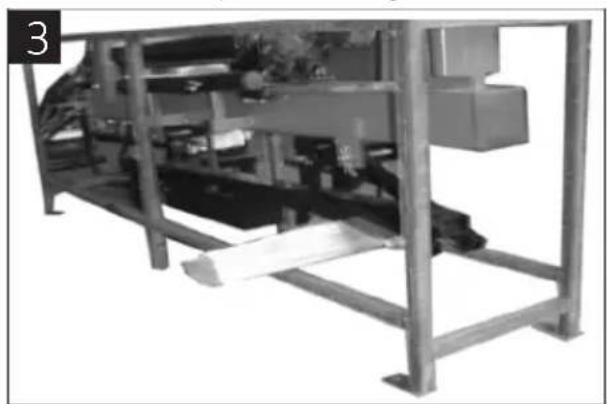

1. Undo the other screw (Diagram 2) and remove the strut. Block up the log splitter with a log or the equivalent (Diagram 3).

Industrial machine setup with metal frame and conveyor belt (no visible text or symbols)

Interior view of a mechanical device with visible components and a circular annotation (no text or symbols)

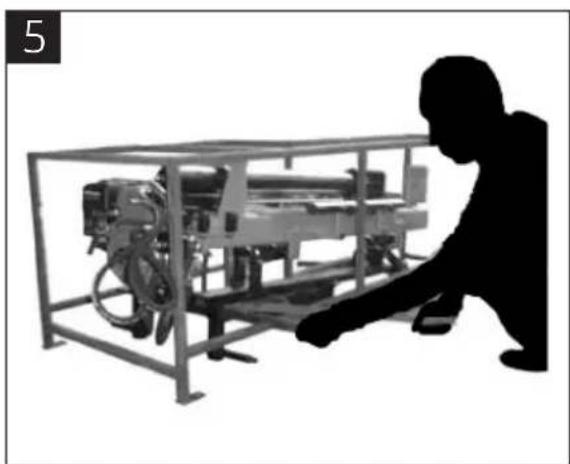

1. Undo the third screw on the opposite side (Diagram 4). Lift the machine with a suitable lever (Diagram 5) and remove the strut (Diagram 6).

Silhouette of a person operating industrial machinery inside a metal frame (no text or symbols visible)

Silhouettes of two people handling a metal frame with machinery (no text or symbols visible)

Fit the wheels

1. Put the wheel and washer on the axle and lock in place with the nut (Diagram 7 and 8).

Close-up of a mechanical assembly with hands operating a vehicle chassis (no visible text or symbols)

Close-up of a hand adjusting a tire on a vehicle chassis (no visible text or symbols)

Fit the towbar.

1. Fold down the bottom support leg (Diagram 9) and insert the towbar in the hole in the frame (Diagram 10).

2. Fit the screw (Diagram 11), fit the seal (Diagram 12) and tighten the nut (Diagram 13).

Mechanical assembly with mechanical components and a person standing beside it (no visible text or symbols)

Close-up of a hand holding a rifle with an arrow indicating force or movement (no text or symbols visible)

Mechanical assembly with black metal components and a gray component (no visible text or symbols)

Close-up of a hand holding a tool over a mechanical component (no visible text or symbols)

Close-up of a person's legs and feet wearing shoes, seated on a metal platform (no visible text or symbols)

Fit the log support

1. Fit the log support and lock in place with the screws by hand (Diagram 14).

Close-up of a mechanical assembly with a hand holding a shaft and two arrows pointing to specific components (no visible text or symbols)

Fitting the cylinder

1. Press the cylinder away from the log splitter (Diagram 15).
2. Lift the cylinder a little and move it sideways to fit the screws in the holes in the cylinder (Diagram 16).
3. Lock in place with the two screws (Diagram 17).

Mechanical assembly with a metallic component and mounting bracket, showing motion direction (no text or symbols)

Mechanical assembly with a metallic component and bolted plate, no visible text or symbols

Mechanical assembly with a mounted component and pipe fittings (no visible text or symbols)

Fitting the control unit

1. Remove all the nuts and knobs from the control levers.
2. Fit one of the control levers. Fit the cover plate and then the other control lever. Tighten all the bolted joints. Put the control casing in place and screw on from underneath with the three hex screws. Screw on the knobs again (Diagram 19).

Mechanical assembly with mechanical components and directional arrows indicating motion (no text or symbols)

Close-up of a mechanical assembly with visible springs and components (no text or symbols)

USE

PREPARATIONS

• Place the log splitter on a level, stable and horizontal surface.
  • Familiarise yourself with the controls on the log splitter and how to use them.

Undo the vent screw.

NOTE:

• Compressed air will remain in the hydraulic system if the vent screw is not unscrewed. This will destroy the seals and permanently damage the log splitter.

• Check that the vent screw is properly tightened before moving the log splitter, to avoid oil leaking out.

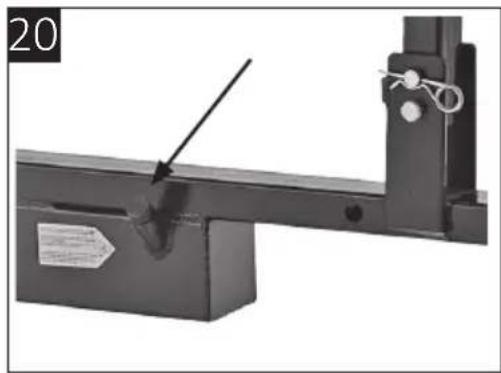

• Undo the vent screw (Diagram 20) a few turns so that air can flow in and out of the oil tank. The flow of air through the vent hole should be noticeable when the log splitter is in use.

Mechanical assembly with a black metal frame and attached bracket, showing a bolt and wire (no visible text or symbols)

Lifting and lowering the log splitter

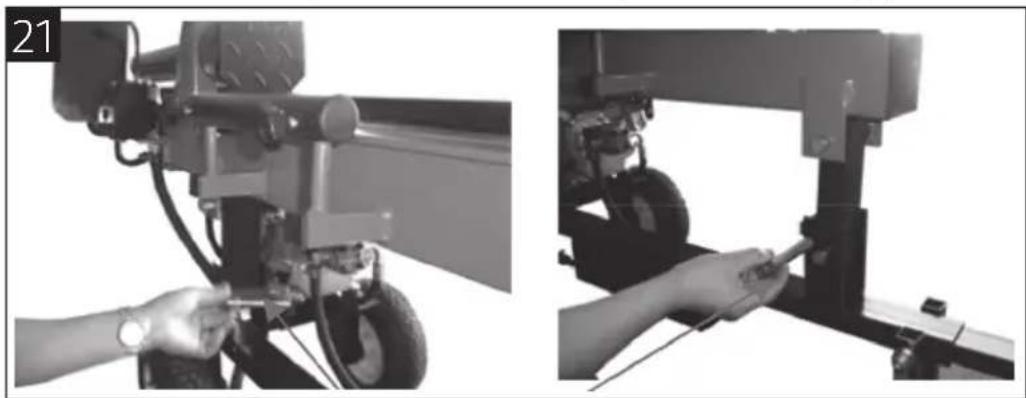

1. Pull out the two lock pins from the two moving fixtures on the log splitter (Diagram 21).

Two black-and-white photos showing a hand operating a mechanical device with visible wiring and components, no text or symbols present.

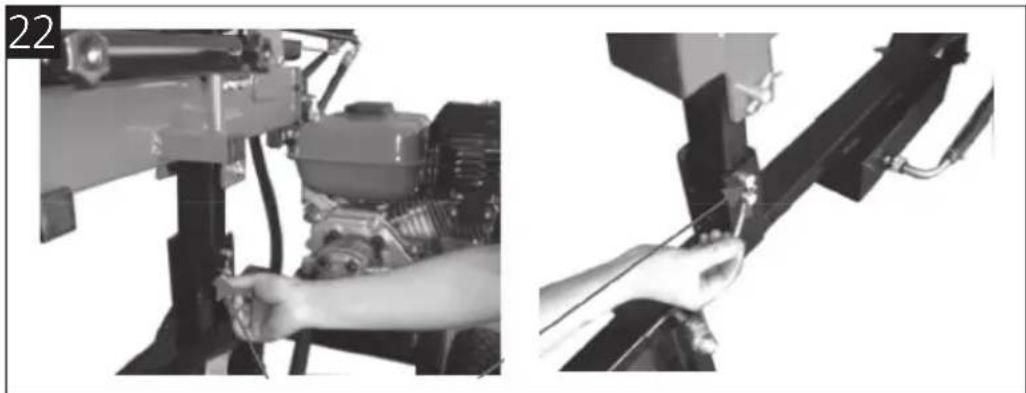

1. Lift the log splitter with one person at the front and one at the back.
2. Put the two lock pins back in the fixtures and insert the cotters (Diagram 22).

Two black-and-white photos showing a hand operating a mechanical device with visible wiring and components (no text or symbols)

Splitting length

1. Set the required splitting length with the nut (Diagram 23).

Close-up of a mechanical assembly with a tool and mounting base (no visible text or symbols)

Adjusting screw for maximum pressure

• Do NOT adjust the adjusting screw for maximum pressure.
- The permissible maximum pressure is set at the factory and the adjusting screw is sealed to ensure that the log splitter's operating pressure never exceeds 12 tonnes.
- If this adjustment is changed there is a risk of serious personal injury and/or material damage, or that the hydraulic pump does not provide sufficient pressure.

Close-up of a mechanical assembly with visible gears and springs (no text or symbols)

SPLITTING

Control system

- The control system on the log splitter must be operated with one hand on each control lever (Diagram 24)

Mechanical device with attached motors and wheels, no visible text or symbols

• If you release one of the levers the log splitter will stop moving. The piston will only start moving back to it home position when you release both levers.
  • The log splitter has a two-way valve to control the speed (Diagram 25).

— Press down the levers a little for quick forward movement.

- Press them down fully for lower speed during splitting.

Close-up of mechanical components with numbered annotations (1, 2) and a page number 25 in the corner, no readable text or symbols beyond labels.

1 = fast

2 = slow

NOTE:

• Never press the levers down for more than 5 seconds when trying to split hard logs.
- Pressing down the levers for longer can cause the hydraulic oil to overheat and damage the log splitter. If the log won't split, turn it 90^ and try again.
• If the log still does not split, discard it.

Starting the engine

NOTE: Allow the engine to warm up for at least 1 minute with no load after starting it.

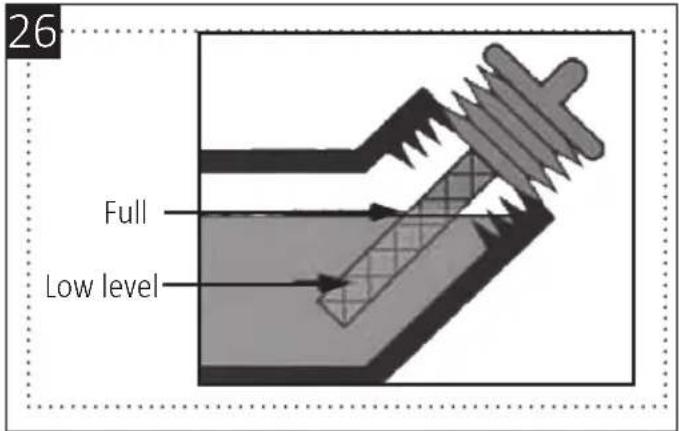

1. Check the oil level in the engine (Diagram 26). The oil tank holds approx. 0.6 litres of oil, SAE10W-30. The engine switches off automatically when the oil level is too low.

1. Fill the petrol tank with unleaded 95 octane petrol.
2. Open the fuel cock by moving the arm to the right (Diagram 27).
3. Close the choke by moving the arm to the left. NOTE: You do not need to use the choke when the engine is hot.

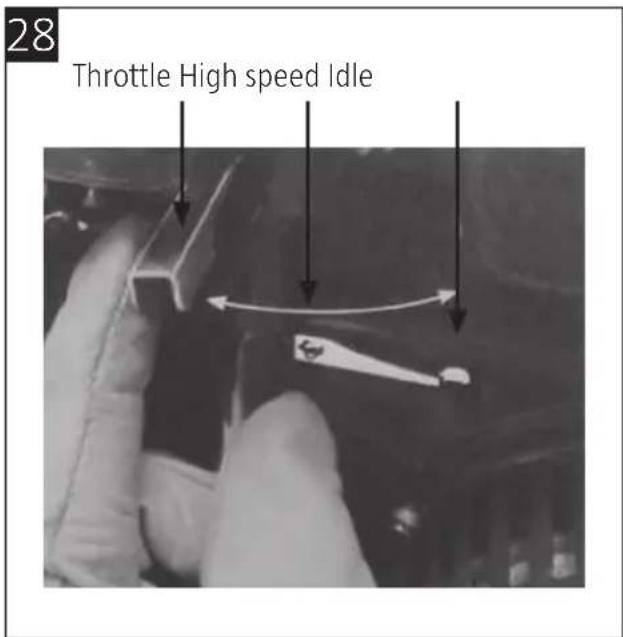

4. Move the throttle to the left (Diagram 28).

1. Put the engine switch in the ON position.
2. Pull the starter cord slowly until it catches, and then pull quickly. You may need to pull it 5 times before it starts.
3. When the engine has started, move the choke arm to the half-open position. After 15 seconds, open the choke fully by moving the arm to the right. NOTE: The engine will stop if the choke is opened too soon.
4. Use the throttle to adjust the speed.

Switching off

1. Move the throttle to the left (idling mode).
2. Put the engine switch in the OFF position.
3. Close the fuel cock by moving the arm to the left.

Handling workpieces

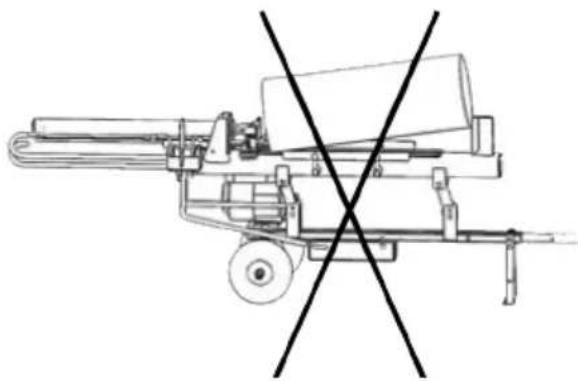

• Always place logs firms on the workbench with the log support.
• Position the log so that it cannot twist, wobble or slide away during the splitting.
- Do not put the log on the top part of the blade, this can damage the blade and/or the log splitter.
- Logs must be split along the length of the grain. Never attempt to split a log across the direction of the grain with the log splitter: risk of personal injury and/or material damage.
- Never attempt to split two or more logs at the same time. One of them could be thrown out and cause personal injury and/or material damage.

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Loosening jammed logs

NOTE: Never attempt to knock or tap a jammed log loose. This could damage the log splitter, or cause the log to suddenly come loose and cause personal injury.

1. Release both levers. When the piston has gone back and stopped in the home position, place a wooden wedge under jammed log.
2. Run the log splitter so that the wedge is pressed in under the jammed log. Repeat with thicker wedges until the log comes loose.

Technical line drawing of a mechanical device with no visible text or symbols

mAINTENANCE

Changing the hydraulic oil

The hydraulic oil in the log splitter should be changed after an interval of 150 working hours. Check at regular intervals that the oil level is between the two markings on the dipstick. Top up the hydraulic oil if the level is too low.

1. Switch off the engine and wait until all moving parts have completely stopped.
2. Place a container that holds at least 4 litres under the oil drain plug. Unscrew and remove the plug. Allow the oil to run out.
3. Clean the oil drain plug and replace. Fill up with new hydraulic oil. The hydraulic oil tank holds 4 l. Check that no oil is leaking out.
4. Remove and clean the oil tank cap and dipstick, and then replace in the tank. Remove the dipstick again and check that the oil level is between the two markings.

Technical line drawing of a mechanical device with a circular component at the base (no text or symbols)

The following hydraulic oils or equivalent can be used: ISO VG32 and ISO VG 46.

Sharpening the blade

The blade can become blunt in time, and will need to be sharpened. Remove any burrs and damage along the edge with a fine file.

TROUBLESHOOTING

Problem Probable cause	Action
Engine stops or will not start.	Overload protection has tripped.	Have overload protection reset by qualified service personnel.
Will not split. Log is not properly in place.		Place the log as instructed.
		Log it too big, or too hard to split.
		The edge of the blade is blunt.
		Oil leak. Localise the leak and contact your dealer.
		The set screw for maximum pressure has been set for lower maximum pressure, even though this is not permissible.
The piston does not move smoothly, the log splitter makes abnormal noise, or vibrates.		Too little hydraulic oil and too much air in the hydraulic system.
Oil leak round the piston, or other place.		Air in the hydraulic system.
		Vent screw not tightened when moving the log splitter.
		Drain plug and dipstick not tightened.
		Worn seals/valves. Contact your dealer.

C€

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

Machinery Directive 2006/42/EC EN 609-1+A2:2009

Electromagnetic Compatibility Directive 2004/108/EC EN 55012:2007+A1, EN 61000-6-1:2007

This product was CE marked in year -15
