Duo Tech - Coffee maker OBH NORDICA - Free user manual and instructions

Product Type	Coffee maker (dual)
Brand	OBH Nordica
Model	Duo Tech
Capacity	2 x 1.4 L (total 2.8 L)
Power	2100 W
Voltage	220-240 V ~, 50-60 Hz
Dimensions	Not specified (typical approx. 30 x 25 x 35 cm)
Weight	Not specified (typical approx. 3-4 kg)
Jug Type	Glass jug (with keep-warm plate) and thermal jug (according to model)
Functions	Dual independent coffee makers, aroma function (1-3 cups), anti-drip system, automatic shut-off, keep-warm (30 min for glass, 3 min for thermal)
Water Level Indicator	Yes, on both sides
Control Buttons	Start/stop button with LED
Filter Holder	Removable, dishwasher safe
Safety Features	Auto shut-off, anti-drip, keep-warm plate cool-down warning, lid must be closed during operation
Cleaning	Glass jug and filter holder dishwasher safe; thermal jug hand wash only; descale every 40-80 cycles
Descaling	Use descaling agent or white vinegar; run 1 glass into jug, let sit 1 hour, then complete cycle; rinse 2-3 times with clean water
Accessories	Glass jug (ref 034), spare tea filter (ref 308)
Guarantee	2 years limited manufacturer's guarantee (Sweden, Norway, Denmark, Finland)
Country of Origin	Denmark (OBH Nordica Denmark A/S)

Frequently Asked Questions - Duo Tech OBH NORDICA

How do I use the Duo Tech coffee maker for the first time?

Remove all packaging and stickers. Fill both water tanks with water (no coffee) and run a cycle to rinse the circuits. Then you can start brewing coffee as per the instructions.

Can I use only one side of the coffee maker?

Yes, the two coffee makers are independent and can be used separately or together. Each side has its own water tank and jug.

What is the aroma function and how do I use it?

The aroma function (on the left side) provides stronger coffee when brewing only 1 to 3 cups. Set the switch to 'AROMA 1-3' position. For 4 or more cups, keep the switch in OFF position.

How do I clean the glass jug and filter holder?

The glass jugs, their lids, and the filter holder are dishwasher safe. However, thermal jugs (if included) must be hand washed with mild detergent and a soft brush, and never immersed in water or placed in the dishwasher.

How often should I descale the coffee maker?

Descale every 40 cycles if you have hard water, or every 80 cycles for soft water. Use a descaling agent or white vinegar. Follow the descaling instructions in the manual.

What should I do if the coffee maker is making too much noise or water flow is slow?

This is usually a sign that the appliance needs descaling. Perform a descaling cycle as described in the manual. If the problem persists, contact an authorized service center.

Is it safe to leave the coffee maker unattended?

The appliance has an automatic shut-off: for glass jugs it turns off after about 30 minutes, for thermal jugs after 3 minutes. However, always supervise children and keep the appliance out of reach of children under 8.

Can I use the thermal jug in the microwave or on a stove?

No, never put the thermal jug in a microwave, on a flame, or on electric cooking plates. Also, do not use it without the lid.

What does the anti-drip system do?

The anti-drip system allows you to remove the jug during coffee preparation without dripping. However, you should return the jug promptly to prevent overflow of the filter holder.

Where can I find replacement accessories?

You can obtain accessories such as a glass jug (ref 034) or spare tea filter (ref 308) from your usual retailer or any approved service center.

USER MANUAL Duo Tech OBH NORDICA

DESIGNING GOOD LIFE

Duo Coffee Maker DUO TECH 2x1,4L

For a tasteful cup of coffee

Black and white photo of a coffee maker with clear lid and side-mounted stand, no visible text or symbols on the device itself.

Making good!

Mechanical assembly diagram showing a hand pressing a curved component on a cylindrical base (no text or symbols)

Mechanical diagram showing a pouring device into a container with a curved arrow indicating motion (no text or symbols)

Diagram of a cylindrical tank with internal components and an arrow pointing to one (no text or symbols)

Mechanical assembly diagram showing a rotating component with a curved arrow indicating rotation (no text or symbols present)

Mechanical assembly diagram showing a rotating component with directional arrow (no text or symbols)

Illustration of a kitchen appliance being opened with a hand, showing a pan and fan (no text or symbols)

Mechanical assembly diagram showing a hand pressing a component on a base (no text or symbols)

Mechanical assembly diagram showing a valve or pump component with a directional arrow indicating flow (no text or symbols present)

Illustration of a kitchen setup with a kettle and a blender, showing heat transfer process (no text or symbols)

Hand holding a camera lens with screwdriver, no visible text or symbols

Illustration of a kitchen blender with a kettle and lid, showing internal components and a directional arrow (no text or symbols)

Illustration of a hand pressing down on a kettle with a curved arrow indicating rotation (no text or symbols)

OBH Nordica Denmark A/S

2750 Ballerup

Visiting address: Tempovej 27

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Tekniske data

OBH Nordica OP8508S0

220-240V\~, 50-60 Hz

2100 W

BEGRENSET GARANTI for OBH Nordica

Garantien

OBH Nordica Norway AS

Maridalsveien 15 E

0178 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica OP8508S0

220-240V\~, 50-60 Hz

2100 W

1. Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: The manufacturer will not accept liability and the guarantee will not apply if there is a failure to comply with the instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.
4. Your appliance is intended for domestic use inside the home only at an altitude below 2000 m.
5. Children should be supervised to ensure that they do not play with the appliance.
6. This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.
7. Keep the appliance and its cord out of reach of children under 8 years of age.
8. Your appliance is intended for domestic use only.
9. This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using

the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

1. Do not use the appliance if it is not working properly or if the appliance or the power cord has been damaged. If this occurs, contact an authorised service centre.
2. Do not immerse the appliance, power cord or plug in water or any other liquid.

3. It is not intended to be used in the following applications, and the guarantee will not apply for:

4. staff kitchen areas in shops, offices and other working environments;

5. farm houses;
6. by clients in hotels, motels and other residential type environments;

7. bed and breakfast type environments.

8. Always follow the cleaning instructions to clean your appliance;

9. Unplug the appliance.

10. Do not clean the appliance while hot.
11. Clean with a damp cloth or sponge.

12. Never immerse the appliance in water or put it under running water.

13. WARNING: Risk of injury if you do not use the appliance correctly.

14. WARNING: After using the appliance do not touch the keep warm plate as this will be hot and should be left to cool down. Always hold the glass jug by the handle during operation. Do not touch the glass until it has cooled down after use.

15. Children should not use the appliance as a toy.

16. European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances are not thrown into the normal flow of municipal waste. Old appliances must beings collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment.

17. Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed.
18. Any error in the electrical connection will negate your guarantee.
19. All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre.
20. For your safety, only use the manufacturer's accessories and spare parts designed for your appliance.
21. Do not pull on the cord to unplug the appliance.
22. Do not fill the appliance with water if it is still hot.
23. Always ensure the lid is closed when the coffee maker is operating.
24. All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
25. Never put your glass jug or isothermal jug (according to model) in a microwave oven, on a flame or on electric cooking plates.
26. Do not use the glass jug or isothermal jug (according to model) without the lid.
27. Unplug the appliance when you have finished

using it and when you clean it.

1. The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or left hanging over a sharp edge.

2. Do not pour hot water in the water tank.

3. When using the appliance, always place it on a flat, stable, heat-resistant work surface away from water splashes and any sources of heat.

Use

Do not place the jar or isothermal container (depending on model) in a microwave oven, directly on a flame or over an electric stove.

After switching on your coffee maker, never touch the hot plate with your hand when removing the jug from the coffee maker. Whilst in operation, the plate reaches a high temperature and can cause burns. If your device is equipped with isothermal containers (according to model):

To avoid deteriorating the glass bulb of your isothermal container, do not to introduce aggressive utensils inside. Do not put ice cubes or sugar inside the isothermal container unless you do it very carefully and if there is liquid already inside.

Never place your hand inside the isothermal container if the bulb is made of glass.

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.

Description

a lid
b water level indicator
c start/stop button
d aroma function (according to model)
e filter holder
g glass jug (according to model)
h base
i isothermal container (according to model)

Before first use

Remove all packaging, stickers and accessories from the inside and the outside of the appliance.

Operate the coffee-maker for the first time with no coffee, and with the water tanks full (both sides), to rinse out the circuits.

Preparation of coffee

Your appliance is a 2 coffee-maker set, and these can be used independently or together. Your appliance is fitted with glass jugs (according to model):

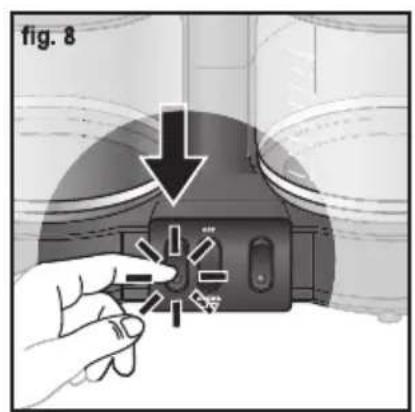

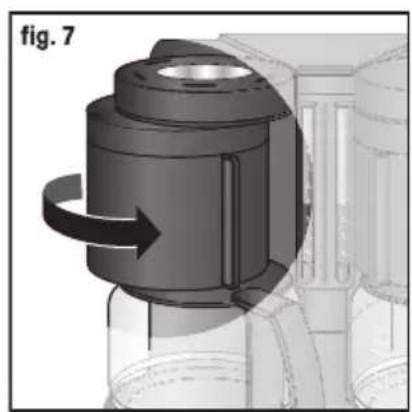

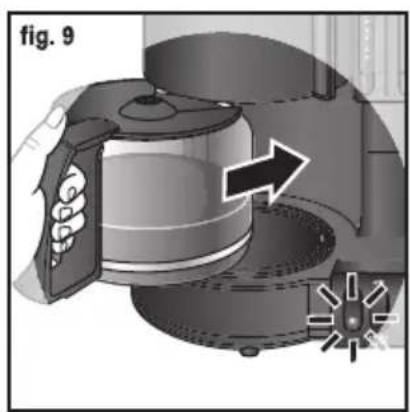

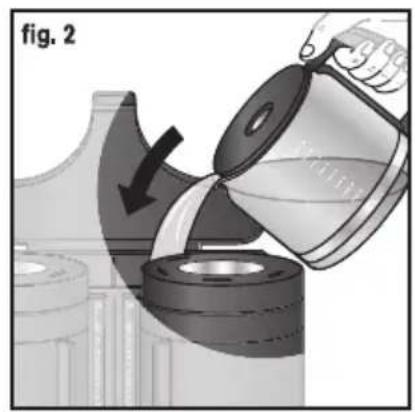

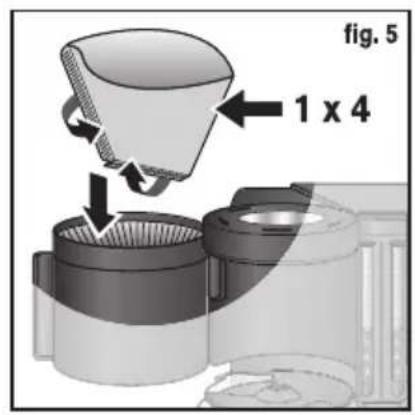

• Follow the illustrations, from 1 to 9.
- Do not fill the water tank above the max graduation mark.
- The anti-drip system allows you to remove the jug (g) during coffee preparation.

- Return the jug to the coffee-maker without delay, in order to prevent any overflow of the filter holder (e).

- The appliance can be switched off at any time by pressing the start/stop button. The LED will switch OFF.

- At the end of the cycle (i.e. when there is no more water in the tank), the heat will be maintained until it turns off automatically after about 30 minutes for glass jugs and three minutes for thermal jugs. Your appliance is fitted with thermal jugs (according to model):

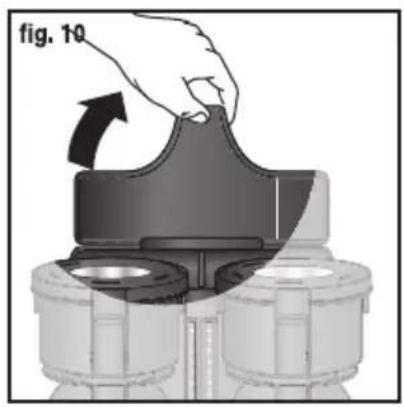

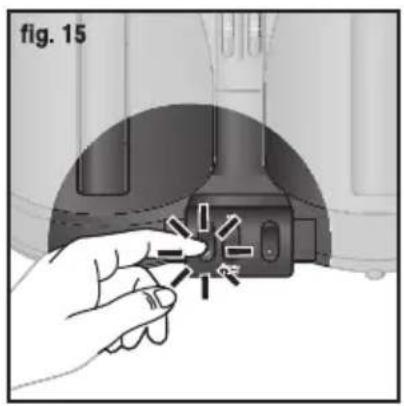

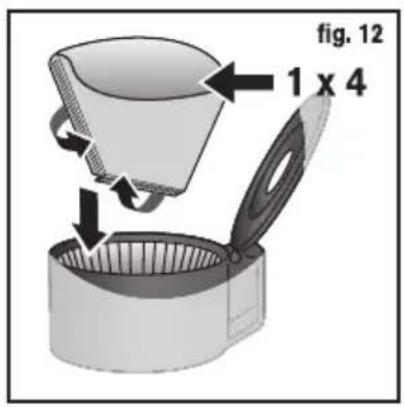

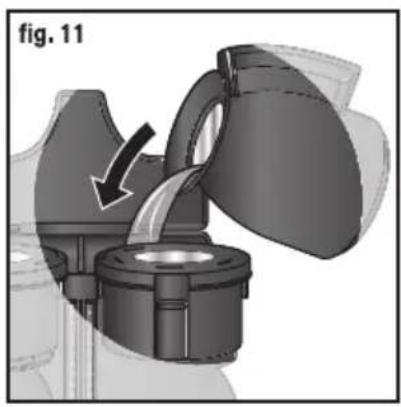

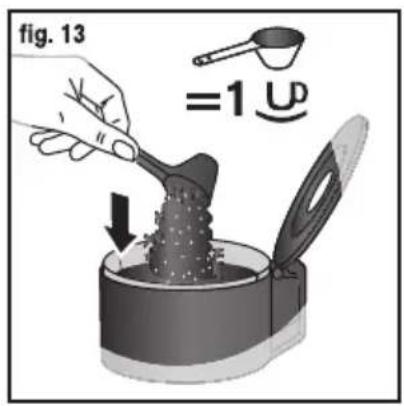

• Follow the illustrations from 10 to 18.
• Do not fill the water tank above the max graduation mark.
• For better keep warm performances, rinse the thermal jug (i) in hot water before use.
• Remove the filter holder (e), and turn the lid firmly to the right (figure 17).
• To pour, rotate the cover one quarter turn to the left (figure 18).
• At the end of the cycle your appliance will stop automatically.

- Your appliance is equipped with a “reinforced aroma” system on the left side of the appliance, for one to three cups (according to model): The aroma system provide flavoured coffee when you want only 1,2 or 3 cups. For 1 to 3 cups, put the switch (d) to the AROMA 1-3 position (figure 24). For 4 cups or more, keep the switch (d) in OFF position.

Cleaning

Disconnect the appliance from the power supply.

• Do not clean the appliance when still hot.
• Clean with a damp cloth or sponge.
• Never put the appliance into water on under running water.
• To remove the used grounds or leaves, remove the filter holder from the coffee maker.
• The glass jugs (g), their lids, and the filter holder (e) can be placed in the dishwasher. Cleaning the thermal jugs (according to model): These should be handled with care. Add a little washing-up liquid and water, and shake gently. Stubborn stains can be removed using a soft brush.
• Never clean them with hard objects. Scratches on the glass can cause the interior to break.
• Never put them in the dishwasher, and never immerse them in water. The lids can be placed in the dishwasher.

Descaling

De-scale your appliance once every 40 cycles of use (very hard water) or 80 cycles (soft water). You can use:

• either one sachet of scale remover which can be purchased from a hardware store diluted in 2 large glasses of water,
• or 2 large glasses of white vinegar commercially available

Place the mixture into the water tank of the coffee-maker (without coffee grounds or tea leaves). Allow the equivalent of one glassful to run into the jug (g) or the thermal jug (i) (according to model), and then switch off the coffee-maker. Leave the mixture to work in the appliance for one hour. Restart your coffee-maker to allow the remainder of the mixture to run through. Before using again, operate the appliance 2 or 3 times with clean water, without drinking it (full water tank). Warning: Do not leave the sachet of de-scaler within the reach of children.

Our guarantee excludes coffee-makers which fail to operate due to a lack of descaling.

In case of problems

Check the following:

• The power cord is well plugged into the means,
• The Start/Stop button light on the working side of the appliances is switched ON n If the running time of the water is too long or there is excessive noise: - de-scale the coffee-maker.

If your appliance still does not work, contact an approved service centre.

Accessories

You can obtain the following accessories from your usual retailer or from any approved service centre: Glass jug ref 034, Spare tea filter ref 308.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product.

This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

OBH Nordica AB

Löfströms Allé 5

These instructions are subject to alterations or improvements.
