Product Type	Electric Patio Heater
Brand	Wilfa
Model	Sol S THS-2000
Power Options	1,000 W (single element) or 2,000 W (both elements)
Heating Elements	Two quartz tubes (upper and lower)
Voltage	220-240 V ~ 50 Hz
Current	8.3 A at 2,000 W
Power Supply Connection	Class I, earthed plug
Height (Assembled)	Approx. 2 m
Base Diameter	Approx. 35 cm
Net Weight	Approx. 6 kg
Adjustable Tilt Angle	0° to 22°
Control Type	Pull chain switch with power selection
Safety Features	Anti-tilt switch, overheat protection, splash-proof design
Recommended Mounting Height	At least 1.8 m above floor
Indoor/Outdoor Use	Both, but plug must be indoors
Maintenance	No routine maintenance required; consult service center for issues
Assembly Required	Yes, instructions provided
Construction Materials	Metal base, aluminium telescope pipe, plastic/composite body
Certifications	CE, compliant with safety and EMC standards

Frequently Asked Questions - Sol S THS-2000 WILFA

How do I adjust the angle of the heater?

First, wait at least 15 minutes after switching off the heater to allow it to cool. Then loosen the bolt in the joint using a screwdriver (step 1). Hold the linker and tilt the heater body up or down to the desired angle, between 0° and 22° (step 2). Finally, tighten the bolt again (step 3).

What do the numbers on the pull chain switch mean?

Pulling the switch cycles through positions: '0' = off, '1' = upper heating element only (1,000 W), '2' = both elements (2,000 W), next '1' = lower element only (1,000 W), then back to '0'. The little window shows the current setting.

Can I use this heater indoors?

Yes, it can be used indoors as well as outdoors. However, the plug must be connected to an indoor socket. Do not place it in the immediate vicinity of a bath, shower, or swimming pool.

What safety features does the heater have?

The heater has an anti-tilt switch that automatically turns it off if it is knocked over, and restarts when upright. It also has overheat protection and is designed to be splash-proof. Do not cover the heater or place flammable materials nearby.

How do I assemble the heater?

Insert the lower pipe into the base and fix with the L-bolt and washer. Join the mid pipe to the lower pipe with a screw. Then attach the telescope pipe to the mid pipe, and finally connect the heater body to the telescope pipe. Tighten all screws securely.

What should I do if the heater is not working?

Check that the power cord is plugged in and the circuit breaker is on. Ensure the heater is upright, as the anti-tilt switch may be activated. If it still doesn't work, contact an Approved Service Center.

Can I replace the heating elements myself?

No, the heater should not be dismantled by the user. For any repairs, including heating element replacement, take the appliance to an Approved Service Center to avoid hazard.

Is it safe to leave the heater unattended?

While the heater has safety features, it is recommended not to leave it unattended, especially near children, elderly, or pets. Always switch off and unplug when not in use.

How do I clean the heater?

No particular maintenance is required. To clean, disconnect power and allow it to cool completely. Wipe the exterior with a soft, dry cloth. Do not use water or cleaning agents.

What is the maximum height above floor where I can install the heater?

The heater must be installed at least 1.8 m above the floor. Ensure it is not located directly below a socket-outlet. The clearance from combustible materials should be adequate.

USER MANUAL Sol S THS-2000 WILFA

Exterior view of a modern outdoor heater with a curved panel and metal base (no text or symbols visible)

THS-2000 terrasse heater

NO BRUKSANVISNING
SE BRUKSANVISNING
DK BRUGSANVISNING
FI KÄYTTÖOHJE
GB INSTRUCTION MANUAL

WWW.WILFA.COM

Illustrasjon 1

Delebeskrivelse

Technical line drawing of two mechanical components with angular dimension标注 (22°), no readable text or symbols present.

Illustrasjon 3

tighten the bolt again with screw driver

Technical line drawing of a mechanical component with curved blades and a central shaft (no text or symbols)

step3

Technical line drawing of a mechanical component with curved and straight sections, no text or symbols present

step2

loose the bolt with screw driver

step1

Illustrasjon 4

5 - BRUK

Vy 1.

Komponentbeskrivning

Technical line drawing of two mechanical components with angular dimension标注 (22°), no readable text or symbols present.

Vy 3.

Vy 4.

5-ANVÄNDA UTRUSTNINGEN

Fig. 1

Technical line drawing of two mechanical components with angular dimension标注 (22°), no readable text or symbols present.

Fig. 3

tighten the bolt again with screw driver

Technical line drawing of a mechanical component with curved and straight ends (no text or symbols)

step3

Technical line drawing of a mechanical device with a curved handle and directional arrow (no text or symbols)

step2

loose the bolt with screw driver

step1

Fig. 4

[Tekst til Fig. 4:

Trin nr. 3

Trin nr. 2

Trin nr. 1

Kuva 1

Osien nimet

Technical line drawing of two mechanical components with angular dimension标注 (22°), no readable text or symbols present.

Kuva 3

tighten the bolt again with screw driver

Technical line drawing of a mechanical component with curved blades and a central shaft (no text or symbols)

step3

Technical line drawing of a mechanical device with a curved handle and lever (no text or symbols)

step2

loose the bolt with screw driver

step1

Kuva 4

5 - KÄYTTÖ

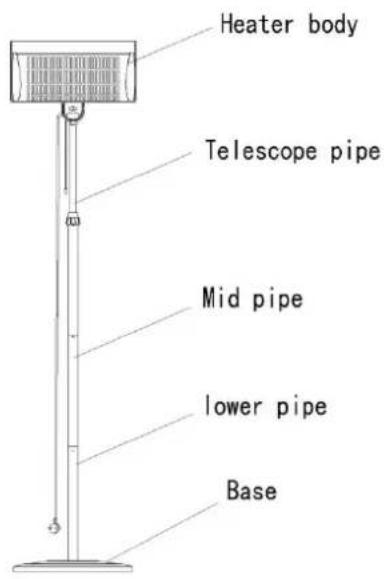

view 1.

Part Description

21 Heater Body
22 Telescope Pipe
23 Mid Pipe
24 Lower Pipe
25 Base

5- WARNINGS

■ In order to avoid overheating, do not cover the heater
■ Do not place the appliance close to curtains and other combustible materials.
■ This electrical appliance complies with technical safety and electromagnetic compatibility standards.
■ Never touch your heater when in operation (risk of burns).
■ Never touch it with wet hand.
■ Never rotate the heating part of the appliance during operation. To change

the tit angle of the heating part, we advise you to wait for 15 minutes after the appliance has been switched off.

■ Never place anything on your heater's safety guard as this may cause overheating (e.g. towels)
■ Never use your appliance to dry washing.
■ Switch off your appliance:

• After use
• In the event of malfunction
• Before cleaning it.

■ Never operate your appliance if it has fallen over.
■ Never dismantle your appliance. An incorrectly repaired appliance maybe dangerous to the user. If you encounter any problems, please take it to one of the Approved Service Centers in our customer service network The warranty will be void in the event of damage arising from improper use.
- Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.
This movable appliance is designed for use in gardens, and can be used indoor and outdoor. The warranty will not apply to appliances used for professional usage. Although the heater may be used outdoors, the main plug must only be connected to the supply indoors.

The heater is provided with an anti-tilt switch will switch off the heater if it is overturned, and will switch it on again automatically when it is restored to its upright position.

■ the appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
■ children being supervised not to play with the appliance
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2-VOLTAGE

Before using the appliance at the first time, ensure that your mains voltage

corresponds to voltage indicated on the appliance. It is a class I appliance and must be earthed.

3-SAFETY

CAUTION: Before fitting or removing the appliance, ensure that the heater's power line supplying the heater is disconnected.

This appliance is designed for use in gardens, and any room in your house, including those where there is a risk of splashing. The installation and use of your appliance must comply with the applicable standards in your country.
- When it is switched on, an electrical heating appliance reaches very high temperature able to cause burns. Make sure that all other users are aware of the risks.
■ If you have any doubts concerning installation possibilities for this heater, please consult a qualified electrician.
■ Children, the elderly and the infirm may not always be aware of the danger involved in using electrical appliances. Never allow this appliance to be used without supervision.
■ The appliance must be positioned so that the plug is accessible.
■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard
- Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
■ Do not place the appliance close to curtains and other combustible materials.
■ The heater must not be located immediately below a socket-outlet.
■ The heater must be installed at least 1,8 m above the floor.

4-HOW TO ASSEMBLE

■ Before installing your appliance, you must disconnect the electrical supply at the circuit breaker. In order to avoid overheating, do not cover the heater Do not place the appliance close to curtains and other combustible materials.

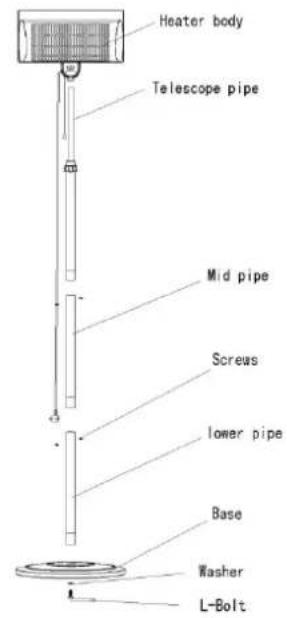

3) Insert the Lower pipe into the base and then fix it tightly by means of L-Bolt,

view 2

The washer should be added between the Base

and the L-Bolt (view 2)

2> Join the Mid Pipe and the Lower Pipe together with screw. (view 2)

3>Join the Telescope Pipe and the Mid Pipe together with screw. (view 2)

4>Join the Heater Body and the Telescope Pipe together, then fix them tightly with the screw. (view 2)

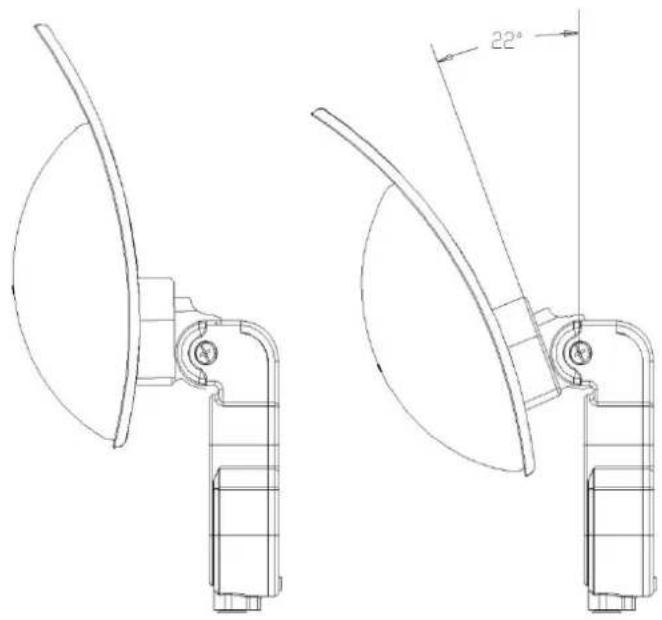

5>. According to the request of use angle,

The angle for Heater Body can be adjusted at 0°\~22°

( view 3.)

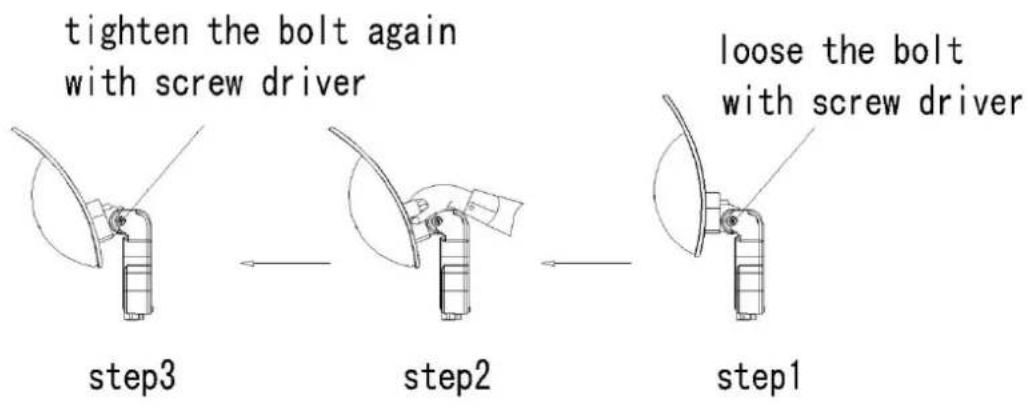

When doing adjusting, you should follow the three steps below (view4):

1. First loose the bolt in the joint with a screwdriver,(see step1)
2. Take the linker by the hand and turn it up or down as you want,(see step2)
3. Tighten the bolt again with the screwdriver.(see step3)

Warning: Always remember you have to wait for 15 minutes after the appliance has been switched off before changing the tit angle of the heater

body.

Technical line drawing of two mechanical components with angular dimension标注 (22°), no readable text or symbols present.

view 3

tighten the bolt again with screw driver

Technical line drawing of a mechanical component with curved and straight ends (no text or symbols)

step3

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

step2

Simple line drawing of a mechanical device with a curved blade and base, labeled 'with s' (no text or symbols on the diagram itself)

loose the bolt with screw driver

step1

view 4.

5-OPERATION

The appliance is switched on by means of the pull chain Switch, when you are pulling the switch, at the same time you can choice the power settings by reading the figure “0”, “1”, “2” from the little window of the heater body, one figure occurs after each pulling, and they occur in the turn of 0, 1, 2, 1, 0. And in the full turn each figure means below:

0, means the heater off,

1, means the upper heating tube element on and the power 1000W,

2, means the two heating tube elements on and the power 2000W,

1, means the lower heating tube element on and the power 1000W,

0, means the second turn begin and the heater off again.

6-MAINTENANCE

Your appliance dose not requires any particular maintenance. However, in the event of a malfunction, please consult an Approved Service Center.
