Product Type	Portable Convection Heater
Brand	Wilfa
Model	HC-2000B
Power Consumption	2000 W max
Heating Settings	750 W and 1250 W (two rocker switches)
Voltage	230 V AC
Frequency	50 Hz
Current	8.7 A
Power Cord Length	Approx. 1.5 m (estimate)
Controls	Two illuminated rocker switches and a continuously adjustable thermostat
Indicators	Pilot lamp and switch illumination when active
Assembly Required	Yes, attach feet using provided tapping screws
Safety Features	Over-temperature automatic shut-off; grounded plug; do not cover warning
Plug Type	Grounded (3-pin) – do not replace
Cleaning	Wipe with damp cloth; do not use abrasives; avoid water ingress
Storage	Store in clean, dry place when not in use
Environmental Compliance	WEEE directive – do not dispose with household waste
Intended Use	Indoor use only; not for bathrooms or wet areas
Minimum Clearance	Keep at least 0.9 m from front and sides/rear
Weight	Approx. 3 kg (estimate)
Dimensions (approx.)	45 x 20 x 40 cm (estimate)

Frequently Asked Questions - HC-2000B WILFA

How do I assemble the Wilfa HC-2000B heater?

Before using, attach the feet to the base of the heater using the four provided tapping screws. Ensure they are correctly located in the bottom ends.

How do I operate the heater?

Plug into a suitable outlet. Turn the thermostat knob fully clockwise to maximum. Use the rocker switches to select heat settings: one switch for 750W, both for 1250W+750W=2000W. The heater will cycle on/off to maintain the set temperature.

Why does the heater emit an odor when first used?

It is normal for the heater to emit some odor when first turned on or after long storage. This will disappear after a short period of operation.

What safety features does the heater have?

It has an over-temperature safety device that automatically switches off the heater if overheating is detected. It also has a grounded plug and warnings not to cover the heater.

Can I use an extension cord with this heater?

It is recommended to avoid using an extension cord as it may overheat and cause a fire risk. Plug directly into a wall outlet.

How should I clean the heater?

Always unplug and let the heater cool. Wipe the exterior with a damp cloth and buff dry. Do not use detergents or abrasives, and prevent water from entering the heater.

What is the minimum clearance required?

Keep combustible materials at least 3 feet (0.9 m) from the front of the heater and away from sides and rear.

Where should I not place the heater?

Do not use outdoors, in bathrooms, laundry areas, wet areas, or near water. Never place where it could fall into a bathtub. Also avoid placing directly below a socket-outlet.

Does the heater have a tip-over switch?

No, the manual does not mention a tip-over switch. It only has an over-temperature safety device.

What should I do if the heater stops working?

Check that it is plugged in and the thermostat is set above room temperature. If the over-temperature protection activated, let it cool. If still not working, return to an authorized service center – no user-serviceable parts inside.

USER MANUAL HC-2000B WILFA

Line drawing of a rectangular device with circular holes and mounting feet (no text or symbols)

HC-2000 Convection heater

NO BRUKSANVISNING

SE BRUKSANVISNING

DK BRUGSANVISNING

FI KÄYTTÖOHJE

GB INSTRUCTION MANUAL

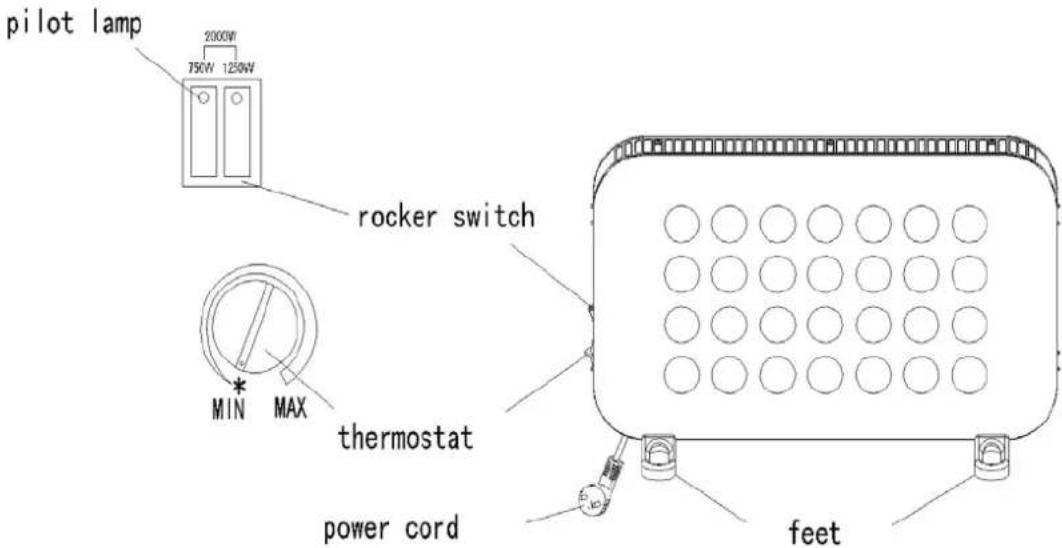

Fig. 2

(pilot lamp = kontrollampe; rocker switch = vippebryter; thermostat = termostat; power cord = strømledning; feet = føtter)

Fig.1

feet=fötter

tapping screws=skruvar

4.Bruk

OBS:

Fig. 2

pilot lamp=indikatorlampa rocker switch=vippbrytare thermostat=termostat power cord=sladd feet=fötter

5. Rengöring

Fig.1

4.Operation

Bemærk:

Fig.2

Kuva 1

4. Käyttäminen

HUOMIO:

Kuva 2

Owner's Manual For Portable Convection Heater

Model HC-2000

It is important that you read these instructions before using your new purchase and we strongly recommend that you keep them in a safe place for future reference.

Table of Contents

Safety Instructions....1

Specifications 2

Assembly 3

Operation 4

Cleaning Heater....5

1. Safety Instructions

When using this electrical convection heater, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, so read all instructions before using this heater. including the following:

• 1–1. Do not cover or obstruct top and bottom air vents of the heater, otherwise will cause the heater overheating, to warn this, a word "Do not cover" and its symbol have been print near the top air Vents of the heater.
• 1–2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.

• 1–3. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9m) from the front of the heater and keep them away from the sides and rear.

• 1–4. Extreme caution is necessary when any heater is used by or near children or handicapped persons.

• 1–5. Always inspect power cord, and do not operate heater with a damaged cord or plug.

This heater is equipped with a grounded type plug (see illustration) and must be plugged into a grounded type outlet as shown. This is a safety feature: DO NOT REPLACE THIS PLUG!

• 1-6.DO NOT OPEN HEATER. There are no user serviceable parts inside.
• 1–7.Do not use the heater, if the heater has malfunctioned, or if it has been damaged or dropped in any way. In such a case, return the heater to an authorized service facility for examination and/or repair.
• 1–8.Do not use outdoors – always use indoors.
• This heater is not intended for use in bathrooms, laundry areas, wet areas or similar indoors areas.
• Never locate heater where it may fall into a bathtub or other water containers.
• 1–9. Do not run the heater cord under carpeting, or otherwise cover the cord. Make sure the cord is out of the way so that it does not pose a risk of tripping.
• 1–10. Turn off heater before unplugging from the electrical outlet.
• 1–11. Do not insert objects through the air vents of the heater as this may cause an electric shock or fire. To prevent fire do not block air intakes or exhaust in any manner.
• 1–12. A heater has hot and arcing parts inside. Never use the heater in the vicinity where paint thinners, gasoline, paint or other flammable liquids are used or stored.
• 1–13. Use this heater only as described in this manual. Any other use may cause injury to persons, or property damage, or electric shock.
• 1–14. Avoid using an extension cord to power the heater because the extension cord may overheat and cause a risk of fire.
• 1–15. This heater draws 8.7 amps during operation. To prevent

overloading a circuit, do not plug the heater into a circuit that is already being used to power other appliances.

- 1–16. While it is normal for the heater's plug to feel warm to the touch, a loose fit between the plug and the electrical outlet may cause overheating and warping of the plug. If the outlet is loose, contact a qualified electrician to replace loose or worn outlets.

- 1–17. Do not allow water to splash on the heater. If the heater appears to be damp, discontinue its use immediately.

- 1–18. The output of this heater may vary and its temperature may become intense enough to burn exposed skin. Use of this heater is not recommended for persons with reduced sensitivity to heat or inability to react to avoid burns.

- 1–19. Service of the heater other than cleaning should be performed by an authorized service center. No user serviceable parts inside. Only authorized service personnel shall handle repair work.

- 1–20. The appliance has an internal over-temperature safety device, which automatically switches the heater off, if an over-heat situation is detected. When the unit cools off, it will switch on again.

1-21. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

1-22. The heater must not be located immediately below a socket-outlet.

1-23. the appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

1-24. children being supervised not to play with the appliance

1-25. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING – In order to avoid overheating, do not cover

the heater

2.Specifications

Model HC-2000
Maximum Power 2000W
Heating Power setting:	750W+1250W
Voltage: 230V,AC / 50Hz

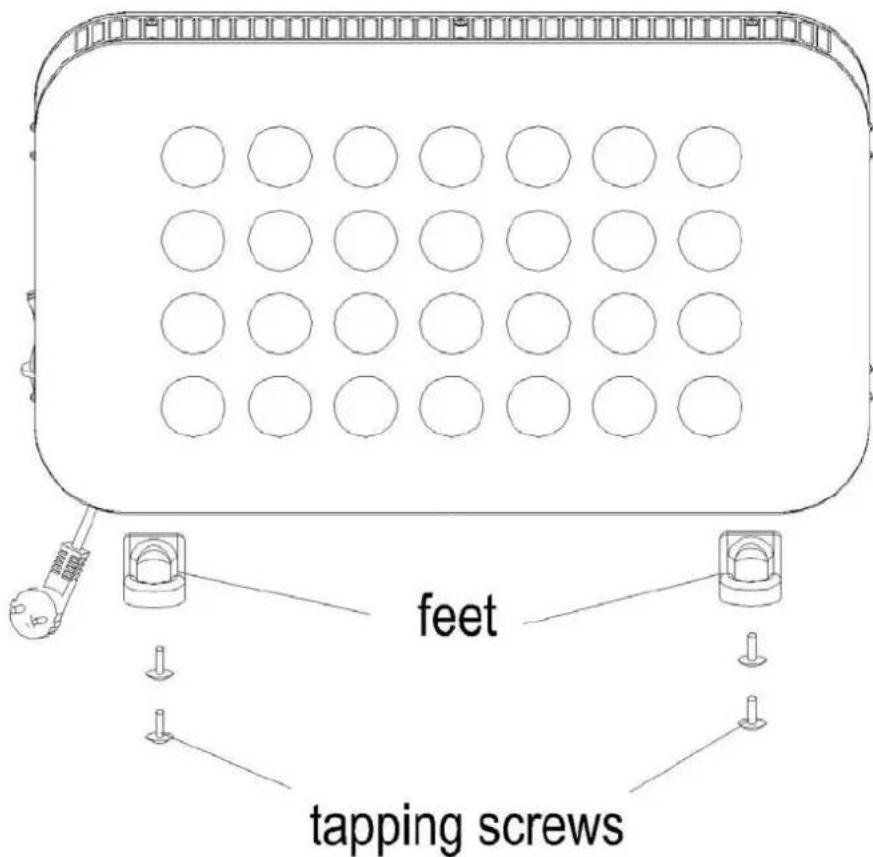

3. Assembly

Before using the heater, attach the feet (included separately in the carton) to the unit.

Attach to the base of the heater using the 4 tapping screws provided,

taking care to ensure that they are located correctly in the bottom ends of the heater.

4.Operation

NOTE:

It is normal for the heater to emit some odor when it is turned on for the first time, or after having not been used for a long period of time. This will disappear when the heater has been on a short while.

• 4–1. Choose a suitable location for the heater, taking into account the safety instructions above.
• 4-2. Insert the plug of the heater into a suitable outlet,
• 4–3. Turn the thermostat knob fully in a clockwise direction to the maximum setting.
• 4–4. Turn on the heating elements by means of the rocker switches on the side of the heater. When the heating elements are on, the switches will illuminate. each switch on, the heat output is 1000W, For maximum heat output 2000W, both switches should be on.
• 4–5. When the desired room temperature has been reached, the lights on the element switches are seen to go out. After this, the heater will keep the air temperature in the room at the set temperature by switching on and off automatically.
• 4–6. In its minimum (fully counter-clockwise) position. In this position (depending on the size of the room) the heater will maintain the temperature above freezing.

5.Cleaning the Heater

5-1. Always un-plug the heater from the outlet and allow it to cool down before cleaning.
5-2. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
5-3. Do not use any detergents or abrasives and do not allow any water to enter the heater.
5-4. When the heater is not used for long periods of time, it should be protected from dust and stored in a clean dry place.

The manufacturer reserves the right to make technical changes. Manufactured and imported for Wilfa.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
