Product Type	Stroller
Brand	Emmaljunga
Model	Cerox 2.0
Suitable For	1 child from 6 months to 3 years (max 15 kg)
Seat Unit Age	From 6 months (child can sit unaided)
Carrycot (Quadrolift/Babylift)	From birth to 6 months, max 9 kg
Quadrolift Dimensions	800 mm (L) x 400 mm (W)
Babylift Dimensions	800 mm (L) x 330 mm (W)
Harness	5-point safety harness with shoulder pads
Chassis	Foldable, adjustable handle height, reversible handle with Newton safety catch
Wheels	4 wheels with cogs, removable, parking brake on all wheels
Brake	Foot-operated parking brake

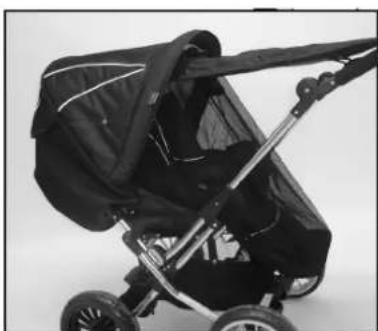

Hood	Adjustable, with sunroof (pull out), mosquito net on some models
Footrest	Adjustable (two positions), reversible cover, max load 3 kg
Front Bar	Bumper bar with removable cover
Shopping Tray	Max load 5 kg, place heavy items in center
Accessories	Original Emmaljunga accessories: Toddler Roller, Toddler Seat, car seat adaptor, footmuff
Cleaning	Hand wash fabrics in lukewarm water, drip dry. Leatherette: wipe with damp cloth only.
Standards	DIN-EN 1888:2003 + A1/A2/A3:2005, EN 1466:2008
Weight (approx.)	12 kg (estimate)
Maintenance	Lubricate axles every 3 months; check locking devices, brakes, and all fasteners regularly.
Warranty	6 months manufacturing guarantee (Great Britain only)
Safety Features	Newton safety catch (prevents accidental handle reversal), secondary locking mechanism on chassis

Frequently Asked Questions - Cerox 2.0 Emmaljunga

What is the maximum weight capacity of the Cerox 2.0 stroller?

The stroller is suitable for one child up to a maximum weight of 15 kg (approx. 3 years). When using the carrycot (Quadrolift/Babylift), the maximum weight is 9 kg.

From what age can the seat unit be used?

The seat unit is not suitable for children under 6 months. Use it only when your child can sit unaided.

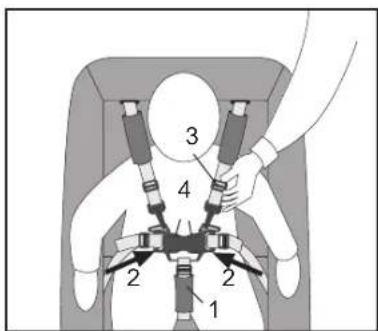

How do I adjust the 5-point harness?

Place the crotch strap between the child’s legs and insert it into the harness lock until it clicks. Adjust all straps using the buckle (3). To release, press the buttons (4) on the lock. Always use the harness when the child is seated.

How do I fold the Emmaljunga Cerox 2.0?

Ensure the handle is on the same side as the safety catches and the brake is engaged. Release the safety catches by pulling them gently, then press down the safety catch and fold the handle forward. For more space, remove wheels by pressing the hub cap release button.

Can I use this stroller for running or skating?

No. The manual explicitly warns: ‘This product is not suitable for running or skating.’ It is designed for walking only.

How should I clean the fabrics?

Remove the seat fabric and hand wash in lukewarm water with mild liquid soap. Drip dry. For the hood, shower from inside with lukewarm water, then extend and drip dry. Do not machine wash. For leatherette, wipe with a damp cloth only.

What original accessories are available?

Emmaljunga offers original accessories such as the Toddler Roller, Toddler Seat, car seat adaptor, and footmuff. Use only one accessory at a time.

How do I adjust the handle height?

Press the grey buttons on the inside of the handle (2) and keep them pressed while adjusting to the desired position (3). The handle locks into each position.

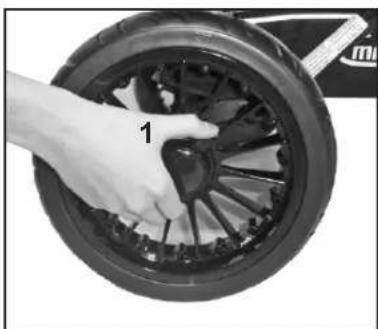

How do I attach the wheels?

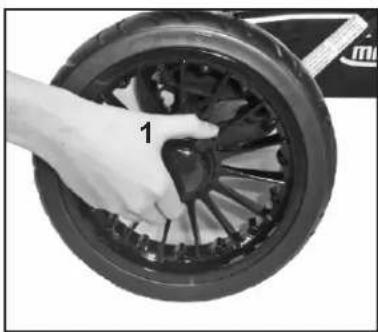

Remove plastic protection from axles. Press the hub cap release button (1), push the wheel onto the axle as far as it will go, release the button, and pull the wheel toward you until you hear a click. Repeat for all four wheels. Ensure they cannot be pulled off.

What is the Newton safety catch?

The Newton safety catch is an extra safety detail that prevents involuntary reversal of the handle. To reverse the handle, release the mechanism by pulling the black plastic part upward, then carefully push the handle to the other side until it clicks.

USER MANUAL Cerox 2.0 Emmaljunga

IMPORTANT! READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

This product complies with DIN-EN 1888:2003 + A1/A2/A3:2005, EN 1466:2008, EN 1466:2004+A1:2007

This product is suitable for one (1) child from 6 months - 3 years with a maximum weight of 15 kg.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided.

WARNING! The product is not suitable for running or skating.

WARNING! The Quadrolift / babylift is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on

its hands and knees. Maximum weight of the child: 9 kg

WARNING! Never use the Quadrolift / babylift on a stand.

The outer length and width of the Quadrolift is 800 mm / 400 mm. The outer length and width of the Babylift is 800 mm / 330 mm.

WARNING! Please visit www.emmaljunga.co.uk for the latest version before using the product.

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols on the main subject.

Close-up of a black fabric garment with a zipper and clasp detail (no visible text or symbols)

Montera suffletten

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

2

3

4

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

8

Justera suffletten

Illustration of a person using a bicycle seatbelt device (no text or symbols visible)

2

Close-up of a hand cleaning a car wheel rim with a black plastic wheel (no text or symbols visible)

3

Close-up of a mechanical device with a mesh cap and directional arrow (no visible text or symbols)

4

Manual Cerox 2.0 v. 2.3

WARNING

Illustration of a hand using a tool to cut a mechanical component, labeled with the number 6 (no text or symbols on the diagram itself)

Diagram of a mechanical device with labeled parts (no readable text or symbols)

Black-and-white illustration of a person wearing a patterned bag with a blue mesh design (no text or symbols)

10

Mechanical assembly diagram showing a hand operating a bicycle with a numbered component (no text or symbols present)

10

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Cerox 2.0 v. 2.3

Contents of the box 16

Emmaljunga's original accessories 16

Important safety information....17-19

Assembly of seat unit 20-21

How to use the seat unit....22

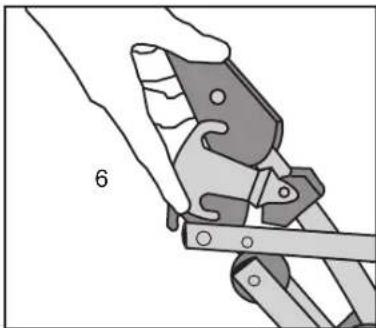

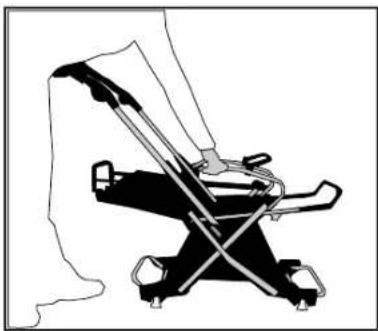

Assembly and usage of the chassis 23-24

Care and maintenance 25-26

Service Documentation 27

Delivery Check 28

Service Protocol 29

Contents of the box

Sport stroller

1 pc. five point safety harness
1 set of shoulder pads for harness
1 pc. folded chassis with tray
4 pcs. wheels
1 pc. instruction manual
1 pc. hood
1 pc. seatunit fabrics
1 pc. footrest fabrics
1 pc. frontbar cover

Emmaljunga's original accessories

Please use Emmaljunga's original accessories for maximum safety and comfort. Information about accessories that match our prams can be found in our brochure or at any of our authorised retailers. Visiting our web site is also an option www.emmaljunga.co.uk.

Please Note:

Throughout this manual the term "vehicle" will be used as a short form of "wheeled child conveyances".

Important safety information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

Warning sentences according to prEN1888:2010

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

WARNING Follow the manufacturer's instructions.

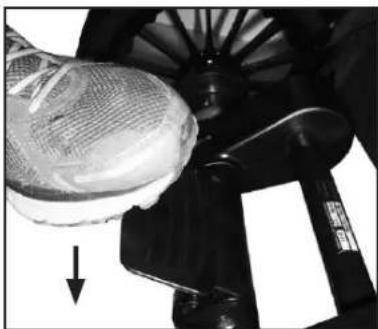

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

WARNING Not recommended for a child under 6 months old.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

Important safety information

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

WARNING It may be dangerous to leave your child unattended.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crotch strap in combinations with the waist belt.

WARNING This product is designed and built according to the standard EN1888/EN1466. This product should not be used as a medical treatment device. If your child has special medical needs in connection with transportation you should consult your doctor.

WARNING Do not modify this product as it may compromise the safety of your child. The manufacturer is NOT liable for any modifications to the product.

WARNING Do not use this product in strong winds or thunderstorm.

WARNING Please note that train or underground stations may cause sudden high pressure changes in the air (wind or vacuum). Never place this product near any rails without having both hands on the handle as the braking device alone may not be sufficient to keep your stroller safely in place.

WARNING Do not cross rails when the child is placed in the stroller or the prambody. Wheels may get stuck!

WARNING When transporting on public transport (bus, underground, train etc.) it is not enough to use the pram's parking brake only. The pram can be exposed to conditions (abrupt braking, turns and bumps in the road surface,

Important safety information

acceleration etc.) that it has not been tested for according to the current pram standard EN1888. Follow the recommendations and instructions regarding the safe anchorage of prams during transport that public transport operators are obliged to supply. WARNING Keep away from fire.

- Your child's safety is your responsibility.

- This product is intended for one (1) child from the age of 6 months up to a maximum weight of 15kg . Only use the pram for the number of children it is intended for.

- The carrycot / pram body can only be used for the transportation of one child from 0 to 6 months. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on it's hands and knees. Maximum weight of the child: 9kg.

- With a lift (original accessory) the pram can be used from birth, then only use the seat unit in the most reclined position. Make sure that the lift is positioned on top of the restraint system to avoid the restraint system from coming into the lift.

- Follow the care and maintenance instructions.

- The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.

- It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories how they should be used, even if the person(s) in question will only use them for a short time.

- The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.

- Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller, Toddler Seat or car seat adaptor.

- Do not place objects on the hood. Never use the pram without the hood.

- If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.

- The pram is intended for transportation only. Never use the pram as a bed for your child.

- Never leave the pram with a child in it without engaging the brake.

• The brake should always be engaged when you lift your child in and out of the pram.

- Never park the pram on a hill or an uneven surface.

- Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.

- Never use the product if a part is faulty or damaged.

- Check that all zips and poppers are securely fastened before use.

• Always remove the child before you fold the pram.

• Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.

- When using a lift accessory, attach the product to the d-rings on the pram. Check that the carrycot's/lift's carrying straps are fastened securely. The Babylift's carrying straps should be placed inside the product's mini hood.

- Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.

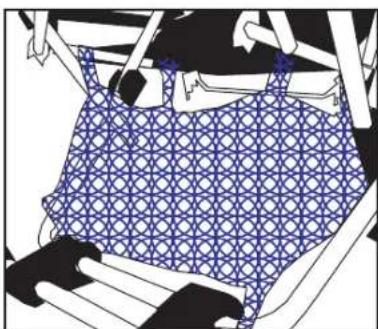

- The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is unevenly distributed.

- Only use original replacement parts supplied by Emmaljunga.

- Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.

- The outer length and width of the Quadrolift is 800 mm / 400 mm.

- The outer length and width of the Babylift is 800 mm / 330 mm.

- If you need to identify this product there is a sticker showing model name and serial number placed on the chassis / pram body / Carrycot.

- Make sure that the carry cot / pram bodies carrying handles shall be left out of the carry cot / Pram body during use.

Assembly of the seat unit

1

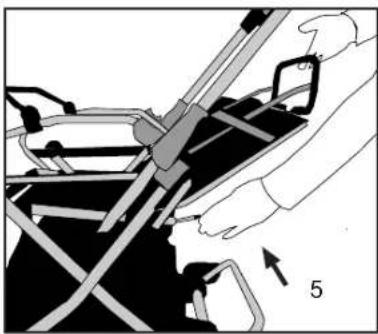

Attach the seat-unit and the 5-point harness

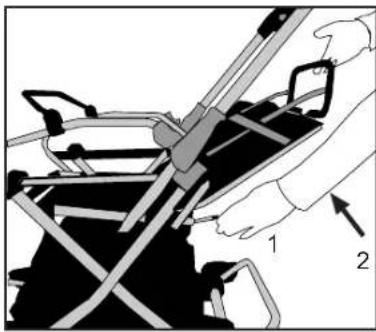

- Press the back rest release mechanism (1) and move the backrest to its up most upright position (2).

2

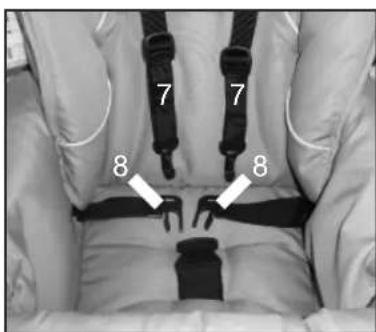

- Release the shoulder and waist straps from the harness lock before you assemble the seat unit. Place the seat unit fabrics back pocket (3) over the seat unit's backrest.

3

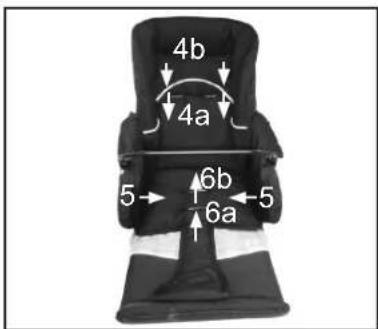

- Place the shoulder straps through the holes (4a) or (4b) in the backrest depending on the size of the child.

- Place the waist straps (5) through the holes in the seat.

- Place the crotch strap through the holes (6a) or (6b) in the base and seat depending on the size of the child.

4

- A harness with shoulder and crotch straps contains two shoulder pads and one larger crotch pad. Place the shoulder pads over the two shoulder straps (7). Attach the waist harness with the lock (8). Put the crotch pad over the crotch strap.

5

- Make sure that the seat fabric's back pocket is attached correctly onto the backrest frame (9).

WARNING

- Always make sure that the backrest is in a safe position before it is used. This step is very IMPORTANT.

Assembly of the seat unit

6

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

- Fasten both fabric armrests over the sides of the seat unit.

7

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols beyond the number.

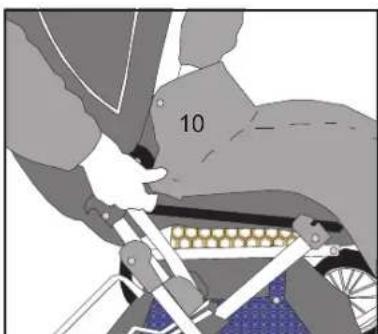

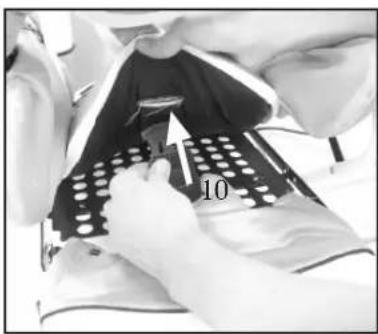

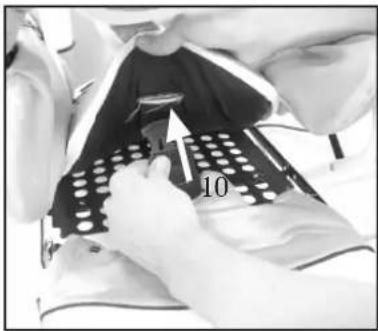

- Slide the footrest cover (10) over the footrest and fasten the poppers through the holes of the seat base. - The footrest cover is reversible

IMPORTANT

- Always make sure that the crotch strap go through the plastic bottom, the foot rest cover and the fabrics when used in either inner and outer position.

WARNING

- Never let your child/children stand on the footrest

8

Assembly of the front bar cover

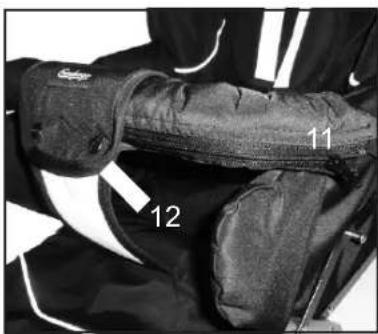

- Place the bumper bar protection (11) over the bumper bar and zip. - Fasten the crotch strap (12) around the bumper bar.

9

Close-up of a garment zipper and fabric detail (no visible text or symbols)

Assembly of the hood

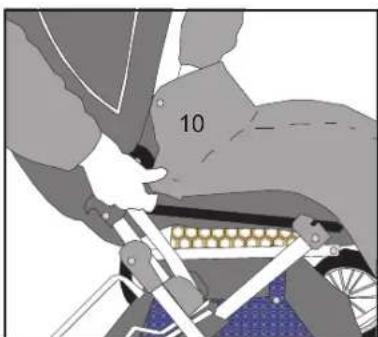

- Press the hood attachments into place, one on each side of the hood, using the plastic attachments on the seat unit (one on each side). Make sure they click into place. - Attach the press studs of the hood (one on each side)

10

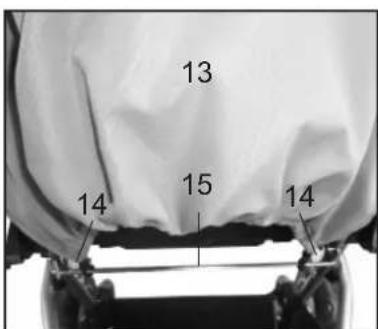

- Attach the hood pockets (13) both plastic hooks (14) that are found on the hood on the the metal bar (15).

Manual Cerox 2.0 v. 2.3

How to use the seat unit

1

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

2

3

4

Illustration of hands operating a mechanical device with a numbered arrow indicating component 5 (no text or symbols present)

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

22

Adjust the hood

- Adjust the hood gently by gently pulling the front backwards and forwards until it reaches the desired position.

IMPORTANT

- Never lift the pram by holding onto the hood.

- Some stroller models are equipped with a mosquito net in the hood.

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Adjusting the Footrest

- Adjust the footrest to the down position by releasing the lock (1) on the side of the footrest and pulling the footrest horizontally (1a) and downwards (1b).

- The footrest is adjusted into its horizontal position by lifting the footrest and pushing it horizontally towards the pram.

• Make sure that the footrest is locked into desired position before usage.

• The footrest cover is reversible.

WARNING

- Never let your child/children stand on the footrest.

Adjusting the 5-point harness

- Place the crotch strap (1) between the child's legs and up towards the waist. Place the crotch strap (2) into the harness lock (2) until they click into place. Please check that the waist straps are locked into position.

- Adjust all the straps with the aid of the buckle (3).

- You release the shoulder straps and the waist straps by pressing the buttons into place (4) on the harness lock.

At each end of the waist straps there is an attachment point for a harness that fulfills BS 6684.

WARNING

- Always use the harness when the child is seated in the pram. Please make sure that all the buckles are attached and that the harness is attached in the D-rings.

Adjust the backrest

- Press the backrest mechanism (5) and adjust the backrest into desired position.

WARNING

- Please check that the backrest is locked into one of its four positions by pressing the backrest backwards until it is locked into one of its positions.

Use of the sun roof

- Pull out the sun roof around the handlebar and attach the plastic hooks in the loops

Use of the rain cover

- The rain cover is attached by placing the rain cover over the carrycot and seat-unit. Please note that there is an opening in the rain cover near the hood opening. Use the rain cover that is supplied with the pram.

- Always use the rain cover when it's raining or snowing. If the pram is damp before the rain cover is attached, wipe off the fabrics first if possible.

- Make sure the rain cover is completely dry before it is placed back into its bag.

Assembly and usage of the chassis

1

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

2

Close-up of a hand cleaning a black bicycle wheel rim (no text or symbols visible)

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Unfolding the chassis

- Start by braking the pram.

- Pull the handle while you are holding one side of the chassis.

WARNING

- The chassis locks need to click into the locked position.

- The safety catch (secondary locking mechanism) is activated to prevent unintentional folding if the chassis lock is not locked into position.

- Please make sure, before you use the pram that the chassis lock is in the locked position.

Attaching the wheels

- Remove the plastic protection from the axles. Save them for future use.

- Attach the wheels with the wheel cogs. Press in the hub cap's release button (1), push the wheel onto the axles as far as it can go. Release the button and pull the wheel towards you, until you hear a definite click. Repeat the same procedure for all four wheels. Please make sure that the wheels are attached properly and cannot be pulled off the axle.

- Release the brake by pushing the brake bar up towards you using minimum force with your foot.

IMPORTANT

- The wheels are greased and can leave marks on textiles. Please use wheel protection indoors to protect your floors.

- Risk of suffocation. Don't let your child play with or in some other way handle the plastic protections.

- Because of the influence of ozone and UV radiation the tyres may develop small cracks due to the rubber drying out. This does not affect the vehicle's driving ability and safety and is not a reason for complaint.

3

Close-up of a mechanical device with a mesh cap and arrow indicating downward motion (no visible text or symbols)

4

Manual Cerox 2.0 v. 2.3

Engaging the Parking Device

- Engage the parking device by pushing down with your foot.

• Disengage the parking device by pulling up.

WARNING

- Never leave the vehicle without first engaging the parking device.

- Avoid uphill or downhill parking.

- The pram's brake should always be engaged when you lift your child in and out of the pram.

• Make sure that the cogs are attached properly on all 4 wheels

- Make sure that the brake pin engages into the cogs when the vehicle is in parked position.

How to adjust the height of the handle

- Adjust the height on the handle by pressing the grey buttons on the inside of the handle (2).

Keep the buttons pressed in while you adjust to the required position (3).

Assembly and usage of the chassis

5

Illustration of a hand using a tool to cut a mechanical component, labeled with the number 6 (no text or symbols on the diagram itself)

7

8

Diagram of a mechanical device with labeled parts (no readable text or symbols)

9

Black-and-white illustration of a person wearing a patterned shirt and holding a tool, with no visible text or symbols.

10

Illustration of a person using a bicycle to lift a seat, no text or symbols present

- Your pram is equipped with a Newton safety catch (6). The safety catch is an extra safety detail that prevents involuntary reversal of the handle.

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

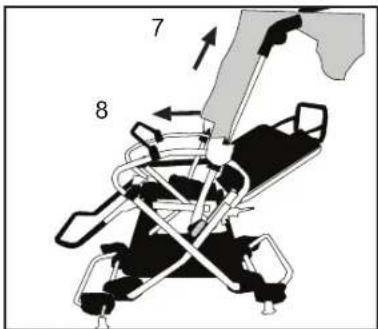

To reverse the handle

• If you would like to change the seat direction easily you can reverse the handle.
• Move the handle to its upright position. Release the mechanism by grabbing the Newton hook and pull the black plastic part up towards you (7) with both hands. Once it has released, push the handle carefully over to the other side of the vehicle (8). After that the handle can be locked into position on the other side.
• Check that it clicks into position on the other side and that the Newton hook has engaged properly.
• Note! Be careful when moving the handle over so that you do not damage the surface of the chassis.
• Adjust the handle in the position required.

IMPORTANT

• Make sure that the area is clear. Remember the child's active safety is your responsibility!

WARNING

Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

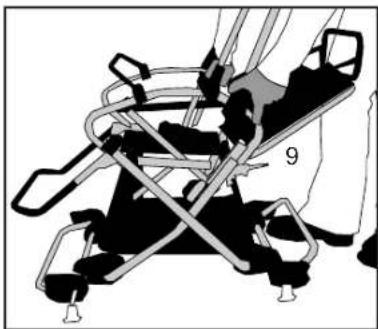

Folding the pram

• Start by making sure that the handle is on the same side as the safety catches (9) and that the pram is braked.
• Release the safety catches (9) by pulling these gently towards you.
• Press down the safety catch and fold the handle forward.
• If you need to make more space you can remove the wheels by pressing in the hub cap's release mechanism and pulling the wheel off the axle.

- Wipe off any dirt or grease from the axles before you replace the wheels.

- The tray is already fitted on delivery but it can be removed for washing. Remove the wooden plate before washing.

IMPORTANT

- It is important that the tray straps are properly affixed over the axle. They should not be attached to the cross pipe.

Using the footmuff (accessory)

- If you use a footmuff (accessory) you must use the rear press stud (10) on the armrest fabric, i.e. the press stud that is closest to the hood.

Care and maintenance

IMPORTANT

By following these instructions, you can help to keep your new Emmaljunga vehicle in good condition.

General care and maintenance instructions

• Never expose your vehicle to excessive sunlight for longer periods of time.
  • Always use a raincover when snowing or raining.
• Never store your vehicle in cold and/or damp places.
• Be careful when transporting the vehicle in order not to tear the fabric.
• Should the chassis become wet, dry it off promptly. Make sure vehicle is completely dry before storing.
• If the vehicle is used near the ocean or salted roads, spray the chassis with a hose and dry.
• Powdercoated chassis, in spite of highest possible quality, it chips more easily compared to a chrome chassis. Always be careful, especially with transportation and storage.

Routine Inspection

• Regularly clean the chassis and metal parts of the vehicle, dry it off and lubricate all joints of the chassis. Spokes, and fenders on all wheels, should frequently be wiped off with a dry cloth. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion on the spokes and fenders. Should corrosion on the surface occur, which is a possibility, you are required to remove this with a corrosion cleaning agent.
  Important! Powder coated chassis and powder coated rims should never be treated with a corrosion cleaning agent as the colour will change.
• It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken.
• all plastic parts are not cracked or broken.
• the wheel bushings are in a good condition.
• all velcros are securely fastened.
• the press-stud is securely fastened on the footrest flap.
• all elastic straps are in a good elastic condition.
• the secondary locking mechanism is intact and can move freely.
• the brake works.

PLEASE OBSERVE

• When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with the retailer where your Emmaljunga product was purchased. All Emmaljunga products come with a six month manufacturing guarantee. This guarantee does not apply when issues arise through normal wear and tear.
  • This information is relevant for Great Britain only.

WARNING

- Tyres can when in contact with PVC-floor or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Cerox 2.0 v. 2.3

• The parking brakes consist of moving parts and require regular maintenance for correct function.
• To ensure effective functioning always make sure that the parking brakes are well lubricated. Immediately remove sand, snow and dirt from any moving part of the braking system.
• Use a silicon or oil based lubricant to lubricate the brake pedal, wheel axle and brake pins on both sides of the parking brake at least once a month. Also lubricate the release mechanism on the wheels on a similarly regular basis.
• If you use your Emmaljunga pram/stroller on sandy beaches or under other dirty and wet conditions make sure to take extra care of the parking brake and maintain the braking system and wheels as detailed above whenever needed.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with luke warm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the hood, fully extended.

Twin Sportstroller: Handle the non-woven interior material with care.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis. Remove the seat-board, store it in a dry place. Handwash seat fabric in luke-warm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat-fabric. When the seat fabric is removed the 5-point harness is accessible. Only wipe the nylon straps and plastic parts clean with a damp cloth. No handwash. Make sure the harness is dry before reassembly.

• Frontbar padding and apron:

Remove the frontbar padding/apron. Handwash in luke-warm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

General Information

• Ironing: If any fabric part needs to be ironed, always use a 100 % cotton cloth in between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 %) polyester and the interior fabrics (65 % cotton/35 % polyester) on a gentle heat (110°C on the iron).
• Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat-fabric underneath the backrest pocket.
• You may apply a material protector on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place child/children in stroller for at least 24 hours after applying a material protector.

Reassembly

WARNING

• Make sure all parts are assembled correctly according to the instructions in this manual.
• Make sure the seat-board and the footrest-board are correctly positioned before reassembly and use.

IMPORTANT

Cleaning instructions for Leatherette fabrics:

Leatherette Fabrics must not be cleaned according to the above instructions. Leatherette fabrics should only be cleaned with a drop of mild washing up liquid and then wiped off with a damp cloth.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

☐ 1 pc. five point safety harness
□ 1 set of shoulder pads for harness
□ 1 pc. folded chassis with tray
□ 4 pcs. wheels
□ 1 pc. instruction manual
□ 1 pc. hood
□ 1 pc. seatunit fabrics
□ 1 pc. footrest fabrics
□ 1 pc. frontbar cover

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety catch function correctly by folding the pram and checking that the safety catch are activated to prevent accidental folding..
☐ Check the harness function on the seat unit by locking and unlocking the harness.
□ Check the handle height adjustment function by adjusting the handle up and down.
☐ The handle should lock securely into each position.
☐ Check that the backrest can be adjusted and locks securely into each of its four positions.
□ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
□ Make sure that the parking brakes lock all four wheels.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible differences on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety catch function by folding the pram and checking that the safety catch are activated to prevent accidental folding.

Check the safety catch function by folding the pram and checking that the safety catch are activated to prevent accidental folding.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Make sure that the parking brakes lock all four wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

□ □ □ □

Other notes (further adjustments or changed details)

Inhalt

Inhalt

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

7

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols beyond the number.

8

9

Close-up of a black fabric garment with a zipper and clasp detail (no visible text or symbols)

10

Manual Cerox 2.0 v. 2.3

Mechanical device with lever and handle, shown in motion (no text or symbols)

2

3

4

Illustration of hands operating a mechanical device with a numbered arrow indicating component 5 (no text or symbols present)

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

36

Illustration of a person using a bicycle seatbelt device (no text or symbols visible)

2

Close-up of a hand cleaning a car wheel rim with visible blades and hub (no text or symbols)

WARNUNG

Close-up of a bicycle steering wheel with a gear and seat, showing a downward arrow (no text or symbols visible)

4

Manual Cerox 2.0 v. 2.3

Mechanical tool diagram showing a hand operating a clamp or bracket (no text or symbols present)

7

8

Diagram of a mechanical device with labeled parts (no readable text or symbols)

9

Black-and-white illustration of a person wearing a patterned shirt and holding a tool, with no visible text or symbols.

10

Illustration of a person using a bicycle to lift a seat, no text or symbols present

Close-up of a robotic arm handling a metallic cylindrical container with a spool, against a plain white background (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Cerox 2.0 v. 2.3

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols beyond the number.

Close-up of a black garment zipper with a small inset showing a white tag (no text or symbols visible)

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

2

3

4

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

50

Kuomun säätäminen

Illustration of a person using a bicycle seatbelt device (no text or symbols visible)

2

Close-up of a hand cleaning a car wheel rim with visible blades and hub (no text or symbols)

VAROITUS

Close-up of a bicycle seatbelt mechanism with a hand adjusting the wheel (no visible text or symbols)

4

Manual Cerox 2.0 v. 2.3

Jarrun käyttö

Illustration of a hand using a tool to cut a mechanical component, labeled with the number 6 (no text or symbols on the diagram itself)

Diagram of a mechanical device with labeled parts (no readable text or symbols)

TÄRKEÄÄ

Black-and-white illustration of a person wearing a patterned bag with a blue mesh design (no text or symbols)

10

Mechanical assembly diagram showing a hand operating a bicycle with labeled part '10' (no text or symbols beyond label)

Close-up of a robotic arm spraying liquid onto a small cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Cerox 2.0 v. 2.3

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols beyond the number.

Close-up of a black garment zipper with a small inset showing a white label (no text or symbols visible)

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

2

3

4

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

64

Justering af kalechen

Illustration of a person using a bicycle seatbelt device (no text or symbols visible)

2

Close-up of a hand cleaning a car wheel rim with visible blades and hub (no text or symbols)

3

Close-up of a mechanical device with a meshed circular component and a downward arrow indicating motion (no visible text or symbols)

4

Manual Cerox 2.0 v. 2.3

ADVARSEL

Illustration of a hand using a tool to cut a mechanical component, labeled with the number 6 (no text or symbols on the diagram itself)

Diagram of a mechanical device with labeled parts (no readable text or symbols)

ADVARSEL

Black-and-white illustration of a person wearing a patterned shirt and holding a tool, with no visible text or symbols.

Illustration of a person using a bicycle to lift a seat, no text or symbols present

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two automotive wheel components: a black and silver wheel with a metallic cup and a white cylindrical container (no text or symbols visible)

Manual Cerox 2.0 v. 2.3

Grid of empty rectangular boxes arranged in 4 rows and 5 columns (no text or symbols)

Hjul og bremse

Grid of eight empty rectangular boxes arranged in two rows and three columns (no text or symbols)

Visuel gennemsyn

Grid of empty rectangular boxes arranged in 3x3 pattern (no text or symbols)

Smøring

Monter sportsvogndelen og 5-punktsselene

Illustration of a hand adjusting a car seatbelt with arrows indicating movement (no text or symbols)

Close-up of hands assembling a black electronic component with a numbered label (10), no visible text or symbols beyond the number.

Close-up of a black garment zipper with a small inset showing a white label (no text or symbols visible)

Mechanical device with lever and handle, showing motion direction arrows (no text or symbols)

2

3

4

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Black and white photo of a baby stroller with a backpack (no text or symbols visible)

Justere Kalesjen

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

2

Close-up of a hand cleaning a car wheel rim with visible tire and disc (no text or symbols)

3

Close-up of a mechanical device with a mesh cap and directional arrow (no visible text or symbols)

4

Manual Cerox 2.0 v. 2.3

ADVARSEL

Illustration of a hand using a tool to cut a mechanical component, labeled with the number 6 (no text or symbols on the diagram itself)

- Vognen er utrustet med Newton sikkerhetshake(6). Haken er en ekstra sikkerhetsdetalj som forhinder ufrivillig vending av handtaket.

7

ADVARSEL

Diagram of a mechanical device with labeled parts (no readable text or symbols)

- Juster handtaket i ønsket posisjon.

VIKTIG

Black-and-white illustration of a person wearing a patterned bag with a blue mesh design (no text or symbols)

Mechanical assembly diagram showing a hand operating a bicycle with labeled part '10' (no text or symbols beyond label)

80

Close-up of a robotic arm spraying liquid onto a metallic cylindrical container (no text or symbols visible)

Two small mechanical components: a wheel with black rim and a gas cylinder (no text or symbols visible)

Manual Cerox 2.0 v. 2.3
