USER MANUAL SNC3650L252 BLACK & DECKER

Black-and-white photo of a small outdoor lawn mower with wheels and handle, no visible text or symbols

Close-up of a hand adjusting a car seatbelt with a numbered marker (19) on the seat, no visible text or symbols beyond the number.

Close-up of a person's hand adjusting a black-and-white brake pad on a vehicle (no text or symbols visible)

Close-up of a hand gripping a bicycle frame with a circular motion indicator (no text or symbols)

Intended use

Your BLACK+DECKER SNC3650L252 Snow thrower has been designed for Clearing snow from areas. This appliance is intended for consumer use only.

Safety instructions

Warning! When using cordless appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Warning! When using the machine the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the machine. Please keep the instructions safe for later use.

◆ Read all of this manual carefully before operating the appliance.
- The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
- Be thoroughly familiar with the controls and the proper use of the equipment.
- Know how to stop the unit and disengage the controls quickly.
- Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
- Keep the area of operation clear of all persons, particularly small children, and pets.
◆ Exercise caution to avoid slipping or falling, especially when operating in reverse.
◆ Retain this manual for future reference.

Using your appliance

Always take care when using the appliance.

• Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.
  ◆ Disengage all clutches and shift into neutral before starting the engine.
• Do not operate the equipment without wearing adequate winter garments. Wear footwear, which will improve footing on slippery surfaces.

◆ Use a grounded three-wire plug-in for all units with electric drive motors or electric starting motors.

- Adjust the collector housing height to clear gravel or crushed rock surface.

- Never attempt to make any adjustments while the engine is running (except where specifically recommended by manufacturer).

◆ The operation of any powered machine can result in foreign objects being thrown into the eyes.
◆ Always wear safety glasses or eye shields during operation or while performing an adjustment or repair.
- This appliance is not intended for use by young or infirm persons without supervision.
◆ The appliance is not to be used as a toy.
- Do not allow children or animals to come near the work area or touch the appliance.
◆ Close supervision is necessary when the appliance is used near children.
◆ Do not immerse the appliance in water.
- Do not open body casing. There are no user serviceable parts inside.
- Do not operate the appliance in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
- After striking a foreign object, stop the engine, remove the batteries from the main body, thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.
If the unit should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.
- Remove the safety key whenever you leave the operating position, before unclogging the collector/impeller housing or discharge guide, and when making any repairs, adjustments, or inspections.
When cleaning, repairing, or inspecting, make certain the collector/impeller and all moving parts have stopped.
Do not clear snow across the face of slopes. Exercise extreme caution when changing direction on slopes. Do not attempt to clear steep slopes.
- Never operate the snow thrower without proper guards, plates or other safety protective devices in place.
- Never operate the snow thrower near glass enclosures, automobiles, windows, etc. without proper adjustment of the snow discharge angle. Keep children and pets away.
- Do not overload the machine capacity by attempting to clear snow at too fast a rate.
- Never operate the machine at high transport speeds on slippery surfaces. Use care when reversing.
- Never direct discharge at bystanders or allow anyone in front of the unit.
◆ Disengage power to the collector/impeller when snow thrower is transported or not in use.

ENGLISH

(Original instructions)

◆ Use only attachments and accessories approved by the manufacturer of snow thrower (such as wheels).
- Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.
◆ Do not carry passengers.
- Never operate the snow thrower without good visibility or light.
◆ Take all possible precautions when leaving the machine unattended remove the safety key.

After use

• When not in use, the appliance should be stored in a dry, well ventilated place out of the reach of children.
  ◆ Children should not have access to stored appliances.
• When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Inspection and repairs

Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
- Do not use the appliance if any part is damaged or defective.
- Have any damaged or defective parts repaired or replaced by an authorised repair agent.
- Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for Snow throwers

• Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes.
  ◆ Watch for holes, ruts, bumps, rocks or other hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.
• Do not operate on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not operate near drop-offs, ditches, or embankments. You could lose your footing or balance.
  ◆ Do not use hands to unclog chute.
  ◆ Stop motor before removing debris.
  ◆ Do not direct discharge at bystander

Safety of others

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

◆ Children must be supervised to ensure that they do not play with the appliance.

Residual risks.

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any rotating/moving parts.
• Injuries caused when changing any parts, blades or accessories.
• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
  ◆ Impairment of hearing.
• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Warning symbols

The following warning symbols are found on the appliance along with the date code:

Warning! Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate.

Warning! Do not expose the appliance to rain or wet conditions. Keep dry.

Warning! Beware of sharp blades.

Always turn the machine OFF and remove the safety key before conducting inspection, cleaning and maintenance.

Warning! Beware of flying stones and other foreign objects that could be thrown from the appliance. Keep bystanders away from the working area.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Keep hands, feet and clothing away from the rotating auger to avoid injury.

Danger! Cutting/dismemberment hazard - keep feet away from the rotating auger.

Danger! Cutting/dismemberment hazard - keep hands away from the rotating auger. Do not use hands to unclog rotor housing. Stop motor before removing debris.

Keep bystanders and children a safe distance (at least 10m) away from the work area.

Wear protective gloves and non-slip footwear when using the machine and handling debris.

Do not use hands to unclog chute.

The rotating part will continuously run for several seconds after you turn off the machine.

Indoor use only. Only use battery charger indoors

Directive 2000/14/EC guaranteed sound power.

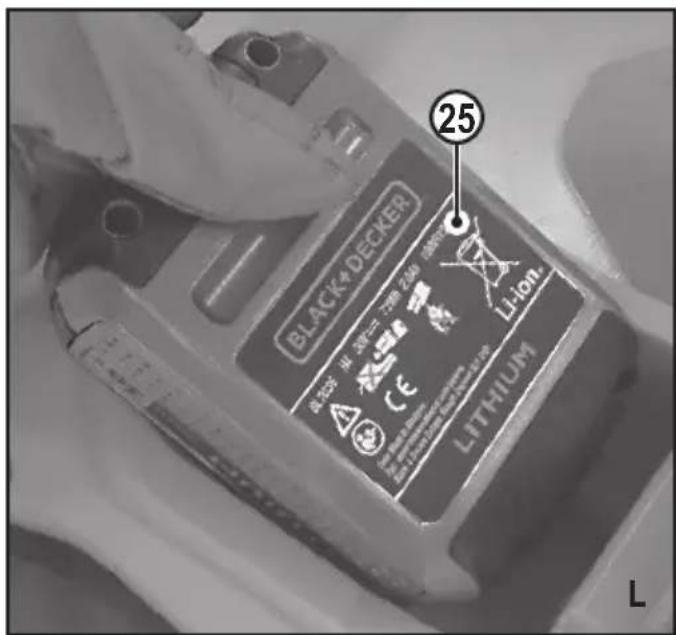

Additional safety instructions for batteries and chargers

Batteries

◆ Never attempt to open for any reason.
◆ Do not expose the battery to water.
◆ Do not expose the battery to heat.
- Do not store in locations where the temperature may exceed 40 °C.
◆ Charge only at ambient temperatures between 10 °C and 40 °C.
◆ Charge only using the charger provided with the appliance/tool. Using the wrong charger could result in an electric shock or overheating of the battery.

- When disposing of batteries, follow the instructions given in the section "Protecting the environment".

Do not damage/deform the battery pack either by puncture or impact, as this may create a risk of injury and fire.

◆ Do not charge damaged batteries.

Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries carefully wipe the liquid off using a cloth. Avoid skin contact.

◆ In case of skin or eye contact, follow the instructions below.

Warning! The battery fluid may cause personal injury or damage to property. In case of skin contact, immediately rinse with water. If redness, pain or irritation occurs seek medical attention. In case of eye contact, rinse immediately with clean water and seek medical attention.

Do not attempt to charge damaged batteries.

Chargers

Your charger has been designed for a specific voltage.

Always check that the mains voltage corresponds to the voltage on the rating plate.

Warning! Never attempt to replace the charger unit with a regular mains plug.

• Use your BLACK+DECKER charger only to charge the battery in the appliance/tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
• Never attempt to charge non-rechargeable batteries.
  If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
  ◆ Do not expose the charger to water.
  ◆ Do not open the charger.
  ◆ Do not probe the charger.
• The appliance/tool/battery must be placed in a well ventilated area when charging.

The charger is intended for indoor use only.

Read the instruction manual before use.

Electrical safety

Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

Charging the battery

The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.

Warning! Do not charge the battery at ambient temperatures below 10 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.

Note: The charger will not charge a battery if the cell temperature is below approximately 10 °C or above 40 °C. The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

◆ Plug the charger into an appropriate outlet before inserting the battery pack.
◆ Insert the battery pack into the charger.

The green LED will flash indicating that the battery is being charged.

The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left in the charger

Warning! Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished.

Charger diagnostics

This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED flashing in different patterns.

Bad Battery

The charger can detect a weak or damaged battery. The red LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service centre or a collection site for recycling

Hot/Cold Pack Delay

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack delay, suspending charging until the battery has normalised. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The red LED flashes in the pattern indicated on the label when the Hot/Cold pack delay is detected.

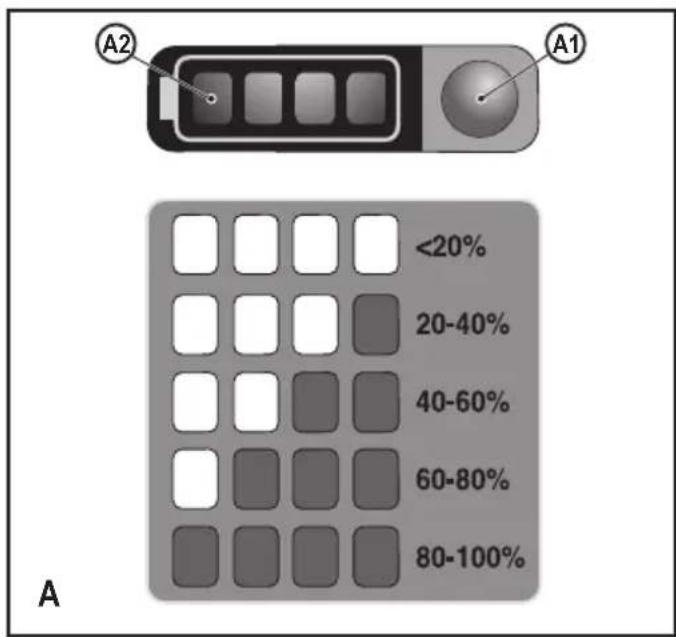

State of Charge Indicator

The battery is equipped with a state of charge indicator. This can be used to display the current level of charge in the battery while in the trimmer and during charging. It does not indicate appliance functionality and is subject to variation based on product components, temperature and end user application.

Checking State of Charge during use

◆ Press the state of charge indicator (A1).
◆ The four LEDs (A2) will illuminate indicating the percent of charge in the battery (Fig.A.)
◆ If LED light does not illuminate, charge battery.

Leaving the battery in the charger

The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

Features

This appliance includes some or all of the following features.

1. Handle bar

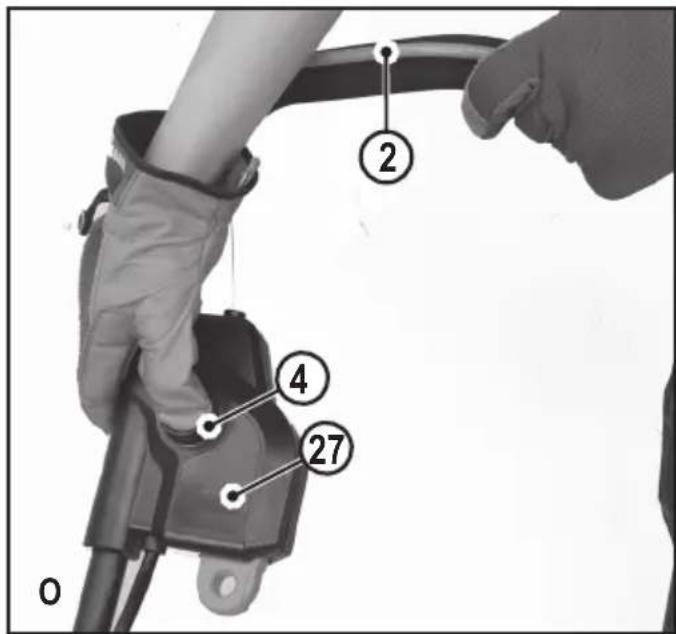

2. ON/OFF switch bail handle

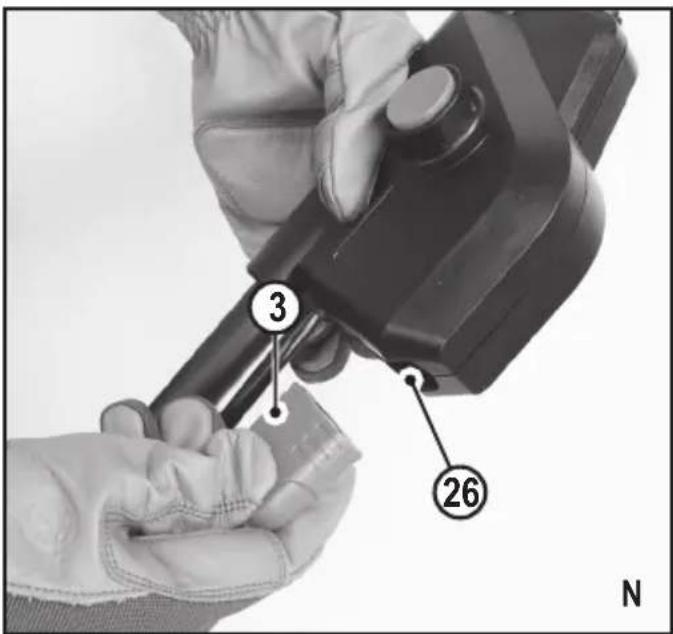

3. Safety key
4. Safety switch button

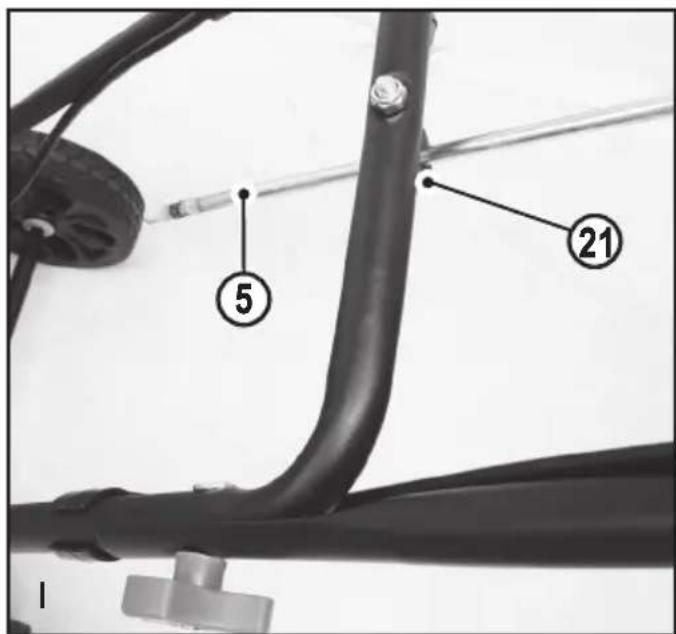

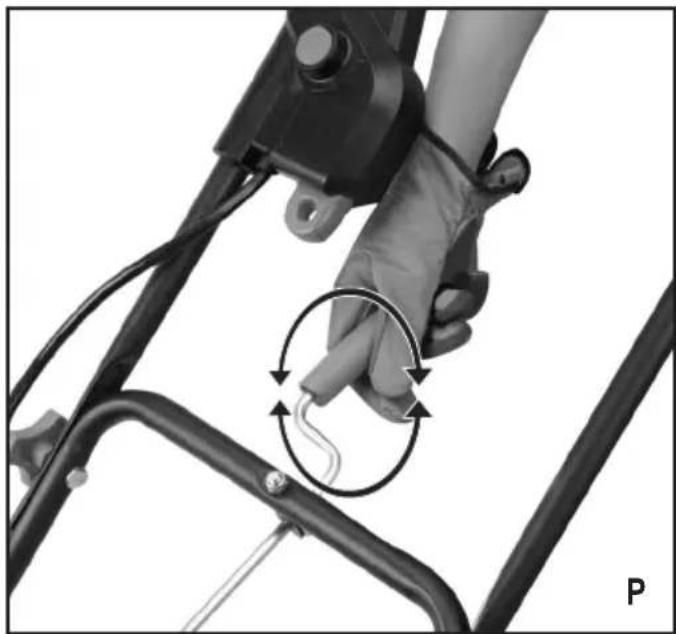

5. Chute rotation rod

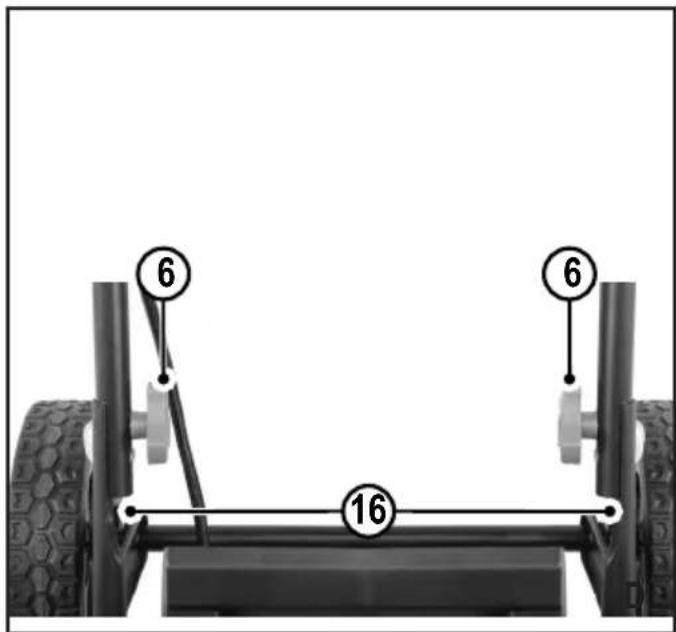

6. Frame lock/release knob (x4)
7. Battery compartment cover
8. Wheels
9. Carrying handle (For transport only)

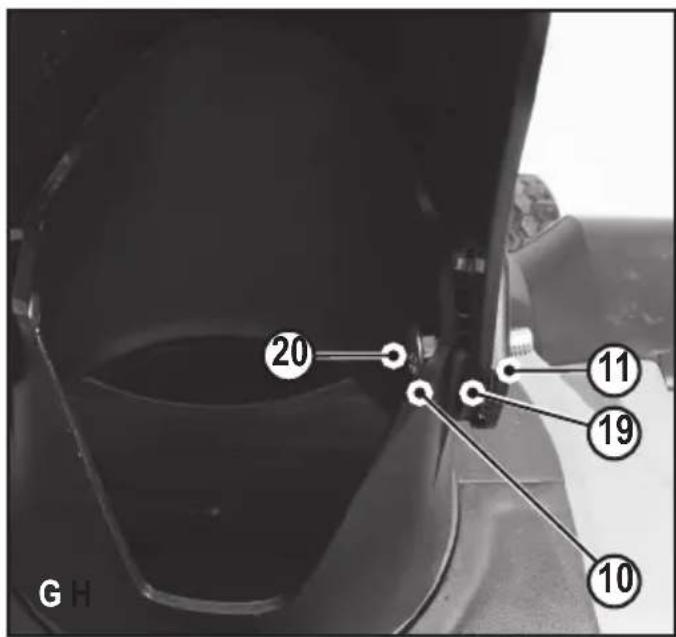

10. Discharge chute
11. Chute deflector
12. Deflector knob

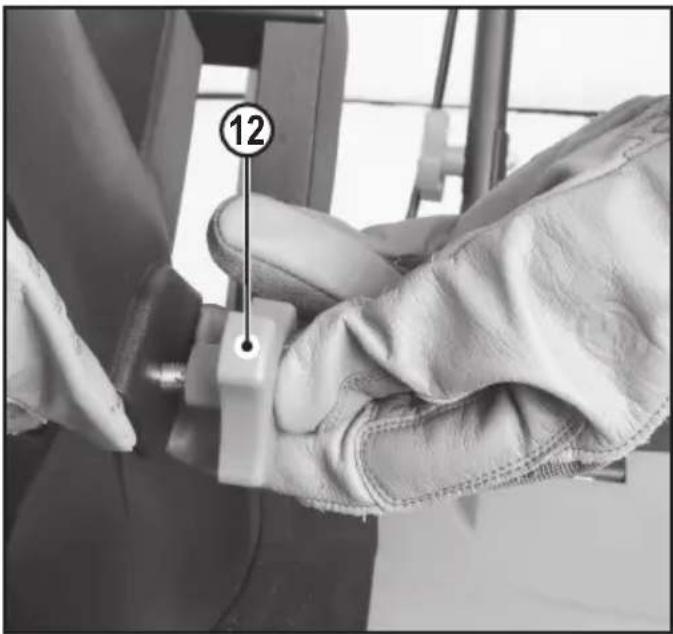

13. Auger
14. Middle frame
15. Upper frame
16. Cleanout stick

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

Warning! Before assembly, make sure the bail handle (2) is released and the safety key (3) is removed.

Handles

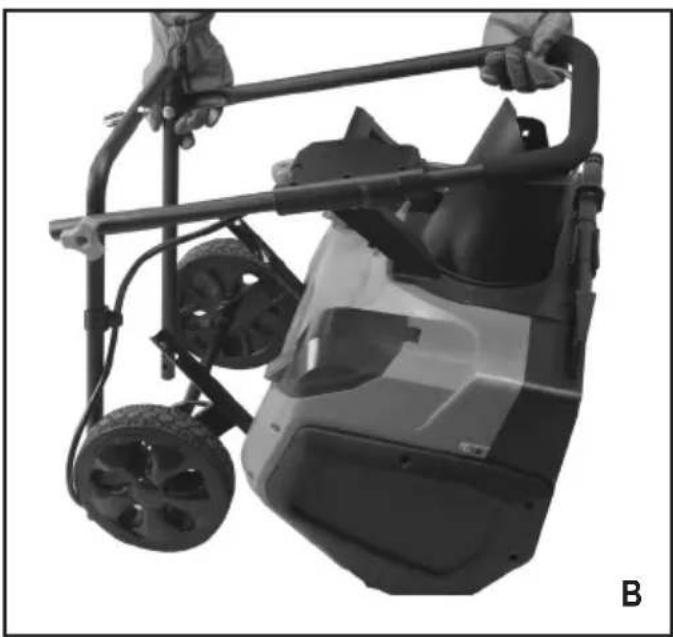

◆ To engage the handle bar, pull upwards on the upper frame (15) as shown in Figure B.

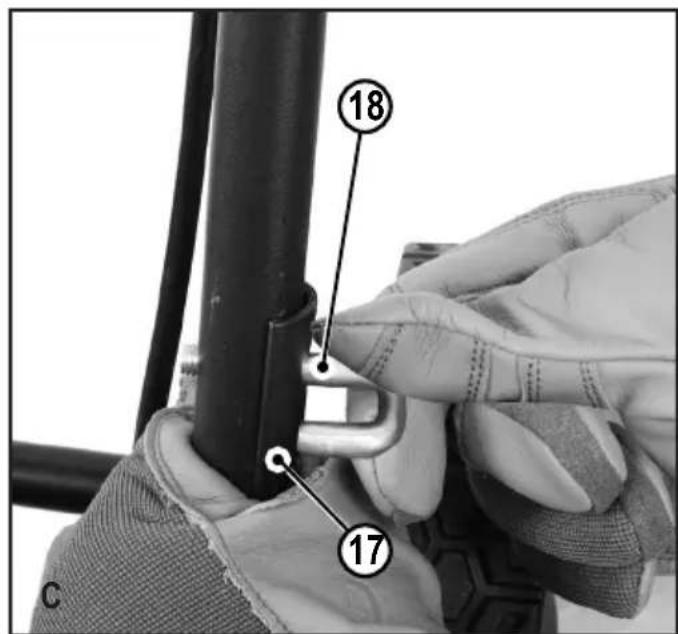

- Secure the connection of the lower frame (17) to the middle frame (14) by fastening the handle bolts (18) and frame knobs (6) on each side as shown in Figures C & D.
- Secure the connection of the middle frame (14) to the upper frame (15) by tightening the handle bolts and frame knobs (6) on each side as shown in Figure E.

Discharge Chute

◆ Place the chute deflector (11) onto the discharge chute (10).
- Insert a chute gasket (19) in between the chute connection and secure the assembly with a deflector knob (12) and bolt (20) on each side as shown in Figures F, G & H.
◆ Position the chute deflector to the desired height of the snow stream.

NOTE: Do not overtighten the deflector knobs.

Chute rotation rod

• Insert chute rotation rod (5) through the slot in the eye hook (21) located on the middle frame (14) as shown in Figure I.

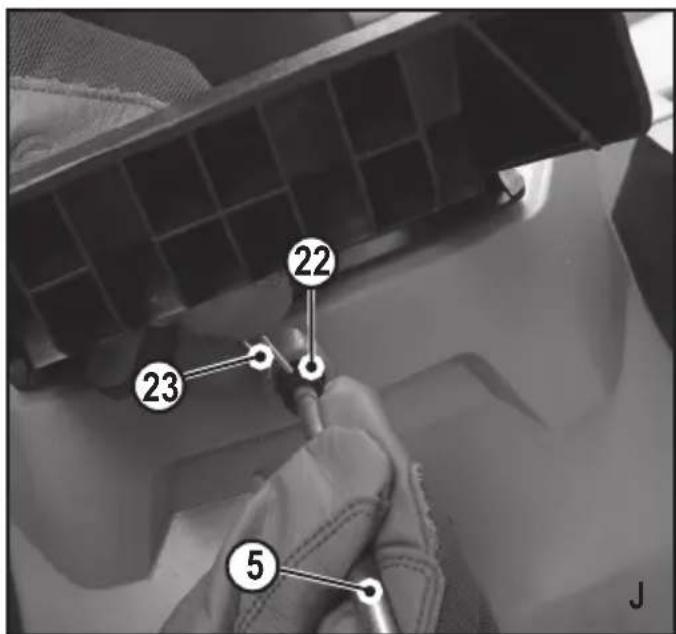

• Locate the chute rotation coupler (22) on the main housing.
• Insert the chute rotation rod into the chute rotation coupler (22) and secure the assembly with the supplied retaining pin (23) as shown in Figure J.

Installing and removing the battery pack

Warning! Make certain the safety key is removed to prevent actuation before removing or installing battery.

To install battery pack

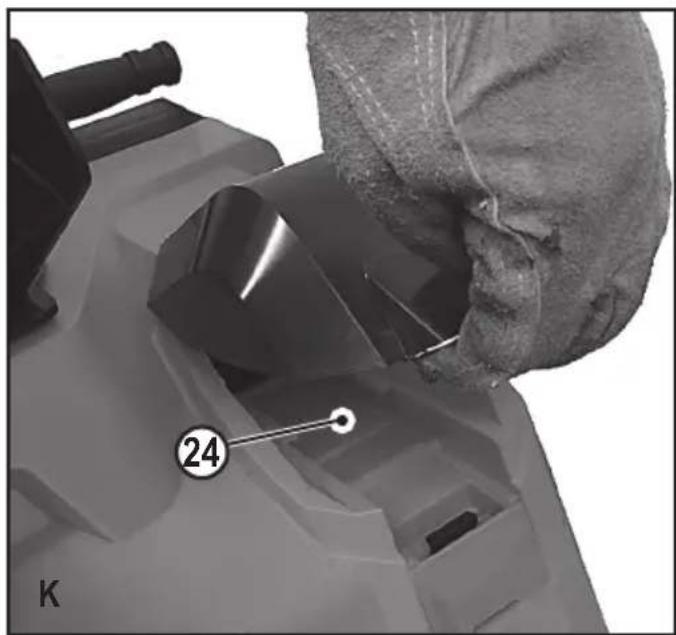

◆ Lift up on the battery compartment cover (7) to expose the battery compartment (24) as shown in Figure K.
- Slide the battery (25) into the battery compartment until it is fully seated and an audible click is heard as shown in Figure L. Make sure battery pack is fully seated and fully latched into position.
◆ Close the battery compartment cover. Ensure the cover is fully latched before starting snow thrower.

To remove battery pack

◆ Open the battery compartment cover (7) as described above.

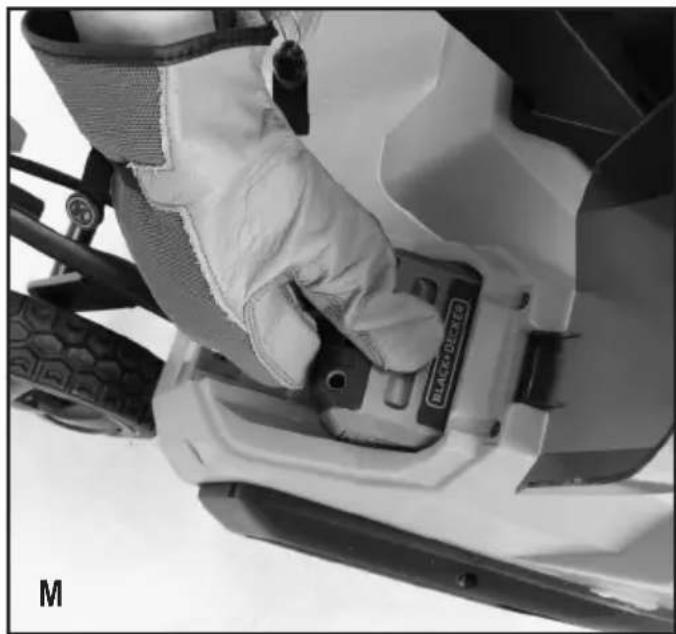

◆ Depress the battery release button located on the battery pack and pull battery pack out of tool as shown in Figure M.

Use

READ THIS INSTRUCTION MANUAL BEFORE OPERATING YOUR SNOW THROWER. See "Functional Description" to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

Warning! Let the appliance work at its own pace. Do not overload.

• Open the battery compartment cover and slide the battery into the battery compartment until it is fully seated and an audible click is heard Figure L. Make sure battery pack is fully seated and fully latched into position.
  ◆ Close the battery compartment cover. Ensure the cover is fully latched before starting snow thrower.
  ◆ Insert safety key (3) into the key slot (26) located on the switch housing until it is fully seated inside housing as shown in Figure N. The snow thrower is now operational.
  This snow thrower is equipped with a special on-off switch box. To operate the snow thrower, push the safety switch button (4) on the switch box (27), then pull the ON/OFF switch bail handle (2) to the handle bar as shown in Figure O.
  ◆ To turn the snow thrower off, simply release the ON/OFF switch bail handle (2).

Operating tips

Warning! Always inspect area where snow thrower is to be used and remove all stones, sticks, wire, bones, and other debris which might be thrown by the snow thrower.

Warning! Some parts of the snow thrower may freeze under extreme temperature conditions. Do not attempt to operate the snow thrower when parts are frozen. If a part freezes while the snow thrower is in use, stop the snow thrower, remove the battery, and inspect for frozen parts. Free all parts before restarting or operating the snow thrower.

Warning! Exercise extreme caution when changing direction on slopes. Always maintain good footing.

• Keep the area of operation free of foreign objects that can become thrown by the auger blades. Some objects may be hidden from view by snow cover. If the snow thrower hits an obstruction or picks up a foreign object during use, stop the snow thrower, remove the battery, remove the obstruction, and inspect the unit for damage. Repair or replace any damaged part before restarting and operating the unit.
  ◆ Ensure children, pets, and bystanders are kept away from the area of operation.
• When moving the snow thrower, use the wheels as the pivot point. Slightly tilt the snow thrower on this pivot point to move it forward or backward.

ENGLISH

(Original instructions)

• Start your clearing path in the centre of the operation area. Throw snow in a back and forth motion, each time moving the discharge chute away from the area you are clearing. Ensure to overlap clearing paths.
• If possible, discharge snow in the same direction as the wind, not against the wind. This prevents snow from being blown onto the cleared areas.
• When working on stone, gravel, or unpaved surfaces, avoid throwing loose material along with the snow by pushing down on the handle to raise the scraper at the base of the unit above the stone or gravel.

Motor overload

To prevent damage due to overload conditions, do not try to remove too much snow at one time. Do not push the snow thrower with excessive force. Slow down, allow the snow thrower to work at its own pace.

Changing throw direction and throw height

Warning! Never direct the snow discharge chute towards the operator, bystanders, vehicles, or nearby structures. The discharged snow and foreign objects accidentally picked up and thrown by the snow thrower can cause serious damage and personal injury.

Always orient the discharge chute in the opposite direction from where the operator, bystanders, surrounding vehicles, or structures are located.

- The discharge chute has an operating range of 180 degrees. Direct the snow discharge by rotating the chute with the chute rotation rod (5) as shown in Figure 16.

Warning! Release the bail handle (2), remove the safety key (3) and remove the battery before making any adjustments, inspecting, services, changing of accessories, cleaning the snow thrower, and the like. Any operation should be performed only after the revolving parts inside the snow thrower have come to a full stop.

The chute deflector (11) on the top of the discharge chute (10) controls the height of the snow discharge stream. When the deflector is up, the snow will discharge higher. When the deflector is down, the snow will discharge lower.

- Loosen the deflector knobs (12) to raise or lower the deflector to the desired height. Re-tighten the deflector knobs (12) to secure the deflector.

NOTE: Do not overtighten the deflector knobs.

Warning! Ensure that the chute deflector fully locks onto the discharge chute. Any gap between the discharge chute and the chute deflector could allow foreign objects picked up by the snow thrower to be thrown in the direction of the operator causing serious bodily injury.

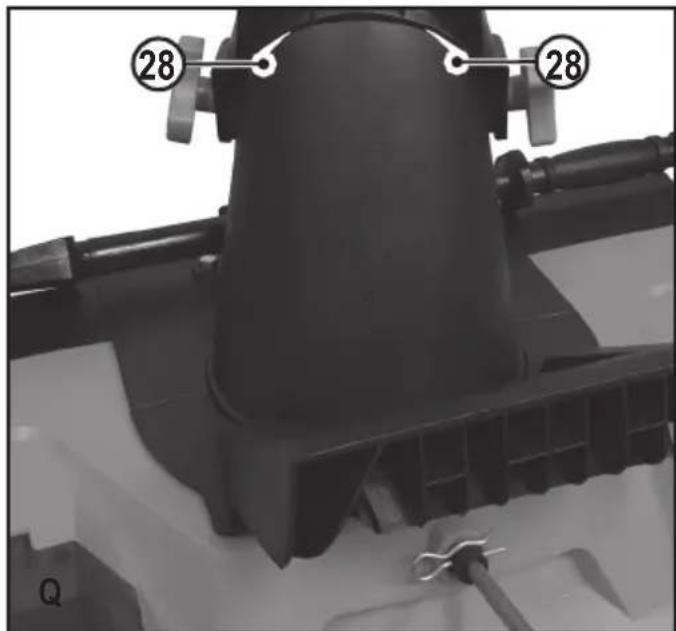

Do not position the chute deflector too far downward as this can cause a gap (28) to appear between the deflector and discharge chute as shown in Figure Q.

Clearing blockages

Warning! Release the bail handle (2), remove the safety key (3) and remove the battery before making any adjustments, inspecting, services, changing of accessories, cleaning the snow thrower, and the like. Any operation should be performed only after the revolving parts inside the snow thrower have come to a full stop.

◆ Release the bail handle (2), remove the safety key (3) and remove the battery.
- Inspect the discharge chute and auger housing for clogs and jams.
- Use attached cleanout stick (16) to remove clogs and jams.

Warning! DO NOT ATTEMPT TO CLEAR JAMS OR CLOGS WITH YOUR HANDS. If a part freezes while the snow thrower is in use, stop the snow thrower, remove the battery. Free all parts before restarting or operating the snow thrower.

Accessories

Warning! The use of any accessory not recommended for use with this tool could be hazardous.

Recommended accessories for use with your snow thrower are available from your local Black+Decker dealer or authorized service centre.

Maintenance

Your BLACK+DECKER cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool/appliance care and regular cleaning. Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your tool/appliance and charger using a soft brush or dry cloth.
- Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

Troubleshooting
Problem Solution
Snow thrower doesn’t run when bail handle is activated.	Check to make sure safety key has been installed and is fully seated and that button on switch housing is being completely depressed before pulling bail handle.Release bail handle to turn snow thrower off. Remove safety key and battery pack, and check that auger is free to turn.Check that the battery cavity is free of debris and is connected properly.Has battery been fully charged?
Unit stops while moving snow.	Release bail handle to turn snow thrower off. Remove safety key and battery pack. Check that auger is free to turn.Check that the battery cavity is free of debris and is connected properly.Has battery been fully charged?Move charger and battery pack to a surrounding air temperature of above 40 degrees F (4,5°C) or below 105 degrees F (+40,5°C).Avoid overloading the Snow thrower. Slow down working pace.

Troubleshooting
Snow thrower is abnormally noisy and vibrates.	Release bail handle to turn Snow thrower off. Remove safety key and battery pack. Check that auger is free to turn and ensure it has not been bent or damaged. If damaged, return Snow thrower to a BLACK+DECKER Authorized service centre.If there is no visible damage and the snow thrower still vibrates: Return the snow thrower to an authorized Black+Decker authorized service centre.
Battery charger LEDs not on.	Check plug connection.Replace charger.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again.

Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Batteries

At the end of their useful life, discard batteries with due care for our environment:

◆ Run the battery down completely, then remove it from the tool.
- NiCd, NiMH and Li-Ion batteries are recyclable. Place the battery(s) in a suitable packaging to ensure that the terminals cannot be short-circuited. Take them to any authorised repair agent or a local recycling station.
◆ Do not short-circuit the battery terminals.
- Do not dispose of the battery(s) in a fire as this may result in a risk of personal injury or an Explosion.

Technical data

		SNC3650L252
Input Voltage	V_oc	36
No-Load Speed	min ^1	2500
Weight	kg	14.5
Battery BL2036
Voltage	V_ss	36
Capacity Ah 2.0
Type		Li-ion
Charger 90567393 -05	typ.1
Input Voltage	V_cc	230
Output Voltage	V_cc	36
Current mA 1.3A
Approx. charge time	h	1.5

Hand/arm weighted vibration value according to EN 786: = < 3.175 ~m / s^2 , uncertainty (K) = 1.5 m/s.

L_ (sound pressure) 70.2 dB(A) uncertainty (K) = 2.5 dB(A)

EC declaration of conformity

MACHINERY DIRECTIVE

OUTDOOR NOISE DIRECTIVE

SNC3650L252 Snow Thrower

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN 60335-1:2012 +A11; 2014,

ISO/DIS 8437; 1989

EN 62233; 2008

2000/14/EC, ANNEX III of 2000/14/EC as amendment by 2005/88/EC,

TÜV Rheinland LGA Products GmbH;

Tillystraße 2 D-90431N ^™ nberg, Germany;

Notified Body ID No.:0197

Level of acoustic power according to 2000/14/EC (Annex III, L ≤ 50 cm):

L_w4 (measured sound power) 85.18 dB(A)

uncertainty (K) = 2 dB(A)

L_ (guaranteed sound power) 89 dB(A)

uncertainty (K) = 2 dB(A)

These products also comply with directive 2004/108/EC and 2011/65/EU.

For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

R. Laverick

Engineering Manager

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

28/07/2015

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
◆ The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

Avsedd användning

This appliance includes some or all of the following features.

(Annex III, L ≤ 50 cm):

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

28/07/2015

Garanti

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannia

28/07/2015

Garanti

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Storbritannien

28/07/2015

Garanti

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

Iso-Britannia

28/07/2015

Takuu

[e-mail]
