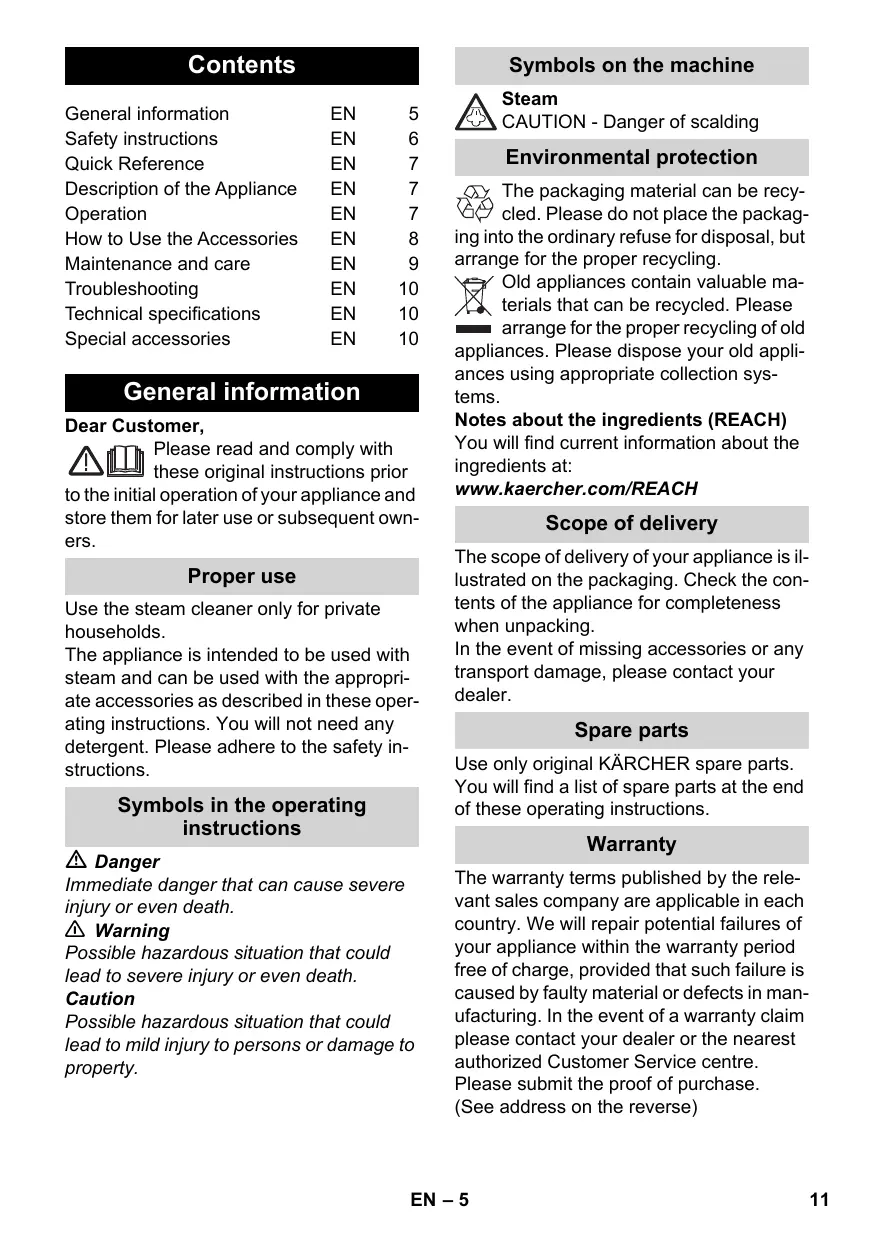

r.c wi om n! Contents General information Safety instructions Quick Reference Description of the Appliance Operation How to Use the Accessories Maintenance and care Troubleshooting Technical specifications Special accessories General information Dear Customer, Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners. Proper use Use the steam cleaner only for private households. The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions. Symbols in the operating instructions Danger Steam CAUTION - Danger of scalding Environmental protection The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling. Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH Scope of delivery The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking. In the event of missing accessories or any transport damage, please contact your dealer. Spare parts Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions. Warranty Immediate danger that can cause severe injury or even death. 몇 Warning Possible hazardous situation that could lead to severe injury or even death. Caution Possible hazardous situation that could lead to mild injury to persons or damage to property. The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse) EN – 5

Safety instructions Danger The appliance may not be used in areas where a risk of explosion is present. If the appliance is used in hazardous areas the corresponding safety provisions must be observed. Never use the appliance in pools containing water. The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc. Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the safety lock, and the steam hose. If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician. Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number). Never touch the mains plug and the socket with wet hands. Never use the appliance to clean objects containing hazardous substances (e.g. asbestos). Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds). 몇 Warning The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364. The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance. In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.

Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3x1 mm². The connection between power cord and extension cable must not lie in water. If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured. The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby. This appliance is not intended for use by persons with limited physical, sensoric or mental capacities or lack of experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or if they received precise instructions on the use of this appliance. Children must only use this appliance if they are older than 8 and if they are supervised by a person responsible for their safety or if they are instructed on the use of the appliance by such person. Never leave the appliance unattended when it is in operation. Be very careful while cleaning tiled walls with sockets. Caution Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges. Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance. The steam switch must not be locked during the operation. Protect the appliance from rain. Do not store outside. EN – 6 Quick Reference Operation Illustrations on fold-out page 4! 1 Take off water reservoir. 2 Remove the tank lid. 3 Fill water reservoir, close reservoir cover. 4 Fasten water reservoir. 5 Plug in the main plug. The steam cleaner is ready for use after approx. 15 seconds. 6 Push the lock backwards and press the steam lever. Description of the Appliance The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking. In the event of missing accessories or any transport damage, please contact your dealer. Illustrations on fold-out page 3! A1 Nozzle insert A2 Steam nozzle A3 Steam lever A4 Steam lever locking (child control) front – steam lever blocked rear – steam lever released A5 Manual decalcification pump A6 Cable clamp A7 Mains cable with mains plug B1 Water reservoir B2 Unlocking button B3 Reservoir cover C1 Detail nozzle C2 Round brush D1 Window wiper Attaching the Accessories If necessary (see chapter "Using accessories"), connect the required accessories to the steam nozzle. To do so, insert the two grooves of the accessories into the latches of the steam nozzle and turn clockwise until the stop. Removing the Accessories Danger Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding! Push the lock to the front (steam switch blocked). Turn the installed accessories counterclockwise and pull them off the steam nozzle. Filling the Water Reservoir The water reservoir may be refilled at any time. Note: If you always use usual commercial distilled water it is not necessary to descale the boiler. Separate the water tank from the casing; for this, press the two release buttons to the inside and pull the water tank off toward the bottom. Remove the tank lid. Fill the water tank with fresh water. Caution Do not fill in detergents or other additives! Close the water tank with the tank lid. Fasten the water tank to the casing. Turning on the Appliance Caution The water tank must be installed and filled. 몇 Warning Do not operate the decalcification pump. Otherwise, you will pump water into the appliance which spurts out of the steam nozzle when inserting the mains plug. Insert the mains plug into a socket. EN – 7

Note: The steam cleaner is ready for use after approx. 15 seconds. Push the steam switch lock to the back. Actuate the steam lever to release steam. Note: During the initial startup, a small smoke cloud may escape from the steam nozzle! The appliance requires a short runin time. At first, the escaping steam is irregular and moist, some water drops may leak out. The amount of steam flowing out increases continuously until the maximum amount is reached after about 1 minute. Turning Off the Appliance Release the steam lever. Note: The steam discharge does not stop immediately; but it decreases continuously. There is no more steam discharge after a few seconds. Push the lock to the front (steam switch blocked). Disconnect the mains plug from the socket. Coil the mains power cable around the water tank and fasten with a cable clamp. Caution Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors. Cleaning of Glass In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage. Caution Do not direct steam onto the sealed locations of the window frame to prevent damage. Steam nozzle Use the steam nozzle without accessories, to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20 cm. – to remove dust from plants. Here, keep a distance of 20-40 cm. – for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

How to Use the Accessories Detail nozzle Important application instructions Cleaning floor surfaces It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/ loose particles prior to the wet cleaning. Cleaning textiles and upholstery Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes. Cleaning of Coated or Lacquered Surfaces When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes. Round brush Attached brushes can therefore be used to remove heavy soiling. Caution Not suited for the cleaning of sensitive surfaces. EN – 8 몇 Warning Squeegee Application: – Windows, mirrors – Glass surfaces on showers – other smooth surfaces Apply steam to the glass surface evenly with the steam nozzle from a distance of approximately 20 cm. Strip the glass surface in straight lines from the top to the bottom using the rubber lip of the window nozzle. Wipe the rubber lip and the bottom edge of the window dry after each strip. Maintenance and care Danger Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work. Descaling As limescale builds up in the appliance, we recommend to descale the appliance in the following intervals (TF=tank fillings): Note: If you always use usual commercial distilled water it is not necessary to descale the boiler. Degree of hardness I soft II medium III hard IV very hard ° dH

0- 7

7-14 14-21 >21 Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water. Starting the decalcification Disconnect the mains plug from the socket. Allow the steam cleaner to cool down. Remove the nozzle insert from steam nozzle. To do this, rotate the nozzle insert counter-clockwise with a coin and pull the nozzle insert out. Only use products approved by KÄRCHER to exclude any damages of the appliance. User the KÄRCHER decalcifier sticks (order no. 6.295-206) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution. Caution Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces. Fill the decalcification solution into the water tank. Close the water tank with the tank lid. Fasten the water tank to the casing. Press the decalcification pump (A5) for approx. one minute in regular pump movements until the decalcification solution escapes from the open steam nozzle (best over a washbasin). Loosen, drain and rinse the water tank with clear water. Allow the decalcification solution to take effect in the appliance for 8 hours. Rinsing of the dissolved limescale Fill the water tank with fresh water. Close the water tank with the tank lid. Fasten the water tank to the casing. Caution Do not plug in the mains plug! Pump the water for one minute with the decalcification pump through the appliance into a washbasin. Hold the appliance over a washbasin and now connect the mains plug. 몇 Warning Hot water spots – scalding danger! Press the steam lever and let the appliance evaporate into a washbasin for two minutes. Reinstall the nozzle insert into the steam nozzle and tighten the nozzle insert in a clockwise direction. The steam cleaner is ready to use. EN – 9

Troubleshooting Technical specifications Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service. Danger Repair works may only be performed by the authorized customer service. Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work. Decreased steam amount Appliance is decalcified. Decalcify appliance. 220-240 V 1~50 IP X4

Protection class Protective class Performance data Heating output 1600 W Dimensions Water reservoir 0,25 l Length 190 mm Width 100 mm Height 280 mm Weight (without accessories) 1,2 kg Subject to technical modifications! Steam decreases during the work / no steam No water in the water reservoir. Refill water Steam lever cannot be pressed anymore Steam switch is secured with the lock / child-proof lock. Push the steam switch lock to the back. Steam nozzle is plugged Remove the nozzle insert from steam nozzle. To do this, rotate the nozzle insert counter-clockwise with a coin and pull the nozzle insert out. Clean the nozzle insert. Briefly switch on the appliance. Reinstall the nozzle insert into the steam nozzle and tighten the nozzle insert in a clockwise direction. Safety thermostat The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Electrical connection Voltage Special accessories Order number Round brush kit 2.863-058 4 round brushes for the detail nozzle Round brush kit with brass 2.863-061 bristles Removal of especially stubborn dirt ideal for insensitive surfaces. Round brush with scraper 2.863-140 Round brush with two rows of heat-resistant bristles and a scraper. Not suitable for sensitive surfaces. Decalcifying sticks (9 pieces) 6.295-206 EN – 10
