Product Type	Range Hood (Chimney Hood)
Brand	Husqvarna-Electrolux
Model	QFC90200X
Width	90 cm
Depth	50 cm
Height	60-100 cm (adjustable)
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	220 W
Max Extraction Rate	650 m³/h
Noise Level	65 dB(A) (max speed)
Lighting	2 x 1.5 W LED
Controls	Electronic push buttons
Grease Filter	Aluminum, dishwasher safe
Charcoal Filter	Optional, model HQ-123
Venting	150 mm duct outlet
Energy Class	B
Installation Type	Wall-mounted or built-in
Maintenance	Clean grease filter monthly, replace charcoal filter every 3-6 months
Safety Features	Thermal cut-off, auto shut-off timer
Included Accessories	Grease filter, mounting bracket, instruction manual
Spare Parts Available	Filters, LED lamps, motor unit, control board
Warranty	2 years

Frequently Asked Questions - QFC90200X Husqvarna-Electrolux

How to clean the grease filter?

Remove the grease filter and wash with warm soapy water or in the dishwasher. Let it dry completely before reinstalling.

How to replace the charcoal filter?

If using recirculation mode, replace the charcoal filter every 3-6 months. Order model HQ-123 from Husqvarna-Electrolux.

The hood is noisy. What to do?

Check for blockages in the duct or filter. Ensure proper installation and reduce the speed setting. If noise persists, contact service.

How to install the hood?

Follow the manual for ducting or recirculation setup. Secure the mounting bracket to a solid wall and attach the hood. Electrical connection must be done by a qualified technician.

Why is the light not working?

Check if the LED lamp needs replacement. Switch off power, remove the lamp and replace with a same type (2 x 1.5 W LED).

Can I use the hood without duct?

Yes, install a charcoal filter for recirculation mode. The hood will filter and recirculate air back into the kitchen.

How to reset the filter alarm?

Press and hold the filter reset button for 3 seconds until the indicator light turns off.

What is the recommended height above hob?

For electric hobs, install at 65-75 cm. For gas hobs, 75-85 cm. Refer to the manual for exact specifications.

Does it have a remote control?

No, the hood is operated via manual controls on the front panel.

Where to find spare parts?

Contact Husqvarna-Electrolux customer service or visit authorized dealers. Provide the model number QFC90200X for accurate parts.

USER MANUAL QFC90200X Husqvarna-Electrolux

BÄSTA KUND FÖR PERFEKT RESULTAT

KONTROLLER

ARVOISA ASIAKKAAMME

TÄYDELLISTEN TULOSTEN SAAVUTTAMISEKSI

www.husqvarna-electrolux.se/shop

YMPÄRISTÖNSUOJELU

OHJAIMET

KÆRE KUNDE

FOR PERFEKTE RESULTATER

Type 15 - Filter med aktivt kul der IKKE kan vaskes

BETJENING

DEAR CUSTOMER

Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.husqvarna-electrolux.se

Register your product for better service: www.husqvarna-electrolux.se

Buy Accessories, Consumables and Original spare parts for your appliance: www.husqvarna-electrolux.se/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol .Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.
i General information and tips
Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking. The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service. The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

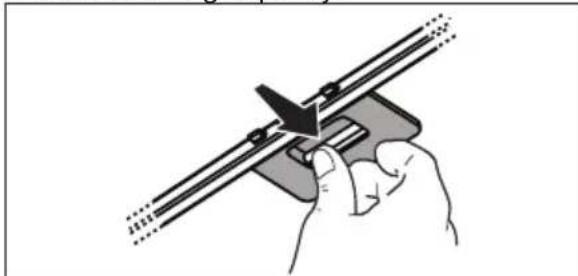

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Type 15 - NON-washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

CONTROLS

The hood is fitted with a control panel withaspiration speed selection control and alight switch to control cooking area lights.

1. ON/OFF lighting

2. OFF motors

3. • 1. • 1. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

LIGHTING

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the damaged lamp. Use ∅35mm E14 28W halogen candle lamps only.
