Product Type	Wall-mounted range hood
Brand	Husqvarna-Electrolux
Model	QFT60211X
Width	60 cm
Depth	50 cm
Height	70-120 cm adjustable
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Lighting Power	2 x 20 W halogen
Extraction Capacity	650 m³/h max
Noise Level	55 dB (normal speed)
Speed Levels	3 + intensive
Functions	Suction, recirculation, timer, filter alarm
Grease Filter Type	Aluminum mesh, dishwasher safe
Charcoal Filter	Optional, replace every 6 months
Ducting	150 mm diameter, exhaust or recirculation
Controls	Electronic push buttons
Safety Features	Automatic shut-off, motor overload protection
Energy Class	A+
Spare Parts Available	Filters, bulbs, motor

Frequently Asked Questions - QFT60211X Husqvarna-Electrolux

How to install the QFT60211X range hood?

Mount the hood on a sturdy wall above the cooking surface. Ensure the ducting is properly connected to the exhaust outlet or use the recirculation kit. Follow the template and fix the hood with screws provided. Electrical connection must be done by a qualified electrician.

How to clean the grease filters?

Remove the aluminum mesh filters and wash them in warm soapy water or in the dishwasher. Dry thoroughly before reinstalling. It is recommended to clean every 2-3 months or more often if used heavily.

How to replace the charcoal filter?

For recirculation mode, remove the charcoal filter from inside the hood. Replace with a new one every 6 months. Ensure the filter is properly seated to maintain efficiency.

How to change the light bulb?

Disconnect power. Remove the lamp cover by pressing the tabs. Replace the halogen bulb (20W max) with the same type. Reattach the cover and restore power.

Why is the hood not extracting air?

Check if the grease filters are clogged. Ensure the charcoal filter (if used) is not saturated. Verify that the ducting is not blocked and that the flap opens when the hood is on. Clean or replace filters as needed.

What is the noise level of this hood?

The noise level varies by speed: around 55 dB on normal speed, and up to 65 dB on intensive mode. This is comparable to a normal conversation.

Can I use this hood without ducting?

Yes, the hood can be used in recirculation mode. You need to install a charcoal filter (sold separately) to absorb odors. The air is cleaned and released back into the kitchen.

How to reset the filter alarm?

After cleaning or replacing filters, press and hold the speed button for 3 seconds until the alarm light turns off. Refer to the manual for specific steps.

What is the warranty period?

Husqvarna-Electrolux offers a 2-year warranty for manufacturing defects. Extended warranty may be available in some regions. Check your purchase documents for details.

Where can I buy spare parts?

Spare parts such as filters, bulbs, and motors are available at authorized Husqvarna-Electrolux service centers or online shops. Provide the model number QFT60211X when ordering.

USER MANUAL QFT60211X Husqvarna-Electrolux

Modern kitchen interior with stainless steel appliances and large windows in the background (no visible text or symbols)

BÄSTA KUND FÖR PERFEKT RESULTAT

Illustration of a hand holding a tool with a cutting tool, no text or symbols present

4.2 Kolfilter - Aktivt kolfilter som

Technical illustration of a solar panel assembly with mounting bracket and close-up detail (no text or symbols)

5. KOMMANDON

www.husqvarna-electrolux.se/shop

MILJ∅VERN

Illustration of a hand holding a tool with a metal bracket and pointer (no text or symbols)

Technical diagram showing two views of a rectangular electronic component with mounting brackets and a close-up inset (no text or symbols)

5. KONTROLLER

E ON/OFF-knapp for belysning.

Dersom ventilatoren eller kommandoknappene ikke skulle virke, anbefaler vi å koble fra strømforsyningen i minst 5 sekunder og deretter slå på ventilatoren igjen. Vent så i 15 sekunder og kontroller om ventilatoren fungerer korrekt.

Anordning for kontroll av fettfilteret og kullfilteret

Illustration of a hand holding a tool with a cutting tool, no text or symbols present

Technical illustration of a mechanical assembly with two views: top shows a rectangular component with zigzag lines, bottom shows a saw cutting into a slot (no text or symbols)

5. OHJAIMET

www.husqvarna-electrolux.se/shop

MILJ∅HENSYN

Illustration of a hand holding a tool with a metal bracket and pointer (no text or symbols)

Technical diagram showing two views of a mechanical component with bracket and mounting base, plus an inset close-up of a detail (no text or symbols)

5. BETJENING

Thank you for choosing this Husqvarna-Electrolux product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.husqvarna-electrolux.se

Register your product for better service: www.husqvarna-electrolux.se

Buy Accessories, Consumables and Original spare parts for your appliance: www.husqvarna-electrolux.se/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete. Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation of filtering with

internal recirculation

filtering with

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 43cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products.

DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

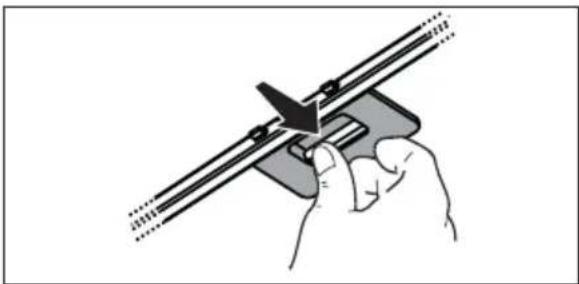

4.1 Grease filter - The grease filter

must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

4.2 Charcoal filter - Washable activated charcoal filter - The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

Technical illustration of a mechanical assembly with two views: top shows a rectangular component with zigzag lines, bottom shows a saw cutting tool (no text or symbols)

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The control switches are located on the hood's front panel:

A OFF-ON push button

Press once or more to obtain the function desired: ON: the hood switches on to the last speed selected.

OFF: all the functions are switched off except the illumination.

B Speed selection push button (extraction power).

Press this push button once or more to select the most suitable extraction speed (power) (1-2-3).

C The display shows the extraction power selected, signalling the saturation of the filters F.

D Intensive speed on/off. The Intensive speed runs for 5 minutes:

If the hood is on when the Intensive speed is activated, the hood reverts to previous speed after 5 minutes.

If the hood is off when the Intensive speed is activated, the hood will be turned off after 5 minutes.

To interrupt the Intensive speed, press button A or B.

E Light ON/OFF

Should the hood or the controls fail to operate: disconnect the power supply for at least 5 seconds, then turn the hood back on again.

Grease and charcoal filter maintenance indicator

This hood is fitted with a device that indicates when it is necessary to clean the grease filter or the charcoal filter (if the hood is used in the recirculation version with a charcoal filter).

On delivery, the hood is not supplied with a charcoal filter, so the saturation indicator will be disabled.

If the hood is to be used with a charcoal filter, the saturation indicator light must be enabled as follows: Set the hood in "OFF".

Pressing keys B and D simultaneously for three seconds, LED F lights up and begins to flash the 1st speed led. After 1 second the 2nd speed led also flashes and the system emits a sound signal (-Beep-) to indicate setting taking place.

To remove the charcoal filter signal press push buttons B and D simultaneously for 3 seconds. LED F lights up and begins to flash the 1st speed led (grease filter) and the 2nd speed led. After 1 second, only the 1st speed led continues to flash. The system emits a sound signal (-Beep-) to indicate setting taking place.

Grease filter LED

The 1st speed led (+ led F) flashes, when it is time to clean the grease filter.

Always comply with the maintenance instructions for the grease filter.

Charcoal filter LED

The 2nd speed led (+ led F) flashes, when the charcoal filter needs to be cleaned or replaced.

Resetting the saturation indicator

After cleaning or replacing the filters, press button A for 3 seconds until the 1st speed led or the second speed led stops flashing. The F LED also turns off.

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

For replacement, contact the technical service.
