Product Type	Fridge-Freezer (No Frost)
Brand	Freggia
Model	LBF25285X
Total Net Capacity	Approx. 86 L (1 L freezer + 85 L refrigerator)
Dimensions (H x W x D)	185.3 cm x 67.7 cm x 59.2 cm
Noise Level	42 dB
Energy Efficiency Class	A+ (estimated based on label)
Annual Energy Consumption	Approx. 322 kWh/annum
Climate Class	Check rating plate (e.g., N, ST)
Refrigerant Type	R600a (Isobutane) or R134a
Defrosting	Automatic (No Frost)
Air Circulation	Forced (No Frost)
Temperature Control	Electronic (separate for fridge and freezer)
Freezer Capacity (24h freezing)	Check rating plate (typical 4-5 kg/24h)
Power Supply	220-240 V ~ 50 Hz
Special Functions	Holiday, Super, Pre-alarm, Door open alarm
Interior Light	Automatic with auto-off after 5 minutes
Antibacterial Filter	Yes, replace every 2 years
Cleaning	Warm bicarbonate solution; condenser cleaning twice a year
Accessories Included	Ice tray, rear spacers, instruction manual
Door Reversibility	Not specified (likely reversible)
Warranty	2 years (standard, not explicitly stated)

Frequently Asked Questions - LBF25285X Freggia

How do I set the temperature on my Freggia LBF25285X fridge-freezer?

Touch the ☐ symbol for the freezer or refrigerator compartment to enter setting mode. While the display flashes, repeatedly touch the same symbol to adjust the temperature (refrigerator: 2°C to 7°C, freezer: -16°C to -24°C). The new setting is saved after 6 seconds.

What does the 'HOLIDAY' function do?

The HOLIDAY function reduces energy consumption during long absences by maintaining a temperature suitable for food storage while the door remains closed. Activate or deactivate by touching the 'HOLIDAY' text for 0.5 seconds.

How does the 'SUPER' function work?

The SUPER function rapidly lowers the refrigerator temperature. It activates for 7 hours after touching 'SUPER' for 0.5 seconds. It can be manually deactivated by touching 'SUPER' again. During Super mode, other freezer settings are disabled.

What should I do if the freezer temperature alarm sounds?

The alarm indicates the freezer temperature has risen above +1°C, meaning food may have thawed. The ALARM light flashes red and an audible beep sounds. Check if the door was open or there was a power cut. Discard any thawed food and press ALARM to silence the beep.

How do I clean the condenser?

Clean the condenser at least twice a year using a vacuum cleaner or brush (see fig. 13 in manual). A dirty condenser reduces performance. Always unplug the appliance before cleaning.

How often should I replace the antibacterial filter?

The antibacterial filter should be cleaned every 4 months and replaced every 2 years. To clean, remove the filter holder, wash the filter with hot water (dishwasher safe), dry below 100°C, and reinstall.

What type of refrigerant does this appliance use?

The Freggia LBF25285X uses either R600a (isobutane) or R134a as refrigerant. Check the rating plate inside the appliance for the exact type. R600a is flammable; follow disposal guidelines.

Why is there water on the floor near the refrigerator?

Check that the drip tray V is correctly inserted and touching the compressor, and that the drain pipe R is properly placed in the tray. If not, water may leak. Also ensure the appliance is level.

Can I freeze fresh food in the freezer compartment?

Yes, the freezer compartment (****) can freeze fresh food. Wrap food in airtight packaging, place in the freezer (fig. 5), and leave space for air circulation. The maximum freezing capacity per 24h is indicated on the rating plate.

What should I do during a power cut?

Keep the door closed. The freezer will maintain temperature for about 18 hours. If the power cut lasts more than 12 hours and food begins to thaw, consume it within 24 hours. Do not refreeze partially thawed food.

USER MANUAL LBF25285X Freggia

Thank you for purchasing Freggia household appliance.

Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.

Save it for future use.

RU

Important safety information.

ВНИМАНИЕ!

Edditional recommendations regarding usage.

Care and maintenance.

COBET:

ACCENSIONE APPARECCHIO....5

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

MESSA IN FUNZIONE

Illustration of a two-tier refrigerator with open doors and internal compartments (no text or symbols)

AVVERTENZA IMPORTANTE

ACCENSIONE APPARECCHIO

Hand placing a rectangular object on a door (no text or symbols visible)

INDEX STANDARDS-WARNINGS AND

STANDARDS-WARNINGS AND RECOMMENDATIONS.....8

REMOVAL OF PACKAGING....9

PACKAGING....9

PRODUCT....9

REMOVING THE TRANSPORT PROTECTION DEVICES.....9

SPARE PARTS SUPPLIED....9

TECHNICAL SPECIFICATIONS....9

POSITIONING AND INSTALLING THE APPLIANCE......9

INSTALLATION....9

LEVELLING THE APPLIANCE....9

ASSEMBLY OF SPACERS....9

ELECTRICAL CONNECTION....9

STARTING THE APPLIANCE....10

CAUTION....10

SWITCHING ON THE APPLIANCE....10

SETTING THE TEMPERATURE OF FREEZER AREA....10

SETTING THE TEMPERATURE OF REFRIGERATOR AREA.....10

CHECKING THE PROGRAMMED TEMPERATURE....10

HOLIDAY FUNCTION....10

SUPER FUNCTION....10

PRE-ALARM MODE FREEZER TEMPERATURE....10

FREEZER TEMPERATURE ALARM....10

DOOR OPEN ALARM....10

INTERNAL LIGHT....11

MALFUNCTION MANAGEMENT....11

HOW TO STORE FOOD IN THE REFRIGERATOR

COMPARTMENT....11

USING THE FREEZER COMPARTMENT....11

HOW TO FREEZE FRESH FOOD....11

PRODUCTION OF ICE CUBES....11

DEFROSTING....11

POWERCUT....11

CLEANING....11

CLEANING THE INTERNAL PLASTIC PARTS

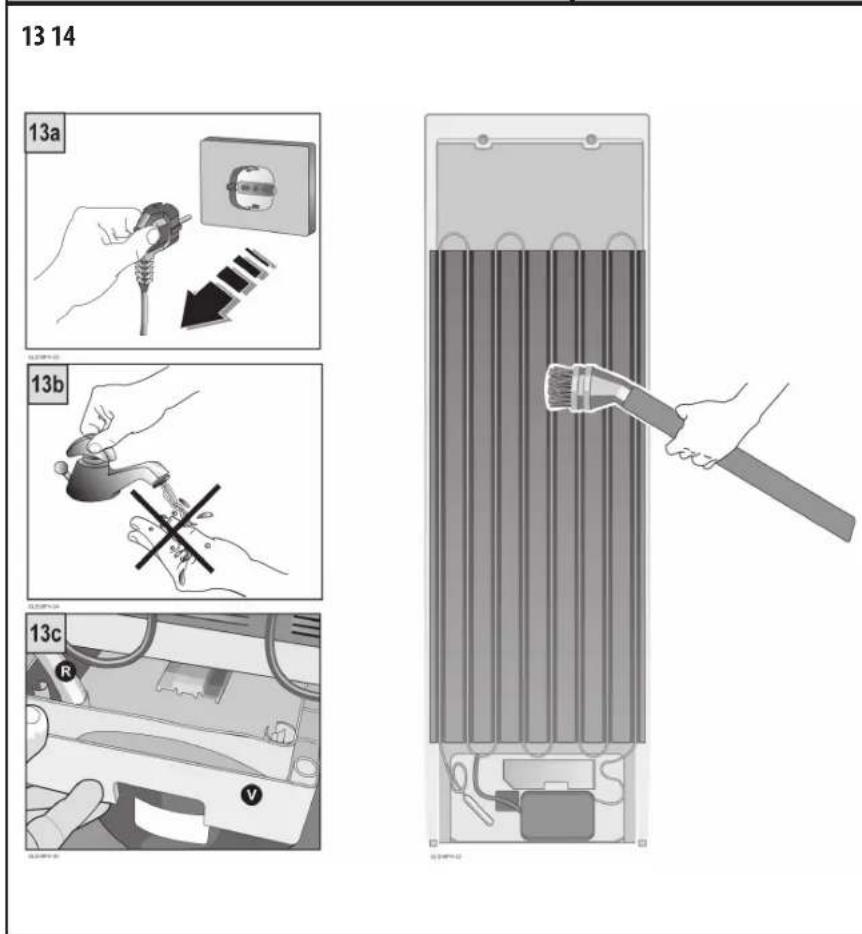

CLEANING THE CONDENSER....11

FOR PROLONGED ABSENCES....11

ANTIBACTERIAL FILTER....11

CLEANING THE ANTIBACTERIAL FILTER....11

TROUBLESHOOTING....12

TECHNICAL ASSISTANCE SERVICE....12

RECOMMENDATIONS

WARNING! At the end of the useful life of an appliance that makes use of R 600a refrigeration gas (isobutane) and flammable gas in the insulation foam, it must be made safe prior to being transported to the place of disposal. To do this, refer to the retailer or the appropriate local authority.

WARNING! When installing the appliance, consideration must be given to the climatic category of the product itself. The climatic category of the appliance is written on the rating plate. The appliance will function correctly within the ambient temperature range in the table for the particular climatic category.

WARNING! This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING! Make sure that the ventilation openings in the appliance body or built-in units are not obstructed.

WARNING! Do not damage the cooling circuit.

WARNING! Do not store explosive substances such us aereosol cans with a flammable propellant in this appliance.

WARNING! Do not use mechanical devices or other artificial methods than those recommended by the manufacturer to accelerate the defrosting process.

WARNING! Do not use electrical devices inside the food storage compartment, if they are not recommended by the manufacturer.

WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm house and by clients in hotel, motels and other residential type environment;

• bed and breakfast type environment;

• catering and similar non-retail applications.

This product complies with current European safety standards governing electrical appliances. It has been subjected to thorough and meticulous testing to assess its safety and reliability. Before connecting the appliance, make sure that the data on the rating plate complies with that of the domestic supply. Do not dispose of the recyclable packing materials in an unauthorised manner. Take them to an appropriate plant for recycling. The electrical safety of this appliance is only guaranteed when it has been connected to a mains supply with an efficient earthing system as provided for by law. This is an important safety requirement and must be complied with. In case of doubt, have the mains supply checked by a qualified electrician.

As with any other electrical appliance, a few fundamental rules must be observed during use:

• do not touch the appliance with wet or damp hands or feet;
• do not pull the power cable to remove the plug from its socket;
  • do not expose the appliance to atmospheric agents;
  • do not allow the appliance to be used by unsupervised children;
  • do not plug-in or unplug the appliance using wet hands;
• before carrying out any cleaning or maintenance operation, disconnect the appliance from the mains supply by either unplugging it or switching the mains power supply off at the main switch;
• in the case of a fault or malfunction, switch off the appliance and do not attempt any repairs.

This appliance is marked as complying with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing any negative consequences for health and the environment.

The symbol affixed to the product or accompanying documents signifies that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled. When disposing of the appliance, comply with local waste disposal regulations. For further information on the treatment, recovery and recycling of this product, refer to the appropriate offices, local domestic waste collection service or the retailer from where the appliance was purchase.

REMOVAL OF PACKAGING

Place the appliance in its installation site (chap. POSITIONING AND INSTALLINGTHE APPLIANCE).

• Cut straps R and remove the box or plastic bag C (fig. 1).
• Immediately destroy the plastic bags S as they could be dangerous for children.
• Once the appliance is free from its packaging, remove the side protections Fand then the base B.

PACKAGING

Packaging material is 100% recyclable. For its disposal follow your local regulations.

The packaging material (plastic bags, polystyrene parts etc.) must be kept out of children's reach as it could be dangerous.

PRODUCT

Scrapping must be carried out according to your local regulations on the disposal of waste materials. Before scrapping the appliance, cut the electrical supply cable so that it can no longer be used. The appliance must not be left in the environment, it must be handed over to a collection center specialized in the recovery of refrigerating gases and lubricating oils.

REMOVING THE TRANSPORT PROTECTION DEVICES

Check that the appliance is undamaged.

The retailer must be informed of any damage to the appliance within 24 hours of delivery.

1. Remove the protection from the door gasket (fig. 2-1).

The protection is used to protect the gasket during transport.

The protection must be removed in order to ensure that the door seal functions correctly.

To remove the protection, lightly pull one end while rotating it outwards.

1. Remove the glass shelf locking devices.

These plastic elements prevent the shelves from moving during transport.

To remove the shelf locking devices, proceed as follows:

a) Grasp the plastic locking device and rotate it until it comes away from the shelf (fig. 2-2A).

b) Remove the locking device by pulling it outwards (fig. 2-2B).

SPARE PARTS SUPPLIED

A. Instruction manual

B. Ice tray

C. Rear spacers

TECHNICAL SPECIFICATIONS

• CARRYING STRUCTURE

Made of electrostatically treated and painted plate panels to resist heavy duty wear and tear and keep its beautiful sine as well.

• INSULATION

Selected to keep internal temperature constant and to give large internal spaces.

- INTERNAL SPACE

Designed to store any kind of food with easy to move shelves.

• FRIDGE AND FREEZER DEFROSTING

Automatic

• AIR CIRCULATION

Forced

• REFRIGERATOR COMPARTMENT TEMPERATURE CONTROL

Electronic

- FREEZER COMPARTMENT TEMPERATURE CONTROL: Electronic.

• INFORMATION

This appliance is CFC-free (it the refrigerating circuit contains R134a) or HFC-free (if the refrigerating circuit contains R600a Isobutane).

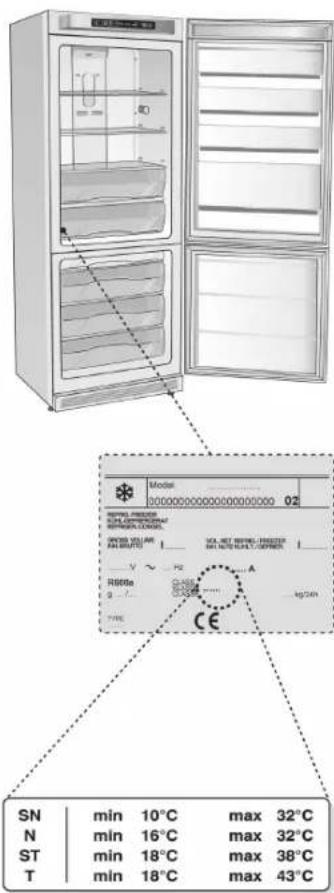

For more details, see matriculation plate inside the appliance (fig. 3).

The dry ventilation air cools food more quickly; thus the NO FROST technique has been applied to keep chilling more regular.

WARNING! When you install your appliance, it is important to bear in mind the climatic rating of the appliance. In order to find out the climatic rating of your appliance check the data rating plate.

POSITIONING AND INSTALLING THE APPLIANCE

INSTALLATION

• The appliance is equipped with rear wheels so that it may be moved easily
- Do not install the appliance near a source of heat.
- Put it in a dry, well-ventilated place.
- To ensure correct running and to avoid the formation of condensate on the outer surface of the appliance, leave a space of at least 5cm at the top and 3cm at the side.

LEVELLING THE APPLIANCE

Make sure that the appliance is on level.

Adjust the front feet P if necessary (Fig. 6, 7).

ASSEMBLY OF SPACERS

The distance from the wall must be at least 4-5 cm to guarantee sufficient air circulation.

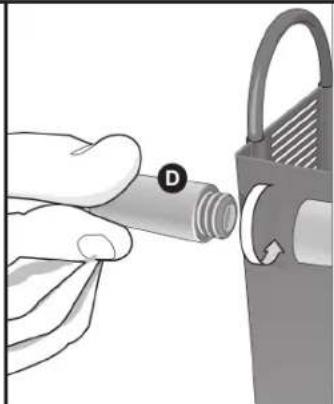

- Attach the two spacers D (see accessories) to the back of the appliance, as shown in figure 8.

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

ELECTRICAL CONNECTION

• The electrical wiring must comply with the norms on electrical safety.
• Check that the voltage on the rating plate corresponds to the voltage in your home.
• The appliance must have an earth according to the laws in force. The manufacturer declines all responsibility for any damage to persons, animals or things as a result of failure to comply with these norms.
• If the plug and the socket are not of the same kind, ask a qualified technician to change the plug.

WARNING!

Do not use adaptors, multiple sockets or extensions (Fig. 11).

IMPORTANT! If the appliance is switched off and then immediately switched on again, the compressor activates after about 10 minutes. This is a normal operating procedure for the appliance.

1 GREEN AND YELLOW EARTH
2 BLUE NEUTRAL
3 BROWN LIVE
4 13 AMP FUSE
5 CABLE CLAMP

WARNING!

THIS APPLIANCE MUST BE EARTHED.

STARTING THE APPLIANCE

CAUTION

Whenever the product has been lying horizontally during transportation, it should be left to stand upright for at least six hours before it is switched on, otherwise it may be noisy when it is in operation.

Before plugging the appliance in, make sure that the power supply voltage corresponds to the value shown on the product data plate ("See the section Electrical connection").

Plug the appliance into the electricity mains supply. The display will flash, showing the default temperature set by the manufacturer (7°C for the refrigerator area, -16°C for the freezer area).

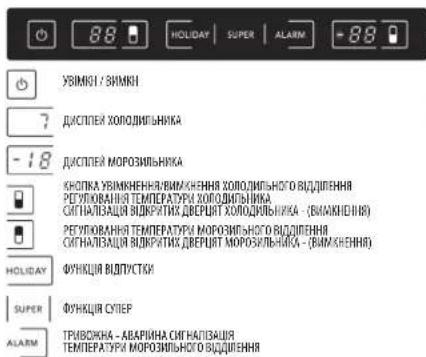

SWITCHING ON THE APPLIANCE

The product is turned on by touching the symbol (For 0.5 seconds, action followed by an audible signal (1 beep).

It is possible to switch off only the refrigerator compartment by touching the symbol (☐) for 4 seconds (the «—» symbol appears on the display).

The product is turned off by touching the symbol (☐) for 5 seconds, followed by an audible signal (2 beep) and two dash ( ) on the display.

NOTE: in this case, the refrigerator compartment and all the display symbols are also automatically switched off.

SETTING THE TEMPERATRE OF THE FREEZER AREA

The freezer display indicates the actual internal temperature of the freezer compartment ranging from +20°C to -40°C; if the temperature exceeds +20°C, the symbol «H» appears on freezer display. Freezer temperature can be adjusted by touching the (☐) symbol; temperatures between -16°C and -24°C can be set.

When the refrigerator is switched on, if you touch the (☐) symbol the set temperature value will flash on the display for 6 seconds.

To set a new temperature, touch the ⏻ symbol and, while the display is flashing, touch the same symbol (☐) repeatedly until the desired temperature value has been reached; the new setting will be stored after the display has stopped flashing (6 seconds).

SETTING THE TEMPERATURE OF THE REFRIGERATOR AREA

The refrigerator display indicates the actual internal temperature of the refrigerator compartment ranging from 0°C to 19°C; if the temperature exceeds 19°C, the symbol «H» appears on the display. Refrigerator temperature can be adjusted by touching the (☐) symbol; temperatures between 2°C and 7°C can be set.

When the refrigerator is switched on, if you touch the ☐ symbol the set temperature value will flash on the display for 6 seconds. To set a new temperature, touch the ☐ symbol and, while the display is flashing, touch the same symbol (☐ repeatedly until the desired temperature value has been reached; the new setting will be stored after the display has stopped flashing (6 seconds).

NOTE! With room temperatures between 20°C and 25°C, we suggest setting the refrigerator temperature at +5°C and the freezer temperature at -18°C.

The freezer and refrigerator temperature is also depending on how often the doors are opened and the quantity of food contained inside the product.

CHECKING THE PROGRAMMED TEMPERATURE

If the symbol (refrigerator area) and the symbol (freezer area) are touched once, the programmed temperature will flash on the display for 6 seconds; after, the actual temperature inside the compartments will be displayed. The set functions remain stored in the memory of the appliance, even in the event of a power cut or when the appliance is disconnected from the electricity supply; upon start-up, the last temperature setting for both compartments will flash on the display.

HOLIDAY FUNCTION

The "HOLIDAY" function may be used during periods of prolonged inactivity (for example, if all users go on holiday). This function saves electricity as it takes into account the fact that the door of the appliance will not be opened at all during this period and maintains a temperature inside the refrigerator which is suitable for the storage of food. To activate this function, simply touch the text "HOLIDAY" for at least 0.5 seconds; the text will be lit up in white. The function may only be deactivated manually, by touching the text "HOLIDAY" for 0.5 seconds. While the appliance is operating in "HOLIDAY" mode, all other settings are temporarily disabled.

SUPER FUNCTION

The Super function was designed to reduce the temperature inside the refrigerator compartment in the shortest possible time; if you touch the text "SUPER" for at least 0.5 seconds the function will be activated for a period of 7 hours, during which time the text "SUPER" will be lit up in white. After this 7-hour period, the Super function will be deactivated automatically. However, if you wish to manually deactivate the function before the 7-hour period has elapsed, simply touch the text "SUPER" for at least 0.5 seconds; when the function has been deactivated the text "SUPER" will no longer be illuminated.

While the appliance is operating in Super mode, all other freezer compartment settings are temporarily disabled.

PRE-ALARM MODE AND FREEZER TEMPERATURE

The pre-alarm mode is activated when the temperature inside the freezer compartment reaches a value higher than -12^ (for example, -11^ ). This may occur in the following situations:

- a large amount of unfrozen food has been placed in the freezer (see freezing modes);

- the door has been open for an extended period of time;

• the electricity supply has been cut off for a prolonged period of time;

• the appliance has malfunctioned.

The pre-alarm mode is indicated by the temperature appearing intermittently on the freezer display, by the flashing white ALARM symbol and by the audible alarm.

The audible alarm may be disabled by touching the ALARM text; in this case the pre-alarm mode indicator of the flashing temperature on the display remains active and the ALARM text will remain lit in a fixed manner instead of flashing. The pre-alarm mode is disabled automatically, but only when the temperature of the freezer compartment falls below -12°C; at this point the ALARM text will no longer be illuminated, while the temperature will stop flashing and remain lit in a fixed manner on the display.

FREEZER TEMPERATURE ALARM

The alarm function was designed with the aim of warning the user that, due to some external cause (for example, a power cut, the door has been left open, etc.) the food kept in the freezer compartment has reached a temperature higher than +1°C and has therefore completely thawed out.

In this case, the freezer temperature alarm mode is enabled and flashes on the display, along with the highest temperature detected inside the compartment; the ALARM text is illuminated in red and the audible alarm is also activated.

The display memory (maximum temperature reached) is important because, if power is cut off and then restored, the appliance will continue operating as normal; this could result in food which had previously thawed out being refrozen.

DOOR OPEN ALARM

Every time the door is opened the ( symbol (refrigerator) and/or the ( symbol (freezer) lights up in white, in a fixed manner; if the door remains open for over 2 minutes, the "Door Open" buzzer alarm sounds; it may be deactivated in one of the 2 following ways:

- by closing the door, both the buzzer and the visible alarm signal deactivate;

- if the ( symbol (for the refrigerator door) or the (symbol (for the freezer door) is touched, only the buzzer deactivates, while the white-lit visible alarm signal starts flashing.

STARTING THE APPLIANCE POWER CUT

INTERNAL LIGHT

Every time the door is opened, the light inside the refrigerator compartment is switched on; if the door is opened for an extended period of time, the light switches off automatically after 5 minutes. To switch it back on, simply close the door and open it again.

MALFUNCTION MANAGEMENT

If the symbols «E»,»E-»,»-E», appear on the refrigerator-freezer display, the appliance is guaranteed to function for a few days, but the Technical Assistance Centre should be contacted immediately.

HOW TO STORE FOOD IN THE REFRIGERATOR COMPARTMENT

Place the food as shown in the diagram 4.

SPECIAL COMPARTMENT FOR THE PRESERVATION OF MEAT AND FISH:

Some delicate food stuffs like meat, fish, and lightly frozen groceries can be placed in a special box, in which the temperature is kept constant at 0^ C.

NOTE:

• The distance between the shelves and the rear internal wall of the refrigerator ensures that air circulates freely.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
• Do not place food that is still warm into the compartments.
• Keep all liquids in closed containers.
• The NO-FROST system guarantees a constant temperature and a more rapid freezing capacity.
• The humidity-free, forced air circulation tends to dry food up quickly and for this reason, we advise keeping all food in closed containers.

USING THE FREEZER COMPARTMENT

HOW TO FREEZE FRESH FOOD

The freezer compartment (****) makes it possible to freeze food. The quantity of fresh food, which can be frozen in 24 hours, is shown on the rating plate (see paragraph entitled "Electrical wiring").

Proceed as follows:

• Wrap the food in aluminum foil, transparent film, plastic waterproof packaging, covered polyethylene containers, freezer containers.
• Place the groceries in the compartments as indicated in Figure 5; allow sufficient free space around them so that the air can circulate freely.

If there is a power failure, the freezer compartment will keep its preserving temperature for about 18 hours.

When you purchase frozen food always bear in mind the following factors:

• The packaging or packet must be intact, otherwise the food may spoil. If a packet is swollen or shows damp marks, it has not been stored in optimum conditions and may have started to thaw.
  • Purchase frozen food goods last and transport them in an insulated box.
• As soon as you arrive home, place the frozen goods immediately in the freezer compartment.
• Avoid or reduce variations in temperature to a minimum.
• Keep to the expiry date shown on the frozen food package.
  • Always follow the instructions on the packaging on how to preserve the frozen foods.
• The maximum amount of fresh food that can be frozen is shown in kg/24h on the rating plate with the technical specifications.
• Avoid placing food that has to be frozen in contact with food that has already been frozen so that the latter does not under go a rise in temperature.

PRODUCTION OF ICE CUBES (FIG. 5)

Fill the ice container three quarters full with water; place it on the appropriate sliding shelf in the freezer compartment (if available).

DEFROSTING

The fridge-freezer defrosts automatically and therefore there is no need for anything to be done to it.

WARNING!

Never re-freeze partially thawed food and consume it within 24 hours.

If a power cut should occur, try to establish its duration.

If the forecast is less than 12 hours, leave the food in the freezer and keep the door closed.

If the power cut lasts for longer than 12 hours and part of the food starts to thaw out, this should be consumed as soon as possible.

• Remove the food, wrap it in several layers of newspaper and place it in the fridge or in a cool location.
• Remember that an increase in the temperature of the food will greatly reduce its storage life.

WARNING! Do not use any mechanical devices or other artificial methods other than those recommended by the manufacturer for accelerating the defrosting process.

WARNING! Unless otherwise approved by the manufacturer, do not use electrical appliances inside the food storage compartment.

CLEANING

WARNING! Before starting any cleaning, disconnect the appliance from the mains electricity supply.

WARNING! The protections (wire grill, covers) must not be removed by unqualified personnel: do not use the appliance if the protections have been removed.

CLEANING THE INTERNAL PLASTIC PARTS AND THE DOOR GASKET

Use a warm solution of bicarbonate of soda (two spoonfuls in two litres of water).

IMPORTANT!

Do not use abrasives or detergents of any kind.

CLEANING THE CONDENSER

This should be carried out at least twice a year.

Clean using a domestic vacuum cleaner or a brush (fig. 13). A dirty condenser will have a negative effect on the appliance and reduce its performance.

FOR PROLONGED ABSENCES

• Empty the compartments.
- Disconnect the appliance from the mains electricity supply.
- Clean both the compartments and dry them.
- Leave the doors open to prevent bad smells or mould from forming.

ANTIBACTERIAL FILTER

The appliance is equipped with an antibacterial filter; its function is to improve the air quality inside the refrigerator, ensuring a healthier and bacteria-free environment and, as a result, extending food preservation.

CLEANING THE ANTIBACTERIAL FILTER

Perform cleaning the antibacterial filter every 4 months.

1. Remove the filter-holder cover (fig. 1.)

CLEANING TECHNICAL ASSISTANCE SERVICE

1. Remove the filter (fig. 2.)

2. Wash it with hot water (it can be washed also in the dishwasher); dry it at a temperature lower than 100°C;

3. Remount it in the specific seat and place back the cover (fig. 1)

To maintain a proper filtering capacity, replace the filter every 2 years.

Hand placing a component into a wall corner (no text or symbols visible)

Illustration of a hand holding a small object with a curved handle, being lifted by a tool (no text or symbols present)

TROUBLESHOOTING

1. The appliance does not work. Check that:

• Is there a power cut?
• Is the plug inserted properly in the mains socket?
• Is the power supply cable damaged?
• Is the temperature setting correct?

1. The temperature inside the compartments is not low enough. Check that:

2. Do the doors close properly?
   • Is the appliance installed near to a heat source?
   • Is the temperature setting correct?
   • Is the condenser clean?

3. The temperature inside the fridge compartment is too low. Check that:

• Is the thermostat in the right position?

1. The appliance is very noisy. Check that:

• Is the appliance in contact with other furniture or objects?
- Are the pipes on the back touching or vibrating?
• Is the appliance level?

1. The interior light does not work

- Contact the Technical Assistance Service.

1. There is water on the floor. Check that:

2. Is tray V inserted correctly and in contact with the compressor?
   • Is drain pipe R correctly inserted in the tray?

Before contacting the Assistance Service:

• Check whether it is possible to rectify the problem by referring to the "Troubleshooting" guide.
• Restart the appliance to check whether the problem has been resolved. If the problem still exists, disconnect the appliance from the mains electricity supply and repeat the operation after one hour.

If the appliance is not working properly or not working at all, before calling the Technical Assistance Service check that:

• The plug is inserted properly in the mains socket.
• The mains supply is working.
• The temperature is set correctly.
• The doors close properly.
- The power supply voltage corresponds to that of the appliance (± 6%).
• If the problem still exists, call the Assistance Service.

• INFORM THE ASSISTANCE SERVICE OF:

• The type of malfunction
• The appliance model
- The serial number

The manufacturing firm refuses all responsibility for any possible imprecision in this booklet, due to misprints or clerical errors. It reserves the right to make all the changes that it will consider necessary in its own products, without effecting the essential characteristics of functionality and safety.

Illustration of a refrigerator with open doors and internal compartments (no text or symbols)

Illustration of hands pouring liquid from a container into a funnel (no text or symbols)

ПОЧАТОК РОБОТИ

Illustration of a two-tier refrigerator with open doors and internal compartments (no text or symbols)

ВАЖЛИВЕ ЗАУВАЖЕННЯ

UŻYTKOWANIE URZĄDZENIA

This operation must be carried out by at least two people.

2a
A

B

©

3

H	185,3 cm
D	67,7 cm
W	59,2 cm

4

5

1 kg MAX

The food that has to be frozen should be prepared in small portions: max. 1 kg

Pure architectural or mechanical diagram showing a vertical structure with a base and a labeled point P, no text or symbols present.

Simple line drawing of a cabinet or enclosure with no text, numbers, or symbols

Close-up of a hand holding a pen-like object with a circular arrow indicating rotation (no text or symbols visible)

IT

1. MODELLO
2. TENSIONE DI ALIMENTAZIONE E FREQUENZA
3. ASSORBIMENTO MASSIMO
4. CAPACITA' LORDA TOTALE
5. NUMERO DI TIPO
6. MARCHIO DI CONFORMITA' CE
7. CLASSE CLIMATICA
8. CAPACITA' DI CONGELAMENTO
9. TIPO DI REFRIGERANTE
10. QUANTITA' REFRIGERANTE
11. NUMERO DI MATRICOLA
12. CAPACITA' UTILE TOTALE
13. TIPOLOGIA PRODOTTO
14. ANNI DI GARANZIA
15. MARCHIO COMMERCIALE

EN

1. MODEL
2. SUPPLY VOLTAGE AND FREQUENCY
3. MAXIMUM ABSORPTION
4. TOTAL GROSS VOLUME
   S. TYPE NUMBER
5. EEC CONFORMITY CHECKMARK
6. CLIMATE CATEGORY
7. FREEZER CAPACITY
8. TYPE OF REFRIGERANT
9. QUANTITY OF REFRIGERANT
10. MATRICULATION NUMBER
11. TOTAL NET CAPACITY
12. PRODUCT TYPE
13. YEARS OF GUARANTEE
14. COMMERCIAL BRAND

RU

Illustration of a two-tier refrigerator with open doors and glass doors (no text or symbols visible)

Illustration of a refrigerator with open doors and a hand holding a knife, showing interior components (no text or symbols)

16

This manual can be downloaded at www.freggia.com
