Product Type	Freezer
Brand	Freggia
Model	LSB0010
Voltage	220-240 V, 50 Hz
Current Rating	16 A
Refrigerant	R600a
Climate Class	T (16-43°C), ST (16-38°C), N (16-32°C), SN (10-32°C)
Freezing Capacity	Refer to nameplate (max kg/24h)
Thermostat Settings	1-5: 1-2 short-term, 3-4 long-term, 5 freezing
Defrosting Method	Manual, recommended when frost exceeds 3-5 mm
Adjustable Feet	Yes, front legs
Drawers	Yes, freezer drawers
Storage Capacity Optimization	Removable drawers for maximum net capacity
Energy Saving Tips	Keep ventilation clear, avoid direct sunlight, cover drinks
Cleaning	Periodically with bicarbonate of soda and lukewarm water
Safety Features	Grounded plug, no mechanical defrosting, refrigerant circuit protection
Warranty Life Cycle	10 years (spare parts availability)
Installation Clearance	At least 5 cm from electrical ovens, 50 cm from heat sources
First Use	Keep upright for 3 hours before plugging in
Power Failure Handling	Unplug, wait 5-10 minutes before reconnecting

Frequently Asked Questions - LSB0010 Freggia

How do I set the thermostat for optimal freezing?

For short-term storage, set the knob between 1-2. For long-term storage, use 3-4. For freezing fresh food, set to 5. After 24 hours, reset to desired position to save energy.

How often should I defrost my Freggia freezer?

Defrost when the frost layer exceeds 3-5 mm. The day before, set thermostat to 5 to freeze foods completely. Then turn to '•' and leave the door open. Clean and dry before restarting.

What cleaning products are safe for the freezer?

Use a solution of bicarbonate of soda and lukewarm water. Avoid abrasive products, detergents, or soaps. Rinse with clean water and dry thoroughly.

What should I do when using the freezer for the first time?

Keep the freezer in an upright position for 3 hours before plugging in. Clean the interior with bicarbonate solution. Set the thermostat to the desired position.

What should I do during a power failure?

Avoid opening the freezer door to maintain temperature. If the power cut is prolonged, unplug the freezer and wait 5-10 minutes before reconnecting to protect the compressor.

Why is my freezer making unusual noises?

A slight bubbling sound from the refrigerant is normal. If noises are different, check if the appliance is installed firmly on a level surface and that objects on top are not vibrating.

How can I save energy with my freezer?

Install in a cool, ventilated area away from sunlight and heat sources. Allow hot food to cool before storing. Cover drinks and avoid leaving the door open for long periods.

Can I store glass bottles in the freezer?

No, do not place glass bottles or cans in the freezer as they may explode. Only store drinks with high alcohol content in the fridge compartment with lids tightly closed.

What should I do if the freezer is not cooling enough?

Check if the thermostat is set correctly, doors are closed, and ventilation is not blocked. Ensure ambient temperature matches the climate class. If problem persists, contact an authorized service center.

How do I safely dispose of my old freezer?

Remove or break the lock to prevent child entrapment. Contact your municipal authority for WEEE disposal to ensure proper recycling of refrigerant and insulation materials.

USER MANUAL LSB0010 Freggia

Thank you for purchasing Freggia household appliance.

Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.

Save it for future use.

RU

ATTANTION! Important safety information.

ВНИМАНИЕ!

Edditional recommendations regarding usage.

Care and maintenance.

COBET:

BEFORE USING THE APPLIANCE....3

GENERAL WARNINGS....3

OLD AND OUT-OF-ORDER FRIDGES....3

SAFETY WARNINGS....4

INSTALLING AND OPERATING YOUR FREEZER......4

BEFORE USING YOUR FREEZER....4

HOW TO OPERATE THE APPLIANCE....4

THERMOSTAT SETTING....4

FOOD STORAGE IN THE APPLIANCE....5

CLEANING AND MAINTENANCE....5

DEFROSTING FREEZER....5

BEFORE CALLING YOUR AFTER SALES SERVICE......6

TIPS FOR SAVING ENERGY....6

PARTS OF THE APPLIANCE

AND THE COMPARTMENTS....6

GENERAL WARNINGS

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas, it is explosive. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in households and similar applications such as;

• staff kitchen areas in shops, offices and other working environments

• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
• If the supply cord is demaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

OLD AND OUT-OF-ORDER FRIDGES

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges.

- Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

NOTES:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

SAFETY WARNINGS

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

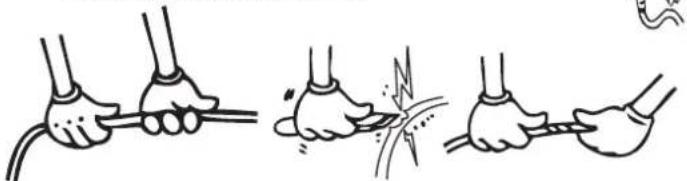

• Do not pull, bend or damage the cord.

Illustration showing three different techniques for connecting wires, with no visible text or symbols.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat icecream and ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
  • Fix the accessories in the fridge during transportation to prevent damage to accessories.

Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.

• Place your freezer in a place that it would not be exposed to direct sunlight.
• Your freezer should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• When your freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).
  • Installation procedure into the kitchen unit is given in the installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.
• The adjustable front legs should be adjusted to make sure your appliance is level nd stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your freezer, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
• Freezer should be placed against a wall with a free distance not exceeding 75 mm.

BEFORE USING YOUR FRIDGE

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

Cartoon illustration of a distressed container with a label 'KG' on top, showing a sad face and limbs (no text beyond label)

The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. “•” position shows thermostat is closed and no cooling will be available.

Important!

Do not try to rotate knob beyond 1 position it will stop your appliance.

• FREEZER THERMOSTAT SETTING;

1 - 2: For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.
3 - 4: For long-term storage of food in the freezer compartment, you can set knob to medium position.
5: For freezing the fresh food. The appliance will run for colder temperatures.

Note; The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments.

FOOD STORAGE IN THE APPLIANCE CLEANING AND MAINTENANCE

• Freezer is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade, in doubt double wrap), polythene bags and plastic containers are ideal. While freezing food; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, turn knob to 5 position when placing fresh food in the freezer.
  • After placing fresh food in the freezer, 24 hours position 5 is generally sufficient, after 24 hours, reset the thermostat to the desired position.
• Attention; In order to save energy, when freezing small amounts of food, reset the thermostat to the desired position.(Recommendation).
• Do not allow the fresh food to be frozen to come into contact with the already frozen food.
• Always mark the date and the content on the pack and do not exceed the stated storage time.
• In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.
• The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).
• Never place warm food in the freezer compartment.
• When purchasing and storing frozen food products; ensure that the packaging is not damaged.
• The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.
• Place frozen food in the freezer compartment as soon as possible after buying it.
• Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

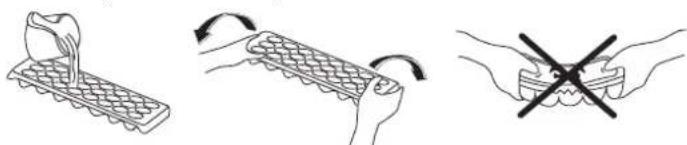

• When making ice cubes, fill the ice tray with water and place in freezer compartment. After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Three-step illustration showing a hand holding an abacus, with arrows indicating rotation and a crossed-out hand (no text or symbols)

Storage: If you want to use the maximum net capacity, you can remove the drawers and store the items directly on the cooling tubes. This will enable you to make use of the entire volume of the compartment.

CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply before cleaning.
• Do not wash your fridge by pouring water.
• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

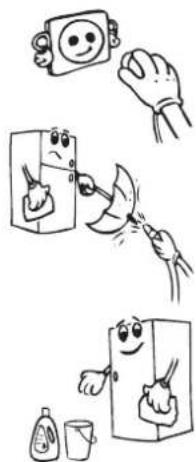

Illustration of a kitchen appliance with cartoon faces and food items (no text or symbols)

- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

DEFROSTING

• DEFROSTING THE FREEZER

WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer. The frost, accumulated

in the freezer, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain

the efficiency of the freezer.

• The day before you defrost, set the thermostat dial to position "5" to freeze the foods completely. (Recommendation)
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Set the thermostat knob to position “•” and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.

If there is defrost water on the freezer floor, you can clear it away by using a sponge.

Line drawing of an open refrigerator with a hand cleaning the interior (no text or symbols)

- Clean the interior by hand with lukewarm water and a little detergent.

Important! Never use abrasive products or aggressive cleaning agents.

- Dry the inside of the unit, plug on the mains, and set the thermostat knob to position "5". After 24 hours, reset the thermostat to the desired position.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your freezer is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
• The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the freezer circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the installation manual.
  • The objects on the appliance are vibrating.

If your freezer is not cooling enough;

Your freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your freezer out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature °C

T Between 16 and 43 (°C)

ST Between 16 and 38 (°C)

N Between 16 and 32 (°C)

SN Between 10 and 32 (°C)

• IMPORTANT NOTES:

• While power cut, to prevent any compressor problem you should plug out the freezer. You should delay plugging in 5 – 10 minutes after you power supply. If you plug out the freezer for a reason you should wait at least 5 min to replug. It is important for avoiding damage to freezer's components.
• If you won't be using your freezer for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your freezer as per Part 4 of this document and leave the door open to prevent any humidification or odor formation.
• If there is still a problem with your freezer although you have followed the instructions in this book, please consult your nearest authorized service center.
• The life cycle of this product as determined and proclaimed by the Ministry of Industry (the period for making spare parts available for the product to be able to fulfill its functions) is 10 years.

• CONFORMITY INFORMATION

• This appliance is designed for use at an ambient temperature within the 10^ - 32^ range.
  • The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

TIPS FOR SAVING ENERGY

1. Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow ward food and drinks to cool down outside the appliance.
3. When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
4. When placing food and drinks, open the appliance door as briefly as possible.
5. Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc).
6. Door gasket must be clean and pliable. Replace gaskets if worn.

PARTS OF THE APPLIANCE AND THE COMPARTMENT

Interior view of a white refrigerator with open door and labeled compartments (no text or symbols on the cabinet itself)

This presentation is only for information about the parts of the appliance.

Parts may vary according to the appliance model.

1) FREEZER DRAWERS
2) THERMOSTAT DIAL

Illustration of four hands performing a manual cable or wire manipulation technique (no text or symbols present)

Illustration showing three different hand positions: abacus, keyboard, and hand holding a cross (no text or symbols)

Illustration of cartoon characters interacting with devices and objects (no text or symbols)

Line drawing of an open refrigerator with a hand inserting a component (no text or symbols)

Interior view of a refrigerator with open door and labeled compartments (no text or symbols on the cabinet itself)

Illustration of four hands performing a manual cable or wire manipulation technique (no text or symbols present)

Diagram of two coiled heat exchangers with arrows indicating flow direction (no text or symbols)

Illustration of a cartoon-style cleaning or cleaning process with hand gestures, no text or symbols present

Line drawing of a refrigerator interior showing the door, drawer, and front panel (no text or symbols)

Interior view of a white refrigerator with open door and labeled compartments (no text or symbols on the cabinet itself)

Illustration showing three different techniques for using a tool to interact with a wire, no text or symbols present.

Illustration of a cartoon refrigerator with a smiling face, hand gesture, and cleaning tools (no text or symbols)

Line drawing of an open refrigerator with a hand placing insulation on the side panel (no text or symbols)

Interior view of a white refrigerator with open door and labeled compartments (no text or symbols on the cabinet itself)

FOR YEARS TO COME freggia

This manual can be downloaded at www.freggia.com
