| Product Type | Freestanding Refrigerator-Freezer |
| Model | LBBF1660 |
| Brand | Freggia |
| Total Volume | Approximately 150 L (estimated) |
| Refrigerator Volume | Approximately 110 L (estimated) |
| Freezer Volume | Approximately 40 L (estimated) |
| Dimensions (H x W x D) | Approximately 1450 x 550 x 600 mm (estimated) |
| Weight | Approximately 45 kg (estimated) |
| Power Supply | 220-240 V, 50 Hz |
| Climate Class | T (16°C to 43°C) / ST / N / SN |
| Refrigerant | R600a (environmentally friendly, flammable) |
| Defrost Type | Frost Free (auto defrost in freezer) |
| Thermostat Control | Rotary knob (1-5 settings) |
| Number of Shelves | 3 adjustable shelves in refrigerator, 2 freezer drawers |
| Door Reversibility | Yes (user-reversible, instructions provided) |
| Interior Light | Max 15 W, replaceable |
| Noise Level | Approximately 42 dB (estimated) |
| Energy Consumption | Approximately 200-250 kWh/year (estimated) |
| Accessories Included | Ice tray, bottle holder (in some models) |
| Installation Type | Built-in capable (with kitchen unit) |
| Safety Features | Child lock (door lock on old models), anti-tip brackets, grounded plug |
| Warranty | Standard 2 years (check local) |
| Replacement Parts | Available from authorized service (bulb, thermostat, door gasket, shelves) |
| Maintenance | Clean condenser annually, defrost drain check, door gasket care |
Frequently Asked Questions - LBBF1660 Freggia
User questions about LBBF1660 Freggia
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual LBBF1660 - Freggia and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LBBF1660 by Freggia.
USER MANUAL LBBF1660 Freggia
Thank you for purchasing Freggia household appliance.
Please carefully read the user manual, as it contains the instructions for the safe installation, operation and maintenance of the household appliance.
Save it for future use.
RU
Important safety information.
ВНИМАНИЕ!
Edditional recommendations regarding usage.
Care and maintenance.
COBET:
INSTRUCTIONS PREALABLES....3
GENERAL WARNINGS....3
SAFETY WARNINGS....4
INSTALLING AND OPERATING YOUR FRIDGE......4
BEFORE USING YOUR FRIDGE....4
HOW TO OPERATE THE APPLIANCE....5
INFORMATION ON THE FROST FREE TECHNOLOGY......5
THERMOSTAT SETTING....5
WARNINGS ABOUT TEMPERATURE ADJUSTMENTS......5
ACCESSORIES....5
Ice tray....5
Bottle holder (In some models)....5
FOOD STORAGE IN THE APPLIANCE....5
REFRIGERATOR COMPARTMENT....5
FREEZER COMPARTMENT....6
CLEANING AND MAINTENANCE....7
DEFROSTING....7
REPLACING THE REFRIGERATOR LIGHT BULB....7
SHIPMENT AND REPOSITIONING....7
BEFORE CALLING YOUR AFTER SALES SERVICE......7
TIPS FOR SAVING ENERGY....8
PARTS OF THE APPLIANCE
AND THE COMPARTMENTS....8
INSTALLATION INSTRUCTIONS
AND DOOR REVERSIBILITY....9
MOUNTING SCHEMES....31
GENERAL WARNINGS
WARNING!
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING!
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING!
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING!
Do not damage the refrigerant circuit.
WARNING!
To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.
- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. Although R600a is an environmentally friendly and natural gas, it is explosive. In the event of a leak caused by damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
- While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended to be used in households and similar applications such as:
- staff kitchen areas in shops, offices and other working environments
- farm houses and by clients in hotels, motels and other residential type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
- If the supply cord is demaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• OLD AND OUT-OF-ORDER FRIDGES
- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm the environment when you are discarding your old fridges.
- Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.
INSTRUCTIONS PREALABLES BEFORE USING THE APPLIANCE
NOTES:
- Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
- This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.
SAFETY WARNINGS
- Do not use multiple receptacles or extension cord.
- Do not plug in damaged, torn or old plugs.

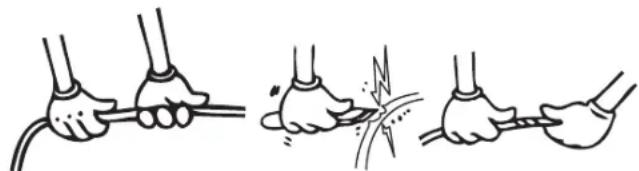

- Do not pull, bend or damage the cord.
- Do not twist and bend the cables, and keep them away from hot surfaces.
- This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department!
- Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
- Do not operate any electrical appliances inside the refrigerator or freezer.
- Fix the accessories in the fridge during transportation to prevent damage to accessories.
INSTALLING AND OPERATING YOUR FRIDGE
Before starting to use your fridge, you should pay attention to the following points:
- Operating voltage for your fridge is 220-240 V at 50Hz.
- The plug must be accessible after installation.
- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.
- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.
-
Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.
-
The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage. - Place your fridge in a place that it would not be exposed to direct sunlight.
- Your fridge should never be used outdoors or left under the rain.
- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
- Do not place heavy items on the appliance.
- Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).
- Installation procedure into the kitchen unit is given in the The installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.
- The adjustable front legs should be adjusted to an appropriate height to allow your freezer to operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the freezer.
- Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
- Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.
BEFORE USING YOUR FRIDGE
- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.
INFORMATION ON THE FROST FREE TECHNOLOGY
The Frost Free refrigerators are different from the other static refrigerators in terms of their operational system.
In normal refrigerators, in the freezing section, the humidity from the humid food entering the refrigerator during door swings causes frosting inside the freezing section. For melting the snow and frost that have been formed, it is necessary to carry out processes such as powering off the refrigerator, taking out the food that needs to be kept cold during this process, removing the accumulated frost.
As for the case in frost free refrigerators, it is entirely different in freezer compartment. The dry and cold room is blown homogeneously at many points to the cooling and freezing sections by means of the fan. The cold air that is distributed homogeneously even in the inter-spaces among shelves not only makes sure that all your food is cooled equally and properly, but it also does not allow for humidification and frosting. Cooling compartment is cooled statically.
Therefore, your Frost Free refrigerator that you have provides you with great convenience in use in addition to its large volume and aesthetical look.
- ICE TRAY
- Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.
In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.
THERMOSTAT SETTING
• COOLING COMPARTMENT
It ensures that the temperature settings in the cooling and freezing compartments of your refrigerator be performed automatically. It may be set to any value ranging from the values 1 to 5. As you turn the thermostat setting knob from 1 to 5, the cooling degree rises. For saving energy in winter months, you may operate your refrigerator at a lower position.
Important!
Do not try to rotate knob beyond 1 position it will stop your appliance.
• COOLING COMPARTMENT THERMOSTAT KNOB;
4 - 5 : For further cooling.
2 - 3 : For normal utilization.
1: For less cooling.
WARNINGS ABOUT TEMPERATURE ADJUSTMENTS
- It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge. - Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
- A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
FOOD STORAGE IN THE APPLIANCE
REFRIGERATOR COMPARTMENT
• To prevent humidification and odour formation, the food should be placed in the refrigerator in enclosed cups or with their top being covered.
- The hot food and drinks should also be cooled in the room temperature before being placed in the refrigerator.
- Please do not prop the packaged food and cups against the lamp and cover of the cooling compartment.
- The fruits and vegetables may be placed directly in the vegetable holder without being wrapped separately.
Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.
| Food Storing | time | Where to place in the fridge department |
| Vegetables and fruits | 1 week In the | Crisper (without being wrapped) |
| Meat and fish 2 to | 3 days | Covered with plastic folio and bags or in a meat box (on the glass shelf) |
| Fresh cheese 3 to | 4 days In the special | door shelf |
| Butter and Margarine | 1 week In the | special door shelf |
| Bottled product, Milk and Yoghurt | Until the expiry date recommended by the producer | In the special door shelf |
| Eggs 1 month | In the egg shelf | |
| Cooked food All shelves | ||
NOTE: The potatoes, onions and garlic should not be stored in the refrigerator. The meat should never ever be frozen after it is thawed if it had not been cooked.
FREEZER COMPARTMENT
- Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and producing ice.
- Please place the food you would like to freeze initially in the upper basket of the deep freeze in such a way that it shall not exceed the declared freezing capacity of your refrigerator. Please do not place the food you shall newly freeze nearby the already frozen food.. You may place your food next to the other frozen food after they are frozen (for at least 24 hours).
- You should freeze the food you shall freeze (meat, minced meat, fish, etc.) by dividing them into portions in such a way that they can be consumed once.
- Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems like food poisoning.
- Do not place the hot meals in your deep freeze before they are cold. You would cause the other food frozen beforehand in the deep freeze to become putrefied.
- As you buy frozen food, makes sure they were frozen under appropriate conditions and that the package is not torn.
- While storing the frozen food, the storage conditions on the package should certainly be observed. If there are no instructions, the food has to be consumed in the shortest possible period of time.
- The frozen food has to be transported before it perishes and it should be placed in the fast freezing shelf as soon as possible. Please do not use the door shelves for freezing purposes.
- If the frozen food package has been humidified and it has a foul smell, the food might have previously been stored under suitable conditions and gone rotten. Please do not buy such food!
- The storage durations of frozen food change depending on the environment temperature, the frequent opening and closing of the doors, thermostat settings, food type and the length of period that elapsed from the time the food was bought to the time it entered the freezer. Always abide by the instructions on the package and never exceed the storage duration.
- During long lasting power cuts, please do not open the door of the deep freeze compartment. Your refrigerator shall preserve your frozen food in the environment condition of 25^ for about 12 hours. This value falls in high environmental temperatures. During longer lasting power cuts, do not refreeze your food and consume it as soon as possible.
Some recommendations have been specified on pages 12, 13 and 14 for the placement and storage of your food in the deep freeze compartment.
| Fish and Meat | Preparation | Storage Duration (months) | Thawing period at room temperature -hours- |
| Beef Steak Packed for freezing in convenient portions 6-10 | 1-2 | ||
| Lamb Meat Packed for freezing in convenient portions 6-8 | -2 | ||
| Calf Roast Packed for freezing in convenient portions 6-10 | -2 | ||
| Calf Cubes In small pieces 6-10 1-2 | |||
| Sheep Cubes In pieces 4-8 2-3 | |||
| Minced meat | In convenient portions, packaged without being spiced | 1-3 2-3 | |
| Offal (piece) | In pieces 1-3 1-2 | ||
| Sausage/Salami Must be packed even if it is film-coated | Until thawed | ||
| Chicken and turkey | Packed for freezing in convenient portions | 7-8 | 10-12 |
| Goose / Duck | Packed for freezing in convenient portions | 4-8 | 10 |
| Deer - Rabbit - Boar | Portions of 2.5 kg and with no bones | 9-12 | 10-12 |
| Freshwater fish (Trout, Carp, Northern Pike, Cat, Fish) | It should be washed and dried after it is well cleaned inside and scaled, the tail and head parts should be cut off where necessary. | 2 | Until it is well thawed |
| Lean fish (Sea Bass, Turbot, Sole) | 4-8 | Until it is well thawed | |
| Fatty fish (Bonito, Mackerel, Blue Fish, Anchovy) | 2-4 | Until it is well thawed | |
| Crustaceans | Cleansed and put into bags | 4-6 | Until it is well thawed |
| Caviar | In its package, inside an aluminum or plastic cup | 2-3 | Until it is well thawed |
| Snail | In salty water, inside an aluminum or plastic cup | 3 | Until it is well thawed |
| Vegetables and Fruits | Preparation | Storage Duration (months) | Thawing period at room temperature -hours- |
| Cauliflower | Remove the leaves, divide the core into parts and keep it waiting in water containing a little amount of lemon | 10 - 12 | It may be used in frozen form |
| Green Beans, French Beans | Wash them and cut into small pieces. | 10 - 13 | It may be used in frozen form |
| Peas | Shell and wash them | 12 | It may be used in frozen form |
| Mushrooms and Asparagus | Wash them and cut into small pieces | 6 - 9 | It may be used in frozen form |
| Cabbage | In a cleaned fashion | 6 - 8 | 2 |
| Eggplant | Cut it Into pieces of 2cm after washing it | 10 - 12 | Separate plates from each other |
| Corn | Clean it and pack it with its cob or in grains | 12 | It may be used in frozen form |
| Carrot | Clean them and cut into slices | 12 | It may be used in frozen form |
| Pepper | Remove the stem, divide it into two and separate the seeds | 8 - 10 | It may be used in frozen form |
| Spinach | Washed | 6 - 9 | 2 |
| Apple and Pear | Slice it by peeling its rind | 8 - 10 | (In freezer) 5 |
| Apricot and Peach | Divide it into half and remove the seeds | 4 - 6 | (In freezer) 4 |
| Strawberry and Raspberry | Wash and clean them | 8 - 12 | 2 |
| Cooked fruits | Inside a cup with addition of 10% of sugar | 12 | 4 |
| Plums, Cherries, Sour Cherries | Wash them and remove the stems | 8 - 12 | 5 - 7 |
| Dairy Products and Pastries | Preparation | Storage Duration (months) | Storage Conditions | ||
| Packaged (Homogenised) Milk | In its own package | 2 - 3 | Homogenised Milk only | ||
| Cheese (except white cheese) | In the form of slices | 6 - 8 | They may be left in their original packages for short time storage. They should also be wrapped in plastic folio for long term storage. | ||
| Butter, Margarine | In its own package 6 | ||||
| Egg (*) | Egg White | 10 - 12 | 30 gr of it Equals to one egg yolk. | In a closed cup | |
| Egg mixture (White-Yolk) | It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick | 10 | 50 gr of it Equals to one egg yolk. | ||
| Egg Yolk | It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick | 8 - 10 | 20 gr of it Equals to one egg yolk. | ||
(*) It should not be frozen with its shells. The white and yolk of the egg should be frozen separately or as having been well mixed.
| Storage Duration (months) | Thawing period at room temperature (hours) | Thawing duration in the oven (minutes) | |
| Bread | 4 - 6 | 2 - 3 | 4-5 (220-225 °C) |
| Bliscuits | 3 - 6 | 1 - 1,5 | 5-8 (190-200 °C) |
| Pie | 1 - 3 | 2 - 3 | 5-10 (200-225 °C) |
| Tart | 1 - 1,5 | 3 - 4 | 5-8 (190-200 °C) |
| Filo Pastry | 2 - 3 | 1 - 1,5 | 5-8 (190-200 °C) |
| Pizza | 2 - 3 | 2 - 4 | 15-20 (200 °C) |
The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.
The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.
The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.
Note: Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.
CLEANING AND MAINTENANCE SHIPMENT AND REPOSITIONING
- Disconnect the appliance from the power supply before cleaning.
- Do not wash your fridge by pouring water.
- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
- Clean the accessories separately with soap and water. Do not put them in the dishwasher.
- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.
- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.
Make sure that your fridge is unplugged while cleaning.
DEFROSTING
You refrigerator has fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container below the condenser and evaporates there.
Evaporation container
- Unplug the unit from the power supply,
- Remove the refrigerator light cover (A) by pressing the hooks placed on both sides of the cover.
- Change the light bulb (B) with a new one (not more than 15 W).
- Place the light cover in its place and plug the unit.
- Original package and foam may be kept for re-transportation (optionally).
- You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
- Carry your fridge in the upright positio.
If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.
What to do if your appliance does not operate;
Check that;
- There is no power,
• The general switch in your home is disconnected, - The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.
What to do if your appliance performs poorly;
Check that;
- You have overloaded the appliance,
- The thermostat setting is "1" position (if so set the thermostat dial suitable value)
• The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.
If there is noise;
The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;
• The appliance is well levelled
• Nothing is touching the rear.
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator,
Check that;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.
| Climate Class Ambient Temperature | °C |
| T Between 16 and 43 (°C) | |
| ST Between 16 and 38 (°C) | |
| N Between 16 and 32 (°C) | |
| SN Between 10 and 32 (°C) |
• RECOMMENDATIONS
- The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the fridge will restart after 4 or 5 minutes.
- The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
BEFORE CALLING YOUR AFTER SALES SERVICE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
- To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open).
- If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.
- The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.
- The lifetime of your appliance stated and declared by the Department of the Industry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.
• CONFORMITY INFORMATION
- This equipment is designed for use at an ambient temperature within the 16°C - 43°C range.
• The appliance is designed in compliance with the, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.
TIPS FOR SAVING ENERGY
- Install the appliance in a coll, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
- Allow ward food and drinks to cool down outside the appliance.
- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
- When placing food and drinks, open the appliance door as briefly as possible.
- Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc).
- Door gasket must be clean and pliable. Replace gaskets if worn.
This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.
A) Refrigerator compartment
B) Freezer compartment
1) Thermostat knob
2) Refrigerator lamp & cover
3) Refrigerator shelves
4) Crisper shelf
5) Crisper
6) Freezer room cover
7) Freezer comp. drawer
8) Freezer comp. bottom drawer
9) Ice box
10) Bottle shelf
11) Door shelves
12) Egg holder
INSTALLATION INSTRUCTIONS
AND DOOR REVERSIBILITY
INSTALLATION INSTRUCTIONS
Important! It is recommended that this installation be performed by authorized technical stuff.
Important!
Before installation, read the instructions carefully.
Important!
Fit the refrigerator/freezer in stable kitchen units only.
! Important!
If necessary, reverse the door according to instructions.
- See fig.A for the necessary attachment components.
- Open the package. Take gasket space ^1 and brake into three as shown in figure.D. The middle part is door hang rail ^10 . The other two parts are unit door spacers ^11 . (fig.D)
- Insert trim flap ^1 into slot and screw by screws ^5 . (fig.E)
- Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)
- Cut trim gasket to the height of the recess and stick it on reverse side of the door hinges of the appliance. (fig.E)
- Raise the appliance and slide into the kitchen unit.
- Lean the appliance to the kitchen unit through the hinges and align the front feet with front surface of the kitchen unit. (fig.F)
- Open the appliance doors and screw the front feet by using screws'. (fig.G)
- Screw trim flap to kitchen unit using screws'. (fig.G)
- Screw the hinges to the kitchen unit using screws ^7 . (fig.G)
- Close the appliance doors. Unscrew and take out the nuts ^14 , washers ^3 and adjustment bolts ^12 from the appliance upper door ^19 . (fig.H)
- Take out the liners of the tapes on door hang rails ^9 . Place door hang rails ^10 on the appliance upper door ^19 by inserting the bosses on the holes of the appliance upper door ^19 , aligning the front surfaces of the door hang rails ^10 and appliance door parallel. Let the door hang rails ^9 stick onto the appliance upper door ^19 . (fig.H)
- Slide the door hang ^2 into door hang rails ^10 . (fig.J - fig.K)
- Take out the liners of the tapes on the front side of the door hang?
- Take out the liners of the tapes on the unit door spacers ^1 and and stick them onto the unit upper door ^2 , closer to the upper corners. (fig.K)

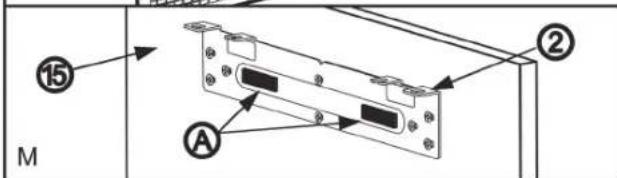

- Lean the unit door ^15 to the door hang ^2 , aligning the unit door spacers ^31 on the left, right and top edges with the sides of the unit or the doors of the nearer and upper kitchen units. (fig.K)
- Make sure that the unit upper door ^15 sticks onto the door hang ^2 . Pull the unit door ^15 allowing the door hang ^2 slide out the door hang rails ^10 . Observe that the door hang ^2 stays sticked on the unit upper door ^15 . (fig.L)
- Lay down the unit upper door ^15 to the floor and screw the door hang ^2 to the unit upper door ^15 by screws ^7 (fig.L)
- To overcome some of the furniture mistakes, there are plastic spacers ^4 sticked on the door hang ^2 . Remove these plastic spacers ^4 . (fig.M)
- Remove the door hang rails ^10 from the appliance upper door ^19 . Screw the adjustment bolts ^12 to the holes on the appliance upper door ^9 by leaving the necessary space using unit door spacer ^11 . (fig.N)

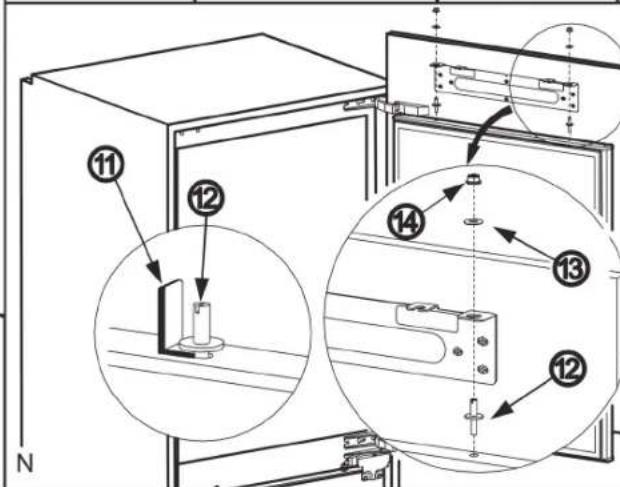

- Open the appliance upper door ^19 . Place the unit upper door ^15 onto the appliance door inserting adjustment bolts ^12 into the slots on the door hang ^2 . (fig.N)
- Place the washers ^13 and screw the nuts ^14 onto the adjustment bolts ^12 . (fig.N)
- 1\~2 mm gap between the unit itself and unit door is vital for appliance performance. Close the door and make the accurate adjustment of the unit door ^5 by screwing or unscrewing the adjustment bolts ^2 for vertical adjustment and by the help of the slots on the door hang ^2 for other directions. (fig.P1)
- Place the door bottom fixings to the bottom of the appliance upper door between the appliance upper door and unit upper door Screw the door bottom fixings to the appliance door with screws (fig.O)
- Screw the door bottom fixings5 to the unit upper door ^15 by screws ^7 . (fig.O)
- For the adjustment of the space between the unit upper door ^15 and the unit itself, you can unscrew the screws6 then adjust the space between the appliance upper door ^19 and unit upper door ^15 by the spring effect of the door bottom fixings ^2 while screwing back the screws ^6 .
- Slide the hang cover onto the door hang ^2 . (fig.P2)
- Repeat the same procedure for the lower door.
DOOR REVERSING
! Be careful about not to pinch your fingers in the hinges (door upper hinge ^20-a and door lower hinge ^20-b ).
- Unscrew the screws on the front surface of the appliance upper door ^19 . Take the appliance upper door ^19 to safe place. (fig.S)
- Take the hole plugs on the appliance upper door's ^6 front surface, to the holes on the reverse side. (fig.S)
- Open the door upper hinge ^20-s and door lower hinge ^20-b . (fig.S) and dissamble them. (fig.T)
- Take hole plugs to opposite side. (fig.T)
- Assemble door upper hinge ^20-a and door lower hinge ^20-b to the opposite corner of their original position. (fig.T)
- Assemble the appliance upper door ^19 . (fig.U)
- Repeat the same procedure for the lower door.
Cartoon illustration of a door with a smiling face and a crossed-out prohibition symbol (no text or labels)natural_image
Technical line drawing of a mechanical or electrical cabinet assembly (no text or symbols visible)НАСТРОЙКА ТЕРМОСТАТА
Simple line drawing of two children holding a large rectangular object (no text or symbols)natural_image
Line drawing of a refrigerator interior with ventilation grilles and a cylindrical tank (no text or symbols)natural_image
Illustration showing three different techniques for using a tool to interact with a cable or wire (no text or symbols present)natural_image
Technical line drawing of a multi-level industrial or mechanical assembly with no visible text or symbolsnatural_image
Three-step illustration showing a keyboard, hand press, and hand holding a cross (no text or symbols)natural_image
Technical line drawings of four different plastic containers with a magnified inset showing the same container (no text or symbols)natural_image
Line drawing of a refrigerator interior with a water tank and ventilation grilles (no text or symbols)natural_image
Simple line drawing of two children holding a large rectangular object (no text or symbols)natural_image
Illustration of three hands holding a cable and a tool, showing different techniques (no text or symbols present)natural_image
Technical line drawing of a multi-level industrial or storage unit with internal compartments and piping (no text or symbols)USTAWIENIA TERMOSTATU
Line drawing of a refrigerator interior with ventilation grilles and a bucket (no text or symbols)WYMIANA ŻARÓWKI W CHŁODZIARCE
Simple line drawing of two children holding a large rectangular object (no text or symbols)E
G
FOR YEARS TO COME freggia
This manual can be downloaded at www.freggia.com
- RU
- ВНИМАНИЕ!
- COBET:
- GENERAL WARNINGS
- WARNING!
- • OLD AND OUT-OF-ORDER FRIDGES
- INSTRUCTIONS PREALABLES BEFORE USING THE APPLIANCE
- NOTES:
- SAFETY WARNINGS
- INSTALLING AND OPERATING YOUR FRIDGE
- BEFORE USING YOUR FRIDGE
- INFORMATION ON THE FROST FREE TECHNOLOGY
- ACCESSORIES
- - ICE TRAY
- • BOTTLE HOLDER (IN SOME MODELS)
- THERMOSTAT SETTING
- • COOLING COMPARTMENT
- Important!
- • COOLING COMPARTMENT THERMOSTAT KNOB;
- WARNINGS ABOUT TEMPERATURE ADJUSTMENTS
- FOOD STORAGE IN THE APPLIANCE
- REFRIGERATOR COMPARTMENT
- FREEZER COMPARTMENT
- CLEANING AND MAINTENANCE SHIPMENT AND REPOSITIONING
- DEFROSTING
- REPLACING THE REFRIGERATOR LIGHT BULB
- BEFORE CALLING YOUR AFTER SALES SERVICE
- What to do if your appliance does not operate;
- Check that;
- What to do if your appliance performs poorly;
- If there is noise;
- If there is water in the lower part of the refrigerator,
- If your fridge is not cooling enough;
- • RECOMMENDATIONS
- BEFORE CALLING YOUR AFTER SALES SERVICE PARTS OF THE APPLIANCE AND THE
- COMPARTMENTS
- • CONFORMITY INFORMATION
- TIPS FOR SAVING ENERGY
- INSTALLATION INSTRUCTIONS
- AND DOOR REVERSIBILITY
- DOOR REVERSING
- НАСТРОЙКА ТЕРМОСТАТА
- • UCHWYT NA BUTELKI (W NIEKTÓRYCH MODELACH)
- WYMIANA ŻARÓWKI W CHŁODZIARCE
- FOR YEARS TO COME freggia
Brand : Freggia
Model : LBBF1660
Category : Refrigerator
