Product Type	Stand Mixer with Meat Grinder
Brand	Exido
Model	246-040
Power Supply	230 V, 50 Hz
Rated Power	1000 W
Speed Settings	4 speeds (1-4)
Mixing Bowl Capacity	Approx. 5 L
Max Dough Capacity	1500 g flour + 750 ml water
Max Egg Whites (balloon whisk)	8 egg whites
Max Cream (balloon whisk)	6 dl
Accessories Included	Dough hook, dough whisk, balloon whisk, meat grinder body, 3 meat screens (fine, medium, coarse), knife, scroll, silicone coupling, tamper, meat tray, splashguard, protective cover
Material	Plastic body, stainless steel accessories
Dimensions (approx.)	40 x 25 x 35 cm
Weight (approx.)	5.5 kg
Safety Features	Automatic shut-off when arm is raised (not explicitly, but safety instructions included)
Overload Protection	Continuous operation max 15 minutes, then 20-minute rest
Cleaning	Bowl and plastic accessories dishwasher safe; motor section wipe with damp cloth; dry thoroughly before use
Guarantee	Standard guarantee (terms apply)
Plug Type	BS 1363 13 A (UK)
Disposal	Separate collection for electrical/electronic waste (WEEE)

Frequently Asked Questions - 246-040 Exido

Can I use the meat grinder to grind bones or frozen meat?

No, always remove bone, gristle, tendons, and rind before grinding. Frozen food must be thoroughly defrosted before grinding. The meat grinder is intended for meat only.

What is the maximum continuous operating time for the meat grinder?

Do not run the meat grinder continuously for more than 15 minutes. After 15 minutes, allow at least 20 minutes cooling before using again.

How do I change the meat screen for different grinding coarseness?

Unscrew the ring nut, remove the current meat screen, and fit one of the three screens provided (fine, medium, coarse). Ensure the indentations align with the pins on the meat grinder body, then tighten the ring nut.

Can I put the mixing bowl and accessories in the dishwasher?

Yes, the mixing bowl and all plastic accessories are dishwasher safe. However, metal parts like the knife and screens should be washed in warm soapy water.

Why is the arm not locking down properly?

Make sure the lid is correctly fitted onto the arm and that the mixing bowl is locked into the base. The arm should lower until it clicks. If the lid does not fit tightly with the bowl, reposition it.

What speed should I use for kneading dough?

Use speed 1 for 1-2 minutes, then speed 2 for 6-8 minutes for heavy dough (e.g., 1500 g flour). For lighter dough, use the dough whisk at speeds 1-3.

How do I attach the meat grinder to the appliance?

Remove the protective cover from the accessory socket. Fit the scroll into the meat grinder body, attach the silicone coupling, then insert the body into the socket aligning the white arrow with the black circle. Turn to vertical position until arrow aligns with black arrow.

The appliance is not starting. What should I check?

Ensure the arm is locked down securely and the plug is inserted properly. Check that the protective cover is not blocking the accessory socket. If it still doesn't start, press the ON/OFF button after securing all parts.

Can I use the appliance without the splashguard?

The splashguard is recommended when using the dough hook to prevent dough from climbing up. It is not mandatory, but using it helps keep the machine clean.

How should I store the meat screens to prevent rust?

After cleaning and drying, lubricate the meat screens with vegetable oil and wrap them in grease-proof paper before storing.

USER MANUAL 246-040 Exido

UK KITCHEN MACHINE WITH MEAT GRINDER.... 18

DE KÜCHENMASCHINE MIT FLEISCHWOLF.... 22

PL ROBOT KUCHENNY Z MASZYNKA DO MIELENIA MIESA..... 26

DK

INTRODUKTION

OVERSIGT OVER APPARATETS DELE

Three-panel image showing a hand holding a small fan, a bowl with a stand, and a kitchen mixer on a stand (no visible text or symbols)

Close-up of hands using a tool to add a small object onto a dark cylindrical object (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component with three blades (no visible text or symbols)

7

Hand holding a cylindrical device with a circular button and dot pattern (no visible text or symbols)

Hand holding a black handheld device with a circular vent pattern (no visible text or symbols)

Hakning af kød

Industrial mixing machine with a cup and handle (no visible text or symbols)

RENG∅RING

Three-panel image showing a hand holding a fan-shaped object, a bowl with a stand, and a kitchen mixer blending liquid into a bowl (no text or symbols visible)

Close-up of hands using a small tool to add material into a black cylindrical component (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component with a four-blade knob (no visible text or symbols)

Close-up of a hand holding a cylindrical device with a perforated circular component, labeled '8' (no text or symbols on the device itself)

Hand holding a black handheld device with a circular vent, no visible text or symbols

Mala kött

Exterior view of a modern kitchen mixer with a glass bowl (no text or symbols visible)

RENGÖRING

Three-panel image showing a hand holding a small bowl, a fan-shaped stand, and a metal mixing bowl on a stand (no visible text or symbols)

Close-up of hands using a tool to add a black cylindrical component (no text or symbols visible)

Close-up of a hand holding a circular mechanical component with three blades (no text or symbols visible)

Hand holding a cylindrical device with a circular button and perforated surface (no visible text or symbols)

Hand holding a black handheld device with a circular vent, labeled '10.' (no visible text or symbols on the device itself)

Kverne kjøtt

Exterior view of a modern kitchen stand mixer with a bowl and handle (no text or symbols visible)

RENGJ∅RING

OFTE STILTE SP∅RSMÅL

Hvis du har spørsmål om bruk av apparatet som du ikke finner svar på i denne bruksanvisningen, kan du ta en titt på nettsidene våre på www.adexi.eu.

Three-panel image showing a hand holding a small fan, a bowl with a handle, and a kitchen mixer blending liquid into a bowl (no text or symbols visible)

Close-up of hands using a small tool to add material into a black cylindrical component (no text or symbols visible)

Close-up of a hand holding a circular mechanical component with three blades (no visible text or symbols)

Hand holding a cylindrical device with a circular button and perforated top (no visible text or symbols)

Close-up of a black handheld device with a perforated circular component, no visible text or symbols

TÄRKEÄÄ!

Close-up of a stainless steel manual mixer with a cup beside it (no visible text or symbols)

PUHDISTUS

Consumer Services -valikon kohdasta Frequently asked questions.

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
  • For connection to 230 V, 50 Hz only.
• Never submerge the appliance, cord or plug in water, and no water must be allowed to enter the motor section.
• Never touch the appliance, cord or plug with wet or damp hands.
• Do not expose to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Never leave the appliance unattended when it is switched on.
• Keep the appliance under constant supervision while in use. Keep an eye on children.
• The appliance contains sharp parts - keep out of the reach of children.
• Use only accessories supplied with the appliance or those recommended by the manufacturer.
• Keep the appliance under constant supervision while in use. Keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.
• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.

Use

• Always place the appliance on a dry, level and firm surface well away from any edges.
- Do not use the appliance, if the mixing bowl, meat grinder body or the other accessories are damaged.
- Ensure that the accessories are fitted securely and correctly, before you switch on the appliance.
- NEVER use your fingers, kitchen utensils or similar to push ingredients down the feeding tube in the meat grinder body! Use the accompanying tamper.
- NEVER put your fingers, kitchen utensils or similar in the openings of the appliance.
- Keep hands and kitchen utensils away from whisks or dough hooks while the machine is running.
- NEVER touch the moving parts of the appliance until it has come to a complete stop.
- Be careful not to touch the blades or sharp parts during use and cleaning.
• Always switch off the appliance at the wall socket and unplug before changing an accessory.
- Always fit the protective cover when not using the accessory socket.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Unplug before changing accessories, or cleaning, and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
  • Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.
• If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

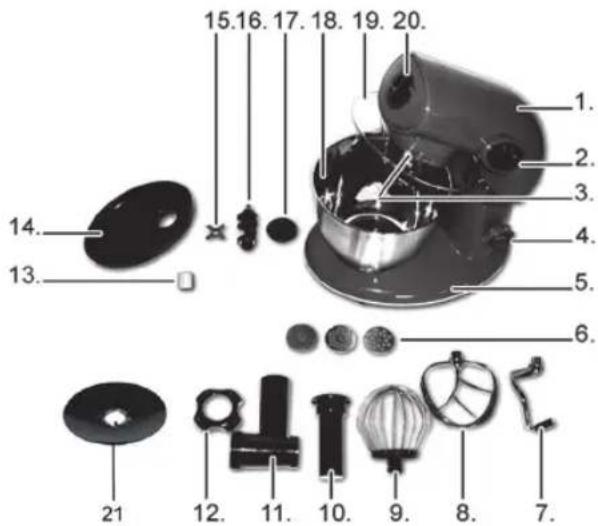

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. Arm
2. Control panel
3. Motor spindle (not visible on picture)
4. Arm release button
5. Motor section
6. Meat screens (3 pcs.)
7. Dough hook
8. Dough whisk
9. Balloon whisk
10. Tamper
11. Meat grinder body
12. Meat grinder body ring nut
13. Silicone coupling for scroll
14. Meat tray
15. Knife
16. Scroll
17. Protective cover
18. Mixing bowl
19. Lid
20. Accessories socket (under cover)
21. Splashguard

• Remove all packaging material.
• Before using for the first time, or after prolonged storage without use, wash any parts that will come into contact with food.
• To remove any metal residue that may inadvertently remain after manufacturing, we recommend that you fit the scroll (16), knife (15) and meat screen (6) in the meat grinder body (11) and run the appliance for two minutes without adding any food. Repeat with each meat screen. When finished, clean the accessories before use.

USING YOUR KITCHEN MACHINE

Assembly

1. Place the motor section (5) on a flat surface, e.g. a kitchen counter, and make sure it is standing firmly.
2. Ensure that the protective cover (17) is fitted to the accessory socket (20).
3. Turn the arm release button (4) clockwise. The arm (1) tilts up.
4. Fit the lid (19) onto the arm and turn it slightly, so that it locks into position securely.
5. Fit the mixing bowl (18) in the recess on the motor section base. Turn the mixing bowl slightly clockwise, so it locks into position.
6. Place the food in the blender.

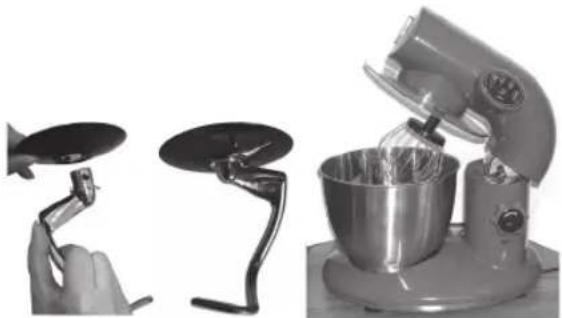

7. Fit the required accessory (7 with 21, 8 or 9) onto the motor spindle (3) on the underside of the arm.

Three-panel image showing a hand holding a small bowl, a fan-shaped stand, and a metal kitchen mixer with a handle (no text or symbols visible)

o The dough hook (7) is used for heavy dough, minced meat or other demanding kneading jobs. Put the splashguard (21) onto the dough hook as shown in the picture. Turn and fix the hook. The splashguard (21) can prevent the dough from climbing to the top of the hook.
o The dough whisk (8) is used to mix lighter types of dough.
o The balloon whisk (9) is used for whisking cream, egg whites, etc.

Turn the accessory, so the pins on the spindle are aligned with the depressions on the accessory top edge. Press the accessory against the arm and turn it anti-clockwise at the same time until the pins engage and the accessory locks into position securely. The accessory must not be loose nor should you be able to pull it free.

1. Lower the arm so that it locks into place with a click. The lid must fit tightly with the mixing bowl, otherwise it is fitted incorrectly.
2. The appliance is now ready for use.

Whisking, kneading and mixing

1. Switch the appliance on by pressing the ON/OFF button (e).
2. Select the speed you want using the four speed buttons (a-d). Speed button 1 (a) is the slowest and speed button 4 (d) is the fastest speed. Recommended speeds, time and capacity are shown in the table below.
3. If you need to scrape inside the mixing bowl, wait until the accessory has stopped completely. Use the spatula, never your fingers.
4. Switch off the appliance by pressing the ON/OFF button when you have finished mixing. Switch off the appliance at the switch and unplug it before you change the accessories, or before you take the appliance apart or when not in use.
5. Tilt the arm up using the arm release button.
6. Detach the accessory by turning it clockwise.
7. Remove the mixing bowl.

Accessories:	Speed Time Capacity
Dough hook	1.2	112 min. at speed 1 and 6-8 min. at speed 2	1500 g flour and 750 ml water
Dough whisk	1.3	112 min. at speed 1 and 6-8 min. at speed 3	ingredients for the cake dough with 6 eggs
Balloon whisk	4 10 min.		8 egg whites or 6 dl cream
Meat grinder	3.4

USING THE MEAT GRINDER

Assembly

1. Place the motor section on a flat surface, e.g. a

kitchen counter, and make sure it is standing firmly.

1. Ensure the arm is tilted down and locked securely in position.
2. Remove the protective cover from the accessory socket. Turn the cover so the white arrow is aligned with the black circle and remove the cover.
3. Fit the scroll in the meat grinder body with the thin metal connection outwards, and press firmly into place.
4. Fit the silicon coupling (13) onto the scroll connection (see illustration).
5. Fit the meat grinder body in the accessory socket, so that the white arrow is aligned with the black circle. Turn it to the vertical position, so the white

arrow is aligned with the black arrow.

1. Fit the knife onto the scroll connection (see illustration). The sharp edges of the knife should point towards the meat screen.
2. Fit one of the three meat screens on top of the knife

Close-up of hands holding a small object with a dark circular component, labeled '5' (no text or symbols on the object itself)

Close-up of a hand holding a black cylindrical device with a metallic cross-shaped component (no visible text or symbols)

Hand holding a cylindrical device with a circular button and a numbered label '8' (no visible text or symbols on the device itself)

(see illustration). Turn the meat screen, so the two indentations are aligned with the pins on the meat grinder body.

1. Select the meat screen for the required consistency. You can choose fine, medium and coarse.
2. Fit the ring nut (12) over the meat screen on the meat grinder body (see illustration). Turn clockwise to lock. The ring nut must hold the meat screen securely in place. But do not over tighten.
3. Fit the meat tray (14) onto the meat grinder body so that the wide part is positioned over the motor section of the appliance.
4. The appliance is now ready for use.

Close-up of a hand holding a black handheld device with a hexagonal button and circular vent, labeled '10.' (no visible text or symbols on the device itself)

Grinding Meat

1. Cut your meat into smaller pieces, so the pieces fit into the feeding tube. Dice or cut into strips with a width of approx. 2.5 cm.
2. Put the pieces onto the tray.
3. Place the mixing bowl or similar under the meat grinder body opening.
4. Switch the appliance on by pressing the ON/OFF button.
5. Select the speed you want using the four speed buttons. Recommended speeds are shown in the table above.
6. The meat pieces travel down the feeding tube. Push down carefully with the tamper (10). Do not press too hard, otherwise you may damage the appliance.
7. Switch off the appliance by pressing the ON/OFF button when you have finished grinding the meat. Switch off the appliance at the switch and unplug it before you change the accessories, or before you take the appliance apart or when not in use.
8. To detach the meat grinder, turn the body so the white arrow is aligned with the black circle and then remove.
9. Fit the protective cover over the accessory socket again.

IMPORTANT!

• Always remove bone, gristle, tendons, and rind before grinding the meat.
• Frozen food must be thoroughly defrosted before grinding.
  • The meat grinder must only be used to grind

meat. Avoid grinding pasty foods, e.g. food containing breadcrumbs, as this could damage the appliance.

- Never run the meat grinder continuously for more than 15 minutes. Running the meat grinder continuously for too long without a break may reduce the life span of the appliance. After having used the appliance for 15 minutes, take a break and wait at least 20 minutes before using it again.

Close-up of a stainless steel manual mixer with handle and cup (no visible text or symbols)

CLEANING

When cleaning the appliance, you should pay attention to the following points:

• Remove plug from the mains socket, and allow the appliance to cool down before cleaning it.
• Do not immerse the motor section of the appliance in water and make sure no water enters the appliance.
• Clean the motor section by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

- Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they may damage the outside surfaces of the appliance.

- Take the appliance apart and clean all of the accessories separately. Bowl and all accessories made of plastic are dishwashable. Other parts can be cleaned in warm soapy water. Make sure the parts are not fixed firmly in the dishwasher as this may change their shape.

- Be careful not to touch the blades or sharp parts during use and cleaning.

- IMPORTANT! Allow to dry fully after cleaning before using again. Do not use the appliance if damp.

- We recommend you lubricate the meat screens with vegetable oil after cleaning, and store them in grease-proof paper to minimise the risk of rust and discolouration.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard.

As this product is a class II appliance, the pin of BS plug for earth connection is false.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately. In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
- if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
- if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the "Consumer Services" menu and click on "Frequently Asked Questions" to view the most frequently asked questions.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group

We cannot be held responsible for any printing errors.

DE

EINLEITUNG

Three-panel image showing a hand holding a small bowl, a black bowl with a handle, and a metal stand mixer (no visible text or symbols)

Close-up of hands using a tool to add material into a mechanical component (no visible text or symbols)

Lochscheibe weisen.

Close-up of a hand holding a circular mechanical component with three blades (no visible text or symbols)

Hand holding a cylindrical device with a circular button and perforated surface (no visible text or symbols)

Hand holding a handheld electric shaver with a perforated circular vent (no visible text or symbols)

ZU BEACHTEN!

Close-up of a stainless steel manual shaver with a cup, no visible text or symbols

Two grayscale photos showing a hand operating a stand mixer and a kitchen mixer on a stove (no text or symbols visible)

Close-up of hands using a small tool to apply material onto a dark mechanical component (no visible text or symbols)

Close-up of a hand holding a circular mechanical component with four blades (no visible text or symbols)

8

Hand holding a cylindrical device with a circular component, possibly a pump or sensor (no visible text or symbols)

1.

Hand holding a handheld electric shaver with a circular vent (no visible text or symbols)
