246-052 - Food processor Exido - Free user manual and instructions

Product Type	Food Processor / Stand Mixer
Brand	Exido
Model	246-052
Power Supply	230 V, 50 Hz
Power Consumption	1000 W (estimated)
Speed Settings	6 speeds (1 to 6)
Control Panel	Push buttons with OFF button (pause)
Mixing Bowl Capacity	5.5 L (estimated)
Max Dough Capacity	1.5 kg flour + 750 ml water
Max Egg Whites	8 egg whites
Max Cream	600 ml
Accessories Included	Dough hook, dough whisk, balloon whisk, splash guard, mixing bowl, lid
Material (Motor Section)	Plastic
Material (Bowl)	Stainless steel
Material (Accessories)	Plastic and metal
Safety Features	Safety switch prevents operation if not correctly assembled; sharp parts; keep away from children
Dishwasher Safe	Mixing bowl and plastic accessories are dishwasher-safe
Cleaning Motor Section	Wipe with damp cloth; do not immerse
Dimensions (approx.)	30 x 20 x 35 cm (estimated)
Weight (approx.)	7 kg (estimated)
Guarantee	Standard guarantee terms apply (see manual)

Frequently Asked Questions - 246-052 Exido

How do I assemble the food processor?

Place the motor section on a flat surface. Tilt the arm up using the arm release handle. Fit the lid onto the arm and turn left to lock. Place the mixing bowl on the base and turn clockwise to lock. Mount the splash guard on the chosen accessory (dough hook, dough whisk, or balloon whisk) and then attach the accessory to the shaft on the arm. Lower the arm until it clicks into place.

Why won't my food processor start?

The appliance has a safety switch that only allows operation when it is correctly assembled and all parts are securely fixed. If it does not start, check the assembly thoroughly, especially that the lid is properly locked and the bowl is correctly positioned.

Can I wash the mixing bowl in the dishwasher?

Yes, the mixing bowl and all plastic accessories are dishwasher-safe. However, ensure they are not fixed too tightly in the dishwasher to avoid deformation. Other accessories can be cleaned in warm soapy water.

What is the maximum amount of dough I can mix?

The maximum capacity for dough using the dough hook is 1.5 kg flour and 750 ml water. Recommended mixing time is 12 minutes at speed 1 and 8 minutes at speed 2.

Which speed should I use for whisking cream?

For whisking cream or egg whites, use the balloon whisk at speeds 4 or 5. Maximum capacity is 600 ml cream or 8 egg whites, with a maximum time of 10 minutes.

How do I clean the motor section?

First, unplug the appliance and let it cool. Clean the motor section by wiping it with a damp cloth. Do not immerse it in water. For heavy soiling, you can use a little detergent. Avoid scouring pads or abrasive cleaners.

Is it safe to use if the cord is damaged?

No. If the cord or plug is damaged, do not use the appliance. Have it inspected and repaired by an authorised repairer. Never try to repair it yourself. Unauthorised repairs will invalidate the guarantee.

What should I do if the appliance is not working?

First, check that the appliance is correctly assembled (the safety switch prevents operation if not). If it still does not work, ensure it is plugged into a 230 V, 50 Hz socket and that the outlet is working. If problems persist, contact the store where you bought it for repairs under guarantee.

Can I use the balloon whisk for kneading?

No. The balloon whisk is only for whisking cream, egg whites, and light mixtures. For kneading heavy dough, use the dough hook. For lighter dough, use the dough whisk.

How do I store the appliance after use?

After cleaning and drying all parts, store the appliance in a dry place. Ensure the motor section and accessories are completely dry before storing. Keep out of reach of children. The cord should not be twisted or wound around the appliance.

USER MANUAL 246-052 Exido

UK Kitchen Machine 14

OVERSIGT OVER APPARATETS DELE

Close-up of a kitchen mixer with a bowl and stand (no visible text or symbols)

Close-up of a stainless steel kitchen mixer with a bowl of batter (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and stand (no visible text or symbols)

Close-up of a kitchen mixer with a bowl and stand (no visible text or symbols)

To get the best out of your new appliance, please read this user guide carefully before using the appliance for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

Incorrect use of this appliance may cause personal injury and damage.

Use for its intended purpose only. The • manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).

For domestic use only. Not for outdoor or commercial use.

For connection to 230 V, 50 Hz only.

Never submerge the appliance, cord or plug in • water, and no water must be allowed to enter the motor section.

Never touch the appliance, cord or plug with wet • or damp hands.

Do not expose the appliance to direct sunlight, • high temperatures, humidity, dust or corrosive substances.

Never leave the appliance unattended when it is • switched on.

Keep the appliance under constant supervision • while in use. Keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.

The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.

The appliance contains sharp parts - keep out of the reach of children.

Use only accessories supplied with the appliance • or those recommended by the manufacturer.

Use

Always place the appliance on a dry, level and firm surface, and well away from the edges. Do not use the appliance, if the mixing bowl, or any of the other accessories are damaged.

Always switch off the appliance at the wall socket • and unplug before changing an accessory.

Ensure that the accessories are fitted securely and • correctly, before you switch on the appliance.

• Always fit the protective cover when not using the accessory.

• NEVER put your fingers, kitchen utensils or similar in the openings of the appliance.

• Keep hands and kitchen utensils away from whisks, dough whisk or dough hook while the machine is running.

• NEVER touch the moving parts of the appliance until it has come to a complete stop.

Be careful not to touch the blades or sharp parts • during use and cleaning.

NOTE! The appliance is equipped with a safety • switch to avoid accidental starts. The safety switch will allow the appliance to operate if the appliance is correctly assembled and the parts are securely fixed as described in the instructions. If otherwise, the appliance will not operate! If the appliance does not start, we recommend you check the appliance assembly thoroughly.

Cord and plug

Do not let the cord hang out over the edge of the work surface.

• Check that it is not possible to pull or trip over the cord or any extension cord.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.
• Unplug before changing accessories, or cleaning, and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Ensure that the cord is fully extended. The cord must not be twisted or wound around the • appliance.
• Check regularly that neither cord nor plug is damaged. Do not use if they are damaged or if the appliance has been dropped or damaged in any other way.

If the appliance, cord or plug have been damaged, • have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

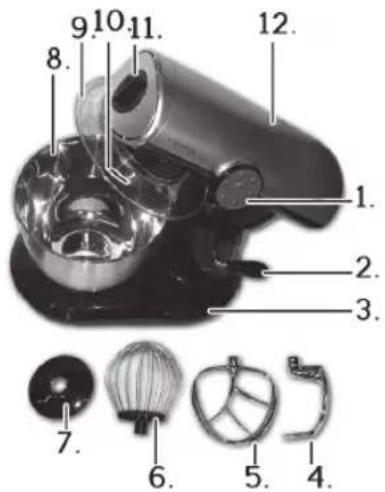

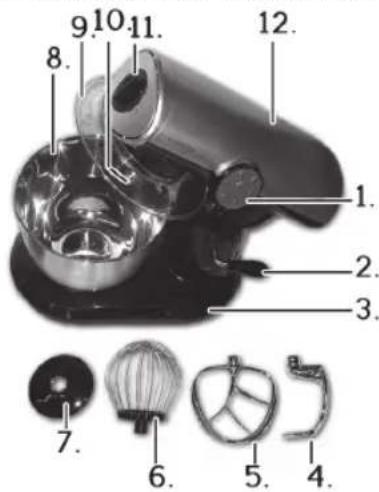

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

Control panel1.

Arm release handle2.

Motor section3.

Dough hook4.

Dough whisk5.

Balloon whisk6.

Splash guard7.

Mixing bowl8.

Lid9.

Motor spindle (not visible on picture)10.

Accessories socket11.

Arm12.

Control panel

Speed 1 buttona.

Speed 2 buttonb.

Speed 3 buttonc.

Speed 4 buttond.

Speed 5 buttone.

Speed 6 buttonf.

OFF button g.

(switch off/pause)

PRIOR TO FIRST USE

Remove all packaging and transport materials from the inside and outside of the appliance.

• Check that the appliance has no visible damage and that no parts are missing.
  • Then clean the accessories before use.
• Clean all parts that come into contact with food before using the appliance for the first time (or after prolonged storage). See "Cleaning".

USING YOUR KITCHEN APPLIANCE

Assembly

1. Place the motor section on a flat surface, e.g. a kitchen counter, and make sure it is standing firmly.
2. Check that the protective cover is fitted in the accessory socket
3. Tilt down the arm release handle. The arm tilts upwards.
4. Fit the lid onto the underside of the arm and turn it slightly to the left, so that it locks into position.
5. Fit the mixing bowl in the recess on the motor section base. Turn the mixing bowl slightly clockwise, so it locks into position.
6. First mount the splash guard on the dough hook or the dough whisk (see the pictures). Turn the accessory clockwise until the metal pins lock into position.
7. Then fit the desired accessory onto the accessory shaft on the underside of the arm.

o The dough hook is used for heavy dough, minced meat or other demanding kneading jobs.

o The dough whisk is used to mix lighter types of dough.

o The balloon whisk is used for whisking cream, egg whites, etc.

Turn the accessory, so the pins on the shaft are aligned with the depressions on the accessory's top edge. Press the accessory up towards the arm, turning it at the same time to the right so that the pins slide into position, thus securely locking the accessory in place. The accessory must not be

loose nor should you be able to pull it free.

1. Lower the arm so that it locks into place with a click. The lid must fit tightly onto the mixing bowl. If not, it is fitted incorrectly.
2. The appliance is now ready for use.

Close-up of a stainless steel kitchen mixer with a bowl and stand (no visible text or symbols)

Whisking, kneading and mixing

1. Connect the appliance. The indicator next to the OFF button (g) lights up.
2. Start the appliance by pressing one of the 6 speed buttons (a-f). Speed 1 (a) is the slowest and speed 6 (f) is the fastest. Recommended speeds, time and capacity are shown in the table below.
3. Stop the appliance by pressing the OFF button if you want to pause, for example to add more ingredients.
4. If you need to scrape inside the mixing bowl, wait until the accessory has stopped completely. Use the spatula, never your fingers.
5. Switch off the appliance by pressing the OFF button when you have finished mixing. Always unplug the appliance before you change the accessories or take the appliance apart.

Tilt the arm up using the arm release handle.61 Dismantle the accessory by turning it to the left.71 Remove the mixing bowl.81

Clean all accessories before storing the appliance. 91 See "Cleaning".

Accessories:	Speed Time	Capacity
Dough hook 1, 2		112 min. at speed 1 and 8 min. at speed 2	1,500 g flour and 750 ml water
Dough whisk 1, 2, 3 10 min.
Balloon whisk 4, 5 10 min.			8 egg whites or 600 ml cream

CLEANING

When cleaning the appliance, you should pay attention to the following:

Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.

Do not immerse the motor section of the • appliance in water and make sure no water enters the appliance.

Clean the motor section by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.

- Take the appliance apart and clean all of the accessories separately. The mixing bowl and all plastic accessories are dishwasher-safe; other accessories can be cleaned in warm soapy water. Make sure the parts are not fixed firmly in the dishwasher as this may change their shape.

- Be careful not to touch the blades or sharp parts during use and cleaning.

- IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.

- Ensure the appliance is clean and dry before storage.

We recommend you lubricate the meat screens • with vegetable oil after cleaning, and store them in grease-proof paper to minimise the risk of rust and discolouration.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard.

As this product is a class II appliance, the pin of BS plug for earth connection is false.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been tampered with
- if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
- if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu. Go to the “Consumer Services” menu and click on “Frequently Asked Questions” to view the most frequently asked questions.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

IMPORTER

Adexi Group

We cannot be held responsible for any printing errors.
