USER MANUAL NESPRESSO CITIZ & MILK LAQUE 11306 MAGIMIX

Nespresso, an exclusive system creating the perfect Espresso, time after time.

All machines are equipped with a unique extraction system that guarantees up to 19 Bar pressure. Each parameter has been calculated with great precision to ensure that all the aromas from each Grand Cru can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

MAGIMIX M190_10.2014

CONTENT

These instructions are part of the appliance. Read all instructions and all safety instructions before operating the appliance.

SAFETY PRECAUTIONS 03

OVERVIEW 07

SPECIFICATIONS 07

ENERGY SAVING MODE 08

FIRST USE OR AFTER LONG PERIOD OF NON-USE 09

COFFEE PREPARATION 10

PROGRAMMING THE WATER VOLUME 11

EMPTYING THE SYSTEM BEFORE A PERIOD OF NON-USE AND FOR FROST

PROTECTION, OR BEFORE A REPAIR 12

RESET TO FACTORY SETTINGS 13

DESCALING 14

CLEANING 16

TROUBLESHOOTING.... 17

CONTACT THE NESPRESSO CLUB 18

DISPOSAL AND ENVIRONMENTAL PROTECTION.... 18

ECOLABORATION: ECOLABORATION.COM 19

LIMITED WARRANTY.... 20

⚠️ CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.
CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.
• This appliance is intended to be used in households and similar applications only such as: staff kitchen areas in shops, offices and other working environments, farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about

using the appliance safely and are fully aware of the dangers involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and they are supervised by an adult.

• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

• Children shall not use the device as a toy.

- The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals' repair or failure to comply with the instructions.

SAFETY PRECAUTIONS

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections. Make sure that the voltage of the power source is the same as that specified on the rating plate. The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons, in order to avoid all risks.
• If the cord is damaged, do not operate the appliance.
• Return the appliance to the Nespresso Club or to a Nespresso authorized representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 ~mm^2 or matching input power.
• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.

• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.

• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.

• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
• Electricity and water together is dangerous and can lead to fatal electrical shocks.
• Do not open the appliance. Hazardous voltage inside!
• Do not put anything into any openings. Doing so may cause fire or electrical shock!

SAFETY PRECAUTIONS

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.
• A damaged appliance can cause electrical shocks, burns and fire.
• Always completely close the lever and never lift it during operation. Scalding may occur.
• Do not put fingers under coffee outlet, risk of scalding.
• Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.
• Fill the water tank only with fresh and potable water.

• Empty water tank if the appliance will not be used for an extended time (holidays, etc.).

• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.

• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
  • To clean machine, use only clean cleaning tools.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.

SAFETY PRECAUTIONS

Descaling

- Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day. For the correct amount and procedure to follow, consult the user manual included in the Nespresso descaling kit.

SAVE THESE INSTRUCTIONS

Pass them on to any subsequent user.

This instruction manual is also available as a PDF at

nespresso.com

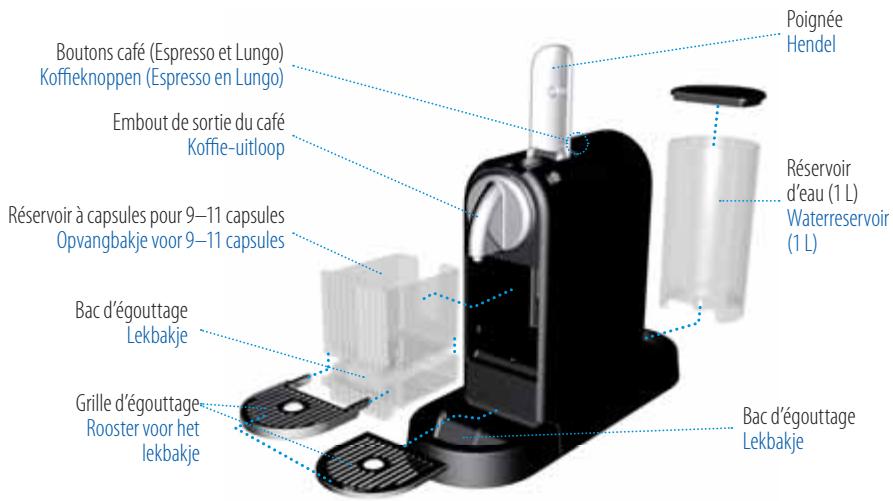

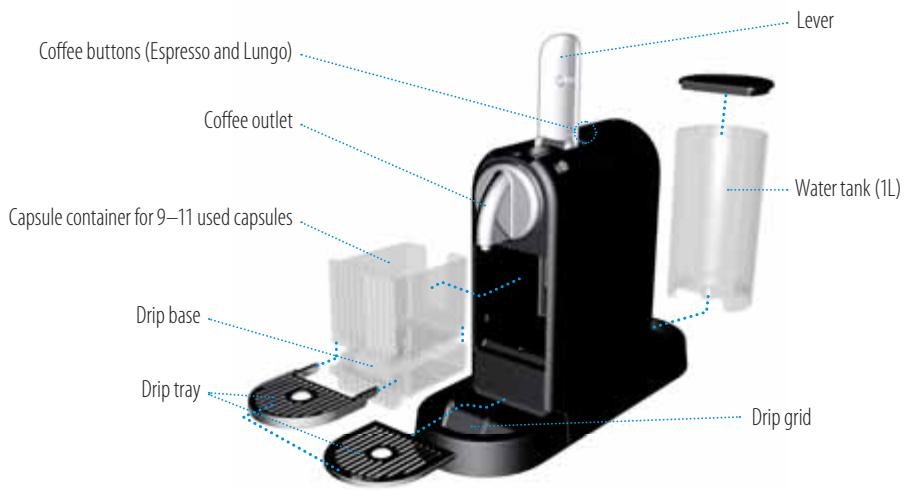

OVERVIEW

SPECIFICATIONS

Coffee buttons (Espresso and Lungo) Coffee outlet Capsule container for 9–11 used capsules Drip base Drip tray Lever Water tank (1L) Drip grid

Magimix M190

	13 cm 27.8 cm 37.2 cm
[DB57]	220-240 V, 50-60 Hz, 1260 W
[ZW3]	Max 19 Bar
[TOAX]	3.4 Kg
[WZZO]	1 L

PACKAGING CONTENT

Coffee Machine

Nespresso Grand Cru capsule tasting gift

This machine is equipped with an energy saving feature. The machine will automatically enter power off mode after 9 minutes.

Blue line icon of a finger holding two cups (no text or symbols)

To turn the machine on either press the Espresso or Lungo button.

Illustration of two fingers holding up a pair of circular icons with cups (no text or symbols)

To turn the machine off before automatic Power Off mode, press both the Espresso and Lungo button simultaneously.

To change this setting:

Blue line icon of a finger pressing a button with a checkmark (no text or symbols)

1. With machine being turned off, press and hold the Espresso button for 3 seconds.

Simple blue icon of a coffee cup with radiating lines, no text or symbols present.

1. The Espresso button will blink to indicate the current setting.

Blue line icon of a finger pressing a button with a checkmark (no text or symbols)

1. To change this setting press the Espresso button: One time for power off mode after 9 minutes One more time for power off mode after 30 minutes

Blue line icon of a finger pressing a cup with a teacup (no text or symbols)

1. To exit the energy saving mode press the Lungo button for 3 seconds.

FIRST USE OR AFTER A LONG PERIOD OF NON-USE

⚠️ CAUTION: first read the safety precautions to avoid risks of fatal electrical shocks and fire.

Illustration of a computer mouse with a blue upward arrow indicating motion (no text or symbols)

1. Remove the plastic film from the drip grid.

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

1. Rinse the water tank before filling with potable water.

Illustration of a laboratory instrument with a glass inside and a blue arrow pointing to it (no text or symbols)

1. Place a container (min. 1 L) under coffee outlet.

Simple line icon of a power plug with a square socket and two dots, no text or symbols present.

1. Plug into mains.

Blue line icon of a finger holding two coffee cups (no text or symbols)

1. Press the Espresso or Lungo button to activate the machine.

Four blue circular icons with sunburst and cup symbols, no text or labels present

Blinking Lights: heating up (25 sec)

Blue line icon of a finger holding a coffee cup with '3X' label (no text or symbols beyond the label)

1. Press the Lungo button to rinse the machine. Repeat 3 times.

COFFEE PREPARATION

Illustration of a hand pouring liquid into a container (no text or symbols)

1. Rinse then fill the water tank with potable water.

Blue line icon of a finger pressing two cups (no text or symbols)

1. Press the Espresso or Lungo button to activate the machine.

Two blue circular icons with cups on suns above and below, no text or symbols present.

Blinking Lights: heating up (25 sec)

Steady Lights: ready

Close-up of a black mechanical device with blue airflow indicators (no text or symbols visible)

1. Lift the lever completely and insert the capsule.

⚠️ CAUTION: never lift lever during operation and refer to the safety precautions to avoid possible harm when operating the appliance.

NOTE: during heat up, you can press either coffee button while blinking. The coffee will then flow automatically when the machine is ready.

Close-up of a black and white industrial machine with a blue brush applying a white cup (no visible text or symbols)

1. Close the lever and place a cup under the coffee outlet.

Blue line icon of a finger pointing to two cups (no text or symbols)

1. Press the Espresso (40 ml) or the Lungo (110 ml) button to start. Preparation will stop automatically. To stop the coffee flow or top up your coffee, press again.

Close-up of a black device with two blue curved arrows pointing to its top (no text or symbols visible)

1. Remove the cup. Lift and close the lever to eject the capsule into the used capsule container.

PROGRAMMING THE WATER VOLUME

Blue line icon of a finger holding two cups (no text or symbols)

1. Turn the machine on and wait for it to be in ready mode (steady lights).

Close-up of a black mechanical device with blue airflow indicators (no text or symbols visible)

1. Fill the water tank with potable water and insert the capsule.

Close-up of a black and white industrial water dispenser with a blue brush applying a white cup (no visible text or symbols)

1. Place a cup under the coffee outlet.

Blue line icon of a finger pressing down on two circular cups (no text or symbols)

1. Press and hold the Espresso or Lungo button.

2. Release button once the desired volume is served.

3. Water volume level is now stored.

EMPTYING THE SYSTEM BEFORE A PERIOD OF NON-USE AND FOR FROST PROTECTION, OR BEFORE A REPAIR

NOTE: your machine will be blocked for 10 minutes after emptying mode.

Illustration of two fingers holding circular icons with crown symbols (no text or labels)

1. To enter the emptying mode, press both the Espresso and Lungo button to turn the machine off.

Close-up of a mechanical knob with a blue curved arrow indicating rotation (no text or symbols visible)

1. Remove the water tank and open the lever.

Illustration of two fingers holding circular icons with cups (no text or symbols)

1. Press both the Espresso and Lungo button for 3 seconds.

Four blue circular icons with sunburst and cup symbols, no text or numbers present

Both LEDs blink alternatively.

Close-up of a mechanical knob with a blue curved arrow indicating rotation (no text or symbols visible)

1. Close the lever.

2. Machine switches off automatically.

3. Empty and clean the used capsule container and drip tray.

RESET TO FACTORY SETTINGS

Blue line icon of a finger holding a circular object with a cup (no text or symbols)

1. With machine being turned off, press and hold down the Lungo button for 5 seconds.

Two blue sun icons with coffee cup symbols, labeled '3X' below (no text or numbers on icons)

1. LEDS will blink fast 3 times to confirm machine has been reset to factory settings.

Two blue circular icons with sunburst patterns, each containing a cup and a coffee cup symbol (no text or labels)

1. LEDs will then continue to blink normally, as heating up, until ready.

Factory settings:

Espresso Cup: 40 ml Lungo Cup: 110 ml Power Off mode: 9 min

Steady lights: machine ready

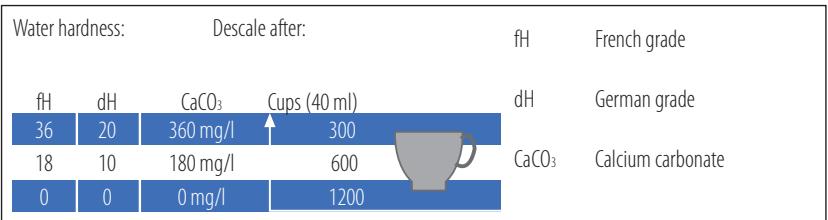

DESCALING

i NOTE: duration approximately 15 minutes.

Close-up of a black camera with blue motion arrows indicating airflow or motion (no text or symbols)

1. Remove the capsule and close the lever.

Two plastic mechanical components with textured bases, one partially filled and one partially outlined (no text or symbols visible)

1. Empty the drip tray and used capsule container.

Illustration of a hand pouring liquid into a container with a barcode tag (no text or symbols)

1. Fill the water tank with 0.5 L of potable water and add 1 Nespresso descaling liquid.

Close-up of a transparent cylindrical object with a blue arrow pointing to it, mounted on a black mechanical base (no text or symbols visible)

1. Place a container (min. volume 1 L) under the coffee outlet.

Illustration of two fingers holding up a pair of circular icons with cups (no text or symbols)

1. To enter the descaling mode, while the machine is turned on, press both the Espresso and Lungo button for 3 seconds.

Two blue sun icons with cups, no text or symbols present

Both LEDs blink.

Blue line icon of a finger holding a cup and a ring (no text or symbols)

1. Press the Lungo button and wait until the water tank is empty.

Illustration of a cylindrical object pouring liquid into a container (no text or symbols)

1. Refill the water tank with the used descaling solution collected in the container and repeat step 4 and 6.

Illustration of a hand pouring liquid into a container (no text or symbols)

1. Empty and rinse the water tank. Fill with potable water.

2. When ready, repeat step 4 and 6 to now rinse the machine.

Illustration of two fingers holding circular icons with cups (no text or symbols)

1. To exit the descaling mode, press both the Epresso and Lungo button for 3 seconds.

2. The machine is now ready for use.

⚠️CAUTION: the descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descaling kit available at the Nespresso Club to avoid damage to your machine. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descaling, please contact your Nespresso Club.

CLEANING

WARNING

Risk of fatal electrical shock and fire.

Never immerse the appliance or part of it in water.

Be sure to unplug the machine before cleaning.

Do not use any strong cleaning agent or solvent cleaner.

Do not use sharp objects, brushes or sharp abrasives.

Do not place in a dishwasher.

Blue line drawing of a hand holding a cloth or towel, no text or symbols present

Clean the coffee outlet regularly with a soft damp cloth.

Two plastic mechanical components with textured bases, one white and one black, shown against a plain background (no text or symbols)

Maintenance unit can be removed in separate pieces for easy cleaning.

TROUBLESHOOTING

No light indicator.	→ Check the mains, plug, voltage, and fuse. In case of problems, call the Nespresso Club.
No coffee, no water.	→ First use: fill water tank with warm water (max. 55°C) and run through machine according to instructions on page 9.→ Water tank is empty. Fill water tank.→ Descale if necessary; see Descaling section.
Coffee comes out very slowly.	→ Flow speed depends on the coffee variety.→ Descale if necessary; see Descaling section.
Coffee is not hot enough.	→ Preheat cup.→ Descale if necessary.
Capsule area is leaking (water in capsule container).	→ Position capsule correctly. If leakages occur, call the Nespresso Club.
Irregular blinking.	→ Send appliance to repair or call the Nespresso Club.
No coffee, just water runs out (despite inserted capsule).	→ In case of problems, call the Nespresso Club.

CONTACT THE NESPRESSO CLUB

As we may not have foreseen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative. Contact details for your nearest Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at nespresso.com

DISPOSAL AND ENVIRONMENTAL PROTECTION

This appliance complies with the EU Directive 2002/96/EC. Packaging materials and appliance contain recyclable materials.

Your appliance contains valuable materials that can be recovered or can be recyclable. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities.

ECOLABORATION: ECOLABORATION.COM

We have committed to buy coffee of the very highest quality grown in a way that is respectful of the environment and farming communities.

Since 2003 we have been working together with the Rainforest Alliance developing our Nespresso AAA Sustainable Quality™ Coffee Program.

We chose aluminium as the material for our capsules because it protects the coffee and aromas of the Nespresso Grand Cru.

Aluminium is also infinitely recyclable, without losing any of its qualities.

Nespresso is committed to designing and making appliances that are innovative, high-performing and user friendly.

Now we are engineering environmental benefits into the design of our new and future machine ranges.

LIMITED WARRANTY

UK & ROI. Should your machine have a genuine manufacturing fault, you must return it to the retailer within 28 days of purchase. Outside of 28 days, please contact Nespresso on 0800 442 442.

Your machine is guaranteed for 3 years for parts and labour from the date of purchase. To take advantage of this guarantee, you must present your proof of purchase.

This guarantee excludes damage resulting from: a fall or impact, incorrect handling not in compliance with the instructions for use, insufficient aftercare or cleaning, external events (fire, flood, etc.), commercial use (including small offices). Under no circumstances shall the application of this guarantee give rise to the complete replacement of the machine or entitle the consumer to damages. The guarantee period commences from the date of purchase and will not be extended due to any claims made during this period. This guarantee only applies to products purchased and located in the U.K. and R.O.I.

NOTES

EN

20|21

CITIZ

AFVOEREN EN MILIEUBESCHERMING 42

ECOLABORATION: ECOLABORATION.COM/

ECOLABORATION: ECOLABORATION.COM 43

GARANTIE LIMITEE/GARANTIE 44

website www.nespresso.com

PRESENTATION/ OVERZICHT

SPECIFICATIONS/ TECHNISCHE GEGEVENS

Blue line icon of a finger holding three circular cups (no text or symbols)

Illustration of two fingers holding circular icons with a crown (no text or symbols)

Blue line icon of a finger pressing a button with a checkmark (no text or symbols)

Blue icon of a coffee cup with radiating lines, no text or symbols present

Blue line icon of a finger pressing a button with a checkmark (no text or symbols)

Blue line icon of a finger pressing a cup (no text or symbols)

Illustration of a computer mouse with a blue upward arrow indicating motion (no text or symbols)

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Illustration of a black and white industrial machine with a glass cup and blue handle (no text or symbols)

Simple line icon of a power plug with a square socket (no text or symbols)

1. Branchez la machine au secteur.
2. Sluit de machine op de netspanning aan.
3. Branchez la machine au secteur.
4. Sluit de machine op de netspanning aan.

Blue line icon of a finger pressing two cups (no text or symbols)

Two blue sun icons with a coffee cup symbol inside, no text or numbers present

Blue line icon of a finger holding a circular object with a cup symbol, labeled '3X' (no text or symbols on the diagram itself)

Illustration of a hand pouring liquid into a container (no text or symbols)

Blue line icon of a finger pressing two cups (no text or symbols)

Two blue circular icons with sunburst and cup symbols, no text or labels present

Close-up of a black mechanical device with blue airflow indicators (no text or symbols visible)

Close-up of a black and white industrial machine with a blue brush applying a white cup (no visible text or symbols)

Blue line icon of a finger holding two cups (no text or symbols)

Close-up of a black camera with a white head and blue motion arrows indicating airflow or motion (no text or symbols)

WATERVOLUME PROGRAMMEREN

Blue line icon of a finger pressing down on two cups (no text or symbols)

1. Mettez la machine sous tension et attendez qu'elle soit en mode prêt (Voyant allumé en continu).

2. Schakel de machine in en wacht tot deze klaar is voor gebruik (indicatielampje blijft branden).

Close-up of a black mechanical device with blue circular elements and a white handle (no visible text or symbols)

Close-up of a black and white industrial machine with a hand mixer and a small white cup, no visible text or symbols.

Blue line icon of a finger pressing down on two circular cups (no text or symbols)

Illustration of two fingers holding circular icons with crown symbols (no text or labels)

1. Pour entrer dans le mode de vidange, appuyez simultanément sur les boutons Espresso et Lungo pour éteindre la machine.
2. U schakelt de leegmodus in door de knoppen Espresso en Lungo tegelijk in te drukken, zodat de machine wordt uitgeschakeld.

Close-up of a mechanical knob with a blue curved arrow indicating rotation (no text or symbols visible)

Illustration of two fingers holding circular icons with cups (no text or symbols)

Four blue circular icons with sunburst and cup symbols, no text or numbers present

Les deux voyants clignotent alternativement. Beide indicatielampjes branden beurtelings.

Close-up of a mechanical knob with a blue curved arrow indicating rotation (no text or symbols visible)

Blue line icon of a finger holding a circular object with a cup symbol (no text or labels)

1. Avec la machine éteinte, appuyez et maintenez enfoncé le bouton Lungo pendant 5 secondes.
2. Houd de knop Lungo vijf seconden lang ingedrukt terwijl de machine uit staat.

Two blue sun icons with coffee cup symbols, labeled '3X' below (no text or numbers on icons)

Two blue circular icons with sunburst patterns, each containing a cup and a coffee cup symbol (no text or labels)

Close-up of a black camera with blue motion arrows indicating airflow or motion (no text or symbols)

1. Retirer la capsule et fermez le levier.
2. Verwijder de capsule en sluit de capsuleklem.

Close-up of a black plastic flip-flop with a white plastic clip emerging from its side (no text or symbols visible)

Illustration showing a hand pouring liquid into a test tube with a barcode tag, symbolizing chemical detection or extraction.

Close-up of a transparent cylindrical object with a blue arrow pointing to it, placed on a black mechanical base (no text or symbols visible)

Illustration of two fingers holding circular icons with 'P' and 'C' symbols (no text or numbers present)

Two blue sun icons with a coffee cup symbol, no text or numbers present

Blue line icon of a finger pressing a cup (no text or symbols)

Diagram showing a cylindrical object being poured into a container with blue arrows indicating flow (no text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols)

Illustration of two fingers holding circular icons with a crown (no text or symbols)

Blue line drawing of a hand gesture with index finger (no text or symbols)

Two plastic mechanical components with textured bases, one partially filled and one partially outlined (no text or symbols visible)

AFVOEREN EN MILIEUBESCHERMING

ECOLABORATION: ECOLABORATION.COM/

ECOLABORATION: ECOLABORATION.COM
