USER MANUAL 11294 M190 CITIZ MAGIMIX

Nespresso, an exclusive system creating the perfect Espresso, time after time.

All machines are equipped with a unique extraction system that guarantees up to 19 Bar pressure. Each parameter has been calculated with great precision to ensure that all the aromas from each Grand Cru can be extracted, to give the coffee body and create an exceptionally thick and smooth crema.

MAGIMIX M190_04.2012

CONTENT

These instructions are part of the appliance. Read all instructions and all safety instructions before operating the appliance.

SAFETY PRECAUTIONS 03

OVERVIEW 07

SPECIFICATIONS 07

ENERGY SAVING MODE 08

FIRST USE OR AFTER LONG PERIOD OF NON-USE 09

COFFEE PREPARATION 10

PROGRAMMING THE WATER VOLUME 11

EMPTYING THE SYSTEM BEFORE A PERIOD OF NON-USE AND FOR FROST

PROTECTION, OR BEFORE A REPAIR 12

RESET TO FACTORY SETTINGS 13

DESCALING 14

CLEANING 16

TROUBLESHOOTING 17

CONTACT THE NESPRESSO CLUB 18

DISPOSAL AND ENVIRONMENTAL PROTECTION 18

ECOLABORATION: ECOLLABORATION.COM 19

LIMITED WARRANTY 20

CAUTION: the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.
CAUTION: when you see this sign, please refer to the safety precautions to avoid possible harm and damage.

i INFORMATION: when you see this sign, please take note of the advice for the correct and safe usage of your appliance.

• The appliance is intended to prepare beverages according to these instructions.
• Do not use the appliance for other than its intended use.
• This appliance has been designed for indoor and non-extreme temperature conditions use only.
• Protect the appliance from direct sunlight effect, prolonged water splash and humidity.

• This appliance is intended to be used in households and similar applications only such as: staff kitchen areas in shops, offices and other working environments, farm houses; by clients in hotels, motels and other residential environments; bed and breakfast type environments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they not play with the appliance.
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operation, non-professionals' repair or failure to comply with the instructions.

SAFETY PRECAUTIONS

Avoid risk of fatal electric shock and fire.

• In case of an emergency: immediately remove the plug from the power socket.
• Only plug the appliance into suitable, easily accessible, earthed mains connections.

Make sure that the voltage of the power source is the same as that specified on the rating plate.

The use of an incorrect connection voids the warranty.

The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• Keep s the cord away from heat and damp.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons.
• If the cord is damaged, do not operate the appliance.
• Return the appliance to the Nespresso Club or to a Nespresso authorized representative.
• If an extension cord is required, use only an earthed cord with a conductor cross-section of at least 1.5 ~mm^2 or matching input power.

• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open flame, or similar.

• Always place it on a horizontal, stable and even surface. The surface must be resistant to heat and fluids, like water, coffee, descaler or similar.

• Disconnect the appliance from the mains when not in use for a long period. Disconnect by pulling out the plug and not by pulling the cord itself or the cord may become damaged.
• Before cleaning and servicing, remove the plug from the mains socket and let the appliance cool down.
• Never touch the cord with wet hands.
• Never immerse the appliance or part of it in water or other liquid.
• Never put the appliance or part of it in a dishwasher.
• Electricity and water together is dangerous and can lead to fatal electrical shocks.
• Do not open the appliance. Hazardous voltage inside!
• Do not put anything into any openings. Doing so may cause fire or electrical shock!

SAFETY PRECAUTIONS

Avoid possible harm when operating the appliance.

• Never leave the appliance unattended during operation.
• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power socket. Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.
• A damaged appliance can cause electrical shocks, burns and fire.
• Always completely close the lever and never lift it during operation. Scalding may occur.
• Do not put fingers under coffee outlet, risk of scalding.
• Do not put fingers into capsule compartment or the capsule shaft. Danger of injury!
• Water could flow around a capsule when not perforated by the blades and damage the appliance.
• Never use a damaged or deformed capsule. If a capsule is blocked in the capsule compartment, turn the machine off and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative.
• Always fill the water tank with cold, fresh drinking water.

• Empty water tank if the appliance will not be used for an extended time (holidays,etc.).

• Replace water in water tank when the appliance is not operated for a weekend or a similar period of time.

• Do not use the appliance without the drip tray and drip grid to avoid spilling any liquid on surrounding surfaces.
• Do not use any strong cleaning agent or solvent cleaner. Use a damp cloth and mild cleaning agent to clean the surface of the appliance.
• When unpacking the machine, remove the plastic film and dispose.
• This appliance is designed for Nespresso coffee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative. Nespresso quality is only guaranteed when Nespresso capsules are used in Nespresso appliances.
• For your own safety, you should only use parts and appliance accessories from Nespresso that are designed for your appliance.
• All Nespresso appliances pass stringent controls. Reliability tests under practical conditions are performed randomly on selected units. This can show traces of any previous use.
• Nespresso reserves the right to change instructions without prior notice.

SAFETY PRECAUTIONS

Descending

• Nespresso descaling agent, when used correctly, helps ensure the proper functioning of your machine over its lifetime and that your coffee experience is as perfect as the first day. For the correct amount and procedure to follow, consult the user manual included in the Nespresso descaling kit.

SAVE THESE INSTRUCTIONS

Pass them on to any subsequent user.

This instruction manual is also available as a PDF at nespresso.com

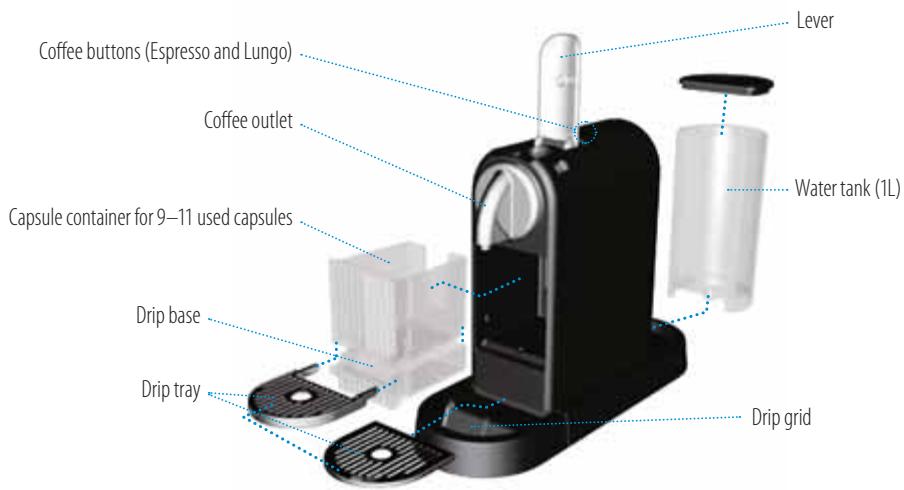

OVERVIEW

SPECIFICATIONS

Magimix M190

13 cm 27.8 cm 37.2 cm

220-240 V, 50/60 Hz, 1260 W

Max 19 Bar

3.4 Kg

1 L

PACKAGING CONTENT

Coffee Machine

Nespresso Grand Cru capsule tasting gift

This machine is equipped with an energy saving feature. The machine will automatically enter power off mode after 9 minutes.

To turn the machine on either press the Espresso or Lungo button.

To turn the machine off before automatic Power Off mode, press both the Espresso and Lungo button simultaneously.

To change this setting:

1. With machine being turned off, press and hold the Espresso button for 3 seconds.

1. To change this setting press the Espresso button: One time for power off mode after 9 minutes One more time for power off mode after 30 minutes One more time to deactivate

1. The Espresso button will blink to indicate the current setting.

1. To exit the energy saving mode press the Lungo button for 3 seconds.

FIRST USE OR AFTER A LONG PERIOD OF NON-USE

CAUTION: first read the safety precautions to avoid risks of fatal electrical shocks and fire.

1. Remove the plastic film from the drip grid.

1. Rinse the water tank before filling with potable water.

1. Place a container (min. 1 L) under coffee outlet.

1. Plug into mains.

1. Press the Espresso or Lungo button to activate the machine.

Blinking Lights: heating up (25 sec)

1. Press the Lungo button to rinse the machine. Repeat 3 times.

COFFEE PREPARATION

1. Rinse then fill the water tank with potable water.

1. Press the Espresso or Lungo button to activate the machine.

Blinking Lights: heating up (25 sec)

Steady Lights: ready

1. Lift the lever completely and insert a Nespresso capsule.

CAUTION: never lift lever during operation and refer to the safety precautions to avoid possible harm when operating the appliance.

NOTE: during heat up, you can press either coffee button while blinking. The coffee will then flow automatically when the machine is ready.

1. Close the lever and place a cup under the coffee outlet.

1. Press the Espresso (40ml) or the Lungo (110ml) button to start. Preparation will stop automatically. To stop the coffee flow or top up your coffee, press again.

1. Remove the cup. Lift and close the lever to eject the capsule into the used capsule container.

PROGRAMMING THE WATER VOLUME

1. Turn the machine on and wait for it to be in ready mode (steady lights).

1. Fill the water tank with potable water and insert a Nespresso capsule.

1. Place a cup under the coffee outlet.

1. Press and hold the
   Espresso or Lungo button.

2. Release button once the desired volume is served.

3. Water volume level is now stored.

EMPTYING THE SYSTEM BEFORE A PERIOD OF NON-USE AND FOR FROST PROTECTION, OR BEFORE A REPAIR

NOTE: your machine will be blocked for 10 minutes after emptying mode.

1. To enter the emptying mode, press both the Espresso and Lungo button to turn the machine off.

2. Remove the water tank and open the lever.

3. Press both the Espresso and Lungo button for 3 seconds.

Both LEDs blink alternatively.

4. Close the lever.
5. Machine switches off automatically.
6. Empty and clean the used capsule container and drip tray.

RESET TO FACTORY SETTINGS

1. With machine being turned off, press and hold down the Lungo button for 5 seconds.

1. LEDs will blink fast 3 times to confirm machine has been reset to factory settings.

1. LEDs will then continue to blink normally, as heating up, until ready.

Steady lights: machine ready

Factory settings:

Espresso Cup: 40 ml
Lungo Cup: 110 ml
Power Off mode: 9 min

This machine is equipped with a descending alarm. When both LEDs blink during ready mode, your machine needs descending.

NOTE: duration approximately 15 minutes.

1. Remove the capsule and close the lever.

1. Empty the drip tray and used capsule container.

1. Fill the water tank with 0.5L of potable water and add 1 Nespresso descaling liquid.

1. Place a container (min. volume 1 L) under the coffee outlet.

1. To enter the descending mode, while the machine is turned on, press both the Espresso and Lungo button for 3 seconds.

Both LEDs blink.

1. Press the Lungo button and wait until the water tank is empty.

1. Refill the water tank with the used descending solution collected in the container and repeat step 4 and 6.

1. Empty and rinse the water tank. Fill with potable water.

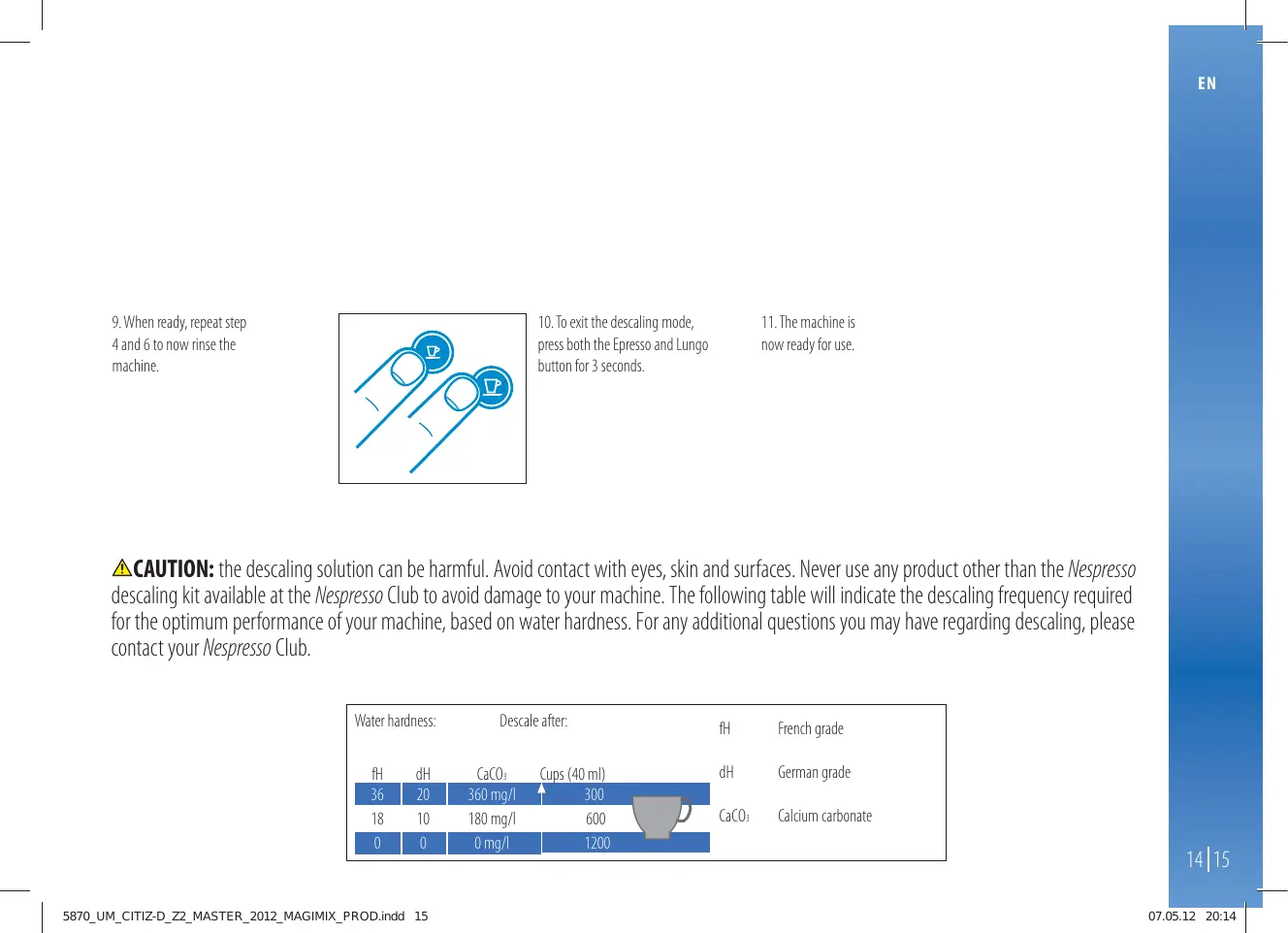

2. When ready, repeat step 4 and 6 to now rinse the machine.

1. To exit the descending mode, press both the Epresso and Lungo button for 3 seconds.

2. The machine is now ready for use.

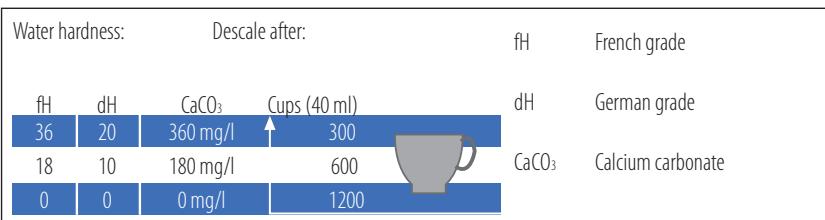

CAUTION: the descending solution can be harmful. Avoid contact with eyes, skin and surfaces. Never use any product other than the Nespresso descending kit available at the Nespresso Club to avoid damage to your machine. The following table will indicate the descending frequency required for the optimum performance of your machine, based on water hardness. For any additional questions you may have regarding descending, please contact your Nespresso Club.

CLEANING

WARNING

Risk of fatal electrical shock and fire.

Never immerse the appliance or part of it in water.

Be sure to unplug the machine before cleaning.

Do not use any strong cleaning agent or solvent cleaner.

Do not use sharp objects, brushes or sharp abrasives.

Do not place in a dishwasher.

Clean the coffee outlet regularly with a soft damp cloth.

Maintenance unit can be removed in separate pieces for easy cleaning.

TROUBLESHOOTING

No light indicator.	→Check the mains, plug, voltage, and fuse. In case of problems, call the Nespresso Club.
No coffee, no water.	→First use: fill water tank with warm water (max. 55℃) and run through machine according to instructions on page 9. →Water tank is empty. Fill water tank. →Descale if necessary; see Descaling section.
Coffee comes out very slowly.	→Flow speed depends on the coffee variety. →Descale if necessary; see Descaling section.
Coffee is not hot enough.	→Preheat cup. →Descale if necessary.
Capsule area is leaking (water in capsule container).	→Position capsule correctly. If leakages occur, call the Nespresso Club.
Irregular blinking.	→Send appliance to repair or call the Nespresso Club.
No coffee, just water runs out (despite inserted capsule).	→In case of problems, call the Nespresso Club.
Both LEDs blink during ready mode.	→Proceed to descaling.

CONTACT THE NESPRESSO CLUB

As we may not have foreen all uses of your appliance, should you need any additional information, in case of problems or simply to seek advice, call the Nespresso Club or your Nespresso authorized representative. Contact details for your nearest Nespresso Club or your Nespresso authorized representative can be found in the «Welcome to Nespresso» folder in your machine box or at nespresso.com

DISPOSAL AND ENVIRONMENTAL PROTECTION

This appliance complies with the EU Directive 2002/96/EC. Packaging materials and appliance contain recyclable materials.

Your appliance contains valuable materials that can be recovered or can be recyclable. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities.

ECOLLABORATION: ECOLLABORATION.COM

We have committed to buy coffee of the very highest quality grown in a way that is respectful of the environment and farming communities.

Since 2003 we have been working together with the Rainforest Alliance developing our Nespresso AAA Sustainable QualityTM Coffee Program.

We chose aluminium as the material for our capsules because it protects the coffee and aromas of the Nespresso Grand Cru.

Aluminium is also infinitely recyclable, without losing any of its qualities.

Nespresso is committed to designing and making appliances that are innovative, high-performing and user friendly.

Now we are engineering environmental benefits into the design of our new and future machine ranges.

LIMITED WARRANTY

Please consult your warranty card included with the machine for more information. Only the use of Nespresso capsules will guarantee the proper functioning and lifetime of your Nespresso machine. Any defect resulting from the usage of non-genuine Nespresso capsules will not be covered by this warranty.
