Product Type	Electric Underblanket / Heating Pad
Brand	Wilfa
Model	WHB-9 (also compatible with WHB-7, WHB-8, WHBD-1)
Intended Use	Under blanket only, not for futons or adjustable beds
Safety Features	Overheat protection system, detachable control, waterproof heating elements
Control Settings	0 (OFF), Pre-Heat (Rapid warm up), 1 (All night), 2 (All night PLUS)
Voltage	AC 220-240V (check label)
Cleaning Instructions	Hand wash only; do not machine wash or dry clean
Drying Method	Air dry flat on a clean surface or clothesline (no pegs on wired areas)
Fitting Method	Tie-down tapes (standard models) or fitted skirt (WHBD-1)
Mattress Compatibility	Standard mattresses; not for water beds
All Night Use	Designed for safe all night use
Pre-heat Time	Approximately 60-90 minutes on pre-heat setting
Control Type	Detachable plug-in control unit
Usage Restrictions	Not for infants, infirm persons, or pets
Inspection Recommendation	Have blanket inspected by qualified person after 3 years of use
Warranty	May be invalidated if fitting instructions not followed or machine washed
Spot Cleaning	Use mild detergent and lukewarm water; sponge gently
Storage	Keep flat; avoid folding or creasing

Frequently Asked Questions - WHB-9 WILFA

Can I use this electric blanket on an adjustable bed?

No, this blanket is not designed for adjustable beds. Ensure the cord and blanket cannot become caught or ruched if used on one.

How should I clean the Wilfa WHB-9 blanket?

The blanket must be hand washed only. Do not machine wash or dry clean. Detach the control first, then wash with mild detergent and lukewarm water.

What are the heat settings available?

The control offers four settings: 0 (OFF), Pre-Heat (Rapid warm up), 1 (All night), and 2 (All night PLUS).

Can I use a duvet or extra blankets on top?

Yes, but heat will build up more quickly. Adjust the setting accordingly and avoid tucking the blanket in.

How long does pre-heating take?

Pre-heating typically takes 60-90 minutes depending on room temperature and bedding.

Is it safe to leave the blanket on all night?

Yes, the blanket is designed for all night use with settings 1 and 2 that maintain temperature automatically.

What should I do if the control or cord is damaged?

Stop using the blanket immediately and contact Wilfa or a qualified service person. Do not attempt to repair.

How do I fit the tie-down version (WHB-9)?

Place the blanket on the mattress, pass the middle tie tape under the mattress and through the opposite loop, tie securely. Repeat for end tapes (see manual figures).

Can I dry clean this electric blanket?

No, do not dry clean. Follow the hand washing and air drying instructions provided.

What happens if the blanket becomes creased or folded?

Creasing may trigger the overheat protection system and permanently disable the blanket. Always keep it flat during use.

USER MANUAL WHB-9 WILFA

WHB-7, WHB-8, WHB-9 AND WHBD-1

NO BRUKSANVISNING

SE BRUKSANVISNING

DK BRUGSANVISNING

FI KÄYTTÖOHJE

GB INSTRUCTION MANUAL

WWW.WILFA.COM

BRUKSANVISNING

NO

WILFA ELEKTRISK VARMETEPPE

MODELL: WHB-7, WHB-8, WHB-9 og WHBD-1

3 Forvarming Rask oppvarming

2 Hele natten PLUSS

1 Hele natten

0 AV

Technical line drawing of a rectangular electronic component with internal grid and wiring, labeled Fig. 1 (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal components and wiring, labeled Fig. 5 (no text or symbols on the diagram itself)

Bruksanvisning for fasongsydd VARMETEPPE (modell WHBD-1) (Se figur 6.)

Line drawing of a rectangular electronic device with internal circuit lines and a separate terminal (no text or symbols)

Fig.6

MANGEL PÅ OVERHOLDELSE AV DISSE FESTEANVISNINGENE KAN F∅RE TIL AT TEPPET BLIR SKRUKKETE. DET VIL UTL∅SE OVEROPPHETINGSSYSTEMET OG MEDF∅RE AT TEPPET BLIR PERMANENT DEFEKT. DETTE KAN GJ∅RE GARANTIEN UGYLDIG.

Fig.7

PÅSE AT STR∅MMEN TIL TEPPET ER SLÄTT AV OG KONTAKTEN ER KOBLET FRA HVER GANG KONTROLLEN SKAL KOBLES FRA ELLER TILBAKEKOBLES TIL TEPPET. KONTROLLEN MÅ IKKE PLASSERES I NÆRHETEN AV VANN ELLER ANNEN FORM FOR FUKTIGHET.

FLEKKFJERNING

BEHANDLING FOR AVGRENSET SMUSS

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Technical line drawing of a rectangular electronic device with a grid-patterned top surface and connected cables (no text or symbols)

INSTRUKTIONER FÖR FORMSYDD BÄDDVÄRMARE (MODELL WHBD-1)

Technical line drawing of a rectangular electronic component with internal circuit lines and a separate terminal (no text or symbols)

OM DESSA INSTRUKTIONER INTE FÖLJS NOGGRANT KAN DET RESULTERA I ATT BÄDDVÄRMAREN FÅR VECK SOM KAN UTLÖSA ÖVERHETTNINGSSKYDDET OCH GÖRA BÄDDVÄRMAREN OBRUKVAR. DETTA KAN MEDFÖRA ATT GARANTIN BLIR OGILTIG

SE TILL SÅ ATT STRÖMMEN TILL BÄDDVÄRMAREN ÄR AVSTÄNGD OCH ATT KONTAKTEN INTE ÄR ANSLUTEN TILL VÄGGUTTAGET NÄR KONTROLLENHETEN KOPPLAS PÅ ELLER AV FRÅN BÄDDVÄRMAREN. KONTROLLENHETEN FÅR INTE PLACERAS I NÄRHETEN AV VATTEN ELLER UTSÄTTAS FÖR FUKTIGHET.

FLÄCKVIS RENGÖRING

BEHANDLING FÖR LOKAL SMUTS

Diagram of a rectangular electronic device with a grid and wiring, labeled Fig. 1 (no text or symbols on the device itself)

Technical diagram of a rectangular electronic device with a grid-patterned top surface and connected wires (no text or symbols)

VEJLEDNING FOR FACONSYET VARMETÄEPPE (MODEL WHBD-1)

Technical line drawing of a rectangular electronic component with internal circuit lines and a terminal outlet (no text or symbols)

HVIS DISSE ANVISNINGER IKKE OVERHOLDES, ER DER RISIKO FOR, AT TÄPPET BLIVER KRÖLLET. DERVED UDLÖSES SYSTEMET TIL OVEROPHEDNINGSSIKRING, OG TÄPPETS VARMEFUNKTION AFBRYDES PERMANENT. DETTE KAN MEDFÖRE OPHÆVELSE AF GARANTIEN.

PLETRENSNING

BEHANDLING AF SNAVSEDE PLETTER

Diagram of a rectangular device with a grid pattern and connected wires, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Diagram of a rectangular electronic device with a grid and cable, labeled Fig. 2 (no text or symbols on the device itself)

Technical line drawing of a rectangular electronic device with a grid and power outlet (no text or symbols)

Diagram of a rectangular device with a grid pattern and wiring, labeled Fig. 4 (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal grid structure and wiring (no text or symbols)

MUOTOON SOVITETUN LÄMMITTIMEN OHJEET (MALLI WHBD-1)

Technical line drawing of a rectangular electronic component with internal channels and wiring, labeled Fig. 1 (no text or symbols on the diagram itself)

JOS NÄITÄ SOVITUSOHJEITA EI NOUDATETA, SEURAUKSENA VOI OLLA, ETTÄ LÄMMITIN TULEE RYPPYISEKSI, MIKÄ LAUKAISEE YLIKUUMENEMISSUOJAJÄRJESTELMÄN JA TEKEE LÄMMITTIMEN PYSYVÄSTI KÄYTTÖKELVOTTOMAKSI. TÄMÄ VOI MITÄTÖIDÄ TAKUUN.

VARMISTA, ETTÄ LÄMMITTIMEN VIRTA ON KYTKETTY POIS PÄÄLTÄ JA IRROTETTU PISTORASIASTA JOKA KERTA, KUN KYTKIN ON IRROTETTU LÄMMITTIMESTÄ TAI SITÄ KYTKETÄÄN UUDELLEEN LÄMMITTIMEEN. SÄÄTÖYKSIKKÖ EI SAA JOUTUA KOSKETUKSEEN VEDEN TAI KOSTEUDEN KANSSA. Nosta pistokkeen kiinnitin (kuvassa 1) ennen irrottamista.

TAHROJEN POISTO

PAIKALLISTEN TAHROJEN POISTO

Thank you for purchasing our Wilfa All Night Tie-Down/Fitted Electric Blankets. Each unit is manufactured to ensure safety and reliability. Before using the unit for the first time, please read the instruction manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, in order to reduce the risk of fire, electrical shock and, or injury to persons, basic safety precautions should always be followed:

1. This electric blanket is designed to be used as an under blanket only. Not recommended for futons or similar type bedding.
2. This blanket is not designed to be used on an adjustable bed. If used on an adjustable bed, check that the cord and blanket cannot become caught or ruched.
3. Ensure that the element heating area of the blanket does not overhang the mattress anywhere, and that the fitted skirt system is suitable for the mattress. Ensure the instructions are followed carefully before using the blanket.
4. Do not use this blanket for an infant, infirm person or anyone sensitive to heat. For human use only – not for pets.
5. Young children should be supervised to ensure they do not play with this appliance.
6. Overlong application of the high setting can result in skin burns.
7. Do not tuck the blanket in.
8. Do not use the blanket folded.
9. Keep the control unit away from open windows.
10. Do not insert pins or sharp objects into the blanket.
11. Ensure the blanket is only used on a AC supply circuit of the proper voltage.

12. The flexible supply cord and control must be kept outside the bed linen.

13. Do not switch "ON" if the blanket is folded or wet.

14. Switch "OFF" from the power outlet and remove plug when the blanket is not in actual use.
15. This blanket must be kept flat at all times during use to prevent overheating. It is imperative that the blanket be frequently inspected to ensure that a condition is maintained.
16. Bed clothes should not be folded back when the blanket is switched on. Do not leave heavy objects on the blanket when it is switched "ON" e.g. folded blankets or suitcases
17. Arrange the blanket so it is not beneath pillows and/or bolsters.
18. Do not dry clean this blanket. Follow washing directions within these instructions.
19. This blanket is not recommended for persons suffering from bedwetting. They should seek a product specifically designed for this purpose.
20. If any abnormality or defect in operation of the blanket is observed, discontinue use immediately and consult Wilfa.
21. The blanket, control and cord should be examined frequently for signs of wear or damage. If these signs are apparent stop using the blanket immediately and Wilfa. Servicing must be undertaken by a qualified and registered
    person.
22. The blanket must not be used over or under a water bed.
23. It is recommended that your blanket be inspected by a qualified and registered person after 3 years of use.
24. Avoid pressing creases into the blanket.
25. This appliance is for domestic use only. Not recommended for hospitals.
26. The detachable control(s) supplied with your electric blanket must only be used when connected to the electric blanket. The control must not be used and/or connected to any other device.

COMPULSORY WARNING

If the supply cord is damaged it must be replaced by the manufacturer or at its service agent or a similarly

qualified person in order to avoid a hazard DO NOT ATTEMPT TO OPEN OR REPAIR ANY PARTS OF THE BLANKET OR CONTROL SYSTEM

IMPORTANT INSTRUCTIONS

PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE

This blanket has been manufactured to the highest standards and has been inspected and tested to ensure safety, comfort and reliability. Providing you follow all of these instructions carefully you will ensure many years of trouble free use.

OPERATION

This blanket is designed and fully approved for all night use. It also has a pre-heat facility in order for you to warm your bed prior to getting into it. The time taken to pre-heat the bed will depend on the ambient temperature of the bedroom and whether an electric blanket has been used to air the bed on a regular basis. For a normal ambient temperature you should allow approximately 60 - 90 minutes on the pre-heat setting marked on the switch. A cold room or bed that has not been used for some time will require a greater length of time on the pre-heat setting.

0 OFF

Pre-Heat Rapid warm up

2 All night PLUS

1 All night

0 OFF

This WILFA Premium electric blanket has the "all night"

settings feature to ensure a truly relaxing and comfortable nights sleep at a preferred temperature level. The control system will automatically maintain the setting throughout the night

NOTE: It is important to ensure that you switch the blanket from the pre-heat setting to one of the “all night” settings or to the “off” position before getting into bed.

The blanket must always be used with the WILFA control switch supplied (or switches if it is a dual control version).

If a switch or lead becomes damaged it is essential that you do not continue to use the blanket.

IMPORTANT SAFETY INSTRUCTIONS

FITTING TO YOUR BED

Tie Down Electric Blanket Instructions (modell WHB-7, WHB-8, WHB-9)

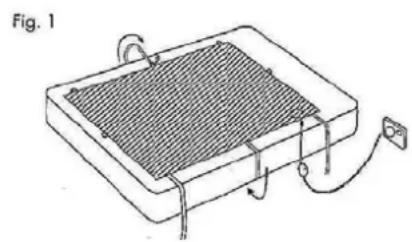

• Place the blanket onto the mattress, leaving room for the pillow and ensuring that the mains lead is at the pillow end of the bed.
• Remove the tags from the tie-tapes.

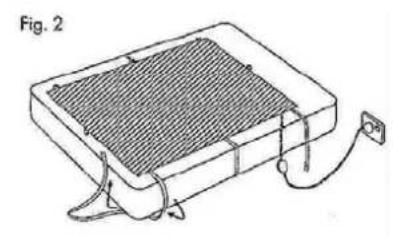

• Pass the middle tie tape under the middle of the mattress and through the middle loop on the opposite side. Tie tightly and securely (refer Fig 1).

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

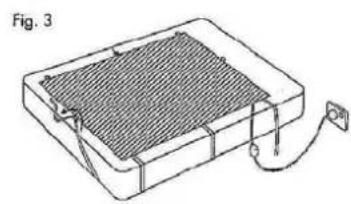

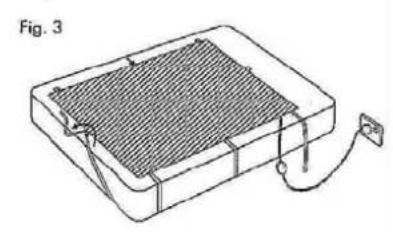

- Pass the end tape under the corresponding bottom corner of the mattress (Refer Fig 2) and through the end loop (Refer Fig 3) then

down under the other corner of the mattress and through the bottom side loop (Refer Fig 4).

Line drawing of a rectangular electronic device with a grid and cable, labeled Fig. 2 (no text or symbols on the device itself)

Isometric line drawing of a rectangular electronic device with a grid and cable, labeled Fig. 3 (no text or symbols on the diagram itself)

Diagram of a rectangular device with a grid pattern and wiring, labeled Fig. 4 (no text or symbols on the diagram itself)

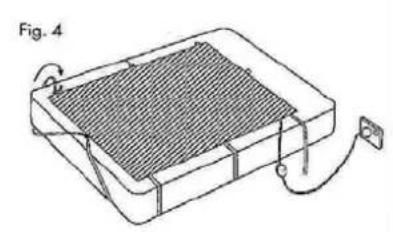

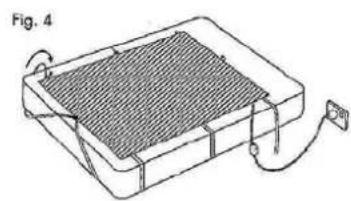

• Repeat procedure 4 for the tape at the top end of the mattress (Refer Fig 5).

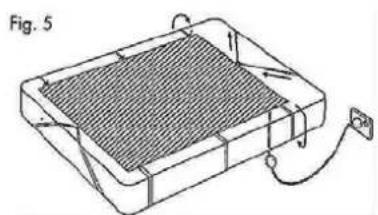

• The blanket should now be firmly fastened to the mattress as shown.

Technical diagram of a rectangular electronic device with internal grid and wiring, labeled Fig. 5 (no text or symbols on the diagram itself)

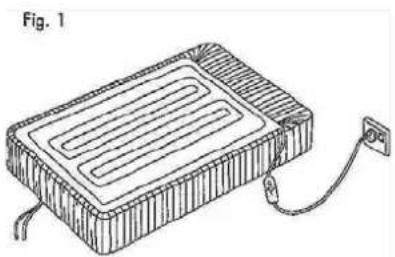

Fitted heating blanket instruction (model WHBD-1)

1. Fit the side skirts around the edges of the mattress then locate the draw-string at the foot-end of the bed. Gently tighten the drawstring until the blanket fits snuggly around the mattress base and then lightly tie.
2. Spread the skirt around the mattress edge ensuring even tension and making sure the blanket is placed evenly over the mattress.

Re-tighten the draw-string once more and once the blanket is flat and crease free tie a firm knot.

Technical line drawing of a rectangular electronic component with internal circuit lines and a terminal outlet (no text or symbols)

FAILURE TO FOLLOW THESE FITTING INSTRUCTIONS MAY RESULT IN THE BLANKET BECOMING RUCHED, WHICH WILL TRIGGER THE OVERHEAT PROTECTION SYSTEM AND RENDER THE BLANKET PERMANENTLY INOPERATIVE. THIS MAY INVALIDATE THE WARRANTY.

Care should also be taken if you are using a continental quilt because heat

will build up more quickly than with other bed coverings. A short period may only be needed to reach maximum temperature depending on the insulation density of your quilt. This also applies if using additional bed blankets.

WHEN FIRST USING YOUR WILFA ELECTRIC BLANKET

Most mattresses and bedding absorb moisture which can harbour dust mites and encourage moulds. Wilfa electric blankets are an effective prevention to these conditions. It is recommended that once correctly fitting your blanket, you run your blanket on the highest setting for 3 hours in a well ventilated room to ensure all moisture is removed from your mattress. During this time you may notice a slight odour which is harmless and will disappear.

N.B. Do not place any objects such as washing baskets, bags, suit cases etc or sit on the bed while the blanket is operating as this may create a hot spot and trigger the over temperature safety device thus rendering the blanket permanently inoperable.

CONNECTING UP THE BLANKET

Before connecting up the blanket please check that the voltage indicated on the blanket label corresponds with the mains voltage in your home.

WASHING INSTRUCTIONS

With normal use it is recommended that you hand wash your blanket once a year.

All WILFA electric blankets feature waterproof heating elements and detachable controls making them perfectly safe for full hand washing. Your WILFA electric blanket must not be washed in a washing machine as this process may harm your blanket, affecting its ability to operate efficiently. Using a washing machine will void the warranty offered with your blanket.

PLEASE ENSURE THE BLANKET IS TURNED OFF AND DISCONNECTED FROM THE POWER BEFORE ANY CLEANING COMMENCES.

HAND WASHING

Please ensure all controls are unplugged from the electric blanket before cleaning (see figure 1)

DRYING

Two options are available for drying your WILFA Electric blanket.

1. Spread the blanket out on a clean, flat surface (e.g. On a large table) to dry in a shady area.

2. Your blanket can also be dried on a clothes line provided the blanket is not creased or folded and as long as pegs are not used on the wired areas of the blanket.

IMPORTANT

The Electric blanket must be thoroughly dried (including control sockets) before being re-fitted to your bed.

SPOT CLEANING

TREATMENT FOR LOCALISED SOILING

The area affected should be sponged gently using a natural wool detergent or mild soap flakes in lukewarm water, followed by two spongings with clean

damage the elements.
