Product Type	Electric Blanket / Heating Pad
Brand	Wilfa
Model	HBW-1
Dimensions (approx.)	150 x 80 cm (59 x 31 inches)
Weight	1.2 kg (2.6 lbs)
Power Supply	220-240 V ~ 50-60 Hz
Power Consumption	60 W
Heat Settings	6 adjustable temperature levels
Auto Shut-Off	After 3 hours (default, adjustable)
Overheat Protection	Yes, with automatic safety cut-off
Material	Fleece (soft polyester)
Washable	Machine washable at 30°C (detachable controller)
Controller Type	Digital with LED display
Preheat Function	Yes
Color Options	White (as shown)
Certifications	CE, RoHS
Warranty	2 years
Repairability Index	Spare parts available (controller, heating element)
Included Accessories	Controller, user manual

Frequently Asked Questions - HBW-1 WILFA

Can I use the Wilfa HBW-1 electric blanket all night?

It is recommended to use the auto shut-off feature for safety. The default timer is 3 hours, but you can adjust it up to 12 hours. Always follow the safety instructions in the manual.

Is the HBW-1 machine washable?

Yes, the blanket is machine washable at 30°C. Remove the detachable controller before washing. Do not bleach or dry clean. Tumble dry on low heat.

What are the dimensions of the HBW-1 heating pad?

The blanket measures approximately 150 x 80 cm (59 x 31 inches), suitable for a single bed or as a throw.

How do I adjust the heat settings?

Use the digital controller to select from 6 heat levels. The LED display shows the current setting. Press the + and - buttons to adjust.

Does the HBW-1 have overheat protection?

Yes, it has built-in overheat protection that automatically shuts off the blanket if it exceeds safe temperatures.

Can I use the blanket with a memory foam mattress?

Yes, it is safe for use on memory foam. Ensure the blanket is flat and not bunched up for even heat distribution.

What is the power consumption of the HBW-1?

The blanket consumes 60 watts, making it energy-efficient compared to space heaters.

Is the controller backlit?

Yes, the controller has a soft backlight for easy reading in the dark.

How do I store the electric blanket?

Allow it to cool, then fold loosely (avoid tight creases) and store in a dry place. Do not place heavy items on top.

What spare parts are available for the HBW-1?

Replacement controllers and heating elements can be ordered from Wilfa or authorized dealers. Check the manual for part numbers.

USER MANUAL HBW-1 WILFA

Stack of three white gelatin tubes with a medical device attached, no visible text or symbols

Stack of folded towels with a white electric shaver on top (no text or symbols visible)

Bre enkel, Bre komfort Bre sone, Bre dbl.

Heating blanket

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

Ugit officia porem et

ent, inctorem resent

volorumqui bearum

corestota et ut am

quo magnihitae.

WHB-7, WHB-8, WHB-9, WHBD-1

Elektrisk varmeteppe

3 Forvarming Rask oppvarming

2 Hele natten PLUSS

1 Hele natten

0 AV

Diagram of a rectangular electronic device with internal components and wiring, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Diagram of a rectangular device with heat sink and wiring, labeled Fig. 2 (no text or symbols on the diagram itself)

Diagram of a rectangular electronic device with a grid pattern and connected wires, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram of a rectangular electronic device with a grid-patterned top panel and wiring, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Technical line drawing of a rectangular electronic component with internal circuit lines and a terminal outlet (no text or symbols)

MANGEL PÅ OVERHOLDELSE AV DISSE FESTEANVISNINGENE KAN F∅RE TIL AT TEPPET BLIR SKRUKKETE. DET VIL UTL∅SE OVEROPPHETINGSSYSTEMET OG MEDF∅RE AT TEPPET BLIR PERMANENT DEFEKT. DETTE KAN GJ∅RE GARANTIEN UGYLDIG.

Fig. 7

PÅSE AT STR∅MMEN TIL TEPPET ER SLÅTT AV OG ST∅PSELET ER KOBLET FRA HVER GANG KONTROLLENHETEN SKAL KOBLES FRA ELLER TILKOBLES TIL TEPPET. KONTROLLENHETEN MÅ IKKE PLASSERES I NÆRHETEN AV VANN ELLER ANNEN FORM FOR FUKTIGHET.

Flekkfjerning

BEHANDLING FOR AVGRENSET SMUSS

Diagram of a rectangular electronic device with internal components and wiring, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with a grid panel and wiring (no text or symbols)

Diagram of a rectangular electronic device with a grid-patterned top panel and connected wires, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram of a rectangular electronic device with a grid and wiring, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal grid and wiring (no text or symbols)

Bruksanvisning för dubbel VÄRMEFILT (modell WHBD-1) (se fig. 6.)

Technical line drawing of a rectangular electronic component with internal circuit lines and a separate terminal (no text or symbols)

OM MAN INTE FÖLJER DESSA FASTSÄTTNINGSANVISNINGAR KAN DET LEDA TILL ATT FILTEN SKRYNKLAS. DÅ KOMMER ÖVERHETTNINGSSKYDDET ATT LÖSA UT OCH DETTA SKADAR VÄRMEFILTEN PERMANENT. DETTA KAN FÖRVÄRKA GARANTIN.

Illustration of hands using scissors to cut a piece of paper with arrows indicating movement (no text or symbols)

Fig. 7

SE TILL ATT STRÖMMEN TILL VÄRMEFILTEN ÄR AVSTÄNGD OCH KONTAKTEN UTDRAGEN FRÅN VÄGGUTTAGET NÄR KONTROLLENHETEN KOPPLAS BORT ELLER ANSLUTS TILL FILTEN. KONTROLLENHETEN FÅR INTE PLACERAS I NÄRHETEN AV VATTEN ELLER ANNAN VÄTSKA/FUKT.

Lyft klaffen på kontakten innan den dra ut (Fig 7).

Fläckborttagning

BEHANDLING AV BEGRÄNSAT SMUTS

(model WHBD-1) (Se figur 6.) 8

Diagram of a rectangular electronic device with internal components and wiring, labeled Fig. 1 (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Diagram of a rectangular electronic device with a grid and connected wires, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram of a rectangular device with a grid pattern and connected wires, labeled 'Fig. 4' (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Line drawing of a rectangular electronic device with internal circuit lines and a separate terminal outlet (no text or symbols)

MANGEL PÅ OVERHOLDELSE AF DISSE ANVISNINGER TIL FASTG∅RELSE KAN F∅RE TIL AT TÆPPET BLIVER KR∅LLET. DET VIL UDL∅SE OVEROPHEDNINGSSYSTEMET OG MEDF∅RE, AT TÆPPET BLIVER PERMANENT DEFEKT. DETTE KAN G∅RE GARANTIEN UGYLDIG.

Fig. 7

KONTROLLÉR, AT STRÖMMEN TIL TÄPPET ER SLÅET FRA, OG AT STIKKET ER TRUKKET UD, HVER GANG KONTROLENHEDEN SKAL KOBLES FRA ELLER TIL TÄPPET. KONTROLENHEDEN MÅ IKKE PLACERES I NÄRHEDEN AF VAND ELLER ANDRE FORMER FOR FUGTIGHED.

Pletfjerning

BEHANDLING AF PLETTER

Isometric line drawing of a rectangular electronic device with a grid and wiring, no text or symbols present.

Diagram of a Kuva 2 electric vehicle battery pack with wiring and mounting bracket (no text or symbols)

Diagram of a rectangular electronic device with a grid and connected wires, labeled 'Kuva 3' (no other text or symbols)

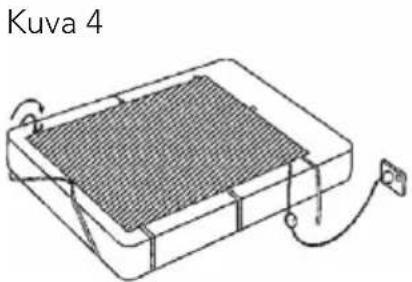

Diagram of a Kuva 4 electronic device with a grid panel and wiring (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Line drawing of a rectangular electronic component with internal circuit lines and a separate terminal outlet (no text or symbols)

JOS NÄITÄ KIINNITYSOHJEITA EI NOUDATETA, LÄMPÖHUOPA VOI MENNÄ SYKKYRÄÄN. TÄLLÖIN YLIKUUMENEMISSUOJA LAUKEAA, JA LÄMPÖHUOPA VAURIOITUU PYSYVÄSTI. LISÄKSI TAKUU VOI RAUETA.

Kuva 7

Important safety instructions ....3

Compulsory warning 4

Important instructions ....5

Operation 5

Important safety instructions 6

Instructions for use of dual ELECTRIC BLANKET

(model WHBD-1) (see Figure 6.) 8

The first time you use your Wilfa electric blanket ....9

Connecting the blanket 9

Washing instructions 9

Hand washing 10

Drying 10

Spot cleaning 11

Storage instructions ....11

Important safety instructions

To reduce the risk of fire, electric shock and/or injury to persons, basic safety precautions should always be followed when using electrical appliances:

1 This heating blanket is intended for use as an under blanket only. It is not recommended for futons or similar types of mattresses.
2 This blanket is not designed to be used on an adjustable bed. If using on an adjustable bed, check that the power cord and blanket cannot become caught or crumpled.
3 Ensure that the heating element section of the blanket does not overhang the mattress at any point, and that the fitted skirt system is suitable for the mattress. Ensure that the instructions are followed carefully before using the blanket.
4 Do not use this blanket for infants, the infirm or anyone who is sensitive to heat. For human use only - not for pets.
5 Children should be supervised to ensure they do not play with the blanket.
6 Using for too long at a high setting may result in skin burns.
7 Do not tuck in the blanket.
8 Do not use the blanket while it is folded.
9 Keep the control unit away from open windows.
10 Do not insert pins or other sharp objects into the blanket.
11 Ensure that the blanket is used only with the correct voltage.
12 The flexible power cord and control unit must be kept outside the bed linen.
13 Do not switch "ON" if the blanket is folded or wet.
14 Switch "OFF" and pull the plug out of the socket when not using the blanket.
15 Keep the blanket fully unfolded at all times when in use to avoid overheating. It is important to check the blanket frequently for signs of faults or deficiencies.
16 Bedding should not be folded back while the blanket is switched on. Do not leave heavy objects on the blanket when it is switched "ON", e.g. folded blankets or mattress pads.
17 Ensure that the heating element section is not located beneath the pillow.
18 Do not dry-clean the blanket. Follow the washing instructions in this instruction manual.

19 This blanket is not recommended for people with bed wetting tendencies. They should use a product specifically designed for this condition.
20 If you detect any fault or defect in the blanket, switch off the control unit, pull out the plug and contact an authorised service workshop.
21 Do not use the blanket on or under a water bed.
22 It is recommended that your blanket be inspected by a qualified, authorised person after three years of use.
23 Avoid creasing or crumpling the blanket. The blanket should be rolled up for storage purposes.
24 Blanket is for indoor use only. Not recommended for hospital use.
25 The detachable control(s) supplied with this electric blanket may only be used when connected to the blanket. Do not use the control(s) with and/or connect them to any other appliance.
26 This device is not suitable for use by persons (including children) with reduced physical, sensory or mental capabilities or who have limited experience and knowledge, unless they are under the supervision of or have been trained to use the device by a person responsible for their safety. Precautions must be taken to prevent children playing with the unit.

Compulsory warning

If the power cord is damaged, to avoid hazard it must be replaced by the manufacturer, the latter's service agent or a similarly qualified person. DO NOT ATTEMPT TO OPEN OR REPAIR ANY PART OF THE BLANKET OR CONTROL SYSTEM

Important instructions

PLEASE READ CAREFULLY AND RETAIN FOR FUTURE USE

This blanket has been manufactured to the highest standards and has been inspected and tested to ensure safety, comfort and reliability. Providing that you follow all these instructions carefully, you will ensure many years of trouble-free use.

Operation

This blanket is designed and fully approved for overnight use. It also features a pre-heat facility so that you can warm the bed before getting into it. The time taken to heat the bed depends on the ambient temperature of the room. Expect warming the bed to take 60 – 90 minutes. A cold room or cold bed that has not been used for a while will take longer to warm.

0 OFF

3 Pre-heat rapid warm-up

2 Overnight PLUSS

1 Overnight

0 OFF

This WILFA electric blanket features an "Overnight" setting to ensure a good, comfortable temperature. The control system will automatically maintain this setting throughout the night.

The blanket must be used at all times with the WILFA control switch supplied (or switches if you have a dual control version). If a switch or cable becomes damaged, it is vital that you discontinue use of the blanket.

NB: It is important to ensure that the pre-heating setting is changed to one of the "overnight" settings or the "OFF" position before you go to bed.

Important safety instructions

Fitting on the bed

Instructions for fitted skirt system electric blanket (models WHB-7, WHB-8 and WHB-9)

■ Position the blanket on the mattress in such a way that there is room for the pillow. Ensure that the power cord is at the pillow end of the bed. If you are using the WHB-9 model, the power cord comes out at the foot of the bed, but should be passed up to the pillow end and secured with velcro fastenings.

■ Remove the tags/protection from the fastenings.

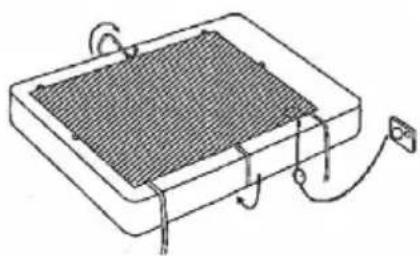

■ Pass the middle fastening under the middle of the mattress and through the middle loop on the opposite side. Tie tightly and securely (see Figure 1).

Fig. 1

Technical line drawing of a rectangular electronic device with internal grid and wiring (no text or symbols)

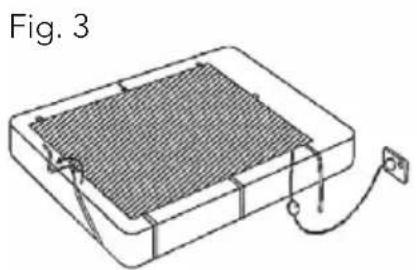

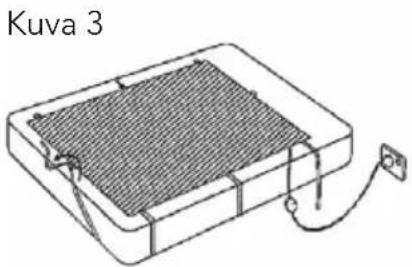

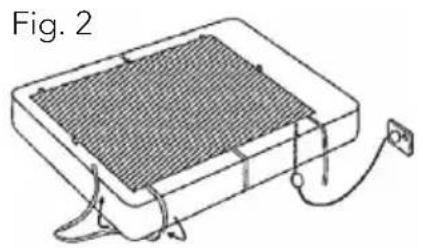

■ Pass the end fastening under the corner of the mattress (see Figure 2), through the end loop (see Figure 3), and then underneath the other corner of the mattress and through the bottom side loop (see Figure 4).

Technical line drawing of a rectangular electronic device with internal components and wiring (no text or symbols)

Diagram of a rectangular electronic device with a grid and connected wires, labeled 'Fig. 3' (no text or symbols on the diagram itself)

Diagram of a rectangular device with a grid pattern and wiring, labeled 'Fig. 4' (no text or symbols on the diagram itself)

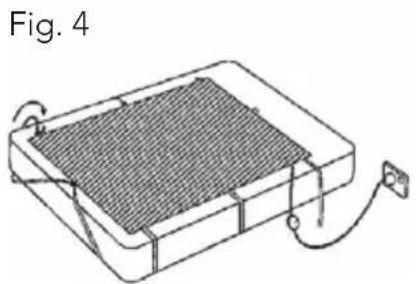

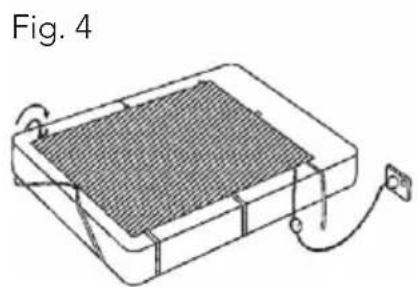

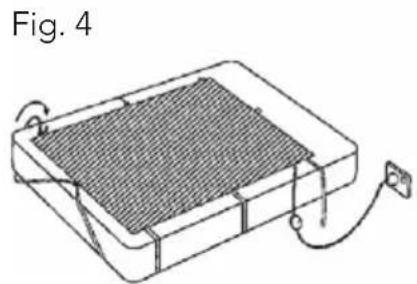

■ Repeat this procedure for the end fastenings on the other side (see Figure 5).

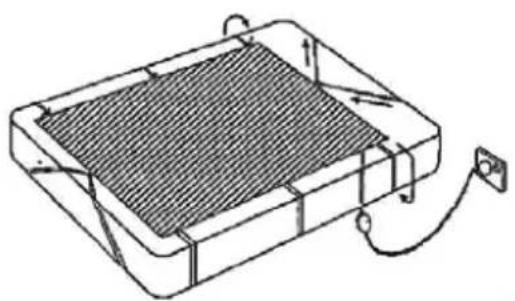

■ The blanket must be firmly fastened to the mattress as shown. Fig. 5

Isometric line drawing of a rectangular electronic device with internal grid and connected wires (no text or symbols)

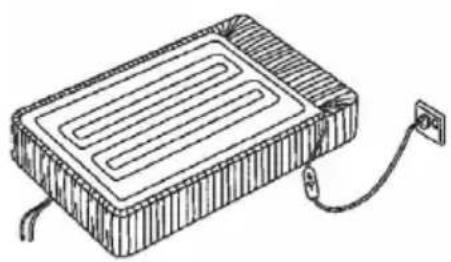

Instructions for use of dual ELECTRIC BLANKET (model WHBD-1) (see Figure 6.)

1. Fit the side skirts around the edges of the mattress and then locate the drawstring at the foot of the bed. Carefully tighten the drawstring until the blanket fits snugly around the mattress, and then tie loosely.

2. Ensure that the blanket is smooth and is aligned with the mattress. Tighten the drawstring again, and when the blanket is flat and free of creases, tie a firm knot.

Fig. 6

Line drawing of a rectangular electronic device with internal circuit lines and a separate terminal outlet (no text or symbols)

FAILURE TO FOLLOW THESE FITTING INSTRUCTIONS MAY RESULT IN THE BLANKET BECOMING RUCHED. THIS WILL TRIGGER THE OVERHEAT PROTECTION SYSTEM AND RENDER THE BLANKET PERMANENTLY DEFECTIVE. THIS MAY INVALIDATE THE WARRANTY.

Care should also be taken when using a down duvet, as the heat will build up more quickly than with other bed linen. Depending on the thickness of your down duvet, it will take only a short time to reach the maximum temperature. This also applies when using extra blankets.

The first time you use your Wilfa electric blanket

Most mattresses and bedding absorb moisture that can harbour dust mites and encourage mould. Wilfa electric blankets effectively prevent these conditions. Once the blanket is fitted correctly, we recommend that you run it on the highest setting for three hours in a well ventilated room to ensure that all moisture is removed from your mattress. During this period, you may notice a slight odour. This is harmless and will dissipate.

Connecting the blanket

Before connecting the blanket, please check that the voltage specified on the blanket label corresponds to the mains voltage in your home.

For dual-control models, each half of the blanket is controlled via a separate switch with its own plug. If you have followed the above instructions, your blanket should now be securely attached to the mattress. Connect the control units to the blanket (see Figure 7). Ensure that the plug is firmly in place, and then connect it to a mains socket and switch on. The flexible cord and switch must be kept outside of the bed and away from open windows. Ensure that they are not exposed to moisture.

ENSURE THAT NOTHING IS PLACED IN THE CONTROL UNIT AT THE POWER OUTLET END. THIS IS LIVE (230V) AND COULD CAUSE SERIOUS INJURY.

Washing instructions

With normal use, it is recommended that you hand wash your blanket once a year.

All Wilfa electric blankets feature waterproof heating elements and removable control units, which means the blankets may safely be washed by hand.

Do not wash your Wilfa electric blanket in a washing machine, since this process may damage the blanket and affect its ability to operate efficiently. Using a washing machine will invalidate the warranty that came with the blanket.

PLEASE ENSURE THAT THE BLANKET IS SWITCHED OFF AND DISCONNECTED FROM THE MAINS POWER BEFORE ANY CLEANING COMMENCES.

Hand washing

Please ensure that all control units are disconnected from the electric blanket before cleaning (see Figure 7).

Fig. 7

ENSURE THAT THE POWER TO THE BLANKET IS SWITCHED OFF AND THAT THE PLUG IS DISCONNECTED WHENEVER DISCONNECTING OR CONNECTING THE CONTROL UNIT FROM/TO THE BLANKET. DO NOT PLACE THE CONTROL UNIT CLOSE TO WATER OR ANY OTHER TYPE OF MOISTURE.

Lift the tab on the socket (Figure 7) before pulling it out.

Place the blanket in lukewarm water (a bath or large laundry tub is ideal) mixed with either a natural wool detergent or mild soap. Soak the blanket for approximately five minutes, then squeeze the soapy water out of the blanket. Rinse thoroughly with lukewarm water until no soap suds are visible, and allow the water to drain from the blanket.

Drying

There are two ways of drying your WILFA electric blanket:

1. Spread the blanket on a clean, flat surface (e.g. a large table) to dry in a shady area.
2. Your blanket may also be dried on a clothes line, provided that it is not creased or folded, and as long as pegs are not used on the wired parts of the blanket.

IMPORTANT

The electric blanket must be dried thoroughly (including the control sockets) before it is re-fitted on the bed.

Spot cleaning

Sponge the affected area carefully using a natural wool detergent or mild soap in lukewarm water, followed by two spongings with lukewarm water.

Press the affected area gently between two towels to absorb excess water and spread out flat to dry in a shady area. The connections to the blanket must be kept free of moisture at all times.

Storage instructions

If you are not using your electric blanket during the summer months, it is worth noting that the quality of the fleece material will also provide a cooling effect during hot weather. However, if you decide to remove the blanket, disconnect it, detach the controls and roll the blanket up loosely and with care. Do not crease. Keep the blanket and control units in a safe, dry place in a suitable storage bag. Ensure that no heavy items are placed on top of the blanket, as this may damage the elements.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
