Product Type	Automatic Upper Arm Blood Pressure Monitor
Brand	OBH Nordica
Model	Blod Pressure Monitor
Dimensions	Approx. 15 x 10 x 6 cm
Weight	Approx. 300 g (without batteries)
Power Supply	4 x AA batteries (1.5V) or AC adapter (not included)
Measurement Method	Oscillometric
Measurement Range	0-299 mmHg (blood pressure), 40-199 bpm (pulse)
Accuracy	±3 mmHg (blood pressure), ±5% (pulse)
Cuff	Standard adult arm cuff (22-32 cm)
Display	Large LCD with date, time, and memory recall
Memory	Up to 2 x 90 readings (two users)
Main Functions	Systolic, diastolic, pulse, irregular heartbeat detection, averaging, date/time stamp
Power Saving	Auto-off after 3 minutes of inactivity
Care & Cleaning	Wipe with a soft, dry cloth; do not immerse in water
Safety	For home use only; not a substitute for professional medical advice
Spare Parts	Replacement cuffs (size options) and AC adapter available
Repairability	Service only by authorized professionals; no user-serviceable parts
General Information	Intended for home health monitoring; clinical validated accuracy

Frequently Asked Questions - Blod Pressure Monitor OBH NORDICA

How do I set the date and time on my OBH Nordica blood pressure monitor?

Press the SET button to enter setting mode. Use the MEMORY button to adjust the year, month, day, hour, and minute. Press SET to confirm each step.

What does the irregular heartbeat indicator mean?

If the monitor detects an irregular heartbeat during measurement, it will display a specific icon. This is a warning, not a diagnosis. Consult your doctor if it appears frequently.

Can I use the monitor if I have arrhythmia?

Yes, but the device may have difficulty obtaining accurate readings. The irregular heartbeat detector will alert you. For best accuracy, follow your doctor's advice.

How do I clean and maintain the monitor and cuff?

Use a soft, dry cloth to clean the monitor body. For the cuff, gently wipe with a damp cloth and mild soap, then air dry. Do not wash in water or use chemical cleaners.

What size is the cuff, and can I get a different size?

The standard cuff fits arm circumferences of 22-32 cm. Optional larger (32-45 cm) and smaller (17-22 cm) cuffs are available. Contact OBH Nordica customer service.

Why do I get different readings on the same arm?

Blood pressure varies throughout the day. For consistent results, measure at the same time, under the same conditions, and after resting for 5 minutes. Avoid talking or moving.

How do I recall stored measurements?

Press the MEMORY button to view stored readings. The monitor shows the latest reading first. Press repeatedly to scroll through history. Typically stores up to 90 readings per user.

What type of batteries does the monitor use?

It uses 4 AA alkaline batteries (1.5V). Replace when the low battery indicator appears. For longer life, an AC adapter (output 6V, 600mA) can be purchased separately.

Is the monitor clinically validated?

Yes, it meets international standards for accuracy (e.g., ESH or BHS). However, it is not a substitute for professional medical equipment.

What should I do if the monitor shows an error code?

Common error codes: E1 (cuff improperly placed), E2 (movement during measurement), E3 (weak signal). Retry after correcting the issue. If persists, contact support.

USER MANUAL Blod Pressure Monitor OBH NORDICA

OBH NORDICA Wellness

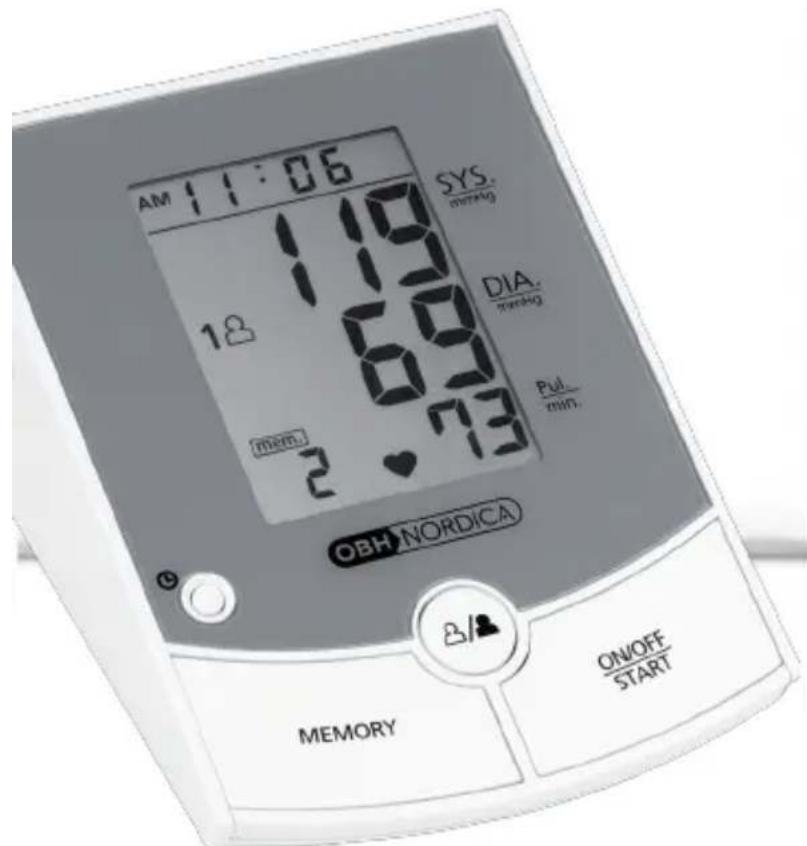

AM 11:06 SYS. mmHg 12 18 69 mem. 2 73 DIA. mmHg Pul. min. OBH NORDICA MEMORY ON/OFF /START

WEIOMA 7010 HA412 OBH NOCKDY

diagnos//

blood pressure monitor//

Irregular heart-beat detector //

Health indicator//

Smart sense Technology //

2 users //

Monitor for upper arm //

Black-and-white photo of a person reclining in a chair (no text or symbols visible)

Type 4607

3-5m W (0.1~1.2) INDEX OK OK

18:88 38.8 12 28 188♥188

Technical line drawing of a mechanical device with cylindrical components and a black arrow indicating a connection (no text or symbols)

Fejlfinding

Line drawing of a rectangular electronic device with a small component inserted, no text or symbols present

Specifikationer

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

CE

Diagram of an analog multimeter with labeled terminals and a close-up view showing measurement data

2-3m (0.5-12)

INDEX

Simple line drawing of a rectangular object with a vertical panel and two labeled 'OK' points (no text or symbols beyond basic markings)

Diagram of a printer or printer with a paper holder and spool stack, showing no text or symbols.

Felsökning

Line drawing of a rectangular electronic device with a small component inserted, no text or symbols present

Specifikationer

OBH Nordica Sweden AB

Stormbyvägen 6

Box 58

163 91 Spånga

www.obhnordica.se

Tlf: 08-445 79 00

Fax: [phone]

Illustration of a person sitting with hands placed on a table, showing a heart symbol and directional arrow (no text or labels)

Medical diagram showing a hand receiving a pressure measurement device with labeled angle and distance measurements

2-3m 0.5~12"

INDEX PATH

Simple line drawing of a rectangular object with a small protrusion and 'OK' labels at the bottom (no text or symbols on the object itself)

Diagram of a battery holder assembly with batteries and a paper holder, no text or symbols present

Line drawing of a rectangular device with a small component inserted, no text or symbols present

Spesifikasjoner

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

10.2 10.2

INDEX OK OK

Diagram of a printer or printer with paper rolls and a black arrow indicating a component (no text or symbols present)

Vianhaku

Line drawing of a rectangular device with a small component inserted, no text or symbols present

OBH Blood Pressure Monitor

Before use

Before the blood pressure monitor is taken into use a number of basic steps should be observed. Please read this manual thoroughly before the blood pressure monitor is used for the first time and keep the manual for future use.

The blood pressure monitor is intended for home use only. Any measurement is solely for information and can under no circumstances replace a visit to the doctor. The blood pressure measurements should always be assessed by a qualified person (a doctor, nurse or similar) who is familiar with the user's general medical condition. By regular use and by keeping a record of the results, this person can be kept well informed about developments in the user's blood pressure. Measurements must never be interpreted by the user with the aim of changing levels in the use of medicine as prescribed by a doctor, but the doctor's instructions must be followed AT ALL TIMES.

Use of appropriate cuff size is crucial to correct measurement. Follow the instructions presented in this manual and printed on the cuff to ensure that the correct cuff size is used.

The blood pressure monitor is not suited for users who suffer from arrhythmia (heart rhythm disturbances) and errors may occur in the measurement results if the user has suffered a stroke, suffers from cardiovascular diseases, has a very low blood pressure, is unconscious or suffers from other symptoms such as circulatory diseases (diabetes, kidney diseases, arterial sclerosis (deposits in the arteries), or poor peripheral blood circulation (e.g. in hands and feet).

Electromagnetic disturbances: The device contains sensitive electronic components. Keep it clear of strong electric or electromagnetic fields in the immediate surroundings (e.g. mobile telephones, microwave ovens) as these may temporarily reduce measurement accuracy.

Use the blood pressure monitor only for its original purpose.

The device is intended for measurement of blood pressure and pulse with adult persons (over 18 years of age). Do not apply the monitor to infants nor to persons who cannot express their permission. The device must not be operated by children.

The blood pressure monitor functions in accordance with the oscillometric measurement principle. These blood pressure changes are measured in the cuff on the basis of the arm pulse and are converted into a numerical value of the current blood pressure. Simultaneously, the number of pulse beats are registered and calculated as number of pulse beats per minute.

There are two kinds of discernible blood pressures. Both are expressed in mmHg (millimetres on the mercury column): The systolic and the diastolic. The systolic ('the high blood pressure') states the pressure when the heart chambers contract to send blood through your body, and the systolic ('the low blood pressure') states the pressure when the heart is at ease and filling with blood before the next muscle contraction. The connection between values (mmHg) is expressed as e.g. 130 over 85 which means that the systolic pressure is 130 and the diastolic pressure is 85.

Why is it important to keep an eye on your blood pressure?

Many of today's most common diseases are connected to hypertension, also referred to as 'high blood pressure'. Hypertension is closely connected to cardiovascular diseases, and for people in the danger zone the blood pressure provides an important tool to keep an eye on the development.

Standard for blood pressure

The WHO blood pressure standard defines the areas for high and low blood pressure. Kindly note that the standard is for guidance only as individual blood pressure levels vary from person to person, across age groups, etc.

Symbol	World Health Organization classification	SYS (mmHg)	DIA (mmHg)
	Optimal	< 120 < 80
	Normal	120-129 80-84
	High normal	130-139 85-89
	Hypertension grade 1	140-159	90-99
	Hypertension grade 2	160-179	100-109
	Hypertension grade 3	≥180	≥100

Blood pressure levels and categories for adults

The standard is valid for none medicating persons over 18 years of age who do not suffer from serious short term diseases or other diseases such as diabetes or kidney diseases. If the reading falls inside two groups (e.g. the systolic number within grade 2 and the diastolic number within grade 1), the highest number is used for classification (and the example thus falls within grade 2.) Persons with diabetes or chronic kidney diseases are exceptions to the classifications above as a blood pressure level of just 130/80 mmHg or higher is generally regarded as hypertension.

The blood pressure monitor is equipped with a category indicator for visualization of the presumed risk level of the user in accordance with the standard above. Read more about this in the section 'Risk category indicator'.

It is important to consult your doctor regularly. A doctor will be able to determine the normal blood pressure area for each individual and to determine the exact point at which each individual is considered part of a risk group.

It is recommended that you keep a record of your measurements in order to keep track of developments in your blood pressure.

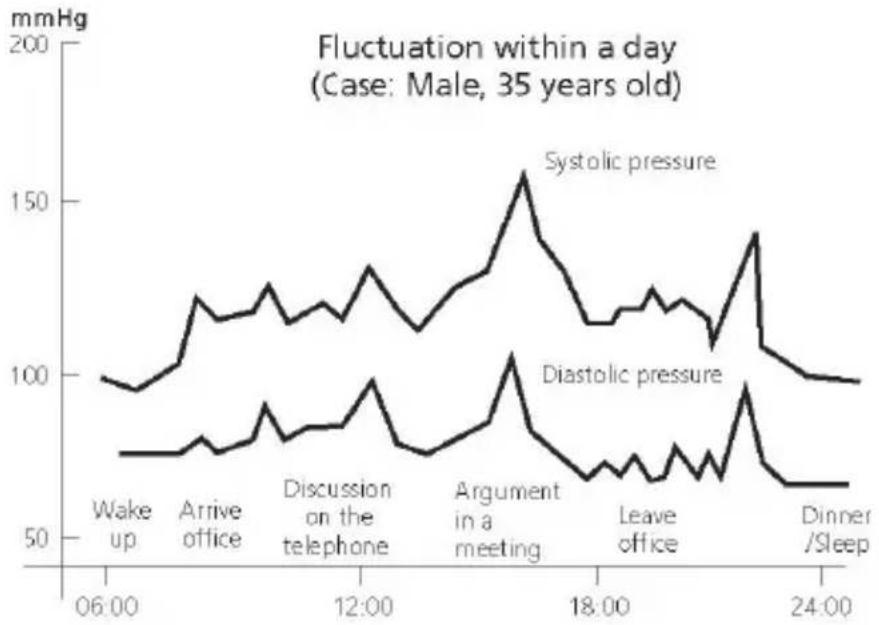

Blood pressure fluctuates all the time

You should not be worried if you encounter two or three measurements at high levels. Blood pressure changes over the month and even throughout the day. It is also influenced by season and temperature.

How to use the blood pressure monitor

This blood pressure monitor is equipped with ‘Smart Sense™’ technology. By pressing a single button the cuff is automatically inflated to block the blood pressure flow through the artery. Subsequently, the deflation process starts. The ‘Smart Sense™’ technology enables automatic inflation and deflation to be adjusted exactly to fit each individual. Please be aware that any motion during inflation or deflation will cause measurement errors. When the measurement is complete the display will show the systolic pressure, the diastolic pressure, and the heart rate.

Smart Sense™ is approved to provide clinically correct results. The device is approved by and in accordance with the demands of MDD (Medical Device Directive, European Norm EN 1060-1, EN 1060-3 och EN 1060-4).

Based on the measurements, the blood pressure monitor's category indicator will warn the user by means of a symbol if the user falls within a risk group. Read more about this in the section ‘Risk category indicator’ and consult the table on page 57.

The blood pressure monitor is also equipped with an identification function for heart arrhythmia (heart rhythm disturbances) which will warn the user that his or her heart has an unstable heartbeat. If the symbol 📁 appears frequently (5 successive measurements or more) it is highly recommended that you consult a doctor. Read more about this in the section ‘Establishing arrhythmia (heart rhythm disturbances)’.

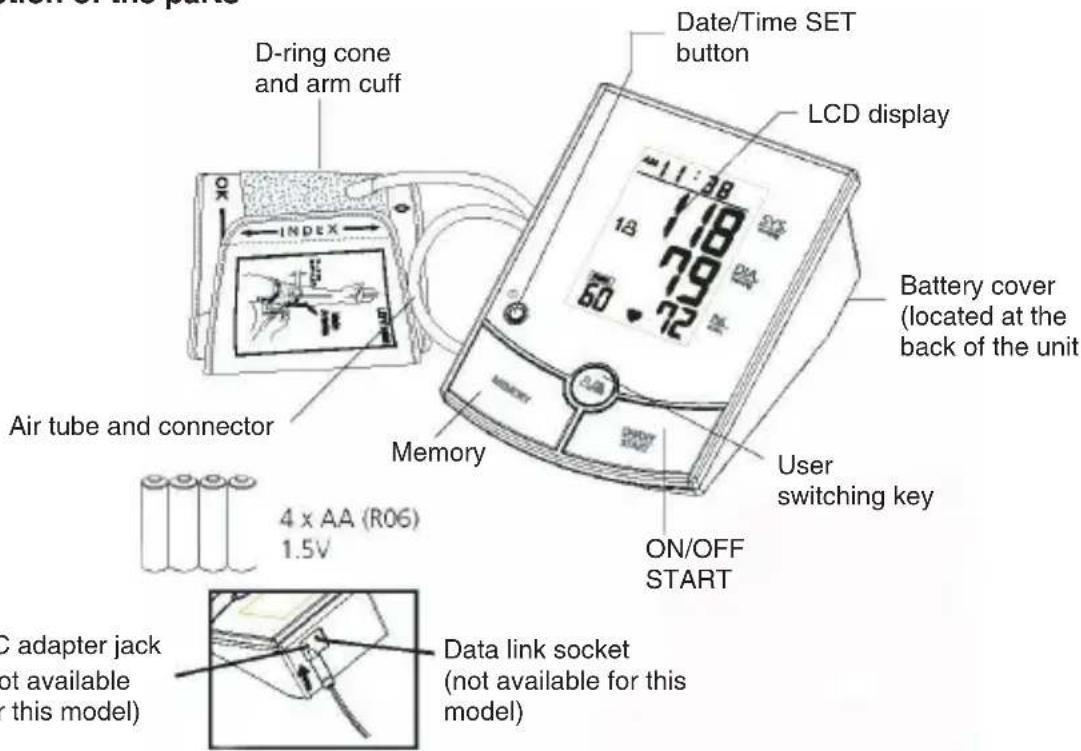

Description of the parts

D-ring cone and arm cuff Air tube and connector 4 x AA (ROG) 1.5V LCD display Date/Time SET button 11:38 18 79 60 72 Battery cover (located at the back of the unit Memory ON/OFF START User switching key Data link socket (not available for this model)

How to use the blood pressure device

Setting date and time

1. To set date and time, press the SET button
2. The number designating month flashes on the display. The month setting is changed by pressing the MEMORY-button. Every push increases the number by one and when the desired number appears on the display it is confirmed by pressing the SET button. The number designating date now flashes on the display.
3. The settings for hours and minutes are set in the same way as described in 2.
4. When the device is ready for measurement, '0' will appear on the display.

Fitting the cuff

1. If the cuff is not assembled at first use, put the end of the cuff which is furthest away from the tube through the D-ring to form a noose.

1. Apply the tube to the left side of the device.

Hand-drawn illustration of a mobile phone with visible screen numbers and a card, showing price tags and payment interface.

1. Remove tight-fitting clothing from your left upper arm and position the cuff at approximately 1,5-2,5 cm above the elbow so that the tube is centred at the middle of the arm. The tube must face downward towards the hand. The artery symbol on the cuff should be positioned above the main artery. Press the arm's arteries with two fingers at approximately 2 cm above the elbow on the inside of the arm to find out where the pulse is strongest. This is the main artery.

1. Pull gently at the end of the cuff so that it tightens easily and smoothly around the arm. The cuff is secured by pulling the velcro fastener towards the cuff.

1. You should be able to fit two fingers between the cuff and your arm. The cuff should not be fitted any tighter than this.

1. Relax your body and rest your arm on a table with your palm up so that the cuff is positioned at the same height as the heart. Make sure that the tube does not bend.

If it is not possible to fit the cuff on the left arm, it can be placed on the right arm instead. However, it is important that all measurements are carried out on the same arm. If the measurement is to be taken on the right arm, the artery symbol on the cuff should be positioned above the main artery. Press the arm's arteries with two fingers at approximately 2 ~cm above the elbow on the inside of the arm to find out where the pulse is strongest. This is the main artery.

IMPORTANT!

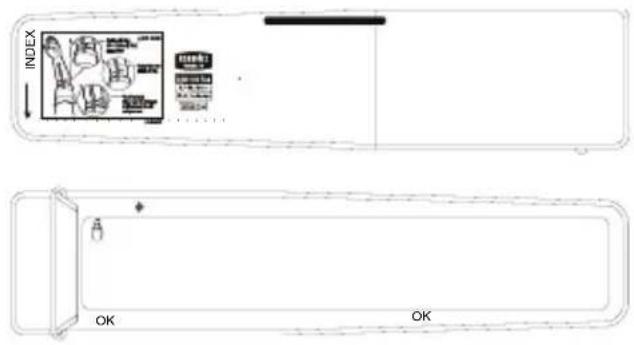

The size of the cuff is instrumental in ensuring accurate measurement results. The cuff has an appropriate size if the INDEX arrow is placed within the two OK arrows as illustrated below.

2-3m 0.5 - 121

INDEX OK OK

If the INDEX arrow falls outside the OK arrows, another cuff with a different diameter must be used. Enclosed cuff is size 24-36 cm. It's possible to get a replacement cuff in size small (18-26 cm) or size large (34-46 cm), if you return the original cuff to OBH Nordica. For instructions reg replacement please contact OBH Nordica phone [phone] and choose "spare parts" when calling. If you want to keep the original cuff and order another size, please contact OBH Nordica on above no for price and order.

Important

• The blood pressure changes with every heartbeat and is consequently changing constantly 24 hours a day.
- The measurement of blood pressure can be influenced by the user's position, condition, or other factors. To obtain the highest degree of accuracy it is recommended that the measurement is taken 1 hour after workout, bathing, finishing a meal, consuming alcoholic or caffeine beverages, or after smoking.
- Before measurement it is recommended that you sit still and relax for 15 minutes. Do not take measurements if you are under stress or tension.
• The user must not talk or move arm or hand during measurement.
• Take your blood pressure at normal body temperature. If you are feeling cold or hot, wait a while before taking a measurement.
- If the monitor is stored at very low temperature (near freezing), have it placed at a warm location for at least one hour before using it.
- Read the section ‘Worth knowing about blood pressure measurement’ for further information.

How to measure the blood pressure

1. Choose user 1 or 2 by pressing 8/3. When the user number has been chosen, press ON/OFF START to confirm the user number.

2. When the cuff is appropriately fitted to the arm, the measurement is started by pressing ON/OFF START. Never activate the device unless the cuff is fitted to the arm. All symbols on the display will flash and the device performs self-calibration for approximately 2 seconds.

18:00 38.8 12 24 38.8 188 188

1. When "0" flashes on the display, the device is ready for measurement and will automatically inflate the cuff to start the measurement.

1. As soon as the systolic pressure has been established, deflation will commence automatically and the diastolic pressure is measured.

NOTE that the cuff is automatically re-inflated if the device determines that the body requires higher pressure to complete the measurement.

1. When the measurement is completed, the cuff automatically deflates and the display will show the systolic pressure, the diastolic pressure, and the pulse. The measurement is simultaneously stored in the monitor's memory.

2. The device automatically switches off approximately 1 minute after use but can also be switched off manually by pressing ON/OFF START or M button.

3. If necessary, a measurement can be interrupted by pressing ON/OFF START (recommended) or any other button on the device. The cuff will subsequently deflate immediately.

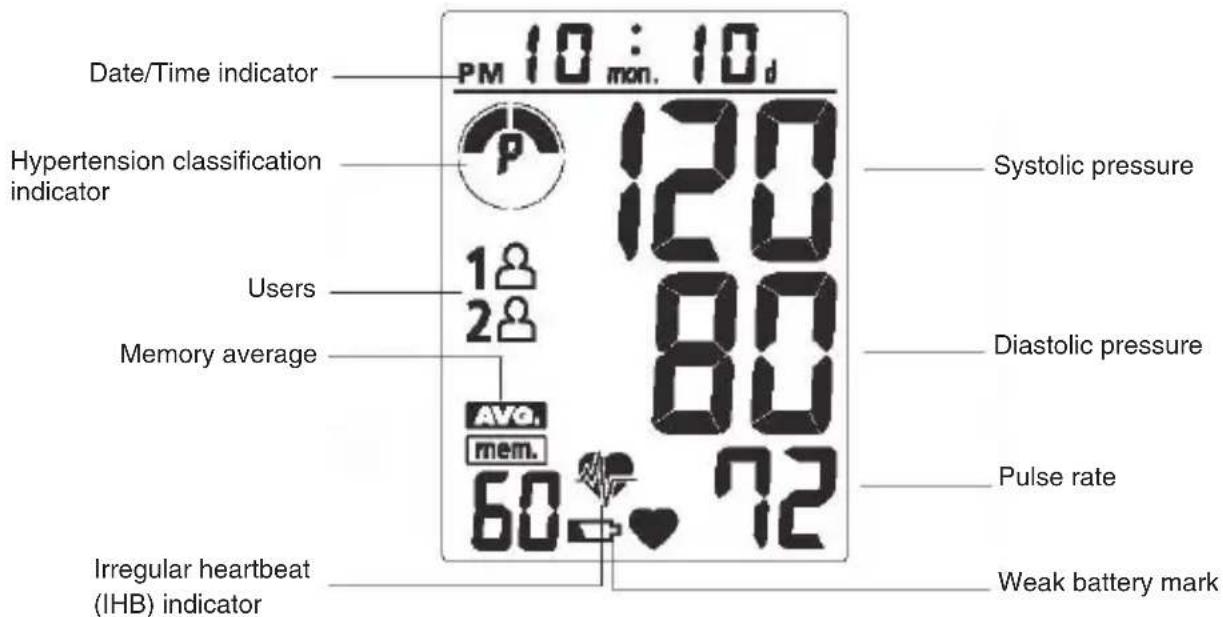

Description of the display

Date/Time indicator PM 10 : 10 d Hypertension classification indicator 120 120 Users 1 2 80 Memory average AVG. mem. 60 72 Irregular heartbeat (IHB) indicator Systolic pressure Diastolic pressure Pulse rate Weak battery mark

	User 1: Shows that the device is employed by user 1
	User 2: Shows that the device is employed by user 2
	Low battery symbol. Shows on the display when a change of battery is required
	Pulse symbol. Shows pulse beats per minute.
	Heart arrhythmia (heart rhythm disturbance): Indicates that arrhythmia has been established. Read more about this in the section “Establishing arrhythmia (heart rhythm disturbances)”.
	Memory – average measurements. Shows the average of the 3 most recent measurements.
	Risk category indicator: Compares measurements with the different blood pressure categories. Read more about this in the section “Risk category indicator”.

Error messages

EE	Measurement Error: Make sure the L-plug is securely connected to the air socket and measure again quietly. Wrap the cuff correctly and keep arm steady during measurement. If error keeps occurring, return the device to the local distributor or service center.
E1	Air Circuit Abnormality: Make sure the L-Plug is securely connected to the air socket on the side of the unit and measure again quietly. Another possible cause can be due to the short circuit of the microphone embedded in the cuff. If errors still occur, return the device to your local distributor or service center for help.
E2	Pressure exceeds 300 mmHg. Switch off the device and switch on again. Perform new measurement.
E3	Data error. Remove the batteries and re-insert them.
Er	Exceeding measurement range: Measure again quietly.If error keeps occurring, return the device to the local distributor or service center.
CA	Recalibration warning. It is recommended to have the device recalibrated. Read more about this in the section “Calibration”.

Worth knowing about blood pressure measurement

• Blood pressure measurements should be performed in quiet and comfortable surroundings as measurements can be affected by high or low temperatures. The blood pressure should be measured at normal body temperatures.
• Do not move or speak during measurement. Keep your feet flat on the floor.
• Do not touch the cuff or the blood pressure device during measurement.

• To obtain the best possible measurement, the blood pressure should be meas approximately the same time every day, and on the same arm.

• If you are to perform several successive measurements, please wait 5 minutes between each measurement.

• The measurements are for guidance only. If you have doubts about your blog consult your doctor.
  • The blood pressure device automatically deflates when the pressure exceeds 300 mmHg.
  • The product is not suited for persons suffering from arrhythmia (heart rhythm disturbances).
• Measurement errors may occur if the user suffers from diabetes, poor blood circulation, kidney problems, or has suffered a stroke.

Risk category indicator

The device complies with the blood pressure standard which classifies blood pressures into 6 grades. This innovative blood pressure classification shows with a symbol on the display the presumed risk category for each measurement. The symbols and the classifications follow the numbers in the table on page 57.

Establishing arrhythmia (heart rhythm disturbances)

An unstable heart rhythm can lead to or indicate cardiovascular diseases. By means of advanced technology, this blood pressure device can warn the user that he or she has an irregular heart rhythm which in turn contributes to better health monitoring.

If the symbol 📁 appears during blood pressure measurement, it means that an irregular heart rhythm has been established. This should only be regarded as a warning. Note that it is important that the user is relaxed, sits still, and does not speak during measurement. It is strongly recommended that you contact your doctor if the irregular heart rhythm symbol appears often.

Memory

This blood pressure device can be used by two users. Each user can store up to 60 measurements. When the number of readings exceeds 60, the oldest data will be replaced with the new record.

1. Press

1. Choose user 1 or 2 by pressing

1. Press MEMORY to enter memory.

2. The blood pressure device will first show the average of the three most recent measurements stored in the memory. AVG.

3. Every time MEMORY is pressed, previously stored measurements are shown. The latest measurement is shown first.

12:30 120 80 72 59 12

1. To clear memory press

8/ to choose user 1 or 2.

1. Press and hold the MEMORY button for approximately 5 seconds and all data for the chosen user are erased automatically.

Recalibration service

All blood pressure devices must be recalibrated to ensure continual measurement accuracy

The blood pressure device should be recalibrated after 2 years of normal use (approx. 3 measurements a day). Subsequently, the device will show “CA” on the display, see below for further instructions. The device should also be recalibrated if e.g. it has been dropped on the floor or in fluids, if fluid has been spilled over or on the device, or if it has been exposed to extremely high or low temperatures.

This monitor must only be calibrated by authorised personnel and should therefore be sent to OBH Nordica for re-calibration. Do not carry out any repairs yourself. Please contact the shop where you bought the product for further details on the procedure for submitting the monitor.

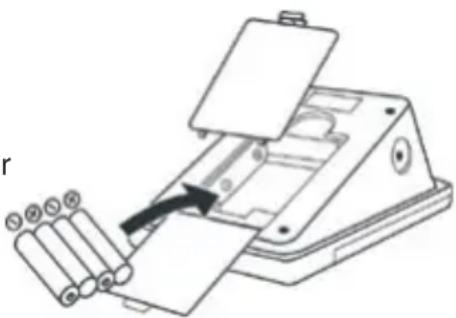

Inserting and changing batteries

1. Press down and lift the battery cover in the direction of the arrow to open the battery compartment.
2. Insert or change the batteries in the battery compartment. Make sure that the batteries are placed correctly. The door is put back in its place.

3. When the device is not used for extended periods of time, it is recommended that you remove the batteries to avoid leakage which may cause damage to the device.

4. As the supplied batteries are for test only, they may be discharged earlier than batteries you buy in stores. Replace the batteries in pairs.

Technical line drawing of a mechanical device with cylindrical components and a black arrow indicating motion (no text or symbols)

Error search

If irregularities occur during use, please check the following items before you contact your vendor:

Symptom Possible reasons	Correction
The device does not switch on when the stop/start button is activated	A change of batteries is required. Have the batteries' polarities been positioned incorrectly?	Change to four new AA batteries. Re-insert the batteries in the correct positions.
EE measurement error symbol in the display, or the blood pressure measurement is excessively low (or high)	The cuff is fitted incorrectly Fit the cuff again so that it is positioned correctly
	Did you talk or move during measurement?	Restart measurement and keep the arm steady during the entire measurement
	Shaking of the arm while wearing wearing the cuff

If the device still does not function, please contact the store where the device was purchased. Do not attempt to open the device or adjust any of the inner parts yourself.

Using an AC adapter:

• The unit may be connected to an AC adapter, 12 V DC (adapter in is not included, and is not sold separately by OBH Nordica).
• No batteries are needed when operating with an AC adapter. Unload the batteries when operating with an AC adapter for a longer period of time. Leaving the batteries in the battery compartment for a longer period of time may cause a leakage, which may lead to damage of the unit.

- Refer to the section 'Specifications' for technical data for an optional AC adapter.

On the back of the unit there are two sockets marked 12 V DC and Data Link.

1. Connect the AC adapter with the AC adapter jack in the back of the unit.
2. Plug the AC adapter into the socket. Use a compatible adapter with the required voltage and current indicated near the AC adapter jack (12 V DC)

Line drawing of a device with a labeled component and a tool inserted (no text or symbols)

Specifications

Power source 4 AA batteries
Measurement standard	Oscillometric
Measurement zone Pressure: 40-250 mmHgPulse: 40-199 beats per minute
Accuracy Pressure: ±3 mmHgPulse: Reading inside ±5%
Pressure sensor Semi conductor
Inflation Automatic - pump-driven
Deflation Automatic - overpressure valve
Memory capacity 60 measurements per user (120 total)
Auto off 1 minute after latest use
Conditions during use 10°C - 40°C40-85% RH max
Storage conditions -10°C - 60°C10-90% RH max
Cuff circumference 24-36 cm
Age limitation 18 years
Classification	[γksh] BF type. Device and cuff are designed to provide special protection against electric shock
Adapter	Input: 230 VAC 50 Hz 100 mAOutput: 12 VDC 800 mA
IPXO	Ordinary equipment (enclosed equipment without protection against ingress of water
NO AP/APG	Equipment not suitable for use in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

Specifications can be changed without notice.

Cleaning and maintenance

The blood pressure monitor, the cuff, and the storage box can be rinsed with a slightly damp, soft cloth and wiped dry with a soft, dry cloth or paper towel. Do not wash the cuff or use chemical cleaner on it. Also, never use thinner, alcohol or petrol (gasoline) to clean the device.

Safety instructions

1. Read the instruction manual carefully before use, and save it for future use.
2. The appliance must not be immersed into water or other liquids. Should the appliance become wet, it must be wiped off immediately, as liquids contain minerals, which make the electronic parts corrode or which will completely destroy the electronics.
3. If the appliance catches dust, it should be wiped with a humid cloth, and then wiped with a dry cloth.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. Only use the device on upper arm, not on other body parts.
7. The cuff and the tube should not be folded up tightly. The device must not be activated if it is not appropriately fitted to upper arm.
8. Always store the device in the enclosed bag after use.
9. When the device is not used for extended periods of time, it is recommended that you remove the batteries to avoid leakage which may cause damage to the device.
10. Neither device nor cuff must be dissembled as this may cause serious damage to the device. If repair is necessary, the device must be returned to the store where it was purchased. Do not attempt to open the device or adjust the inner parts yourself.
11. Avoid dropping the device and do not subject it to heavy pressure.
12. If the highly unlikely incident should occur that the cuff continues to inflate and does not stop, immediately remove the cuff from wrist or upper arm.
13. This unit contains high-precision assemblies. Do not expose the device nor the cuff to extreme temperatures, moisture or direct sunlight. Avoid dropping and strongly shocking the main unit. Protect the device against dust.
14. The device must be stored at the following temperatures to ensure accurate measurements: Storage conditions Conditions during use
    Temperature -10°C - +60°C Temperature +10°C - +40°C
    Max. humidity 10-90% RH Max. humidity 40-85% RH
15. If the device has been stored at very low temperatures near the freezing point, please allow it to obtain room temperature before using it again.
16. The device is intended for use in private households only and is only suited for use with adults (over 18 years of age).
17. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Environmental considerations and disposal of batteries

When disposing of batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Used batteries must be returned to one of the authorized collection points. Batteries must be removed from the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the validity date printed on the batteries.

Disposal of the device

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Claims according to current law. Cash receipt with purchase date shall be enclosed with any claims. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica Sweden AB

Stormbyvägen 6

Box 58

163 91 Spånga

www.obhnordica.se

Tlf: 08-445 79 00

Fax: [phone]

CE

With reservation for ongoing changes and improvements

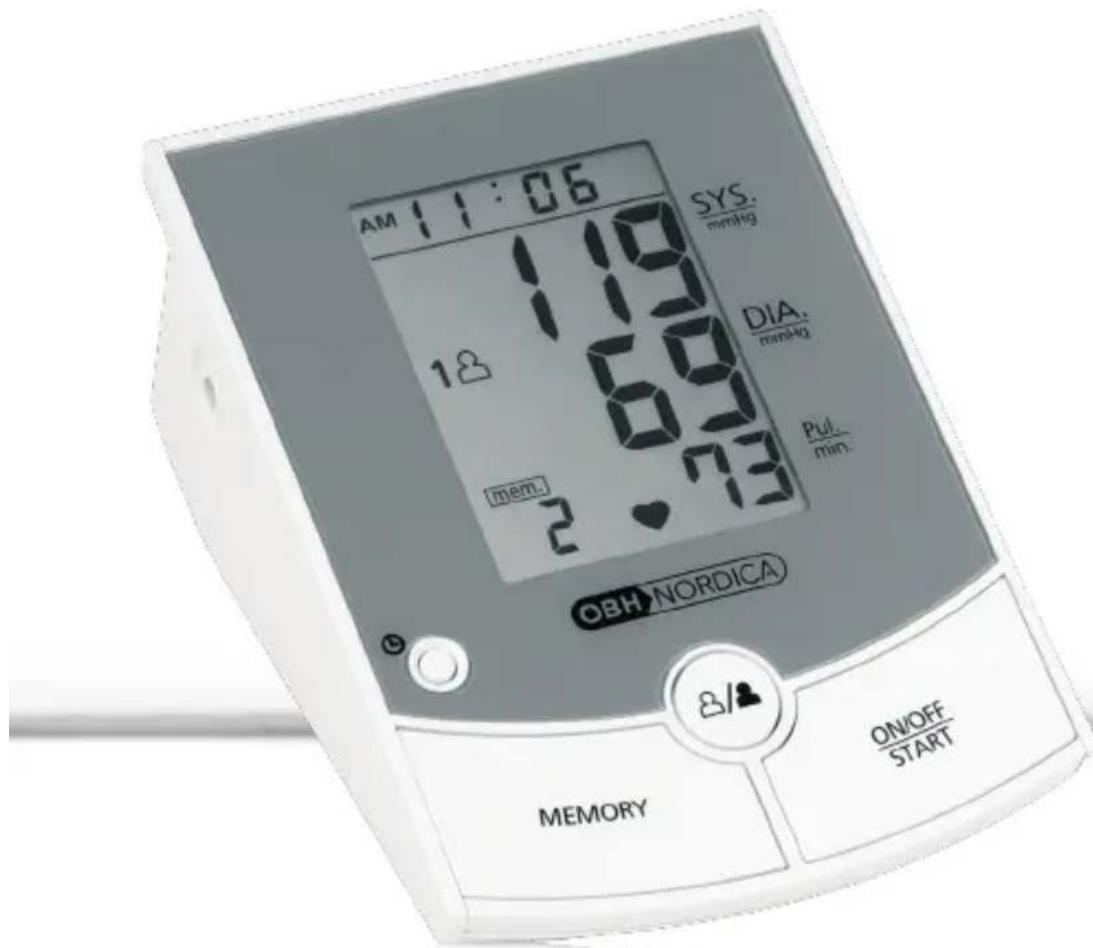

AM 11:06 SYS. mmHg 18 6.9 mem. 2 73 DIA. mmHg Put. min. OBH NORDICA MEMORY ON/OFF /START

Black-and-white photo of a woman reclining in a chair, no visible text or symbols

SE/CPE/4607/1209
