Product Type	Portable Air Conditioner
Model	TPA-2000
Brand	TecLime
Cooling Capacity	12000 BTU/h (approx.)
Energy Efficiency (EER)	2.6 (approx.)
Power Supply	115 V / 60 Hz
Power Consumption (Cooling)	1150 W (approx.)
Dimensions (W x D x H)	18.5 x 14.0 x 27.5 in (approx.)
Weight	55 lbs (approx.)
Refrigerant Type	R-410A
Airflow (High Speed)	300 CFM (approx.)
Noise Level (Low/High)	48 / 54 dB (approx.)
Coverage Area	Up to 400 sq ft (approx.)
Modes	Cool, Dry, Fan, Sleep
Fan Speeds	3 (Low, Medium, High)
Thermostat Control	Electronic, 64°F - 86°F
Timer	24-hour programmable
Remote Control	Included
Auto Swing	Yes (vertical)
Air Filter	Washable, reusable
Water Removal	Self-evaporating (bucket required in humid conditions)
Installation	Window kit included (max window width 48")
Safety Features	Auto restart, overheat protection
Maintenance	Clean filter every 2 weeks; drain bucket when full
Accessories Included	Remote, window kit, drain hose, exhaust hose

Frequently Asked Questions - TPA-2000 TecLime

How do I install the TPA-2000 air conditioner?

Installation involves attaching the exhaust hose to the unit and window kit. Adjust the window kit to fit your window, close the window onto the kit, and plug in the unit. Refer to the manual for detailed steps.

Why is my air conditioner not cooling?

Possible causes: dirty air filter, blocked exhaust hose, or low refrigerant. Clean the filter and ensure the exhaust hose is straight and not kinked. If the issue persists, contact TecLime support.

How often should I clean the air filter?

Clean the air filter every two weeks under normal use. More frequent cleaning may be needed in dusty environments. A dirty filter reduces efficiency.

Does the TPA-2000 have a dehumidifier mode?

Yes, it has a Dry mode that functions as a dehumidifier. Use it in humid conditions without the need to cool the air.

How do I use the remote control?

Insert two AAA batteries (not included). Point the remote at the unit’s receiver. Use buttons to: power on/off, adjust temperature, select mode, set timer, and control fan speed.

What does the timer function do?

The timer allows you to set the unit to turn on or off after a specified delay (1-24 hours). Press the Timer button and use +/- to set the desired time.

Is the TPA-2000 energy efficient?

It has an approximate EER of 2.6, which is standard for portable ACs. For better efficiency, use the Sleep mode at night and keep doors/windows closed.

Why is water leaking from my air conditioner?

In high humidity, the unit may collect water in the internal bucket. Drain the bucket when the ‘Full’ indicator lights. Ensure the unit is level and the drain plug is secure.

Can I use an extension cord?

It is not recommended. Use a dedicated 15-amp outlet. If necessary, use a heavy-duty 14-gauge cord no longer than 10 feet. Avoid overloading.

How loud is the TPA-2000?

Noise levels range from 48 dB (low fan) to 54 dB (high fan), similar to a conversation or light traffic. Use Sleep mode for quieter operation at night.

USER MANUAL TPA-2000 TecLime

Portable Air Conditioning

SE ANVÄNDARHANDBOK

GB USER MANUAL

FeiyueGroup Europé Aps

Sundsholmen 14

DK 9440 Norresundby, Denmark

1. Specification......8
2. Design 8
3. Installation 9
4. Safety warnings....10
5. Control panel and use....10

Operation....11

1. Drainage....11
2. Troubleshooting....11
3. Maintenance....12
4. Warranty Provisions.... 12
5. Environmental Protection.... 12

GB The features described in this manual are published with reservation to modifications.

Bruksanvisning (SE)

2

3

4

3. Installaon

Placering

Efter säsongen:

Thank you for selecting this super quality air conditioner. The air-conditioner is intended for domestic uses and not recommended for commercial usage.

Read this manual carefully before you are using the appliance and keep it for future reference.

1. Specicaon

Model	TecLime TPA-2000
Cooling capacity	2,05kW
Refrigerant/charge	R410A/400g
Voltage	220-240 V ~, 50 Hz
Power in	1020W
Air low	360m3/h
Noise	55dB(A)
Weight	25 kg
Dimension (WxHxD)	330x433x795 mm

2. Design

1	Air outlet vent		7	Exhaust air outlet vent
2	Louver		8	Power cord
3	Control panel		9	Big ilter
4	Knob		10	Small ilter
5	Castor		11	Draining hole
6	Handle

Accessories

Check that all the accessories are included in the package and please refer to the installation instructions for their usage.

1. Exhaust hose
2. Adapter
3. Window slider
4. Window slider for adapter

3. Installaon

Select location

Keep the unit on a flat stable surface and dry place. Leave at least 50cm space all around the unit. Before you are using the unit let it be standing upright for minimum 2 hours.

Assemble the hose

Pull out the end of the hose and fasten it to the unit by screwing it anticlockwise. Fasten the adapter to the other end of the hose using same method.

Installation of window kit

• Partially open the window and then ix the window kits to the window
• The window kits can be installed on most normal and vertical windows, and it is adjustable
• Fasten the adapter to the window kit

Important!

The length of the exhaust pipe is specially designed according to the specification of this product. Do not replace or prolong it with your own private hose as this could cause mal-function.

Bending of the exhaust pipe is very critical. Incorrect mounting can prevent the machine from working correctly.

Take care to prevent any sharp bows or bends of the exhaust pipe. The exhaust air must low freely

4. Safety warnings

Read them carefully before using the appliance.

- Use only for domestic purposes and in the manner specified in these instructions. Never use for any other purpose.

- Do not use outdoors and place it always in a dry environment.

- Check the cord regularly. Never use the appliance if the cord or plug is showing no signs of damage. This product's cord length is selected to reduce the risk of injury. Do not use an extension cord that does not have the same electrical specifications as the unit. If in doubt consult a qualified electrician or service provider.

- Keep the appliance away from heat sources and direct sunlight.

• Always switch off the machine with the power switch before unplugging.

- Always unplug the appliance before cleaning or modification of some parts of the apparatus, and when not in use.

- Ensure that the voltage on the rating plate match the supply voltage. Any error in how the apparatus is connected voids your warranty.

• Children should be supervised so they do not play with the appliance.

- Never leave the appliance unattended when in use. Turn the unit off if you have to go away even for a short while.

- Never pull the cord to disconnect or move the unit.

- Never immerse the appliance in water or other liquid, for any reason.

- Keep the unit away from water or grease splashes.

- Read the instructions for cleaning.

- Do not insert sharp metal objects or ingers into openings or oscillating ins of the device.

- Never repair the unit yourself. Any action taken by a non-qualified person can be dangerous. Any replacement of the power cord must be performed by a qualified electrician.

- Do not use accessories not supplied by the supplier. This can be dangerous and can damage the unit.

Special recommendations:

- Install the portable air conditioner on a lat site with a lot of room, notwithstanding. Leave 50cm minimum space to the walls.

- The plug must always be accessible after installation.

• Always place the unit in a vertical position, to give the compressor good working condition.

- Do not use near gas or other lammable liquids.

- Do not block the air outlet and inlet ventilation.

- Do not use aerosol spray (insecticides, paint) or other lammable products near the appliance as plastic parts can be deformed. The unit's electronics can also be damaged.

Power sources

- The plug must be properly installed and not damaged.

- Do not connect the device with an adapter.

- Insert the wall jack before switching on the unit.

The manufacturer will not assume any responsibility in case of non-adherence to these instructions.

5. Control panel and use

1. OFF

2. Fan speed(High)

3. Fanspeed(low)

4. Cool(high)

5. Cool(low)

6. Water full indicator

7. Power indicator

8. Running indicator

Operaon

1. The knob should be in the "OFF" position before the plug is inserted into the wall outlet.
2. When the plug is inserted the "POWER" indicator will light red.
3. Turn the control knob to desired function and "RUN" indicator will light green.
4. Shut down by turning the knob back to "OFF".

Note!

If you turn off the machine when it has been running in cooling mode it is not allowed to use the cooling function again within 3 minutes.

6. Drainage

This product is equipped with an evaporation system. The condensate is used to cool the condenser. This not only improves cooling but also saves energy for you.

• If it becomes too much condensation in the apparatus, the LED "FULL" will light and the compressor will stop working.
• Stop the machine and move the machine to where the water can be drained, open water plug and drain the unit. After draining, you can turn it on and the device will work again.

7. Troubleshoong

Do not repair or disassemble the device yourself. Improper repairs can put built-in safeguards to fail and even cause injury to the user. The warranty will also be void.

Problem	Cause	Solution
The air conditioner does not function	No power supply.	Connect to power supply outlet and switch on.
	“Water full” flashes on the display screen	Drain water.
	Timer-off is running.	You can turn on the unit three minutes later.
The air conditioner restart frequently	In direct sunlight.	Close curtains.
	Windows or doors open, many people or a heat source in the room.	Close doors and windows, remove the heat source.
	Dirty ilter.	Clean or replace the ilter(s).
	Air inlet or air outlet blocked.	Remove the blockage.
The unit is too noisy	Unit stands uneven.	Place on an even, solid surface (less vibration).
No work of compressor	Self-protect of compressor	Wait for 3 minute and restart again after the descend of temperature

If the solutions above not solve the problem please call the service center.

Cautions: Switch off the unit and unplug it immediately if anything abnormal happens. Then contact a qualified electrician.

8. Maintenance

Cleaning.

1. Unplug the unit before any cleaning.
2. Clean the housing with a soft moisture cloth. Do not use chemical solvent (such as benzene, alcohol, gasoline). The surface may be damaged or even the whole case may be deformed.
3. Do not sprinkle water on the unit.

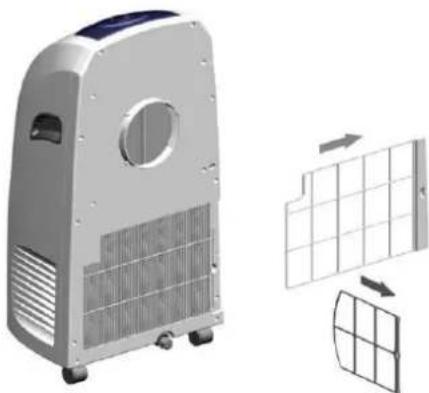

Cleaning of the ilters

1. Clean the air ilter every 2 weeks. If the air ilter is blocked with dust, the efficiency will be reduced.
2. Open the air ilter cover upwards, then take out the air ilter.
3. Wash the air ilter by immersing it gently into warm (about 40°C) water with a neutral detergent, rinse it and dry it thoroughly in a shaded place.

End of season:

1. Please drain the water.
2. Keep the unit running in Fan mode for several hours until the inside of the unit is dry.
3. Turn off the unit and unplug it.
4. Clean the air ilter and after dry it thoroughly, reinstall it.
5. Remove the exhaust pipes and store them carefully.
6. Wrap the unit with the plastic bag and keep it in a dry place.

9. Warranty Provisions

This product comes with a 12-month warranty starting on the date of purchase. Within this period any defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1. We expressly dismiss all other claims for damage, including consequential damages;
2. Any repairs or replacements of components within the term of the warranty will not result in an extension of the term of the warranty:
3. The warranty will no longer apply if the product has been modified, non-original parts have been used, or if it has been repaired by third parties;
4. The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it;
5. The warranty will not apply to damage caused by actions not in compliance with the Directions for Use, neglect, vandalism;
6. Transportation costs and the risk involved during the transportation of the product or its components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the Directions for Use carefully irst. If they offer no solution, please take the product to your dealer for repair.

10. Environmental Protecon

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
