Brand	Gorenje
Model	MO26
Product Type	Solo Microwave with Grill
Oven Capacity	26.3 liters
Outside Dimensions (W x D x H)	520 x 380 x 296 mm
Oven Cavity Dimensions (W x D x H)	340 x 345/360 x 215 mm
Weight	Approx. 18.5 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1450 W
Microwave Output Power	900 W
Grill Heater Power	1000 W
Operating Frequency	2450 MHz
Control Panel	Push-button with digital display
Cooking Functions	Microwave, Grill, Combination (C-1, C-2), Auto Weight Defrost, Auto-Menu, Single Button Heating
Power Levels	5 levels (100%, 70%, 50%, 30%, 10%)
Maximum Microwave Cooking Time	60 minutes
Timer	Yes, up to 60 minutes
Clock	24-hour digital clock
Child Safety Lock	Yes, by pressing 1 Min and 10 Sec buttons simultaneously for 2 seconds
Safety Features	Door safety lock system, overheating protection, automatic shut-off
Interior Lighting	Yes
Glass Tray	Included, removable for cleaning
Roller Ring	Included, removable for cleaning
Grill Rack	Included
Cleaning	Wipe interior with damp cloth; do not use harsh abrasives; clean glass tray and roller ring with mild detergent
Installation Clearances	At least 8 cm from sides, 10 cm from rear, 30 cm from top for ventilation
Warranty	Not specified in manual, refer to local dealer

Frequently Asked Questions - MO26 GORENJE

How do I set the clock on the Gorenje MO26 microwave?

Press the Clock button. The display will flash. Use the 1 Min and 10 Sec buttons to set the hour, then press Clock again to set the minutes. Press Clock a third time to confirm.

How do I use the Auto Weight Defrost function?

Press Power/Grill until DEF appears. Enter the food weight in kg using 1 Min (1 kg) and 10 Sec (0.1 kg), then press Start. The weight must be less than 2 kg.

What cookware is safe to use in this microwave?

Use microwave-safe utensils only. Avoid metal pans, dishes with metal trim, melamine, and containers with restricted openings (e.g., pop bottles). Do not use paper-covered wire twist-ties.

How do I activate the Child Safety Lock?

Press and hold the 1 Min and 10 Sec buttons simultaneously for 2 seconds. Repeat the same step to unlock.

What is the maximum cooking time for microwave mode?

The maximum microwave cooking time is 60 minutes.

How do I clean the microwave interior?

Unplug the oven. Wipe the interior with a damp cloth. For stubborn residue, use a mild detergent. Do not use harsh abrasives. Clean the glass tray and roller ring with warm soapy water.

Why is my microwave not heating?

Check that the door is properly closed and the safety interlocks are engaged. Ensure the timer is set. Also check the power supply (fuse or circuit breaker). If the problem persists, contact an authorized service agent.

How do I use the Grill function?

Press Power/Grill until G-1 (85% grill) or G-2 (50% grill) appears. Set the cooking time using the time buttons, then press Start. The oven will pause halfway to signal you to turn food over.

What is Combination cooking?

Combination cooking uses both microwave and grill. Press Power/Grill until C-1 (55% microwave + 45% grill) or C-2 (30% microwave + 70% grill) appears, set time, and press Start.

Can I use the microwave without the glass tray?

No, the glass tray, roller ring, and coupling must always be in place when operating the oven.

USER MANUAL MO26 GORENJE

Line drawing of a gorenje microwave oven with control panel and buttons (no text or symbols on the device itself)

rice = riž vegetable = zelenjava noodles = rezanci meat = meso fish = riba chicken = piščanec clock = ura timer = časovnik

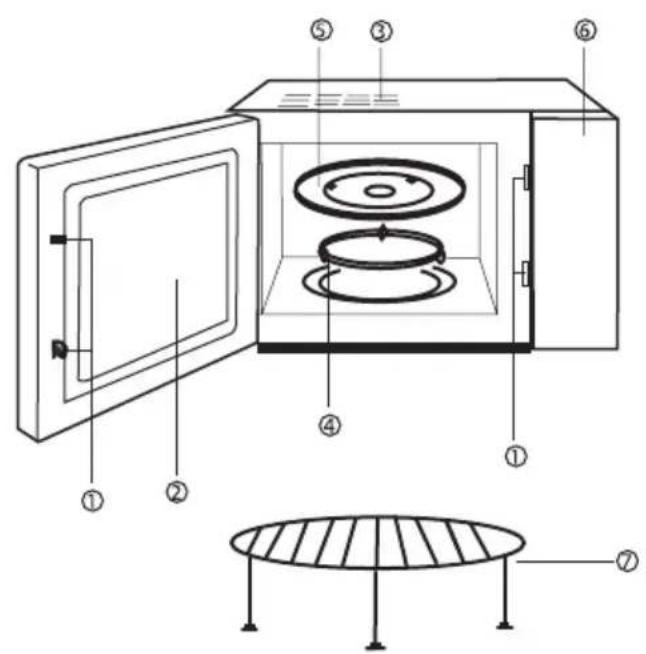

1 Sigurnosni sustav za zatvaranje vrata
2 Prozor pećnice
3 Otvor za prozračivanje ili ventilator za prozračivanje
4 Ležajni obruč
5 Stakleni pladanj
6 Nadzorna ploča
7 Rešetka za žar

Uputstva za upravljanje

1. ZAGRIJAVANJE S PRITISKOM NA JEDAN GUMB

Sa samo jednim pritiskom na gumb započet čete jednostavno kuhanje.

Funkcija je jako priručna i omogućuje, da npr jako brzo zagrijete šalicu vode ipd.

1 Sigurnosni sistem za zatvaranje vrata

2 Prozor pećnice

3 Ventilacioni otvori ili ventilator za provetravanje

4 Rotacioni tanjir

5 Stakleni tanjir

6 Kontrolna tabla

7 Rešetka roštilja

Uputstva za rukovanje

1. Priprema namirnica jednim pritiskom na dugme

Read the Instructions carefully and Keep for Future Reference

SPECIFICATIONS

Power consumption: 230V\~50Hz,1450W

Output: 900W

Grill Heater: 1000W

Operating Frequency: 2,450MHz

Outside Dimensions: 520mm(W) X 380mm(D) X 296mm(H)

Oven Cavity Dimensions: 340mm(W) X 345/360mm(D) X 215mm(H)

Oven Capacity: 26,30litres

Uncrated Weight:.....Approx. 18.5kg

CE

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT THE NEAREST AUTHORIZED SERVICE AGENT.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Note:

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity

If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 18.5 kg and must be placed on a horizontal surface strong enough to support this weight.
2. The oven must be placed away from high temperature and steam.
3. DO NOT place anything on top of the oven.
4. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.
5. DO NOT remove the turn -table drive shaft.
6. As with any appliance, close supervision is necessary when used by children. WARNING-THIS APPLIANCE MUST BE EARTHED.
7. The plug socket should be within easy reach of the power cord
8. This oven requires 1.2 KVA for its input consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V,10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings indentifying the terminals in your plug, proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT SAFETY INSTRUCTIONS

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
• The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cms from top of the oven. Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salaed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
• To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from bags before placing bag in oven.

c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

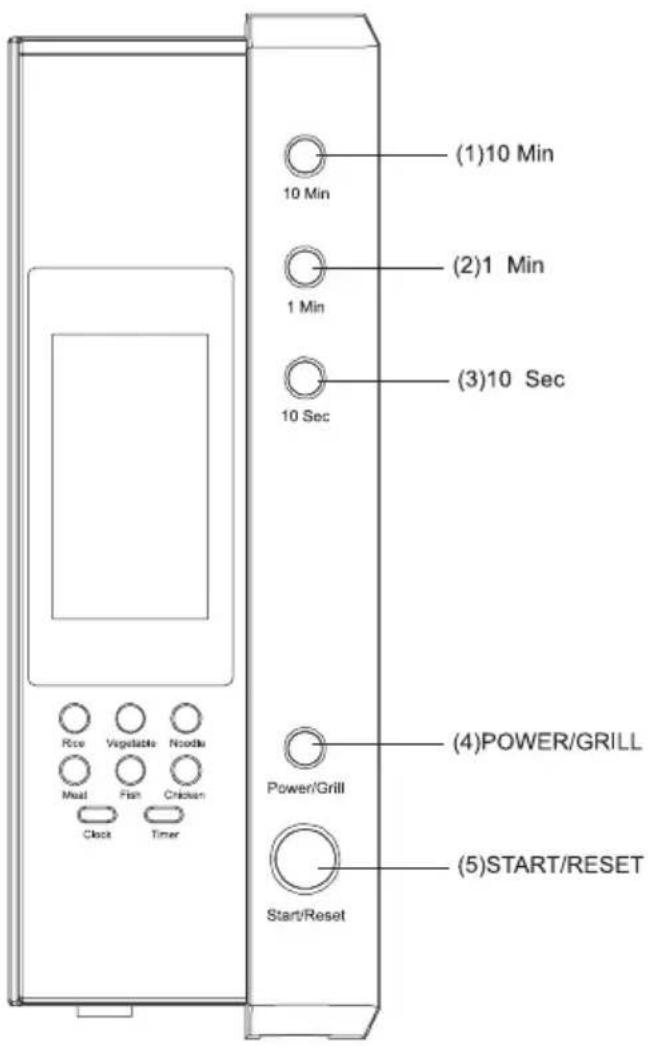

COMPUTER CONTROL PANEL

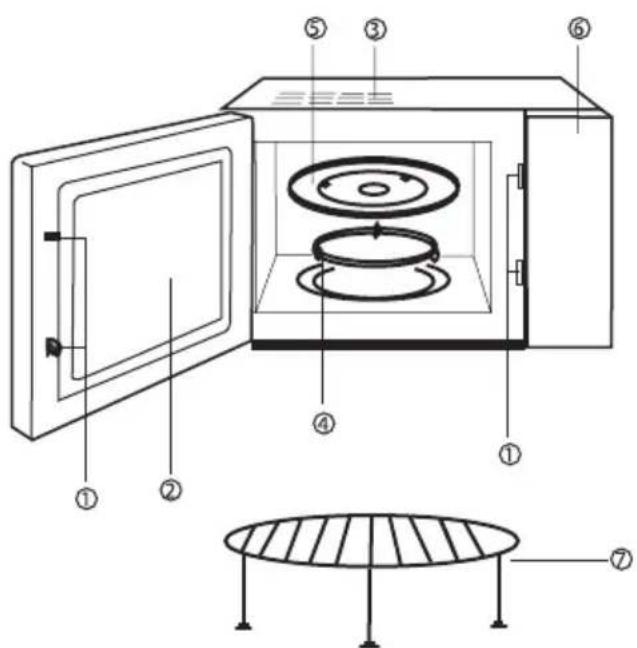

FEATURE DIAGRAM

1 Door Safety Lock System
2 Oven Window
3 Oven Air Vent
4 Roller Ring
5 Glass Tray
6 Control Panel
7 Grill rack

Operation Instruction

1. Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable and close the door.
b) Press the button »Start/Reset«, the microwave oven will work on 100% power for 1 minutes.
c) You will hear 5 beeps when cooking is completed.

2. Microwave Heating

This function has two options.

a) Quick microwave heating (100% power)

Example: To heat food on 100% power for 5 minutes

b) Manual-operation microwave heating

Example: To heat food on 70% power for 10 minutes

There are 5 power levels and the longest microwave cooking time is 60 minutes.

Touching times Microwave power Display
1	100%	P100
2	70%	P70
3	50%	P50
4	30%	P30
5	10%	P10

3. Auto weight defrost

Select the weight of the frozen food, it will automatically help you to adjust the power level and time.

Example: defrost 0.5kg frozen meat.

a) Press "power/Grill" to select "DEF".
b) Input the weight by pressing the button "1min" (1kg) and the button "10 sec" (0.1kg).
c) Press "start".

The weight of frozen food must be less than 2 kg.

4. Auto-Menu

You only need to select the food type and weight, it will help you to automatically adjust the power and time.

Example: Auto cooking 0.4 kg fish

a) Press "Fish" button until "0.4" displayed.
b) Press "Start"

This function has two patterns, you may press "Power/Grill" to select such functions: (the longest cooking time is 60 minutes).

Pattern 1: 85% grill power, display G-1

Pattern 2: 50% grill power, display G-2

Example: Cooking food with grill for 20 minutes

a) Press "Power/Grill" until the LED displayed "G-1".
b) Set cooking time "20:00"
c) Press "Start"

When grilling, the food isn't heated by microwave, heat is rediated from the metal heater at the top of the oven.

When grill is working, the cooking time has 2 stages, after the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, close the door after turn the food over, press "Start" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

6. Combination Cooking

This appliance offers you a choice of two methods of combination cooking.

Option 1 : Combination cooking (55% microwave + 45% grill)

It will display "C-1"

Option 2 : Combination cooking (30% microwave + 70% grill)

It will display "C-2".

Example : Cooking food using option 2 for 15 minutes.

a) Press "Power/Grill" until the LED displayed "C-1"
b) Set cooking time for "15:00"
c) Press "Start"

7. Clock

The oven has a 24-hour digital clock,

To input the time, for example to 4:30pm:

a) Press "Clock", the display will flash, adjust the hour with buttons "1 Min" and "10 Sec".
b) Press "Clock" again, adjust the minute with buttons "1Min" and "10 Sec".
c) Press "Clock" again and the clock will be set.
e) If you want to change the time, repeat above procedure.

8. Timer

This allows you to set the microwave oven start and finish cooking at pre-set time.

The clock must be set before you use this feature.

Example: The current time is 16:30 and you want to start cooking at 18:15 on 70% power for 10 minutes:

a) Press "Timer", set the time to "18:00" by pressing "1Min" and "10 Sec" buttons, (same procedure as setting clock)
b) Press "Power/Grill" to select 70% power.
c) Set cooking time for 10 minutes.
d) Press "Start"

If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock.

At 18:15 there will be 10 bleeps and the appliance will be switched off.

9. Child-safety-lock.

To activate the child safety lock, press "1 Min" and "10 Sec" at the same time for 2 seconds.

Press press "1 Min" and "10 Sec" at the same time for 2 seconds again, it will unlock the machine.

10. Start/Reset

a) In the course of operation, press "Start/Reset" button will stop operation.
b) If any program was set before pressing start, press this button will cancel all the set program.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or sish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels.
   When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Ovnvolumen: 26, 30 liter

1. En-knaps betjening:

Simple line drawing of a circular structure with vertical supports and a numbered label (7) below, no text or symbols present.

1. En-knapps betjening:

rice = ryż vegetable = warzywa noodles = makaron meat = mięso fish = ryba chicken = kurczak clock = zegar timer = timer
