Product Type	Microwave Oven
Brand	Gorenje
Model	MO 20 DGS
Capacity	20 liters
Microwave Power	800 W
Frequency	2450 MHz
Power Supply	230 V ~ 50 Hz
Dimensions (W x H x D)	452 x 262 x 365 mm
Weight	11 kg
Control Type	Mechanical knobs
Turntable	Yes, 255 mm diameter
Timer	Up to 35 minutes
Defrost Function	By time or weight
Interior Light	Yes
Door Type	Drop-down, with handle
Safety Lock	Child safety lock (deactivation of controls)
Cleaning	Wipe interior with damp cloth; do not use abrasive cleaners
Spare Parts	Turntable, glass plate, fuse, door seal available from service
Repairability	Service center recommended; user replaceable fuse and light bulb

Frequently Asked Questions - MO 20 DGS GORENJE

How do I set the cooking time?

Turn the timer knob clockwise to the desired time (up to 35 minutes). The microwave will start automatically.

Can I use metal containers in this microwave?

No, metal can cause sparks and damage the oven. Use only microwave-safe glass, ceramic, or plastic containers.

How do I defrost food?

Set the microwave power to a low level (e.g., 30% power) and time based on weight. Alternatively, use the defrost function if available.

Why is my microwave not heating?

Check if the door is closed properly, the timer is set, and the power cord is plugged in. If still not heating, the magnetron may be faulty; contact service.

How do I clean the microwave interior?

Unplug the oven. Use a damp cloth with mild detergent to wipe interior. Dry thoroughly. Do not use steel wool or harsh chemicals.

Can I run the microwave empty?

No, running empty can damage the magnetron. Always place food or a cup of water inside.

What does the child lock do?

The child lock disables the control panel to prevent accidental operation. Refer to manual for activation (usually press and hold a button).

How often should I replace the turntable glass plate?

Only if cracked or broken. Replacement glass plates are available; order from Gorenje service.

Why does the turntable sometimes not rotate?

Ensure the glass plate is correctly centered on the turntable hub. If still not rotating, the motor may be faulty; contact repair service.

Where can I find the user manual?

Download the manual in PDF from notice-facile.com or the Gorenje website. A printed copy may also be available.

USER MANUAL MO 20 DGS GORENJE

Exterior view of a modern microwave oven with control panel and digital display (no visible text or symbols)

MO 20 DGS

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	GB
Használati útmutató	H
Instrukcja obsługi	PL
Manual de utilizare	RO
Návod na obsluhu	SK
Инструкции за употреба	BG
Інцтрукція з експлуатації	UA
Инструкция по эксплуатации	RUS
Istruzioni d’uso	I

SI Navodila za uporabo 3

- PRIKAZOVALNIK

• EKRAN

• EKRAN

- ПОКАЖУВАЧ

Read the Instructions carefully and Keep for Future Reference.

SPECIFICATIONS

Power consumption: 230V\~50Hz,1200W

Output: 700W

Grill heater: 900W

Operating Frequency: 2450MHz

Outside Dimensions: 452mm(W) X 262mm(H) X 335mm(D)

Oven Cavity Dimensions: 315mm(W) X 198mm(H) X 297mm(D)

Oven Capacity: 20 litres

Uncrated Weight: Approx. 11,3 kg

Noise level: Lc < 58 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Before you call for service

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

Radio interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Installation

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 11,3 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.

9. DO NOT place anything on top of the oven.

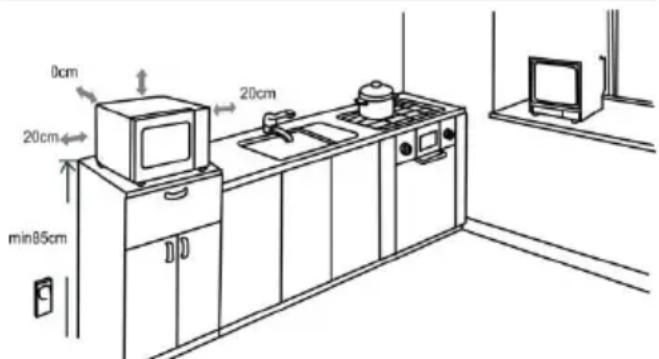

10. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from rear wall to ensure the correct ventilation.
11. DO NOT remove the turn -table drive shaft.
12. As with any appliance, close supervision is necessary when used by children.
13. The plug socket should be within easy reach of the power cord.

Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered. The product has to be correctly installed on earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

1. This oven requires 1.2 KVA for its input consultation with service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V,10 Amp Fuse.

Important safety instructions

Never touch the surfaces heating or cooking pliances. They will come hot during operation. Keep children at a safe stance. There is a risk of turning!

Microwave energy&High voltage! Do not remove the over.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Don't remove oven's feet, do not block air events of the oven.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

Safety instructions for general use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salaed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
  12 Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
• To reduce the risk of fire in the oven cavity: a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

Computer control panel

- MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

- POWER LEVEL

Touch this button a number of times to set microwave cooking power level.

• GRILL

Press this button to set a grill-cooking program

- COMBI.

Cooking with combined microwave and grill power

- WEIGHT DEFROST

Touch to defrost food based on the weight you entered)

- CLOCK

Touch this button to enter the correct time of day.

- WEIGHT ADJUST

Touch this button to select specify food weight or number of servings.

- PRESET

Touch to set the PRESET feature.

- PAUSE/CANCEL

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

It is also used for setting child lock.

- MENU / TIME (Dial)

Turn the dial to set the oven clock time and input cooking time. Turn the MENU / TIME dial to select an auto cook menu.

- START / QUICK START (MENU/TIME BUTTON)

Touch to start a cooking program. Simply touch it a number of times to ser cooking time and cook immediately at full power level

Feature diagram

1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Roller Ring
5. Glass Tray
6. Control Panel
7. Grill rack

Operation Instruction

1. SETTING DIGITAL CLOCK

Suppose you want to set the oven clock time to 8:30.

1. In standby mode, press the CLOCK button repeatedly to set the clock in 12 or 24 hour cycle.
2. Turn the TIME/MENU dial to indicate the hour digit 8.
3. Press the CLOCK button.
4. Turn the TIME/MENU dial to indicate the minute digits until the screen shows 8:30.
5. Press CLOCK to confirm the setting.

Note: You can press the CLOCK button once to check clock time during cooking.

For microwave cooking, the longest cooking time is 95 minutes; you can select power level by pressing POWER LEVEL repeatedly:

Pres POWER LEVEL	Cooking Power
once	100%
Twice	80%
3 times	60%
4 times	40%
5 times	20%
6 times	00%

For example, suppose you want to cook for 1 minute at 60% of microwave power.

1. Press the POWER LEVEL button repeatedly to select power level.
2. Turn the TIME/MENU dial to 1:00.
3. Press the START/QUICK START button.

Note: You can check the cooking power when cooking is in progress by pressing the POWER LEVEL button.

After the cooking/defrosting time elapses, the oven will signal and "End" will show up on the screen, press the STOP/CANCEL button or open the oven door to clear the screen.

3. QUICK START

This feature allows you to start the oven quickly. The longest cooking time is 10 minutes. In standby mode, press the START/QUICK START button in quick succession to set the cooking time, the oven starts working at full power level immediately.

You can extend the cooking time during cooking process by pressing START/QUICK.

4. Grill

The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

1. Press PAUSE/CANCEL button.
2. Press GRILL button.
3. Turn the MENU/TIME to 12:00.
4. Press START/QUICK START button.

5. COMBINATION 1

The longest cooking time is 95 minutes.

30% time for microwave cooking, 70% for grill cooking. Use for fish or au gratin.

Suppose you want to set combination 1 cooking for 25 minutes.

1. Press PAUSE/CANCEL button.
2. Press COMBI. button once.
3. Turn MENU/TIME to 25:00.
4. Press START/QUICK START button.

6. COMBINATION 2

The longest cooking time is 95 minutes.

55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry.

Suppose you want to set combination 2 cooking for 12 minutes.

1. Press PAUSE/CANCEL button.
2. Press COMBI. button twice.
3. Turn MENU/TIME to 12:00.
4. Press START/QUICK START button.

7. AUTO COOK

For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs.

Steps:

1. Press PAUSE/CANCEL button.
2. Turn MENU/TIME dial counterclockwise to select food code.
3. Press WEIGHT ADJUST button a number of times to indicate food weight.
4. Press START/QUICK START button.

Cooking menu:

Code	Food	Note
1	Milk/Coffee (200 ml/cup)	The result of auto cook depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.For milk/coffee and potato, parameters on display are not weight but number of servings.For chicken, beef/mutton and steaks, the oven pauses and beeps during cooking to remind you to turn food over for uniform cooking, after that, press START/QUICK START to resume.
2	Rice (g)
3	Spaghetti (g)
4	Potato (each 230g)
5	Auto Reheat (g)
6	Fish (g)
7	Chicken (g)
8	Beef/Mutton (g)
9	Skewered meat (g)

8. WEIGHT DEFROST

The oven allows the defrosting food based on the weight you entered. The time and the defrosting power are adjusted automatically once the weight is programmed. The food weights range from 100g to 1800g.

Suppose you want to defrost 600g of shrimp.

1. Place the shrimp to be defrosted into the oven and close the door.
2. Press WEIGHT DEFROST button once.
3. Turn TIME/MENU to enter weight 600g.
4. Press the START/QUICK START button.

Note: During defrosting process, the system will pause and signal to remind you to turn over the food, after that, press START/QUICK START to resume.

9. PRESET

Preset function allows the oven to start up in a later time. Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1. Set a cooking program.
2. Press the PRESET button.
3. Rotate the WEIGHT/TIME dial to enter hour digit 11.
4. Press the PRESET button.
5. Rotate the WEIGHT/TIME dial to enter minute digit 30.
6. Press PRESET to confirm.

Note:

1. When set, you can check the preset time by pressing PRESET. To cancel the feature, touch PRESET and then STOP/CANCEL.
2. When it reaches the preset time, beeps can be heard to signal the preset cooking program begins.
3. Weight Defrost and Quick Start can not be preset.

10. CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The child lock indicator will show up on display screen, and the oven can not be operated while the Child Lock is set.

To set: In standby or preset mode, hold down the STOP/CANCEL button for 3 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled.

To cancel: Hold down the STOP/CANCEL button for 3 seconds until lock indicator on display goes off.

Care of your microwave oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or sish washer. Cooking vapours collect during

repeated use but in no way affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave, grill and useful advices can be found on web side:

http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE

WHILE USING YOUR APPLIANCE

gorenie

- WYŚWIETLACZ

- MENU ACTION SCREEN

1. SETAREA CEASULUI DIGITAL

Afişaj (Power level)	Putere de gătire
1x	100%
2x	80%
3x	60%
4x	40%
5x	20%
6x	00%

- SCREEN (MEHIO)

• EKPAH MEHIO (Menu action screen)

• ЭКРАН МЕНЮ
