Product Type	Canister vacuum cleaner
Brand	Kernau
Model	KVC 302
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1500 W
Dust Container Type	Dust bag
Dust Full Indicator	Yes (red indicator)
Cord Rewind	Automatic cord rewind button
Power Adjustment	Rotary speed control knob
Filtration System	Inlet filter + HEPA outlet filter
Accessories Included	Metal tube, floor brush, round brush, flat brush, crevice nozzle
Floor Brush Type	Adjustable for carpet/hard floor
Suction Hose	Flexible hose with hook connection
Weight	Approx. 5.5 kg
Dimensions (LxWxH)	400 x 300 x 250 mm
Warranty	Standard manufacturer warranty

Frequently Asked Questions - KVC 302 Kernau

How do I change the dust bag?

Open the front cover by pressing the front cover button. Remove the bag holder and discard the full dust bag. Insert a new dust bag into the holder and place it back into the slot. Close the front cover; it will not close if the bag is not installed.

How do I clean the filters?

Clean the inlet filter with warm water and let it dry completely before reinstalling. For the HEPA outlet filter, open the outlet cover, remove the HEPA frame and filter, wash it, and reinstall only after fully dry. Always unplug the vacuum first.

What accessories come with the KVC 302?

The vacuum includes a metal tube, floor brush (adjustable for carpet/hard floor), round brush, flat brush, and crevice nozzle. The round brush and crevice tool are stored in the accessory compartment.

How do I rewind the power cord?

First, switch off the vacuum using the ON/OFF switch and unplug from the mains. Then press the cord rewinding button (Fig. 9), and the cord will automatically retract.

What should I do if suction power drops?

Check if the dust bag is full (indicator turns red) or if a blockage is present in the floor brush, tube, or hose. Clear any obstructions. If problem persists, contact after-sales support.

Can I use the vacuum cleaner to pick up liquids?

No, this vacuum is not designed for wet pickup. Do not use it to vacuum liquids, flammable fluids, burning substances, or sharp objects. Use only on dry indoor surfaces.

How do I adjust the suction power?

Use the mode selection knob (Fig. 7) to rotate left or right. This adjusts the motor speed to suit different cleaning needs, such as lowering power for curtains or increasing for carpets.

How should I store the vacuum cleaner?

Store indoors in a cool, dry place out of reach of children. Keep the hose and accessories attached properly. Do not pull or carry by the cord. Retract the cord after use.

Is the vacuum cleaner safe to use on stairs?

Yes, but extra care is required. Keep the vacuum stable and avoid letting the cord or hose cause tripping. Never leave the appliance unattended while in use.

How do I dispose of the vacuum cleaner at end of life?

Follow local regulations for WEEE disposal. Do not dispose with household waste. Return to a collection point for recycling. The crossed-out wheelie bin symbol indicates proper recycling.

USER MANUAL KVC 302 Kernau

Line drawing of a vacuum cleaner device with visible components and mounting brackets (no text or symbols)

SZANOWNY KLIENCIE,

Technical line drawing of a car's side profile showing steering wheel and dashboard components (no text or symbols)

Rys. 1

Diagram of a car interior showing airflow direction and component placement (no text or symbols)

Rys. 2

Pure diagram of a curved mechanical or electrical component without any text, numbers, or symbols

Rys. 3

Line drawing of a handheld device with a cylindrical handle and mechanical components (no text or symbols)

Rys. 4

Rys. 5

Technical line drawing of a mechanical component with no visible text or symbols

Rys. 6

Technical line drawing of a mechanical component with no visible text or symbols

Rys. 7

Technical line drawing of a mechanical component with circular features and mounting holes (no text or symbols)

Rys. 8

Technical line drawing of a mechanical device with no visible text or symbols

Rys. 9

EKSPLOATACJA BIEŻĄCA

Technical line drawing of a mechanical component with a red oval highlight (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Rys. 13

Technical line drawing of a car's front engine compartment showing internal air ducts and dashboard (no text or labels)

Rys. 14

Rys. 15

Technical diagram of a vehicle's front and rear dashboard with no visible text or symbols

Rys. 16

Top-down schematic of a vehicle's front panel showing engine, dashboard, and control panel (no text or labels)

Rys. 17

OSTRZEŻENIE

Line drawing of a vacuum cleaner device with visible components and mounting brackets (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Risk of serious injury or death
	Risk of electric shock Dangerous voltage
	Fire	Risk of fire / flammable materials
	Note	Risk of injury or material damage
	Important/Note	Information on correct operation of the system
	Read the instructions
	Hot surface

CONTENTS

CHAPTER 1. Important safety instructions....14

Electrical safety and cord handling 14
Usage conditions and restrictions....14
Safe usage....15

CHAPTER 2. Parts....16

Operation Method....17
Maintenance 18

CHAPTER 3. Disposal of used equipment....19

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING AND KEEP IT PROPERLY FOR FUTURE USE.

CHAPTER 1. IMPORTANT SAFETY INSTRUCTIONS

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.

Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. If applicable, pass these instructions on to the next owner of the appliance.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

ELECTRICAL SAFETY AND CORD HANDLING

• Before turning on, ensure that your electrical voltage and circuit frequency correspond to those indicated on the appliance.
  • To reduce the risk of electrocution, never operate this product or handle the plug with wet hands, submerge it under water or spill liquids into the product.
• Do not insert any objects into the appliance.
  • If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard.
• Check the appliance and cord regularly for visible damage. Do not use it if the cord or housing is damaged, if it has been dropped, damaged, left outdoors or dropped into water, or if it appears faulty in any way. Call the after sales support line if any part appears damaged.
• Do not kink, bend, squash, strain or damage the power cord.
• Do not pull or carry the vacuum cleaner by the cord. Do not use the cord as a handle, close a door on the cord or pull the cord around sharp edges or corners.
• Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
• Turn off the vacuum cleaner controls before connecting or disconnecting it from the mains supply.

WARNING:

Always switch off and unplug the vacuum cleaner before connecting or disconnecting the vacuum hose and accessories and before emptying or cleaning the dust tank.

- Do not pull on the cord to disconnect the plug from the power supply. To unplug, grasp the plug, not the cord, and gently pull it out of the power point and then press the cord retraction button to retract the cord.

USAGE CONDITIONS AND RESTRICTIONS

• This appliance is intended for household use only. It is neither suitable for commercial/industrial nor for outdoor use.
  • Only use the vacuum cleaner on dry, indoor surfaces, as described in this manual and with the original accessories supplied by the manufacturer/distributor.
• Do not use it for any purpose other than described in this manual.
• Improper installation and use may result in the risk of fire, electric shock and/or injury to persons. We assume no liability for any eventual damages caused by improper or faulty use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

• Supervise young children to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children.
- Never leave the appliance unattended.

SAFE USAGE

• Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
• Keep the end of the hose, wands and other openings away from your face and body.
• Do not point the vacuum cleaner at people or animals when in use.
• Do not use the product without the filters in place.
  • Take extra care when vacuuming on stairs.
• Do not use the vacuum cleaner to pick up: flammable or combustible fluids (such as fuel or solvent); burning substances (such ash, cigarettes or hot coals), or use it in the presence of explosive liquids or vapours; hard or sharp objects such as shards of glass, nails, coins; harmful or toxic materials (such as chlorine bleach, ammonia, drain cleaner); any liquids, or vacuum in areas where liquids may be present.
• Keep the vacuum cleaner away from heat sources (radiator, oven etc.), direct sunlight, moisture and sharp edges.
• Keep all openings free of dust, lint, hair or anything that may reduce the airflow.
• Do not use the product with any openings blocked or restricted airflow.
• Put the vacuum cleaner away after every use to prevent anyone tripping over it.

IMPORTANT:

Washing the filters improves vacuum performance. Make sure all filters are completely dry before reattaching them.

• Only clean the housing with a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Store the vacuum cleaner indoors in a cool, dry area, out of reach of young children.
• Never attempt to open the motor base of the vacuum cleaner yourself or to replace the power cord. If the vacuum cleaner is damaged, it must be repaired by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard. In case of damage, call the after sales support line for advice.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING!

- Never use this machine when the suction power becomes very weak.

When this happens:

- Switch off the unit, unplug it and check whether the dust container is full.

- Then check if any part of the floor brush, tube or hose is blocked.

Do not use the vacuum cleaner until the blockage is removed and it operates normally again. If you cannot solve the problem, contact the after sales support line.

• Always switch the vacuum cleaner off after use, and before plugging it in again, make sure to hold the vacuum cleaner firmly when using it.

• Always switch off and unplug the vacuum cleaner from the electrical outlet before assembling, opening or emptying the dust bag, or before connecting/ disconnecting the attachments.

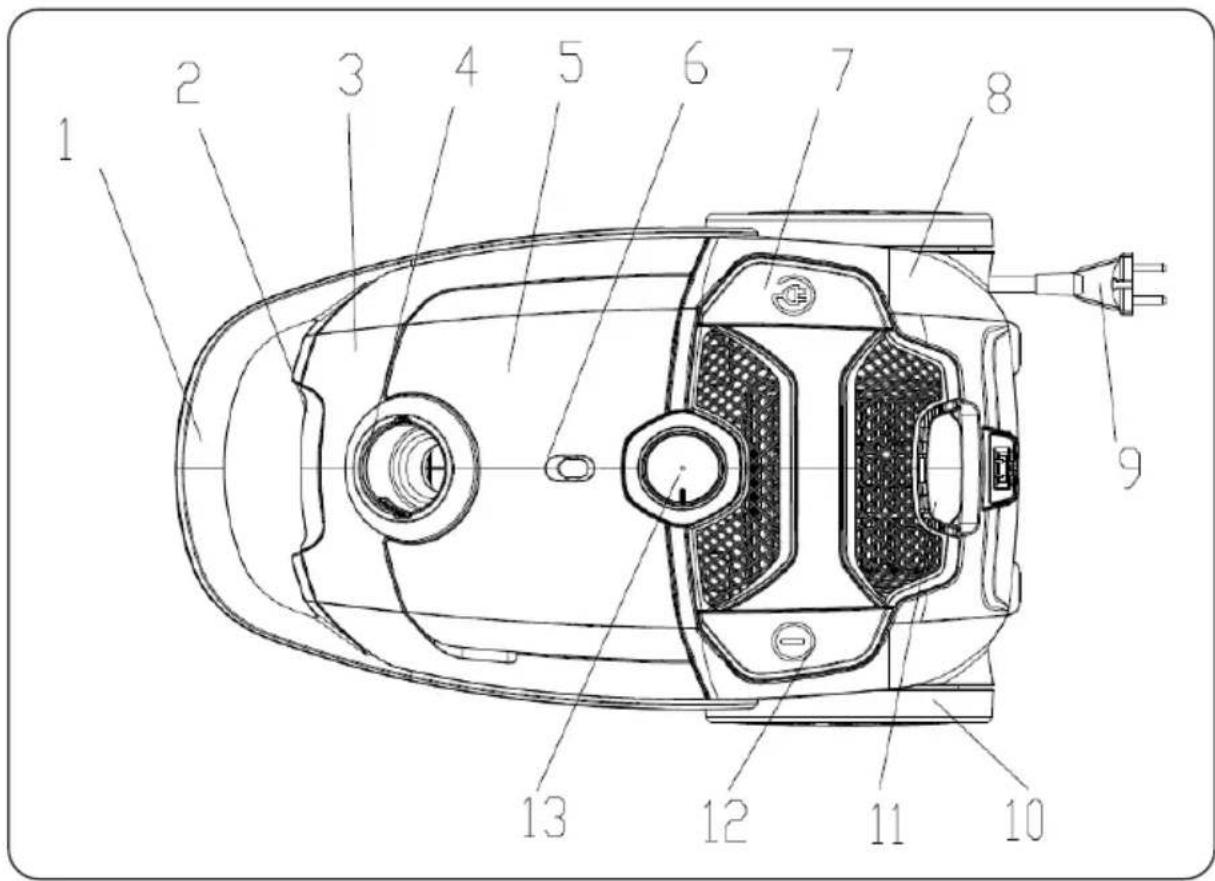

CHAPTER 2. PARTS

1. Handle cover
2. Front cover Decorating Plate
3. Front cover
4. Suction Base
5. Accessories Cover
6. Dust full indicator

7. Cord Rewinding Button

8. Back Cover

9. Power Cord and Plug
10. Big Wheel
11. Air Outlet Cover
12. ON/OFF Switch Button
13. Mode Selection knob

Accessory List

A set of hose accessories, Include: one metal tube, one floor brush, one round brush, one flat brush.

OPERATION METHOD

1. Connect the hose accessory: insert the hose end into the hose socket at the front cover and then hook it.(Fig 1)
   Remove the hose accessory: turn the connector of hose to the right position and then pull the hose accessory. (Fig 2), Connect the metal tube to the curved end of the hose. (Fig 3)
2. Connect different nozzle tools to the tube for different cleaning purposes: floor brush (adjusted to the type of ground) for carpet or hard floor (Fig 4); crevice nozzle for sofa, wall surface, curtain ,corner of space between furniture and etc. (Fig 5). The round brush and crevice tool is stored in the accessory compartment ;
3. Operating the vacuum cleaner: insert the plug and cord into the power socket which conforms to that on the label for the power supply, and press the on/off switch pedal, the vacuum cleaner will start working. (Fig 6)

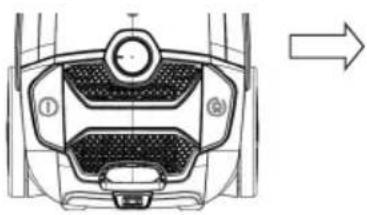

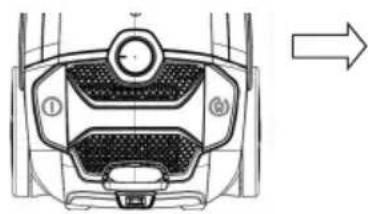

4. Adjust the power of the vacuum power: changing the power of the machine by the right and left rotation speed control knob to meet the different needs of use (Fig 7).
5. Move the machine: carry the handle at the back of vacuum (Fig 8).
6. Cord rewinding: Switch off the vacuum cleaner with on/off switch button and pull the plug from the main socket, press the cord rewinding button, the power cord will be drawn in (Fig 9).

Diagram of a car interior showing a curved tool interacting with the dashboard (no text or symbols present)

Fig 1 Fig 2 Fig 3

Technical line drawing of a car interior showing airflow or exhaust components (no text or symbols)

Pure diagram of a curved mechanical or electrical component without any text, numbers, or symbols

Fig 4

Fig 5

Technical line drawing of a mechanical device with no visible text or symbols

Fig 6

Technical line drawing of a mechanical component with no visible text or symbols

Fig 7

Technical line drawing of a vehicle's top view showing front and side views (no text or symbols)

Fig 8

Technical line drawing of a mechanical component with no visible text or symbols

Fig 9

MAINTENANCE

1. Change the dust bag: when the dust full indicator turns red or loss of suction is noticed, it is time to clear the dust bag or replace with a new bag. (Fig 10).

2. Open the front cover by touching front cover button. (Fig 11)
   • Take out the bag holder then remove the full dust bag. (Fig 12)

Installing the dust bag: insert the dust bag into the bag holder and then put it in the slot cabinet. (Fig 13)

NOTE:

If the dust bag is not installed, the front cover can't be closed

1. Inlet filter: clean the filter with warm water and allow to dry fully before placing back into the unit. (Fig 14)

Replacing the inlet filter: clip down and remove the inlet cover, remove and replace with a suitable filter. (Fig 25)

1. Clean the outlet filter: open the outlet cover and take out the HEPA frame and filter. Wash it and install it after the filter has fully dried.(Fig 16/17)

Technical line drawing of a mechanical component with a red oval highlight (no text or symbols)

Fig 10 Fig 11 Fig 12

Technical line drawing of a mechanical component with no visible text or symbols

Fig 13

Technical line drawing of a car's front engine compartment showing internal structure and airflow direction (no text or symbols)

Fig 14

Fig 15

Technical diagram of a mechanical component with labeled parts (no readable text or symbols)

Fig 16

Technical diagram of a vehicle front view showing engine compartment and dashboard (no text or symbols)

Fig 17

WARNING

The plug must be removed from the power socket before any maintenance or replacement. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or an appropriately qualified person in order to avoid a hazard.

CHAPTER 3. DISPOSAL OF USED EQUIPENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

NÁVOD K OBSLUZE

VYSAVAČ

KVC 302

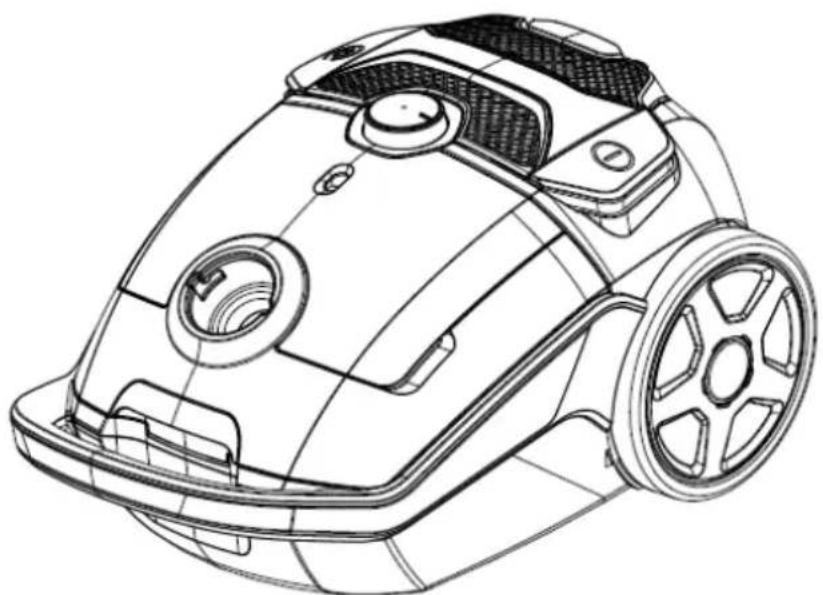

Line drawing of a vacuum cleaner with visible components and mounting brackets (no text or symbols)

Technical line drawing of a car interior showing steering wheel and dashboard components (no text or symbols)

Obr. 1 Obr. 2

Technical line drawing of a car wheel assembly with directional arrows indicating motion (no text or symbols)

Pure diagram of a curved mechanical or electrical component without any text, numbers, or symbols

Obr. 3

Simple line drawing of a handheld tool or device with a handle and control panel (no text or symbols)

Obr. 4

Obr. 5

Technical line drawing of a vehicle front panel with no visible text or symbols

Obr. 6

Technical line drawing of a mechanical component with no visible text or symbols

Obr. 7

Technical line drawing of a vehicle head and front panel (no text or symbols)

Obr. 8

Technical line drawing of a mechanical component with no visible text or symbols

Obr. 9

PRŮBĚŽNÝ PROVOZ

Technical line drawing of a mechanical component with a red oval highlight (no text or symbols)

Obr. 10 Obr. 11 Obr. 12

Technical line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Obr. 13

Technical line drawing of a car's front engine compartment showing internal structure and airflow direction (no text or symbols)

Obr. 14

Obr. 15

Technical diagram of a mechanical component with labeled parts (no readable text or symbols)

Obr. 16

Top-down schematic of a vehicle front panel with no visible text or symbols

Obr. 17

VAROVÁNÍ

Line drawing of a vacuum cleaner device with visible components and mounting brackets (no text or symbols)

Technical line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

Technical line drawing of a mechanical device with a curved component and directional arrows indicating motion (no text or symbols)

Pure diagram of a curved mechanical or electrical component without any text, numbers, or symbols

Line drawing of a handheld device with a long rod extending from its side (no text or symbols)

Рис. 4

Рис. 5

Technical line drawing of a mechanical component with no visible text or symbols

Рис. 6

Technical diagram of a mechanical component with labeled parts and an arrow indicating direction (no text or symbols present)

Рис. 7

Technical line drawing of a mechanical component with two circular ports and a central hub (no text or symbols)

Рис. 8

Technical line drawing of a mechanical component with no visible text or symbols

Рис. 9

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Рис. 13

Technical line drawing of a car's front engine compartment showing internal grid structure (no text or symbols)

Рис. 14

Рис. 15

Top-down view of a car's front intake manifold showing vent, grille, and seat (no text or symbols)

Рис. 16

Top-down schematic of a vehicle's front panel with no visible text or symbols

Рис. 17

ПОПЕРЕДЖЕННЯ
