Product Type	Cordless Stick Vacuum Cleaner
Model	KVCU 400
Brand	Kernau
Battery Type	Rechargeable Li-ion (estimated)
Charging Time	5-7 hours
Runtime (Low Mode)	60 minutes
Runtime (Normal Mode)	20 minutes
Runtime (Max Mode)	10 minutes
Suction Power Levels	3 (Low, Normal, Max)
Brushroll Control	Yes, adjustable power
Accessories Included	Crevice nozzle, Brush nozzle, Adaptor, Wall mount
Filter System	Cyclonic and washable
Motorized Brush	Yes, removable for cleaning
Wall Mountable	Yes
Battery Replacement	By professional service personnel
Power Supply	AC adaptor (provided)
Dust Cup Capacity	Approximately 0.5 L (estimated)
Weight	Approximately 2.5 kg
Dimensions (H x W x D)	Approximately 1100 x 200 x 200 mm

Frequently Asked Questions - KVCU 400 Kernau

How do I charge the vacuum cleaner?

Place the vacuum on a horizontal surface. Connect the adaptor to the charging port on the battery pack and plug the adaptor into a wall socket. The power indicator will blink during charging and turn off 1 minute after fully charged. Charging time is 5-7 hours.

How long does the battery last?

The runtime depends on the mode: Low mode up to 60 minutes, Normal mode up to 20 minutes, and Max mode up to 10 minutes.

Can I replace the battery myself?

The battery is replaceable but only by professional after-sales service personnel. Do not disassemble the battery yourself.

How do I clean the dust cup?

Press the locker button to open the bottom cover and release dust. Then press the dust cup release button to remove the cup. Take out the cyclone from the dust cup. All parts are washable; allow them to dry completely before reassembly.

How to clean the motorized brush?

Ensure the brush is not running. Press the button to remove the brush. Open the gland to take out the roller brush and clean it. Use scissors or a knife to remove tangled hair. Do not wash the brush with water.

What accessories are included?

The package includes a crevice nozzle, brush nozzle, adaptor, and wall mount. The crevice nozzle and brush nozzle can be attached to the tube for cleaning high places.

How do I use the wall mount?

Fix the wall mount in a suitable location. When not using the vacuum, store it on the mount. This helps keep the device handy and saves space.

Is the vacuum suitable for children?

The vacuum can be used by children aged 8 years and above under supervision. Children should not play with the appliance or perform cleaning/maintenance without supervision.

What to do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or qualified persons to avoid a hazard. Do not use the vacuum with a damaged cord.

How should I dispose of the vacuum at end of life?

Do not dispose of with household waste. Follow local regulations for waste electrical and electronic equipment (WEEE). The crossed-out wheelie bin symbol indicates separate collection. Batteries must also be disposed of separately.

USER MANUAL KVCU 400 Kernau

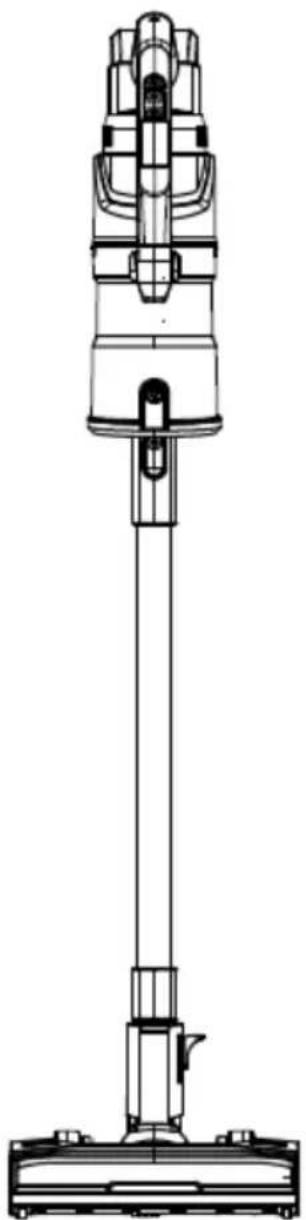

Technical line drawing of a vacuum cleaner with vertical shaft and mounting base (no text or symbols)

SZANOWNY KLIENCIE,

Simple line drawing of a cylindrical object with a tapered end and a flat body (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a plug connected to a cable (no text or symbols)

Adapter Instrukcja

obstugi

Porada:

Diagram of a mechanical device with an upward arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with a grid and directional arrow, no text or symbols present

Technical line drawings of a vehicle's front and side views showing structural components with no visible text or symbols

Porady:

Technical line drawing of a vacuum cleaner (no text or symbols present)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Risk of serious injury or death
	Risk of electric shock Dangerous voltage
	Fire	Risk of fire / flammable materials
	Note	Risk of injury or material damage
	Important/Note	Information on correct operation of the system
	Read the instructions
	Hot surface

Read themanual before use.

1. If the supply cord is damaged, It must be replaced by the manufacturer, its service agent or qualified persons in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. Children should not play with the appliance.
5. The appliance is only to be used with the power supply unit provided with the appliance.

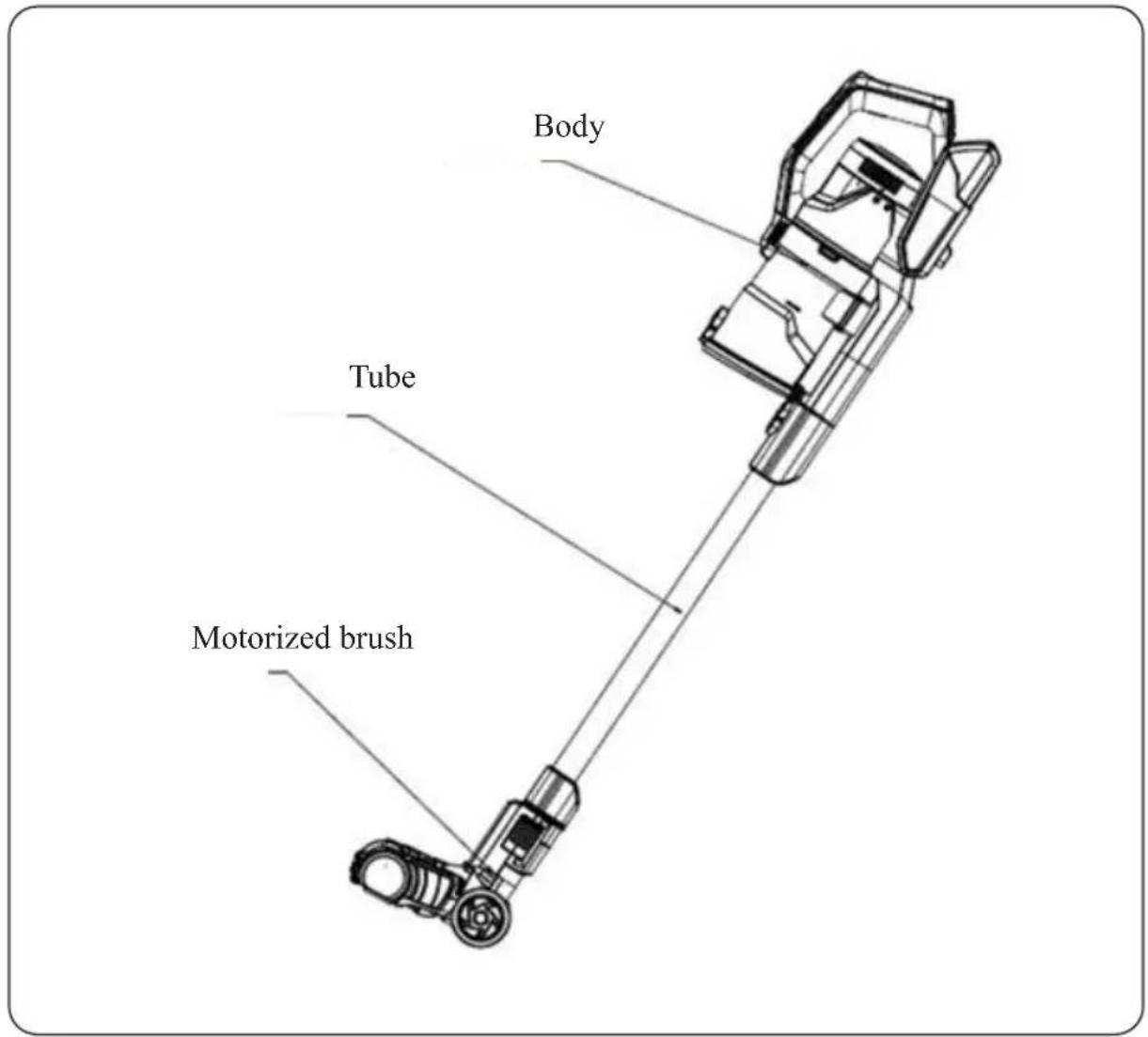

INSTRUCTION MANUAL ASSEMBLY AND OTHER PARTS INSTRUCTION

ACCESSORIES LIST:

Simple line drawing of a cylindrical object with a tapered end and a flat body (no text or symbols)

Crevice Nozzle

Technical line drawing of a mechanical device with no visible text or symbols

Brush Nozzle

Simple line drawing of a connected electrical outlet with a plug (no text or symbols)

Adaptor Instruction

Manual

Tips: When cleaning the high places, please assemble the accessories on tube.

OPERATION 1:

Battery charging:

Tips:

Battery is not full when leaving factory, please remember to charge up before first usage.

No. Operation instruction

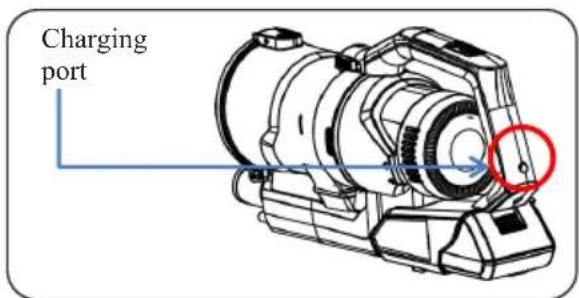

1. Put the body on horizontal surface. Connect the adaptor to charging port on battery pack and plug the adaptor to socket. When charging, power indicator will twinkle continuously. 1min after charging up, indicator will shut off.

2. Charging time: 5-7h Discharging time: Max mode 10min Normal mode 20min Low mode 60min

Simple line drawing of a plug connected to a cable (no text or symbols)

OPERATION 2:

Cleaning:

NOTE:

To avoid the air flue being blocked, please clean the big particle waste.(such as paper, cloth and others).

No. Operation instruction

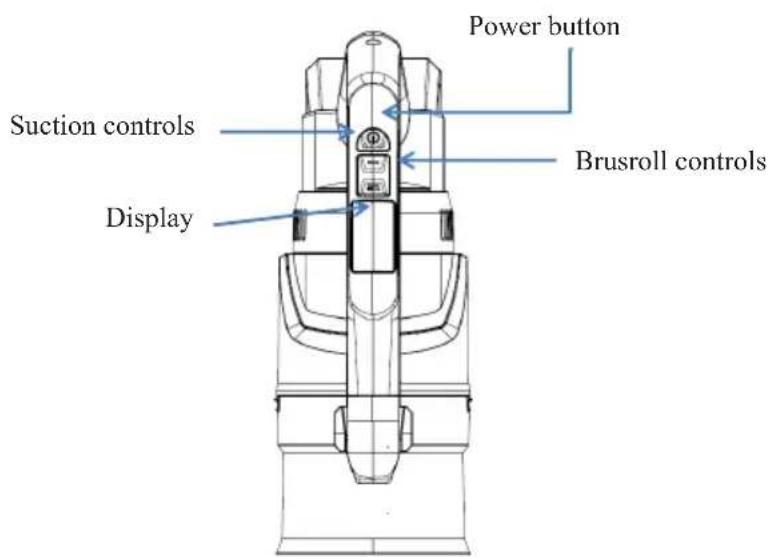

1. Knob down "Power button" to start and stop.
2. Knob down "Suction controls" to change suction power
3. Knob down "Brusroll controls" to change brusroll power
4. When only one power indicator is on and twinkle, please charge it.

OPERATION 3

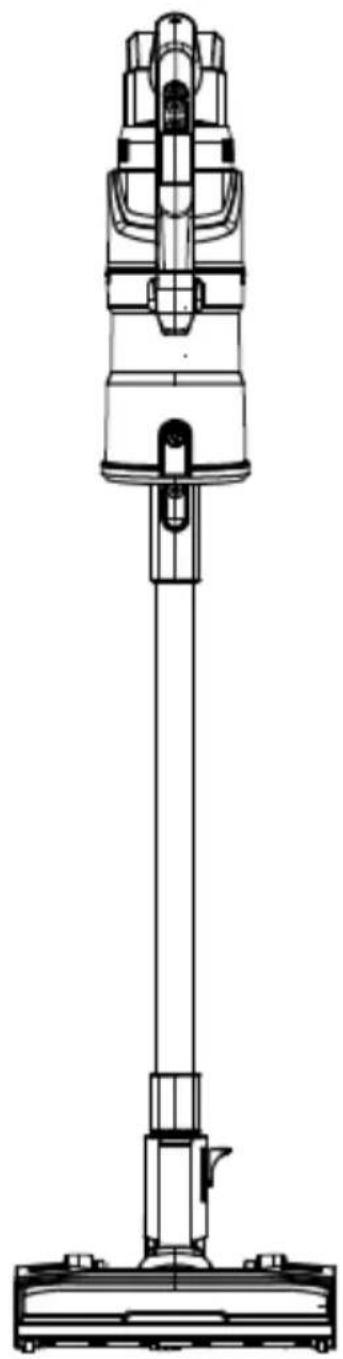

Wall mount assembly and usage:

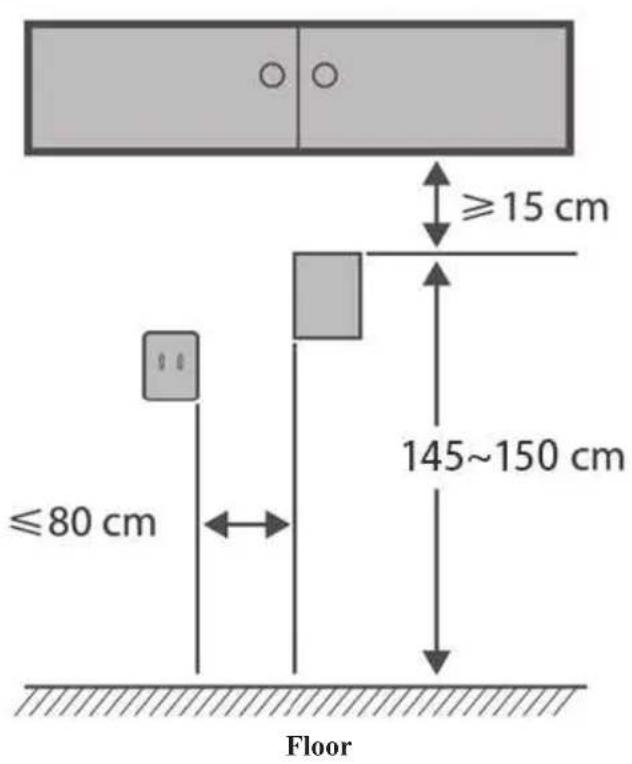

1. Wall mount assembly

When not using the cleaner, please store the cleaner on mount.

1. Choose the mount assembly location

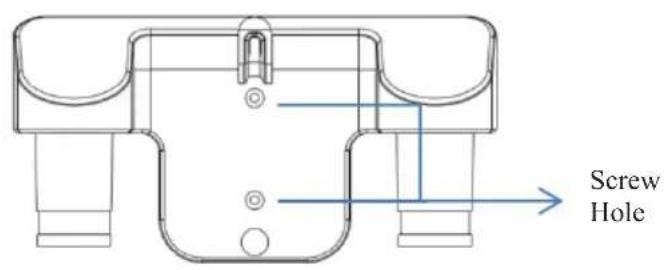

a. Fix the mount

Technical line drawing of a vacuum cleaner (no text or symbols present)

OPERATION 4

Replace Battery

Tips:

1. Laypeople don't disassemble battery please.
2. Battery must be replaced and repaired by professional after-sales service personnel.

OPERATION 5

Clean and maintain cleaner

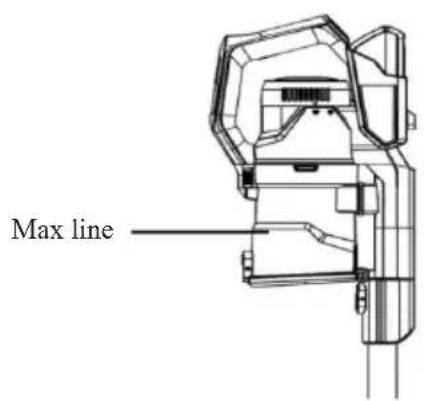

Dust cup disassembly and clean

Tips:

To keep the suction power of cleaner, please clean the dust in it regularly.

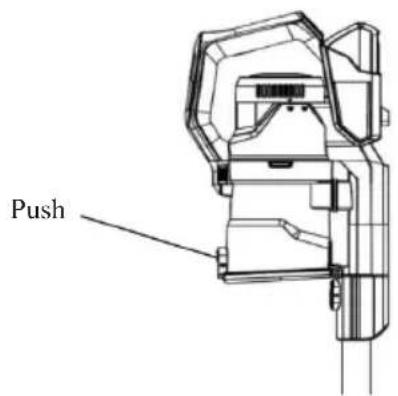

1. Push the locker button, open the bottom cover and release dust.

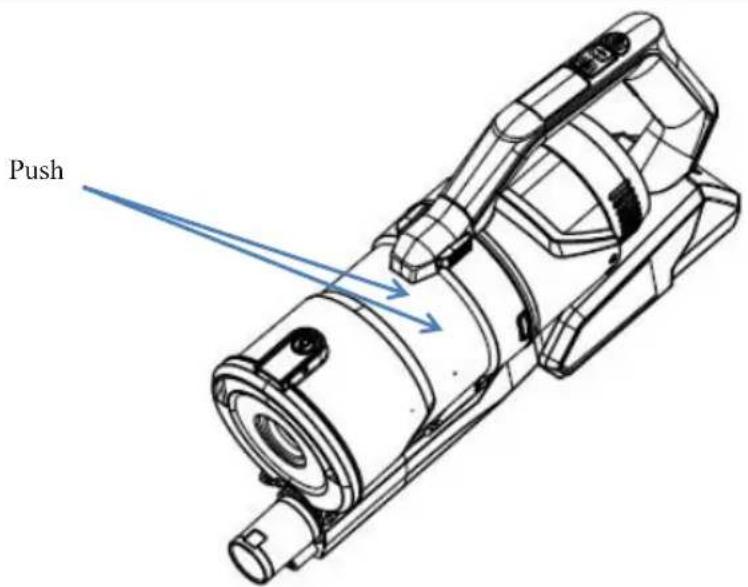

1. Knob down the dust cup release button, take down the cup.

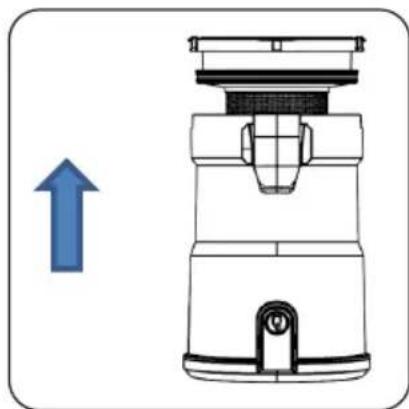

1. Take out the cyclone from dust cup.

Diagram of a mechanical device with an upward arrow indicating direction (no text or symbols present)

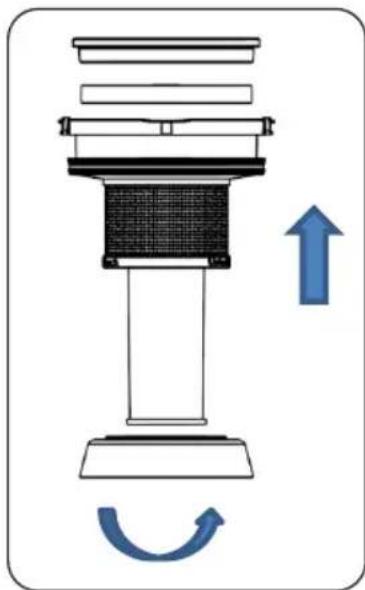

1. Disassemble cyclone and clean, all parts are washable.

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

1. After airing all parts completely, assemble them according to disassembly steps.

OPERATION 6

Clean and maintain motorized brush

NOTE:

1. To avoid affect the normal operation of brus, when roller brush and wheels is entangled or dusty, please clean and maintain them.

2. When disassemble and main brush, please make sure it's not working.

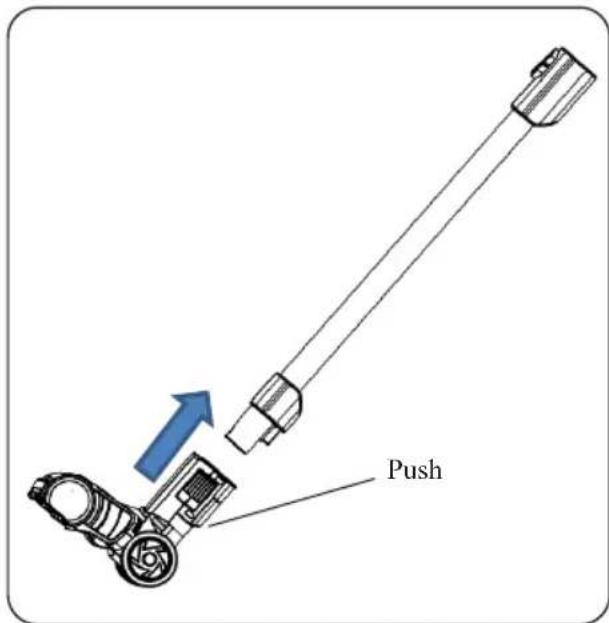

3. Push button and take off the brush.

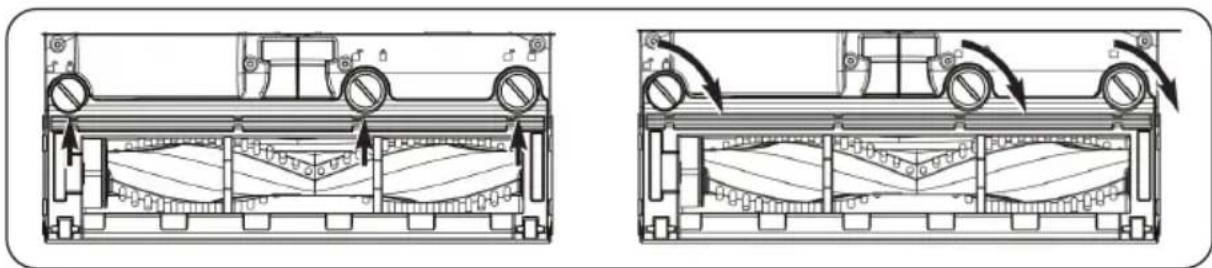

1. Open the gland of brush, then take out the roller brush and clean. After cleaning it completely, assemble them according to disassembly steps.

Technical line drawings of a vehicle showing front and side views with directional arrows indicating motion (no text or symbols)

Tips:

Don't suggest to wash the brush. If the brush was tangled by hair, please scissor or knife to clean.

DISPOSAL OF USED EQUIPENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B
