KBF 17133 NF - Freezer Kernau - Free user manual and instructions

Product Type	No-Frost Freezer
Brand	Kernau
Model	KBF 17133 NF
Dimensions (H x W x D)	1770-1790 x 560-570 x 545 mm
Electrical Supply	220-240 V, 50 Hz
Current	16 A (recommended socket)
Climate Class	SN, N, ST, T (10°C to 43°C)
Refrigerant	R600a
No-Frost Technology	Automatic defrost, no ice buildup
Temperature Settings	-16°C, -18°C, -20°C, -22°C, -24°C, Super Freeze
Super Freeze Mode	Fast freezing, activates 24h before loading fresh food
Economy Mode	Energy saving during low usage
Screen Saver Mode	Auto dims display after 30s to save energy
Stand-By Mode	Disables all components for vacation
Door Open Alarm	Sounds after 2 minutes if door is open
Interior Lighting	LED strip (replaceable by service)
Ice Maker	Icematic (in some models) and ice tray
Drawers	Upper and lower flaps, compartments
Fast Freeze Shelf	Bottom drawer for quick freezing
Cleaning	Wipe with bicarbonate solution; condenser brush twice yearly

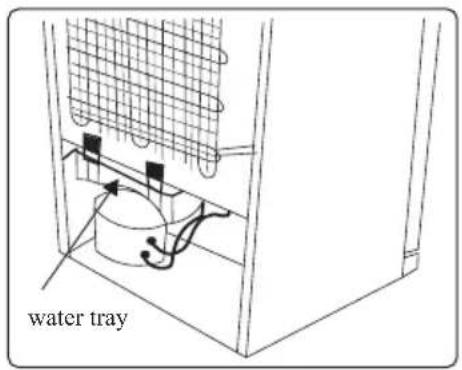

Defrosting	Automatic; water drains to rear tray
Safety Features	Child lock, grounded plug, stability fix
Spare Parts Availability	Original parts for min. 7-10 years after last unit

Frequently Asked Questions - KBF 17133 NF Kernau

How do I set the freezer temperature?

Press the freezer set button (5) repeatedly to cycle through -16°C, -18°C, -20°C, -22°C, -24°C. The selected value will blink before setting.

What is Super Freeze mode and when should I use it?

Super Freeze rapidly freezes fresh food. Activate it 24 hours before placing large amounts of fresh food. It runs for 54 hours then returns to normal setting.

How do I activate Economy Mode?

Press the MODE button (3) until the eco symbol appears. The display shows ‘E’. This mode optimizes temperature for energy saving during low use.

Why is the door alarm beeping?

If the freezer door is left open for more than 2 minutes, the alarm sounds. Close the door to stop the beeping.

How do I clean the freezer?

Disconnect power. Use a solution of warm water and bicarbonate of soda. Avoid abrasive cleaners. Clean the condenser brush twice a year.

Does this freezer need manual defrosting?

No, it features No-Frost technology. Defrosting is automatic; water evaporates from a tray at the back.

What should I do if an error code appears?

Error codes E01-E09 indicate sensor or voltage issues. For E08 (low voltage), restore power. For E09 (not cold enough), set colder temperature or Super Freeze. Contact service if persists.

Can I use an extension cord?

No, do not use an extension cord. Plug directly into a grounded socket.

How do I replace the LED lighting?

Contact an authorized service center. LEDs are not user-replaceable.

What is the recommended temperature for normal use?

Set the freezer to -18°C or -20°C for optimal food preservation.

USER MANUAL KBF 17133 NF Kernau

Blank white rectangular frame with rounded corners and a thin top edge (no text or symbols)

SZANOWNY KLIENCIE,

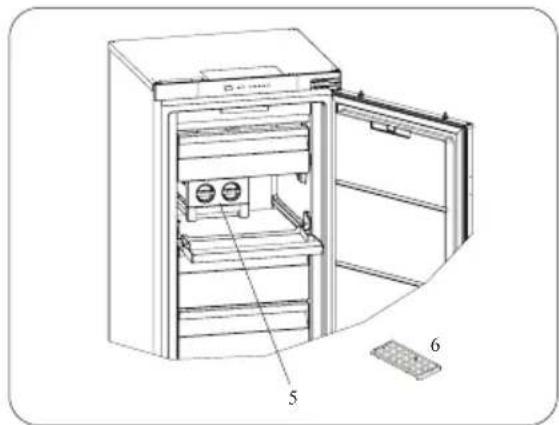

5) Kostkarka do lodu *
6) Tacka do lodu *

Technical line drawing of a cabinet or rack unit with ladder and shelf, no visible text or symbols

Illustration of a hand interacting with a black screen displaying a small icon (no text or symbols present)

Illustration showing three steps of a dental tool: opening a tooth, moving a tray with teeth, and removing it (no text or symbols present)

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Blank white rectangular frame with corner brackets (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Serious injury or death risk
	Risk of electric shock Dangerous voltage risk
	Fire	Warning; Risk of fire / flammable materials
	Caution Injury or property damage risk
	Important/Note Operating the system correctly
	Read the instructions

CONTENTS

CHAPTER 1. Safety instructions....31

General Safety Warnings 31

Installation warnings 33

During Usage....34

CHAPTER 2. Description of the appliance ....36

Dimensions....37

CHAPTER 3. Using the appliance ....38

Information on No-Frost technology....38

Display and Control Panel....38

Operating your Freezer....38

Super Freeze Mode 39

Economy Mode....39

Screen Saver Mode 40

Freezer Temperature Settings....41

Stand-By Mode 41

Door Open Alarm Function 42

Temperature Settings Warnings....42

Accessories 43

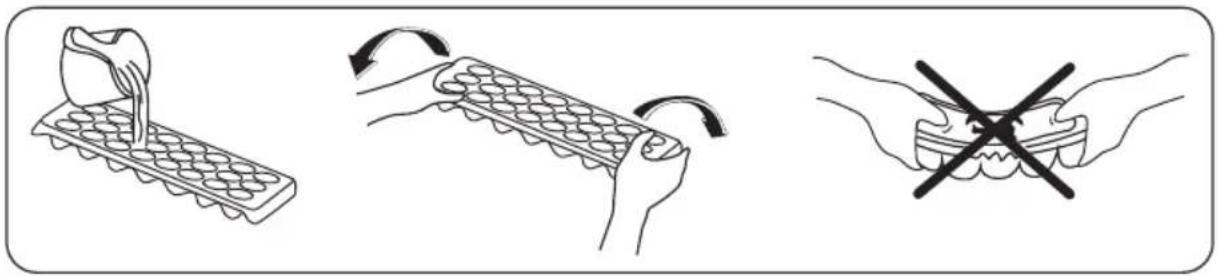

Ice Tray (In some models) 43

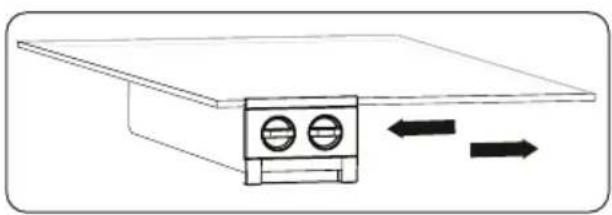

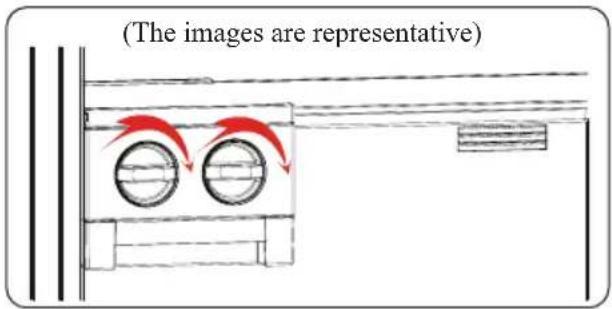

The Icematic (In some models)....43

CHAPTER 4. Food storage....44

Freezer Compartment....44

CHAPTER 5. Cleaning and maintenance ....47

Defrosting....48

Replacing LED Lighting 48

CHAPTER 6. Shipment and repositioning....48

Transportation and Changing Positioning....48

CHAPTER 7. Before calling after-sales service....49

CHAPTER 8. Tips for saving energy....51

CHAPTER 9. Technical data....51

CHAPTER 10. Information for test institutes....52

CHAPTER 11. Customer care and service....52

CHAPTER 12. Disposal of used equipment....52

CHAPTER 1. SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS

Read this user manual carefully.

WARNING:

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING:

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING:

Do not damage the refrigerant circuit.

WARNING:

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socketoutlets or portable power supplies at the rear of the appliance.

WARNING:

In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.

FIRE

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from

being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

– staff kitchen areas in shops, offices and other working environments.
– farm houses and by clients in hotels, motels and other residential type environments.
– bed and breakfast type environments;
– catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old)

and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

INSTALLATION WARNINGS

Before using your freezer for the first time, please pay attention to the following points:

- The operating voltage for your freezer is 220-240 V at 50Hz.

- The plug must be accessible after installation.

- Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.

- Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection.

If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your freezer where it will not be exposed to direct sunlight.

- Your freezer must never be used outdoors or exposed to rain.

- Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.

- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

- Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.

- The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

DURING USAGE

- Do not connect your freezer to the mains electricity supply using an extension lead.

- Do not use damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

- Do not use plug adapter.

- This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place glass bottles or cans in your freezer as they will burst when the contents freeze.

- Do not place explosive or flammable material in your freezer.

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

- Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

NOTES:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
  • This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

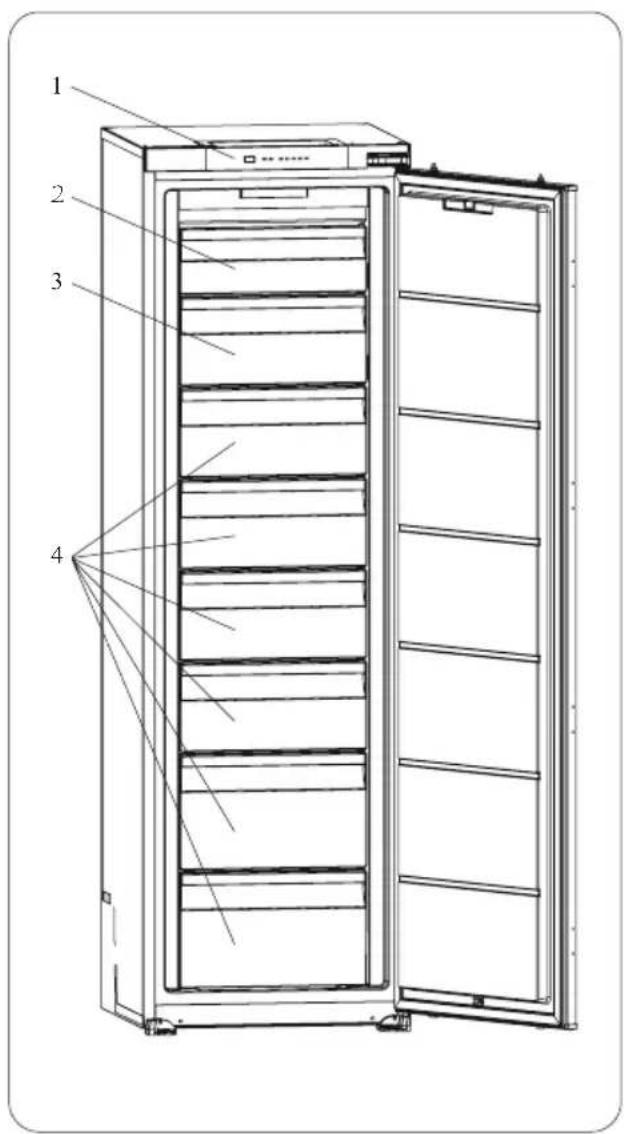

CHAPTER 2. DESCRIPTION OF THE APPLIANCE

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Control panel
2) Freezer upper room flap
3) Freezer bottom room flap / Freezer compartment drawer
4) Freezer compartment drawers

Technical line drawing of a cabinet or rack unit with ladder and shelf, no visible text or symbols

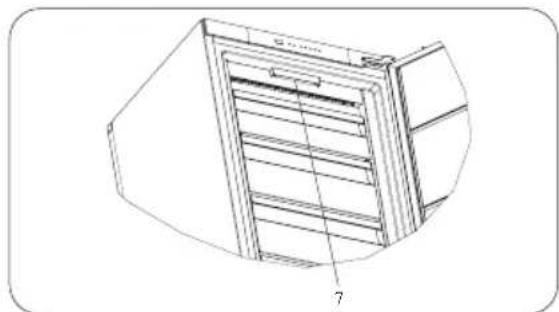

7) Freezer LED strip *
* In some models

GENERAL NOTES:

Freezer Compartment (Freezer):

Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

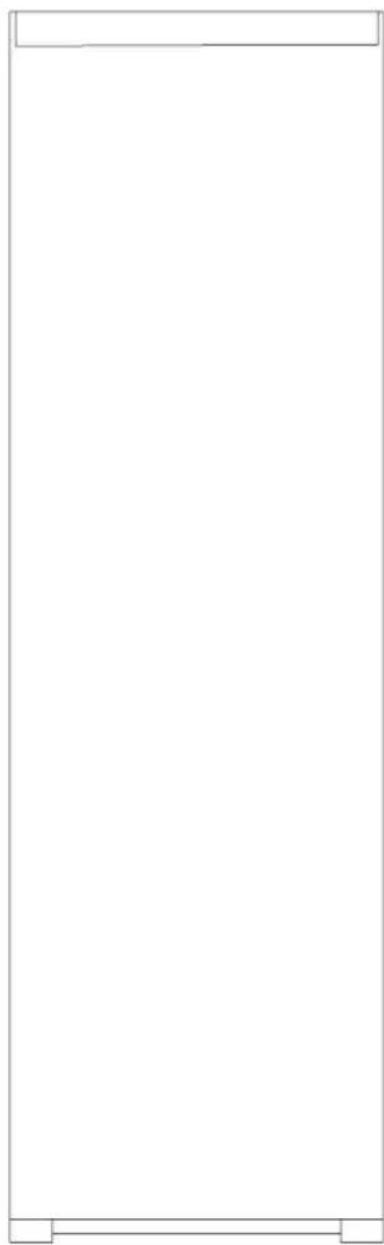

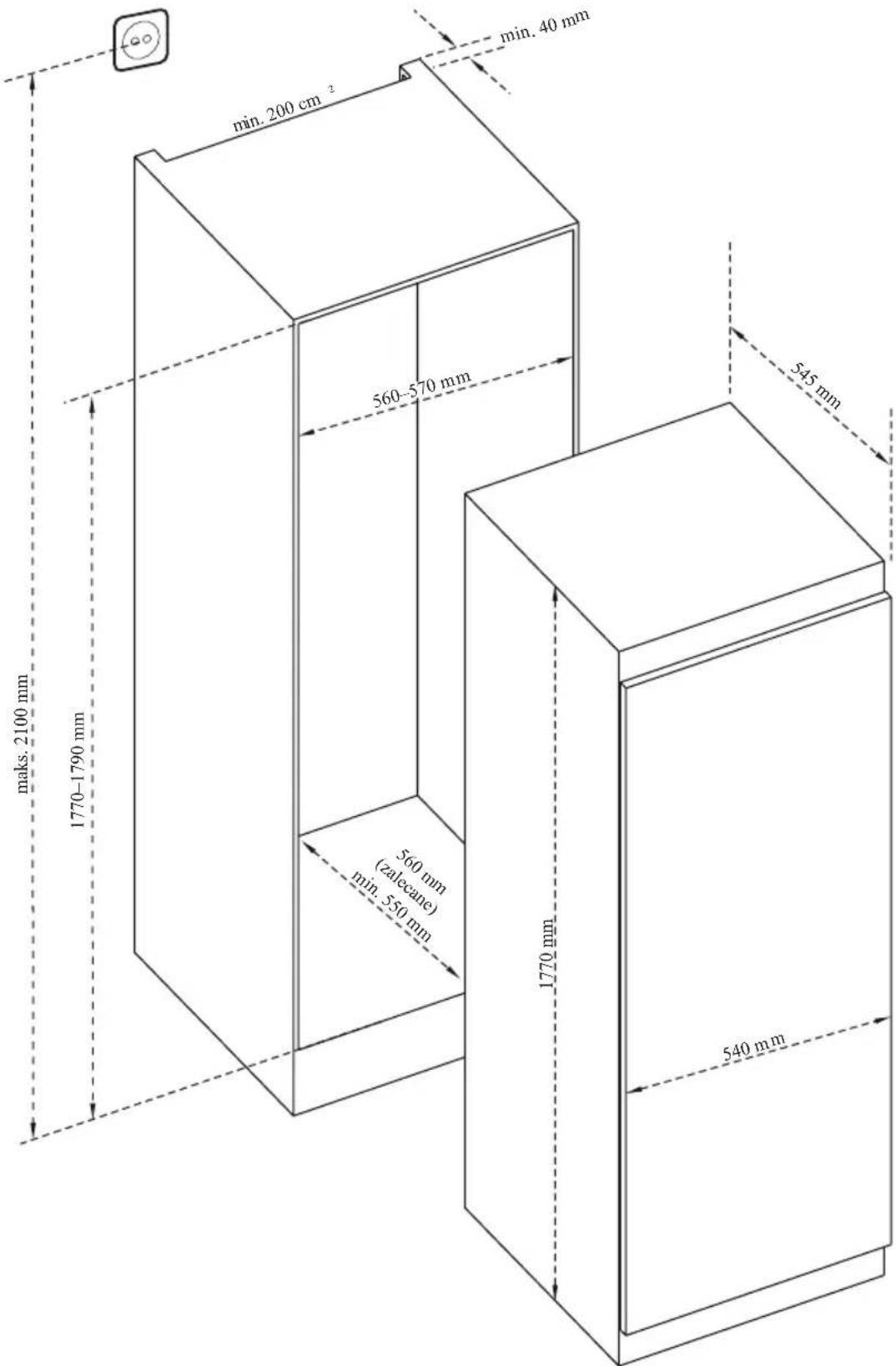

DIMENSIONS
* 1770 - 1778 for metal top cover

CHAPTER 3. USING THE APPLIANCE

INFORMATION ON NO-FROST TECHNOLOGY

No-frost freezers differ from other static freezers in their operating principle. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in nofrost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

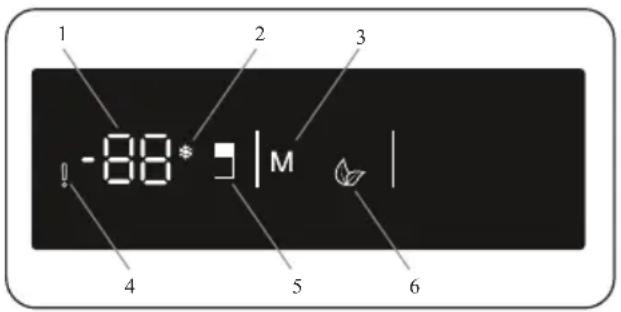

DISPLAY AND CONTROL PANEL

Using the Control Panel

1. Freezer temperature setting.
2. Super Freeze mode indicator.
3. Mode button. It enables the economy mode to be activated if desired.
4. Alarm indicator.
5. It enables the setting value of freezer to be modified and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24°C and super freeze mode.
6. Economy mode indicator.

If your product has lighting

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
• To freeze prepared foods.
• To freeze fresh food quickly to retain freshness.

How to use

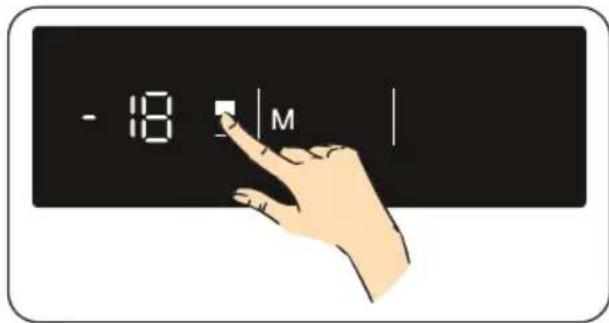

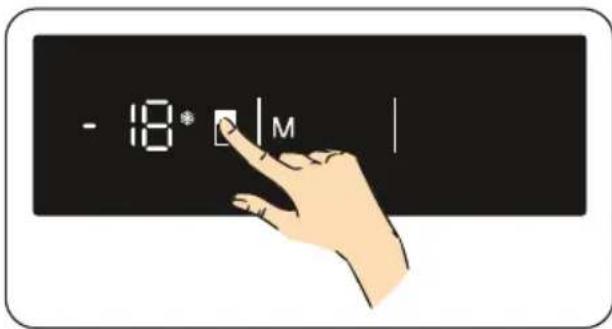

Press freezer set button (#5 on control panel diagram) until Super freeze symbol (#2 on control panel diagram) will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During This Mode:

Economy mode can not be selected.

Super freeze mode can be cancelled by the same operation of selecting.

NOTE:

This option shall be turned on 24 hours before placing the fresh food to the freezer. After 54h, it returns to the normal set value.

Economy Mode

Purpose

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.

How to Use

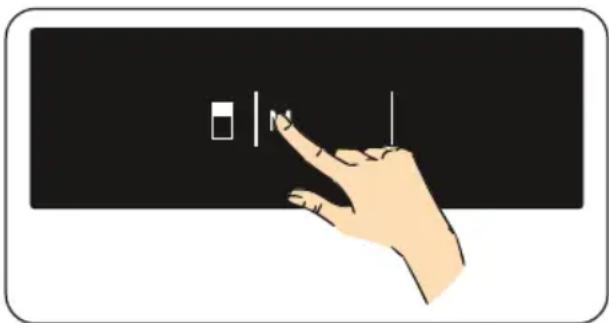

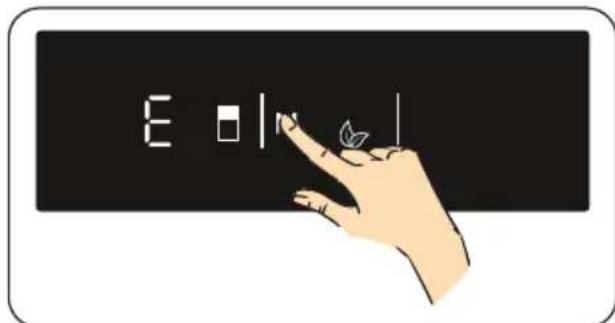

• Push „MODE” button (#3 on control panel diagram) until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol (#6) will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer temperature segments (#1) will show „E”.
• Economy symbol and E will light till mode finishes.

During This Mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super freeze mode can be selected. Economy mode is automatically cancelled and the selected mode is activated.

To cancel, you will just need to press on mode button.

Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How to Use

Illustration of a hand interacting with a touchscreen device (no text or symbols visible)

• Screen saver mode will be activated automatically after 30 seconds.
• If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.
• If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain of

To deactivate the screen saving mode

• To cancel the screen saving mode, first of all, you need to press any key to activate the keys and then press and hold the Mode button (#3 on control panel diagram) for 3 seconds.
• To reactivate screen saving mode, press and hold the mode button (#3 on control panel diagram) for 3 seconds.

Freezer Temperature Settings

The initial temperature value for the freezer setting indicator is -18^ .

• Press the set freezer button once (#5 on control panel diagram).
• When you first push this button, the last set value will blink on the screen.
• Whenever you press this button, a lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C, super freeze).
• When you push the set freezer button until the super freeze symbol (#2) appears, and if you do not push any other button within 1 second, super freeze will flash.
• If you continue to press it, it will restart from -16^ .
• The temperature value selected before super freeze mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Recommended Temperature Values for Freezer

When to adjust Inner Temperature (oC)
For minimum freezing capacity -16
In normal usage -18, -20
For maximum freezing capacity. -22, -24

NOTE:

Some built-in appliances may have a stand-by mode.

Stand-By Mode

Purpose

This mode can be used to save energy when you go on vacation.

How Would It Be Used?

Select "-16" set value.

Push mode and freezer set button for 5 seconds.

Display will show "St" "bY" on the screen.

During This Mode:

In stand-by mode; all components will be disabled.

If you push the display button, display will show "St" "bY" on the screen to show stand-by mode is active.

To cancel; push mode and freezer set button for 5 seconds.

After the mode is deactivated, error code may light on the display because the product may be hot. The error code will turn off when the product reaches normal temperature.

Door Open Alarm Function

If freezer door is opened more than 2 minutes, appliance sounds ‘beep beep’.

TEMPERATURE SETTINGS WARNINGS

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
  • Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the appliance and the ambient temperature in the location of your appliance.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• A 5 minute delay function is applied to prevent damage to the compressor of your appliance when connecting or disconnecting to mains, or when an energy breakdown occurs. Your appliance will begin to operate normally after 5 minutes.

Climate class and meaning:

T (tropical):

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical):

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C .

N (temperate):

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate):

This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C .

ACCESSORIES

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

Ice Tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three steps of a dental tool: adding a tooth into an abacus, moving a tray with teeth, and removing it (no text or symbols present)

The Icematic (In some models)

• Pull the lever towards you and remove the ice maker tray
  • Fill with water to the marked level
  • Hold the left end of the lever and set the ice-tray on the icebox
• When ice cubes have formed, twist the lever to drop the ice cubes into the icebox.

NOTE:

Do not fill the icebox with water in order to make ice. It can be broken.

NOTE:

The movement of the ice maker may be difficult while the refrigerator is running. In such a case should be cleaned by removing the glass shelves.

Removing the icemaker

Diagram of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

• Take out of the freezer glass shelves
- Remove the icemaker by dragging left or right on the shelf.

You can remove the icemaker to use a larger volume of the freezer compartment.

VISUAL AND TEXT DESCRIPTIONS IN THE ACCESSORIES SECTION MAY VARY ACCORDING TO THE MODEL OF YOUR APPLIANCE.

CHAPTER 4. FOOD STORAGE

FREEZER COMPARTMENT

For normal operating conditions, set the temperature of the freezer compartment to -18 or -20°C.

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags. For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• If the freezer door has been left open for a long time or not closed properly, frost will form and can prevent efficient air circulation. To resolve this, unplug the freezer and wait for it to defrost. Clean the freezer once it has fully defrosted.
• The freezer volume stated on the label is the volume without baskets, covers, and so on.
• Do not refreeze thawed food. It may pose a danger to your health and cause problems such as food poisoning.

NOTE:

If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

- Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

MEAT AND FISH PREPARATION		MAXIMUM STORING TIME (MONTH)
Steak	Wrap in a foil	6–8
Lamb meat	Wrap in a foil 6–8
Veal roast	Wrap in a foil 6–8
Veal cubes	In small pieces 6–8
Lamb cubes	In pieces 4–8
Minced meat	In packaging without using spices 1–3
Giblets (pieces)	In pieces 1–3
Bologna sausage/salami	Should be kept packaged even if it has a membrane 1	-3
Chicken and turkey	Wrap in a foil 4–6
Goose and Duck	Wrap in a foil 4–6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets 6–8
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut the tail and head	2
Lean fish; bass, turbot, flounder		4
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)		2–4
Shellfish	Clean and in bags 4–6
Caviar	In its packaging, or in an aluminium or plastic container	2–3
Snail	In salty water, or in an aluminium or plastic container	3

NOTE:

Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

VEGETABLES AND FRUITS	PREPARATION	MAXIMUM STORING TIME (MONTH)
String beans and beans	Wash and cut to small pieces and boil in water 10–13
Beans	Hull and wash and boil in water 12
Cabbage	Clean and boil in water 6–8
Carrot	Clean and cut to slices and boil in water 12
Pepper	Cut the stem, cut into two pieces and remove the core and boil in water	8–10
Spinach	Washed and boil in water 6–9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10–12
Eggplant	Cut to pieces of 2 cm after washing 10–12
Corn	Clean and pack with its stem or as sweet corn 12
Apple and pear	Peel and slice 8–10
Apricot and Peach	Cut into two pieces and remove the stone 4–6
Strawberry and Blackberry	Wash and hull 8–12
Cooked fruits	Add 10 % of sugar in the container 12
Plum, cherry, sourberry	Wash and hull the stems 8–12

	MAXIMUMSTORING TIME(MONTHS)	THAWING TIME INROOMTEMPERATURE(HOURS)	THAWINGTIME IN OVEN(MINUTES)
Bread	4–6 2–3 4–5 (20–225 °C)
Biscuits	3–6 1–1,5	5–8 (190–200 °C)
Pastry	1–3 2–3	5–10 (200–225 °C)
Pie	1–1,5 3–4 5–8 (190–200 °C)
Phyllo dough	2–3 1–1,5	5–8 (190–200 °C)
Pizza	2–3 2–4	15–20 (200 °C)
DAIRY PRODUCTS	PREPARATION	MAXIMUM STORING TIME (MONTHS)	STORING CONDITIONS
Packet (Homogenize) Milk	In its own packet 2–3		Pure Milk – In its own packe
Cheese-excluding white cheese	In slices 6–8		Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its package 6 –

CHAPTER 5. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.
• Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity

THE POWER SUPPLY MUST BE DISCONNECTED DURING CLEANING.

DEFROSTING

- Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the water tray behind your appliance and evaporates there.

• Make sure you have disconnected the plug of your appliance before cleaning the water tray.

- Remove the water tray from its position by removing the screws (if it has screws). Clean it with soapy water at specific time intervals. This will prevent odours from forming.

REPLACING LED LIGHTING

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

NOTE:

The numbers and location of the LED strips may change according to the model.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

CHAPTER 6. SHIPMENT AND REPOSITIONING

TRANSPORTATION AND CHANGING POSITIONING

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts or fix them into the appliance against shocks using bands when repositioning or transporting.

NOTE

Always carry your appliance in the upright position.

CHAPTER 7. BEFORE CALLING AFTER-SALES SERVICE

Errors

Your freezer will warn you if the temperature of the freezer is at an improper level or if a problem occurs with the appliance. Warning codes are displayed in the freezer Indicators.

ERROR TYPE	MEANING WHY WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02	Sensor warning		Call Service for assistance as soon as possible.
E03	Sensor warning		Call Service for assistance as soon as possible.
E06	Sensor warning		Call Service for assistance as soon as possible.
E07	Sensor warning		Call Service for assistance as soon as possible.
E08	Low Voltage Warning	Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levels If this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer. If this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

Your appliance is not operating

Check if:

• There is power
  • The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown
• The socket is defective. To check this, plug another working appliance into the same socket.

The appliance performs poorly

Check if:

• The appliance is overloaded
• The appliance door is closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

Your appliance is operating noisily

Normal noises

Cracking noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs:

When the thermostat switches the compressor on/off.

Motor noise:

Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs:

Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs:

In some models during normal operation of the system due to the circulation of air.

The edges of the appliance in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

There is a build-up of humidity inside the appliance

Check if:

• All food is packed properly. Containers must be dry before being placed in the appliance.
• The appliance door is opened frequently. Humidity of the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
• The door joints are broken or torn
- Your appliance is on a level surface.

CHAPTER 8. TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, wellventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment if available. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller if available) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.

CHAPTER 9. TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate, the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

CHAPTER 10. INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

CHAPTER 11. CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

WWW.KERNAU.COM

CHAPTER 12. DISPOSAL OF USED EQUIPENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

NÁVOD K POUŽITÍ

LEDNIČKA - MRAZNIČKA

KBF 17133 NF

Blank white rectangular frame with corner brackets (no text or symbols)

Technical line drawing of a cabinet or rack unit with ladder and shelf, no visible text or symbols

Illustration of a hand interacting with a black rectangular button (no text or symbols)

Illustration showing three steps of a dental tool: opening a tooth, moving a tray with teeth, and removing it (no text or symbols present)

Simple line drawing of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Empty rectangular frame with corner brackets and a top edge, no text or symbols present

Technical line drawing of a cabinet or rack structure with ladder and shelf, no visible text or symbols

Illustration of a hand interacting with a black screen displaying a small white square and the letter 'N' (no text or symbols on the screen)

Illustration showing three steps of a dental tool: opening, rotating, and cutting into a tooth (no text or symbols)

Simple line drawing of a device with two circular ports and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of an internal refrigerator unit with cooling fins and a central fan (no text or labels)
