GZ-006A - Knife sharpener Guzzanti - Free user manual and instructions

Product Type	Electric knife sharpener
Brand	Guzzanti
Model	GZ-006A
Power Supply	Mains powered (unplug before cleaning)
Sharpening Stages	3 stages: coarse (stage 1), fine (stage 2), polish (stage 3)
Sharpening Wheels	Diamond sharpening wheels
Compatible Knives	Metal kitchen knives, ceramic knives, pocket knives, sports knives, Damascus knives
Not Compatible	Scissors, axe blades, oversized blades
Sharpening Method	Pull knife towards you with light downward force
Recommended Frequency	Once a week
Maximum Continuous Use	60 minutes at a time
Maintenance	Empty dust drawer after use; wipe exterior with soft cloth; do not immerse in water
Dishwasher Safe	No
Safety	For use by persons 8+ under supervision; keep cord away from children; unplug before maintenance
Warranty	2 years from purchase, covering sharpener body only
Included Accessories	Sharpener, instruction manual (including warranty card)
Intended Use	Household

Frequently Asked Questions - GZ-006A Guzzanti

How do I use the Guzzanti GZ-006A knife sharpener?

Plug in the sharpener and turn it on. Insert the knife into the left slot of Stage 1 for coarse sharpening, pull towards you with light downward force for 4-8 seconds, then repeat in the right slot. Alternate until sharp. Then repeat in Stage 2 (fine) and Stage 3 (polish) similarly.

What types of knives can be sharpened?

The GZ-006A is suitable for metal kitchen knives, ceramic knives, pocket knives, sporting knives, and Damascus knives. Do not use it on scissors, axe blades, or blades that do not fit freely in the slots.

Can I sharpen ceramic knives with this sharpener?

Yes, it is designed to sharpen ceramic knives. Use a longer pull time (6-8 seconds) in Stage 1 and more pairs of pulls for very hard ceramic blades.

How do I clean and maintain the sharpener?

Unplug the sharpener. Open the dust drawer at the bottom and empty the metal dust. Wipe the exterior with a soft cloth. Do not use a dishwasher or immerse the sharpener in water.

What should I do if the motor does not work?

Check that the power cord is properly connected to the socket and that the socket is functioning. If the problem persists, contact customer service.

Is it safe for children to use?

Children aged 8 and above can use it under adult supervision. However, the appliance and cord should be kept out of reach of children under 8. Cleaning and maintenance should not be done by children.

How long does the warranty last?

The warranty period is 2 years from the date of purchase, covering the sharpener body. Normal wear, overuse, and misuse are excluded. Keep the warranty card and proof of purchase.

Can I use the sharpener for more than 60 minutes continuously?

No, the manual states not to operate the knife sharpener for more than 60 minutes at a time to avoid overheating.

What does the crossed-out trash bin symbol mean?

It means the product should not be disposed of with household waste. Take it to a designated collection point for recycling electrical and electronic equipment to protect the environment.

Why is there a trail on the plastic slot after sharpening?

This is normal. It is caused by the blade contacting the plastic during sharpening and does not affect performance.

USER MANUAL GZ-006A Guzzanti

Three technical line drawings of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a handheld electronic device with a scroll partially inserted (no text or symbols)

Simple line drawing of a tool or tool with no text, numbers, or symbols

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

WŁAŚCIWOŚCI I FUNKCJE

Właściwości

Line drawing of a handheld electronic device with three leads and a clip, no text or symbols present

Line drawing of a handheld electronic device with a handle and control panel (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Two identical line drawings of a portable electronic device with three ports and three leads, showing internal structure and mounting points (no text or symbols)

1. ábra 8. ábra

Line drawing of a handheld electronic device with a scroll wheel and indicator lights (no text or symbols)

Simple line drawing of a tool or tool with a bracket and a small dot pattern below (no text or symbols)

Line drawing of a handheld electronic device with a handle and internal components (no text or symbols)

1. ábra 10. ábra 11. ábra

Figyelem!

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Two identical line drawings of a device with three labeled ports and downward arrows indicating process (no text or symbols)

slika 7 slika 8

Line drawing of a handheld electronic device with three leads and a clip, no text or symbols present

Line drawing of a handheld electronic device with a handle and internal components (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Two identical line drawings of a device with three ports and three blades, showing internal structure (no text or symbols)

Abb. 7 Abb. 8

Line drawing of a handheld electronic device with ports and a clip, no text or symbols present

Simple line drawing of a tool or tool with a curved handle and two small dots below (no text or symbols)

Line drawing of a handheld electronic device with three leads and a handle (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Read all instructions.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Warning against misuse.

6. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

7. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

8. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

9. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

10. Children should be supervised to ensure that they do not play with the appliance.

11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

12. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

13. To protect against electrical hazards, do not immerse this item in water or other liquid.

14. Make sure that only clean knife blades are inserted in this item.

15. This appliance is intended to be used in household.

16. This item is designed to sharpen kitchen knives, pocket knives and most sporting knives.

Do not attempt to sharpen scissors, ax blade or any blade that does not fit freely in the slots.

1. Do not operate the knife sharpener for more than 60 minute a time.

FEATURES AND FUNCTIONS

Features

1. Stage 1 is used for coarse sharpening, stage 2 is used for fine sharpening and stage 3 is used for polishing.
2. Diamond sharpening wheels ensure high-efficient and refined sharpening effect.
3. Professional and accurate sharpening angle.
4. Streamline appearance is aesthetic and fashionable.

Functions

1) Suitable for sharpening all kinds of metal knives, ceramic knives, kitchen knives, sports knives, fold knives and so on.
2) It not only can be good used for sharpening super hardness Damascus sword, but also be good used for repairing ceramic knives.

SHARPENING INSTRUCTION

Before use, it is required to ensure that the switch of sharpener is turned off. Place the sharpener on a flat steady platform, turn on the power.

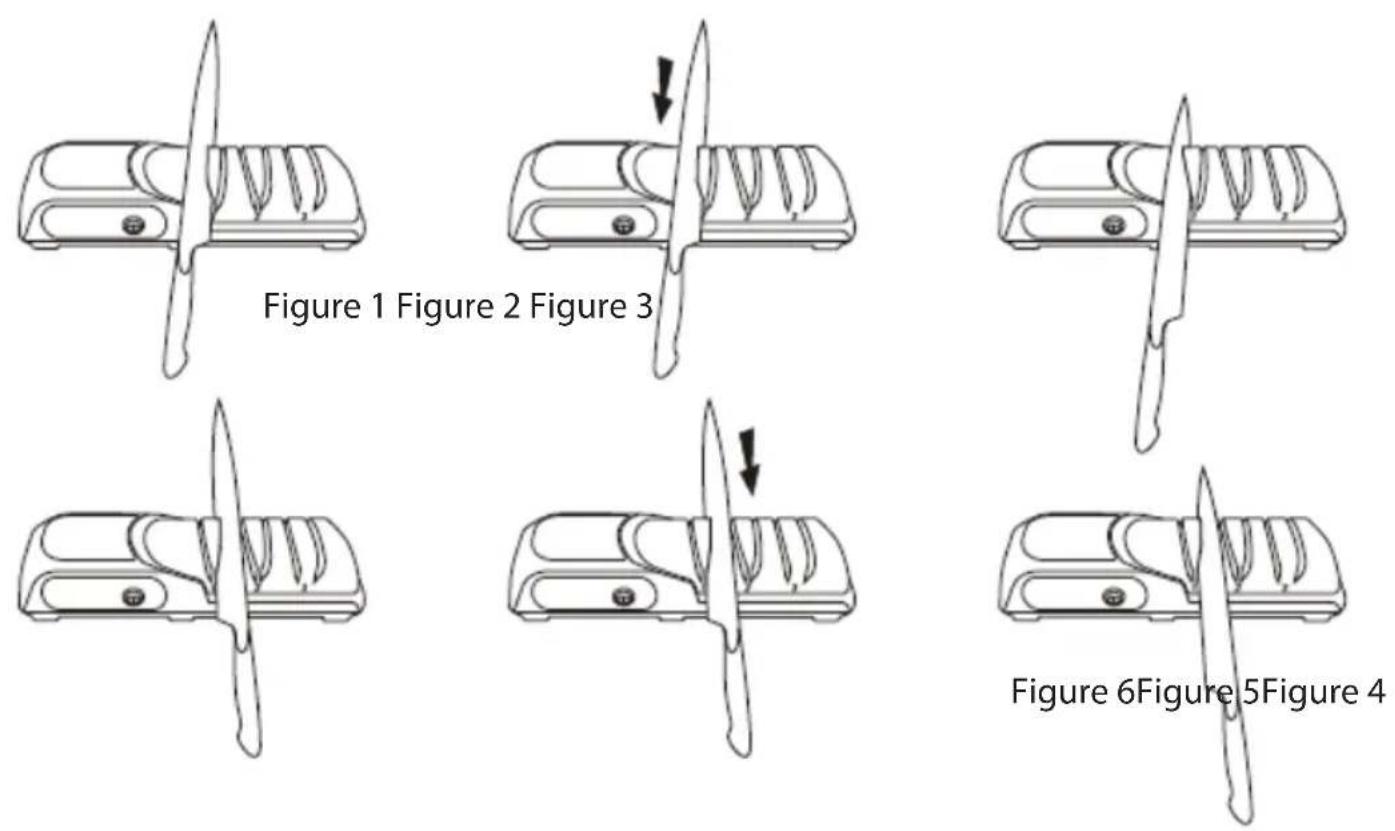

1) Coarse Sharpening

Stage 1 used for sharpening the cutting edge and restore its shape to a V - cut. Insert the knife into the left sharpening groove of stage 1 (see Figure 1), pull the knife with light downward force from heel to tip for 4-8 seconds (4-6 seconds for 8 inch metal kitchen knife and 6-8 seconds for ceramic knife), allow the left face of the blade to rest on the left face of the slot when you pull the knife toward yourself (see Figure 2), sharpening should be conducted according to shape of edge (see Figure 3).

Make one pull of the blade in the left slot as described above and then repeat the same action in the right slot of stage 1(see Figure 4&Figure 5&Figure 6).

Hold the right face of the knife against the right face of the right slot when you pull the knife thru the right slot.

In order to keep the consistency of edge, sharpening in the left slot and right slot should be alternative until knife is sharp.

Generally, about 5 pairs of pulls will be OK, but knives with high hardness such as Damascus knives and ceramic knives, or very blunt and damaged knife shall be sharpen around 10 pairs or more.

Then move to stage 2 for fine sharpening and stage 3 for polishing.

2) Fine Honing

Stage 2 used for remove burrs so that it is more smooth.

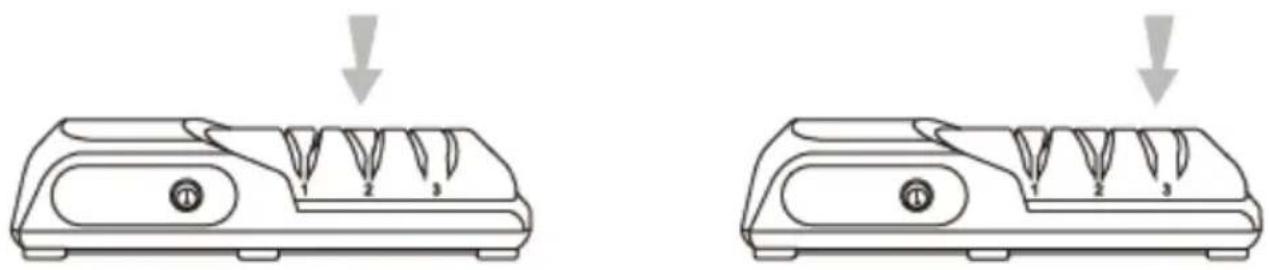

Fine honing is operated in stage 2 (see Figure 7), process of fine honing is same to process of coarse sharpening. 3)

3) Polishing

Stage 3 used for polish the edge so that it is more sharp.

Polish sharpening is operated in stage 3 (see Figure 8), process of polish sharpening is same to process of coarse sharpening.

Two identical line drawings of a portable electronic device with three ports and three leads, showing internal structure and mounting points (no text or symbols)

Figure 7 Figure 8

Generally speaking, it is suggested to sharpen the knife once a week.

CAUTIONS

1) Always pull the knife toward you. Never push the knife away from you.
2) Always sharpen alternately in the left and right slots of both stages.
3) Do not twist the knife when sharpening.
4) Keep constant force and speed during sharpening.

MAINTENANCE

Dismantle and clean up and install the sharpening dust drawer.

1) Dismantle the sharpening dust drawer: as shown in Figure 9, open up the sharpening dust drawer.
2) Clean up the sharpening dust drawer: as shown in Figure 10, empty out the sharpening dust.
3) Install the sharpening dust drawer: as shown in Figure 11, close the dust drawer.

Line drawing of a handheld electronic device with ports and a clip, no text or symbols present

Simple line drawing of a tool or tool with a curved handle and a small inset image below (no text or symbols)

Line drawing of a handheld electronic device with three leads and a handle (no text or symbols)

Figure 9 Figure 10 Figure 11

Attention

1) Unplug power source before maintenance.
2) Cleaning by dishwasher is forbidden, the exterior of sharpener should be cleaned up by a soft cloth, don't immerse the sharpener into water or other liquid.

COMMON FAULTS AND SOLUTIONS

1. Motor doesn't work. Check whether the connection between socket and sharpener is in.
2. No work after sharpening. To check whether the sharpening is conducted correctly according to the instruction, whether the normal loss period of sharpener is exceeded.
3. During sharpening, the trail occurrence on the plastic slot of sharpener contacted by the blade is normal.

WARRANTY CARD

Product Name:
Model:
User Name:
Contact Address:
Purchasing Date:
Telephone No.:
E-mail:

AFTER-SALES SERVICE

Warranty Policy

1. The warranty period is 2 years from the date of purchase, but the service is limited to warranty of sharpener body.
2. Change on the sharpener surface and color caused by normal use and damage resulted from overuse and mis-operation are excluded, such as overheating, falling or man-made destruction.
3. In order to ensure the warranty service, please submit the warranty card, original package and invoice or other purchase vouchers.

Non-warranty Policy

1. Use the product unreasonably or inappropriately.
2. Contents on the warranty card are modified by the customer.
3. Warranty card is not filled correctly.
4. Damage is caused by force majeure.

The manufacturer reserves all interpretation power for all clauses. There are one sharpener and one instruction manual (including warranty card) in the gift box.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
