GZ-011 - Knife sharpener Guzzanti - Free user manual and instructions

Product Type	Electric Knife Sharpener
Brand	Guzzanti
Model	GZ-011
Functions	Coarse Grinding, Fine Grinding, Polishing
Grinding Material	Diamond (Coarse 1204 grit, Fine 6500 grit, Polish 10000 grit)
Compatible Knives	Metal and Ceramic knives (polishing not for ceramic); Chinese, European, Japanese style, Bread knives
Power Supply	Electric (voltage as per nameplate, typically 220-240V AC)
Angle Guide	Yes
Debris Collection	Yes, removable collection tank
Safety Features	Overload protection, do not use with wet hands, automatic shut-off recommended when not in use
Maintenance	Clean exterior with damp cloth; empty debris tank after each use; do not immerse in water
Warranty	3 years on main body and adaptor
Dimensions	Approximately 20 x 10 x 10 cm (estimated)
Weight	Approximately 1 kg (estimated)
Usage Frequency Recommendation	Use at least once every three months to prevent aging
Disposal	Do not dispose with household waste; recycle at designated collection points

Frequently Asked Questions - GZ-011 Guzzanti

What types of knives can I sharpen with the Guzzanti GZ-011?

The sharpener is suitable for metal and ceramic knives, including Chinese, European, Japanese style knives, and bread knives. However, the polishing function is not for ceramic knives.

How do I use the coarse, fine, and polishing slots?

For blunt knives, start with the coarse slot (left and right first section). For daily maintenance, use the fine slot (left and right second section). Finally, use the polishing slot (left and right third section) to remove tiny burrs. Pull the knife from heel to tip at a constant speed: 4-8 seconds for metal knives, 6-10 seconds for ceramic knives.

Can I sharpen scissors or axes with this sharpener?

No, only knives that can move freely in the grinding slot. Do not attempt to sharpen scissors, axes, or any irregularly shaped blades.

How do I clean and maintain the sharpener?

After use, disconnect the plug. Wipe the exterior with a damp cloth and dry. Empty the debris collection tank after each use. Do not immerse in water or other liquids. Use at least once every three months to prevent aging.

What safety precautions should I take?

Do not use with wet hands. Ensure the power switch is off before plugging in. Keep away from heat, children, and pets. Do not use if the cord or plug is damaged. Do not disassemble or repair yourself; contact professional service.

Is the sharpener suitable for ceramic knives?

Yes, for coarse and fine grinding, but do not use the polishing slot for ceramic knives.

What is the warranty period and what does it cover?

The electric sharpener has a 3-year warranty from the date of purchase, covering the main body and adaptor. It does not cover damage from misuse, natural hazards, or normal wear.

Can I use oil or water while sharpening?

No, do not use oil, water, or any lubricants. The sharpener is designed for dry use only.

How should I dispose of the sharpener at the end of its life?

Do not throw it in household waste. Take it to a designated collection point for electrical and electronic equipment recycling, in accordance with local regulations.

Why does the knife feel hot after sharpening?

Friction during sharpening can generate heat. This is normal. After grinding, wipe the knife with a damp cloth or rinse with water and dry it thoroughly.

USER MANUAL GZ-011 Guzzanti

Exterior view of a diamond electric knife shaver with visible branding and control buttons (no text-heavy elements)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

ZŘEKNUTÍ SE ODPOVĚDNOSTI

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a lathe tool to cut a lathe (no text or symbols present)

Illustration of hands using a lathe tool to adjust a rectangular device (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

ZRIEKNUTIE SA ZODPOVEDNOSTI

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a lathe tool to cut a lathe (no text or symbols visible)

Illustration of hands using a lathe tool to adjust a rectangular device (no text or symbols visible)

1. Po použití vypnite napájanie a odpojte zástrčku.
2. Po brúsení noža utrite nôž vlhkou handričkou alebo opláchnite nôž vodou a nôž utrite dosucha.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

WŁAŚCIWOŚCI I FUNKCJE

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a lathe tool to cut a lathe (no text or symbols present)

Illustration of hands using a lathe tool to adjust a rectangular device (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a knife to cut a slot into a rectangular device (no text or symbols)

Illustration of hands using a lathe tool to adjust a rectangular device (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a sewing machine to cut a slot (no text or symbols visible)

Line drawing of hands using a lathe tool to cut a rectangular object with a handle (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a knife to cut a slot into a rectangular device (no text or symbols)

Line drawing of hands using a lathe tool to adjust a device (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Please read all this instruction carefully before using the product. If user has not followed the instruction with correct using methods or maintenance methods, we do not take the responsibility for the consequences.
2. If the defect of product is caused by normal use, natural hazards, force majeure incidents, such as fire, flood and other actions of the similar nature are grounds. We have the right to deny a warranty service.

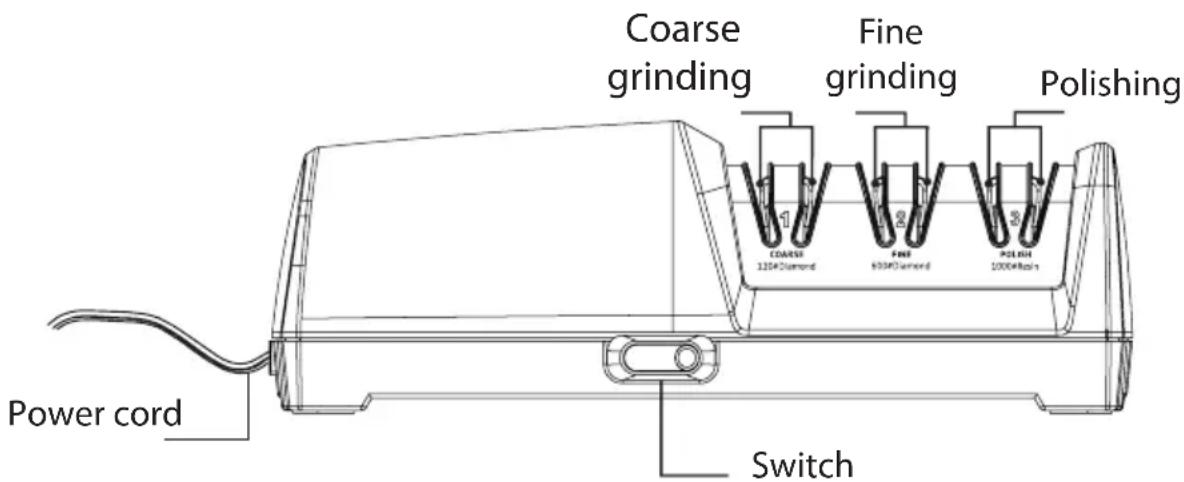

PRODUCT DESCRIPTION

DISCLAIMER

1. Three-section sharpener with functions of coarse grinding, fine grinding and polishing.
2. Made of diamond material, suitable for all metal and ceramic knives.
3. Utilizes the elastic constant force of diamond to design the structure, with balanced and powerful grinding force.
4. The knife sharpener comes with the Angle Guide function.
5. The grinding head is made of special material, which can protect the sides of the knife from being scratched when it is sharpened.
6. With the function of debris collection and easy to clean

USAGE METHOD

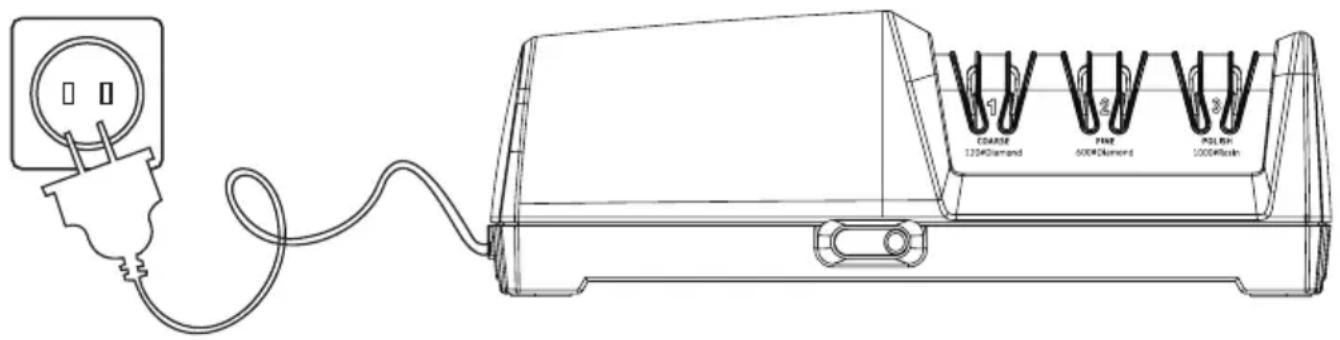

Pre-use: Check whether the local power supply voltage is the same as indicated on the nameplate of the machine

Usage:

1. Place the knife sharpener on a flat surface and tum on the power switch to start it.
2. Choose the appropriate slot for grinding by the dullness of the knife.

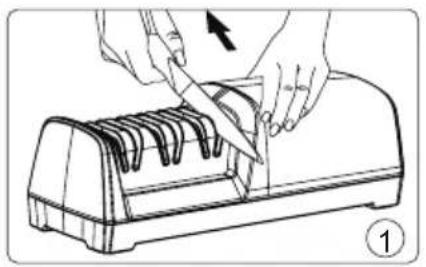

Coarse grinding:

Suitable for grinding blunt knives or those need putting an edge. Put the knife into the left and right one-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed (4-8s for metal knives and 6-10 s for ceramic knives). (As shown in Fig.1)

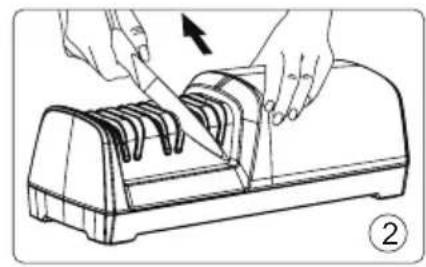

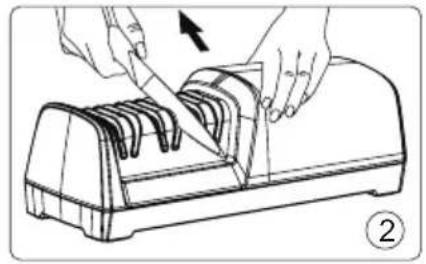

Fine grinding:

Suitable for daily maintenance of knives. Put the knife with the same method into the left and right two-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed. (Fine grinding can remove the burrs and grinding marks on the edge after coarse grinding, making the edge smoother and sharper. Frequently-used kitchen knives are recommended for precision grinding once a week) (See Fig.2)

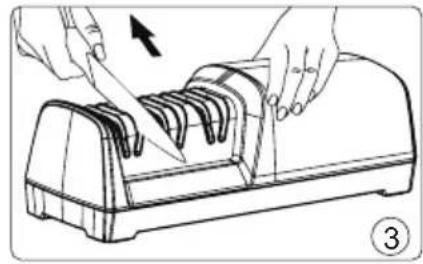

Polishing:

Suitable for polishing the blade after fine grinding. Put the knife with the same method into the left and right three-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed. (Polishing can remove tiny burrs and grinding marks on the edge, making the edge smoother and brighter. Polishing is recommended on the edge after each sharpening of the knife) (See Fig.3)

Illustration of hands using a sewing machine to cut a piece of dough (no text or symbols visible)

Illustration of hands using a lathe tool to cut a lathe (no text or symbols present)

Illustration of hands using a lathe tool to adjust a rectangular device (no text or symbols visible)

1. Tum off the power and disconnect the plug after USB.
2. After grinding the knife, wipe the knife with a wet cloth or rinse the knife with water and wipe the knife dry.

(Note: The polishing function is not suitable for ceramic knives)

SUITABLE KNIVES

Chinese-style knives

European-style knives

Japanese-style knives

Ceramic knife

Bread knives

SAFETY INSTRUCTION

Notice: According to the risk and injury degree, safety instruction are classified as "Prohibiting", "Warning" and "Prompting".

Prohibiting

1. Be careful to avoid electric shock. Do not use wet hands to operate. Do not immerse it in water or other liquids.

Warning

1. Make sure the power switch of the knife sharpener is disconnected before powering it on.
2. Please turn off the power supply if the knife sharpener will not be used for a long time (e.g. going on vacation).

3. Please place the knife sharpener on a stationary table, keeping it away from the heat and out of reach of children or pets.

4. Do not use the equipment if the wire or plug is damaged, the knife sharpener is malfunctioning, or if there is any damage. Please do not disassemble and repair the machine without authorization. It must be repaired by professional maintenance personnel before it can be used again.

Caution

1. Make sure the knife is clean before sharpening and follow the instructions in the Manual.
2. The knife should be pulled back evenly immediately after being placed in the sharpener. Do not push forward.
3. Do not exert too much force while sharpening to ensure constant force and uniform speed.
4. Do not attempt to sharpen scissors, axes, or any knife that cannot move freely in the grinding slot.
5. Do not use with oil. water or lubricants.

MAINTENANCE METHOD

1. This knife sharpener is not suitable for use in direct sunlight or damp environment.
2. Tum off the switch in time after use
3. The outside of the knife sharpener should be wiped clean with a damp cloth and do not immerse it in water or other liquids.
4. The debris collecting tank at the bottom of the sharpener should be cleaned in time after each use.
5. It is recommended to use the product at least once every three months to prevent aging.

WARRANTY CARD

Product Name
Model
Date of Purchase
Purchasing Unit
Customer Information	Name:____ phone number:____Address:____

Warranty Description:

1. The electric sharpener is covered by a warranty for 3 years from the date of purchase, only main body and adaptor are in the warranty range.
2. Do not cover the mechanical surface or color changes due to nonnal use, and the damages caused by unduly intensive usage or mishandling: overheating, dropping or intended breakage of product.
3. Ensure the warranty service, duly completed warranty card, original package and purchase receipt.

This warranty card is void in these cases:

1. Product was used in unreasonable or improper way.
2. The content of the warranty card is revised by customer.
3. The warranty card is completed incorrectly.
4. The defect of product was caused by natural hazards (fire. flood etc).

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
