GZ 010 - Knife sharpener Guzzanti - Free user manual and instructions

Type de produit	Electric knife sharpener
Marque	Guzzanti
Modèle	GZ 010
Fonctions principales	3-stage sharpening: coarse grinding, fine grinding, polishing
Matériau de la meule	Diamond (coarse 5600, fine 6000) and resin (polishing 1000)
Type de couteaux compatibles	Metal and ceramic knives (Chinese, European, Japanese style; ceramic knives only for coarse and fine, not polishing)
Angle guide	Yes, built-in angle guide function
Protection des côtés de la lame	Yes, special grinding head material prevents scratching
Collecteur de débris	Yes, removable debris collecting tank
Alimentation	Mains powered, check local voltage compatibility
Interrupteur	On/off switch
Vitesse de meulage recommandée	4-8s for metal knives, 6-10s for ceramic knives per pass
Entretien	Wipe exterior with damp cloth; clean debris tank after each use; do not immerse in water
Sécurité	Do not use with wet hands; keep away from water and heat; unplug when not in use
Réparabilité	Do not disassemble; must be repaired by professional personnel
Garantie	3 years for main body and adaptor
Conditions de garantie	Valid with completed warranty card, original package, and purchase receipt; excludes damage from misuse or natural hazards

Frequently Asked Questions - GZ 010 Guzzanti

What types of knives can the Guzzanti GZ 010 sharpen?

The GZ 010 can sharpen metal and ceramic knives, including Chinese-style, European-style, Japanese-style, and ceramic knives. It is also suitable for serrated knives but not for scissors or axes.

Can I sharpen ceramic knives with the polishing slot?

No, the polishing function is not suitable for ceramic knives. Use only the coarse and fine grinding slots for ceramic blades.

How do I use the knife sharpener properly?

Place the sharpener on a flat surface, turn it on, choose the appropriate slot (coarse for dull knives, fine for maintenance, polishing for finish), and pull the knife through from heel to tip at a constant speed. Follow the manual for specific timings.

Do I need to use oil or water with the sharpener?

No, the GZ 010 is designed for dry use. Do not use oil, water, or any lubricants.

How do I clean the debris collection tank?

After each use, remove the debris tank from the bottom of the sharpener, empty it, and wipe it clean. The exterior can be wiped with a damp cloth, but do not immerse the unit in water.

Is the sharpener safe to use?

Yes, but follow safety instructions: avoid using wet hands, keep away from water, unplug when not in use, and do not disassemble. Ensure the power switch is off before plugging in.

What is the warranty period and what does it cover?

The GZ 010 comes with a 3-year warranty for the main body and adaptor. It covers manufacturing defects but not normal wear, misuse, or damage from natural hazards. Keep the warranty card and receipt.

Can I sharpen very dull or damaged knives?

Yes, use the coarse grinding slot first to restore the edge. For badly damaged knives, several passes may be needed. However, the sharpener is not intended for extremely damaged blades that cannot move freely in the slot.

How often should I use the sharpener on my kitchen knives?

For frequently used knives, fine grinding once a week is recommended. Polishing after each sharpening helps maintain a smooth edge. Use the product at least once every three months to prevent aging of the sharpener.

What should I do if the sharpener stops working?

First, check the power supply and cord. If the cord or plug is damaged, or if the unit malfunctions, do not attempt to repair it yourself. Contact professional maintenance personnel or the retailer for warranty service.

USER MANUAL GZ 010 Guzzanti

White guzzani electric shaver with three black buttons and branding (no readable text beyond branding)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

ZŘEKNUTÍ SE ODPOVĚDNOSTI

Line drawing of a power plug connected to a multi-wheeled device with three leads (no text or symbols)

Illustration of hands using a tool on a mechanical device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Simple gray icon of a knife (no text or symbols)

Nože čínského stylu

Silhouette of a knife with serrated blade and handle (no text or symbols)

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Simple grayscale illustration of a knife blade (no text or symbols)

Keramický nůž

METODA ÚDRŽBY

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

ZRIEKNUTIE SA ZODPOVEDNOSTI

Line drawing of a power plug connected to a multi-pin device with three leads (no text or symbols)

Illustration of hands using a tool on a mechanical device (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Po použití vypnite napájanie a odpojte zástrčku.

2. Po brúsení noža utrite nôž vlhkou handričkou alebo opláchnite nôž vodou a nôž utrite dosucha.

Simple gray icon of a knife (no text or symbols)

Nože čínskeho štýlu

Silhouette of a knife with a blade and handle (no text or symbols)

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Simple grayscale illustration of a knife blade (no text or symbols)

Keramický nôž

METÓDA ÚDRŽBY

Symbol of a trash bin crossed with no visible text or labels

Line drawing of a power plug connected to a multi-wheeled device with three leads (no text or symbols)

Line drawing of hands operating a mechanical device with a spring-loaded handle (no text or symbols)

Illustration of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration of hands using a mechanical tool to cut a component (no text or symbols visible)

Simple gray icon of a knife (no text or symbols)

Silhouette of a knife with a blade and handle (no text or symbols)

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Simple grayscale illustration of a knife blade (no text or symbols)

Nóż ceramiczny

SPOSÓB KONSERWACJI

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a power plug connected to a multi-wheeled device with three leads (no text or symbols)

Illustration of hands using a power tool on a machine (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands operating a mechanical device with a spring-like component (no text or symbols visible)

Simple gray icon of a knife (no text or symbols)

Silhouette of a knife with a blade and handle, shown in grayscale (no text or symbols)

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Simple grayscale illustration of a knife blade (no text or symbols)

KERÁMIAKÉSEK

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Line drawing of a power cord connected to a terminal device (no text or symbols)

Illustration of hands using a mechanical tool on a device (no text or symbols visible)

Illustration of hands using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration of hands operating a mechanical device with a spring-like component (no text or symbols visible)

Simple gray icon of a cleaver or scraper tool (no text or symbols)

Silhouette of a knife with serrated blade (no text or symbols)

Simple grayscale illustration of a knife (no text or symbols)

Close-up of a gray knife blade (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a power plug connected to a battery pack with three labeled terminals (no text or symbols on the diagram itself)

Line drawing of hands operating a mechanical device with a spring-like component (no text or symbols)

Illustration of hands using a lathe machine to cut a cylindrical component (no text or symbols visible)

Illustration of hands using a mechanical tool to adjust or install a component (no text or symbols visible)

Simple gray icon of a knife (no text or symbols)

Chinesisches Messer

Silhouette of a knife with a blade and handle (no text or symbols)

Europäisches Messer

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Japanisches Messer

Close-up of a knife blade with a flat blade and handle (no text or symbols visible)

Keramikmesser

BERATUNGSMETHODEN

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Please read all this instruction carefully before using the product. If user has not followed the instruction with correct using methods or maintenance methods, we do not take the responsibility for the consequences.
2. If the defect of product is caused by normal use, natural hazards, force majeure incidents, such as fire, flood and other actions of the similar nature are grounds. We have the right to deny a warranty service.

SAFETY INSTRUCTION

Notice: According to the risk and injury degree, safety instruction are classified as „Prohibiting“, „Warning“ and „Prompting“.

Prohibiting

1. Be careful to avoid electric shock. Do not use wet hands to operate. Do not immerse it in water or other liquids.

Warning

1. Make sure the power switch of the knife sharpener is disconnected before powering it on.

2. Please turn off the power supply if the knife sharpener will not be used for a long time (e.g., going on vacation).

3. Please place the knife sharpener on a stationary table, keeping it away from the heat and out of reach of children or pets.

4. Do not use the equipment if the wire or plug is damaged, the knife sharpener is malfunctioning, or if there is any damage. Please do not disassemble and repair the machine without authorization. It must be repaired by professional maintenance personnel before it can be used again.

Caution

1. Make sure the knife is clean before sharpening and follow the instructions in the Manual.
2. The knife should be pulled back evenly immediately after being placed in the sharpener. Do not push forward.
3. Do not exert too much force while sharpening to ensure constant force and uniform speed.
4. Do not attempt to sharpen scissors, axes, or any knife that cannot move freely in the grinding slot.
5. It can be used to sharpen serrated knives.
6. Do not use with oil, water or lubricants.

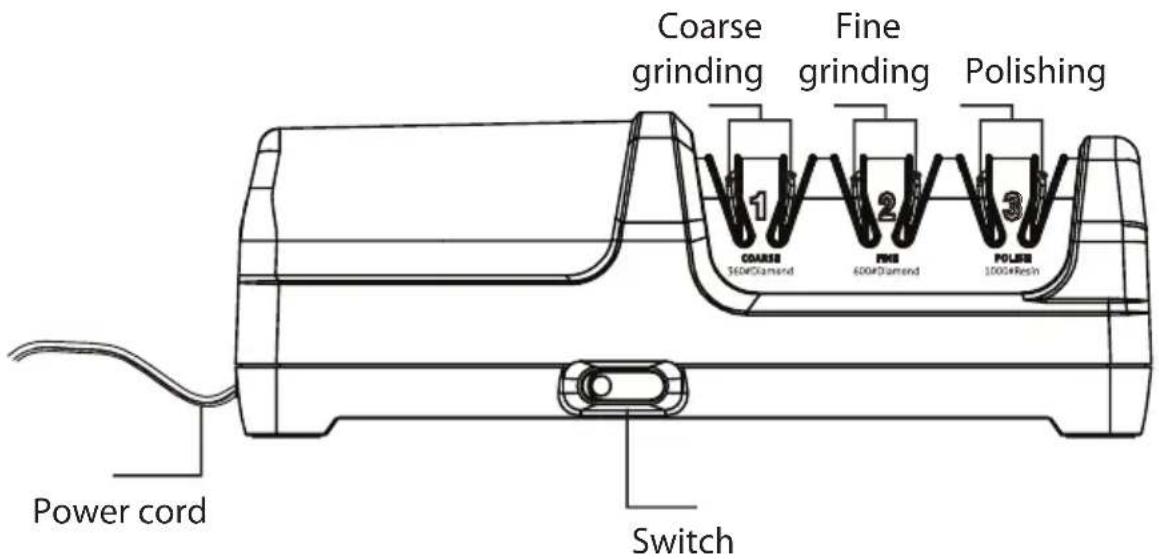

PRODUCT DESCRIPTION

FEATURES AND FUNCTIONS

1. Three-section sharpener with functions of coarse grinding, fine grinding and polishing.
2. Made of diamond material, suitable for all metal and ceramic knives.
3. Utilizes the elastic constant force of diamond to design the structure, with balanced and powerful grinding force.
4. The knife sharpener comes with the Angle Guide function.
5. The grinding head is made of special material, which can protect the sides of the knife from being scratched when it is sharpened.
6. With the function of debris collection and easy to clean.

USAGE METHOD

Pre-use: Check whether the local power supply voltage is the same as indicated on the nameplate of the machine.

Usage:

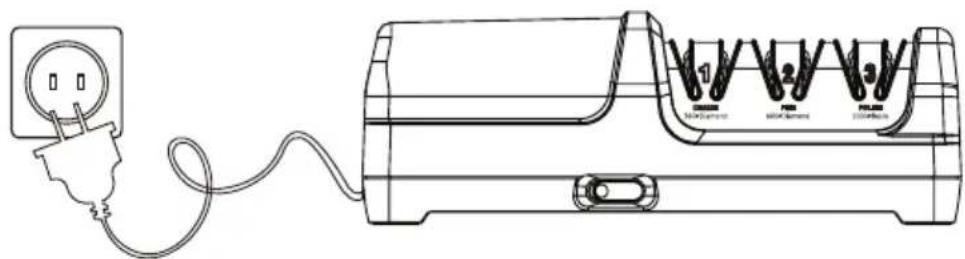

1. Place the knife sharpener on a flat surface and turn on the power switch to start it.

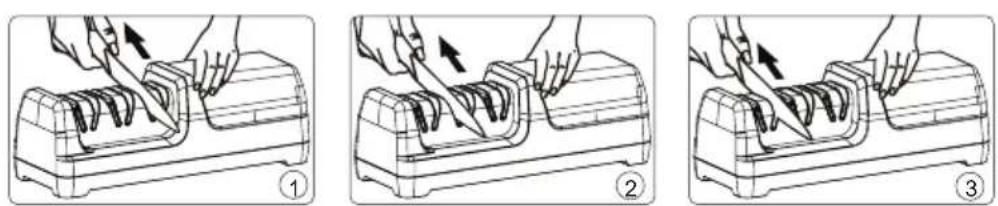

2. Choose the appropriate slot for grinding by the dullness of the knife.

Line drawing of a power cord connected to a battery pack (no text or symbols)

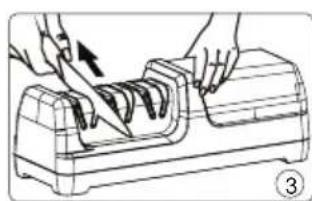

Coarse grinding: Suitable for grinding blunt knives or those need putting an edge. Put the knife into the left and right one-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed (4-8s for metal knives and 6-10s for ceramic knives). (As shown in Fig.1)

Fine grinding: Suitable for daily maintenance of knives. Put the knife with the same method into the left and right two-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed. (Fine grinding can remove the burrs and grinding marks on the edge after coarse grinding, making the edge smoother and sharper. Frequently-used kitchen knives are recommended for precision grinding once a week) (See Fig.2)

Polishing: Suitable for polishing the blade after fine grinding. Put the knife with the same method into the left and right three-section grinding slot respectively and pull the knife through from the heel to the tip along the radian of the blade at a constant speed. (Polishing can remove tiny burrs and grinding marks on the edge, making the edge smoother and brighter. Polishing is recommended on the edge after each sharpening of the knife) (See Fig.3)

Three-step illustration showing hands using a tool to adjust a mechanical component (no text or symbols present)

1. Turn off the power and disconnect the plug after use.
2. After grinding the knife, wipe the knife with a wet cloth or rinse the knife with water and wipe the knife dry.

(Note: The polishing function is not suitable for ceramic knives)

SUITABLE KNIVES

Simple gray icon of a knife (no text or symbols)

Chinese-style knives

Silhouette of a knife with serrated blade (no text or symbols)

European-style knives

Simple grayscale illustration of a knife with a pointed tip and handle (no text or symbols)

Japanese-style knives

Close-up of a knife blade with a flat blade and handle (no text or symbols visible)

Ceramic knife

MAINTENANCE METHOD

1. This knife sharpener is not suitable for use in direct sunlight or damp environment.
2. Turn off the switch in time after use
3. The outside of the knife sharpener should be wiped clean with a damp cloth and do not immerse it in water or other liquids.
4. The debris collecting tank at the bottom of the sharpener should be cleaned in time after each use.
5. It is recommended to use the product at least once every three months to prevent aging.

WARRANTY CARD

Product Name
Model
Date of Purchase
Purchasing Unit
Customer information	Name: phone number:Address:

Warranty Description:

1. The electric sharpener is covered by a warranty for 3 years from the date of purchase, only main body and adaptor are in the warranty range.
2. Do not cover the mechanical surface or color changes due to normal use, and the damages caused by unduly intensive usage or mishandling: overheating, dropping or intended breakage of product.
3. Ensure the warranty service, duly completed warranty card, original package and purchase receipt.

This warranty card is void in these cases:

1. Product was used in unreasonable or improper way.
2. The content of the warranty card is revised by customer.
3. The warranty card is completed incorrectly.
4. The defect of product was caused by natural hazards (fire, flood etc).

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
