Product Type	Knife Sharpener
Brand	Guzzanti
Model	GZ-005
Material	Stainless Steel and ABS Plastic
Dimensions (L x W x H)	10 x 5 x 5 cm
Weight	200 g
Power Source	Electric, 100-240V, 50/60Hz
Power Consumption	15 W
Sharpening Stages	Coarse and Fine
Abrasive Type	Diamond-Coated Discs
Safety Features	Non-Slip Base, Automatic Shut-Off
Maintenance	Clean with Dry Cloth; Avoid Water
Storage	Store in Dry Place
Included Accessories	User Manual
Certification	CE, RoHS
Color	White and Silver
Applicable Knife Types	Straight Edge Knives, Serrated Knives
Number of Slots	2
Warranty	1 Year Limited

Frequently Asked Questions - GZ-005 Guzzanti

How do I use the Guzzanti GZ-005 knife sharpener?

Insert the knife blade into the coarse slot (stage 1) and pull through gently 5-10 times. Repeat in the fine slot (stage 2) for a polished edge. Always follow the blade angle guide.

Can I sharpen serrated knives with this model?

Yes, the GZ-005 is designed to sharpen both straight and serrated blades. Use the designated serrated slot if available, or the fine stage for light serrations.

How do I clean the sharpener?

Unplug the device and wipe the exterior with a soft dry cloth. Do not use water or cleaning agents. Remove debris from the slots with a brush.

What is the correct sharpening angle?

The GZ-005 automatically sets the optimal angle (typically 15-20 degrees). Simply follow the guided slots; no manual angle adjustment is needed.

How often should I sharpen my knives?

Frequency depends on usage. For home cooks, every 2-4 weeks is recommended. Professional chefs may need to sharpen weekly. Hone regularly to maintain edge.

Why is my knife not getting sharp?

Ensure you are pulling the knife through the slots with consistent pressure. Check that the abrasive discs are not worn. Replace if necessary. Also, very dull knives may require more passes.

Can I sharpen scissors with this device?

No, the Guzzanti GZ-005 is designed exclusively for knives. Using it on scissors may damage the sharpener or the scissors.

Is the sharpener safe for left-handed users?

Yes, the slots are symmetrical, allowing use from either hand. Always follow the direction arrow for best results.

What is the warranty period?

The Guzzanti GZ-005 comes with a 1-year limited warranty against manufacturing defects. Keep your receipt for service.

Where can I buy replacement sharpening discs?

Replacement discs can be purchased from the Guzzanti official website or authorized retailers. Check your user manual for part numbers.

USER MANUAL GZ-005 Guzzanti

Black cylindrical device with a curved handle and control panel, no visible text or symbols

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

Line drawing of a knife cutting through a mechanical device with a handle (no text or symbols)

Obrázek 3 Obrázek 4

Line drawing of a kitchen knife cutting into a cylindrical tool (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Obrázek 7

Diagram of a cylindrical object with internal wavy lines and directional arrows indicating flow or movement (no text or symbols)

Obrázek 8

Technical line drawing of a mechanical component with a cylindrical body and a shaft, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical body and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with spiral grooves (no text or symbols)

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

ZÁRUČNÍ PODMÍNKY

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Line drawing of a knife cutting through a cylindrical tool (no text or symbols)

Obrázok 3 Obrázok 4

Line drawing of a kitchen knife cutting into a cylindrical tool (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Obrázok 7

Diagram of a cylindrical battery with internal circuit lines and directional arrows (no text or symbols)

Obrázok 8

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves and a base (no text or symbols)

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

ZÁRUČNÉ PODMIENKY

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Line drawing of a mechanical device with a knife inserted, showing motion direction (no text or symbols)

Rysunek 3

Line drawing of a kitchen utensil with a knife and blade (no text or symbols)

Rysunek 4

Technical line drawing of a mechanical component with internal channels and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and flanged parts (no text or symbols)

Rysunek 7

Diagram of a cylindrical battery with internal circuit lines and directional arrows (no text or symbols)

Rysunek 8

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves and a base (no text or symbols)

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Line drawing of a knife cutting through a mechanical device with a handle (no text or symbols)

1. ábra

Line drawing of a kitchen knife cutting into a cylindrical tool (no text or symbols)

1. ábra

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a cylindrical shaft and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and flanged parts (no text or symbols)

1. ábra

Diagram of a cylindrical battery with internal circuit lines and directional arrows (no text or symbols)

1. ábra

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves and a base (no text or symbols)

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a manual cutting tool with a knife, showing blade and handle (no text or symbols)

Line drawing of a kitchen utensil with a knife and blade (no text or symbols)

Slika 3 Slika 4

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a cylindrical shaft and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Slika 7

Diagram of a cylindrical object with internal wavy lines and directional arrows indicating flow or movement (no text or symbols)

Slika 8

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves (no text or symbols)

A. Razstavite brusno glavo, zavrtite jo v smeri urinega kazalca, kot kaže slika 6, nato pa jo izvlecite.
B. Očistite brusno glavo, snemite pokrov, kot kaže slika 7, ko je očiščen, ga daite nazaj na mesto.
C. Namestite brusno glavo, vstavite jo v glavno enoto, kot kaže slika 8, in privijte.

1. Ko je brusna glava obrabljena, jo zamenjaite z novo.

2. Zunanjo površino brusilnika očistite z vlažno krpo, ne potapljajte ga v vodo ali druge tekočine.

3. Brusilnik hranite v hladnih, suhih prostorih.

Če brusna glava ne deluje pravilno zaradi obrabe, jo zamenjajte z novo.

Technical line drawing of a cylindrical mechanical component with internal curved grooves (no text or symbols)

T1093D

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a knife cutting through a mechanical device with a blade (no text or symbols)

3 Abb.

Line drawing of a kitchen knife cutting into a cylindrical tool (no text or symbols)

4 Abb.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a cylindrical shaft and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

7 Abb.

Diagram of a cylindrical object with internal wavy lines and directional arrows indicating flow or movement (no text or symbols)

8 Abb.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves (no text or symbols)

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Important Safeguards

1. Please read all instructions carefully before use.
2. To protect against the risk of electronic shock, do not immerse it in water or other liquid.
3. Before sharpening, make sure that the knife is clean, and sharpen knife according to the instructions.
4. Make sure the switch is disconnected before charged.
5. The knife sharpener must be placed on a stable work surface when using.
6. Do not close to the hot objects.
7. Do not attempt to sharpen scissors, axes or any tool that cannot move freely in the sharpening groove.
8. Do not sharpen knives with oil, water and lubricants.
9. Do not use this knife sharpener in direct sunlight or humid environment.
10. Do not use it when there are children near by.
11. Disconnect the power when not in use or cleaning.
12. The apparatus is not prepared to the physically weak, the slow response or the mental disorders (including children), with the exception of safe use under the guidance or help of personnel who bears responsibility for security.
13. Children should be supervised to ensure they do not play with the apparatus.
14. In case of wire or plug damage, sharpener failure or any other damage, please do not use this apparatus. The apparatus must be repaired by a professional maintenance staff.

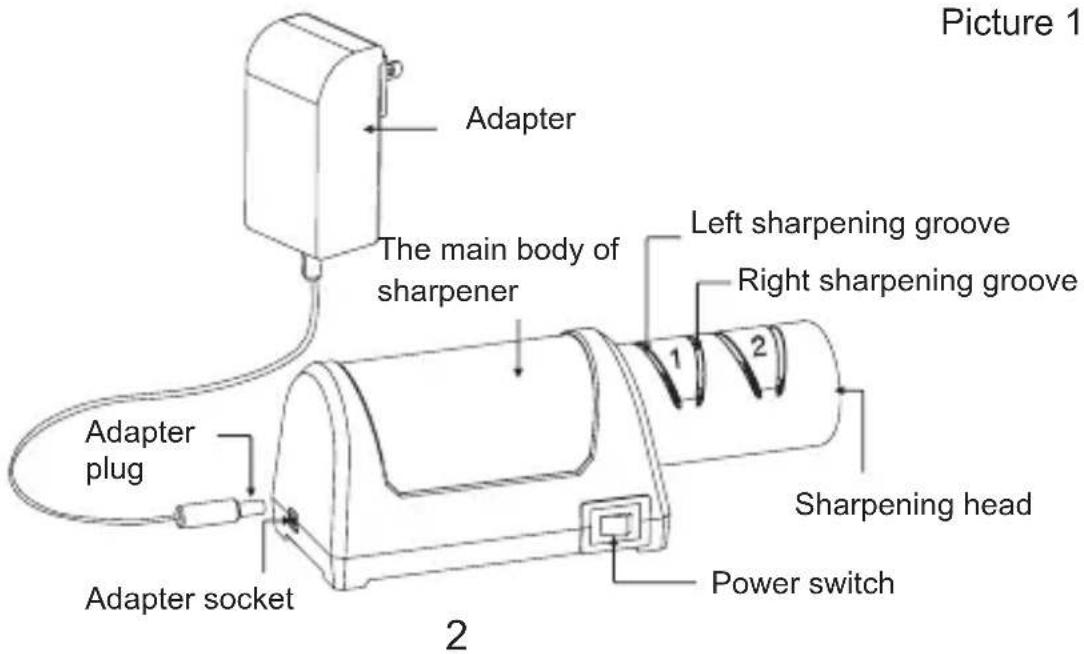

Product Structure

Features and Functions

1. Applicable to kitchen knives of various materials and ceramic knives.
2. For ceramic knives, best results and fast.
3. Diamond and ceramic material guarantee high efficiency and fine sharpening result.
4. Accurate angle guide and constant sharpening pressure reshape the perfect blade.
5. Stainless steel decoration creates a noble, bright appearance, and easy to clean.
6. Replaceable sharpening head, extend product life, economic and environmental protection.
7. Applicable voltage 100-240 VAC, 50HZ—60HZ.

How to use

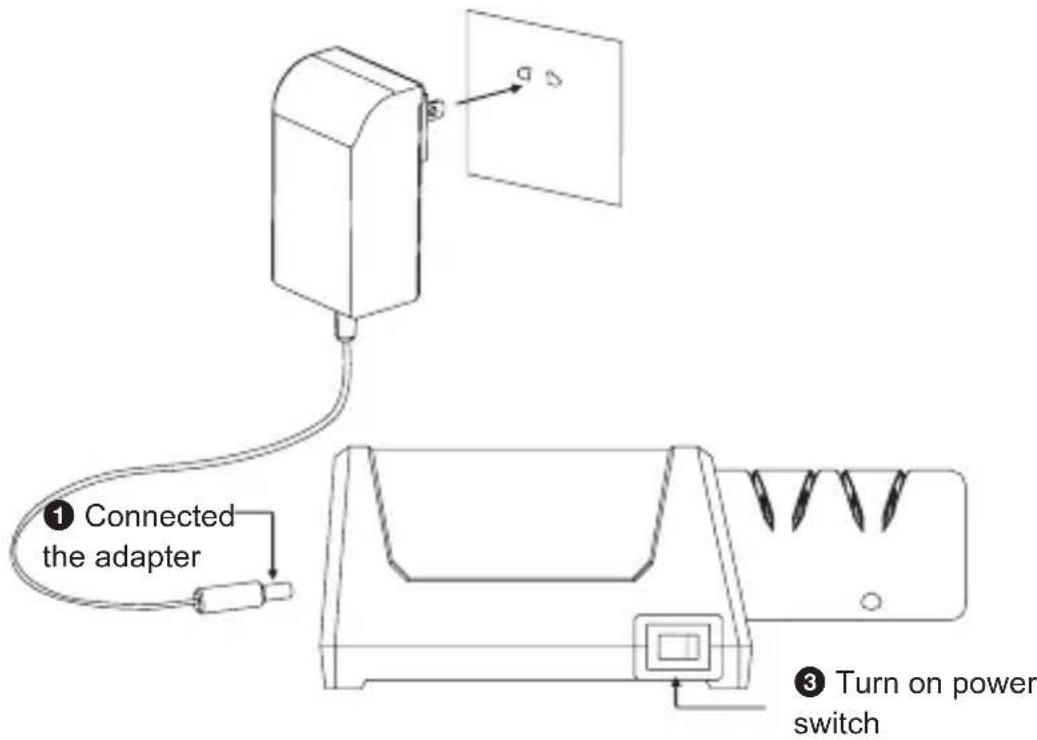

1. First ensure the power switch of the sharpener is disconnected; then connect the adapter and power supply; last turn on the switch of the sharpener.

② Connect the power supply
Picture 2

2. Sharpening methods

Line drawing of a knife cutting through a mechanical device (no text or symbols)

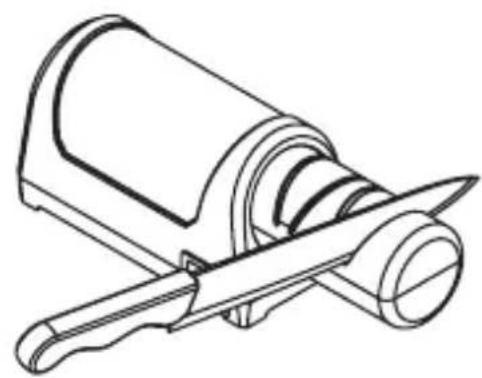

Picture 3

Line drawing of a kitchen utensil with a knife and blade (no text or symbols)

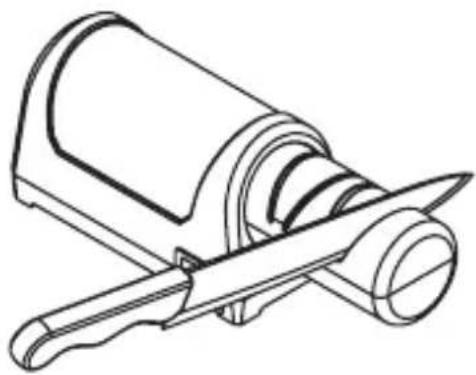

Picture 4

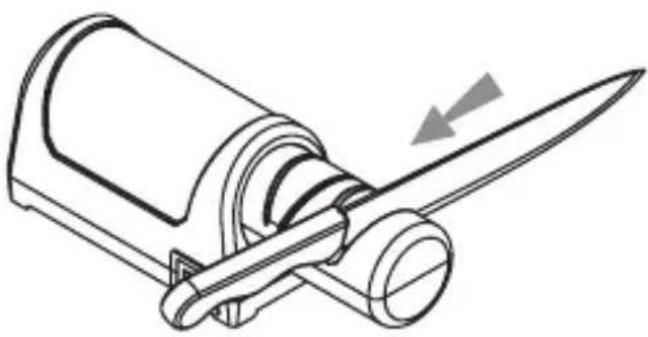

Put the knife into the left sharpening groove; sharpen 3-8 seconds from the knife heel to the tip in a uniform speed (3-5 seconds for metal knife, 6-8 seconds for ceramic knife). Please sharpen the knife according to the shape of the blade, and don't use too much force. Put the knife into the right sharpening groove in the same way (refer to picture 3 and picture 4). To ensure the consistency of the blade, the knife should be sharpened by turns in left and right sharpening groove.

Picture 5

1) Coarse sharpening

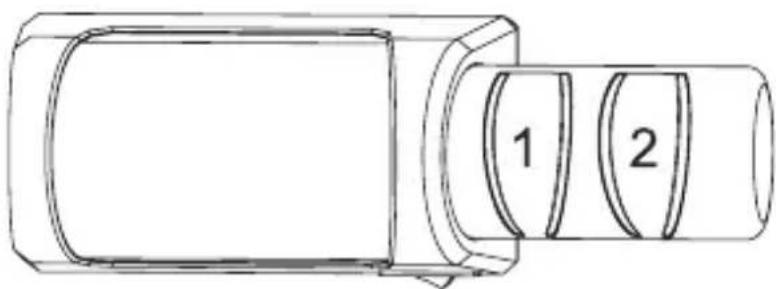

Coarse sharpening part is shown in picture 5, marked with "l", please refer to the sharpening method.

◆ Coarse sharpening part is for putting the first edge of knife and repairing serious-damaged knives.

2) Fine honing

Fine honing part is shown in picture 5, marked with „2“, please refer to the sharpening method.

Under normal circumstances, it is suggested to use weekly or daily, to keep your blade sharp at any time.

3. Cautions

1) Do pull backward instead of forward when the knife is in the sharpening groove.
2) Ensure constant force and uniform speed.

Maintenance

1. Unplug the power before maintenance.
2. Disassemble, clean and install the sharpening head.

Picture 6

Technical line drawing of a mechanical component with internal channels and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with a cylindrical shaft and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Picture 7

Diagram of a cylindrical object with internal grooves and directional arrows indicating flow or movement (no text or symbols)

Picture 8

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with spiral grooves (no text or symbols)

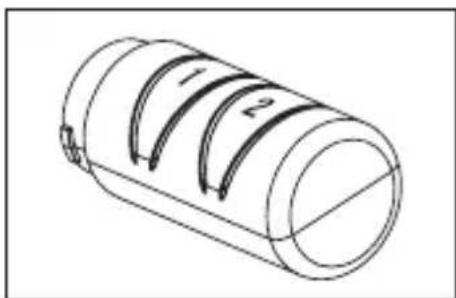

A. Disassemble the sharpening head, rotate the sharpening head clockwise following picture 6, pull out after the rotation stopped.
B. Clean the sharpening head, remove the cover following picture 7, replace the cover after Pouring sharpening crumbs.
C. Install the sharpening head, insert sharpening head into the body of the Sharpener following picture 8 until it is tightened.
3. Please replace a new sharpening head when the original one does not work properly due to abrasion.
4. The exterior of the sharpener should be wiped by damp cloth, do not immerse the sharpener in water or other liquid.
5. The sharpener should be kept in the cool and dry environment.

When the sharpening block does not work normally because of wear and tear, please choose the following sharpening replacement.

Technical line drawing of a cylindrical mechanical component with three curved internal channels labeled 1, 2, and 3 (no text or symbols beyond labels)

T1093D

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
