Product Type	String Trimmer (Petrol)
Brand	Einhell
Model	Royal MSB 32
Power Source	Petrol (2-stroke engine)
Engine Displacement	32 cc
Power Output	1.0 kW
Cutting System	Dual line or 4-tooth blade
Cutting Width (Line)	43 cm
Cutting Width (Blade)	23 cm
Line Diameter	2.5 mm
Fuel Tank Capacity	0.71 L
Weight	approx. 9 kg
Packed Dimensions	1520 x 280 x 265/107 mm
Handle Type	P-handle, infinitely adjustable
Shaft Material	Steel
Ignition System	Electronic ignition
Starting System	Quick Start System with primer
Blade Type	4-tooth cutting blade (metal)
Line Feed System	Automatic jog system, tool-free replacement
Vibration Reduction	Low-vibration engine design
Carrying Belt	Included
Protection Features	Large knife protection cover, large line guard
Spare Parts Available	Spare knife (4 teeth, Art.-No.: 34.051.63) and spare line (2.5 mm, Art.-No.: 34.051.72)

Frequently Asked Questions - Royal MSB 32 EINHELL

What fuel mixture does the Einhell Royal MSB 32 require?

The Royal MSB 32 uses a 2-stroke engine. You must mix unleaded petrol (95 RON) with a high-quality 2-stroke oil at a ratio of 50:1. Do not use pre-mixed fuel from gas stations; always mix fresh fuel.

How do I start the Royal MSB 32?

First, press the primer bulb (manual fuel pump) several times until fuel is visible. Set the choke and throttle to start positions. Pull the Quick Start System cord firmly. Once the engine starts, gradually release the choke. Refer to the manual for exact starting procedure.

How do I replace the cutting line on the Royal MSB 32?

The spool features a tool-free replacement system. Remove the spool from the head. Cut a length of new 2.5 mm line (approx. 6 m). Insert the line into the spool, winding in the direction indicated. Then thread the ends through the spool outlets and reassemble.

How do I replace the 4-tooth cutting blade?

Ensure the engine is off and cool. Remove the line spool and the protective cover. Use a wrench to hold the blade and remove the bolt. Replace with a genuine spare knife (Art.-No. 34.051.63). Tighten the bolt securely. Always wear gloves when handling the blade.

What size cutting line does the Royal MSB 32 use?

The recommended line diameter is 2.5 mm. Use a high-quality nylon line suitable for petrol trimmers. You can purchase the official spare line under Art.-No. 34.051.72.

How do I adjust the P-handle?

The P-handle is infinitely adjustable. Loosen the handle clamp, rotate the handle to the desired position (usually marked with arrows), and retighten securely. This allows comfortable operation at different angles.

What safety precautions should I take when using the Royal MSB 32?

Always wear protective goggles, gloves, long trousers, and sturdy shoes. Keep bystanders at least 15 m away. Never operate without the knife protection cover and line guard. Refuel only when the engine is cold. Use the carrying belt to reduce fatigue.

How do I maintain the Royal MSB 32?

After each use, clean the trimmer, especially the air filter and cooling fins. Check the spark plug and replace if worn. Lubricate the gearbox regularly. Store in a dry place. Use fresh fuel mix and drain it if storing for more than 30 days.

Is the Royal MSB 32 suitable for thick brush and weeds?

Yes, the 4-tooth blade is designed for tough weeds and brush. The powerful 1.0 kW engine provides ample torque. Use the line for lighter grass and the blade for heavier vegetation. Always avoid stones and hard objects.

What spare parts are available for the Royal MSB 32?

Two official spare parts are listed: the spare knife (4 teeth) with Art.-No. 34.051.63, and spare line (2.5 mm) with Art.-No. 34.051.72. For other parts like spark plugs, air filters, and line spools, contact Einhell customer service.

USER MANUAL Royal MSB 32 EINHELL

Bar code: 4006825531893

Sales unit: 2 pcs

The strong petrol motor scythe MSB 32 with P-handle is easy to operate and to maintain.

With its P-handle and the 4 toothed cutting blade it is just right to trim along the edges of lawns, ideal for professional clean up jobs and cleaning out of tough weeds and brushes. All operational functions are integrated in the upper handle.

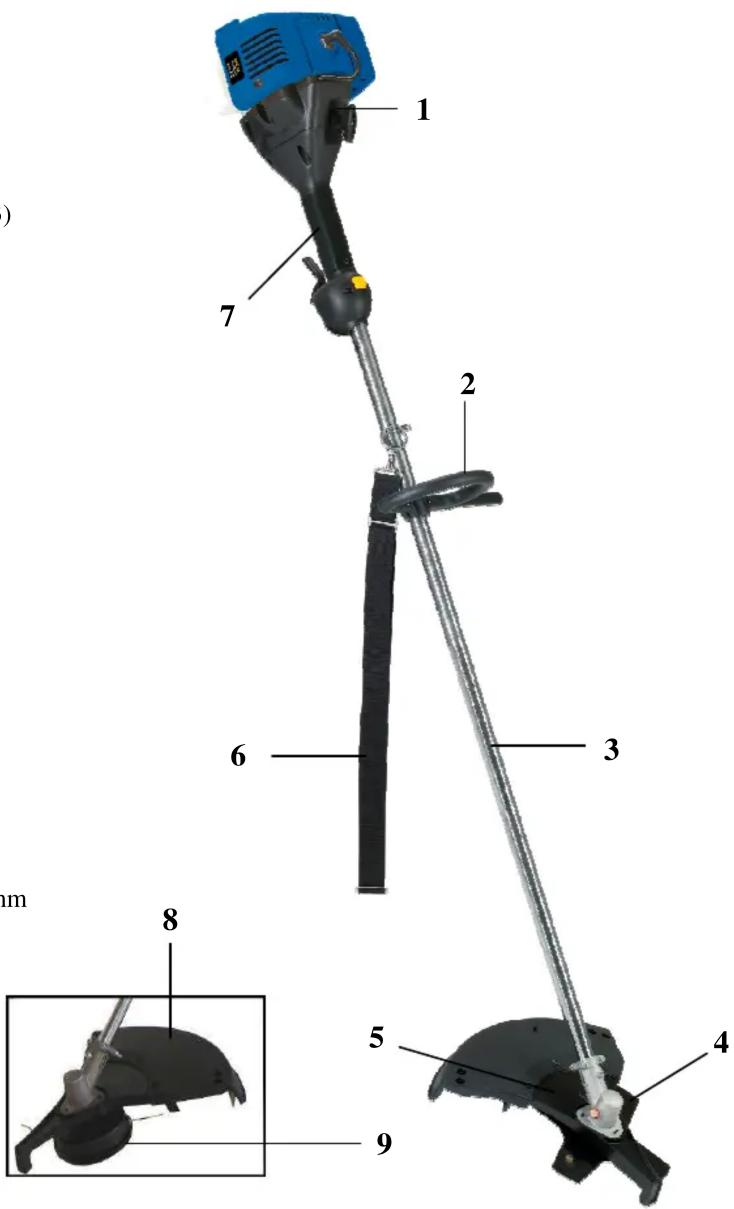

Features:

• Low vibrating 2-stroke engine
• Quick Start System for easy starting (1)
• Infinitely adjustable P-handle for easy and accurate guidance (2)
• Steel shaft, shaped for fatigue-free working (3)
• 4-teeth blade (4)
• Large knife protection cover (5)
• Carrying belt (6)
• Twin handle with all operational functions incorporated (7)
• Large line guard (8)
• Twin line spool with automatic jog system, replaceable without tools (9)
• Electronic ignition
• Primer (manual fuel pump) for quick starting

Technical data:

• Power: 1.0 kW
• Engine: 2-stroke
• Capacity: 32 ccm
• Cutting with double line: 43 cm
• Line diameter: 2.5 mm
• Cutting width knife: 23 cm
• Petrol tank volume: 0.71
• Weight approx.: 9 kg
• Packing dimensions: 1520 x 280 x 265/107 mm

As special accessory available:

Spare knife 4 teeth

Art.-No.: 34.051.63 bar code: 4006825349030

Spare line 2.5 mm

Art.-No.: 34.051.72 bar code: 4006825349023
