Royal RT 5030 - Tondeuse à fil EINHELL - Free user manual and instructions

Brand	Einhell
Model	Royal RT 5030
Product Type	String Trimmer
Power Source	Corded Electric - 230 V AC, 50 Hz
Power Consumption	500 W
Cutting Width	30 cm
Cutting Line Diameter	1.5 mm
Cutting Line Feed	Semi-automatic (bump feed)
Weight	2.5 kg
Overall Length	120 cm
Noise Level	96 dB(A)
Vibration Level	2.5 m/s²
Protection Class	IPX4 (splash-proof)
Safety Features	Safety guard, two-hand operation, switch lock
Maintenance	Clean after each use; replace cutting line when worn
Spare Parts Availability	Cutting line and spool available separately

Frequently Asked Questions - Royal RT 5030 EINHELL

How to replace the cutting line on the Einhell Royal RT 5030?

Turn off and unplug the trimmer. Remove the spool cover, take out the old line, and wind new line (1.5 mm diameter) onto the spool following the directional arrows. Feed the ends through the eyelets and reassemble.

What type of cutting line should I use?

Use a round monofilament line with a diameter of 1.5 mm. Using other sizes may damage the head.

How do I adjust the cutting head angle?

The head can be angled by pressing the adjustment button and rotating the head to the desired position. It typically has multiple angle stops.

Why does the trimmer stop during use?

Possible causes: exhausted cutting line, overload protection triggered, or overheating. Let the tool cool down, check the line, and restart.

Is the Einhell Royal RT 5030 suitable for wet grass?

It is splash-proof (IPX4) but not waterproof. Avoid using in heavy rain or on very wet grass to prevent electrical hazards.

What safety gear should I wear?

Always wear safety goggles, sturdy shoes, and ear protection. Avoid loose clothing that could get caught.

How to clean the trimmer after use?

Unplug the machine. Use a damp cloth to wipe the housing and guard. Do not spray water directly. Remove grass debris from the head and air vents.

Can I use the trimmer for edging?

Yes, the Einhell Royal RT 5030 can be configured for edging by rotating the head 90 degrees and using the edge guide (if equipped).

What is the warranty period?

Einhell offers a standard 2-year warranty. Register your product online to extend coverage.

Where can I find spare parts?

Spare parts like cutting line, spool, and guard can be purchased from Einhell service centers or authorized dealers. Check the Einhell website for your region.

USER MANUAL Royal RT 5030 EINHELL

Electric Lawn Trimmer RT 5030

incl. 2 thread spools

Art.-No.: 34.014.60

Bar code: 4006825528510

Sales unit: 4 pcs

For cutting grass in hard to get into zones, like along fences and walls, between and under brushes, everywhere the lawn mower cannot be used any longer or where the grass is already too high. With its strong universal motor the lawn trimmer is a practical helper to keep the garden tidy. The rotating nylon thread cuts the grass as neat as the knife of the lawn mower

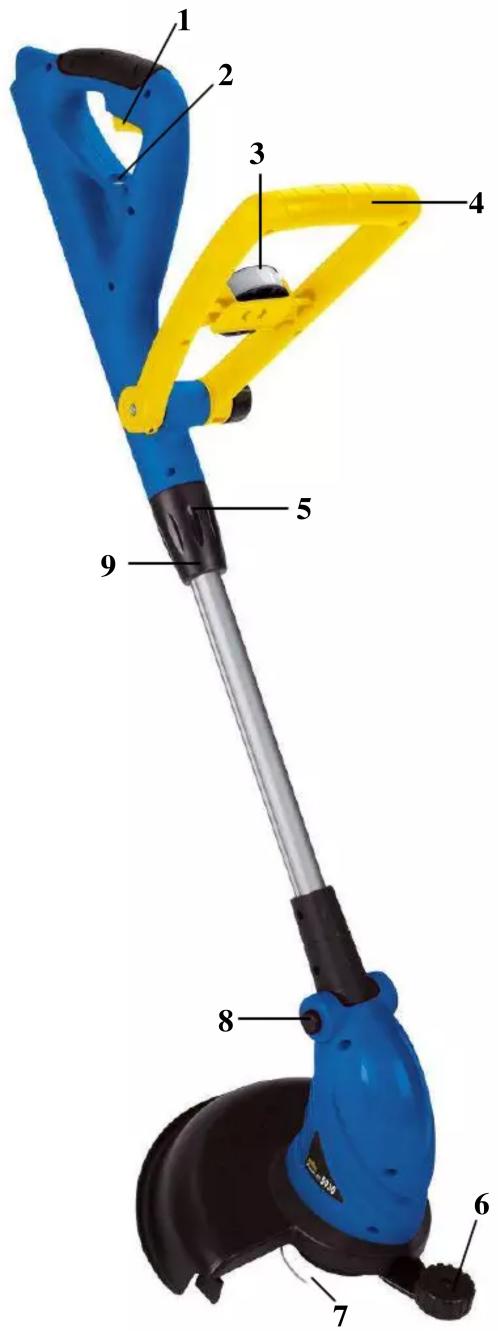

Features:

• Robust universal motor
• Housing and additional handle made of impact resisting high quality plastics
• ON-/OFF-switch (1)
• Cable strain relief (2)
• Practically holder for spare thread spool (3)
• Comfortable twin-hand operation due to the additional handle (4)
• Engine head turnable 180° for easy cuts on vertical areas (5)
• Guide roller (6)
• Double line cutting feature (7)
• Fully automatic thread adjusting (7)
• Engine head 4- tiltable (8)
• Guidance handle continuously telescopically (9)

Technical data:

• Motor: 230 V \~ 50 Hz
• Power: 500 watts
• Cutting circle: 300 mm
• No load speed: 9600 min
• Nylon thread: ∅ 1.4 mm
• Thread length: 10 m
• Weight: 3.6 kg
• Packing dimensions: 770 x 270 x 115 mm

As special accessory available:

Spare thread spool

thread-∅: 1,4 mm; thread length: 10 m; contents: 1 pc

Art.-No.: 34.050.50

Bar code: 4006825530926
