Product Type	Petrol Lawn Trimmer
Brand	Einhell
Model	GC-PT 2538 I AS
Item Number	3401935
Engine Type	Two-stroke, air-cooled
Engine Displacement	25.4 cm³
Power	0.75 kW
Fuel Tank Capacity	0.45 L
Cutting Width	380 mm
Thread Diameter	2 mm
Thread Length	400 cm
Spool Speed	7500 rpm
Weight	5.6 kg
Ignition System	Digital ignition
Starting System	Primer (manual fuel pump) and auto choke
Line Feed	Automatic jog system (bump feed)
Line Replacement	Tool-less, twin line spool
Handle	Infinitely adjustable additional handle; shaped long aluminium handle
Shaft	Split shaft for easy transport and storage
Clutch	Centrifugal clutch
Line Protection Cover	Large cover
Vibration	Low-vibration engine
Available Accessory	Lawn Trimmer Accessory (Item No.: 3405220)
Maintenance	Regular cleaning of air filter, spark plug, and fuel system; use correct fuel mix
Safety Features	Line protection cover; centrifugal clutch stops cutting tool at idle

Frequently Asked Questions - GC-PT 2538 I AS EINHELL

What is the fuel mixture ratio for the GC-PT 2538 I AS?

Use a 50:1 ratio of unleaded petrol to high-quality two-stroke oil (e.g., 40 ml oil per 2 litres petrol). Always mix in a separate container.

How do I start the trimmer?

Press the primer bulb 5-6 times until fuel is visible, set the choke to closed position, pull the starter cord gently until resistance is felt, then pull sharply. Once engine runs, open choke gradually.

What is the cutting width?

The cutting width is 380 mm (15 inches), allowing efficient trimming of large areas.

How do I replace the trimming line?

Remove the spool cover (tool-less), take out the empty spool, wind approx. 4 meters of 2 mm diameter line onto the spool, feed ends through eyelets, and reassemble.

Can I use the trimmer for edging?

Yes, the adjustable handle and lightweight design allow tilting the trimmer for edging along paths and borders.

What type of fuel does it use?

It uses a petrol-oil mixture (50:1) for two-stroke engines. Do not use pure petrol or four-stroke oil.

How do I store the trimmer?

Drain the fuel tank and run the engine until dry. Clean the unit, split the shaft for compact storage, and keep in a dry place.

What maintenance is required?

Regularly clean the air filter, check the spark plug gap (0.6-0.7 mm), lubricate the gearhead, and inspect the line spool for wear.

Is the trimmer suitable for thick weeds?

Yes, the 25.4 cm³ engine and 380 mm cutting width handle thick grass and light weeds. For very thick brush, consider a blade attachment (sold separately).

What safety gear should I use?

Always wear safety glasses, hearing protection, sturdy shoes, long trousers, and gloves. Keep bystanders at least 15 m away.

USER MANUAL GC-PT 2538 I AS EINHELL

Abstract geometric shape resembling a stylized letter 'E' on a solid red background (no text or symbols)

Einhell Germany AG

Einhell

CLASSIC

GC-PT 2538 I AS

Petrol Lawn Trimmer

Item No.: 3401935

Ident No.: 11025

Bar Code: 4006825592603

The GC-PT 2538 I AS petrol grass trimmer is a powerful tool with which you can trim hard-to-reach areas of the garden quickly, easily and effectively. Digital ignition ensures fast, dynamic fuel intake and stable operation of the motor. Its shaped long handle made of aluminium and the infinitely adjustable handle enable tireless, precise operation.

Features

High-grade and low-vibration 2-stroke engine-

Infinitely adjustable additional handle for easy/precise working-

Shaped long handle made of aluminium for tireless working-

With split shaft for easy transport and space-saving storage-

Twin line spool with automatic jog system, toolless changing-

Quick start through primer (manual fuel pump) and auto choke-

Large line protection cover-

Centrifugal clutch for cutting tool-

Digital ignition - stable engine run-

Technical Data

• Engine two-stroke, air cooled
• Engine displacement 25.4 cm³
• Power 0.75 kW
• Capacity of fuel tank 0.45 L
• Revolutions of thread spool 7500 rpm
• Cutting width 380 mm
• Thread diameter 2 mm
• Thread length 400 cm

Logistic Data

• Product weight 5.6 kg
• Gross weight single packaging 7.6 kg
• Dimensions single packaging 1010 x 275 x 275 mm
• Pieces per export carton 2 Pieces
• Gross weight export carton 17 kg
• Dimensions export carton 1040 x 300 x 380 mm
• Container quantity (20"/40"/40"HC) 486 | 1008 | 1130

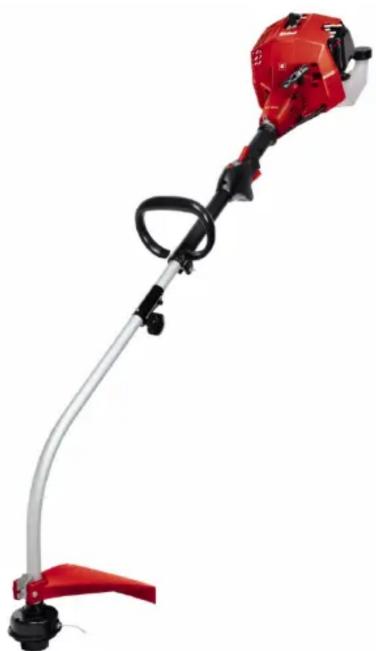

Red and silver utility tool with articulated arm and handle (no visible text or symbols)

Available as special accessories

Lawn Trimmer Accessory

Item No.: 3405220

Bar Code: 4006825558975
