Product Type	Electric Lawn Trimmer (String Trimmer)
Brand	Einhell
Model	BG-ET 5030
Article Number	34.014.63
Power Supply	230 V ~ 50 Hz
Power	500 W
Cutting Circle	300 mm
No-Load Speed	9,600 rpm
Thread Diameter	1.4 mm
Thread Length	10 m
Net Weight	2.95 kg
Gross Weight	3.6 kg
Packing Dimensions	775 x 275 x 115 mm
Motor Type	Universal motor (brushed)
Cutting Line Feed	Fully automatic (bump-feed)
Cutting Line Type	Double line (two cutting lines)
Head Rotation	180° (for vertical edging)
Head Tilt	4 positions (tiltable)
Handle	Additional handle for two-handed operation
Handle Adjustment	Continuous telescopic
Guide Roller	Yes (for edge guidance)
Spool Holder	Integrated holder for spare spool
Cable Strain Relief	Yes
Safety Switch	ON/OFF switch
Housing Material	Impact-resistant high-quality plastic

Frequently Asked Questions - BG-ET 5030 EINHELL

How do I replace the cutting line on the Einhell BG-ET 5030?

First, unplug the trimmer. Press the spool release tabs and remove the empty spool. Insert a new spool (e.g., Einhell Art.-No. 34.057.10) and thread the lines through the eyelets. The trimmer features fully automatic thread adjusting - just bump the head on the ground to feed more line.

What type of cutting line does the BG-ET 5030 use?

It uses a nylon thread with a diameter of 1.4 mm. The spool holds up to 10 m of line. The trimmer has a double line cutting feature for efficient trimming.

Can I use the BG-ET 5030 for edging along sidewalks?

Yes. The engine head can be turned 180° and tilted in 4 positions, allowing you to trim vertically along edges and fences. The guide roller helps maintain a consistent distance.

How do I adjust the handle length?

The guidance handle is continuously telescopically adjustable. Loosen the locking mechanism, extend or retract the handle to your preferred length, then tighten securely.

What is the power source for the Einhell BG-ET 5030?

It is an electric corded trimmer requiring a 230 V ~ 50 Hz mains outlet. The 500 W universal motor provides ample power for regular garden trimming.

How do I maintain the BG-ET 5030?

After each use, clean the housing and head with a dry cloth. Check the power cord for damage. Periodically lubricate moving parts with light oil. Replace the spool when empty. Store in a dry place.

Is the BG-ET 5030 safe to use?

Always wear safety glasses and sturdy shoes. Keep the cord away from the cutting area. Use the ON/OFF switch to power off when not trimming. The cable strain relief prevents accidental disconnection. Do not use in wet conditions.

What spare parts are available for the BG-ET 5030?

The main spare part is the spare thread spool (Art.-No. 34.057.10). Other parts like the cutting head, handles, or switches may be available through Einhell service centers. Check the manual for a parts list.

Can I use the trimmer for heavy weeds?

The BG-ET 5030 is designed for grass and light weeds. For thicker brush, a heavier-duty trimmer may be needed. The 500 W motor and 1.4 mm line handle typical garden growth well.

How do I store the trimmer when not in use?

Store the trimmer in a dry, frost-free location. Hang it by the handle or place it on a shelf. Keep the cord loosely coiled. Remove the spool if storing for extended periods to prevent line deformation.

USER MANUAL BG-ET 5030 EINHELL

Abstract geometric logo design with white letter 'E' on red background (no text or symbols)

Einhell

BLUE

BG-ET 5030

Electric Lawn Trimmer

Art.-No. 34.014.63

For cutting grass in hard to get into zones, like along fences and walls, between and under brushes, everywhere the lawn mower cannot be used any longer or where the grass is already too high. With its strong universal motor the lawn trimmer is a practical helper to keep the garden tidy. The rotating nylon thread cuts the grass as neat as the knife of the lawn mower.

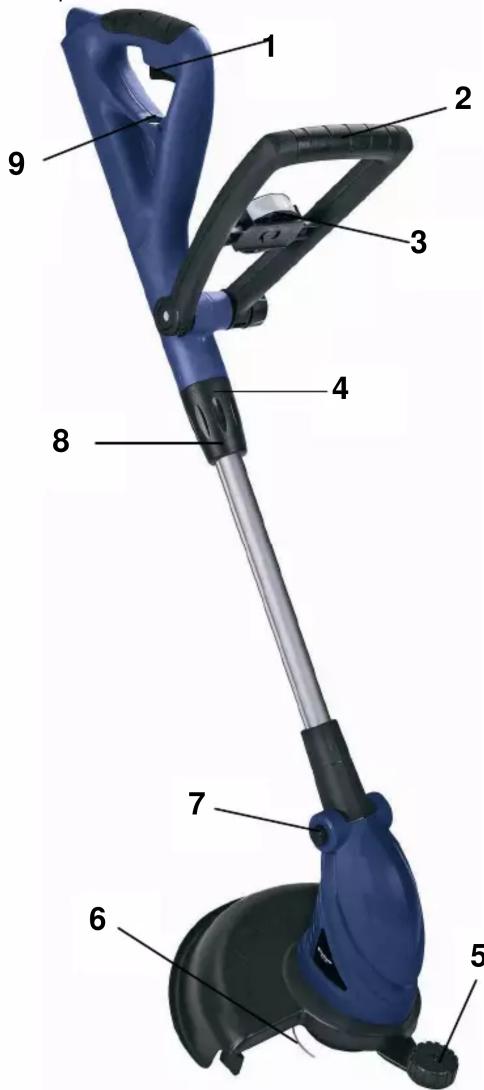

Features

■ Sturdy universal motor
■ Housing and additional handle made of impact resistant high quality plastics
■ ON/Off switch (1)

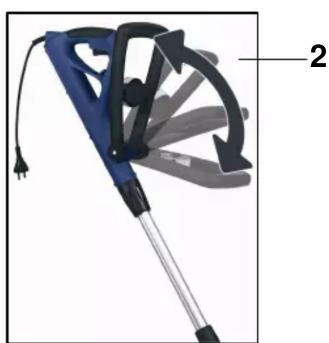

■ Comfortable twin-hand operation due to the additional handle (2)
■ Practically holder for spare thread spool (3)
■ Engine head turnable 180° for easy cuts on vertical areas (4)
■ Guide roller (5)
■ Double line cutting feature (6)
■ Fully automatic thread adjusting (6)

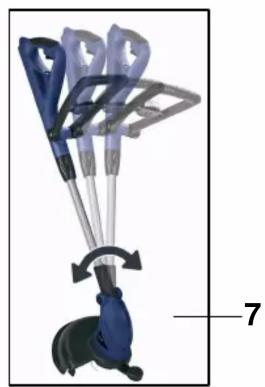

■ Engine head 4- tiltable (7)
■ Guidance handle continuously telescopically (8)
■ Cable strain relief (9)

Technical Data

■ Mains: 230 V \~ 50 Hz
Power: 500 W
■ Cutting circle : 300 mm
■ Rotations: 9,600 rpm
■ Nylon thread: ∅ 1.4 mm
Thread length: 10 m
■ Net weight: 2.95 kg
■ Gross weight: 3.6 kg
■ Packing dimensions: 775 x 275 x 115 mm
■ Bar code: 4006825 548280
■ Sales unit: 4 pcs

Illustration of a blue electric motor with a black fan blade and labeled component '2' (no text or symbols on the device itself)

Illustration of a person holding a handheld device with attached wires and a numbered label '7' (no text or symbols on the device itself)

Close-up of a blue and gray manual push tool with a 180° angle indicator (no text or symbols on the tool itself)

Close-up of a blue handheld tool with black handle and gray handle, showing a 8-inch measurement arrow (no text or symbols on the tool itself)

As special accessory available:

Spare thread spool

Einhell Grey

Art.-No.: 34.057.10

Bar code: 4006825 548334
