Royal MT 26 - Tondeuse à fil EINHELL - Free user manual and instructions

Product Type	Corded Electric String Trimmer
Brand	Einhell
Model	Royal MT 26
Power Supply	230 V / 50 Hz AC
Power Consumption	1000 W
Cutting Width	38 cm
Cutting Line Diameter	2 mm
Line Feed System	Semi-automatic (bump feed)
Weight	4.2 kg
Overall Length	120 cm
Noise Level (LWA)	96 dB(A)
Vibration Level	4.5 m/s²
Main Functions	Trimming grass and weeds, edge cutting
Adjustable Handle	Yes, ergonomic with soft grip
Safety Features	Protective guard, safety switch, double insulation
Maintenance	Clean after use, check line spool, replace worn parts
Spare Parts Availability	Cutting line spools, protective guards, handles
Warranty	2 years (standard manufacturer warranty)

Frequently Asked Questions - Royal MT 26 EINHELL

How do I replace the cutting line on the Einhell Royal MT 26?

To replace the cutting line, press the spool release tabs, remove the spool, and wind a new line (2 mm diameter) in the direction indicated by arrows. Then reinsert the spool and trim the line to the proper length.

What is the cutting width of this trimmer?

The Einhell Royal MT 26 has a cutting width of 38 cm, making it suitable for medium-sized lawns.

Is the trimmer corded or cordless?

It is a corded electric model powered by a standard 230 V household outlet.

How do I adjust the handle?

Loosen the wing nut on the handle, adjust to your desired height or angle, then tighten the wing nut securely.

Can I use this trimmer for edging?

Yes, the Royal MT 26 can be used for edging by adjusting the trimming head to a vertical position.

What type of cutting line does it use?

It uses a 2 mm diameter monofilament line. Replacement spools are available from Einhell.

How do I clean the trimmer after use?

Unplug the trimmer, wipe it with a damp cloth, and remove any grass or debris from the guard and spool area. Do not use water directly.

What safety precautions should I take?

Always wear safety glasses and sturdy shoes, keep bystanders away, and disconnect the power before making adjustments or cleaning.

Is the spool refillable or pre-wound?

The spool is refillable. You can purchase replacement line and wind it yourself, or buy pre-wound spools.

What should I do if the trimmer vibrates excessively?

Check for a tangled line, worn parts, or debris caught in the head. If the problem persists, contact Einhell service.

USER MANUAL Royal MT 26 EINHELL

Petrol Trimmer MT 26

Art.-No.: 34.017.20

Bar code: 4006825533514

Sales unit: 1 pc

The high-powered petrol grass trimmer is designed for easy operation and maintenance. It is ideal for all trimming jobs near trees, paths and steps throughout the garden. For easy installation and space saving storage this unit has a split shaft coupling system.

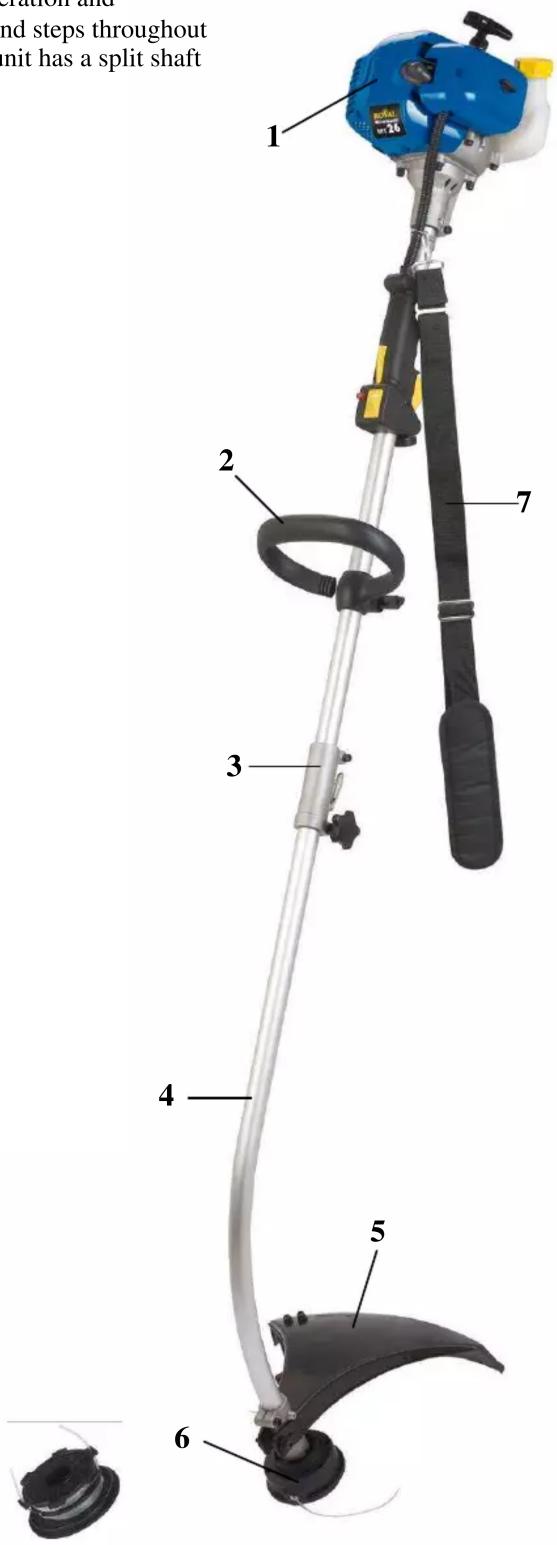

Features:

• Low vibrating 2-stroke engine (1)
• Quick start system for simple starting
• Continuously adjustable additional handle for easy and accurate guidance (2)
• Quick coupling system for an easy installation and disassembling (3)
• Angled alu guidance bar (4) and carrying belt (7) for effortless operation
• Large safety guard (5)
• Twin line spool with tip-automatic system, with tool less replacement (6)
• Electronic ignition
• Primer (manuel fuel pump) for fast starting after a long break

Technical data:

• Power: 0.75 kW / 1 HP
• Motor: 2-stroke
• Capacity: 26 ccm
• Cutting width double thread: 40 cm
• Thread-∅: 2 mm
• Thread length: 7.8 m
• Petrol tank volume: 0.5 l
• Weight: 7.2 kg

- Packing dimensions: 1000 x 250 x 260/120 mm

Close-up of hands holding a metallic tool with a black clip, labeled with number 3 (no text or symbols on the tool itself)

As special accessory available:

Spare thread spool

Art.-No.: 34.050.90

Bar code: 4006825533552
