SteelTones1 - Headphones Lamax - Free user manual and instructions

Product Type	True Wireless Earbuds
Brand	Lamax
Model	SteelTones1
Wireless Technology	Bluetooth 5.3
Maximum Pairing Distance	Up to 15 m
Supported Codecs	AAC, SBC
Earbud Battery Capacity	30 mAh
Charging Case Battery Capacity	300 mAh
Playback Time (50% volume, no ANC)	Up to 6 h (single earbud) / Up to 24 h (with case)
Earbud Charging Time	1 h
Water Resistance	IPX5
Microphones	2 (for calls)
Impedance	32 Ω
Sensitivity	112 dB
Frequency Range	20 Hz - 20 kHz
Weight	76 g
Controls	Multifunction button on each earbud (tap, double tap, triple tap, hold)
Charging Port	USB-C
Activation	Automatic on removal from charging case
Mobile Assistant Activation	Triple tap left (Android), triple tap right (iOS)
Package Contents	1× LAMAX SteelTones1, 1× USB-C cable, 1× User Manual

Frequently Asked Questions - SteelTones1 Lamax

How do I pair the Lamax SteelTones1 with my phone?

Remove both earbuds from the charging case to automatically activate pairing. On your phone, enable Bluetooth and select LAMAX Steel-Tones1 from the device list.

How do I restart the earbuds?

Delete the earbuds from your phone's paired devices, then simultaneously tap the multifunction button on both earbuds five times.

How do I charge the earbuds and the case?

Connect the USB-C cable to the charging case and plug into a USB power supply (max 5V, 2A). The case LEDs flash during charging and turn off when full. Place earbuds in the case; their LEDs glow white while charging.

What is the battery life of the earbuds?

Single earbud playback is up to 6 hours at 50% volume. With the charging case, total playback reaches up to 24 hours.

Are the earbuds water resistant?

Yes, they have an IPX5 rating, meaning they can withstand sweat and light rain but should not be submerged.

How do I answer or end a call?

Answer by tapping the multifunction button on either earbud. End a call by double-tapping the same button. Reject an incoming call by holding the button for 2 seconds.

How do I activate the voice assistant?

Triple-tap the left earbud for Google Assistant (Android) or triple-tap the right earbud for Siri (iOS).

Can I use only one earbud at a time?

Yes, you can use a single earbud. The other will remain in the case. Pairing is automatic when you remove one.

What should I do if the earbuds don't connect?

Ensure Bluetooth is on and the earbuds are charged. Try resetting by deleting the device from your phone and restarting the earbuds (five taps on both simultaneously).

How do I clean the earbuds?

Use a soft, dry cloth. Avoid liquids. Clean the charging contacts with a cotton swab if needed. Do not use abrasive cleaners.

USER MANUAL SteelTones1 Lamax

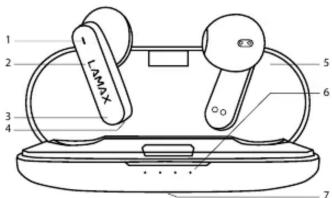

6) Charging case notification LED

7) USB-C port

CONTROLS

Turn On	Remove the earbuds from the charging case to automatically turn them on. Hold down the multifunction button for 2 seconds if the earbuds are off.
Turn Off	Insert the earbuds back into the charging case to automatically switch them off. Tap the multifunction button on the right and left earbud simultaneously five times.
Restart	Remove the earbuds from your phone's paired devices. Tap the multifunction button on the right and left earbud simultaneously five times.
Play / Pause	Tap the multifunction button on the left or right earbud.
Increase Volume	Hold down the multifunction button on the right earbud.
Decrease Volume	Hold down the multifunction button on the left earbud.
Next Track	Double tap the multifunction button on the right earbud.
Previous Track	Double tap the multifunction button on the left earbud.
Answer Call	Tap the multifunction button on the left or right earbud. (The notification LED will flash twice briefly.)
End call	Double tap the multifunction button on the left or right earbud.
Reject Call	Hold the multifunction button for 2 seconds on the left or right earbud.
Activate Mobile Assistant (Android OS)	Triple tap the multifunction button on the left earbud.
Activate Mobile Assistant (iOS)	Triple tap the multifunction button on the right earbud.

PAIRING

Before pairing for the first time, remove both earbuds from the charging case and put them back in to activate them.

1. Remove the earbuds from the charging case. The earbuds will automatically connect to each other. One earbud will be the master and ready to pair, indicated by a quick white flash. The other earbud will flash slowly.

2. Switch on Bluetooth on your device and search for LAMAX Steel-Tones1 in the list of available devices. After successful pairing, you will hear a sound notification. The LEDs in both earbuds will turn off.

CHARGING

1. Connect the USB-C cable to the port on the back of the charging case. Plug the other end of the cable into a USB power supply (max input 5V, 2A). The notification LEDs flash gradually while charging and turn off when fully charged.

2. Place the earbuds in the charged charging case. The earbuds' LED will glow white while charging and turn off when fully charged.

SPECIFICATIONS

Wireless technology	Bluetooth 5.3
Maximum pairing distance	up to 15 m
Supported codecs	AAC, SBC
Earbud battery capacity	30 mAh
Charging case battery capacity	300 mAh
Playback time without ANC (50% volume)	up to 24 h (with charging case) up to 6 h (single earbud)
Earbud charging time	1 h
Water resistance	IPXS
Microphones	2
Impedance	32
Sensitivity	112 dB
Frequency range	20 Hz - 20kHz
Weight	76 g

Printing errors reserved.

CE

RoHS

LAMAX

SteelTones1

VERPACKUNGSINHALT

1× LAMAX SteelTones

1× USB-C-Stromkabel

1× Benutzerhandbuch

BESCHREIBUNG
