Product Type	True Wireless Stereo (TWS) Earbuds with Active Noise Cancellation
Model	Lamax Clips1 ANC
Earbud Dimensions	20 x 15 x 15 mm (approx.)
Charging Case Dimensions	60 x 40 x 30 mm (approx.)
Earbud Weight	4 g each
Total Weight (with case)	50 g (approx.)
Driver Size	10 mm dynamic
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω
Bluetooth Version	5.0
Wireless Range	Up to 10 m (33 ft)
Active Noise Cancellation	Yes, feedforward ANC
Earbud Battery Life (ANC on)	Up to 4 hours
Earbud Battery Life (ANC off)	Up to 5 hours
Charging Case Battery Capacity	300 mAh
Additional Charges (via case)	3 full charges (approx.)
Charging Port	USB-C
Charging Time (earbuds)	1.5 hours
Charging Time (case)	2 hours
Microphone	Built-in, for calls and voice assistant
Water Resistance	IPX4 (splashproof)
Controls	Touch controls (play/pause, volume, ANC toggle, voice assistant)
Supported Codecs	SBC, AAC
Included Accessories	3 pairs silicone ear tips (S/M/L), USB-C charging cable, user manual
Compatibility	Bluetooth-enabled devices (smartphones, tablets, computers)

Frequently Asked Questions - Clips1 ANC Lamax

How do I pair the Lamax Clips1 ANC with my phone?

Remove the earbuds from the charging case. They will automatically enter pairing mode. On your phone, enable Bluetooth and select "Lamax Clips1 ANC" from the list of available devices. If prompted, confirm pairing.

How do I reset the earbuds?

Place both earbuds back in the charging case. Press and hold the touch button on each earbud for about 10 seconds until the LED flashes red and white. Then close the case and reopen to reconnect.

How can I check the battery level of the earbuds?

When connected to your phone, the battery level may be displayed in the Bluetooth settings or a companion app (if available). Alternatively, open the charging case and observe the LED indicator on the case: green (high), yellow (medium), red (low).

How do I turn Active Noise Cancellation (ANC) on or off?

Tap the touch button on the left earbud twice to toggle ANC on/off. You will hear a voice prompt or tone indicating the change.

Can I use only one earbud at a time?

Yes, you can use either earbud independently for calls or music. Simply take one earbud out of the case and it will connect automatically.

Are the Clips1 ANC earbuds waterproof?

They are splashproof with an IPX4 rating, meaning they can withstand light rain and sweat. Do not submerge them in water.

How do I clean the earbuds?

Use a soft, dry cloth to wipe the exterior. For the ear tips, remove them and rinse with warm water, then let them dry completely before reattaching. Do not use harsh chemicals.

Can I replace the ear tips or other parts?

Yes, the ear tips are replaceable. Your earbuds come with three sizes (S/M/L). For other parts like the battery, contact Lamax support as they are not user-replaceable.

What is the warranty period for Clips1 ANC?

Lamax typically offers a 2-year limited warranty against manufacturing defects. Check your local retailer or Lamax official website for exact terms.

Can I use the earbuds with a computer or non-phone device?

Yes, as long as the device supports Bluetooth audio. Put the earbuds in pairing mode and select them from the device's Bluetooth settings.

USER MANUAL Clips1 ANC Lamax

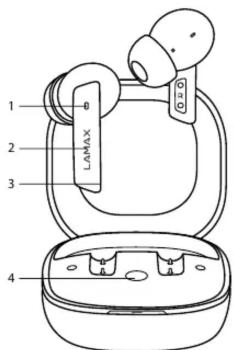

4) Charging station button

CONTROLS

Switch on	Hold down the multifunction button for 5 seconds
Switch off	Hold down the multifunction button for 5 seconds
Play / Pause	Tap the multifunction button
Volume up	Double tap the multifunction button on the right earphone
Volume down	Double tap the multifunction button on the left earphone
Next song	Hold down the multifunction button on the right earphone for 2 seconds
Previous song	Hold down the multifunction button on the left earphone for 2 seconds
Answer call	Tap the multifunction button
End call	Hold down the multifunction button for 1 second
Reject a call	Hold down the multifunction button for 2 seconds
ANC on / ANC off / Transparency modes	Triple tap the multifunction button on the right earphone
Music / Game mode	Triple tap the multifunction button on the left earphone
Activate mobile assistant	4x taps on the multifunction butto

SWITCHING ON

The earphones automatically switch on when removed from the charging station. To switch on manually, hold the multi-function button for 5 seconds. An audible notification sounds when switching

SWITCHING OFF

The earphones automatically switch off when inserted into the charging station. To switch off manually, hold the multi-function button for 5 seconds. An audible notification will sound when switching off.

PAIRING

1. Remove the earphones from the charging station. The earphones will automatically connect to each other. One headset will be the master and ready for pairing, this is indicated by a white flash. Another headset will glow white.

2. Switch on Bluetooth on your device and search for LAMAX Clips1 ANC in the list of available Bluetooth devices. After successful pairing, an audio notification will sound. The LEDs in both earphones will turn off.

Insert the headphones into the charging station and hold the charging station button for 10 seconds. The LEDs on both headphones will flash white five times. Then pair them as described in step 1.

ANC AND TRANSPARENCY MODE

Moder order

1. ANC on - switching on of active noise cancellation

2. ANC off - switching off of active noise cancellation. Standard mu-

sic mode

1. Transparency mode – amplification of ambient sounds thanks to microphones in the earphones

CHARGING

To charge the charging station, plug the cable into the USB-C port on the back of the charging station and plug the other end of the cable into a USB power supply with a maximum input voltage of SV and current of 2A The light glows red when the charging station is charging. When fully charged, it will glow white.

Before using for the first time, be sure to remove the transparent protection film on the charging pins from the inside of both earphones.

To charge the earphones, insert them into the charged charging station. When charging, the LED in the earphones will glow red. When fully charged, the LEDs will glow white for 30 seconds, then turn off.

PARAMETERS

Wireless technology	Bluetooth 5.3
Maximum pairing distance	up to 15 meters
Supported codecs	AAC, SBC
Battery capacity in the handset	43 mAh
Charging station battery capacity	350 mAh
Playback time	up to 10 hours on a single charge
Charging time of headphones	2 hours
Charging time of the charging station	2 hours
Weight of one handset	4,5 g
Weight with charging station	42 g

Printing errors reserved.

Download the current version of the user manual here:

https://lamax-electronics.com/clips1-anc/manual

CE RoHS

LAMAX Clips1 ANC
