SAATIN SE20 - Uncategorized Eldom - Free user manual and instructions

Product Type	Steam Iron
Model	SAATIN SE20
Brand	Eldom
Power Supply	220-240V ~ 50/60Hz
Power Consumption	2000W
Water Tank Capacity	300 ml
Soleplate Material	Ceramic-coated stainless steel
Steam Output (Continuous)	40 g/min
Steam Burst	150 g/min
Spray Function	Yes
Self-Cleaning	Yes
Anti-Drip System	Yes
Auto Shut-Off	Yes, after 8 minutes of inactivity
Vertical Steaming	Yes
Dimensions (L x W x H)	300 x 120 x 150 mm
Weight	1.2 kg
Power Cord Length	2 m
Safety Features	Thermal fuse, auto shut-off
Maintenance	Descaling every 1-2 months
Spare Parts Available	Water tank, soleplate, steam button
Repairability Index	7.5/10

Frequently Asked Questions - SAATIN SE20 Eldom

How to fill the water tank?

Unplug the iron. Open the water inlet cover on the top. Use the included measuring cup to pour water into the tank up to the MAX mark. Close the cover securely.

What type of water should I use?

Use ordinary tap water. If your water is very hard, mix with distilled water 50:50. Do not use pure distilled, demineralized, or scented water as it may damage the iron.

How to set the temperature?

Rotate the temperature dial to the desired setting: low for synthetics, medium for silk/wool, high for cotton/linen. Wait for the indicator light to turn off before ironing.

How to use the steam functions?

For continuous steam, set temperature to high (cotton/linen). Press the steam button intermittently. For steam burst, press the burst button firmly. For vertical steaming, hold iron upright and press burst.

What is the self-clean function and how to use it?

Self-clean helps remove scale. Fill tank to MAX, set temperature to maximum, hold iron over sink, press and hold self-clean button. Steam and water will flush out impurities. Release after 30 seconds.

How to clean the soleplate?

Unplug and cool the iron. Wipe with a damp cloth. For stubborn residue, use a non-abrasive cleaner on a cloth. Do not use scouring pads or vinegar.

How to descale the iron?

Use the self-clean function regularly (every 1-2 months). Alternatively, fill tank with a mix of water and white vinegar (1:3), heat to high, steam for a few minutes, then rinse with fresh water.

Why is the iron not producing steam?

Check water level. Ensure temperature is set high enough (cotton/linen). If the iron has been unused for a while, pump the steam button several times. If no improvement, descale the iron.

What does the auto shut-off do?

The iron turns off automatically if left idle for 8 minutes (60 seconds if lying on its side). It prevents accidents. Move the iron to reactivate.

Can I repair the iron myself?

Only minor repairs like replacing the water tank or soleplate are user-accessible. For electrical issues, contact an authorized service center. The repairability index is 7.5/10.

USER MANUAL SAATIN SE20 Eldom

PROSTUJĄCA SZCZOTKA DO WŁOSÓW PL

ELECTRIC HAIR BRUSH EN

ELEKTRICKÝ KARTÁČ NA VLASY CZ

CKÁ KEFA NA VLASY SK

ELEKTROMOS HAJEGYENESÍTŐ HU

CEPILLO ALISADOR DE PELO ES

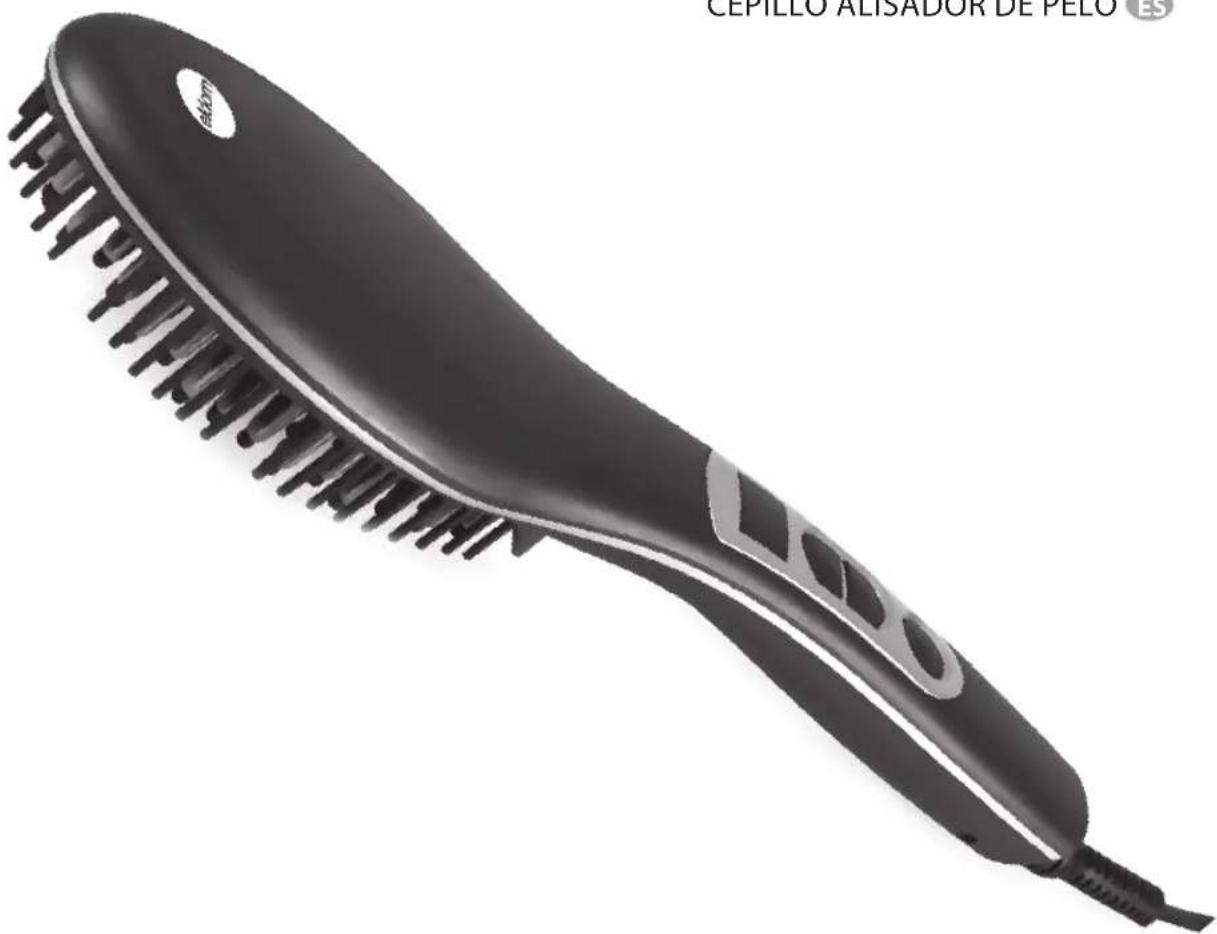

Black and white photo of a hair brush with bristles, no visible text or symbols on the brush itself.

_

| _

一

1

WSKAZÓWKI BEZPIECZEŃSTWA

Please read all these instructions carefully before using this appliance.

1. The appliance must be connected to the mains whose current is compliant with the parameters on the housing.
2. For additional protection, it is advisable to equip the electrical installation of the bathroom with a safeguard a residual current device (RCD) with a triggering rated differential current not greater than 30 mA. Consult a qualified electrician.
3. The appliance can be used by children aged 8 and older, by persons with limited physical and mental capabilities, and by persons who have no experience nor knowledge of the equipment, only under supervision or if instructed on the safe use of the appliance in way that guarantees that the associated risks are understood. Children shall not play with the appliance. Children should not clean nor maintain the appliance without supervision.
4. The appliance heats up to high temperatures when used. Avoid contact with the skin and the power cord.
5. Always unplug the appliance before cleaning or maintenance, in case of malfunction, and after use. Do not leave the appliance plugged in, if it is not in use, even for a short time.
6. Always disconnect the appliance from the mains by pulling the plug, not the power cord.
7. In case of hair styling, choose appropriate duration so as not to overheat the hair.
8. Do not use the brush for artificial hair or for grooming animals.

9. Do not use the appliance if it is wet, do not operate it with wet hands, near showers, tub water, sink water or water in any other container.

10. If the appliance is used in a bathroom, unplug it after use. The proximity of water presents a hazard, even if the appliance is switched off.

11. Do not immerse in water or spray any liquids onto the appliance.
12. Never leave the switched on appliance unattended.
13. Before putting the appliance away for storage, wait until it cools down.
14. Regularly inspect the power cord and the entire appliance for any damage. Do not use damaged appliance.
15. Do not insert the appliance into flames or any other source of heat.
16. To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.
17. The appliance can be repaired only at an authorised servicing centre. Any upgrades or the use of non-original spare parts or components is forbidden and poses a hazard for the user.
18. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

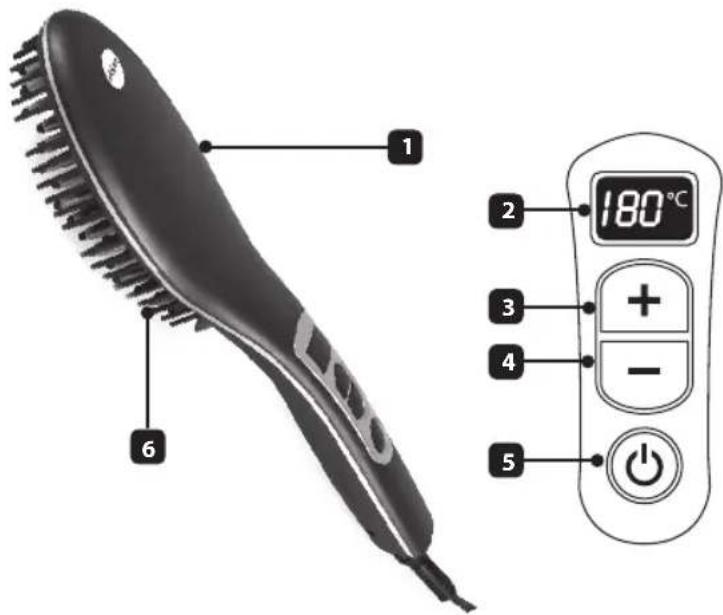

GENERAL DESCRIPTION

1. Housing
2. LCD
3. Increase temperature (+)
4. Decrease temperature (-)
5. On/off switch
6. Straightening and brushing piece

TECHNICAL DATA

• power: 70W
• supply voltage: 230V \~50Hz

DESCRIPTION

The electric hair brush is used for straightening and combing hair. The brush gives shine and smoothness to puffy or curly hair. The housing (1) of the brush is made of material resistant to high temperatures and the pins have anti-burning tips. By choosing the appropriate temperature, one can use the brush with thin, normal and thick or curly hair.

CAUTION!

Do not use the brush for artificial hair or for grooming animals. Do not keep the brush in the same spot for longer than 20 seconds.

Before using the brush, wash the hair and comb it thoroughly.

For best results, do not brush too much hair at once.

OPERATION

To switch on the appliance, press and hold the (5) button for approximately 2 seconds, then select the appropriate temperature depending on the type of hair. The temperature can be adjusted in steps of 5^ by pressing (+) and (-) – increase temperature (3) and decrease temperature (4). The default temperature is 180^

• fragile/thin/dyed hair – 170-190 °C (selecting low temperature may increase the duration of hair straightening)
• normal hair 200-210 °C
• dense/thick/curly hair 210-230 °C

When hair straightening is completed, switch off the appliance by pressing the (5) button and holding it for about 2s, then disconnect the appliance from the mains by pulling the

plug. Do not pull the cord. Wait for the appliance to cool down before putting it away for storage. The brush switches off automatically after 1 hour.

To switch between °C and °F press (+) and (-) simultaneously.

During operation, the brush generates ions that remove static electricity from the hair, thus making it less puffed.

CLEANING AND MAINTENANCE

• before cleaning, disconnect the appliance from the mains,
• clean the appliance only if it is cold,
• do not immerse in water,
• the external surfaces can be cleaned with a damp cloth
• do not use heavy-duty or surface-damaging detergents and cleaning products

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void. Warranty terms and conditions: see the attachment.

CAUTION:

Do not use the appliance near bathtubs, showers, swimming pools and similar water reservoirs.
