HOBII PH10 - Cooker Eldom - Free user manual and instructions

Product Type	Electric Cooker (Ceramic Hob)
Brand	Eldom
Model	HOBII PH10
Power	1150 W
Supply Voltage	230 V ~ 50 Hz
Heating Element	Infrared lamp (ceramic)
Temperature Control	Smooth adjustment via thermostat (MIN to MAX)
Indicator Light	Yes, signals operation
Heating Plate Material	Ceramic
Suitable Cookware	Metal and ovenproof dishes with flat, stable bottoms
Safety Features	Thermostat with MIN position for shut-off; requires grounded outlet; child safety (8+ years under supervision); do not move during operation
Clearance Required	At least 5 cm from sides; not in corner or next to wall
Surface Requirements	Level, stable, dry, high-temperature resistant
Cleaning Method	Wipe with soft damp cloth and mild detergent; do not immerse or use abrasive agents; not dishwasher safe
Usage Environment	Indoor, well-ventilated, protected from rain and wind (not outdoors)
Child Safety	Keep out of reach of children under 8; cleaning by children under 8 not allowed
Warranty	For household use only; professional use invalidates warranty
Repair Service	Authorized servicing points only; list on www.eldom.eu
First Use Smell	Normal, due to heating elements and insulation

Frequently Asked Questions - HOBII PH10 Eldom

What is the power rating of the Eldom HOBII PH10 cooker?

The cooker has a power of 1150 W and operates at 230 V ~ 50 Hz.

What type of cookware should I use?

Use only metal and ovenproof dishes with flat, stable bottoms to ensure proper contact and stability on the heating plate.

Does the cooker have an indicator light?

Yes, the control light (3) illuminates when the appliance is operating.

How should I clean the cooker?

Unplug and let cool completely. Wipe all surfaces with a soft, damp cloth and mild detergent. Do not immerse in water or use abrasive agents. Not dishwasher safe.

Can I use the cooker outdoors?

No, the cooker is intended for indoor use only and must be protected from rain and wind. It can be used under a roof but not in open air.

Is the cooker safe for children?

Children aged 8 years and older can use it under supervision. Children under 8 must be kept away from the appliance and cord. Cleaning by children under 8 is not allowed.

What should I do if the cooker emits a strange smell on first use?

A specific smell from the heating elements and insulation is normal during the first activation. It will disappear after a short time.

Where can I get the cooker repaired?

Repairs must be performed by an authorized servicing point. A list is available in the appendix or on www.eldom.eu. Do not use non-original spare parts.

What are the clearance requirements?

Provide at least 5 cm of space from the sides of the appliance. Do not place it in a corner or directly next to a wall to ensure proper ventilation.

Does the warranty cover professional use?

No, the warranty is valid only for household (private) use. Professional use will void the warranty.

USER MANUAL HOBII PH10 Eldom

Black ELDOM electric stove with red heat sink and control knob (no visible text or symbols on body)

WSKAZÓWKI BEZPIECZEŃSTWA

• before operating the appliance, read the user manual thoroughly
• plug in the connecting cable to a grounded electrical outlet
• ensure that a limited number of receivers are connected to one current circuit
• if an extension cord is used, it should be grounded and placed in a safe manner
• the appliance is intended for household use only
• use only in rooms with good ventilation
• keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
• if the appliance is not working, unplug it
• before unplugging, set the thermostat (1) in the position "MIN"
• do not use in open air. The cooker can be used under the roof where it is protected against rain and wind
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• make sure that children do not play with the equipment,
• never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the appliance
• do not use the appliance near curtains, blinds or other inflammable material
• do not place the appliance in a corner of a room or directly next to the wall. The space of at least
  5 cm from the sides of the appliance should be provided.
• to ensure free and safe access to the appliance, place it at a proper height.
• the cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance

SAFETY INSTRUCTIONS

- do not touch the housing and the heating plate of the operating appliance (risk of serious

burning), and when the appliance is no longer used, wait until it cools down completely

- do not move the appliance' during its operation

- do not place the power supply cable over the cooker

- do not use for heating rooms

- place dishes with products on the heating plate in a central position

- do not use the cooker without dishes with products

- use only metal and ovenproof dishes with flat and stable bottoms

- never use when the power cable or the appliance is damaged

- if the power cable is damaged, it must be replaced in the Manufacturer's Service in order to avoid hazard

- repairs of the equipment can only be performed by an authorized servicing point (a list

of servicing points in the appendix and on the website www.eldom.eu). Any modernizations or the

use of non-original spare parts or elements of the appliance is prohibited and may cause a serious hazard to the user

- The company Eldom Sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance

This symbol warns against the high temperature of the surface of the appliance.

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be reprocessed or recycled

- they should be handed over to a relevant point which deals with the collection and recycling of electric and electronic appliances

WARRANTY

• the appliance is intended for a private use in a household
• it cannot be used for professional purposes,
• the warranty is invalid in the case of improper operation

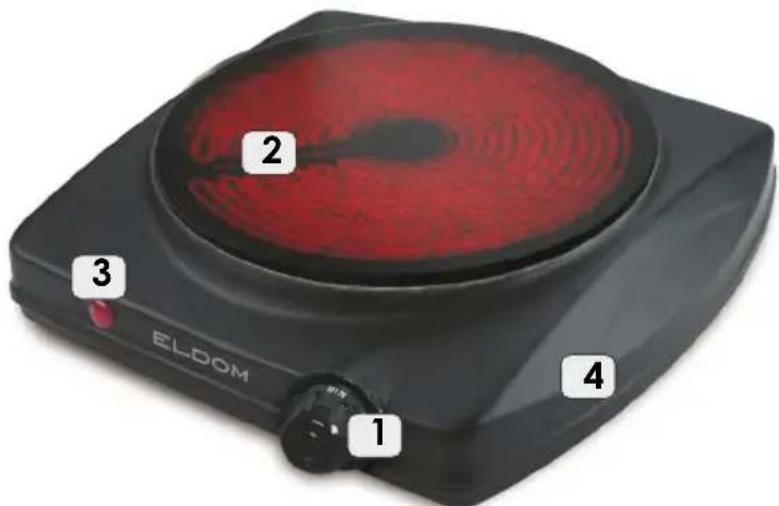

GENERAL DESCRIPTION

1. Thermostat
2. Heating plate
3. Control light
4. Housing

TECHNICAL DATA

• power: 1150W
• supply voltage: 230V \~ 50Hz

OPERATION

The ceramic cooker allows to prepare food in many different ways (cooking, frying, etc.) The use of infrared lamp in appliance allows to reach rapidly required temperature, which saves time and reduces power consumption.

Before operating and plugging in the appliance, set the thermostat (1) in the position "MIN" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1) Thermostat enables smooth adjustment of the temperature.

Settings 1-3 correspond to the lower temperature proper for heating meals.

Settings 4 - MAX - high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely.

• Do not immerse the appliance in water or wash it in a dish-washer machine.
• All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents.
• Do not use abrasive agents.
