Product Type	Room fan (stand fan)
Brand	Eldom
Model	ColumbiaVac WGC-50
Power Consumption	50W
Supply Voltage	230V ~ 50Hz
Speed Settings	3 speeds (I, II, III) controlled by rotary switch
Oscillation	Yes, with push-button on/off
Height Adjustment	Yes, telescopic tube with lock
Tilt Adjustment	Yes, via housing inclination adjustment arm
Protective Mesh	Front and rear meshes for safety
Blade Material	Metal (sharp edges - caution)
Base	Stable, flat base
Assembly Required	Yes, includes mesh, blade, base assembly
Cleaning	Unplug, wait to cool; clean casing with soft damp cloth; clean grilles with soft brush
Environmental Protection	Recyclable materials; dispose at designated WEEE collection points
Warranty	For household use; warranty terms in annex
Safety Features	Overheat protection? Not specified; do not use near water or flammable materials
Intended Use	Household, indoor use only

Frequently Asked Questions - ColumbiaVac WGC-50 Eldom

How do I assemble the ColumbiaVac WGC-50 fan?

First, attach the rear protective mesh (C) to the housing using the provided screws. Then slide the blade (B) onto the motor pin and fasten with the screw. Attach the front protective mesh (A) and secure with the clamp at the bottom. Finally, attach the base and telescopic tube, and adjust height using the lock.

How do I clean the fan?

Always unplug the fan and let it cool completely before cleaning. Use a soft, dry or slightly damp cloth to clean the casing and power cord. Clean the air inlet and outlet grilles with a soft brush. Never immerse the fan in water.

Can I use the fan in a bathroom or near water?

No, the fan is not designed for use near bathtubs, showers, swimming pools, or other water containers. It is intended for dry indoor use only.

How do I turn on oscillation?

Press the oscillation switch (E) to activate oscillation. Press it again to deactivate. Oscillation works at any fan speed.

What do the speed settings I, II, III mean?

I is low speed, II is medium speed, and III is high speed. Turn the rotary switch (F) to select the desired speed. Setting '0' turns the fan off.

Can I adjust the height of the fan?

Yes, the fan has a telescopic tube (I) that can be adjusted by loosening the height adjustment lock (H), setting the desired height, and tightening the lock.

The fan stops working or makes unusual noise. What should I do?

First, unplug the fan and check for any obstructions in the blade or grilles. Ensure the blade is properly fastened. If the issue persists, contact an authorized service center. Do not attempt to repair yourself.

Is the fan safe for children?

Children aged 8 and older can use the fan under supervision. Children under 8 must be kept away from the appliance and power cord. Cleaning should not be done by children without supervision.

What is the power consumption and voltage?

The fan consumes 50 watts and operates at 230V ~ 50Hz. Do not plug too many appliances into the same circuit.

What does the warranty cover?

The warranty covers private household use only. It does not cover damage caused by improper operation. Detailed warranty terms are provided in the annex of the manual.

USER MANUAL ColumbiaVac WGC-50 Eldom

Exterior view of a standard office desk fan with visible blades and a metallic stand (no text or symbols on the fan itself)

• WENTYLATOR POKOJOWY
- ROOM FAN
• VENTILÁTOR POKOJOVÝ
• STANDVENTILATOR
• ВЕНТИЛЯТОР КОМНАТНЫЙ
• IZBOVÝ VENTILÁTOR
• SZOBA VENTILÁTOR
• VENTILADOR

COLUMBIA VAC

FAN SYSTEMS

model: WGC-50

_

| _

一

1

WSKAZÓWKI BEZPIECZEŃSTWA

Technical line drawings of four different fan components labeled A, B, C, D (no text or symbols on the diagrams themselves)

MONTAŻ URZĄDZENIA

Close-up of a metallic kitchen sink with a cylindrical stand, no visible text or symbols

Close-up of a hand pressing down on a mechanical component with a circular base and central hole (no visible text or symbols)

Close-up of a hand using a tool to work on a circular mechanical component (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a vintage rotary fan with metallic body and stand, no visible text or symbols

Close-up of a hand adjusting a small black button on a metallic mechanical device (no text or symbols visible)

Close-up of a metallic fan or impeller with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or turbine component with concentric rings and radial blades (no visible text or symbols)

Close-up of a mechanical component with a highlighted circular feature, no visible text or symbols

Close-up of mechanical components with a magnified circular detail (no visible text or symbols)

PRACA URZĄDZENIA

Before the first use, please read all these instructions carefully:

1. The cord should be plugged into the power supply of parameters indicated in the data plate.
2. Please, do not plug too many appliances to a single elec tric circuit.
3. WARNING: do not use close to bathtubs, showers, swimming pools and other water containers.
4. The unit is designed to operate at a household.
5. Place the unit on a flat and dry surface.
6. Do not inert fingers or any other objects into the inlet and outlet holes.
7. Do not place the unit near cushions or curtains.
8. Working fan must be always supervised, especially, when there are children nearby.
9. Leaving a room where a fan operates, switch it off.
10. Do not spray any insect killers or similar agents near the operating fan.
11. Do not use the appliance under high temperature (exceeding 40^ C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs.
12. Before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
13. Do not cover the protective mesh.
14. Do not use the appliance as a hanger.
15. In case the power cord is damaged it must be replaced by the manufacturer's authorized service center.
16. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of

the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
2. The device can be repaired only by authorized service center. Any upgrades or any use of non-original spare parts or equipment components is prohibited and endanger the safety of use.
3. Eldom Sp. z o.o. shall not be held liable for any damage caused by any improper use of the device.

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• the device is intended for private use in a household,
• it cannot be used for professional purposes,
• the guarantee does not cover damage caused by improper operation. The guarantee terms are provided in the annex.

CLEANING AND MAINTENANCE

• before cleaning unplug the hair-dryer and wait until it cools down com pletely
• never immerse the hair-dryer in water
• casing and power cord can be cleaned with soft dry or slightly damp cloth
• the air inlet and outlet should be cleaned with soft brush

GENERAL DESCRIPTION

A Protective mesh – front
B Blade
C Protective mesh – rear
D Housing

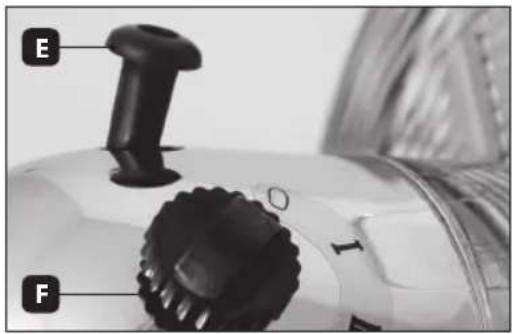

E Oscillation switch
F On/off and I/II/III speed switch

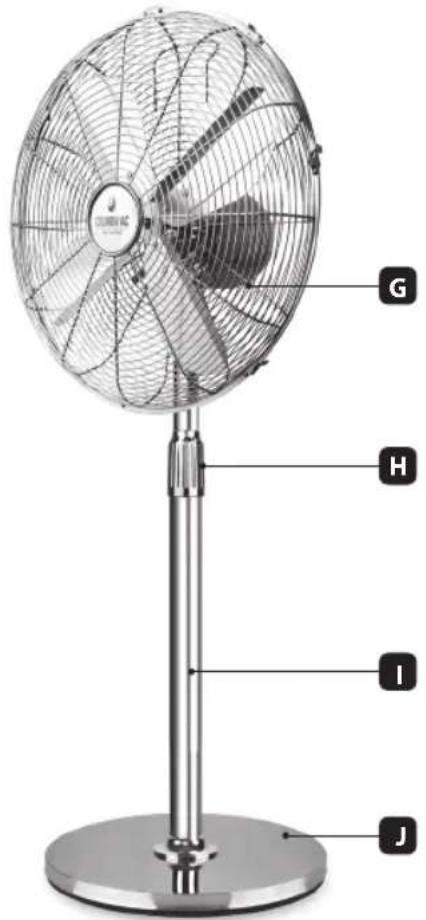

G Housing inclination adjustment Arm
H Height adjustment lock
I Telescopic tube
J Base

TECHNICAL DATA

power: 50W

supply voltage: 230V \~ 50Hz

USE AND INSTALLATION OF THE DEVICE

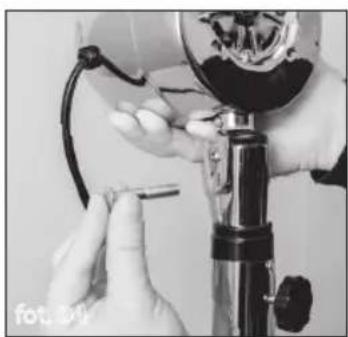

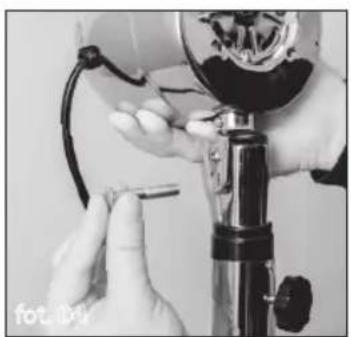

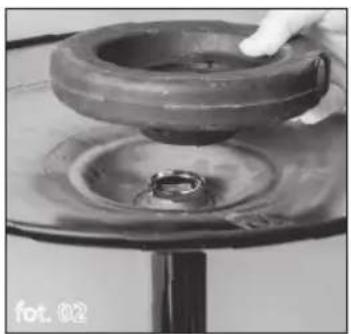

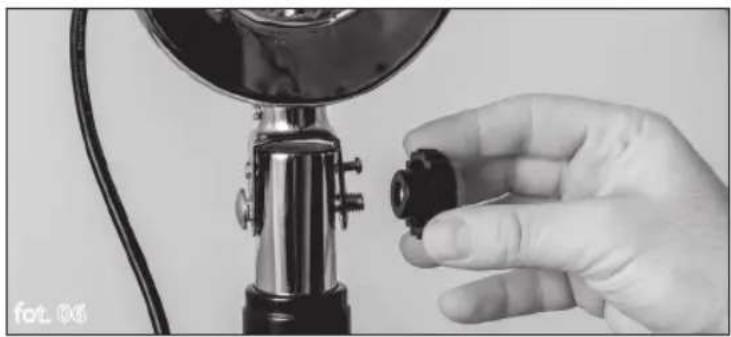

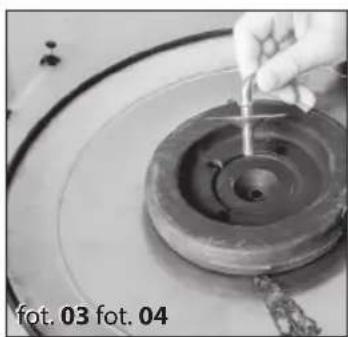

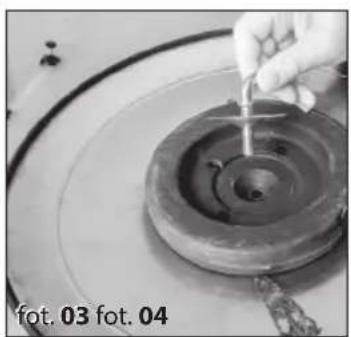

Before first use, unpack the device and assemble its components.

Close-up of a metallic bowl with a handle, partially covered by a cylindrical object (no visible text or symbols)

Close-up of a mechanical component with a circular base and central hole, no visible text or symbols

Close-up of a hand using a tool to work on a circular mechanical component (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a vintage rotary fan with metallic body and stand, held by hand (no visible text or symbols)

Close-up of a hand adjusting a small black mechanical component on a metallic stand (no text or symbols visible)

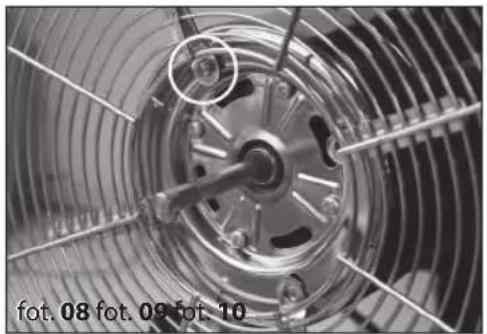

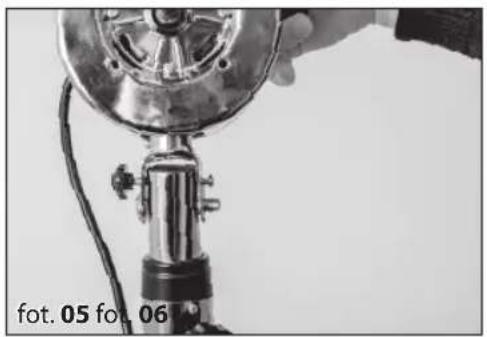

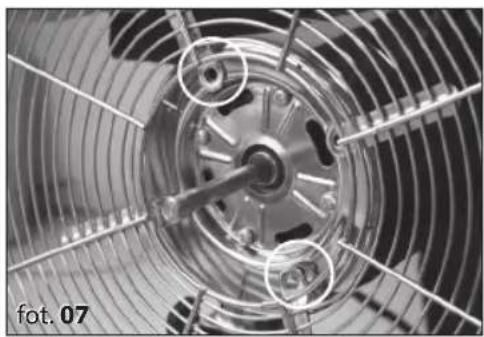

- Install the rear protective mesh (C). The mesh holes shall match the holes in the housing, Fig. 7. Fasten with the enclosed screws, Fig. 8.

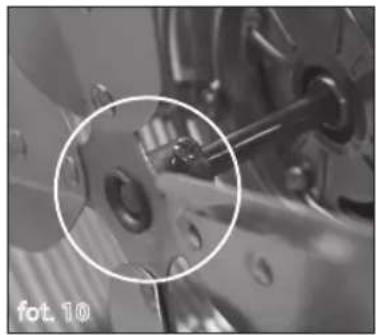

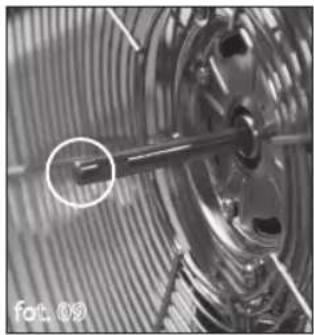

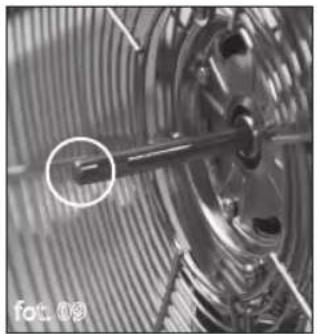

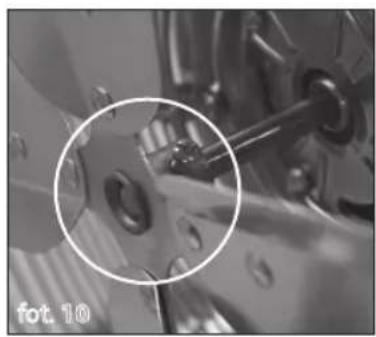

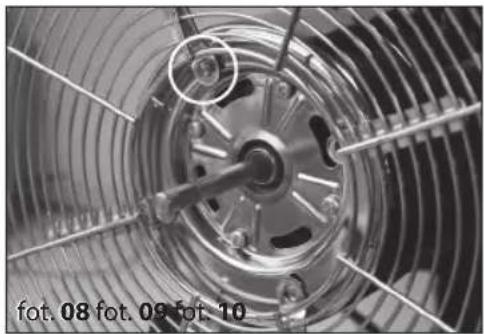

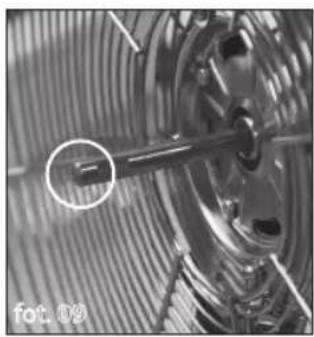

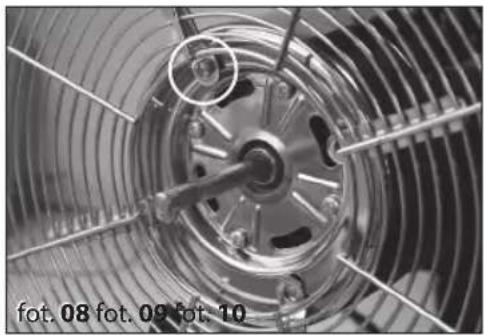

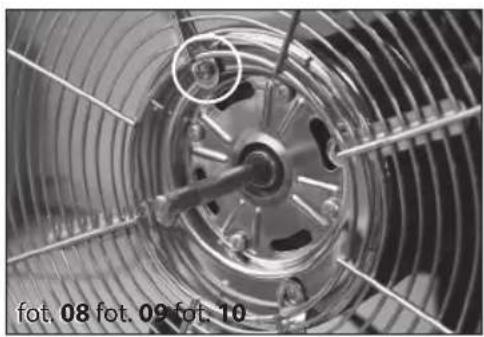

- Slide the blade (B) onto the pin, Fig. 10 so that the screw hole is directly above the indentation in the pin, Fig. 9 and fasten with the screw (attention – the blade has sharp edges)

- Install the front protective mesh (A). Connect both meshes at the bottom with the enclosed screw, and secure with clamps,

- Place the device on a stable and level surface Set the switch (F) to "0" and connect the device to the mains.

Close-up of a mechanical fan or impeller with visible internal components and mounting holes (no text or symbols)

Close-up of a mechanical component with concentric rings and radial slots, no visible text or symbols

Close-up of a mechanical component with a circular annotation and a scale bar (no visible text or symbols)

Close-up of mechanical components with a magnified circular detail (no visible text or symbols)

Use the switch (F) to select the fan speed (I, II, III).

To turn the device on, set the switch (F) to a chosen speed.

To turn the device off, set the switch (F) to "0".

Regardless of the speed, the user can activate oscillations by pressing a push-button (E).

To deactivate oscillations, depress the push-button (E).
