Product Type	Pedestal fan
Brand	Eldom
Model	ColumbiaVac WGC40M
Height	130 cm
Fan Diameter	40 cm
Weight	5.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	50 W
Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, 90° horizontal
Tilt Adjustment	Manual, up to 30°
Housing Material	Plastic
Blade Material	Metal
Safety Features	Tip-over switch, thermal fuse
Cleaning Instructions	Clean grille with damp cloth; remove dust regularly
Spare Parts Availability	Motor, blades, and stand available from service centers
Repairability	User-replaceable fuse and blades
Warranty	2 years

Frequently Asked Questions - ColumbiaVac WGC40M Eldom

How do I assemble the Eldom ColumbiaVac WGC40M fan?

Start by attaching the base to the pole, then secure the motor housing, and finally snap the front and back grilles together. Refer to the manual for diagrams.

Can I adjust the height of the fan?

Yes, the fan has a telescopic pole that can be adjusted by loosening the collar, setting the desired height, and tightening again.

How many speed settings does it have?

The fan offers three speed settings: low, medium, and high, controlled by a button on the motor housing.

Does the fan oscillate?

Yes, it oscillates 90 degrees horizontally for better air circulation. Press the oscillation button on the motor to toggle.

How do I clean the fan?

Unplug the fan. Use a damp cloth to wipe the grilles and blades. For deep cleaning, remove the front grille by unscrewing it and wash with water. Dry thoroughly before reassembly.

Is the fan safe to leave unattended?

The fan includes a tip-over switch and thermal fuse for safety. It will shut off if knocked over or overheated, but always supervise when in use.

What is the power consumption?

The fan consumes 50 watts at maximum speed, making it energy efficient.

Can I use an extension cord?

Yes, but ensure the extension cord is rated for at least 1.5 A and is fully unwound to avoid overheating.

Where can I find spare parts?

Spare parts such as blades and motors are available through Eldom authorized service centers. Check the manual for a list of service contacts.

What should I do if the fan makes unusual noise?

Stop using the fan immediately. Check for loose screws or obstructions. If noise persists, contact customer support.

USER MANUAL ColumbiaVac WGC40M Eldom

Exterior view of a circular office fan with visible blades and mesh grille (no text or symbols on the fan itself)

COLUMBIA VAC

FAN SYSTEMS

model: WGC40M / WGC-40

DANE TECHNICZE

moc: 35W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTAŻ I PRACA URZĄDZENIA

Close-up of a mechanical fan or turbine blade assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a mechanical fan or impeller with visible internal components and mounting holes (no text or symbols)

Close-up of a mechanical fan or turbine component with a circular annotation and wire mesh, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

Before the first use, please read all these instructions carefully:

1. The cord should be plugged into the power supply of parameters indicated in the data plate.
2. Please, do not plug too many appliances to a single elec tric circuit.
3. WARNING: do not use close to bathtubs, showers, swimming pools and other water containers.
4. The unit is designed to operate at a household.
5. Place the unit on a flat and dry surface.
6. Do not inert fingers or any other objects into the inlet and outlet holes.
7. Do not place the unit near cushions or curtains.
8. Working fan must be always supervised, especially, when there are children nearby.
9. Leaving a room where a fan operates, switch it off.
10. Do not spray any insect killers or similar agents near the operating fan.
11. Do not use the appliance under high temperature (exceeding 40^ C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs.
12. Before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
13. Do not cover the protective mesh.
14. Do not use the appliance as a hanger.
15. In case the power cord is damaged it must be replaced by the manufacturer's authorized service center.
16. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of

the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
2. The device can be repaired only by authorized service center. Any upgrades or any use of non-original spare parts or equipment components is prohibited and endanger the safety of use.
3. Eldom Sp. z o.o. shall not be held liable for any damage caused by any improper use of the device.

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• the device is intended for private use in a household,
• it cannot be used for professional purposes,
• the guarantee does not cover damage caused by improper operation. The guarantee terms are provided in the annex.

CLEANING AND MAINTENANCE

• before cleaning unplug the hair-dryer and wait until it cools down com pletely
• never immerse the hair-dryer in water
• casing and power cord can be cleaned with soft dry or slightly damp cloth
• the air inlet and outlet should be cleaned with soft brush

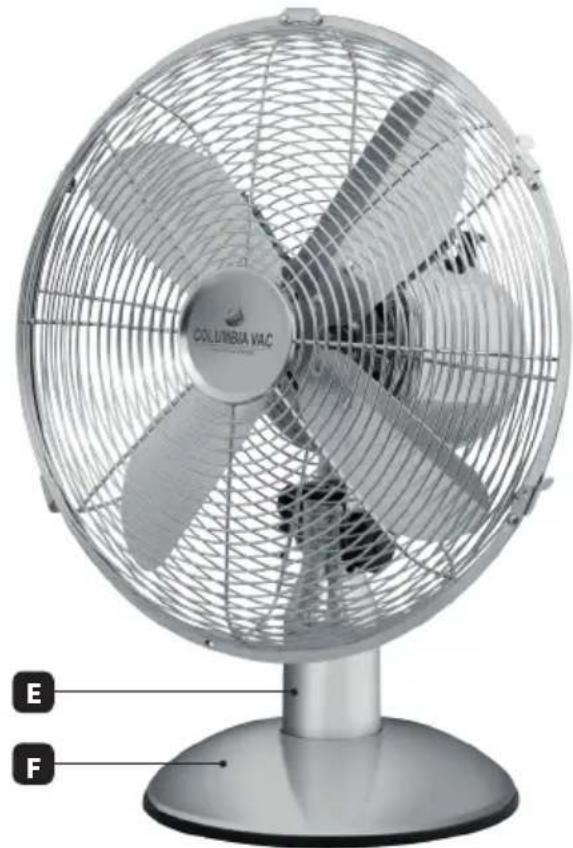

GENERAL DESCRIPTION

A Protective mesh - front
B Airscrew
C Protective mesh - rear
D Body
E Arm
F Base

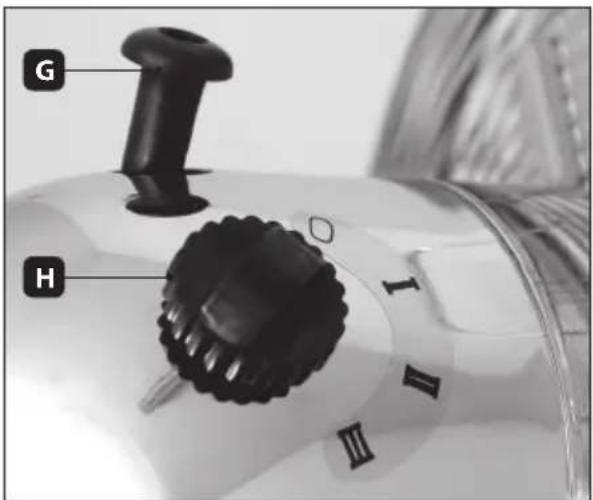

G Oscillation switch
H Switch and gears: I, II and III

TECHNICAL DATA

power: 35W

supply voltage: 230V \~ 50Hz

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

USE AND INSTALLATION OF THE DEVICE

Before first use, unpack the device and assemble its components.

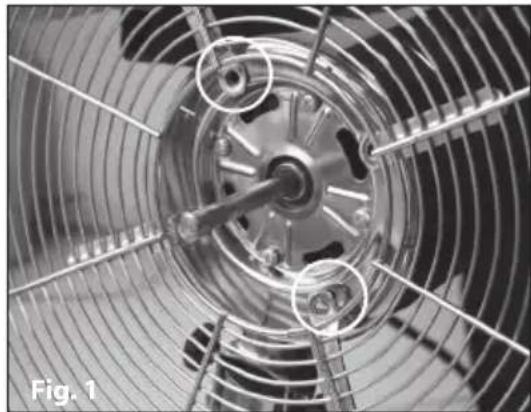

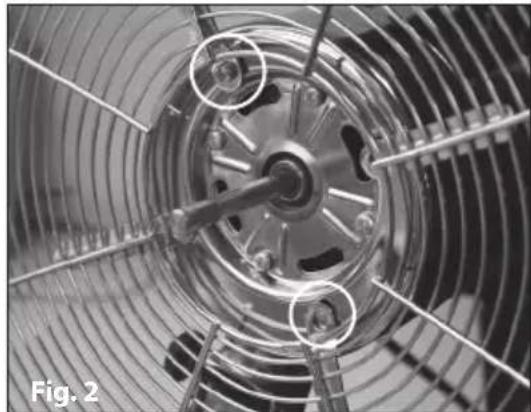

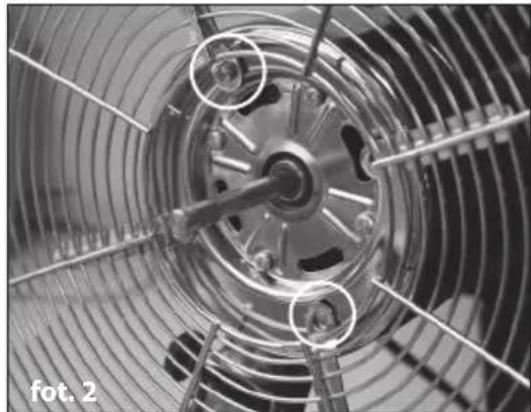

• Install the rear protective mesh (C). The mesh holes shall match the holes in the housing, Fig. 1. Fasten with the enclosed screws, Fig .2.

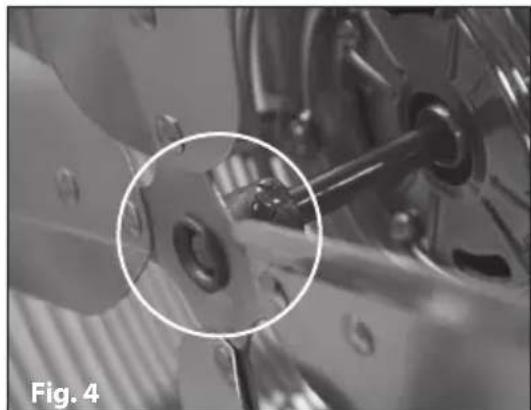

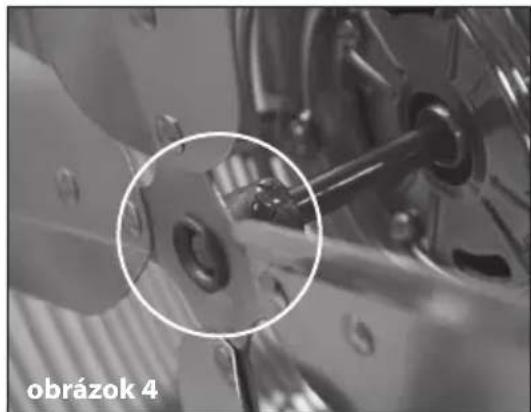

• Slide the blade (B) onto the pin, Fig. 4 so that the screw hole is directly above

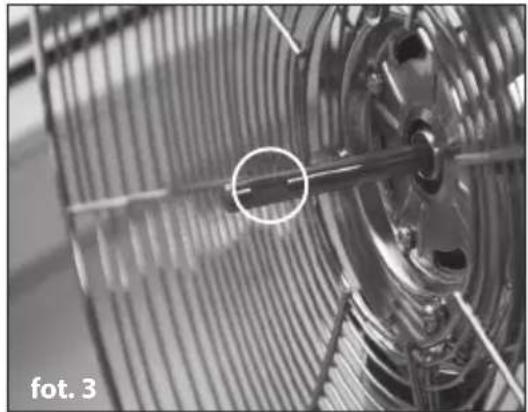

the indentation, Fig. 3, in the pin, and fasten with the screw (attention – the blade has sharp edges)

• Install the front protective mesh (A).
  Connect both meshes at the bottom with the enclosed screw, and secure with clamps,
• Place the device on a stable and level surface

Set the switch (H) to "0" and connect the device to the mains.

Use the switch (H) to select the fan speed (I, II, III).

To turn the device on, set the switch (H) to a chosen speed.

To turn the device off, set the switch (H) to "0".

Regardless of the speed, the user can activate oscillations by pressing a push-button (G). To deactivate oscillations, depress the push-button (G).

Close-up of a mechanical fan or turbine component with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or impeller with visible internal components and mounting holes (no text or symbols)

Close-up of a mechanical component with a circular annotation and a scale bar, labeled 'Fig. 3' (no readable text or symbols on the main subject)

Close-up of mechanical components with a magnified circular detail, labeled 'Fig. 4' (no readable text or symbols)

BEZPEČNOSTNÍ DOPORUČENÍ

CZ

TECHNICKÉ ÚDAJE

výkon: 35W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCE ZAŘÍZENÍ

Close-up of a mechanical fan or turbine component with visible teeth and central hub, no text or symbols present.

Close-up of a mechanical fan or turbine component with visible blades and mounting holes, no text or symbols present.

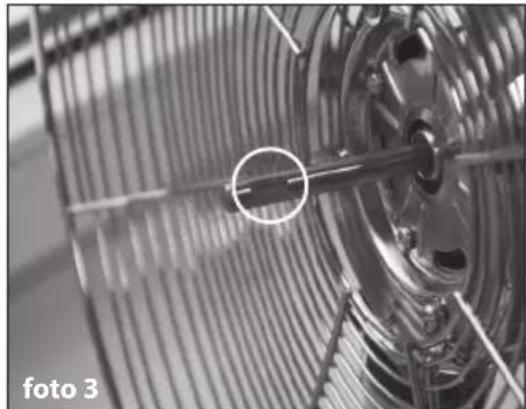

Close-up of a mechanical fan or turbine component with a circular annotation and a white dot, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

TECHNISCHE DATEN

Leistung: 35W

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or turbine blade assembly with concentric blades and central hub (no visible text or symbols)

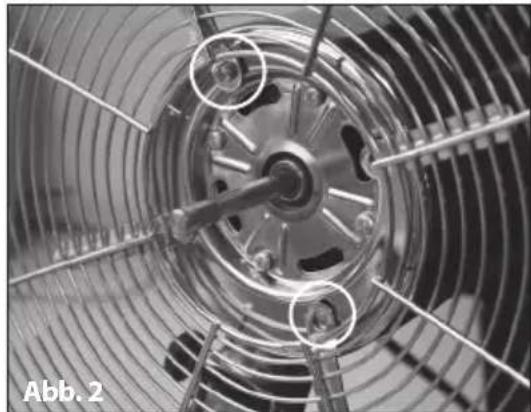

Close-up of a mechanical fan or impeller with visible internal components and mounting holes, labeled 'Abb. 2' (no text on the fan itself)

Close-up of a mechanical component with a circular annotation and label 'Abb. 3' (no readable text or symbols on the main subject)

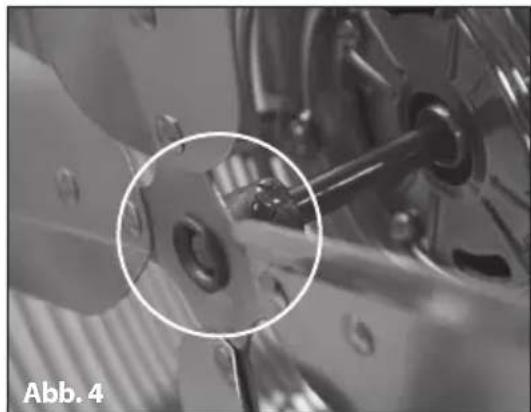

Close-up of mechanical components with a circled detail, no visible text or symbols

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or turbine component with visible blades and central hub (no text or symbols)

Close-up of a mechanical fan or impeller with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or turbine component with a circular annotation and a photo credit 'фото 3' at the bottom (no readable text on the fan itself)

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

TECHNICKÉ ÚDAJE:

príkon: 35W

napätie napájania: 230V \~ 50 Hz

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCA ZARIADENIA

Close-up of a mechanical fan or turbine component with concentric blades and central hub, no visible text or symbols.

Close-up of a mechanical fan or turbine component with concentric blades and a central hub, no visible text or symbols.

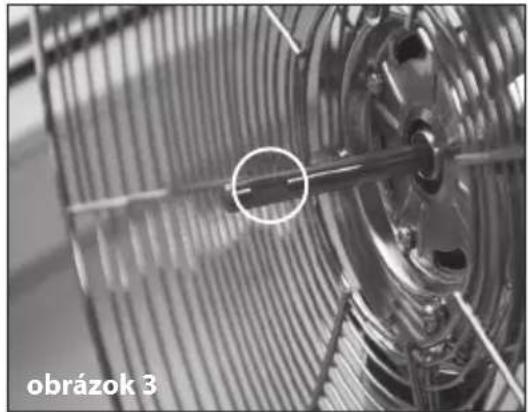

Close-up of a mechanical fan or turbine component with a circular annotation and a label 'obrázok 3' (no other text or symbols visible)

Close-up of mechanical components with a circled detail, no visible text or symbols

BIZTONSÁGi TUDNIVALÓK

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MÜSZAKI ADATOK

teljesítmény: 35 W

Close-up of a mechanical fan or turbine component with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or impeller with concentric blades and a central hub, no visible text or symbols.

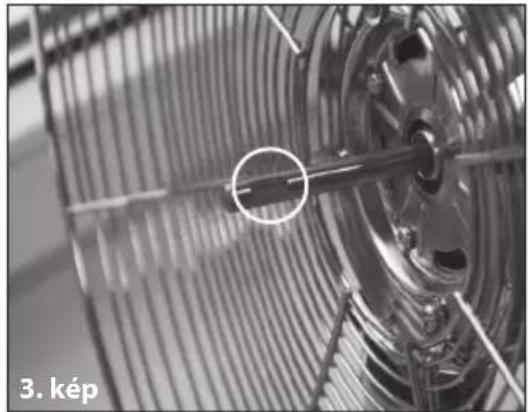

Close-up of a mechanical component with a circular annotation and a numbered label '3. kép' (no readable text or symbols on the main subject)

Close-up of mechanical components with a circled detail, no visible text or symbols

ESPECIFICACIONES

potencia: 35W

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or turbine component with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or impeller with visible internal components and mounting holes, labeled 'Fig. 2' (no text or symbols on the fan itself)

Close-up of a mechanical fan or turbine component with a circular annotation highlighting a specific part (no text or symbols visible)

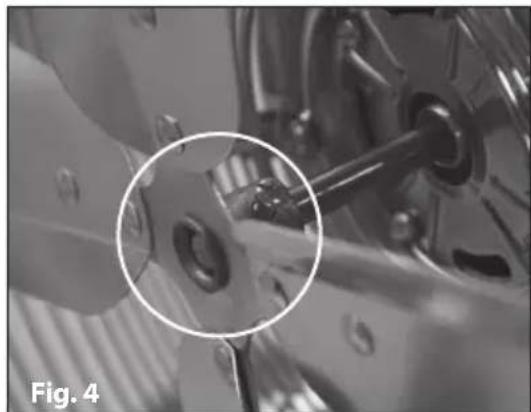

Close-up of mechanical components with a magnified circular detail, labeled 'Fig. 4' (no readable text or symbols)

KARTA GWARANCYJNA

WAŻNA Z DOWODEM ZAKUPU

WENTYLATOR BIURKOWY WGC40M / WGC-40
