Product Type	Desk Fan
Brand	Eldom
Model	ColumbiaVac WGC40N
Power Consumption	40 W
Supply Voltage	230 V ~ 50 Hz
Number of Speeds	3 (I, II, III)
Oscillation	Yes, push-button control
Protective Mesh	Front and rear meshes included
Assembly Required	Yes, user must assemble meshes, blade, and base
Weight (approx.)	2.5 kg
Dimensions (approx.)	40 cm x 40 cm x 50 cm
Material	Plastic body, metal blade
Intended Use	Household, indoor
Safety Features	Thermal protection, no use near water
Cleaning	Unplug, wipe with soft damp cloth; clean grilles with soft brush
Maintenance	Regular cleaning of inlet/outlet; no immersion in water
Repair	Authorized service center only
Environmental Protection	Recyclable materials; dispose at WEEE collection point
Guarantee	For private household use; excludes improper use
Included Accessories	Assembly screws, user manual

Frequently Asked Questions - ColumbiaVac WGC40N Eldom

How do I assemble the fan?

First, attach the rear protective mesh (C) to the housing, aligning the holes and securing with screws. Then slide the blade (B) onto the pin, ensuring the screw hole aligns with the indentation, and tighten the screw. Attach the front protective mesh (A) by connecting both meshes at the bottom with the provided screw and securing with clamps. Finally, place the fan on a stable surface.

How do I use the fan speeds and oscillation?

Use the switch (H) to select speed: I (low), II (medium), III (high). Set to '0' to turn off. To activate oscillation, press the push-button (G); press again to deactivate.

What should I do before cleaning the fan?

Always unplug the fan and wait for it to cool down completely. Never immerse the fan in water. Use a soft, dry or slightly damp cloth to clean the casing and power cord. Clean the air inlet and outlet with a soft brush.

Can children use this fan?

The device can be used by children aged 8 and older only under supervision or if they have been instructed on safe use. Children under 8 must be kept away from the appliance and power cord. Children shall not play with the fan.

What are the safety precautions for using this fan?

Do not use near bathtubs, showers, swimming pools or other water containers. Place on a flat, dry surface. Do not insert fingers or objects through the grille. Do not cover the mesh. Always supervise the fan when children are nearby. Switch off when leaving the room.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer's authorized service center to avoid hazard. Do not attempt to repair it yourself.

Why does my fan not start?

Check that the fan is plugged in and the switch (H) is set to a speed (I, II, or III). Ensure the voltage matches the rating plate. If it still does not start, contact an authorized service center.

How do I dispose of the fan at the end of its life?

The device is made of recyclable materials. Do not dispose of it with household waste. Take it to a special collection point for electronic and electric devices (WEEE).

Can I use the fan outdoors?

No, the fan is designed for indoor household use only. Do not expose it to rain, moisture, or high temperatures above 40°C. Avoid locations with explosive atmospheres.

What is covered by the warranty?

The warranty covers private household use and manufacturing defects. It does not cover damage caused by improper operation, unauthorized modifications, or use of non-original spare parts. For details, see the warranty card included with the product.

USER MANUAL ColumbiaVac WGC40N Eldom

Exterior view of a Columbia VAC air conditioner fan with visible blades and mesh grille (no text or symbols on the fan itself)

model: WGC40M / WGC-40

Eldom Sp. z o.o.

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

DANE TECHNICZE

moc: 40W

Front view of a Columbia VAC airship with four blades and a base, labeled E and F (no text or symbols on the fan itself)

MONTAŻ I PRACA URZĄDZENIA

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic fan or impeller with internal components and mounting holes, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular feature and a pointer, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

SAFETY MEASURES

EN

Before the first use, please read all these instructions carefully:

1. The cord should be plugged into the power supply of parameters indicated in the data plate.
2. Please, do not plug too many appliances to a single elec tric circuit.
3. WARNING: do not use close to bathtubs, showers, swimming pools and other water containers.
4. The unit is designed to operate at a household.
5. Place the unit on a flat and dry surface.
6. Do not inert fingers or any other objects into the inlet and outlet holes.
7. Do not place the unit near cushions or curtains.
8. Working fan must be always supervised, especially, when there are children nearby.
9. Leaving a room where a fan operates, switch it off.
10. Do not spray any insect killers or similar agents near the operating fan.
11. Do not use the appliance under high temperature (exceeding 40^ C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs.
12. Before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
13. Do not cover the protective mesh.
14. Do not use the appliance as a hanger.
15. In case the power cord is damaged it must be replaced by the manufacturer's authorized service center.
16. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of

the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
2. The device can be repaired only by authorized service center. Any upgrades or any use of non-original spare parts or equipment components is prohibited and endanger the safety of use.
3. Eldom Sp. z o.o. shall not be held liable for any damage caused by any improper use of the device.

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• the device is intended for private use in a household,
• it cannot be used for professional purposes,
• the guarantee does not cover damage caused by improper operation. The guarantee terms are provided in the annex.

CLEANING AND MAINTENANCE

• before cleaning unplug the hair-dryer and wait until it cools down com pletely
• never immerse the hair-dryer in water
• casing and power cord can be cleaned with soft dry or slightly damp cloth
• the air inlet and outlet should be cleaned with soft brush

GENERAL DESCRIPTION

A Protective mesh - front
B Airscrew
C Protective mesh - rear
D Body
E Arm
F Base
G Oscillation switch
H Switch and gears: I, II and III

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

TECHNICAL DATA

power: 40W

supply voltage: 230V \~ 50Hz

Exterior view of a Columbia VAC air conditioner fan with visible blades and mounting base (no text or symbols on fan body)

USE AND INSTALLATION OF THE DEVICE

Before first use, unpack the device and assemble its components.

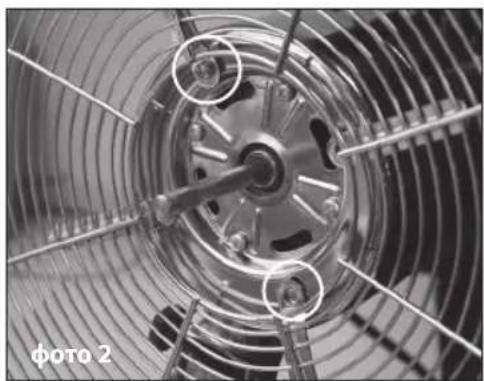

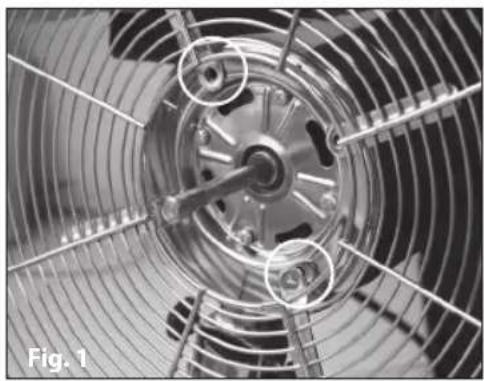

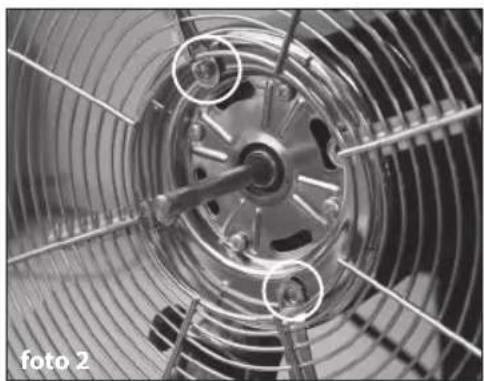

• Install the rear protective mesh (C). The mesh holes shall match the holes in the housing, Fig. 1. Fasten with the enclosed screws, Fig. 2.

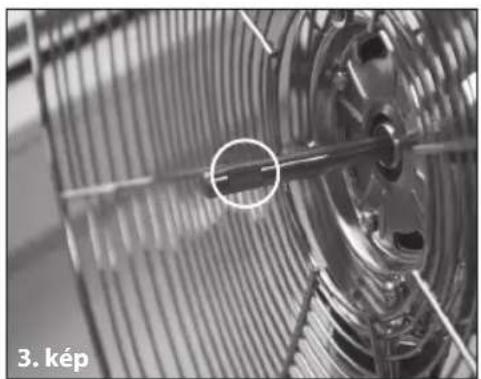

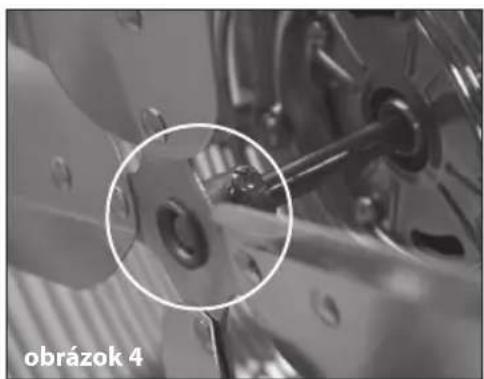

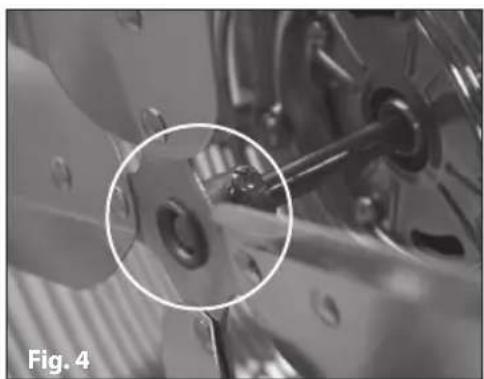

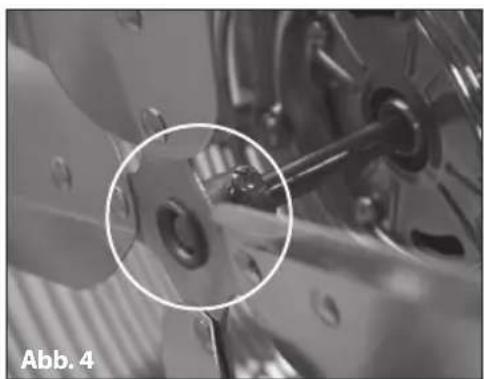

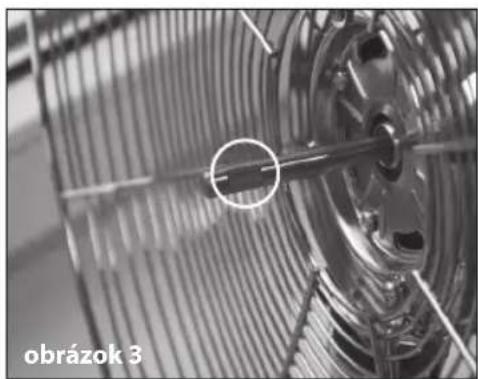

• Slide the blade (B) onto the pin, Fig. 4 so that the screw hole is directly above

the indentation, Fig. 3, in the pin, and fasten with the screw (attention – the blade has sharp edges)

• Install the front protective mesh (A). Connect both meshes at the bottom with the enclosed screw, and secure with clamps,
• Place the device on a stable and level surface

Set the switch (H) to "0" and connect the device to the mains.

Use the switch (H) to select the fan speed (I, II, III).

To turn the device on, set the switch (H) to a chosen speed.

To turn the device off, set the switch (H) to "0".

Regardless of the speed, the user can activate oscillations by pressing a push-button (G). To deactivate oscillations, depress the push-button (G).

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a mechanical fan or turbine component with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or fan assembly with a circular component and radial blades, labeled 'Fig. 3' (no readable text or symbols)

Close-up of mechanical components with a magnified inset showing a circular detail (no text or symbols visible)

BEZPEČNOSTNÍ DOPORUČENÍ

CZ

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagram itself)

TECHNICKÉ ÚDAJE

výkon: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCE ZAŘÍZENÍ

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic fan or impeller with internal components and radial lines, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, labeled 'foto 4' in the corner (no other text or symbols visible)

SICHERHEITSHINWEISE

D

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols beyond labels)

TECHNISCHE DATEN

Leistung: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller with visible blades and central hub, no text or symbols present.

Close-up of a metallic industrial fan or turbine component with visible internal structure and mounting holes (no text or symbols)

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, labeled 'Abb. 3' (no readable text or symbols on the fan itself)

Close-up of mechanical components with a circled detail, no visible text or symbols

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

Exterior view of a Columbia VAC air conditioner fan with visible blades and mounting base (no text or symbols on fan body)

Close-up of a mechanical fan or impeller with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or turbine component with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or fan assembly with a circular hole and a central shaft, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

BEZPEČNOSTNÉ POKYNY

SK

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

TECHNICKÉ ÚDAJE:

príkon: 40W

napätie napájania: 230V \~ 50 Hz

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCA ZARIADENIA

Close-up of a mechanical fan or impeller with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or turbine component with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or fan assembly with a circular mark and a pointer, labeled 'obrázok 3' in the corner (no other text or symbols visible)

Close-up of mechanical components with a magnified inset showing a circular detail (no readable text or symbols)

BIZTONSÁGi TUDNIVALÓK

HU

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a mechanical component with concentric rings and radial slots, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular hole and a pointer, no visible text or symbols.

Close-up of mechanical components with a circled detail, labeled '4. kép' (no other text or symbols visible)

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagram itself)

ESPECIFICACIONES

potencia: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a mechanical fan or impeller assembly with concentric rings and mounting holes (no visible text or symbols)

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, labeled 'Fig. 3' (no readable text or symbols on the fan itself)

Close-up of mechanical components with a magnified inset showing a circular detail (no text or symbols visible)

_

| _

一

1

KARTA GWARANCYJNA

WAŻNA Z DOWODEM ZAKUPU

WENTYLATOR BIURKOWY WGC40M / WGC-40
