Product Type	Portable Bluetooth Speaker with CD Player, FM Radio, USB, AUX, and Microphone
Brand	GoGen
Model	BPS 736 CD
Power Source	AC 100-240 V ~ 50/60 Hz
Battery Type	Rechargeable lead-acid battery, 4000 mAh
Playback Time	Up to 22 hours at 50% volume
Power Output	90 W RMS
Dimensions (W x H x D)	Approx. 280 x 640 x 280 mm
Weight	Approx. 8.1 kg
Bluetooth Version	V5.0
Bluetooth Range	Up to 10 meters (line-of-sight)
FM Tuning Range	87.5 - 108 MHz
Disc Types Supported	CD, CD-R, CD-RW, MP3 CD
USB Port	USB 2.0 for data transfer; USB Charge port (5V 1A) for charging smartphones
Microphone Inputs	Two 6.3 mm MIC jacks
Light Modes	5 DISCO LED modes + projection/strobe lights
Equalizer Modes	FLAT, CLASSIC, ROCK, POP, JAZZ
Accessories Included	Instruction Manual, AC Cord, FM Antenna, Wired Microphone
Warranty	2 years
Operating Temperature	+5 °C to +40 °C

Frequently Asked Questions - BPS 736 CD GoGen

How do I charge the speaker?

Connect the AC power cord to the AC socket on the back of the unit and plug into a wall outlet (AC 100-240 V). The charge LED indicator lights red during charging and turns green when fully charged. A full charge takes about 4 hours. You can also use the built-in battery; unplug the AC cord to operate on battery.

How do I connect my phone via Bluetooth?

Press the FUNCTION button repeatedly until the display shows BLUETOOTH. On your phone, enable Bluetooth and search for devices. Select GoGEN HAPPEE from the list. If prompted, enter password 0000. The PAIR indicator will stop flashing and remain lit when connected.

How can I listen to FM radio?

Press the FUNCTION button to select FM mode. Connect the supplied FM antenna to the FM socket on the rear. To auto-scan and store stations, press and hold the ▶II/PAIR/SCAN button. Use the ▶/TUN+ or ◀/TUN- buttons to manually tune or select preset stations.

Can I play music from a USB flash drive?

Yes. Press FUNCTION to select USB mode. Insert a USB flash drive into the USB port on top of the unit. Playback will start automatically from track 1. You can control playback using the buttons on the unit (play/pause, skip, etc.). Note: The USB port is for data only, not for charging external devices.

How do I use the microphone?

Connect a 6.3 mm microphone to either MIC JACK 1 or 2 on the top panel. Adjust microphone volume with MIC VOL.+/- buttons. Press the ECHO button to add echo effect. Mic works in all modes (CD, USB, Bluetooth, AUX, Radio).

What should I do if there is no sound?

Check that the volume is not set to minimum (rotate the VOLUME knob). Ensure the correct function mode is selected (Bluetooth, AUX, etc.). If in Bluetooth, make sure your device is connected and playing. For CD/USB, verify a disc or USB is inserted. Also check if the unit is in standby mode (press the power button). If using an external source, increase the volume on that device.

How do I program tracks on a CD?

With playback stopped, press PROG./P-MODE to enter program mode. Use ▶/TUN+ or ◀/TUN- to select the first track, then press PROG./P-MODE to confirm. Repeat for up to 20 tracks. Press ▶II/PAIR/SCAN to start program playback. To clear, open the CD door or stop playback.

How do I clean the speaker?

Always unplug the unit before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use water, benzene, thinners, or any chemical cleaners. For the CD lens, keep the CD door closed to avoid dust; do not touch the lens. Clean discs from the center outward with a soft cloth.

What are the different equalizer settings?

Press the EQ button repeatedly to cycle through presets: FLAT, CLASSIC, ROCK, POP, and JAZZ. The chosen setting will be displayed. Press the BASS button to boost low frequencies.

How do I dispose of this product?

Do not dispose of this product as household waste. It should be handed over to a designated collection point for recycling of electrical and electronic equipment. Contact your local civic office, waste disposal service, or the store where you purchased the product for more information. The battery must be removed and disposed of separately by qualified personnel.

USER MANUAL BPS 736 CD GoGen

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN

BPS 736 CD

ÚVOD

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT NOTES

SYMBOL DEFINITIONS

DANGER - Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This symbol appears only in the most extreme situations.

WARNING - Indicates a potentially hazardous situation which could result in death or serious injury.

CAUTION - Indicates a potentially hazardous situation, which, if not avoided, may result in minor/moderate injury or product/property/damage. It also warns against unsafe practices

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated ‘dangerous voltage’ within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

This Compact Disc player is classified as a

CLASS 1 LASER PRODUCT.

THE CLASS 1 LASER PRODUCT label is located on the rear exterior.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

READ ALL INSTRUCTIONS BEFORE USE

Always follow basic safety precautions when using this Bluetooth speaker system with Microphone, especially when children are present.

SAFETY INSTRUCTIONS

1. Read this Instruction Manual before you attempt to connect or operate the appliance.
2. Keep these instructions in good condition. Heed all warnings. Follow all instructions.
3. Save this Instruction Manual for future reference.
4. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.
5. No naked flame source, such as candles, should be placed on the product.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Ventilation should not be impeded by covering the ventilation openings.
8. Ensure that the unit is plugged into an AC 220-240 V 50 Hz power outlet. Using higher voltage may cause the unit to malfunction or even fire catching. Turn off the unit before unplugging it from power source to completely switch it off.
9. Do not plug/ unplug the power plug into/from an electrical outlet with wet hands.
10. If the power plug does not fit into your outlet, do not force the plug into an electrical socket if it does not fit.
11. Use replacement parts, which are specified by the manufacturer.
12. Install the unit in accordance with the manufacturer's instructions.
13. Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40 °C . Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.
14. Press the buttons of the unit gently. Pressing them too hard can damage the unit.
15. Dispose of used batteries in an environmental-responsible manner.
16. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.
17. Unplug the product during lightning, storms or when it will not be used for long periods of time.
18. This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
19. NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
20. Don't mount this product on a wall or ceiling.
21. Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.
22. Do not leave the unit unattended when it is in use.

NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.

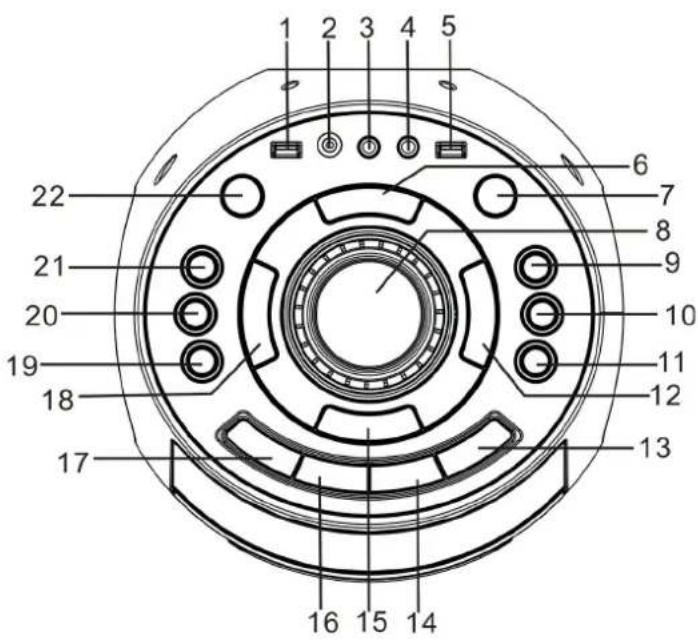

TOP VIEW

1. USB port
2. 3,5 mm AUX in Jack
3. 6,3 mm MIC Jack 1
4. 6,3mm MIC Jack 2
5. USB CHARGE port
6. STOP button
7. button
8. VOLUME control
9. 10/M./FOLD.+ button
10. 10/M./FOLD.- button
11. EQ button
12. ▶/TUN.+ button
13. FUNCTION button
14. LIGHT button
15. MPAIR/SCAN button
16. PROG./P-MODE button
17. OPEN/CLOSE button
18. ◀/TUN.- button
19. ECHO button
20. MIC VOL.- button
21. MIC VOL.+ button
22. BASS button

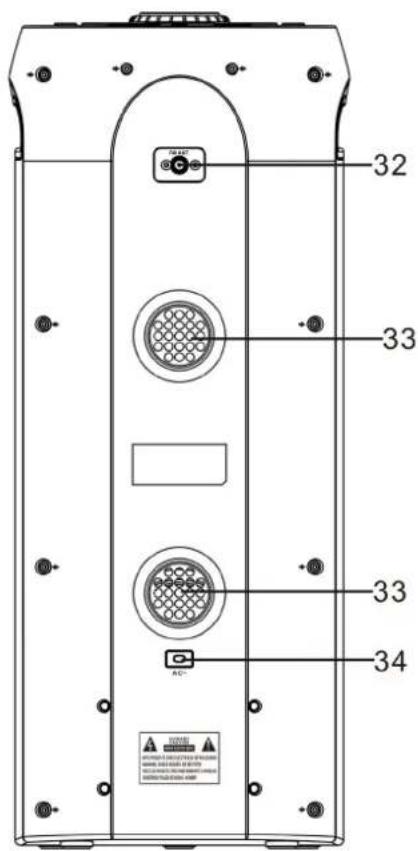

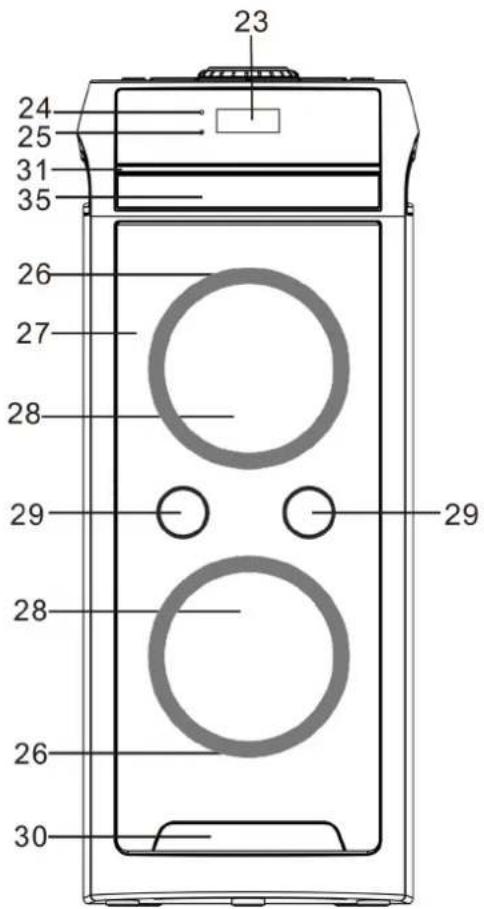

FRONT AND BACK VIEW

1. LCD display

2. PAIR indicator

3. Charge indicator

4. Disco led light

5. Speaker grille

6. Speakers

7. Tweeter

8. Projection light

9. Strobe light

10. FM antenna socket

11. Ventilation holes

12. AC socket

13. CD door

GETTING STARTED

POWER SOURCE

This unit works with rechargeable lead-acid battery (the battery capacity 4000 mAh). Fully charge the unit (around 4 hours) before using the product for the first time. The playback time is up to 22 hours (50% Volume) after full charging. Unplug the AC Power cord from the AC socket to work on the battery pack after fully charged. Plugging the AC Power cord while the battery pack is attached initiates the charging of this battery, the charge LED indicator lights red during charging, when the battery is fully charged the indicator will turn to green. When the unit is with low battery, the LED indicator will flash in red.

WARNING: Do not change the battery, only high-qualified personnel can perform this operation.

BASIC FUNCTION

Press and hold the button to turn the unit on, and press and hold the button to turn the unit off.

NOTE: In CD/USB/Bluetooth/AUX mode, when the unit is not providing the main function for around 15 minutes, the unit will automatically switch into standby mode. Press the button to turn on the unit again. Please note that low volume setting in the audio source may be recognized as "no audio signal", this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player in order to resume playback.

Electrostatic Discharge hints – The unit may reset or may not reset to normal operation mode due to electrostatic discharge, just switch it off and reconnect again.

SETTING THE FUNCTION MODE

To change the function modes, press the FUNCTION button repeatedly to choose CD/USB/BLUETOOTH/AUX/RADIO function.

ADJUSTING THE VOLUME

Rotate the VOLUME knob on the unit to increase or decrease the music volume. Press the MIC VOL.+/- button on the unit to increase or decrease the microphone volume.

BASS ADJUSTMENT

Press the BASS button on unit to increase the bass effect.

This unit has a built-in equalizer system, Press the EQ button on unit to select a setting that best matches the music style: FLAT, CLASSIC, ROCK, POP and JAZZ.

USB CHARGING

This unit provides a 5V 1A USB charging port for charging your smart phone. Connect the USB cable of your smart phone to the USB CHARGE port for charging.

MICROPHONE ECHO ADJUSTMENT

Press the ECHO button on unit turn on or off the microphone echo effect.

FLASHING LIGHT

There are 5 flashing modes for the DISCO LED lights. Press the LIGHT button to choose the light modes [L-1] \~ [L-5]. To turn off the light, press the LIGHT button until [L-OFF] showed on the display. The projection light and strobe light will flash to the music beat in all light modes, the lights around the buttons will be on in all light modes. Press and hold the LIGHT button to turn them on [E-ON] or off [E-OFF].

RADIO OPERATION

Listen to FM radio broadcasts. Press the FUNCTION button on the unit, the display reads [FM] and the radio frequency.

NOTE: The wired antenna is packed with the power cord as a separated accessory, insert the wired antenna into the FM socket on the rear cabinet when listening to the radio, and extend the wired antenna to its full length in order to get the best reception.

AUTO PRESET MEMORY / SCAN

To scan for stations within reception range and save them to preset memory automatically, press and hold the ▶II/PAIR/SCAN button. After the unit is finished scanning, the unit will automatically tune to preset number 1 [P-01].

To select the next/previous stored station press the 10/M./FOLD.+ / 10/M./FOLD.- button.

Choose which stations to save in preset memory instead of scanning automatically:

1. Use the ▶/TUN+ or ◀/TUN- button to tune to the station that you want to save as a preset.

Press the buttons repeatedly to tune the desired radio frequency.
Press and hold the buttons to start tuning, tuning stop automatically when a previous/next strong station is received.

1. Press the PROG./P-MODE button. [MEM] and [P-01] will flash on the display to indicate that you are saving the station as Preset Memory 01. (To change the preset memory number, press the 10/M./FOLD.+ or 10/M./FOLD.- buttons.)

2. Press the PROG./P-MODE button to finish saving the station.

3. To save another station, repeat steps 1 to 3. You may save up to 30 FM stations.

CD/MP3 OPERATION

This system only can playback digital audio CD/MP3, finalized digital audio CD-Recordable (CD-R) discs, finalized digital audio CD-Rewritable (CD-RW) discs and CD-DA format digital audio CD/CD-R/CD-RW discs.

LOADING A DISC

1. Press the FUNCTION button on the unit to select CD mode.
2. Press the OPEN/CLOSE button to open the CD door, [OPEN] will be shown on the display.
3. Place an audio CD/MP3 DISC into the tray with the front side facing up.
4. Close the CD door. The display will show the [READING], then the total number of tracks and play time would be shown, and the playback will starts from the first track.
5. To remove the CD, press STOP button to stop playback, and then press OPEN/CLOSE button to open CD door, the display will show [OPEN]. Hold the CD by its edges, and carefully take it out.

NOTE: Make sure the disc is stopped before opening the CD DOOR. To ensure good system performance; wait until the unit completely reads the disc before proceeding. If no disc loaded into the tray, or the disc is unreadable, the display will show [NO DISC].

PLAYING A DISC

1. The unit will start playback from track 1 after reading finished. The track no. and play time would be shown on the display. To pause playback, press the ▶II/PAIR/SCAN button. The play time and current track no. will flash on the display. To resume playback, press the ▶II/PAIR/SCAN button again.

2. To stop playback, press the STOP button, the total number of tracks and play time will show on the display.

SELECTING A DESIRED TRACK/PASSAGE

• To select a desired track

Press the ▶/TUN+ or ◀/TUN- button during play until the desired track appears on the display. It will start play automatically. In stop mode, press the ▶/TUN+ or ◀/TUN- button to select the desired track, press the ▶/PAIR/SCAN button to start playback.

• To search for a particular passage during playback (track scanning at high speed)

Press and hold the ▶/TUN+ or ◀/TUN- button to scan the current playing track at high speed until desired point passage, and then release the button. Playback will start again from this point.

• To select a song which track number exceeds 10 (for MP3 disc only)

To select a song/track which number exceeds 10, Press the 10/M/FOLD.- or 10/M/FOLD.+ button. Each time you press these buttons, you skip 10 tracks forward or backward, then press the ▶/TUN+ or ◀/TUN- button to select desired track.

• To Select A Desired Folder (for MP3 disc that contains more than one folder)

To select a desired folder during playback, press and hold the 10/M/FOLD.- or 10/M/FOLD.+ button. Each time you press and hold these buttons, you skip one folder forward or backward.

PROGRAMMING TRACKS

Programming tracks of disc are possible when playback is stopped. Up to 20 tracks for CD disc and 99 tracks for MP3 disc can be stored in the memory in any order.

1. In stop mode, press the PROG./P-MODE button to enter program setting, the [PROG] logo will flash on the display and show [P-01].
2. Press the ▶/TUN+ or ◀/TUN-, 10/M/FOLD.- or 10/M/FOLD.+ button to select the first desired track to be programmed.
3. Press the PROG./P-MODE button to enter. The display would flash [PROG] and show [P-02].
4. Repeat steps 2 & 3 to store other desired tracks until all tracks are programmed.
5. Press the ▶II/PAIR/SCAN button to start playback from the first programmed track.
6. Press the STOP button to stop program playback. To clear the program, you may press the STOP button when the disc stopped and open the CD Door, program will be erased.

REPEAT PLAY

• To Repeat a Single Track

Press PROG./P-MODE button on unit during play, the display will show [and the current track will be played over an over again. To cancel repeat play, press PROG./P-MODE button on unit until [disappears from the display.

• To repeat all the Tracks

Press PROG./P-MODE button on unit until the [ATL] shows steadily on the display, all tracks on the USB will be played over and over again. To cancel repeat play, press the PROG./P-MODE button on unit until [ATL] disappears from the display.

• To repeat the folder (only for USB which contains more than one folder)

Press the PROG./P-MODE button on unit until [QTR] shows steadily on the display, the current folder will be repeated over and over again. To cancel repeat play, press the PROG./P-MODE button on unit until [QTR] disappears from the display.

RANDOM PLAY

- Press the PROG./P-MODE button on unit in play mode till the [RAN] shows steadily on the display, the random play will start from next track automatically. Press the PROG./P-MODE button on unit again until the [RAN] disappears from the display to cancel.

INTRO PLAY

- Press the PROG./P-MODE button on unit in play mode till the [INTRO] shows steadily on the display, the intro play will start and scan 10 seconds for every track. To cancel intro play, press the PROG./P-MODE button until [INTRO] disappear from the display.

USB OPERATION

1. Press the FUNCTION button on unit to select USB mode.
2. Plug the USB memory stick to the USB port on top of the unit. Playback will start automatically from Track 1.
3. To pause playback, press the ▶II/PAIR/SCAN button on unit. The current track no. and playing time will flash on the display. To resume playback, press the ▶II/PAIR/SCAN button again.
4. To select a desired track, press the ▶/TUN+ or ◀/TUN- button respectively during playing until the desired track appears on the display. The unit will start play automatically.
5. To search for a particular passage during playback, press and hold the ▶/TUN+ or ◀/TUN-button to scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.
6. To select a song which track number exceeds 10, press the 10/M./FOLD.+ or 10/M./FOLD.-button each time to skip forward/backward 10 tracks, then press the ▶/TUN+ or ◀/TUN- button to select desired track.
7. To select a desired folder (if the USB contains more than one folder), press and hold the 10/M./FOLD.+ or 10/M./FOLD.- button each time to skip forward/backward a folder, then press the ▶/TUN+ or ◀/TUN- button to select desired track.

To set “Programming Tracks” / “Repeat Play” / “Random Play” / “Intro Play”, proceed as described in the previous chapter “CD / MP3 OPERATION”.

IMPORTANT: The USB port is intended for data transfer only, the external devices cannot be charged via this USB port. The use of USB extension cords is not recommended. Don't unplug the USB from the unit when playing or reading the USB device.

BLUETOOTH OPERATION

1. Press the FUNCTION button on unit to switch to BLUETOOTH function, the LCD will display [BLUETOOTH] and the pair indicator will flash at high speed.
2. Turn on the Bluetooth function on the device, scan the unit GoGEN HAPPEE and connect, then input the password 0000 if required, the pair indicator keep light up to indicate connection done, and the display will show [BLUETOOTH]. Press Play to start playback.
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Press and hold the /PAIR/SCAN button to disconnect Bluetooth.

NOTE: The Bluetooth works best within 10 meters in open air.

AUX-IN OPERATION

1. Press the FUNCTION button on unit to select the AUX mode.
2. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable. (audio cable is not included)
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

MIC JACK OPERATION

Microphone input is available in all modes.

1. Connect your microphone to the 6.3 mm MIC JACK found on the top panel of the unit.
2. Press the MIC VOL.+/- button on the unit to increase or decrease the microphone volume.
3. Press the ECHO Button to turn on or off the echo effect of the microphone.

COMPACT DISC MAINTENANCE

1. Always use a compact disc bearing the mark as shown.
2. Notes on handling discs

Removing the disc from its storage case and loading it. Do not touch the reflective recorded surface. Do not stick paper or write anything on the surface. Do not bend the disc.

1. Storage

Store the disc in its case. Do not expose discs to direct sunlight or high temperatures, high humidity or dusty places.

1. Cleaning a disc

Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth. The disc should be cleaned from the center to the edge. Never use benzene, thinners, record cleaner fluid or anti-static spray. Be sure to close the CD door, so the lens is not contaminated by dust. Do not touch the lens.

TECHNICAL SPECIFICATIONS

GENERAL

Power Source AC100-240 V\~60/50 Hz

Power consumption 39 W

Battery Playback Time 22 hours (50% Volume)

Weight Approx. 8,1 kg

Dimensions Approx. 280 x 640 x 280 mm

Operation temperature + 5 °C to + 40 °

RADIO SECTION

Tuning Range FM: 87,5 - 108 MHz

BLUETOOTH SECTION

Bluetooth version V5.0

Compatible Bluetooth profiles Advanced Audio Distribution Profile (A2DP)

Reception range 10 meter (line-of-sight distance)

Bluetooth Frequency 2402 – 2480 MHz

EIRP 0,167 dBm

COMPACT DISC SECTION

Optical Pickup 3-Beam Laser

Frequency Response 100 Hz - 16 KHz

AUDIO SECTION

Power output 90 W (RMS)

AUX in jack 3,5 mm

Microphone jack 6,3 mm

ACCESSORIES: Instruction Manual, AC Cord, FM antenna, Wired microphone

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type BPS736CD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

BEVEZETÉS

ELSŐ HASZNÁLAT

ENERGIAFORRÁS

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN
